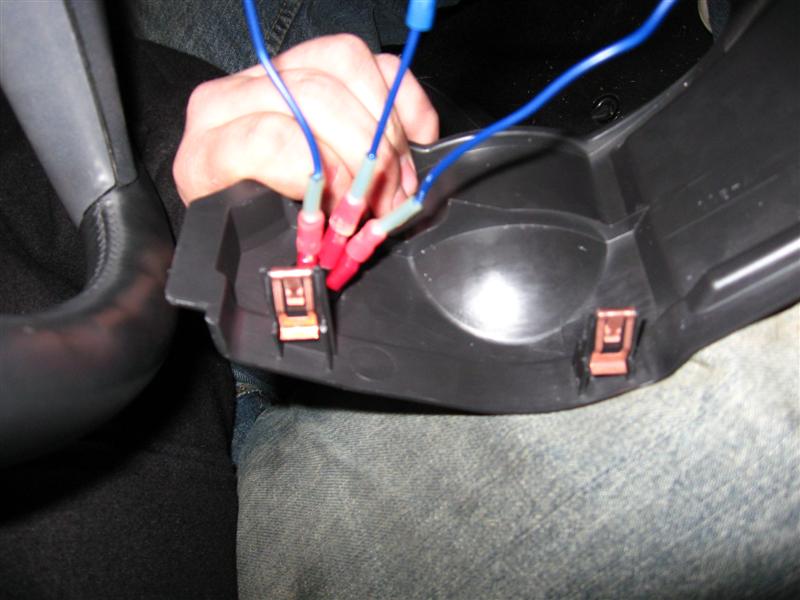

Step 15:  Open the fuse panel located on the lower passenger kick panel.  Install the add-a-fuse as shown.  The first 5 or so fuse spots on the left are only on with the ignition.  The rest are on always.  I chose to go with the right side, so that the fuse box cover would fit back on.  I cut a small notch in the fuse box cover, so it could go back on with the wire hanging out.  I routed the wiring behind the radio.  I used a flyswatter, but anything thin and rigid would work, to pull my power and passenger solenoid wire through. Route all wiring to your switch location and connect to the switch.  Use a butt connector to combine the two solenoid wires together.  Use a small piece of wire on the other side, connected to a crimp disconnect.  Add a crimp disconnect to the ground (if used) and power.  Connect all wires to the switch.  If using an illuminated switch, find a ground.  I found a small screw right near my switch location that I put a ring terminal on.
