OK, 4.6 land...let's follow suit and have a dyno thread in here.

Submissions need to be in the following format:


==================================
your SN user name
### rwhp / ### rwtq

mod list goes here

[img] dyno_sheet.jpg [/img]
==================================




You can host your own dyno sheet via photobucket (or other host) or I can supply some FTP space as well. Email me if you would like me to host your sheet.

Submissions are to be made via Private Message to any 4.6 moderator, where that moderator can update this thread. Be advised, only posts of dyno sheets and details are going to be permitted to remain in this thread (i.e. only Staffers can post in this thread to update it).

Let's see what you've got!

[timeless2]

CobraM23
278rwhp / 306rwtq

Engine Mods:
PI heads/intake, VT stage II NA cams, Hooker longtubes & offroad X, Magnapak catback, accufab 75mm TB, C&L plenum, Steeda U/D pulleys, MSD coilpacks & wires, JLT RAI, SCT dynotune by Scott Noe
Chassis Mods:
MM full length SFCs, aluminum D/S, PA street/strip valvebody, B&M hammer shifter, 4:10 gear, PA racing tubular k-member, 90/10 struts, foxbody 4 cyl front springs cut 1/2 coil, eibach sportline rear springs
Exterior Mods:
00R hood, cobra front bumper, wingless, badgeless, silver bullitts

[timeless2]

Crzyhrse
273.1 RWHP/290.1 RWTQ

Performance Mods: "Magnapack" Catback, Bassani Catted X, C@L Tru-Flo Intake, Predator Custom Tune.

[Uncle Meat]

Uncle Meat

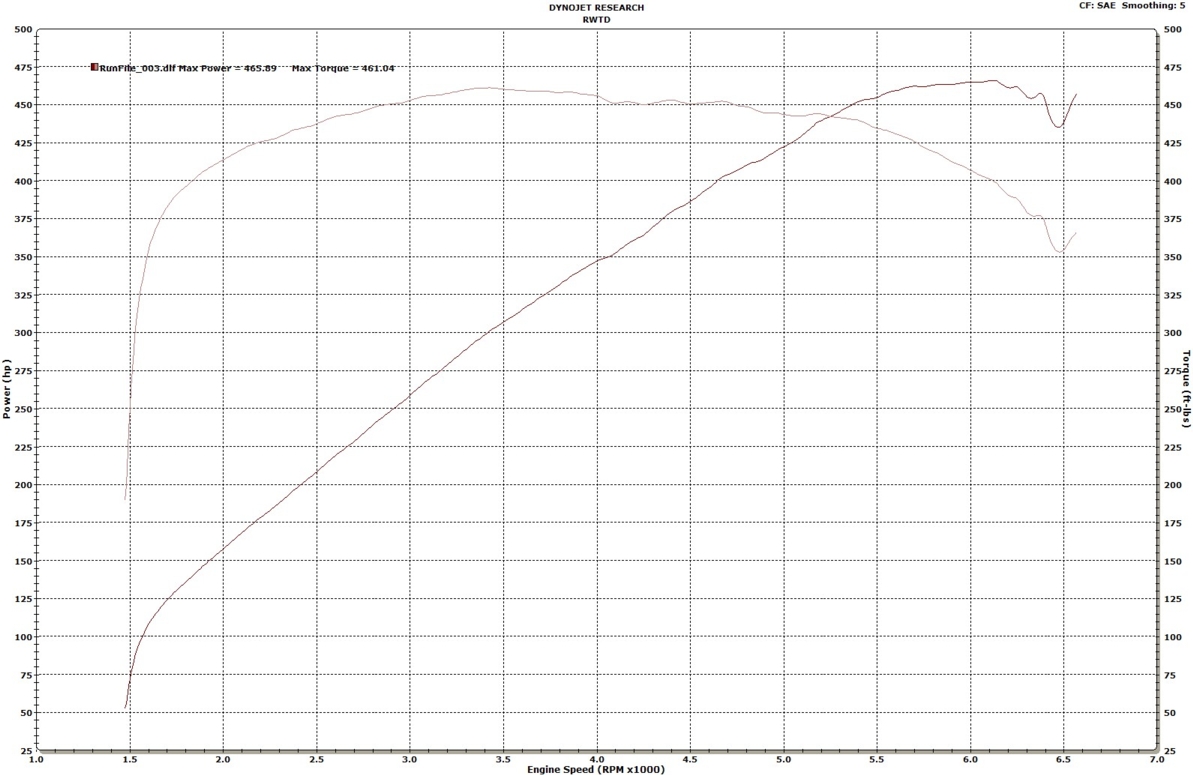

465 rwhp / 461 rwtq

K&N FIPK
BilletFlow 2.93 upper
C&L Inlet pipe
JBA Shorties
Magnaflow Catted "X"
Magnaflow C/B
Tuned by James @ RWTD

[timeless2]

'03GTinFLA
256.9 RWHP / 292.8 RWTQ

Perf Mods: Mac LT's, O/R Prochamber, Mac Cat-back, K&N FIPK, Accufab 75 cm TB/Plenum, Predator tune.
Soon to be updated with #'s on Stage 2 heads and Cams with UDP's.

[timeless2]

02TruBlueGT
244.2 Rwhp/ 282 Rwtq

Slp Catback,Slp Catted Xpipe, BBK 70mm TB, BBK CAI

[timeless2]

SaleenGT2001
375 HP 385 TQ

MODS
MPH Novi 2000 Mongoose kit 10 psi
Custom Front Mount Intercooler 24x12x3 core
Vortech Mini Race bypass valve
Built Dodge Viper T56 transmission
Aluminum driveshaft
Driveshaft safety loop
Maximum Motorsports full length subframes
Mac Off-Road x pipe
SLP Loud Mouth catback
BBK 75 mm throttle body
SCT custom tune
Lightning 90mm MAF
42LB injectors
Pro 5.0 short throw shifter
Fidanza 14lb aluminum flywheel
McCloud HD 11" clutch and pressure plate
Motive 3.90 gears
Auburn Pro 31 spline differential
Moser 31 spline axles w/ 3" studs
C-clip eliminators
Weld ProStar rims with 275/50/15 M/T Street ET radials
Autometer Lunar boost and A/F ratio gauges
Raptor shift light
Steeda clutch quadrant and firewall adjuster

[Dan_Soprano]

Dan_Soprano
586.93rwhp 518.66rwtq

04 Cobra, Kenne Bell 2.2 @ 17#, 60# injectors, SCT BA2400 MAF, Catted Prochamber, Magnaflow Catback, K&N FIPK, Full set of Billetflow Idlers.

[timeless2]

AmBo
347 rwhp / 345 rwtq

Vortec SQ-V2 Mongoose Kit + MPH Boost Pipe, Accufab 75mm TB/Plenum, 3.73s

[timeless2]

Mach1Run
292 rwhp / 319 tq

Weld in Flowmaster 40s, 4.10s, Php Intake spacer, T56 transmission, Predator tune tweaked by Gearheads.

[timeless2]

helty
370hp* / 377 ft/lbs

*peak hp # says 393 due to lean spike @ 5800 rpm

2001 Bullitt

MPH Vortech SQ Mongoose kit @ 10 psi
MPH Powerpipe
3.73's

[timeless2]

MRaburn
412.1 hp / 389.7 tq



Stock Catback
Vortech SQ Supercharger w/ Aftercooler
Classic Design Concepts Shaker
Steeda Supercharger Tune
Dual Fuel Pumps In-tank
Tremec T-56 6-Speed
Steeda Sport Springs
MAC Stainless Prochamber
Pro5.0 6-Speed Shifter
Pro5.0 3.73 Gears
Autometer Boost and Fuel Gauges
18X9 Bullitt Wheels
Goodyear G3 275/40s
MGW Accessories
Fiore Firewall Adjuster and Quadrant

[san~man]

Hotmustang331
450/478 @ 8PSI and 479/512 @ 9PSI

MOD LIST:
Twin 57mm Turbos
VT stg 1 cams
P&Pd Trick flow plenum
BBK 75MM thrttle body
JLT RAI
March U/D pulleys
Electric water pump
FRPP 3.73 gears
BBK ceremic LTs
Dr gas O/R X pipe
Magnaflow SS catback
SCT-4 bank chip with a MPH custom dyno tune

[timeless2]

blackink00
300rwhp / 443rwtq

NX 100 shot, Steeda UDP, BBK O/R X-pipe, Bassani cat-back, Mac cai, BAER brakes, Screamin' demon coil packs, Livewires, un-tuned

[san~man]

billfisher
249.9 @ 4250 / RWTQ: 340.1 @ 3650 automatic SAE

mods: under drive pullies, filter, SLP offroad "X", cmc delete.

[timeless2]

ForPointSex
256 rwhp / 296 rwtq

K&N drop-in, Densecharger TB to MAF tube, C&L Plenum, Accufab 75mm Throttle Body, Steeda Under Drive Pulleys, Magnaflow catback, Magnaflow catted X pipe, Mail order SCT Xcal2 Flash Tune from Modular Depot.

[timeless2]

Ordie
228.1rwhp / 263.2rwtq

K&N only

[timeless2]

Jivepepper
515rwhp / 453 rwtq

Vortech V1 S-trim @ 13psi
MMR mod 900 shortblock
Houston performance S292 cams
stock heads and valve springs
stock intake
Professional products 75MM throttle body/plenum
Mac lt's/or h-pipe/catback
ebay intercooler
afm power pipe

[timeless2]

2002GreyGT
242 rwhp / 285 rwtq

Engine Mods:
Tuneable Induction Intake
BBK 75mm T/B and Plenum
MAC Catback Exhaust
Bullitt Suspension
MGW Shifter
MM C&C plates
Full Length Weld in Sub Frames
13" Cobra Brakes with SS lines

[timeless2]

2k1GTfromSC
609rwhp / 546 rwtq

2003 Cobra

Engine Mods:
Whipple 2.3l 17psi
Bassani O/R x pipe
Bassani Cat Back
Steeda CAI
Mafia
60lb injectors
BAP
Accufab TB

[timeless2]

tangerine96gt
361.8rwhp / 363.7rwtq

Mongoose Vortec V2-SQ Kit + MPH Boost Pipe
BBK 70mm TB/Trick Flow Plenum
Bassani O/R X-Pipe
Weld in Flowmasters
4.10's

[timeless2]

NOSJUNKE

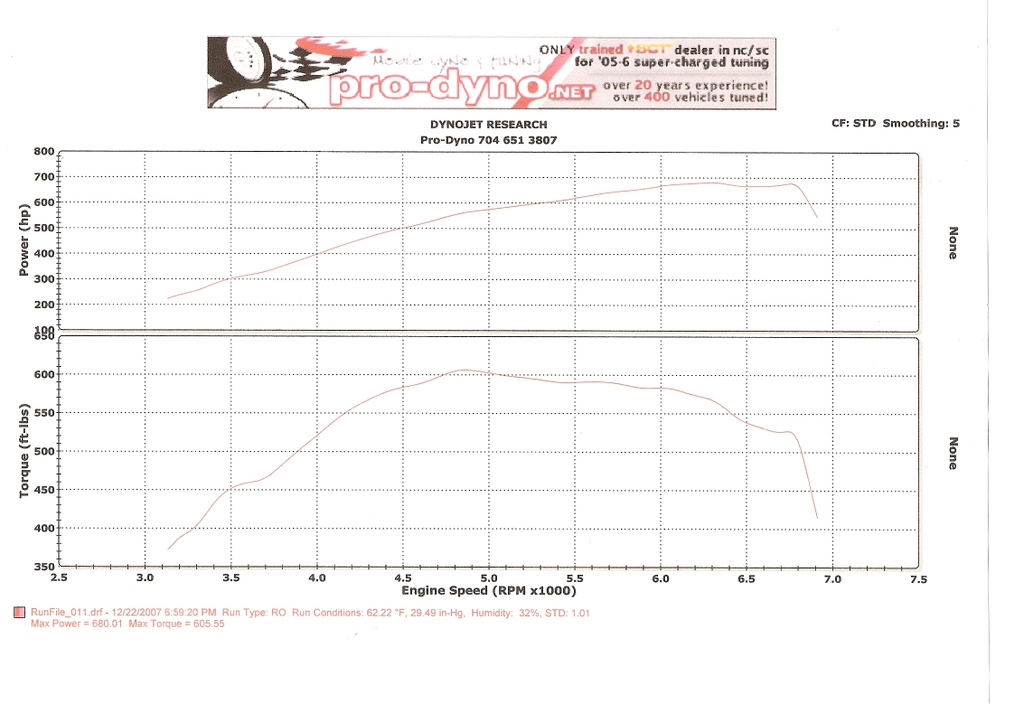

680.1whp / 605.5lb-ft

MODS:

Engine:
Procharger D1SC
Forged MMR pro MOD 950 5.0 stroker
-balanced and blueprinted
-ford 1200hp MMR crank
-4340 Forged H-beam manley rods and ARP bolts
-forged lightweight manley racing pistons
-Speed Pro tri-metal bearings with moly rings
-MMR Ultimate oil pump (used on their 2000hp drag car)
3 core race intercooler
20lb 8-rib pulley
Kooks 1-7/8ths stepped 1-3/4 long tubes
Kooks mid-pipe
Accufab 60mm twin bore throttle body
Meizere electric water pump
AFM powerpipe
Magnaflow stainless cat-back
Professional MAS 3 made specifically for the Procharger blow throw set-up calibrated for 60lb injectors

Suspension/drivetrain:
Steeda sport springs
Steeda ‘stop the hop kit’
-IRS Brace
-polyurethane bushings
-rear IRS control arm bushings
Fidanza lightweight flywheel
Centerforce DF clutch
New clutch cable
MGW short shifter
T-56 6 speed 26-spline with upgrade billet keys and synchros
04 cobra driveshaft
Tokico D-Spec struts
Steeda full-length sub frame connectors with seat braces
4.10 FMS gears
Upgraded 10th Ann. Cobra Calipers RED w/hawk pads
Powerslot slotted and coated rotors
Maximum motorsports caster/camber plates
17 Chrome FR500 wheels 17x9 front with 275/45/17 and 17x10.5 rear with 315/35/17 summitomos



Interior:
Speed of sound dual gauge pod
Autometer phantom boost gauge
Autometer phantom fuel pressure gauge
Eclipse AVN 5435 double-din CD/DVD/NAV unit with Sirius Radio and remote
Oz Audio matrix elite 6.5 components-front doors
Dynamat extreme throughout car
Rockford Fosgate 5.25 mid-woofers for rear fill
JL Audio 450/4 4 channel amp
JL Audio 500/1 mono amp
2 JL Audio 10w3 subwoofers in custom fiberglass enclosure
JL Audio RBC-1 remote bass control knob
6-speed shift knob
MGW short shifter

Exterior:
03/04 cobra front bumper
04 Mustang black headlights
Blacked out tail lights
Window tint

Fuel system:
04 Cobra fuel tank
Ford GT fuel pumps
Zone 5 Cobra Stage II Modified FPDM
60LB Fuel Injectors
Braided stainless fuel lines with Earls fittings

[timeless2]

Tripoli
308 RWHP / 323 RWTQ
2002 Mustang GT Coupe

Modifications:

* Naturally-Aspirated 4.6L SOHC - Stock shortblock
* Fox Lake Stage 2 heads (2003-2004 cores w/ deeper spark plug threads)
* VT Engines Stage 2 N/A cams
* Comp Cams 26125-16 High-Load valve springs
* Steeda underdrive pulleys w/ balancer
* Ignition Solutions Plasma Booster
* Tuned by Archie at Lone Star Performance with SCT Xcalibrator 2
* Mac cold air induction
* Accufab 75mm throttle body & upper intake plenum
* Hooker long tube headers
* Hooker off-road X-pipe w/ custom cut-outs

StangNet gallery

[timeless2]

Originally Posted by timeless2

Mach1Run
292 rwhp / 319 tq

Weld in Flowmaster 40s, 4.10s, Php Intake spacer, T56 transmission, Predator tune tweaked by Gearheads.

Mach1Run
305 RW / 322 TQ (STD)
298 RW / 315 TQ (SAE)

Modifications: T56 Transmission, MGW Short Shifter, Chrome 17x9 and 17x10.5 FR500s, Eibach Sportlines, Cobra Skirts, Wing Removed, Bassani O/R X and catback, PHP Intake Spacer, 4.10s, JLT RAI, Accufab Twin 60mm Throttlebody, NGK TR6, Tuned by Manny at HPP Motorsports

[timeless2]

Originally Posted by timeless2

SaleenGT2001
375 HP 385 TQ

MODS
MPH Novi 2000 Mongoose kit 10 psi
Custom Front Mount Intercooler 24x12x3 core
Vortech Mini Race bypass valve
Built Dodge Viper T56 transmission
Aluminum driveshaft
Driveshaft safety loop
Maximum Motorsports full length subframes
Mac Off-Road x pipe
SLP Loud Mouth catback
BBK 75 mm throttle body
SCT custom tune
Lightning 90mm MAF
42LB injectors
Pro 5.0 short throw shifter
Fidanza 14lb aluminum flywheel
McCloud HD 11" clutch and pressure plate
Motive 3.90 gears
Auburn Pro 31 spline differential
Moser 31 spline axles w/ 3" studs
C-clip eliminators
Weld ProStar rims with 275/50/15 M/T Street ET radials
Autometer Lunar boost and A/F ratio gauges
Raptor shift light
Steeda clutch quadrant and firewall adjuster

SaleenGT2001
751 rwhp / 634 rwtq

MODS
Paxton Novi 2000
Custom Front Mount Intercooler 24x12x3 core
Tial 50mm BOV
Viper spec T56 transmission
Aluminum driveshaft
HPM driveshaft safety loop
Maximum Motorsports full length subframes
SLP Loud Mouth catback
BBK 75 mm throttle body
SCT FastLane custom tune
60LB injectors
MGW short throw shifter
MGW shift knob
Fidanza aluminum flywheel
Spec stage 3+ clutch
Motive 3.90 gears
Auburn Pro 31 spline differential
Moser 31 spline axles w/ 3" studs
Moser C-clip eliminators
Autometer Lunar gauge cluster
Autometer Lunar boost and fuel pressure gauges
AEM wideband gauge
Raptor shift light
Steeda clutch quadrant and firewall adjuster
Cobra fuel tank Dual GT supercar pumps
SLP line lock
SCT 3000 MAF
Tokico HP shocks/struts
Cobra brakes front & rear
P51 intake
2004 Cobra crank
Ported PI heads
MPH custom grind blower cams
Manley Billet I-Beam rods
Mahle pistons
ARP head and main studs
CPR fuel rails
Oil pump with billet gear
Canton oil pan
Bassani mid length ceramic headers
Bassani off road midpipe
new ford racing block
8 Rib kit
Innovators West 10% OD crank pulley
modified FPDM
8 gauge wiring for fuel pumps
PPRV delete
NOS intercooler spray bar
NOS polished 10lb bottle and billet bracket
Spec stage 3+ clutch
CPR fuel rails
8AN braided fuel line
Welded axle tubes
UPR lower control arms
UPR upper control arms
