    So Here it Goes!!

    Current Set-Up
    - Ford 8.8 Solid Rear End
    - Built By Stu’s Trans in Long Beach, CA. (25,000 Miles on Build)
    - New Wheel bearings, Pinion Bearings, Seals, and Axle Vent.
    - Ford Racing 3.73 Gears.
    - Auburn HD Limited Slip Diff.
    - Maximum Motorsport Adjustable Lower Control Arms.
    - Ford Racing Upper Control Arms.
    - New OEM Ford Diff Housing Bushings.
    - 98 Cobra Rear Sway Bar (The strongest SRA Sway Bar Made)
    - Steeda Adjustable Rear Sway Bar.
    - Tokico 5 Way Adjustable Shocks
    - Eibach Sportline Springs
    - J&M SS Braided Lines in the Rear
    - Bassani Catback w/3.5 Inch Tips

    New Set Up
    - 03 Cobra IRS with Carbon Fiber Trac-Loc
    - 3.55 Gears
    - Maximum Motorsports Poly Subframe Bushings
    - Maximum Motorsports SS Braided Lines.
    - 10mm MALE TO 10mm MALE 7-5/8 INCH LONG METRIC STEEL BRAKE HARDLINE
    - CNC T ADAPTER FOR 10mm x 1.0 METRIC BUBBLE FLARE BRAKE LINES
    - Rotorworks Slotted Cobra Rotors
    - H&R Sport Springs
    - 03 Cobra Bilstein Shocks and Struts

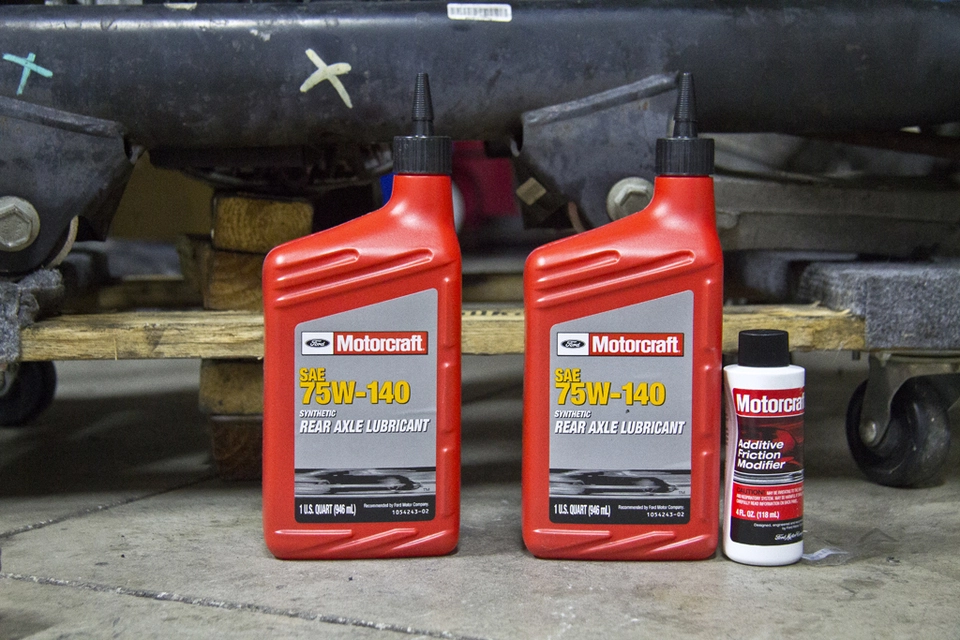

    - Ford Motorcrafts Fluid
    - Magnaflow IRS Catback.

    I got the entire IRS With catback and rear shock for $600!!! Bought everything else.

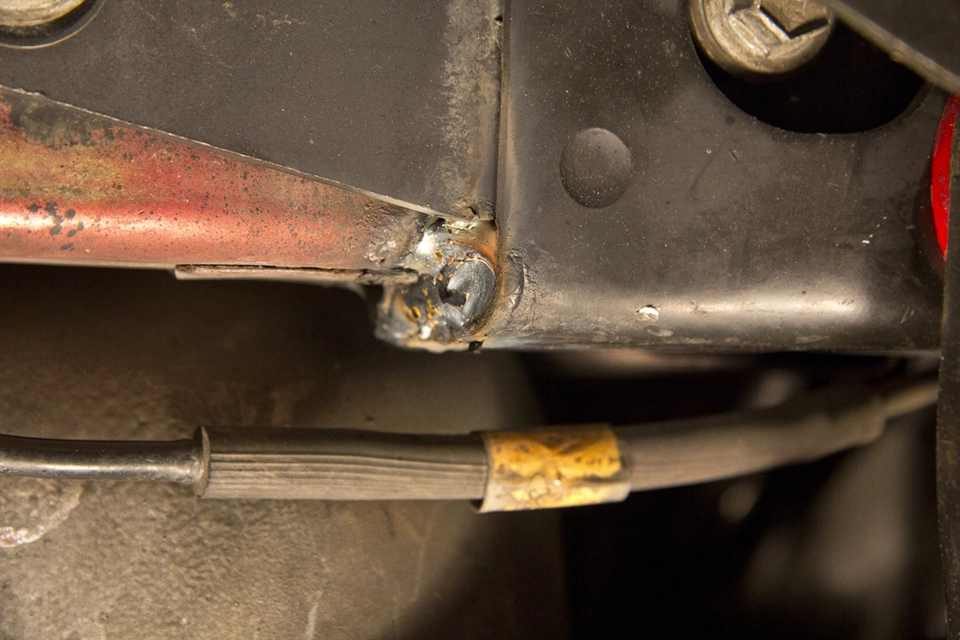

    Instead of drilling through the frame, i just welded the IRS to the frame.

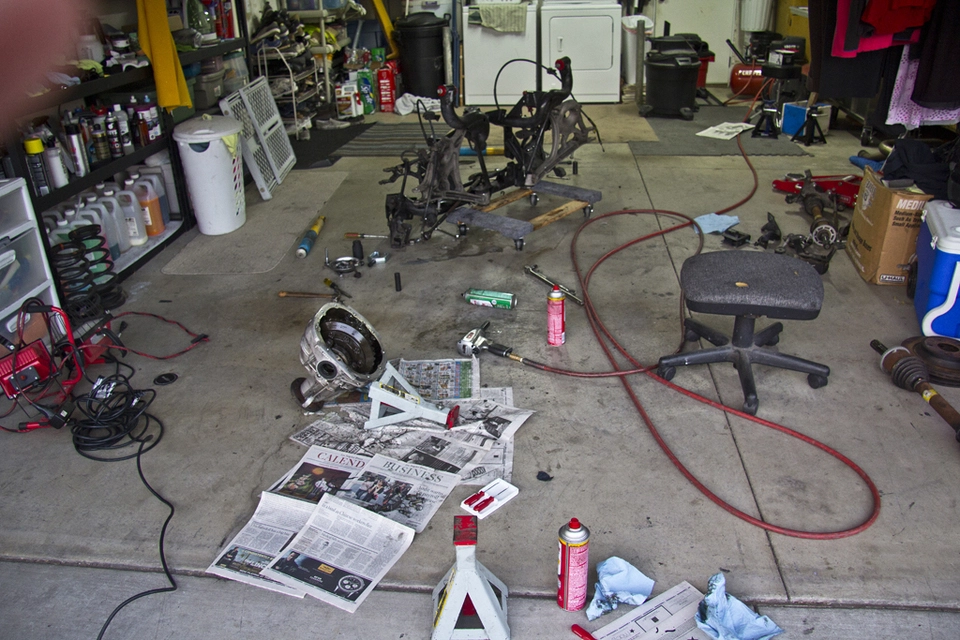

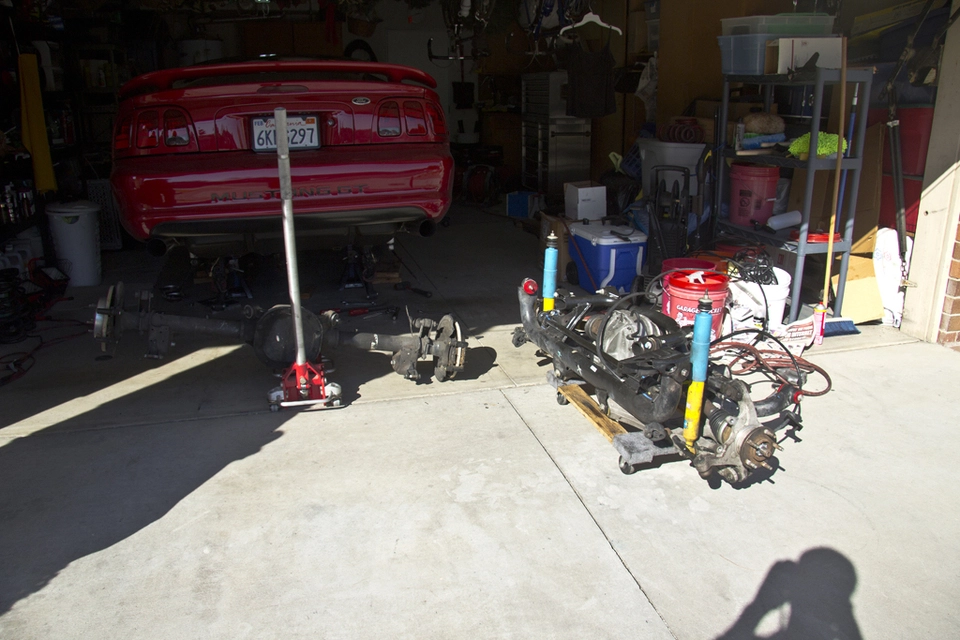

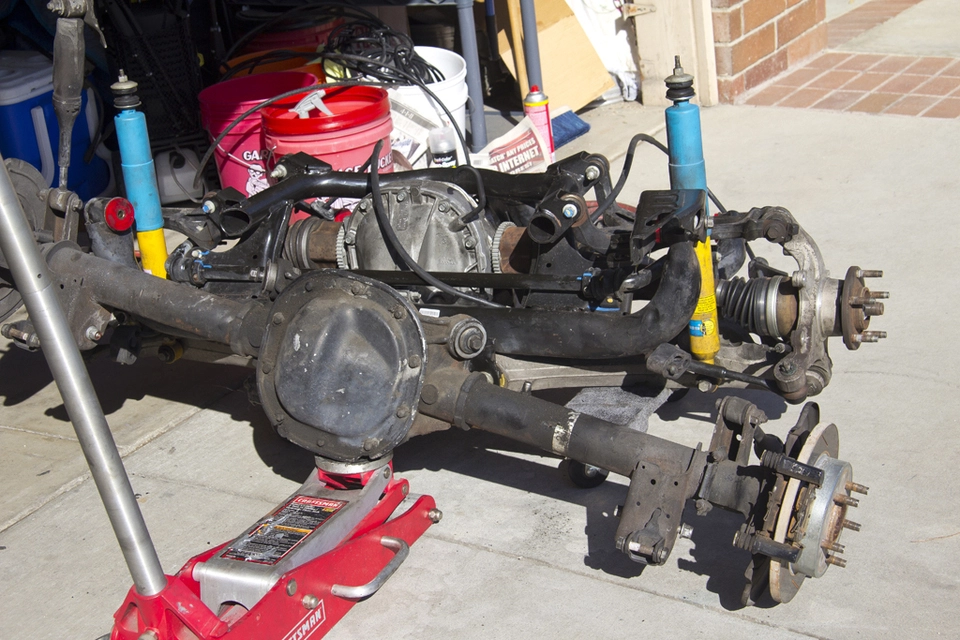

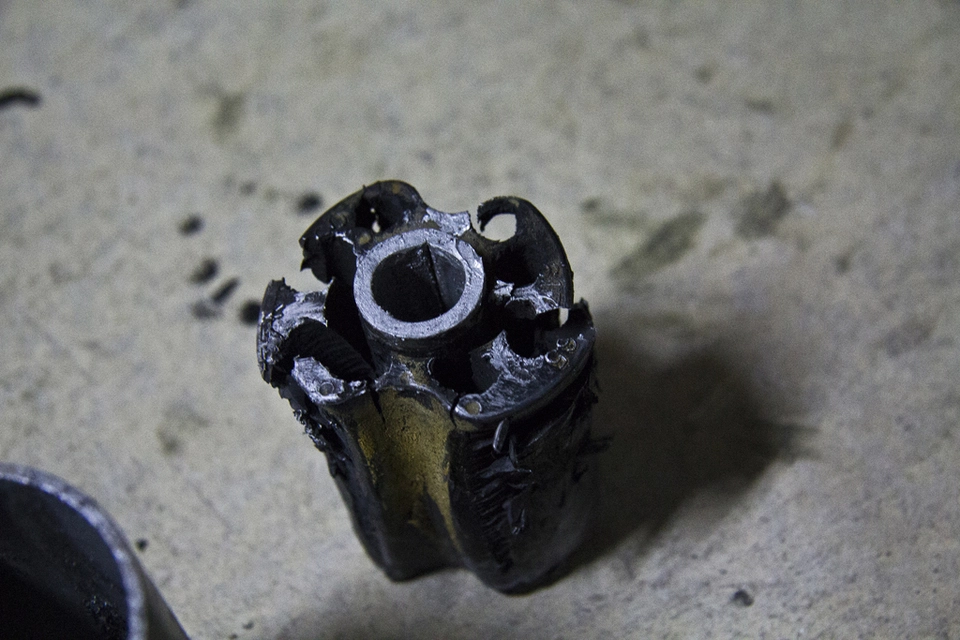

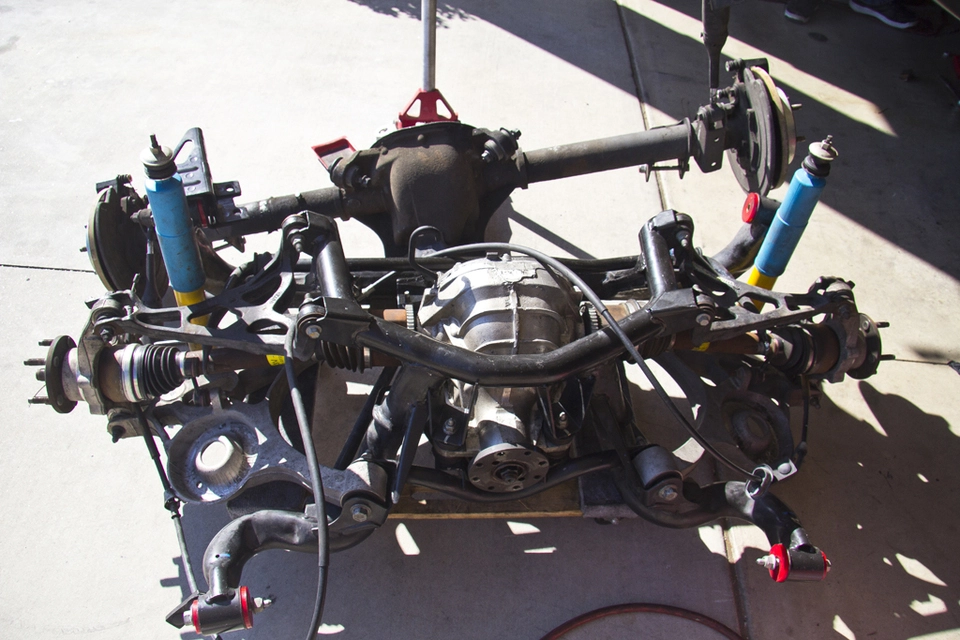

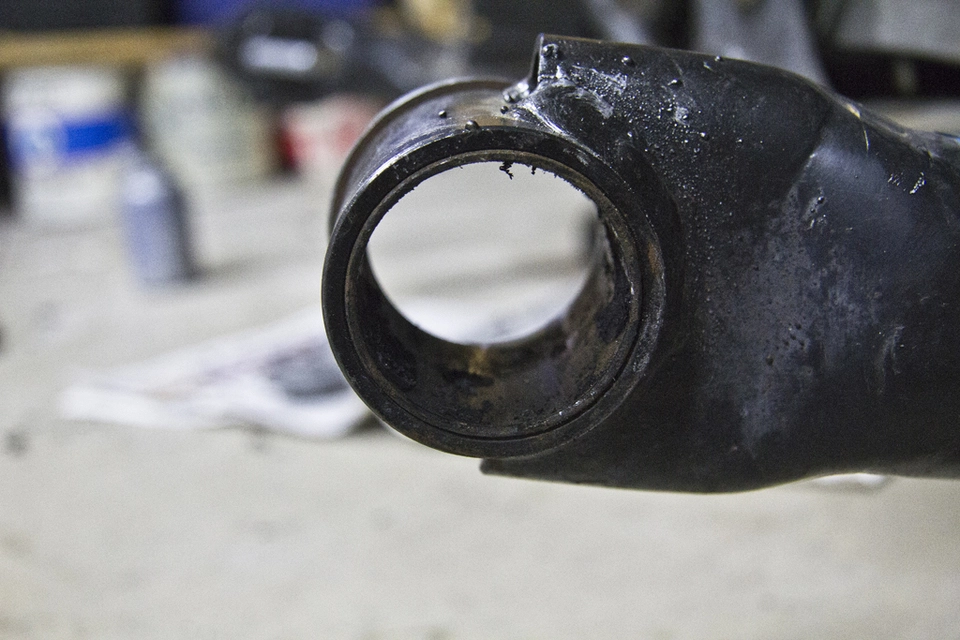

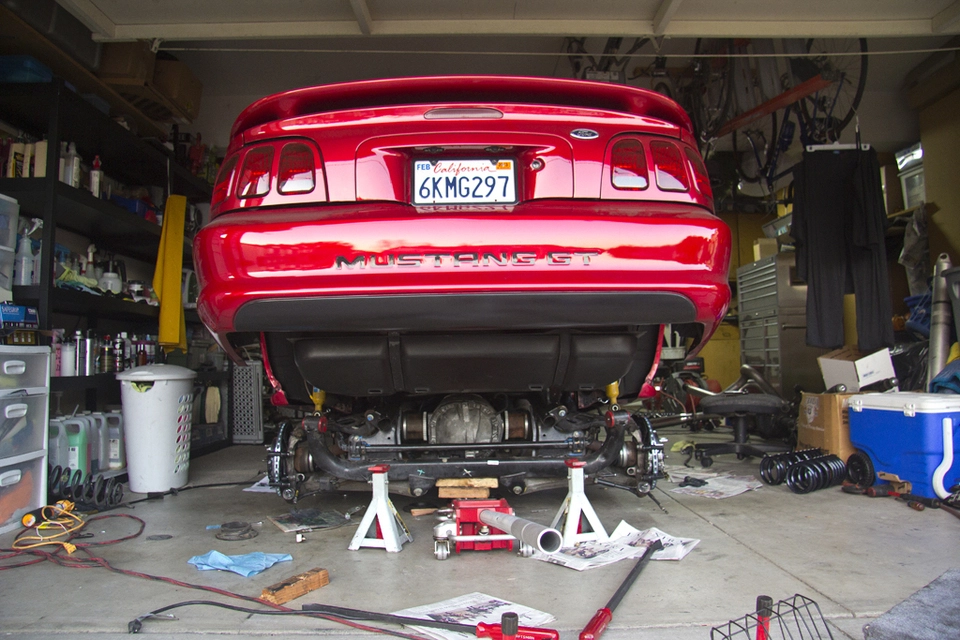

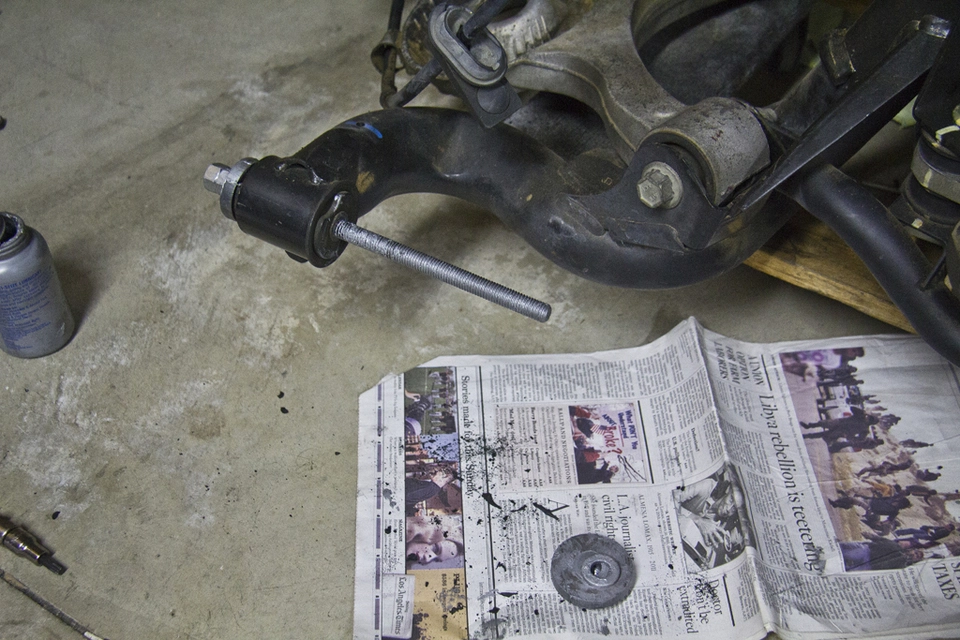

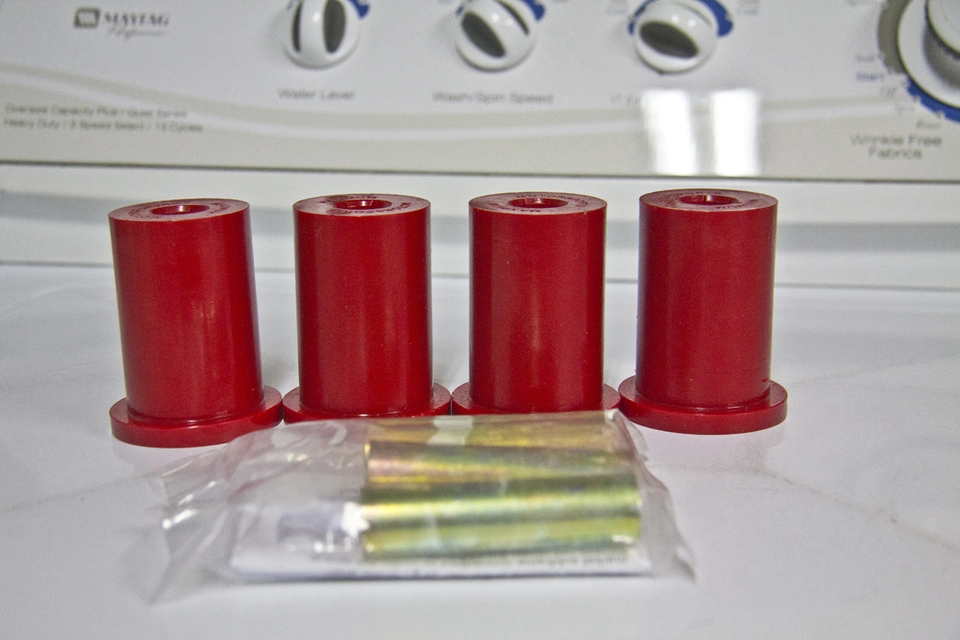

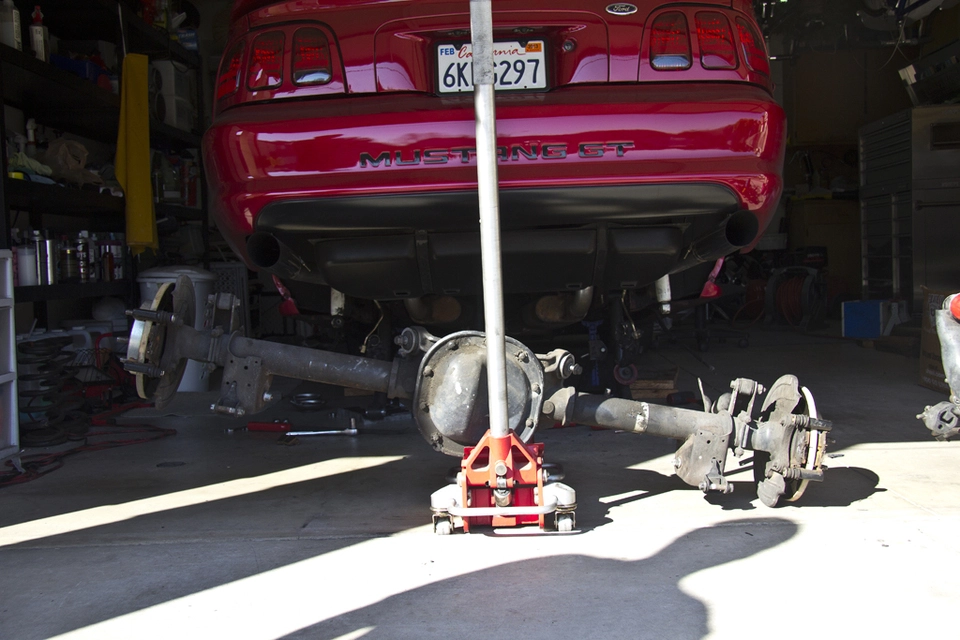

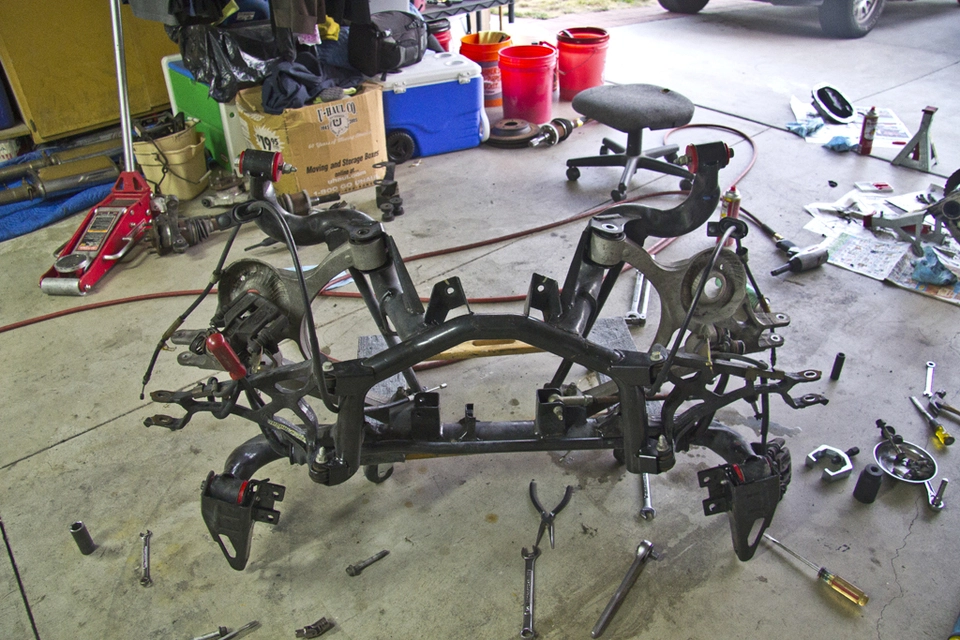

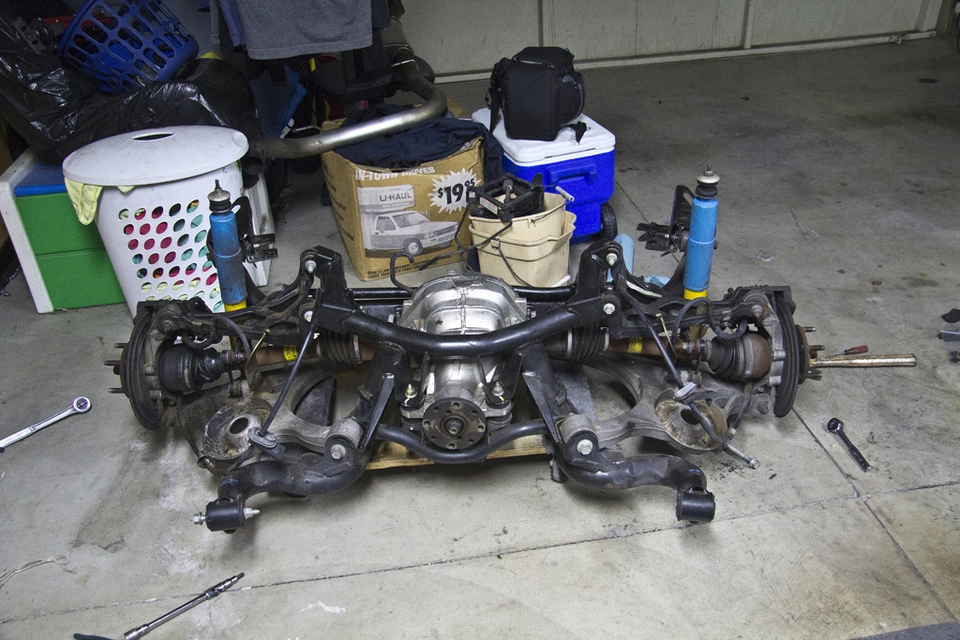

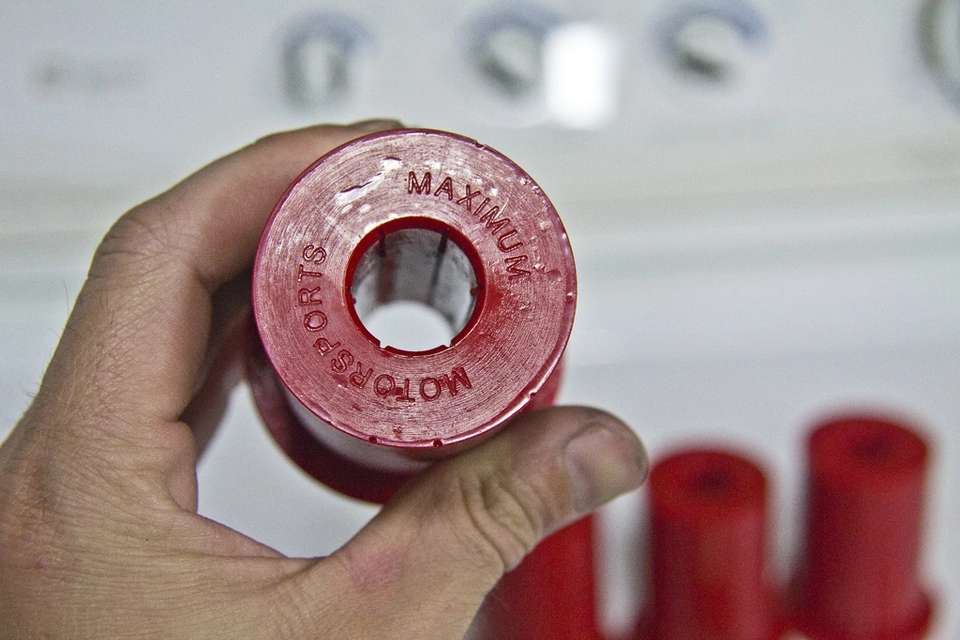

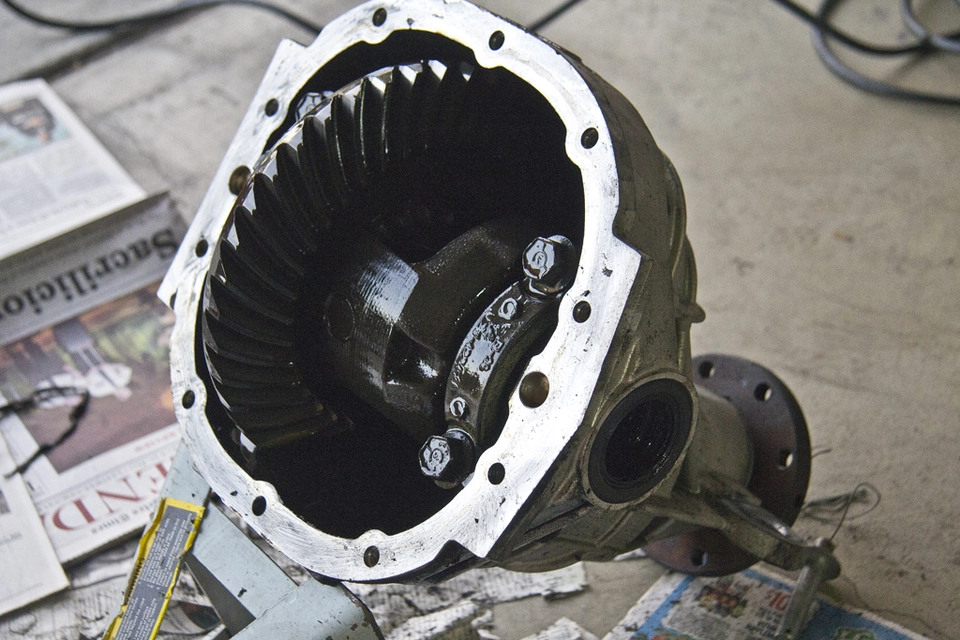

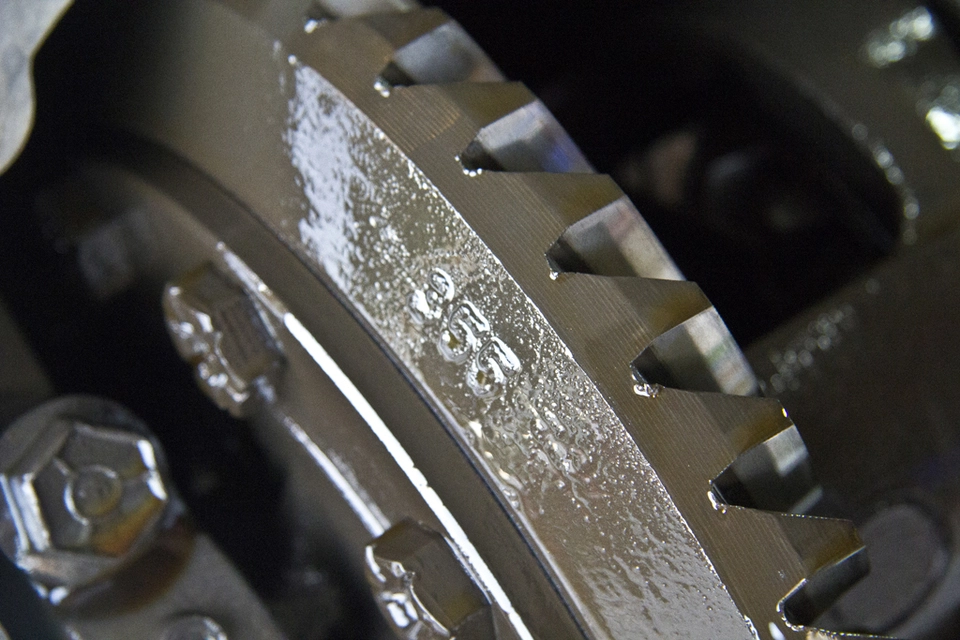

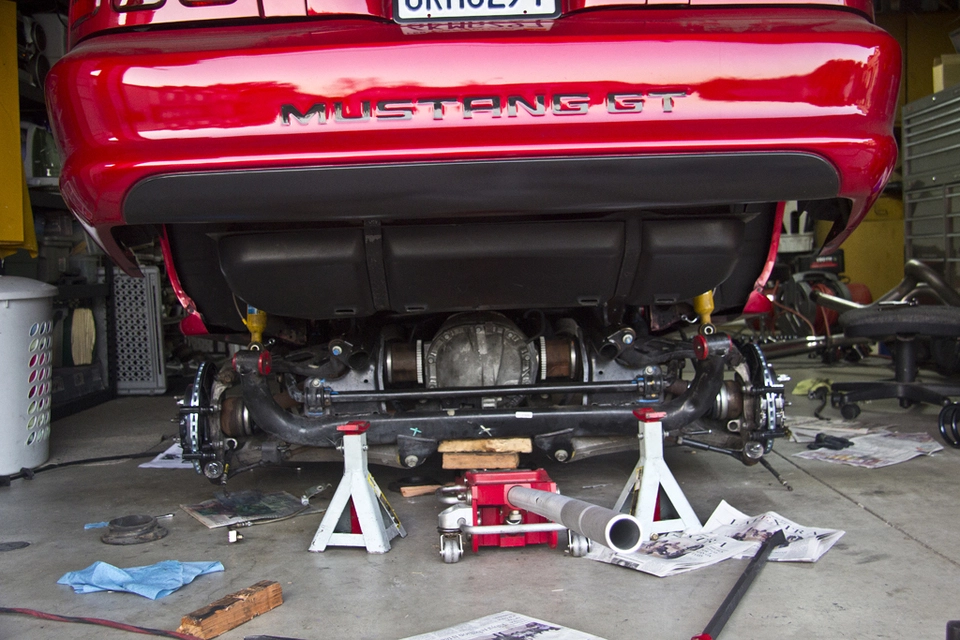

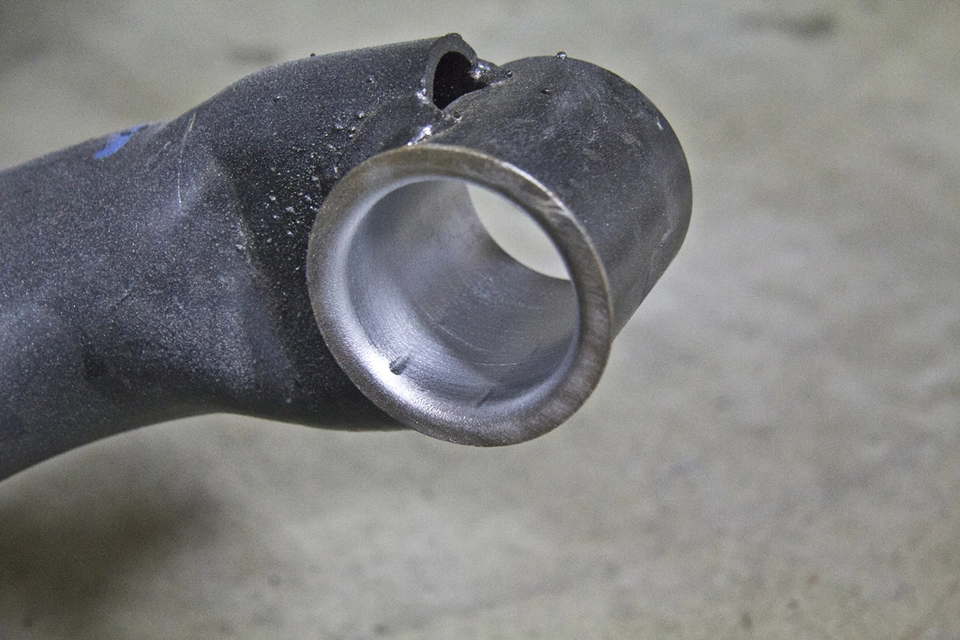

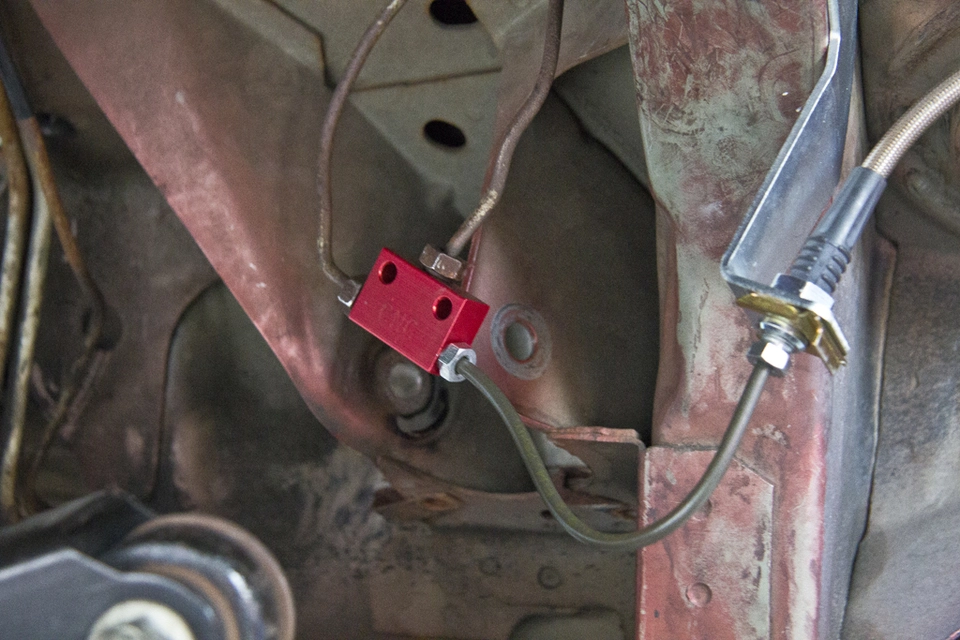

    Here is the Install

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

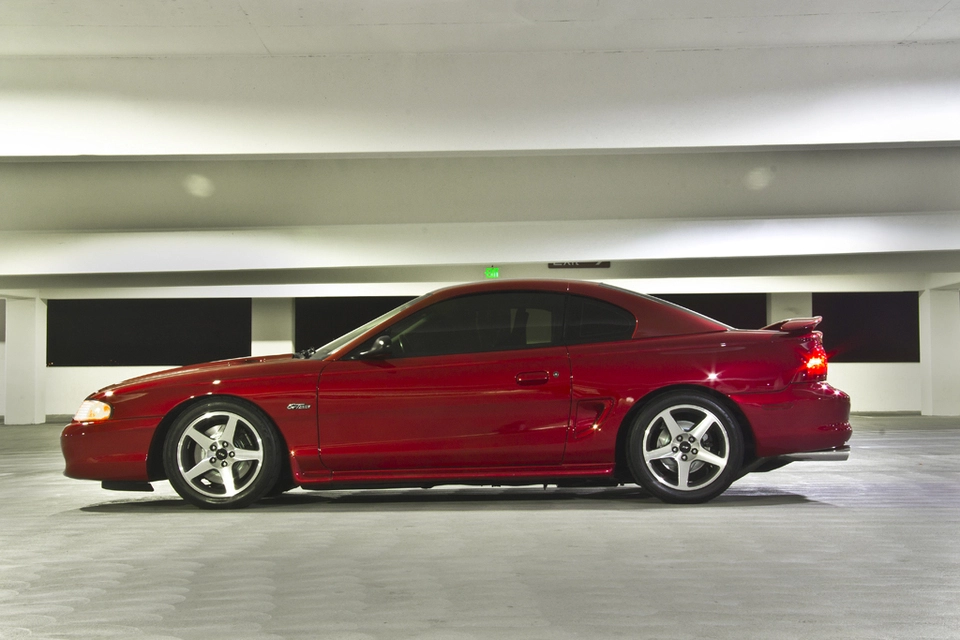

    FINAL RESULTS!!

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    #46
  7. txredgt

    txredgt Well-Known Member

    Joined:
    Oct 27, 2009
    Messages:
    1,432
    Likes Received:
    32
    Trophy Points:
    59
    Looks awesome as usual. I'm sure you plan to polish the pipes at some point. I had issues with the rear tires slightly cutting into the fender so I put iso's on the bottom of the rear and it made a great change in ride as well as just enough height to not cut the tires.

    I gotta fix the exhaust still and install the rear hangers to get them aligned perfectly.

    Do you plan on getting a rear dif brace or maybe the ford racing setup that includes an upgraded housing from FTBR?

    #47
  8. SRT Handz

    SRT Handz I tripped & fell down and cut myself & got blood

    Joined:
    Oct 10, 2004
    Messages:
    975
    Likes Received:
    21
    Trophy Points:
    19
    Location:
    La Mirada, CA
    I plan on taking the exhaust off and polishing it within the next 2 week :)

    #48
  9. superstang01

    superstang01 Member

    Joined:
    Oct 11, 2006
    Messages:
    454
    Likes Received:
    9
    Trophy Points:
    19
    Location:
    Kingston, On, Canada
    looks amazing like most of your work! enjoy it!

    #49
  10. brtnstrns

    brtnstrns Member

    Joined:
    Dec 19, 2003
    Messages:
    612
    Likes Received:
    7
    Trophy Points:
    19
    Location:
    Lewisville, TX
    Very nice. Any opinions on the handling and ride?

    I'm waiting to get my diff back from the shop with 4.10 gears and the upgraded differential cover. Gah can't wait. Gotta polish my exhaust as well.

    #50
  11. Red1990Lx

    Red1990Lx Member

    Joined:
    Nov 3, 2006
    Messages:
    82
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Ohio
    Blast from the past. I was wondering if you had a part number for that distribution block and did you have to change your companion flange from you SRA to the IRS? Getting ready to do the swap in a fox body! Thanks.

    #51
  12. txredgt

    txredgt Well-Known Member

    Joined:
    Oct 27, 2009
    Messages:
    1,432
    Likes Received:
    32
    Trophy Points:
    59

    http://www.pacificcustoms.com/CNC883.html

    That's the part I used. I changed the flange on the driveshaft as its a much easier change than on the SRA/IRS part. The IRS is loaded and it takes a ton of torque to get it back together. Hope that helps.

    #52
  13. trombonedemon

    trombonedemon Well-Known Member

    Joined:
    Jun 25, 2009
    Messages:
    2,595
    Showcase:
    3
    Albums:
    1
    Likes Received:
    35
    Trophy Points:
    59
    Location:
    U.S.A, U.S.A., U.S.A.!
    Dude I have ta' ask, are you a professional car detailor.

    #53
    Last edited: Jan 1, 2014
  14. txredgt

    txredgt Well-Known Member

    Joined:
    Oct 27, 2009
    Messages:
    1,432
    Likes Received:
    32
    Trophy Points:
    59
    He works for Chem Guys I'm pretty sure.

    #54
  15. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor
    Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,624
    Showcase:
    59
    Albums:
    8
    Likes Received:
    2,678
    Trophy Points:
    174
    Location:
    Box behind Walmart
    I have a question... :chin

    [​IMG]

    I don't see many SN95s slammed as low as this one. Is there an after market fender revision of some type that makes the front wheel well contour the wheel better when it's that low? The rear one seems like a better fit.

    Great job on the IRS. How much has the handling changed?

    #55
  16. sneaky98gt

    sneaky98gt Mustang Master

    Joined:
    Apr 24, 2008
    Messages:
    3,273
    Likes Received:
    162
    Trophy Points:
    94
    Location:
    NC State University
    He does (or at least used to).
    It may not be, but that pic looks like it's photoshopped to me.

    #56
  17. SRT Handz

    SRT Handz I tripped & fell down and cut myself & got blood

    Joined:
    Oct 10, 2004
    Messages:
    975
    Likes Received:
    21
    Trophy Points:
    19
    Location:
    La Mirada, CA
    No fender revisions. Fender are stock all around. Actually, it got lower when I did the IRS swap cause i went to H&R Sport Springs (03/04 Cobra Spec) and it lowered it down alot. I am also running no ISOs in the front and only the Upper ISOs on the back.

    The wheels fit the body so well in the front because they are 9 inch wide wheels all around.

    The pic is not photoshopped, that is the real ride height. It is that sexy.

    #57
  18. sneaky98gt

    sneaky98gt Mustang Master

    Joined:
    Apr 24, 2008
    Messages:
    3,273
    Likes Received:
    162
    Trophy Points:
    94
    Location:
    NC State University
    I think that's why I thought it was 'shopped. I knew it definitely didn't use to be that low, haha.

    #58
  19. Red1990Lx

    Red1990Lx Member

    Joined:
    Nov 3, 2006
    Messages:
    82
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Ohio
    Thanks for the link! Part came in yesterday!

    #59
  20. txredgt

    txredgt Well-Known Member

    Joined:
    Oct 27, 2009
    Messages:
    1,432
    Likes Received:
    32
    Trophy Points:
    59
    No problem man. Your local auto supply shop should have the lines that you need. Be sure the flares are the correct type otherwise you will have leaks. I cut my supply line right above where the pumpkin is and ran the lines from there. I've seen some setups where they put the T on the passenger side and then go to the driver side as well.
