1966 Mustang Convertible Restoration

Discussion in 'Classic Mustang Specific Tech' started by rusty428cj, Sep 18, 2013.

  1. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

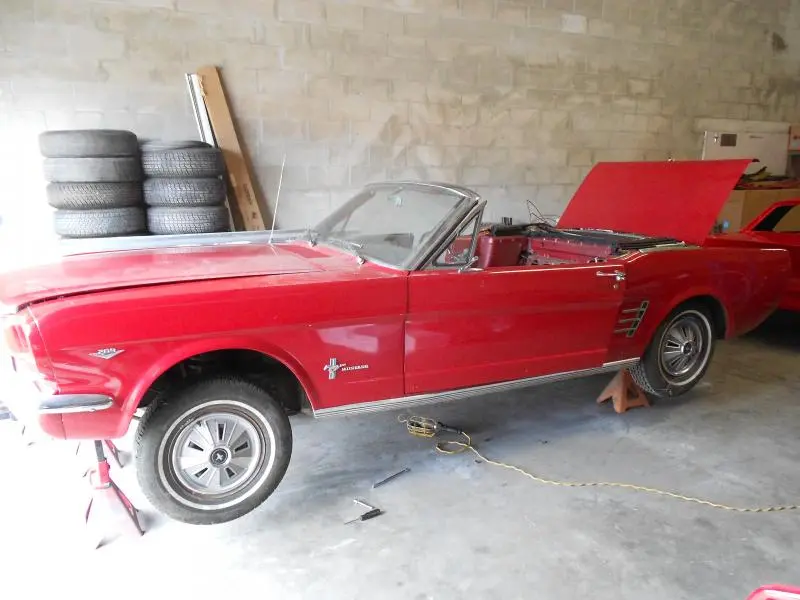

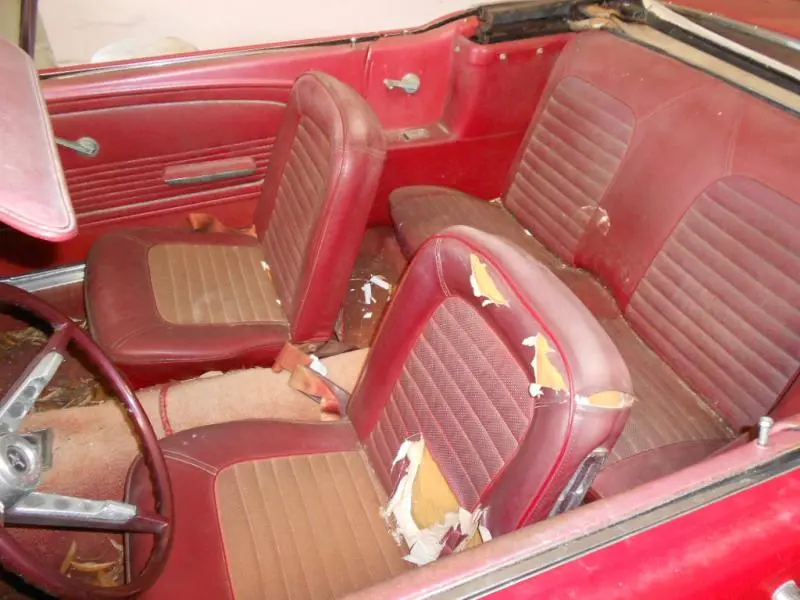

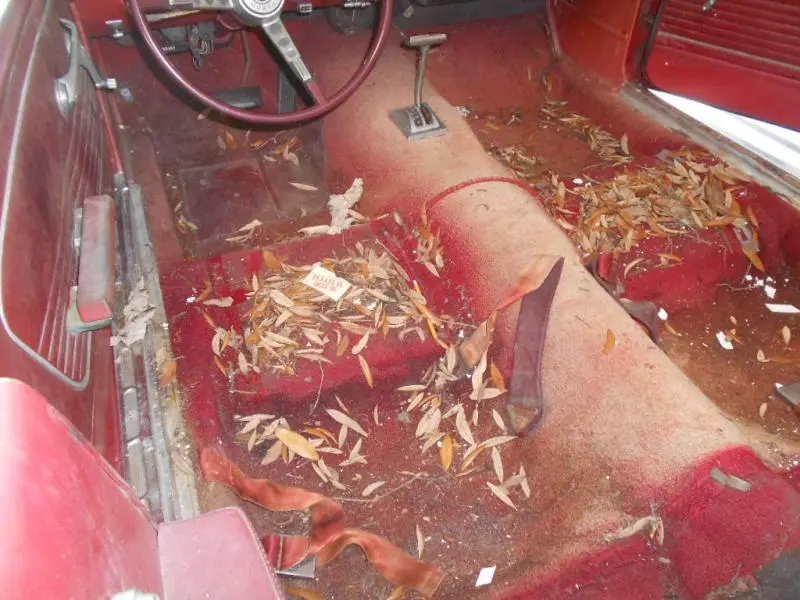

    We started this project last year but I have not had the time to share the build. At first this looks like an easy project until you start looking a little closer. It has been sitting a long time and at one time outside.

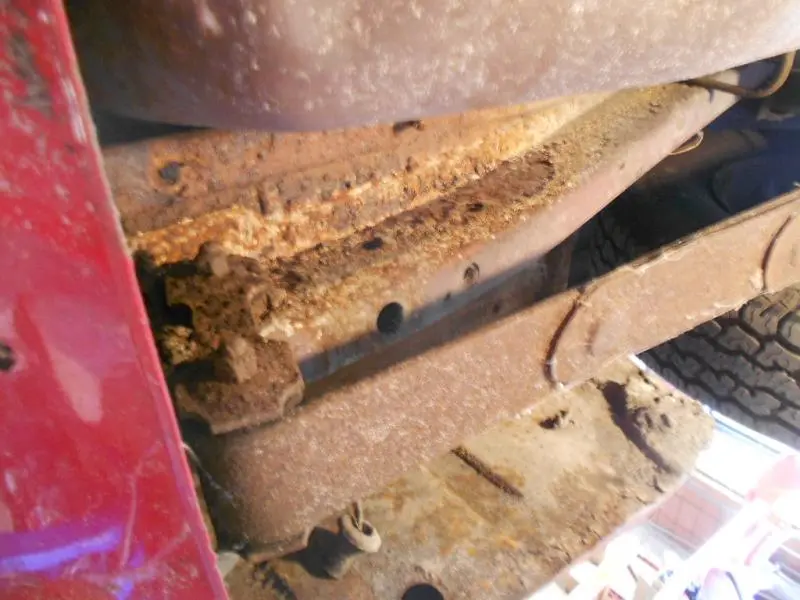

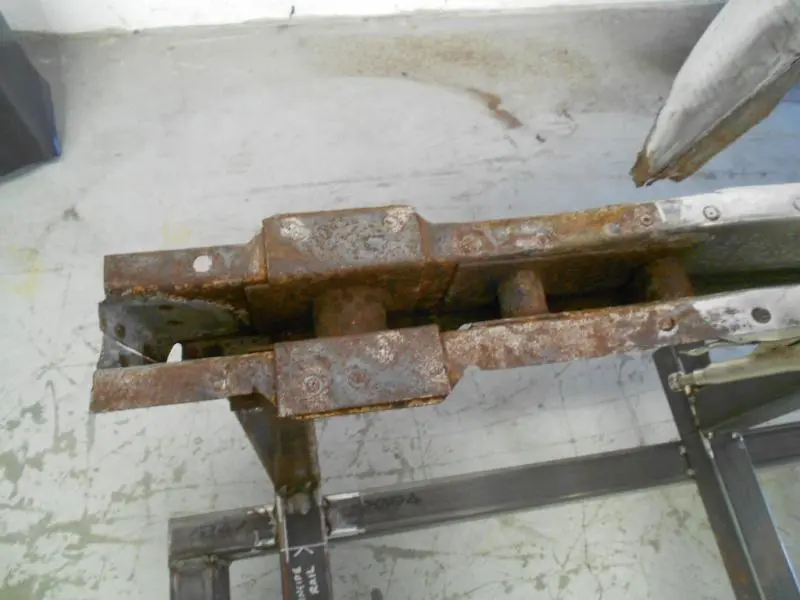

    The rear of both frame rails need to be replaced

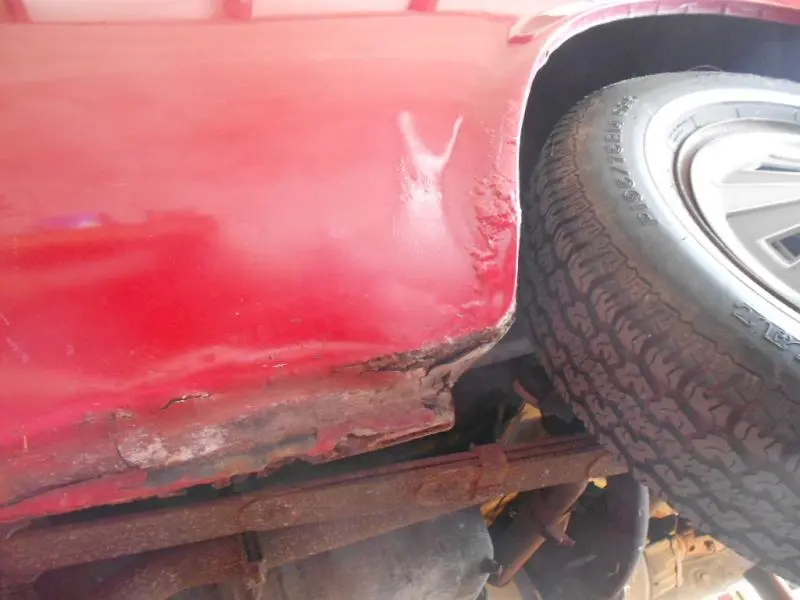

    A little rust in the quarter panels

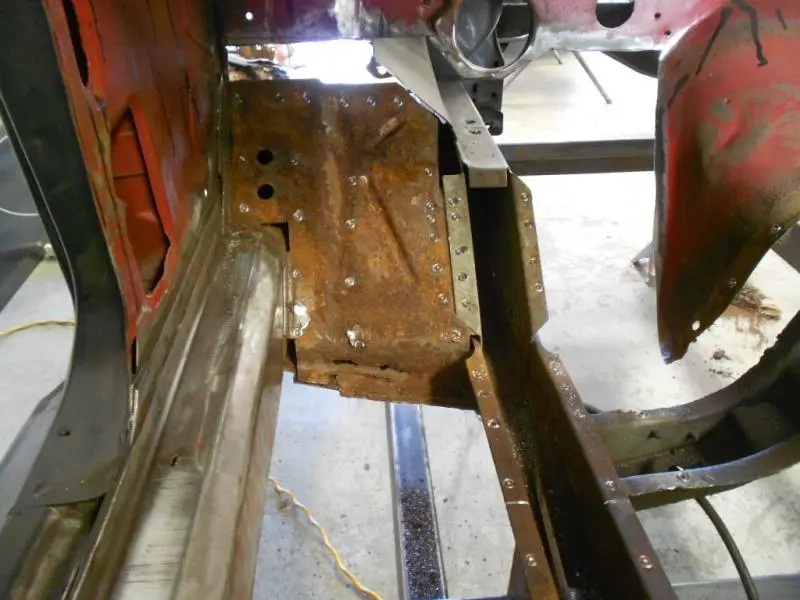

    The convertible has an inner torque box and it was rusted under that

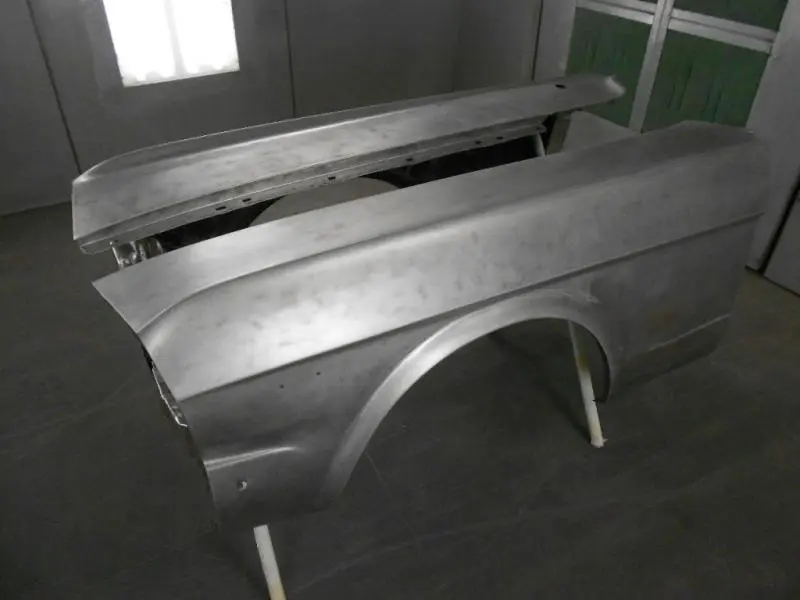

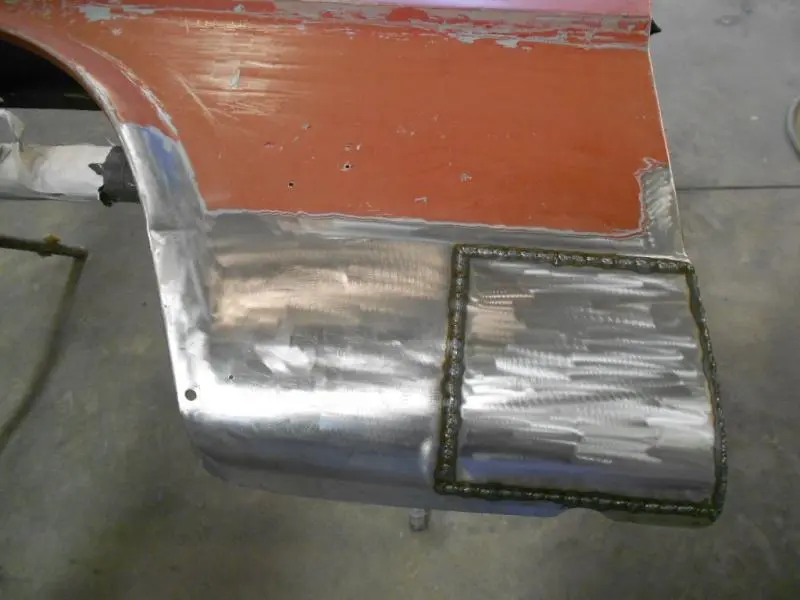

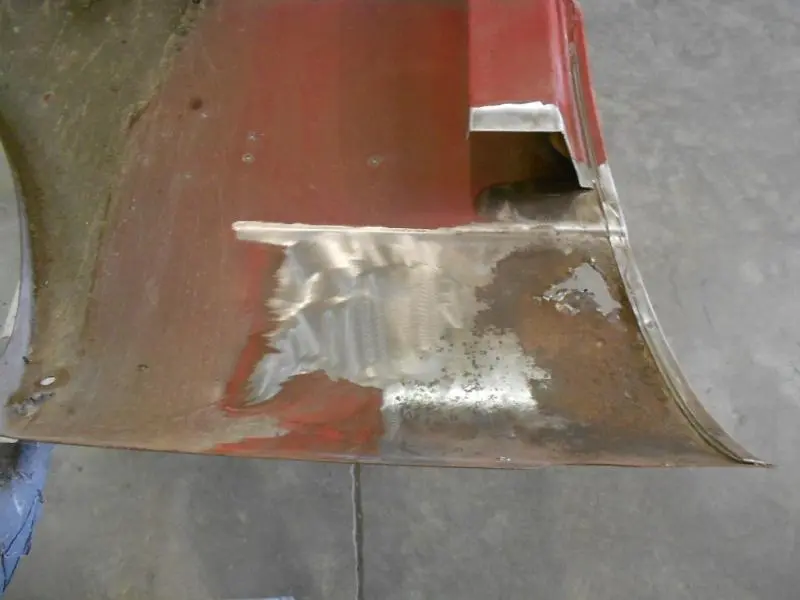

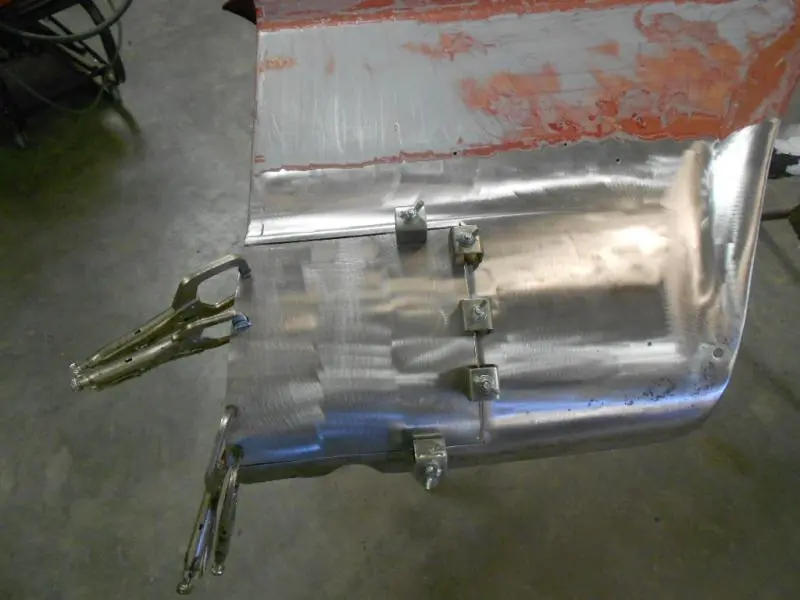

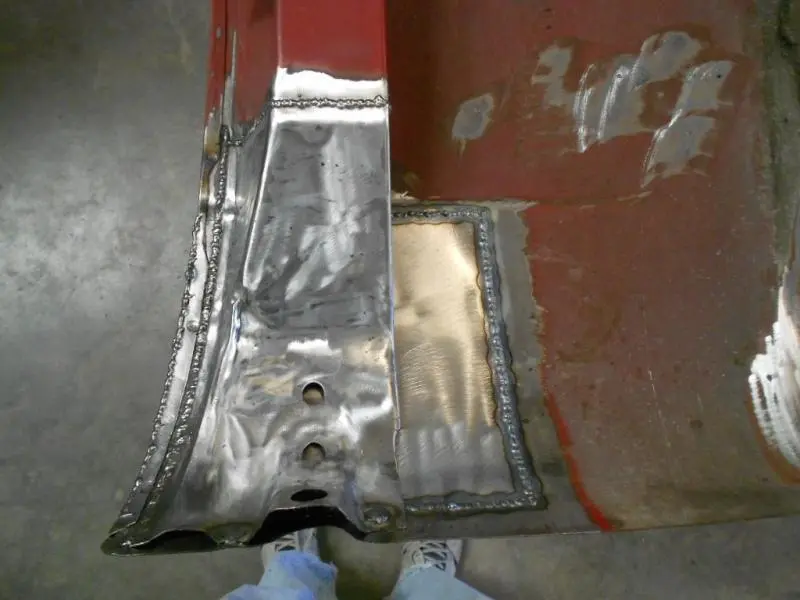

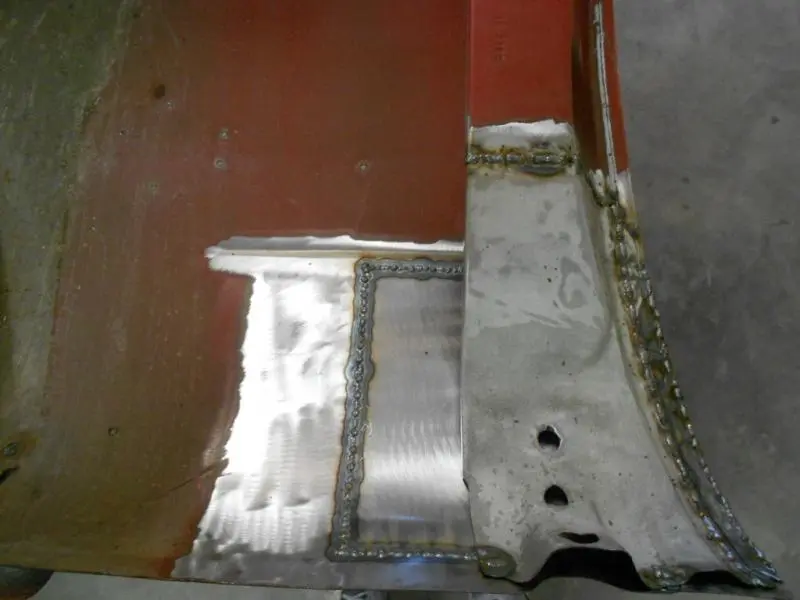

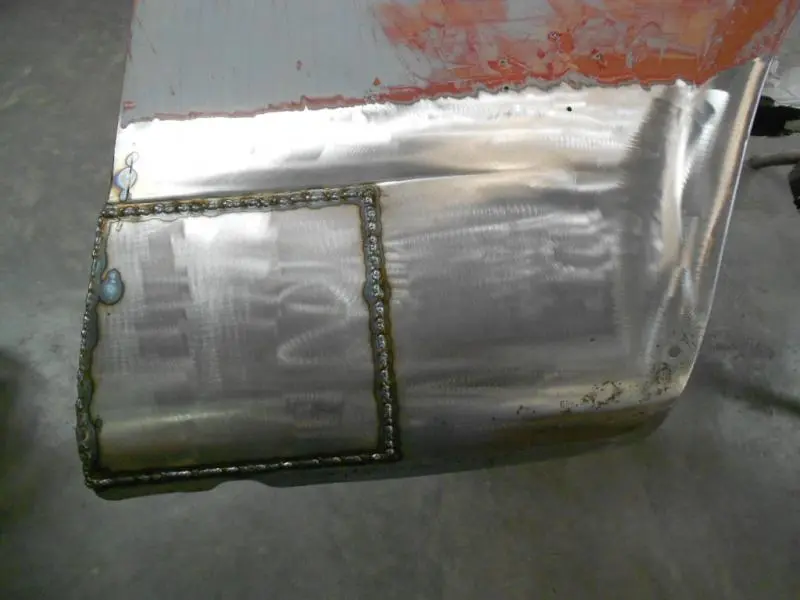

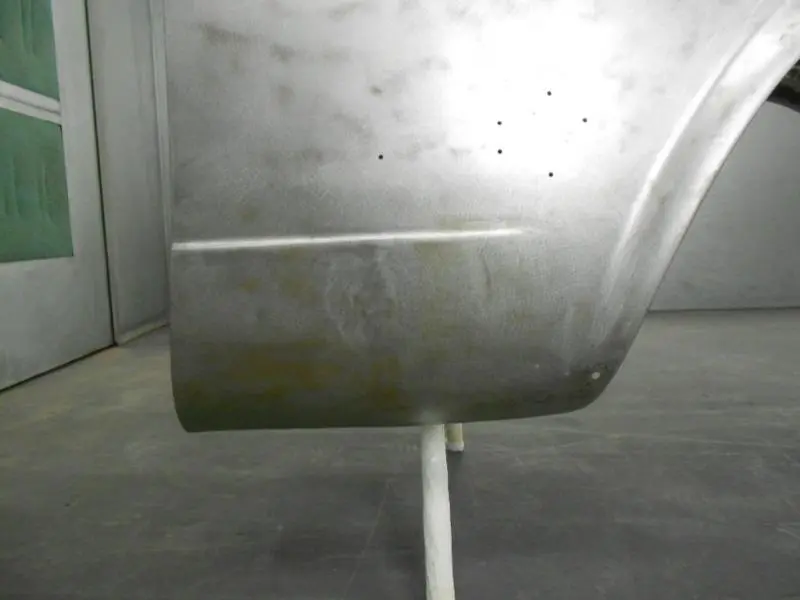

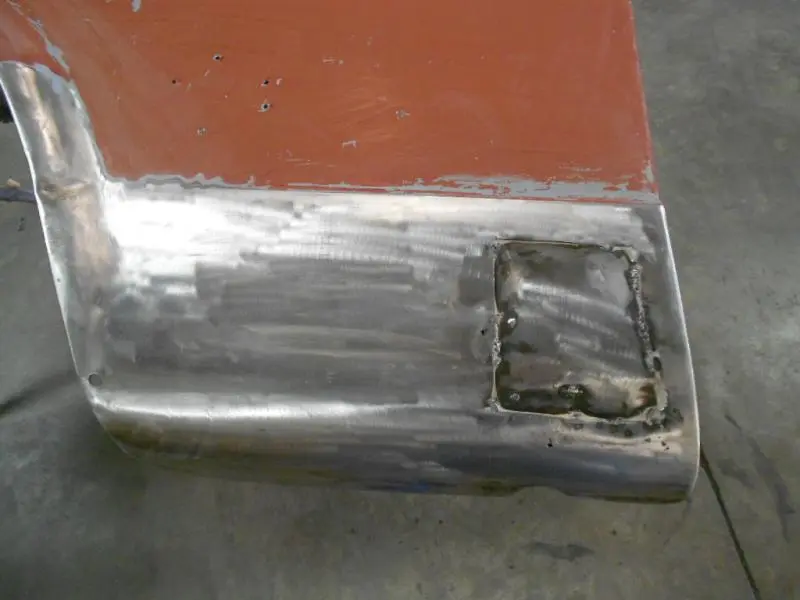

    The fender had been patched a long time ago and needed to be fixed





    Brian removed the inner brace on both fenders

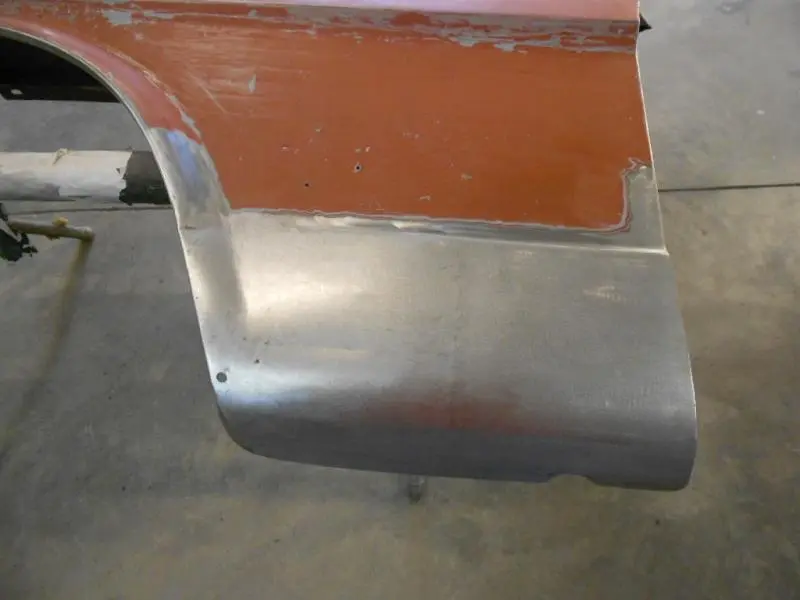

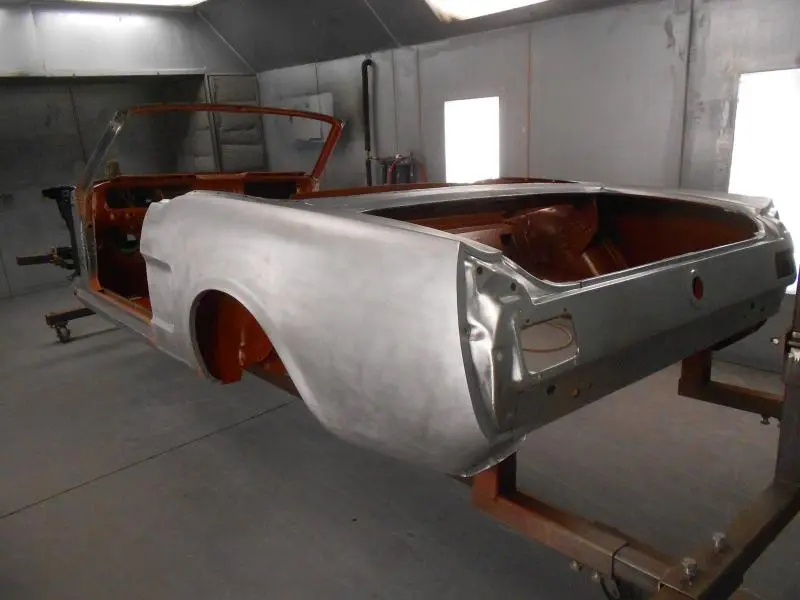

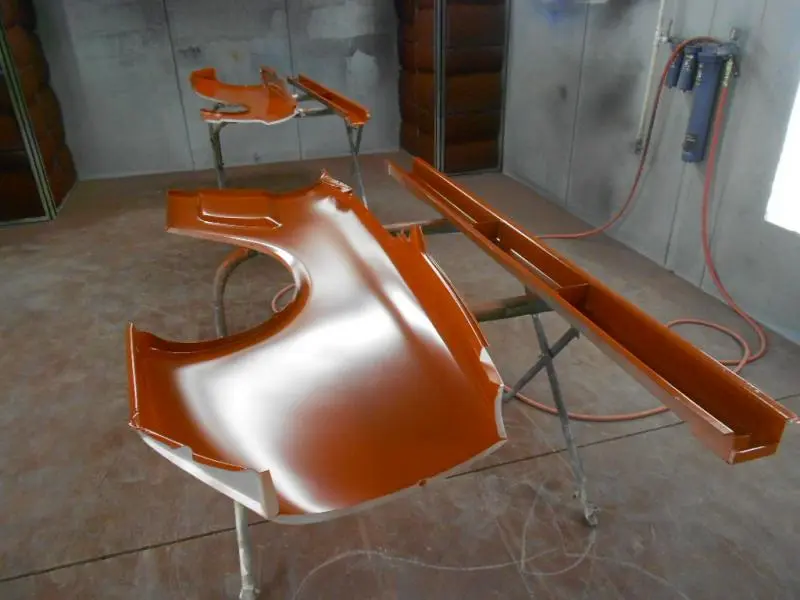

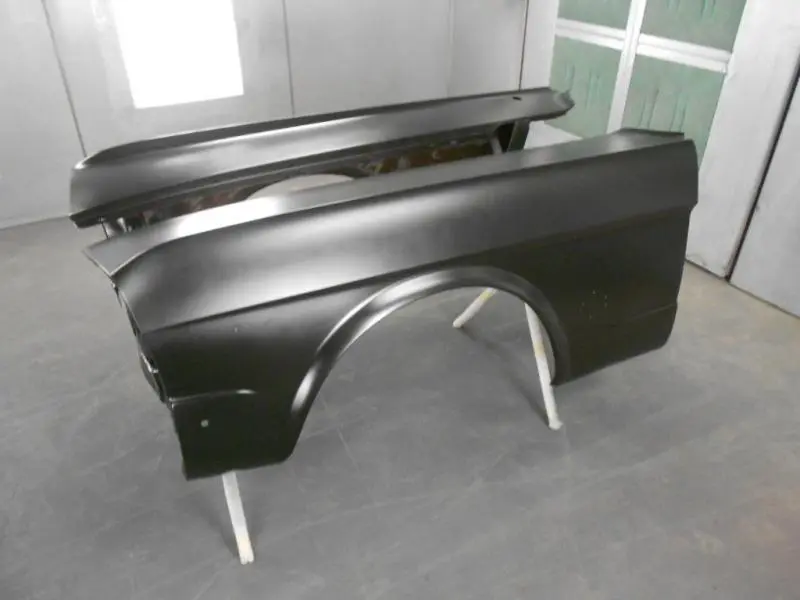

    Sanded to bare metal and I sprayed a couple coats of SPI epoxy primer



    #1
  2. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 29, 1999
    Messages:
    4,905
    Likes Received:
    322
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    i know how hard it is to do patch work that comes out like that on the front fenders. nice work, i prefer butt welding over lapped panels any time.

    #2
  3. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

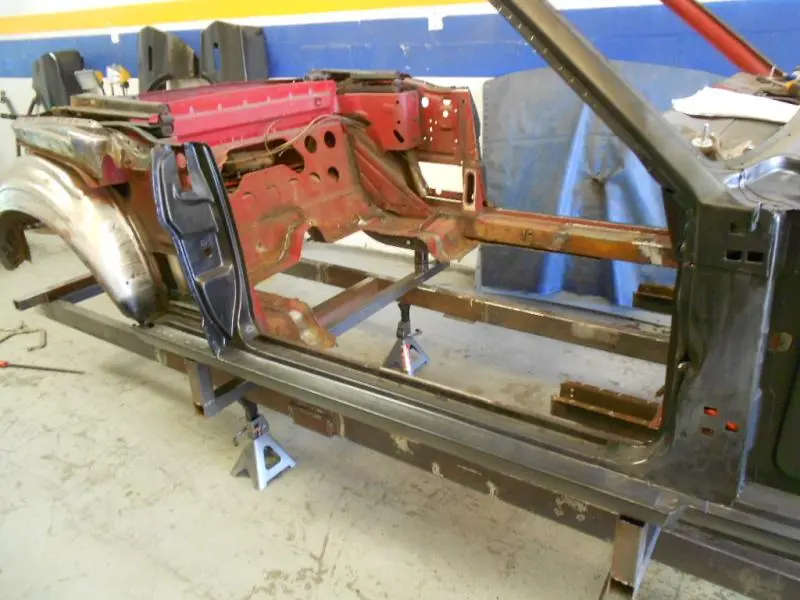

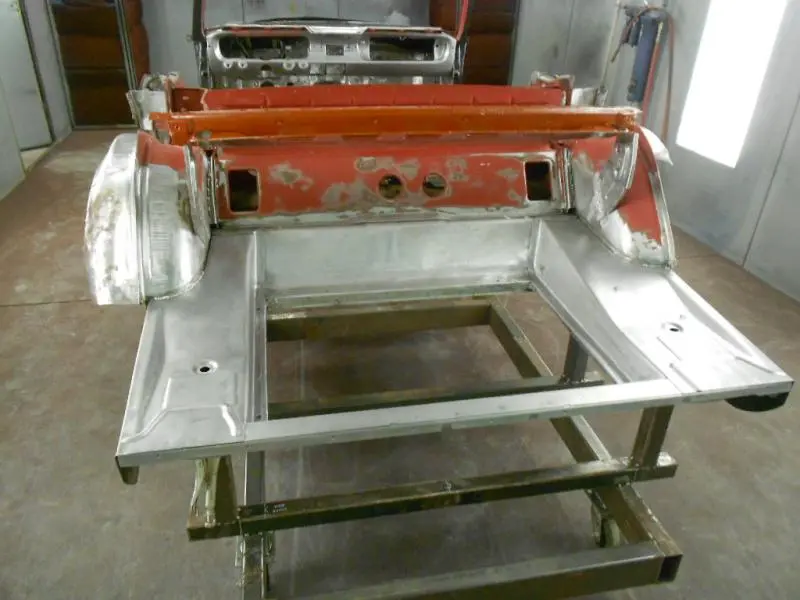

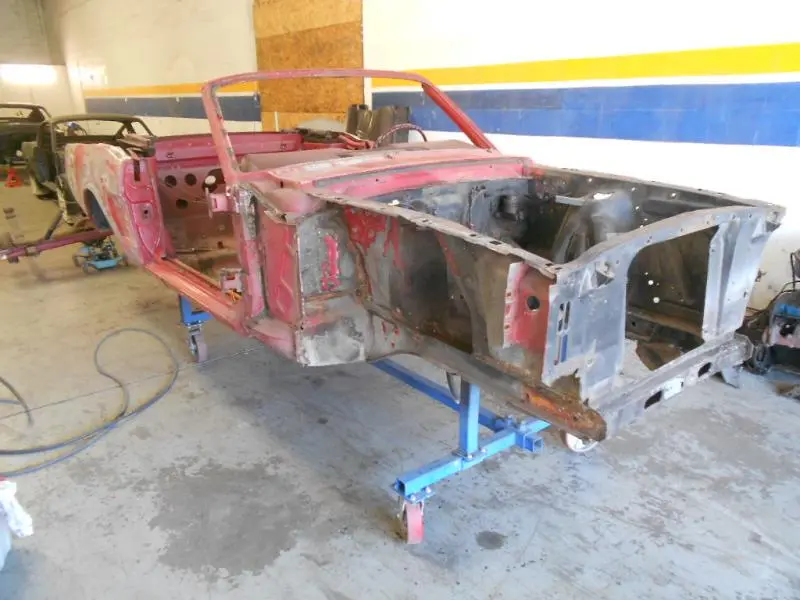

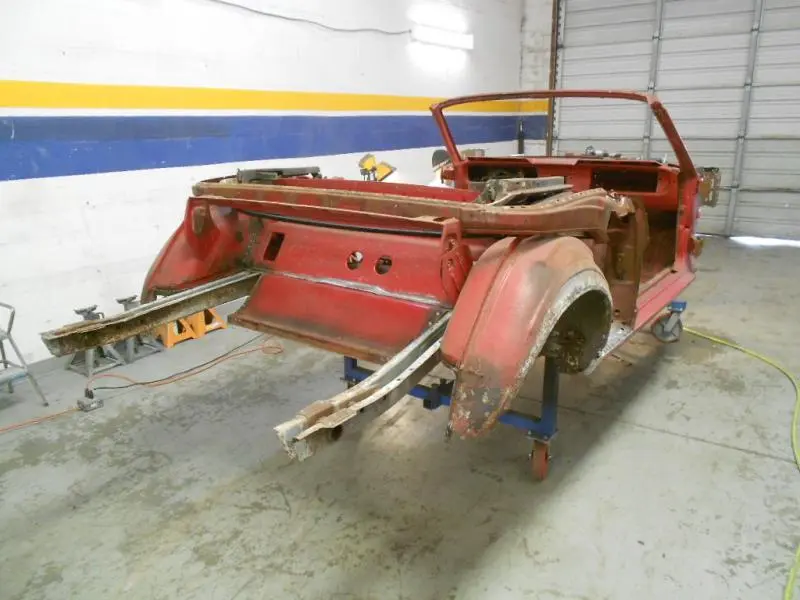

    Everything stripped off of the body and mounted on a cart.


    Quarter panels and trunk floor removed


    Normal problem with the cowl

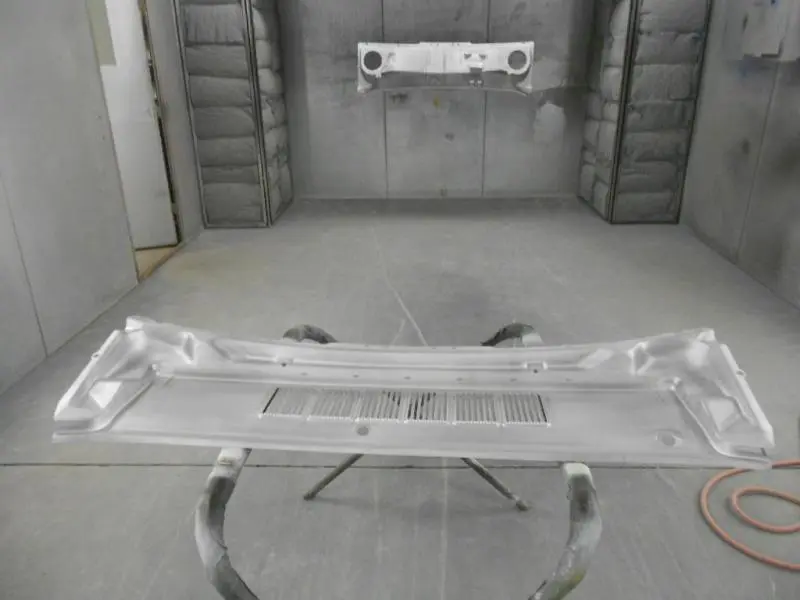

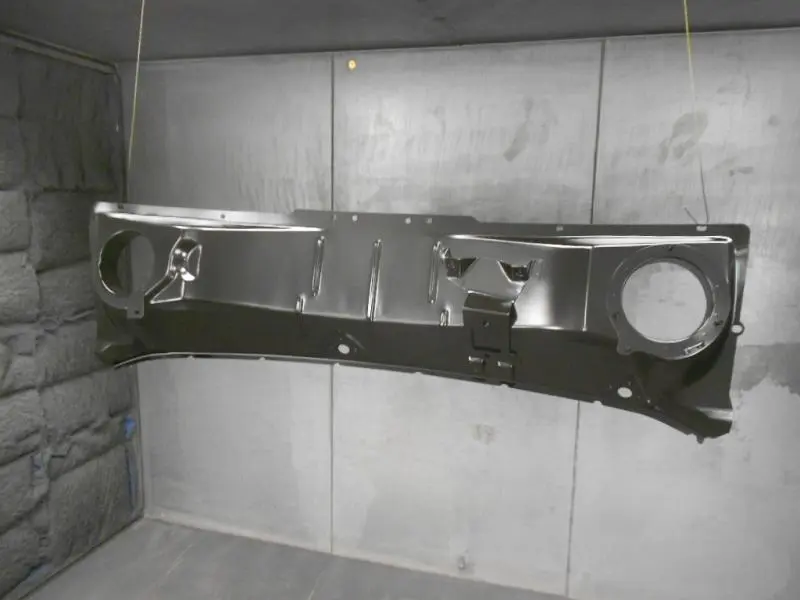

    New cowl sanded and epoxy primed

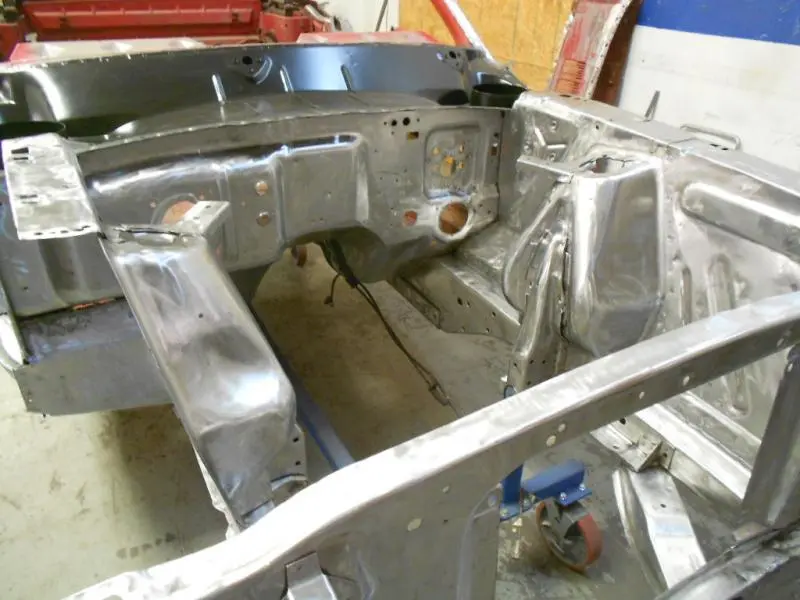

    Engine compartment stripped to bare metal


    I ordered a new battery apron from CJ's and it did not fit. We had installed one from NPD on Modified Mustangs & Fords project car that fit so I ordered one from them and got the same thing as CJ's. I sent an email with photos to Rick at NPD and he got right back to me and said he would look into it. Rick got with the manufacturer and it is being redesigned so it will fit and we are waiting for the new design.

    We are using this convertible so we can make a jig for another wrecked 1966 convertible we are fixing in the future.

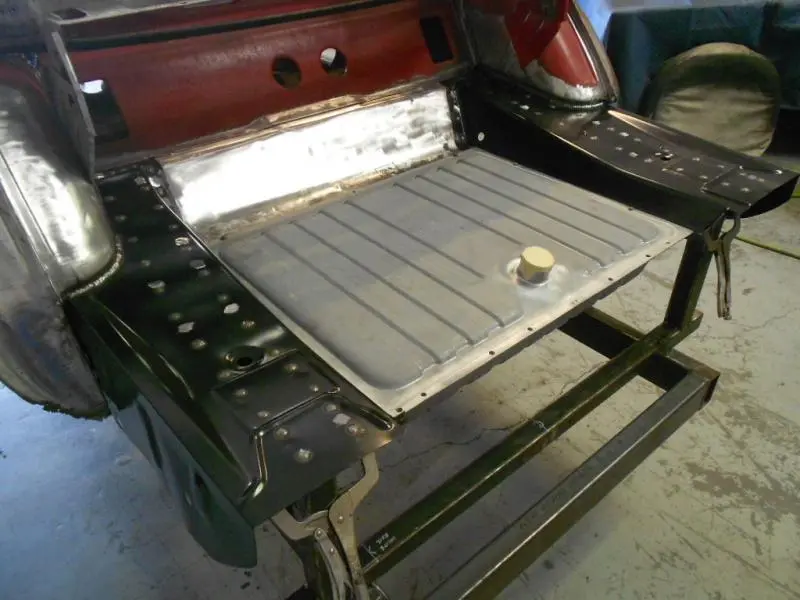

    The floor had been repaired with fiberglass mat so it was cut out.


    The torque boxes needed to be replaced

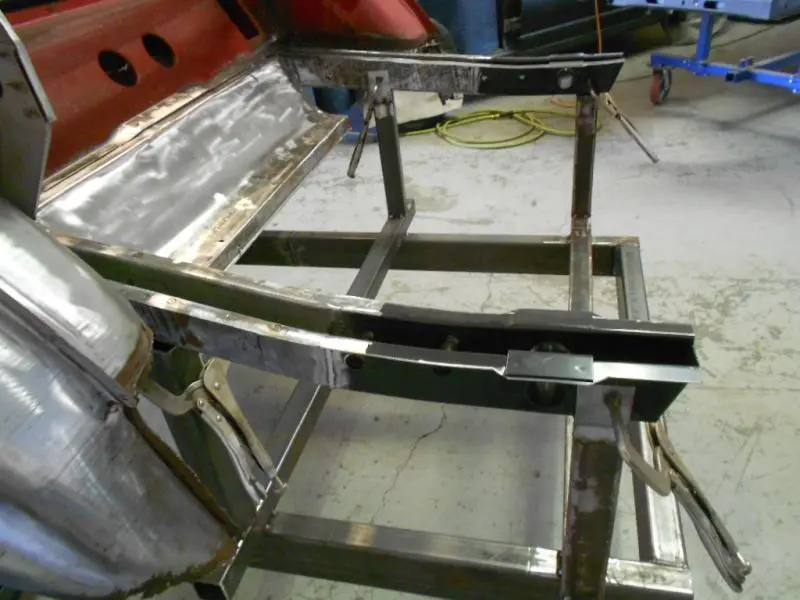

    The rear section of both frame rails were replaced



    #3
  4. 65FBE2

    65FBE2 Member

    Joined:
    Mar 8, 2007
    Messages:
    283
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Minnasnowta
    Roughly what does it cost to get a restoration on a car like this? Just the body work and paint.

    #4
  5. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl
    $50.00 per hour plus parts and materials

    #5
  6. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

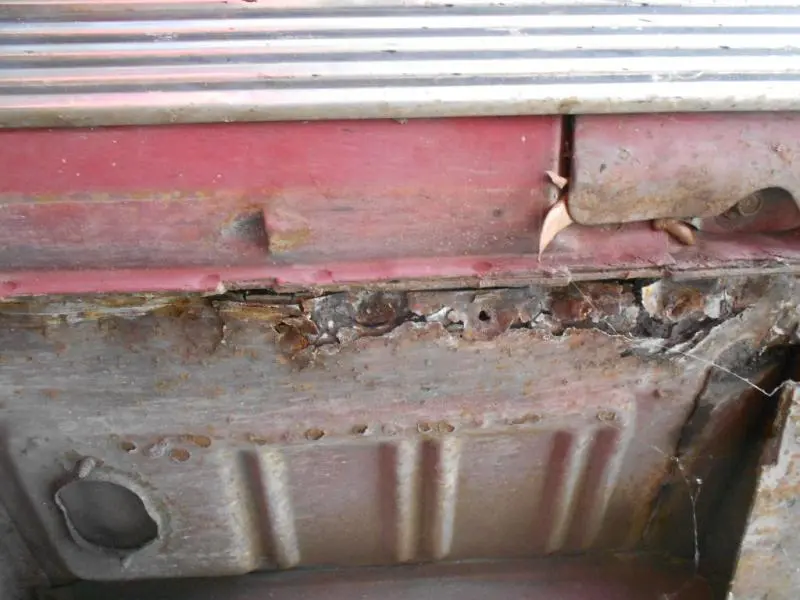

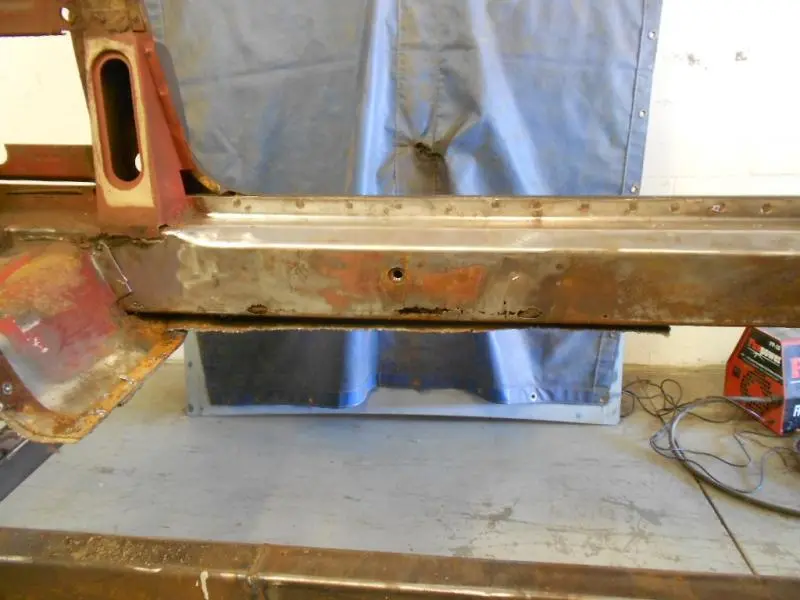

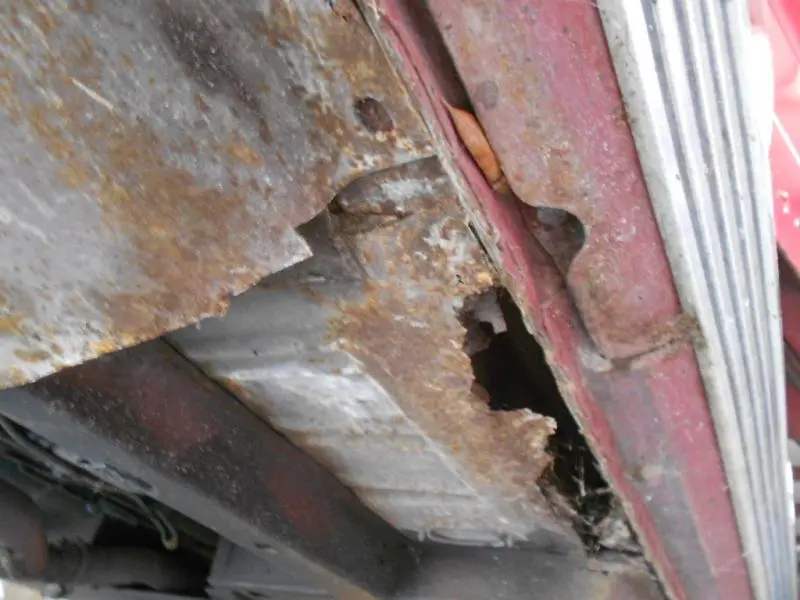

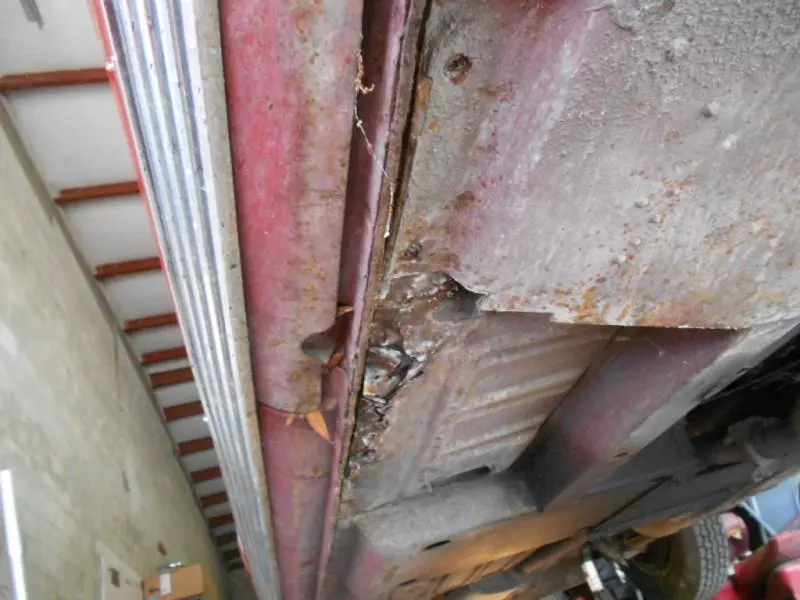

    The inner rocker has rust


    Brian wanted to finish the trunk floor before he fixed the rockers

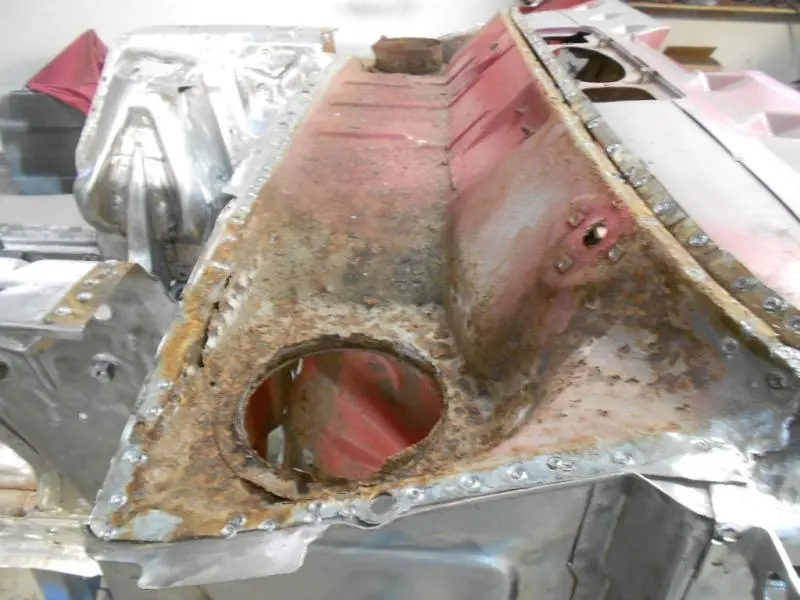

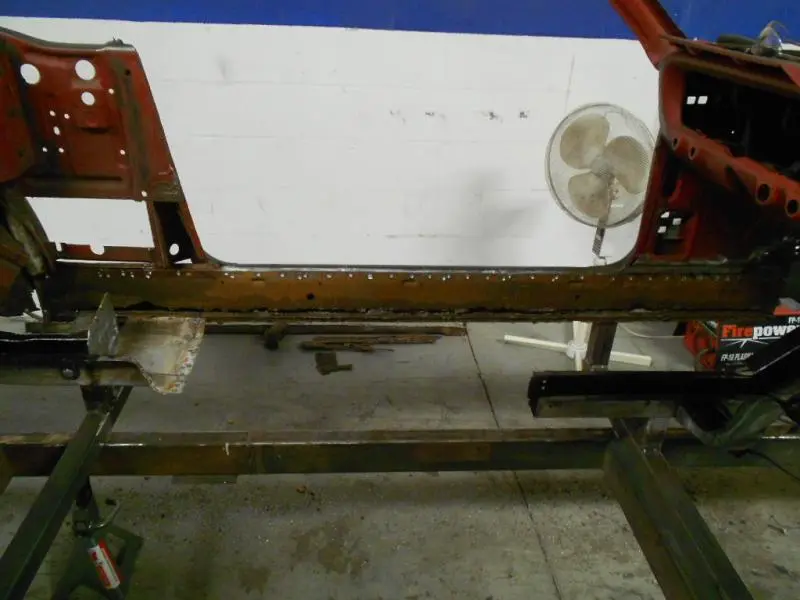

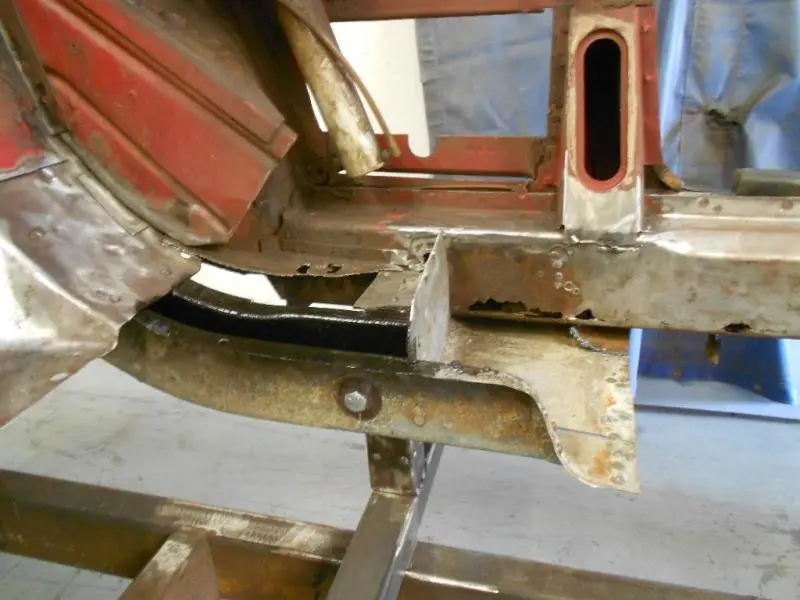

    This is what it looked like after Brian took the top of the torque box off


    This is how it looked once the inner rocker was cut off


    I epoxy primed the back side


    Sanded and ready for epoxy

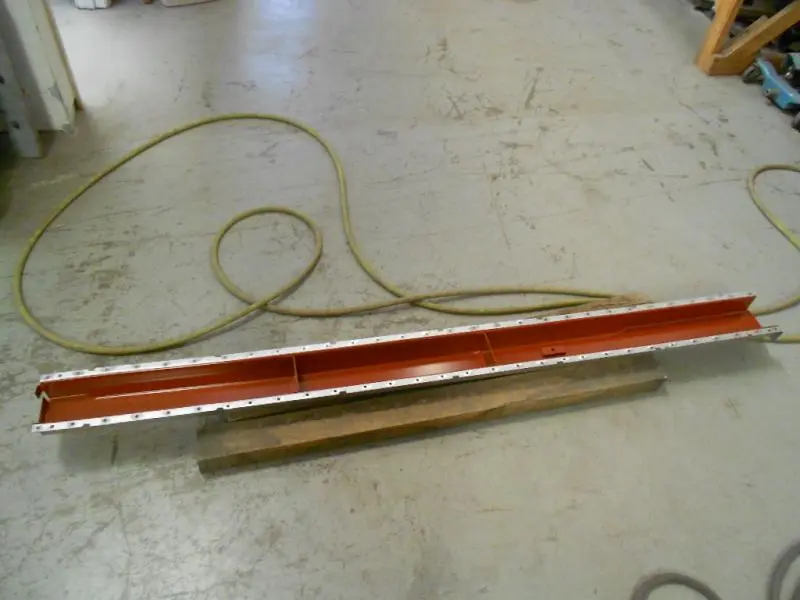

    Brian had to make this it did not come with the Dynacorn convertible inner rocker


    More epoxy and holes drilled on the inner rocker

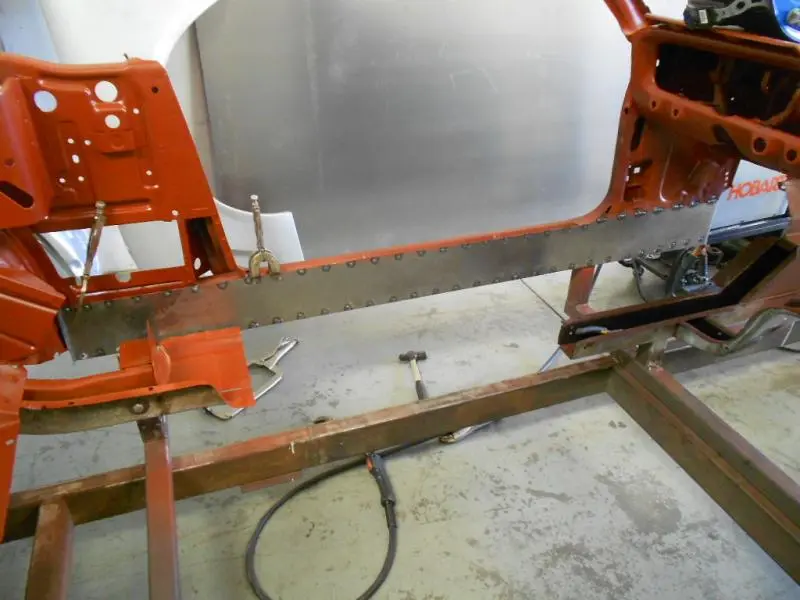

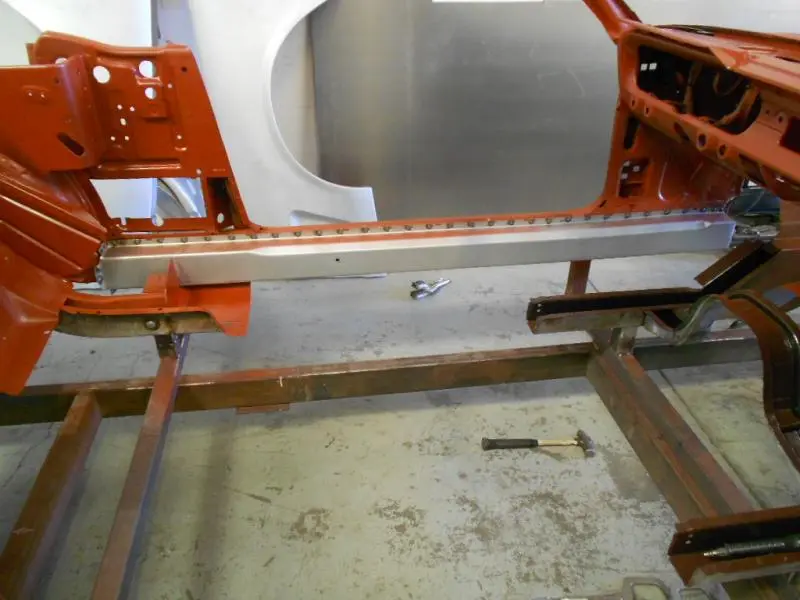

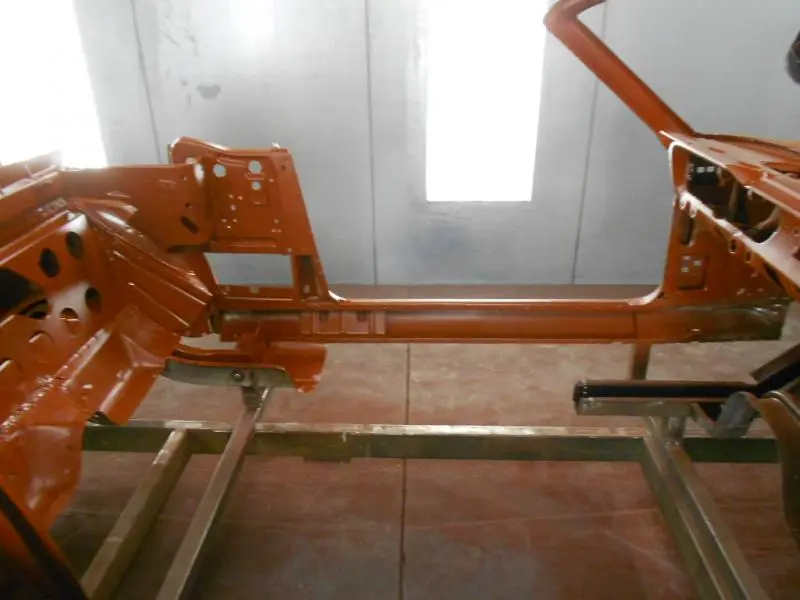

    Inner rocker installed


    #6
  7. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

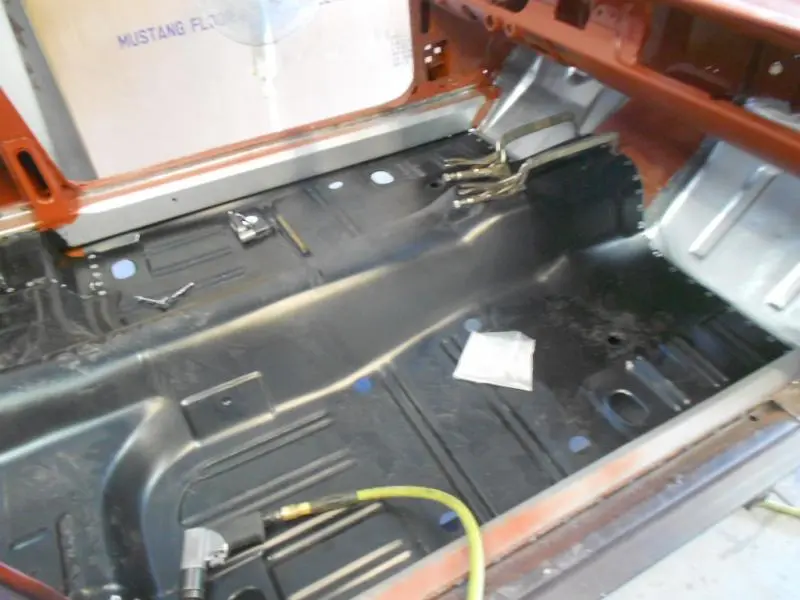

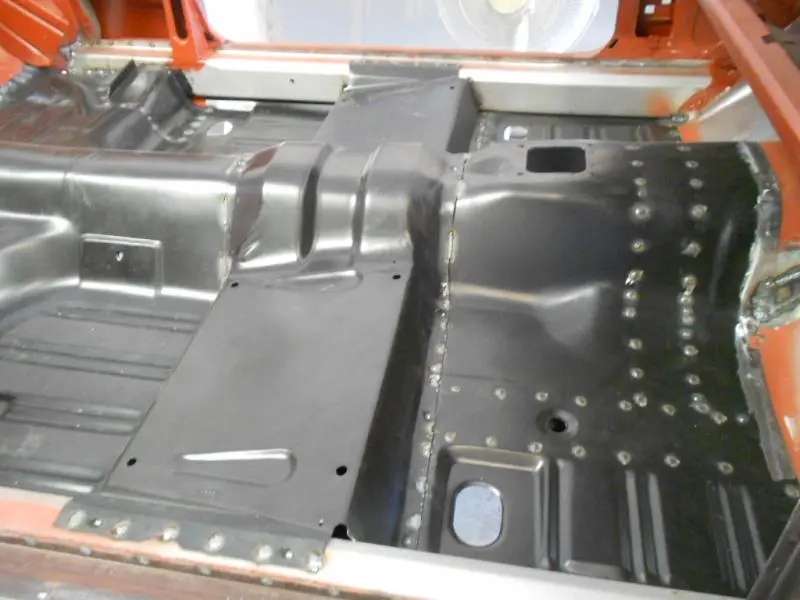

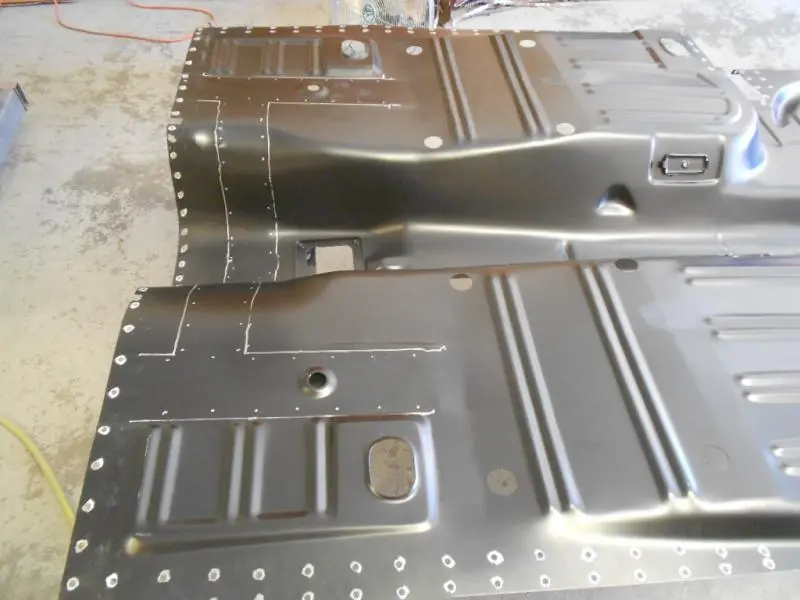

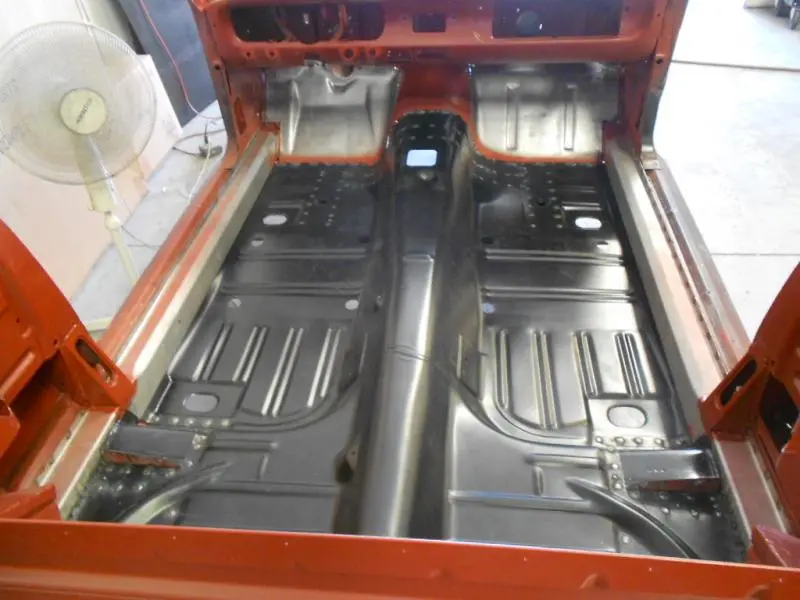

    Brian had the floor in then marked where he wanted to drill all the holes for the plug welds


    Test fitting one more time and getting it to fit around the trans tunnel in the front than he marked where the subframe was.

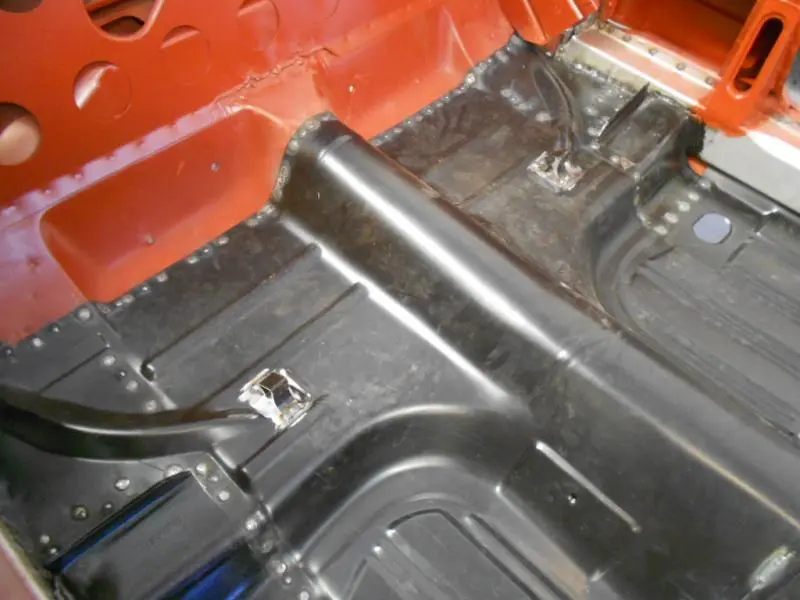

    Welded in place



    #7
  8. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

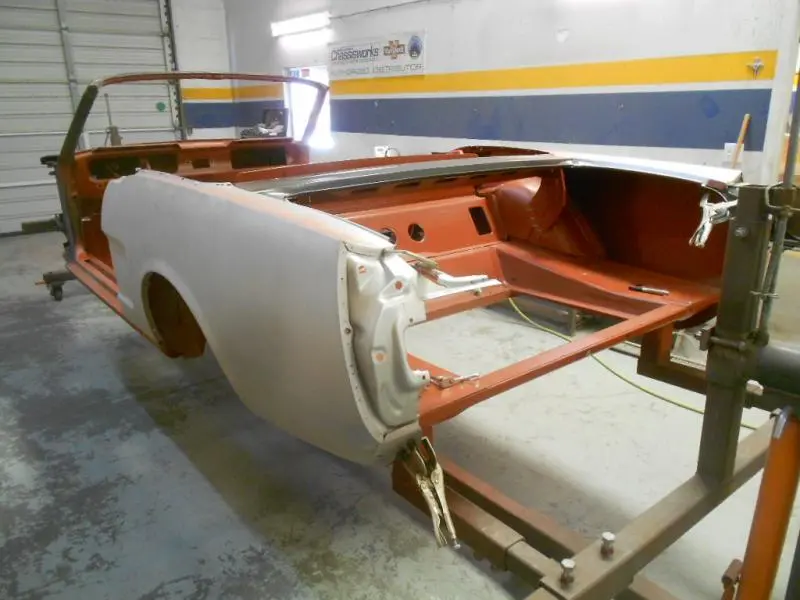

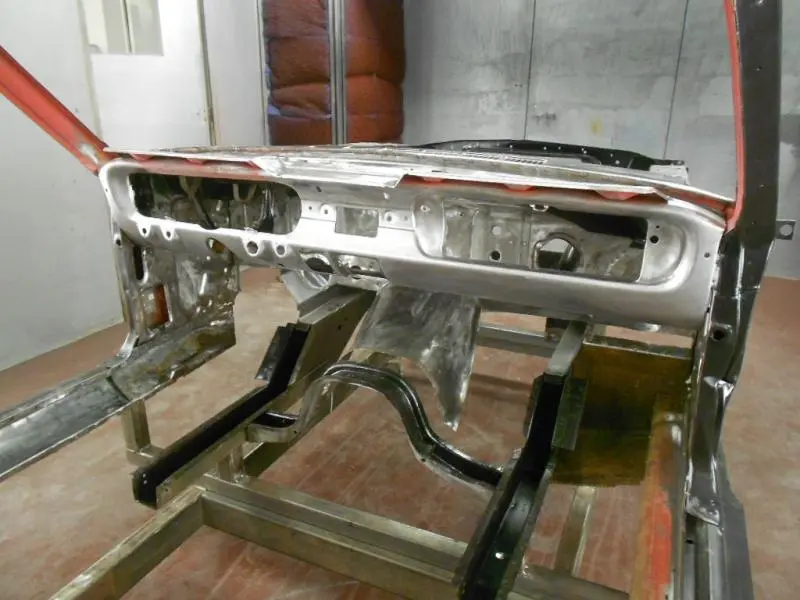

    Seat riser installed


    Brackets for the rear seat welded in place

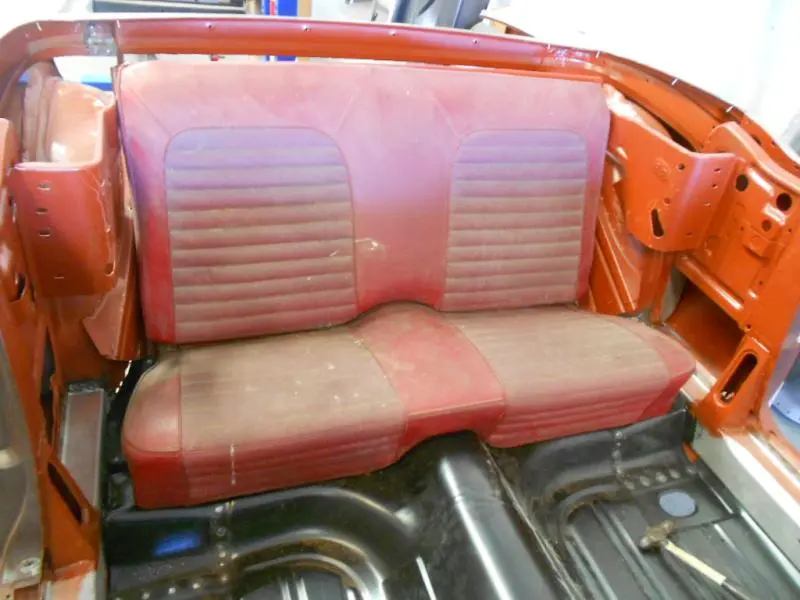

    Test fitting the rear seat

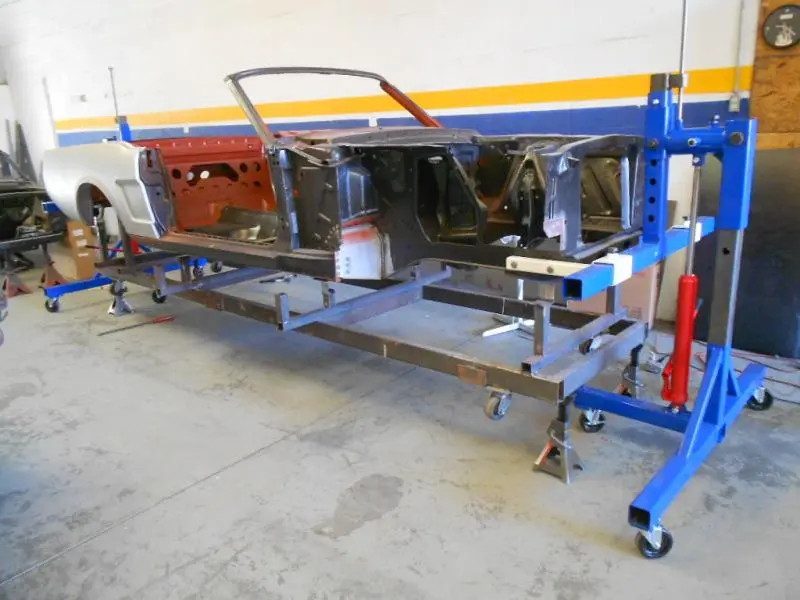

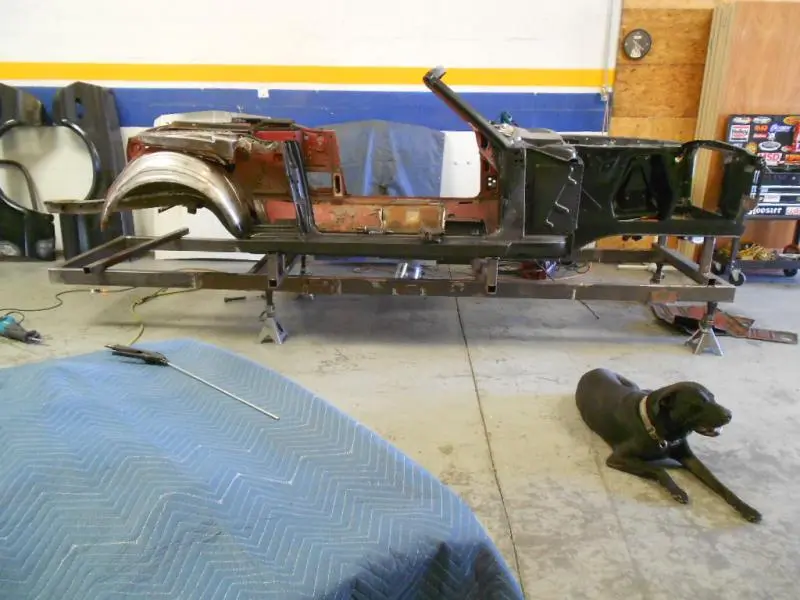

    Time to come off the jig



    #8
  9. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

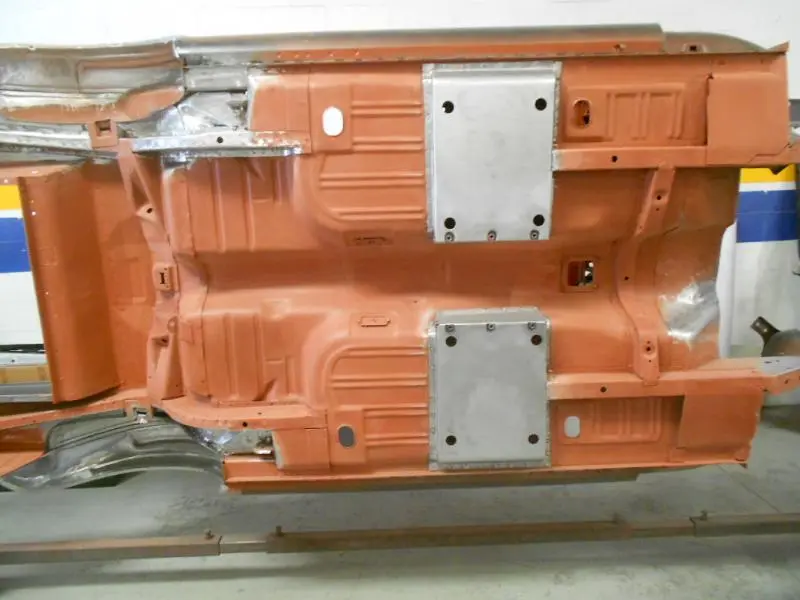

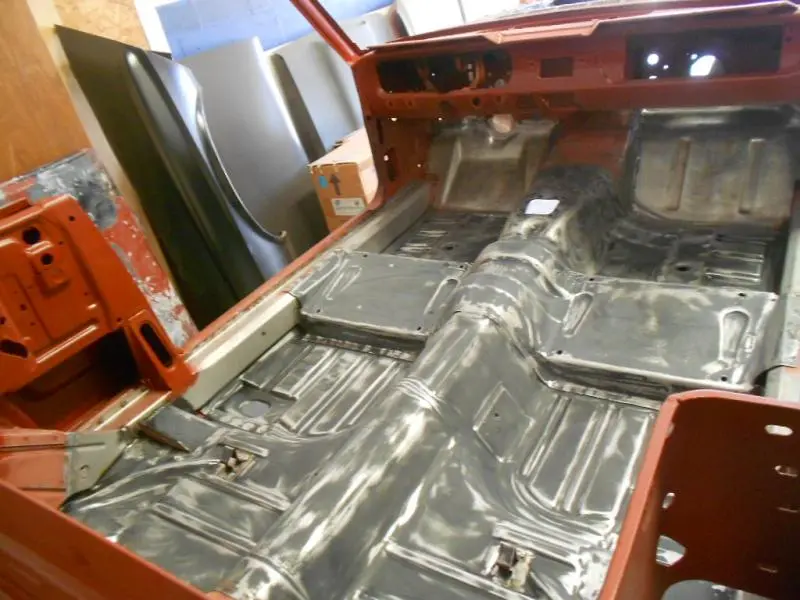

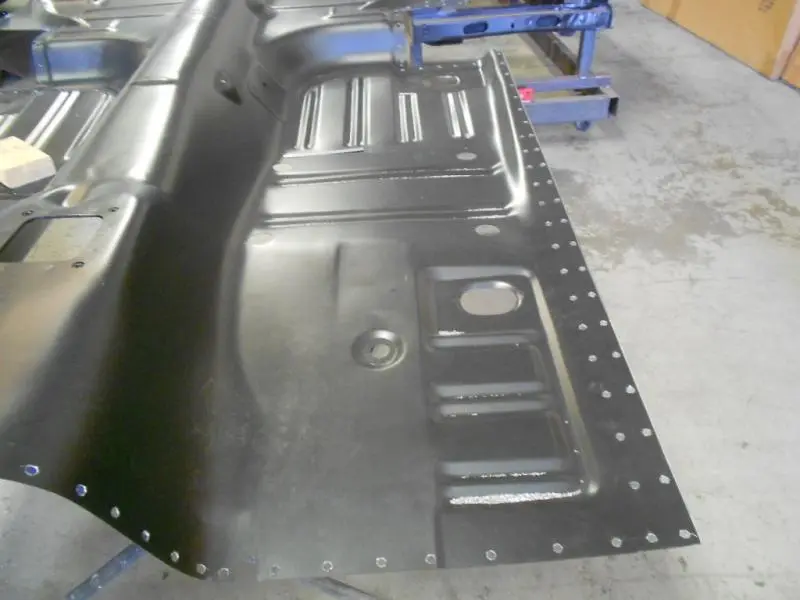

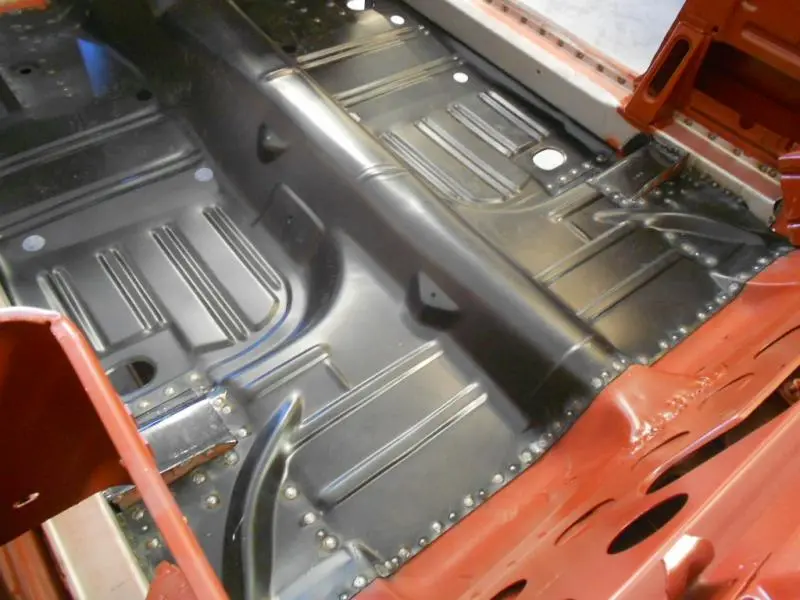

    Sanded the floor pan


    Epoxy primed


    Brian wasn't finished welding the undercarriage but we wanted epoxy under the convertible brace before it was welded in place

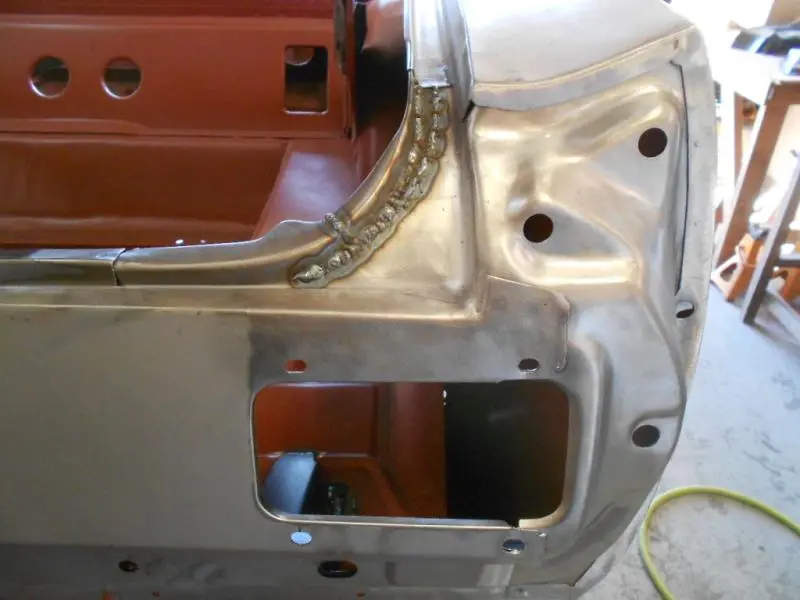

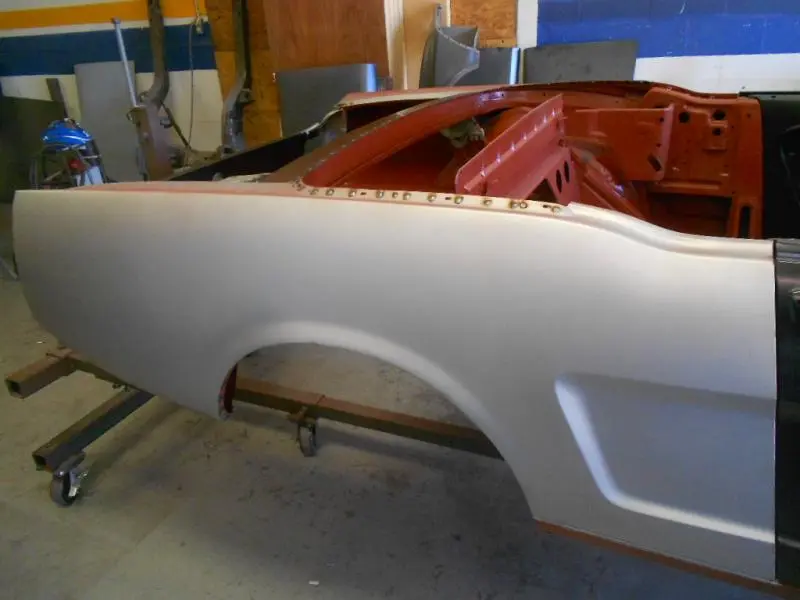

    Fitting the quarter and taillight panel

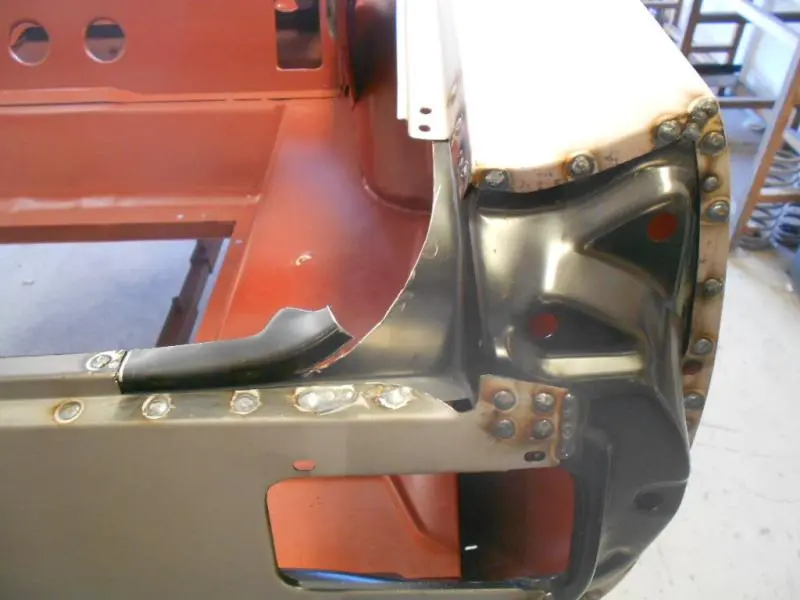

    I have not been able to find a convertible trunk corner brace only fastbacks and the shape is wrong

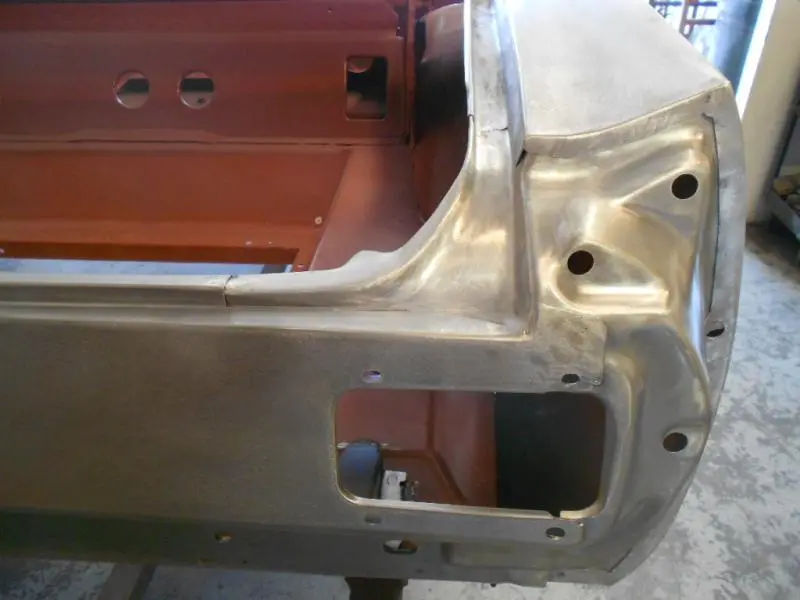

    After Brian modified it


    DSCN7298_zpse5fe7816.jpg .

    #9
  10. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

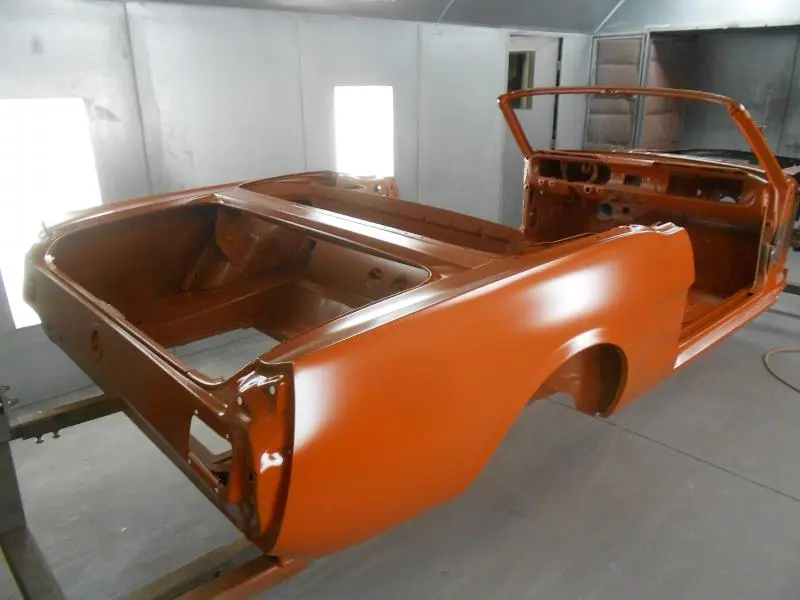

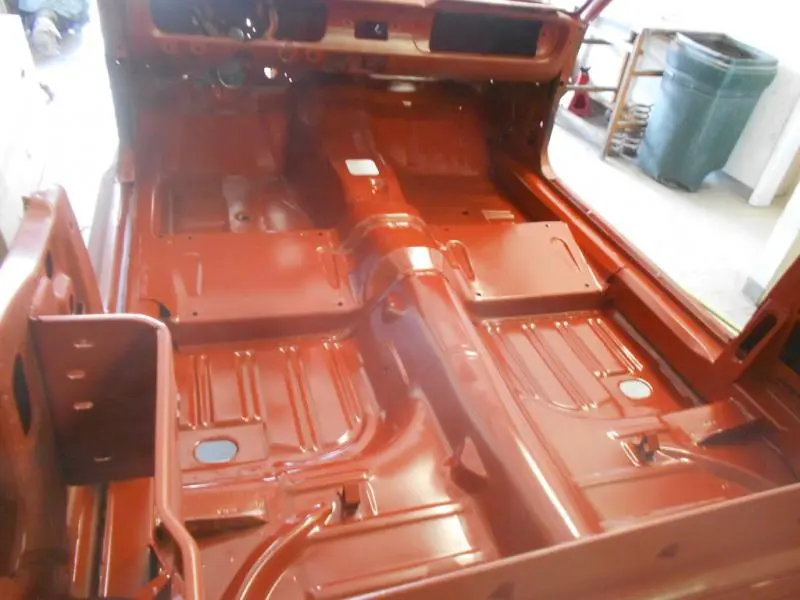

    Ready for epoxy


    Two coats of SPI red oxide


    #10
  11. palerider94

    palerider94 Member

    Joined:
    Feb 21, 2006
    Messages:
    572
    Likes Received:
    1
    Trophy Points:
    19
    Just curious why did you replace rear frame rail section looked solid in pictures. Also is there any easier way to remove inner rockers other than drilling out all spot welds?

    #11
  12. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl
    There was a lot of rust.

    Not that I know of without making a big mess and creating more work.

    #12
  13. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 29, 1999
    Messages:
    4,905
    Likes Received:
    322
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    The best way of removing pieces is to drill the spot welds .An air chisel or a cutting torch can distort the metal,not to mention cutting through pieces you don't want to cut. It's hard work drilling them but it can be even harder to clean up from a torch or a chisel ,just look how clean Brians work is.

    #13
  14. palerider94

    palerider94 Member

    Joined:
    Feb 21, 2006
    Messages:
    572
    Likes Received:
    1
    Trophy Points:
    19
    Thinking about getting a rotisseries for next project. Did it help with any of the floor welds or do you need to have full floor welded in before putting it on. Getting to old to be laying on my back doing plug welds.

    #14
  15. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    718
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

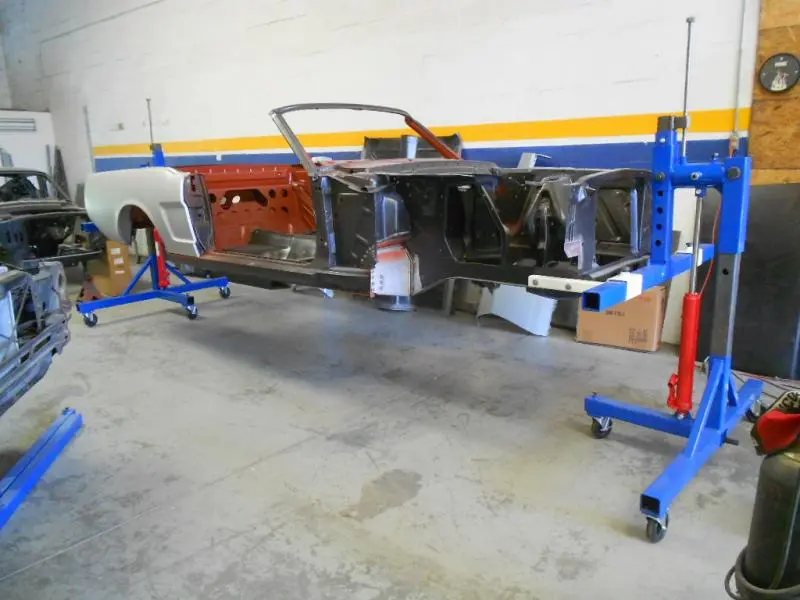

    The floor was welded in on a cart then it was mounted on the rotisserie to finish welding the bottom side and prime.

    #15
  16. palerider94

    palerider94 Member

    Joined:
    Feb 21, 2006
    Messages:
    572
    Likes Received:
    1
    Trophy Points:
    19
    So you welded the topside first and then flipped to do spot welds on the inner rockers?

    Great build BTW - Amazed how you can remove whole back end and get everything to line back up.

    #16
  17. candphall

    candphall Member

    Joined:
    Jun 8, 2009
    Messages:
    365
    Likes Received:
    23
    Trophy Points:
    19
    Location:
    Orlando Florida

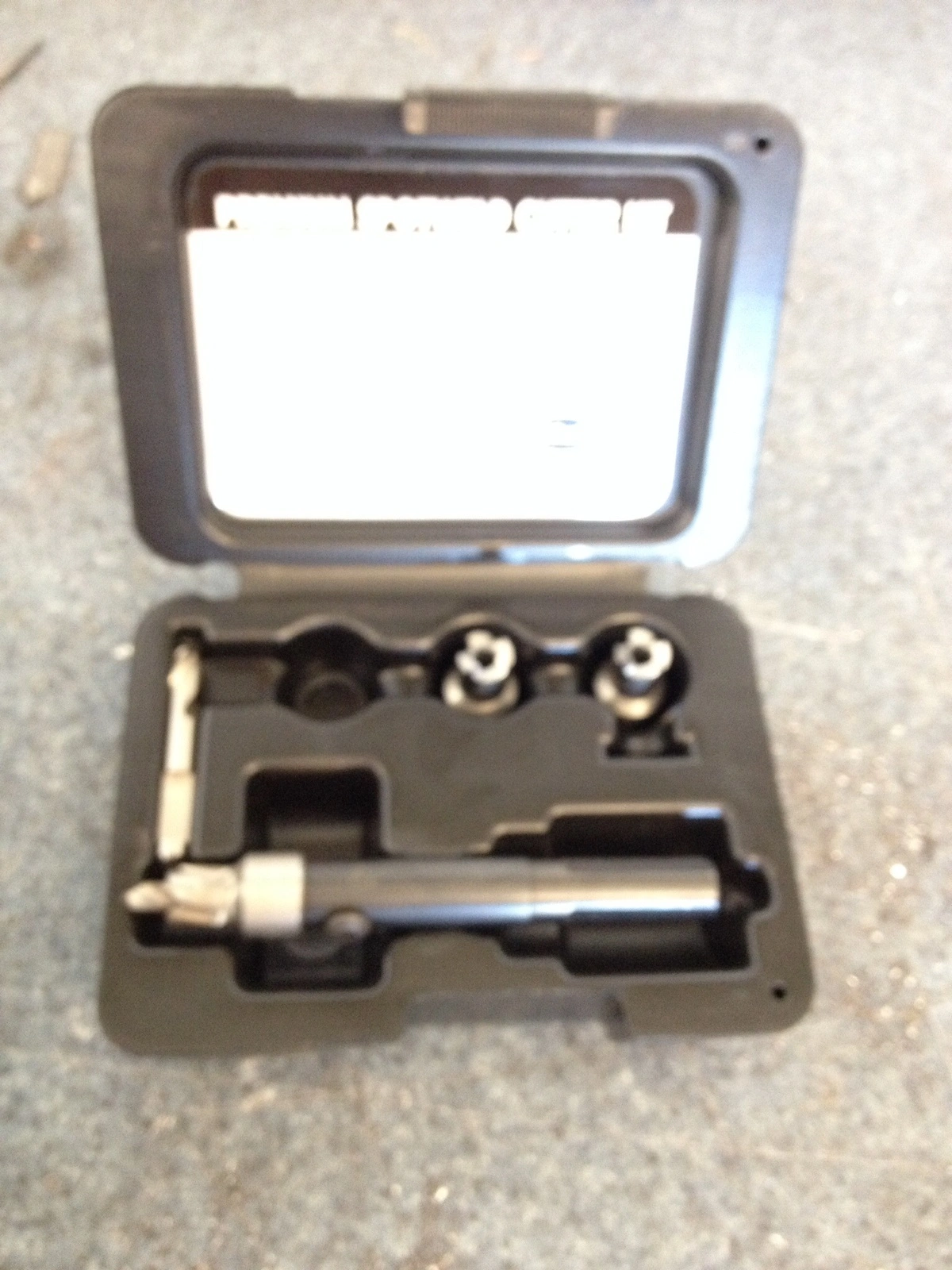

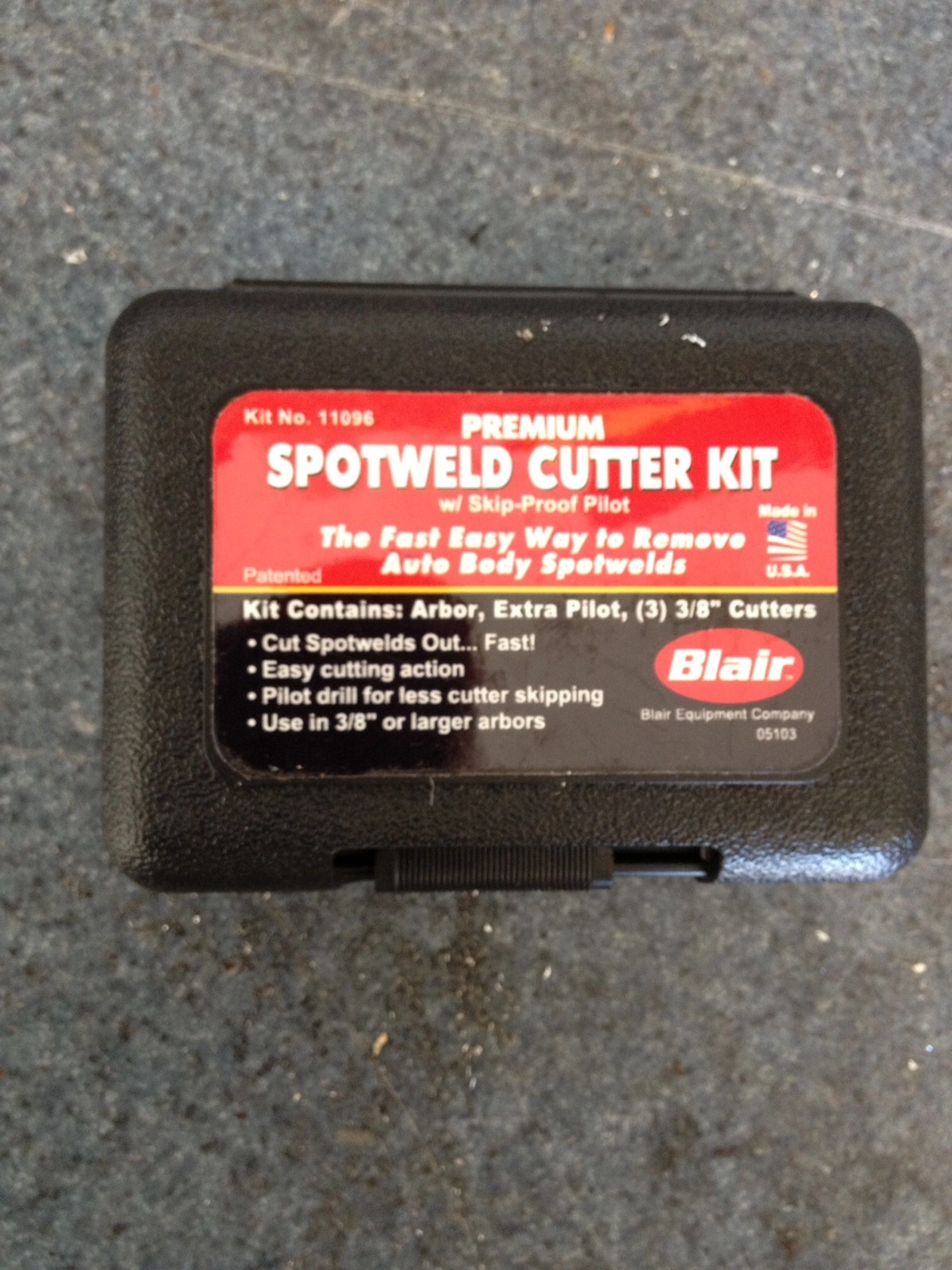

    image.jpg image.jpg A word about spot welds. I am a novice mustang, and I hesitate to use the word restorer, but I am plodding along. Thanks to solid contributors such as Rusty and Horse. I very rarely give advice but in this case I will. If you are removing a panel for replacement and want to save whats beneth it drill the spot welds. Yes it is time consuming but not nearly as much as replacing the panel you damage with an air chisel. My first attempts a drilling were unsuccessful primarily because of the cutter I was using. It was nothing more than a small hole saw. It was good for about three welds if that. All it took was a google search for spot weld cutters. And It returned a set by Blair that I purchased. It is a true cutter and comes as a complete set . Check it out.
