Engine 1971 Mach-1 Specification Question?

Discussion in 'Classic Mustang Specific Tech' started by PAMach1, Mar 6, 2013.


  1. PAMach1

    PAMach1 New Member

    Joined:
    Jun 17, 2011
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Martinsburg, PA 1662 USA
    I think this is way I should be asking... Excuse a non-technical guy.

    Is the intake for a four-barrel aluminum or cast-iron?

    #1
  2. woodsnake

    woodsnake Active Member

    Joined:
    Jan 16, 2007
    Messages:
    1,322
    Likes Received:
    9
    Trophy Points:
    39
    Location:
    Hicksville, NY
    "most" from the factory, were cast iron..

    #2
  3. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,255
    Showcase:
    164
    Albums:
    5
    Likes Received:
    721
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    like woodsnake said they are mostly cast iron except for a couple special intakes. the 4v intake will not work with 2 v heads they must be 4 v heads because of the larger ports on a 4v. you can get a 4 v aftermarket intake made for the 2 v heads from edelbrok .

    #3
  4. PAMach1

    PAMach1 New Member

    Joined:
    Jun 17, 2011
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Martinsburg, PA 1662 USA
    I just spoke to my guy and gave him all the information you-all provided. He is pondering the information... Will do some pricing and get back to me.

    In chatting the subject of exhaust(s) has started... He reports single… I want dual. What determined single vs. dual on a 1971?

    #4
  5. woodsnake

    woodsnake Active Member

    Joined:
    Jan 16, 2007
    Messages:
    1,322
    Likes Received:
    9
    Trophy Points:
    39
    Location:
    Hicksville, NY
    Well, from the factory, it was an option, I believe, on all V8 cars. If you are restoring a "High value" car, then you will want to keep the car as close to how it came from the factory.
    If you have a car that came with a 302 and a C4 auto trans, like the other hundred plus thousand built, then you can build it as you like.
    What are you working on, and what are your plans?

    #5
  6. PAMach1

    PAMach1 New Member

    Joined:
    Jun 17, 2011
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Martinsburg, PA 1662 USA


    Thanks for asking.
    I had a 1971 Blue Mach-1 when I was in high-school. Now I would like one again. The one I'm working on now has been restored... To the point where the undercarriage/pans and shell is primed. Current attention to the engine. My first Mach-1 was a 351C 2-B Auto with AC single-exhaust. Statement: I lean towards the visual… Not high-performance.
    So… How far from stock should I stray? Are the concerns the value if I do?
    The visuals I would like to accomplish are 1) Dual-exhausts 2) working hood air-intakes I won’t change the auto/AC. Power is not an objective.

    Thoughts?

    #6
  7. PAMach1

    PAMach1 New Member

    Joined:
    Jun 17, 2011
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Martinsburg, PA 1662 USA

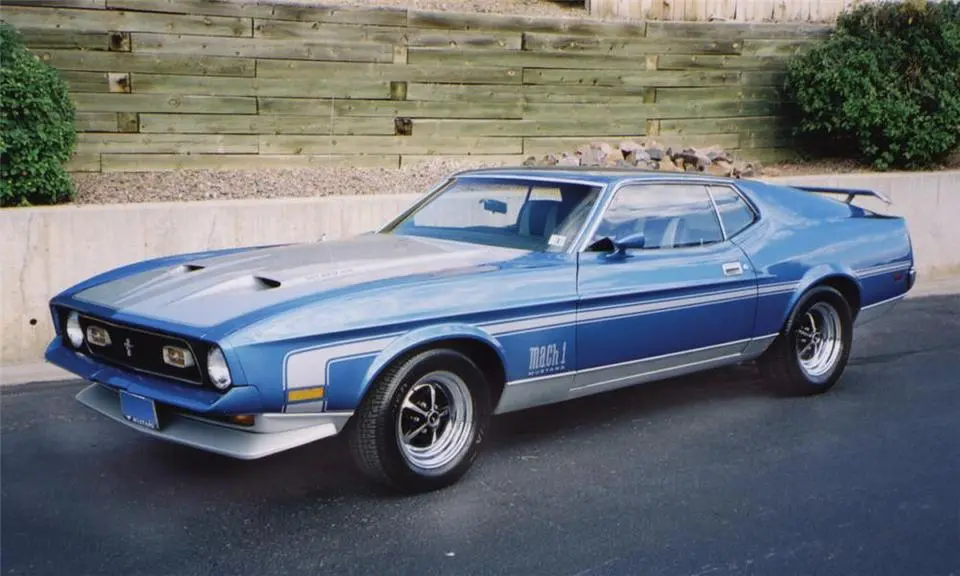

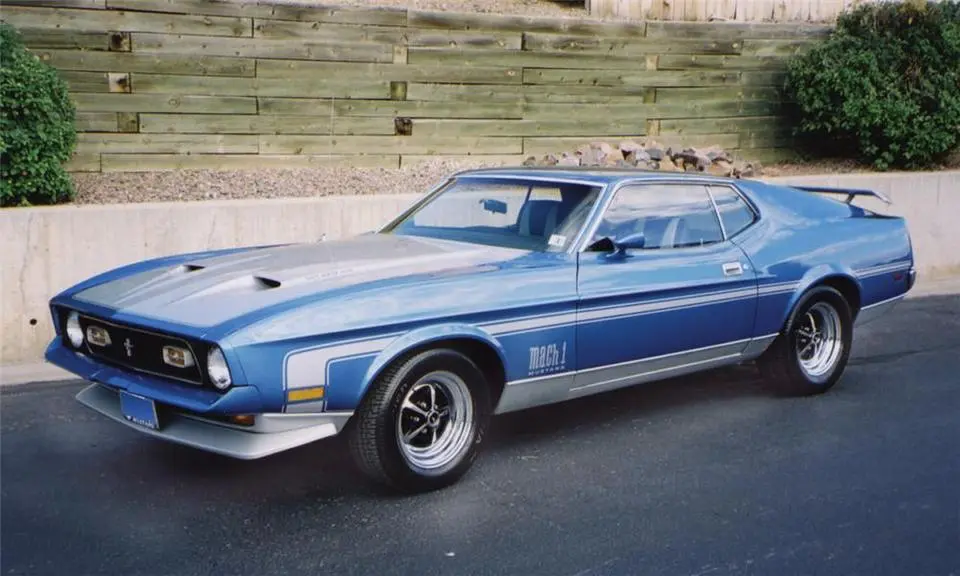

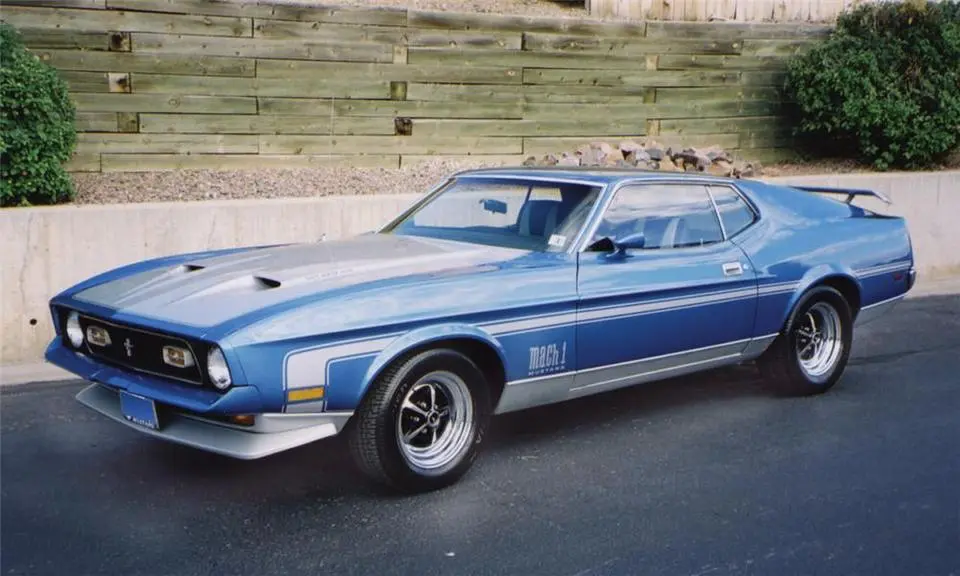

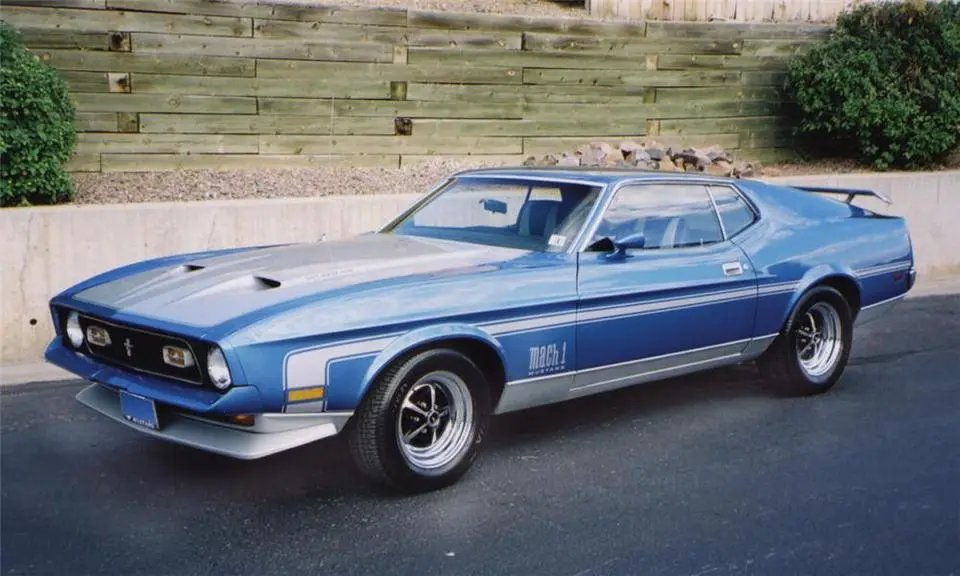

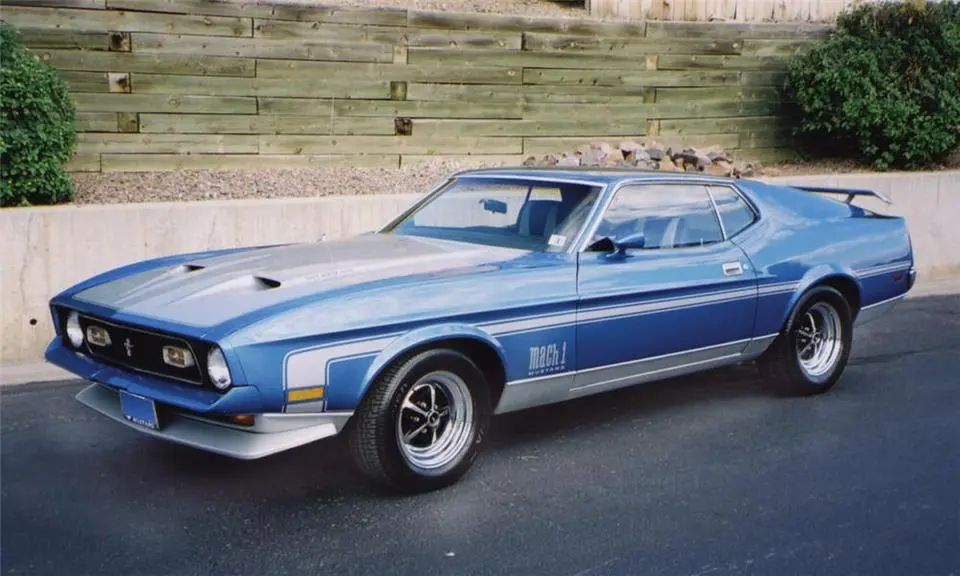

    Here's the ojective:

    [​IMG]

    #7
  8. Iamdiffrnt

    Iamdiffrnt Member

    Joined:
    Nov 13, 2005
    Messages:
    197
    Likes Received:
    6
    Trophy Points:
    19
    Location:
    South of Detroit, MI
    Sounds like you are building what you wanted back then... I would go with the edelbrock intake and a 4 bbl and keep the smaller ported 2v heads. Just because I think a 2 bbl with functioning scoops, and dual exhaust, would look odd. You could always paint the intake blue so it looks more like a factory one.

    #8
  9. PAMach1

    PAMach1 New Member

    Joined:
    Jun 17, 2011
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Martinsburg, PA 1662 USA

    That's what he said! Being technically challenged... It's hard for me to understand this stuff. Your description reads much my mechanics including the blue painting. Thanks!

    #9
  10. woodsnake

    woodsnake Active Member

    Joined:
    Jan 16, 2007
    Messages:
    1,322
    Likes Received:
    9
    Trophy Points:
    39
    Location:
    Hicksville, NY
    Did I see that you have a 351C in the car now? If you aren't out to build a race car, then I would agree, 650CFM Holley 4V carb, 2 1/2 inch pipe for the dual exhaust. I would also look into a 3.25 rear gear for a bit of added oomph. That will give you better acceleration from a stop, and still allow for some decent gas mileage. After all, people will expect some power with all the performance visuals! The gear ratio that came with the car can be found on the drivers side door. There should also be a tag on the rear diff with the same info.

    #10
  11. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,255
    Showcase:
    164
    Albums:
    5
    Likes Received:
    721
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    i like that color scheme the blue and silver goes well together. that color, the rear spoiler was also silver.

    #11
  12. PAMach1

    PAMach1 New Member

    Joined:
    Jun 17, 2011
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Martinsburg, PA 1662 USA
    While ponding all this... What's involved to convert to:

    PLENUM ASSY RAM-AIR CHAMBER ATTACHES TO UNDERSIDE OF NACA HOOD ?

    #12
  13. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,255
    Showcase:
    164
    Albums:
    5
    Likes Received:
    721
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    it is available,prety much a bolt on

    #13
  14. PAMach1

    PAMach1 New Member

    Joined:
    Jun 17, 2011
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Martinsburg, PA 1662 USA
    I notice two vacuum modules on the photo??? Is there a connection I need to know of? Thanks!

    #14
  15. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,255
    Showcase:
    164
    Albums:
    5
    Likes Received:
    721
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    a t fitting made of plastic that ties the two together i think it comes in the ram air kit
    mustangs unlimited sells the chamber

    #15
  16. woodsnake

    woodsnake Active Member

    Joined:
    Jan 16, 2007
    Messages:
    1,322
    Likes Received:
    9
    Trophy Points:
    39
    Location:
    Hicksville, NY
    #16
