Electrical 1989 5.0 Need Serious Electrical Help

Discussion in 'Fox 5.0 Mustang Tech' started by Wonderbread750, May 1, 2014.


  1. nothwoods

    nothwoods Member

    Joined:
    Jun 10, 2013
    Messages:
    69
    Likes Received:
    3
    Trophy Points:
    9

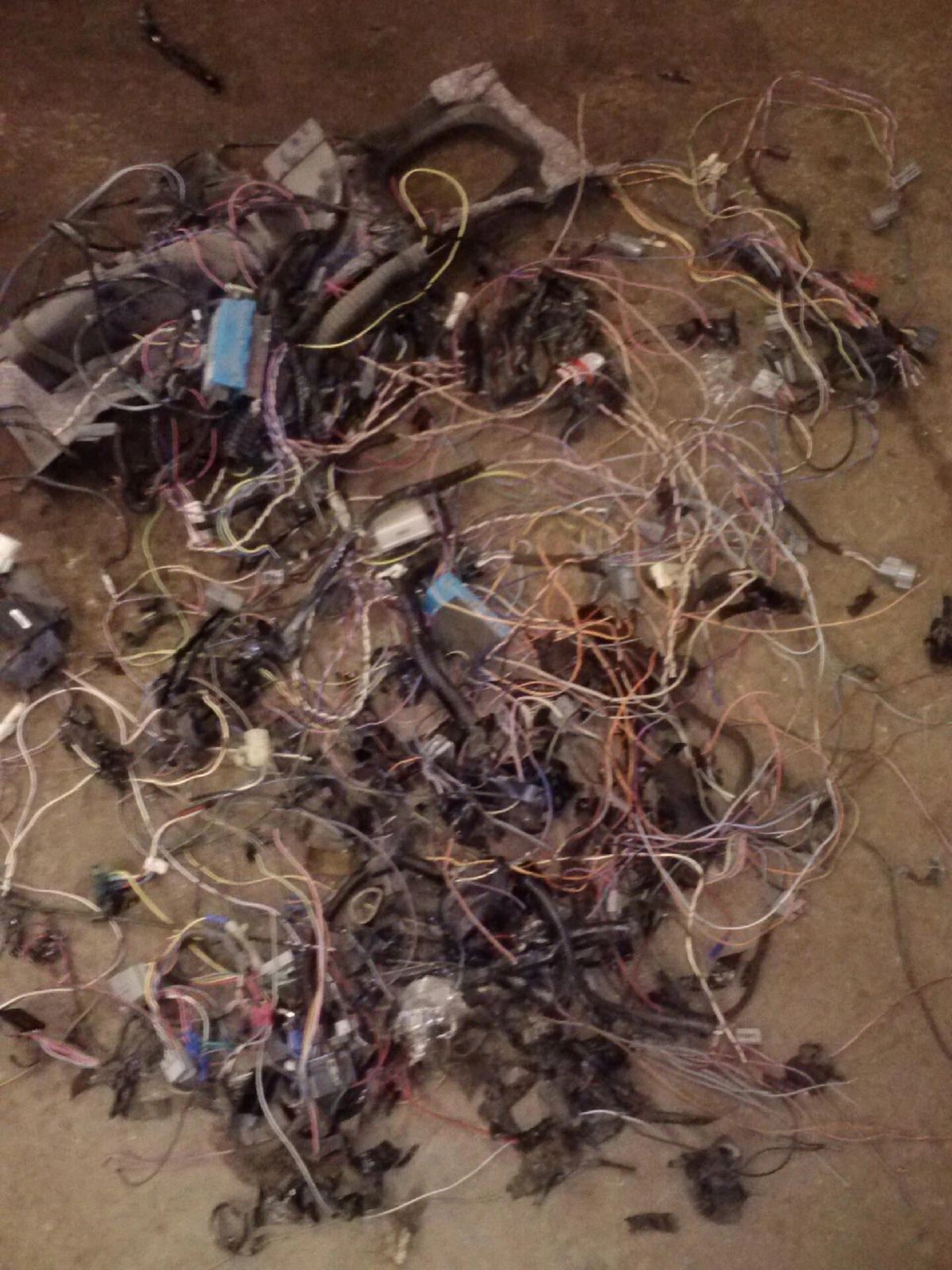

    Here's all the wires that I removed from my 90 GT this weekend, anyone have a schematic?


    Attached Files:

    #21
  2. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,817
    Likes Received:
    403
    Trophy Points:
    134
    Location:
    Dublin GA
    I hate going to Mustang funerals, so please excuse me for not attending yours.... :(

    #22
    nothwoods likes this.
  3. nothwoods

    nothwoods Member

    Joined:
    Jun 10, 2013
    Messages:
    69
    Likes Received:
    3
    Trophy Points:
    9
    It's not a funeral at all! Just the opposite, it's a rebirth! All my electrical mods are done except for extending the shielded TFI harness to the fender. Now I'm working on cleaning up the engine bay and welding up all the unnecessary holes.

    #23
  4. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,501
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,242
    Trophy Points:
    174
    Location:
    a van down by the river
    Man i hope properly soldered every connection youve made. Looks like this thread was created due to a bad crimp. And what is all that removed from :scratch:

    #24
  5. nothwoods

    nothwoods Member

    Joined:
    Jun 10, 2013
    Messages:
    69
    Likes Received:
    3
    Trophy Points:
    9
    All new connections are good. Removed air bag system, stereo system, heater controls, rear defrost, cruise control, power mirrors, interior lighting, (except panel), unused connectors, few other odds and ends. Now it has exterior lighting, wipers, horn, power windows and locks, and EEC IV. I cut up the air box and set it up to just have the defroster, and I'll put the fan on a toggle. Plugged everything in temporarily except PCM, and all works as it should, has power at PCM. Probably took somewhere around 100 lbs. out, before this I already had it down to about 3200 lbs. depending on fuel with 6-point cage, Tremec, blower, steel bell housing, safety loop, and subframe connectors.

    #25
