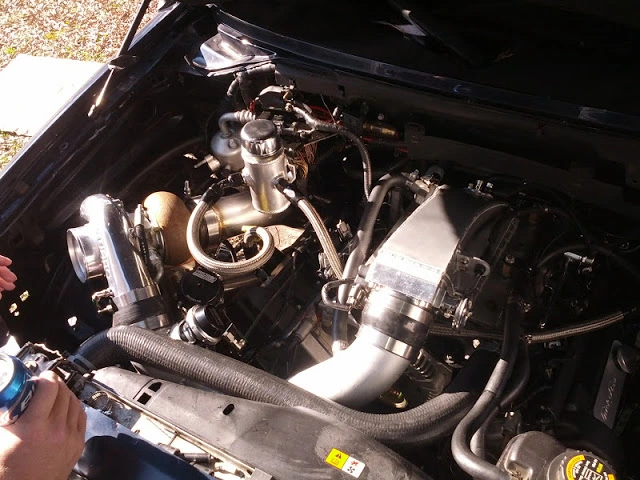

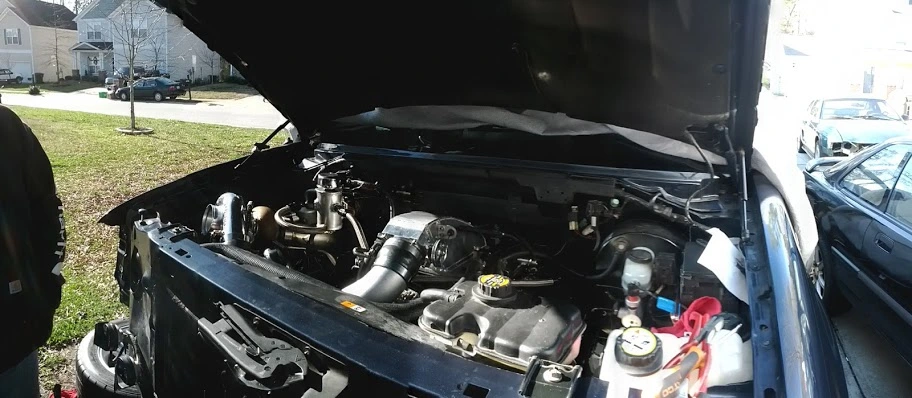

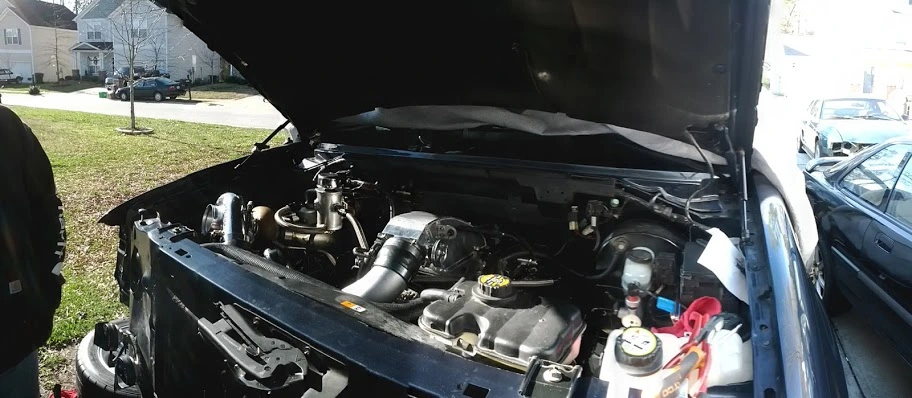

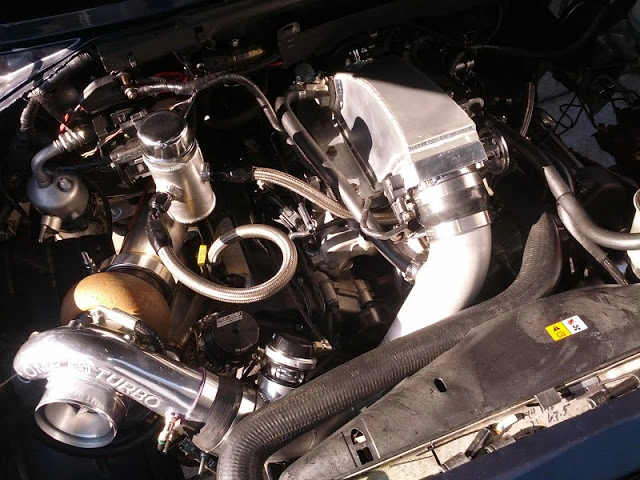

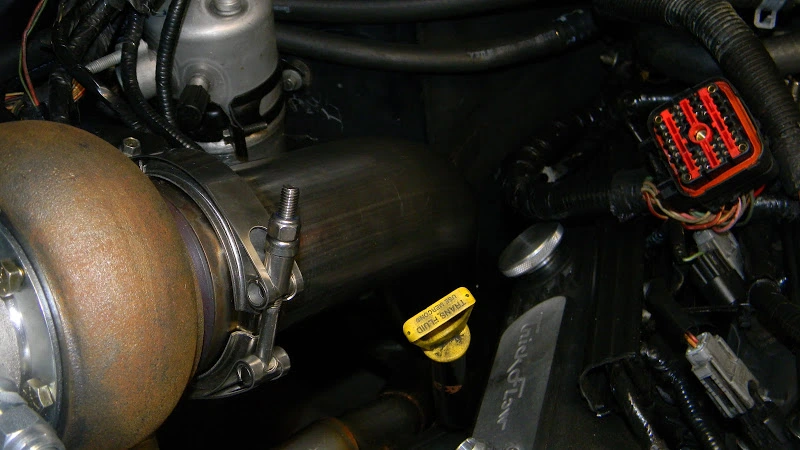

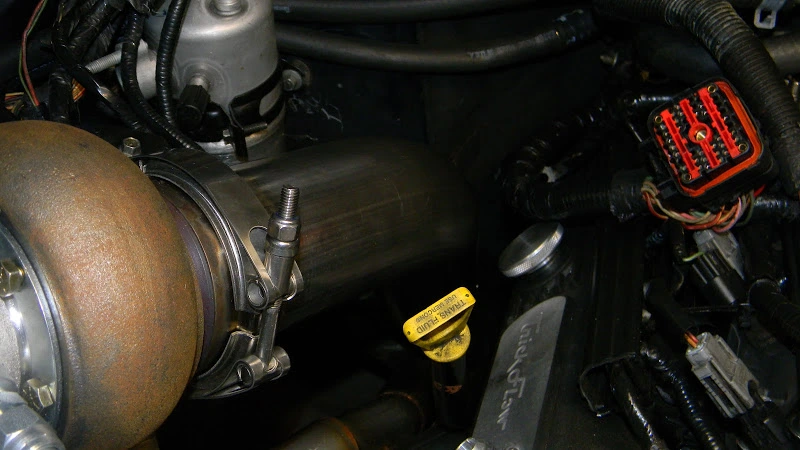

    Updates, Coolant and oil lines made, down pipe to mufflers made. Added IAC to intake. Enjoy!

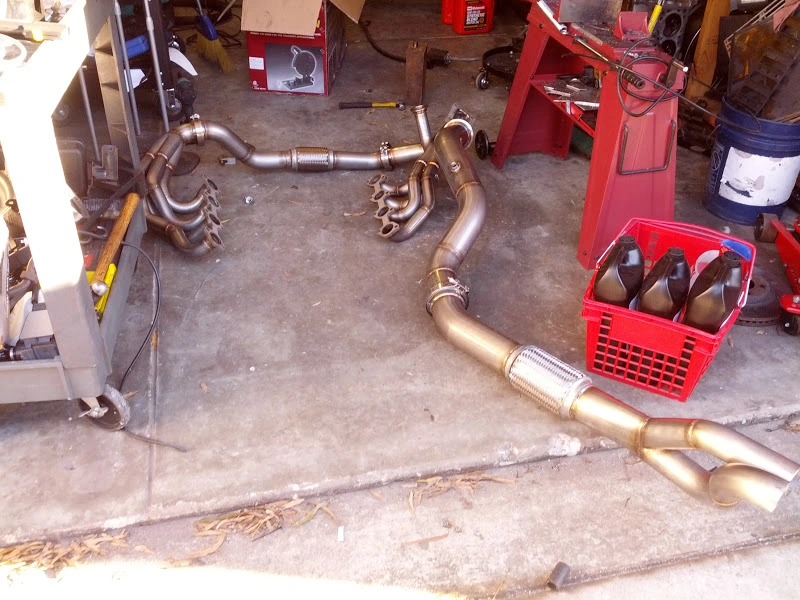

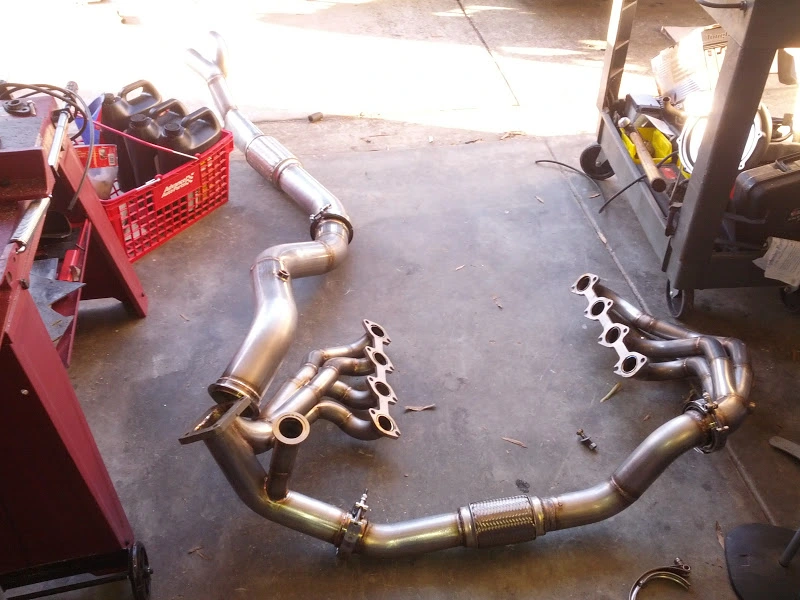

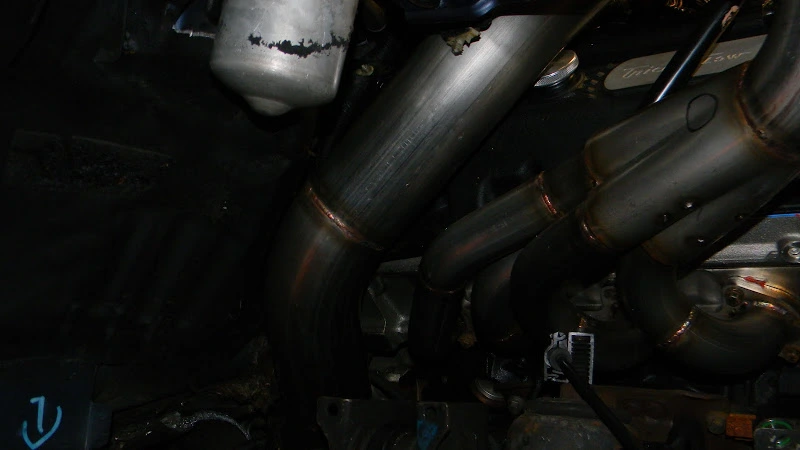

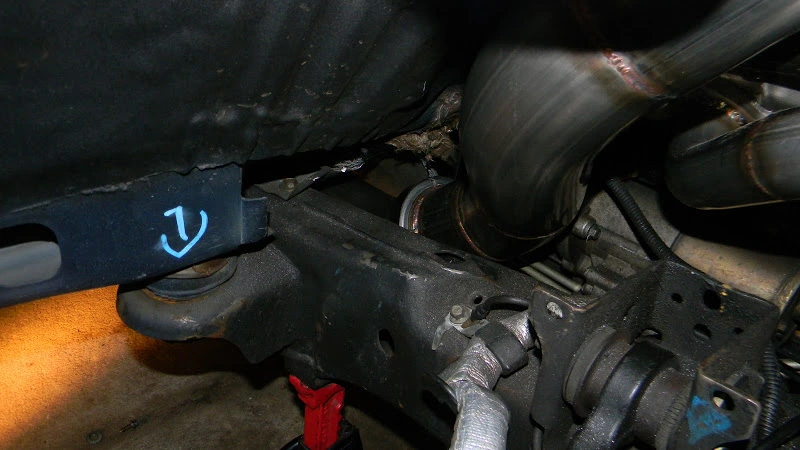

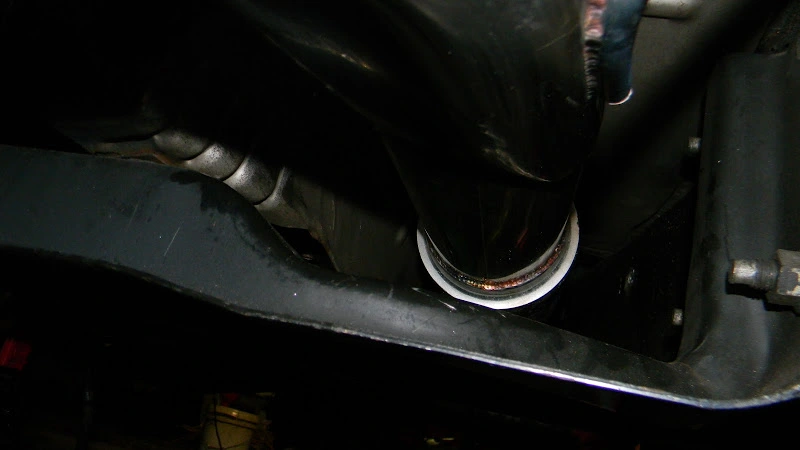

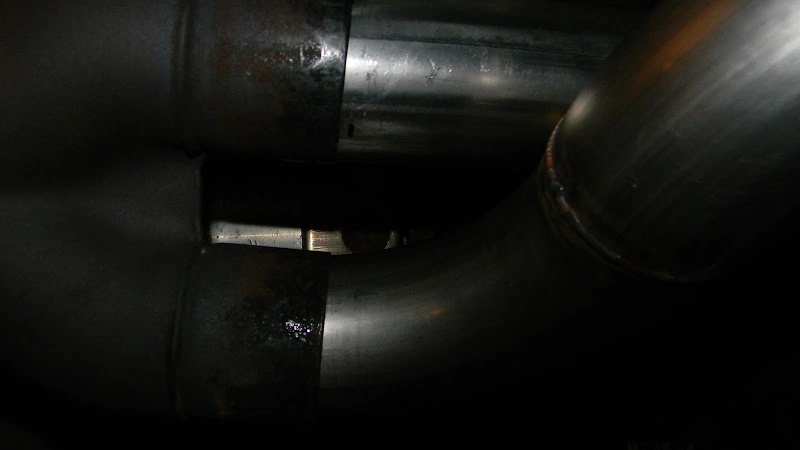

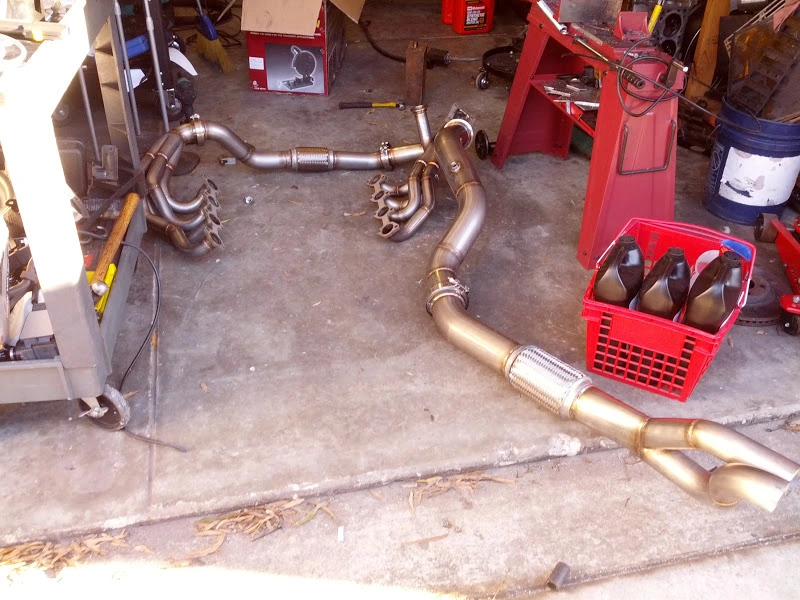

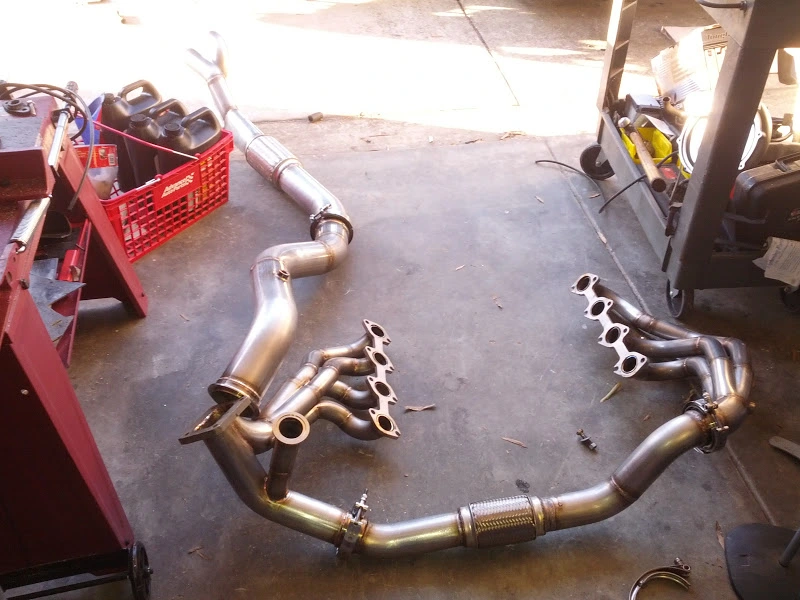

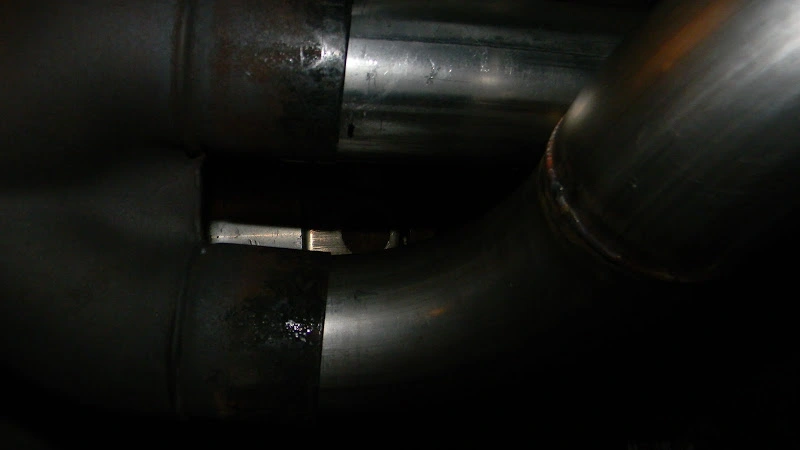

    Follow the down pipe...

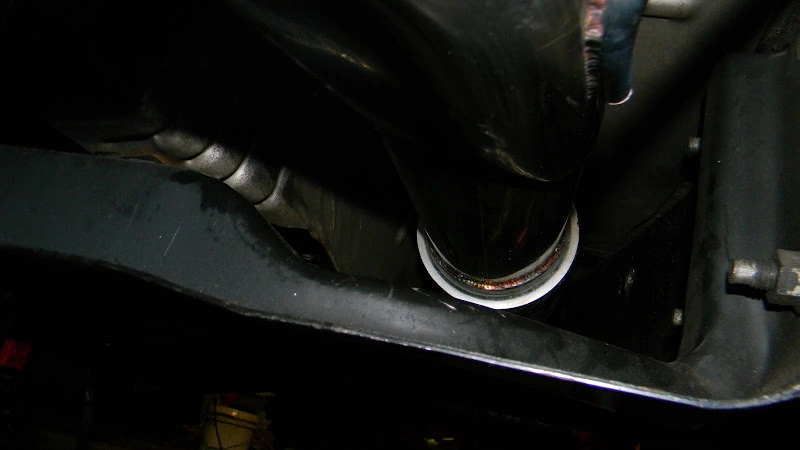

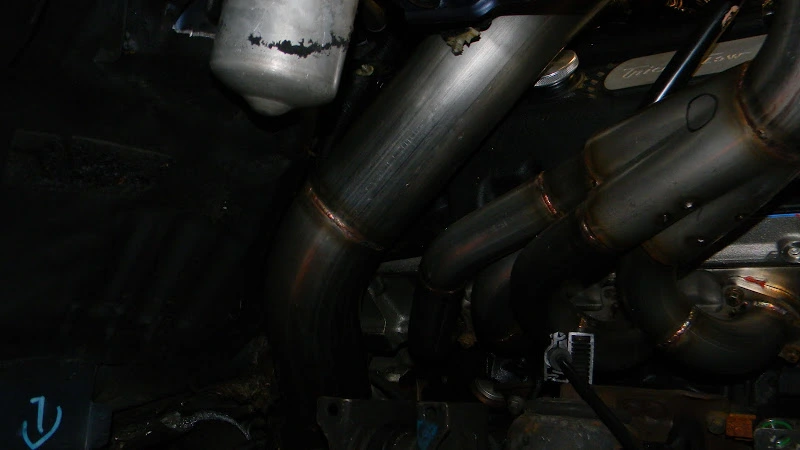

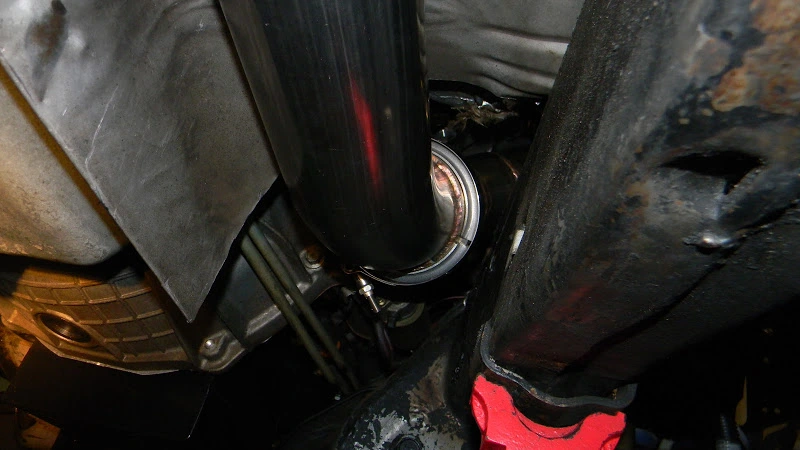

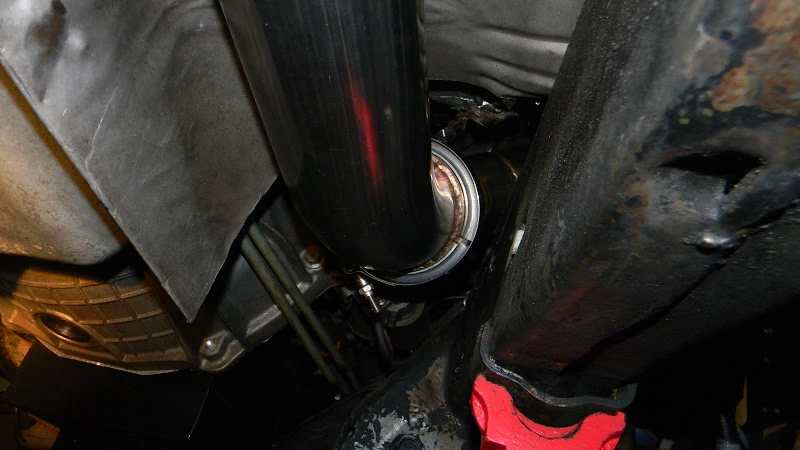

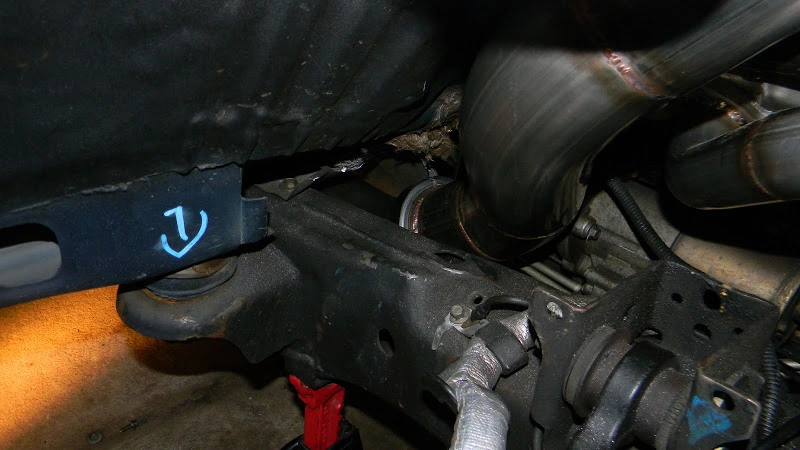

    under the truck

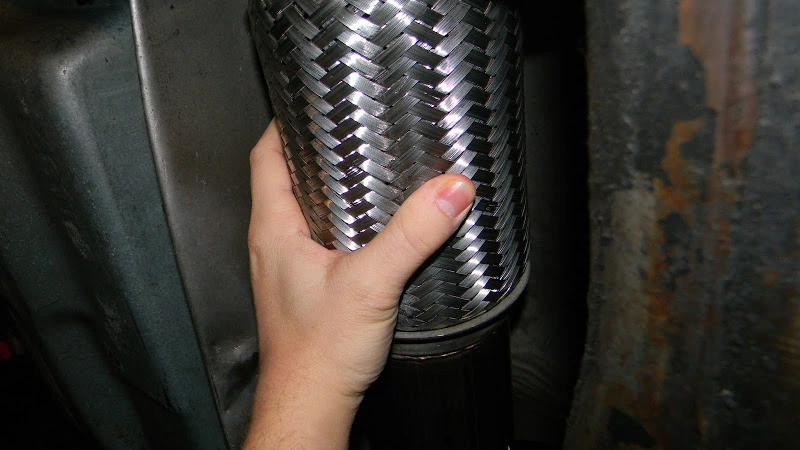

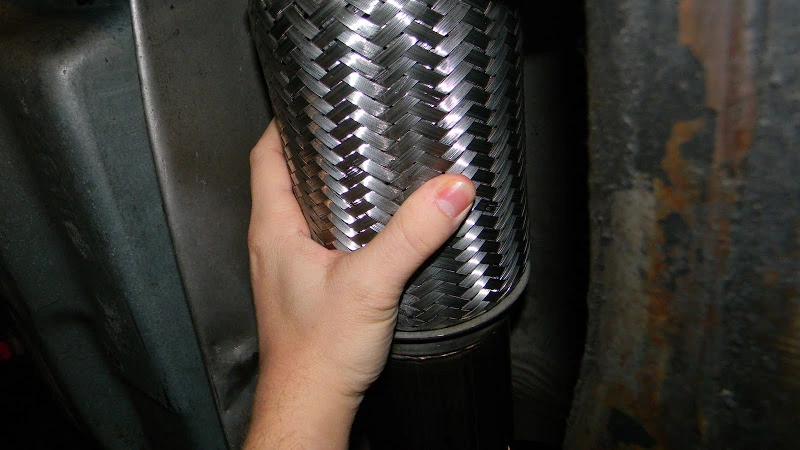

    monster flex pipe

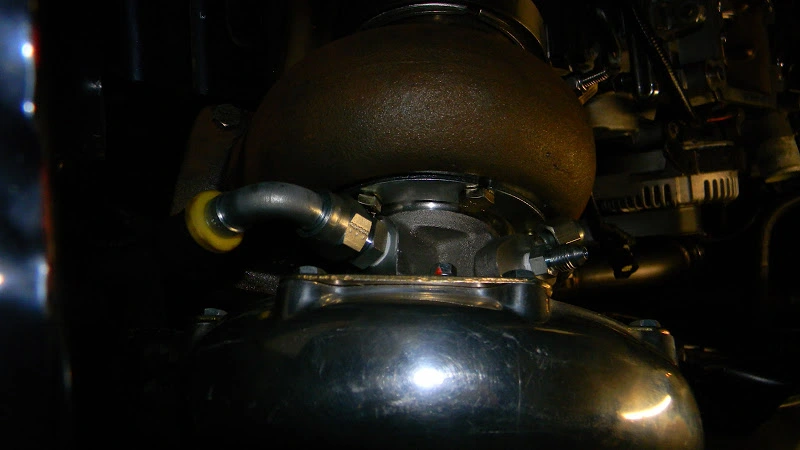

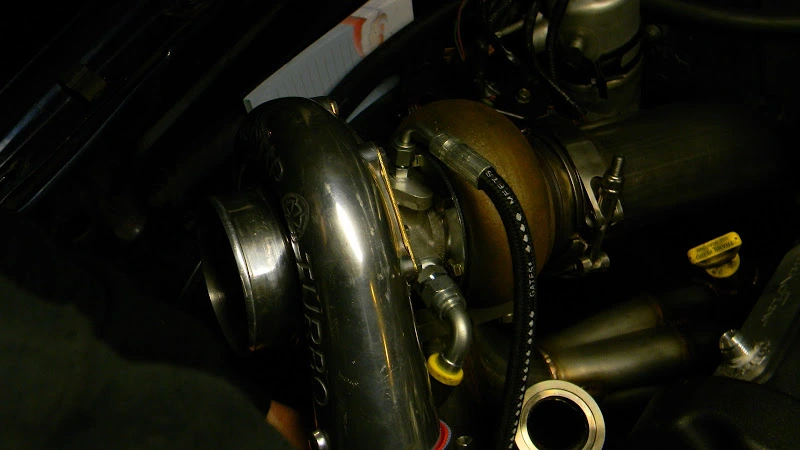

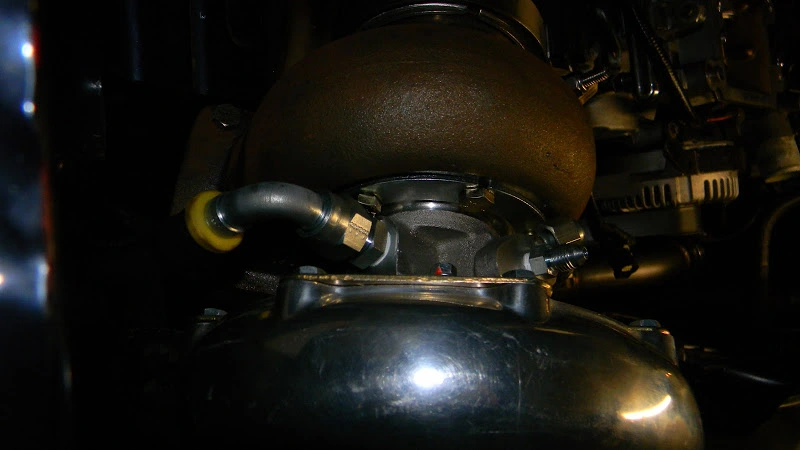

    Custom lines, look factory

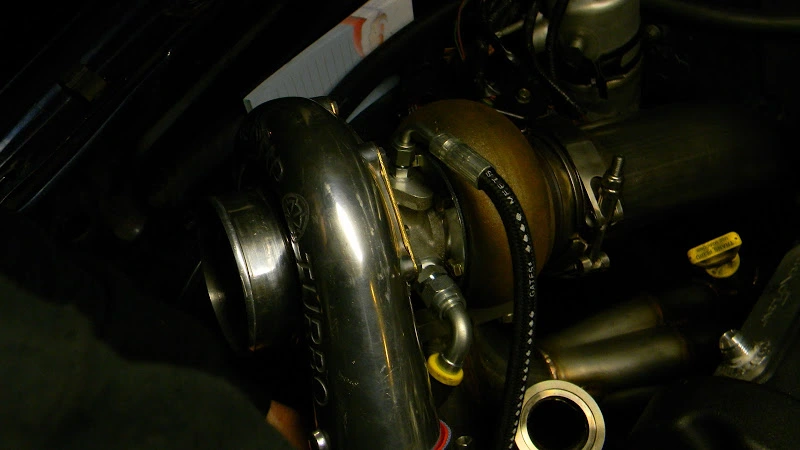

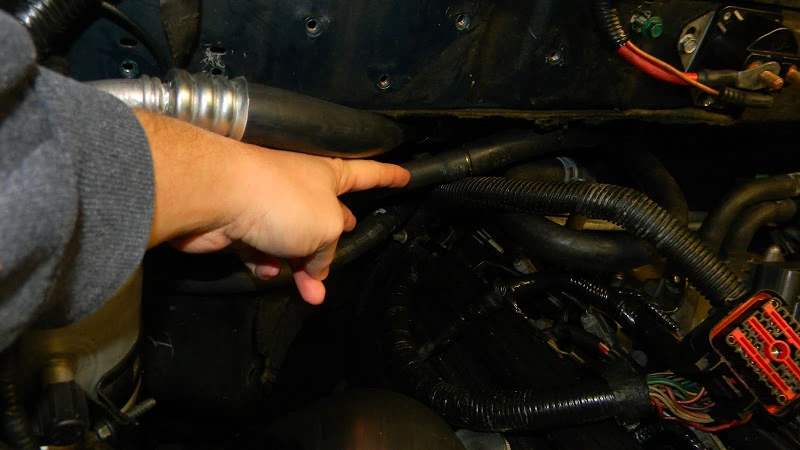

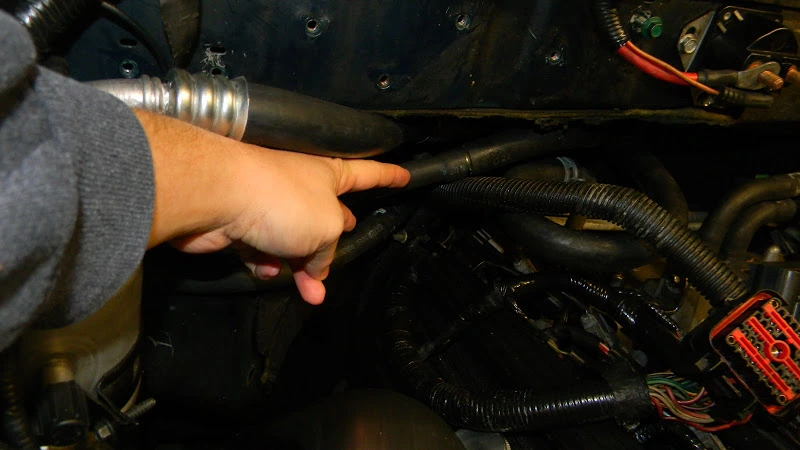

    cut into the heater core return line to feed the turbo

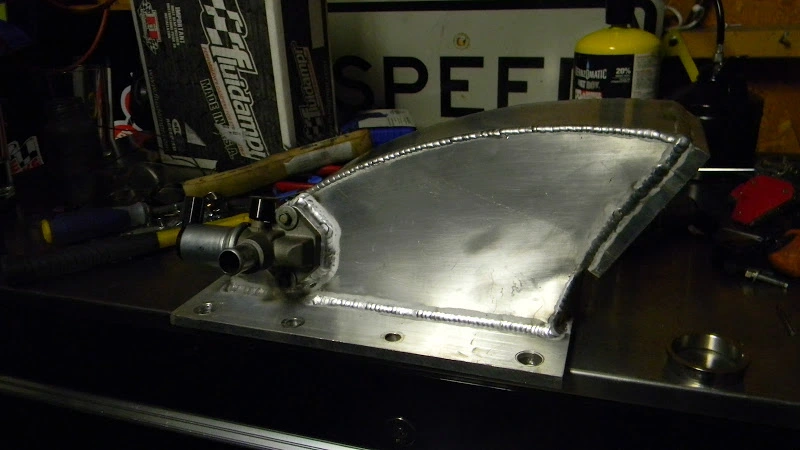

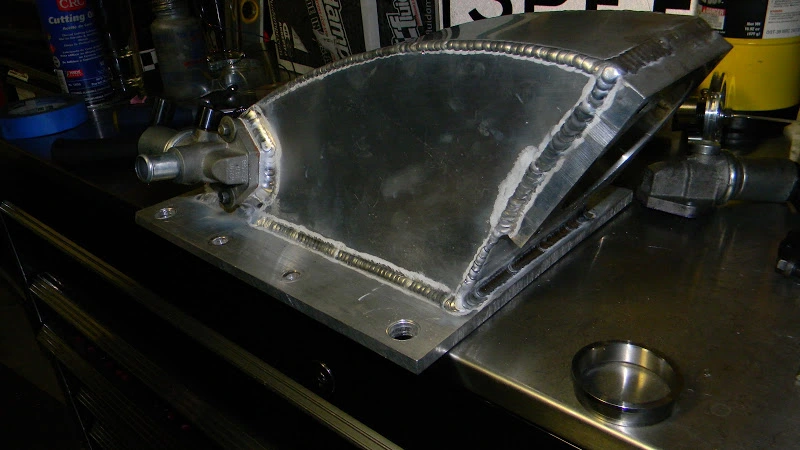

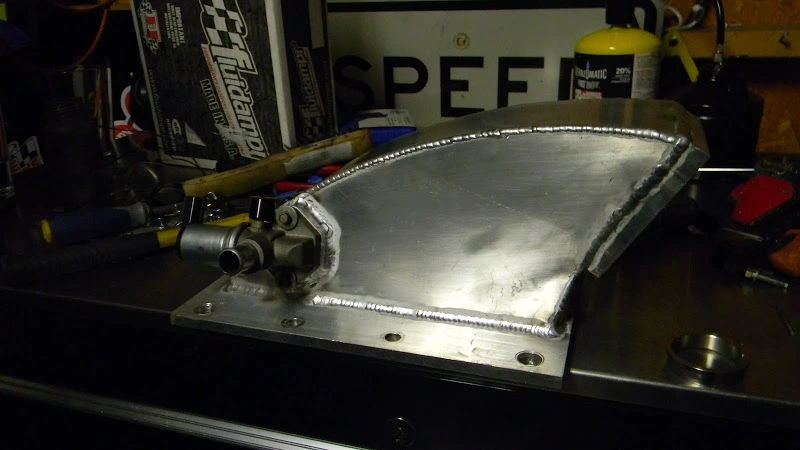

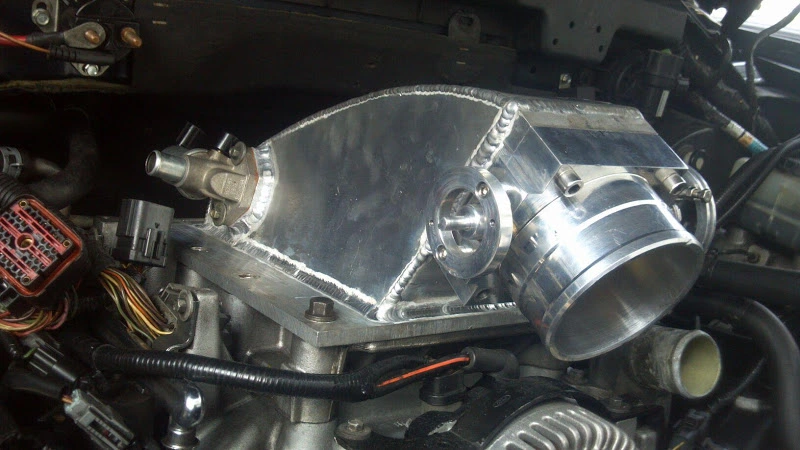

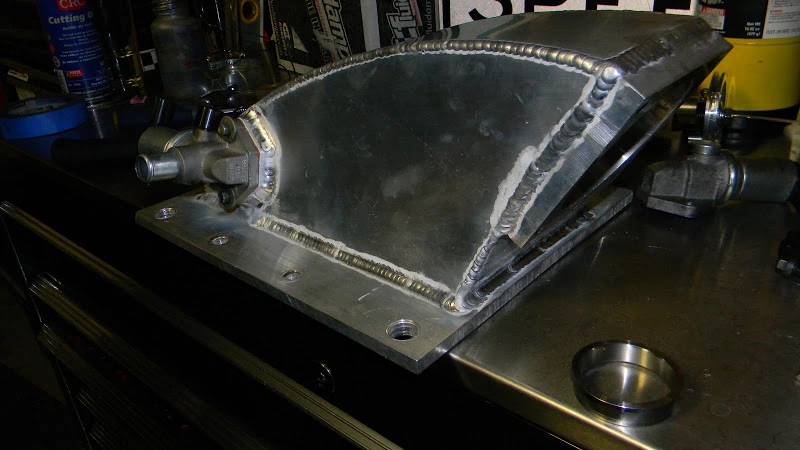

    hand made IAC plate

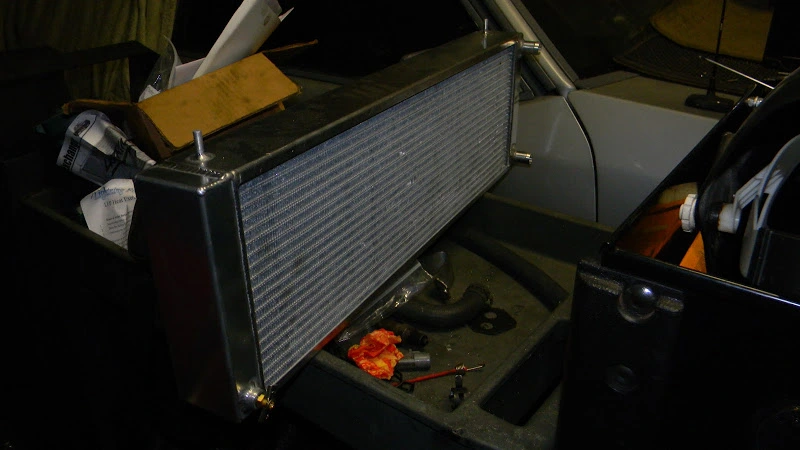

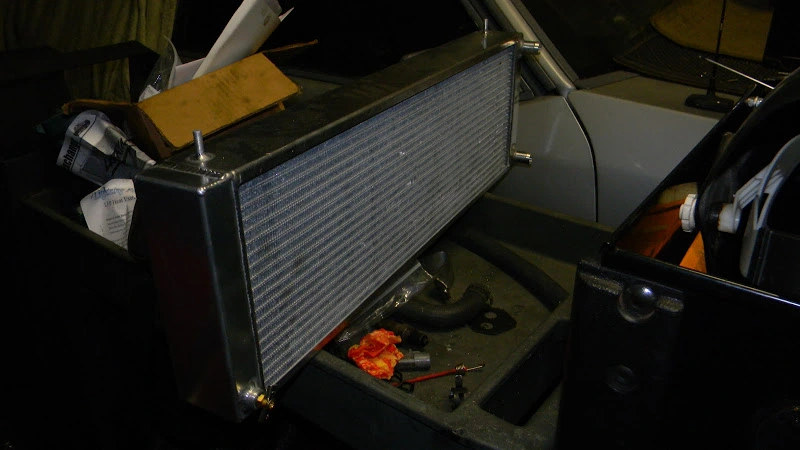

    big boy heat exchanger


    Attached Files:

  2. mustangman9812

    mustangman9812 Active Member

    Joined:
    Jan 14, 2004
    Messages:
    664
    Likes Received:
    5
    Trophy Points:
    29
    Location:
    Charlotte, NC
    Sweet man! I love the look with the Hydraulic hoses, plus they can easily handle very high pressures. Great build so far!

  3. tank_567

    tank_567 Active Member

    Joined:
    Mar 19, 2007
    Messages:
    731
    Likes Received:
    26
    Trophy Points:
    29
    Location:
    Raleigh, Nc

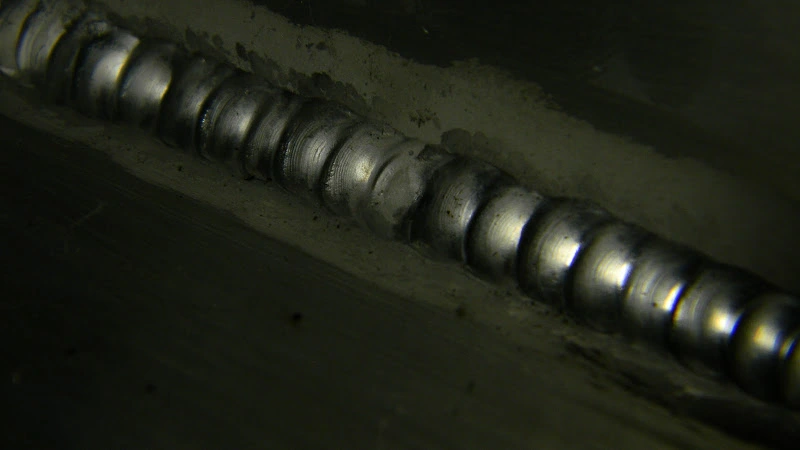

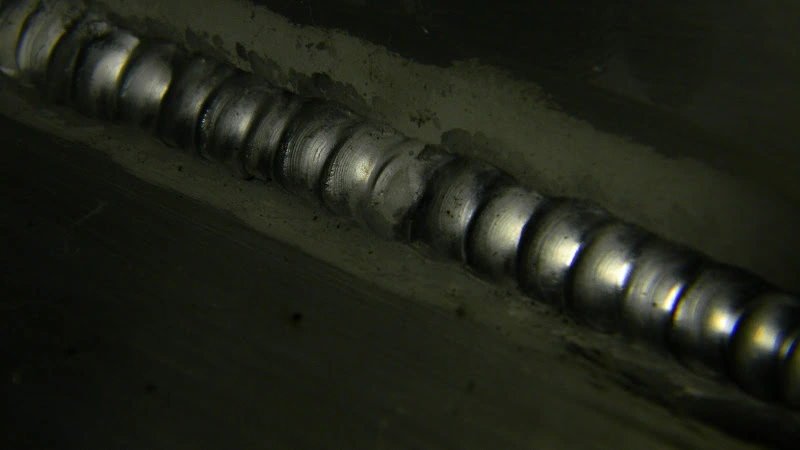

    Thank my brother for the great welds, hes great with the tig.

    mustangman9812 likes this.
  4. tank_567

    tank_567 Active Member

    Joined:
    Mar 19, 2007
    Messages:
    731
    Likes Received:
    26
    Trophy Points:
    29
    Location:
    Raleigh, Nc

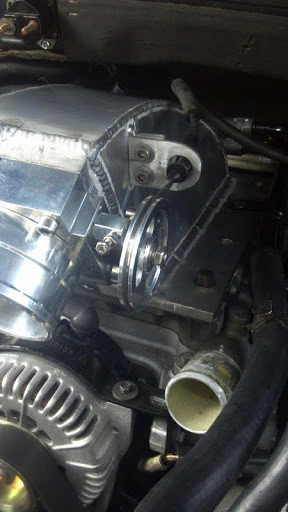

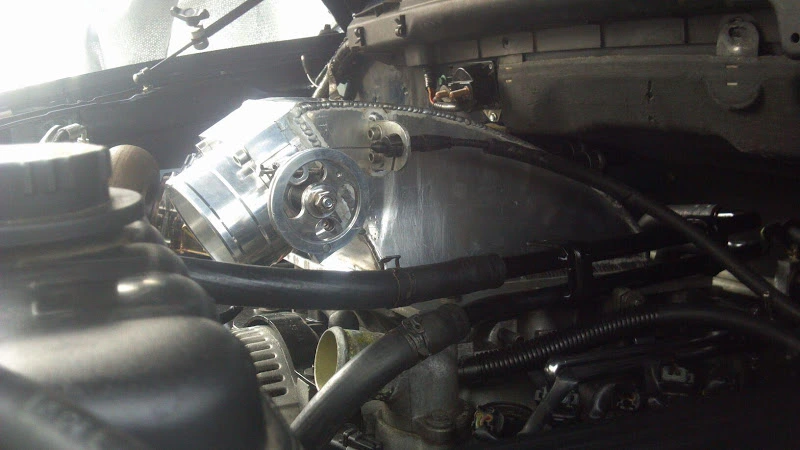

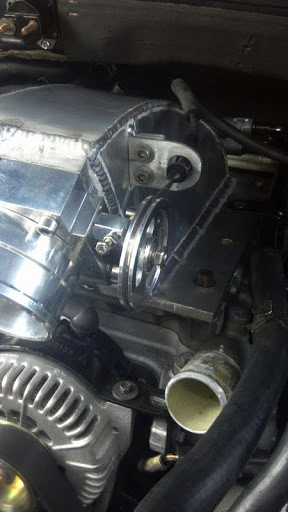

    Update, throttle cable bracket !!!





    Attached Files:

    mustangman9812 likes this.
  5. mustangman9812

    mustangman9812 Active Member

    Joined:
    Jan 14, 2004
    Messages:
    664
    Likes Received:
    5
    Trophy Points:
    29
    Location:
    Charlotte, NC
    awesome!! This thread FTW! tank_567

    tank_567 likes this.
  6. flstang65

    flstang65 Well-Known Member

    Joined:
    Dec 6, 2007
    Messages:
    1,359
    Likes Received:
    113
    Trophy Points:
    64
    Location:
    Mid Michigan
    Your brother's welding skills make me want to :fap:

    tank_567 likes this.
  7. tank_567

    tank_567 Active Member

    Joined:
    Mar 19, 2007
    Messages:
    731
    Likes Received:
    26
    Trophy Points:
    29
    Location:
    Raleigh, Nc

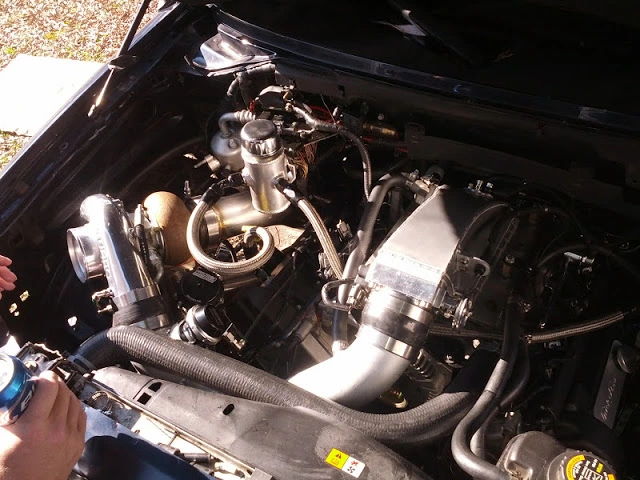

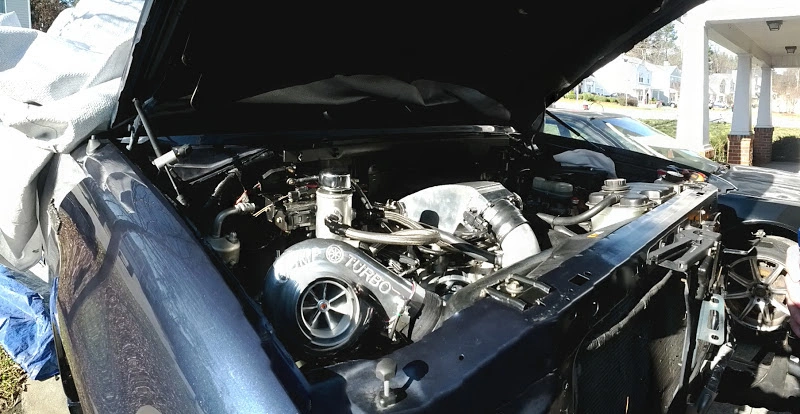

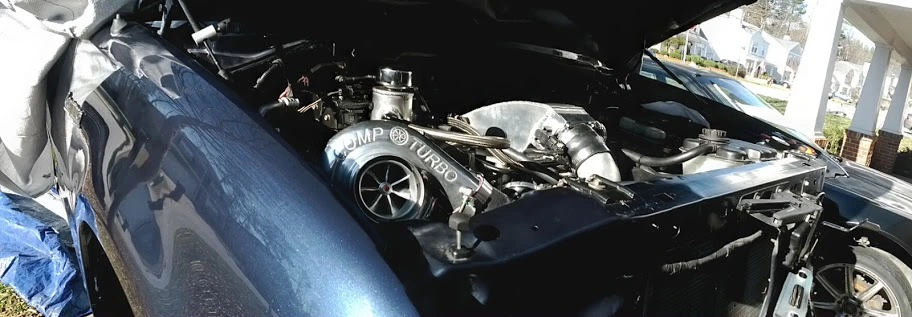

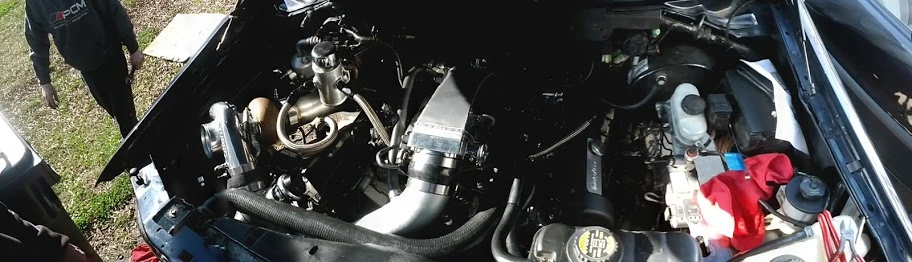

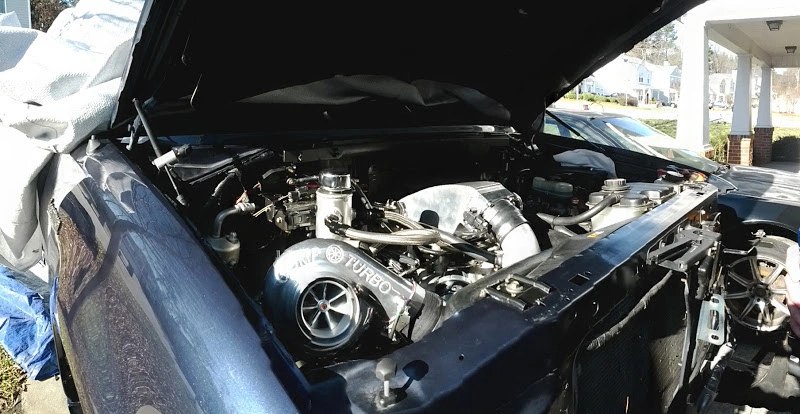

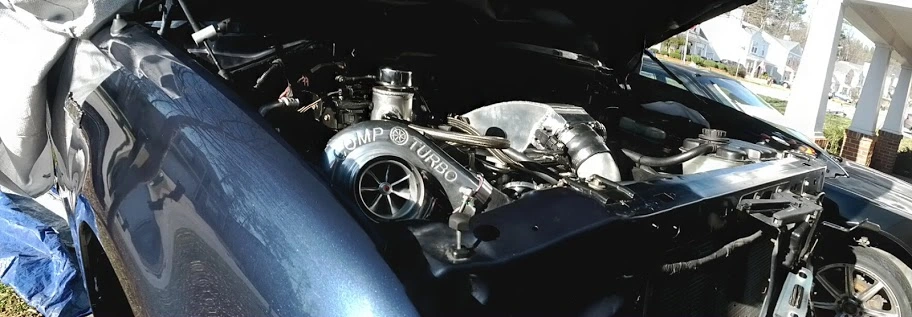

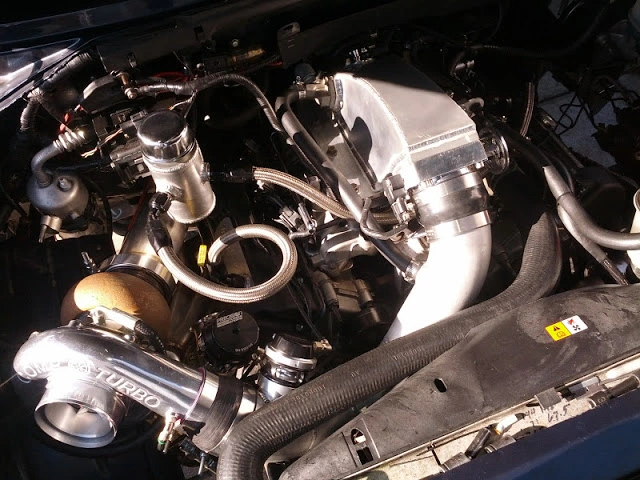

    Everything getting installed for the last time!





    Attached Files:

  8. mustangman9812

    mustangman9812 Active Member

    Joined:
    Jan 14, 2004
    Messages:
    664
    Likes Received:
    5
    Trophy Points:
    29
    Location:
    Charlotte, NC
    Everything is beautiful except for last picture

  9. Winters98GT

    Winters98GT Whoop...whoop-whoop-whoop-whoop...GANGNAM STYLE!!!
    Founding Member

    Joined:
    Nov 29, 1999
    Messages:
    4,556
    Likes Received:
    269
    Trophy Points:
    154
    Location:
    H Town
    You guys need to set up a race with Flaco's truck here in Houston. Both sick builds, single turbo setups.

    Congrats on the build. Fabrication looks great.

  10. tank_567

    tank_567 Active Member

    Joined:
    Mar 19, 2007
    Messages:
    731
    Likes Received:
    26
    Trophy Points:
    29
    Location:
    Raleigh, Nc

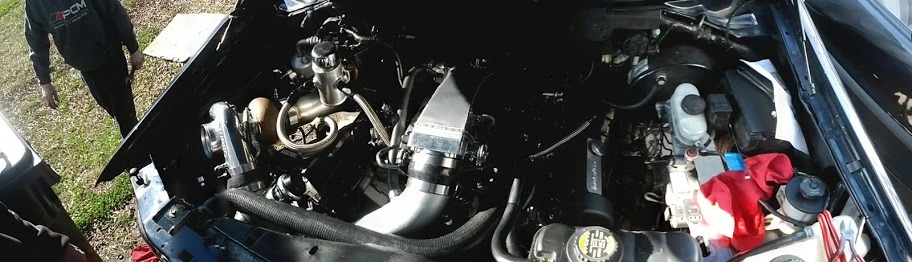

    Shes almost done! Fired right up and sounds like a beast (video coming soon). Just need to install the front-end and a few days of r&r on the dyno.








    Attached Files:

  11. tank_567

    tank_567 Active Member

    Joined:
    Mar 19, 2007
    Messages:
    731
    Likes Received:
    26
    Trophy Points:
    29
    Location:
    Raleigh, Nc
    VIDEO TIME!




    (sorry the sound is not sync'd, but you get the point;) )

    03_TrueBlue_GT and sneaky98gt like this.
  12. tank_567

    tank_567 Active Member

    Joined:
    Mar 19, 2007
    Messages:
    731
    Likes Received:
    26
    Trophy Points:
    29
    Location:
    Raleigh, Nc
    Heading to the dyno tomorrow, see what 8-12lbs will do.

  13. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor
    Admin Dude

    Joined:
    Jan 4, 1985
    Messages:
    15,519
    Likes Received:
    1,694
    Trophy Points:
    174
    Location:
    Box behind Walmart
    I know, I know!




    It will make you want more. :D

  14. tank_567

    tank_567 Active Member

    Joined:
    Mar 19, 2007
    Messages:
    731
    Likes Received:
    26
    Trophy Points:
    29
    Location:
    Raleigh, Nc
    UPDATE:
    Breakin tune installed, truck made some really good power over the blower. Made 510rwhp / 570rwtq on just 9lbs! On a stage 1 ported stock blower it made 450rwhp on 15lbs of boost! TURBO FTW!

  15. SteedaGT9150

    SteedaGT9150 Advanced Member

    Joined:
    Nov 10, 2004
    Messages:
    1,391
    Likes Received:
    57
    Trophy Points:
    68
    Location:
    Maryland
    sounds beast

  16. tank_567

    tank_567 Active Member

    Joined:
    Mar 19, 2007
    Messages:
    731
    Likes Received:
    26
    Trophy Points:
    29
    Location:
    Raleigh, Nc
    VIDEO! ENJOY!


    03_TrueBlue_GT likes this.
