347ci Crank and Pistons

Discussion in 'Classic Mustang Engine and Power Adder Parts For S' started by VicRattlehead, Jan 12, 2011.


  1. VicRattlehead

    VicRattlehead Founding Member

    Joined:
    Apr 8, 2000
    Messages:
    521
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    ChiTown Il

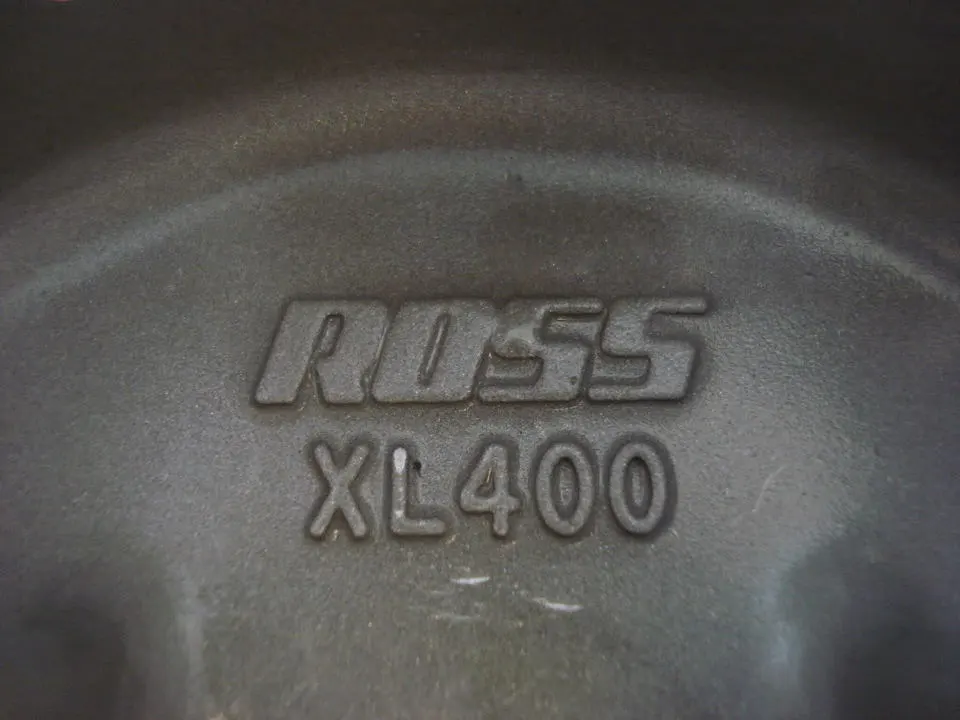

    Ross Racing pistons

    there are 8 pistons here however 1 has a crack in the dome, and one has some pitting in the dome. the other 6 are good and reusable.

    Ross Pistons:

    4.030 bore
    .004 clearance
    1.085 compression height
    12:1 w/ 64cc head
    20* head
    build number for these pistons is 60554 youll need this number to order replacement pistons.

    Rings are included for all 8 pistons.
    Total Seal Rings - .043 .043 3mm


    4340 forged steel crank
    Crank stamped as 302 3400 5400
    302 block
    stroke 3.400
    rod length 5.400
    Standard standard grind
    Crank is 28oz External balance


    $350 for pistons and rings



    [email protected]

    815-254-2333

    parts in Plainfield IL 60585

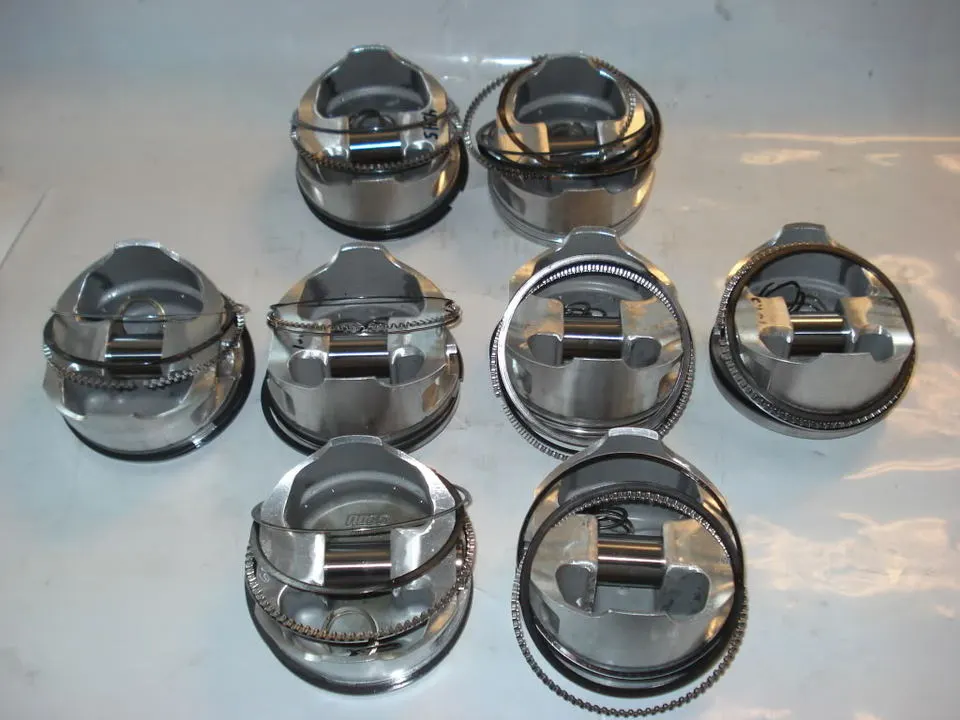

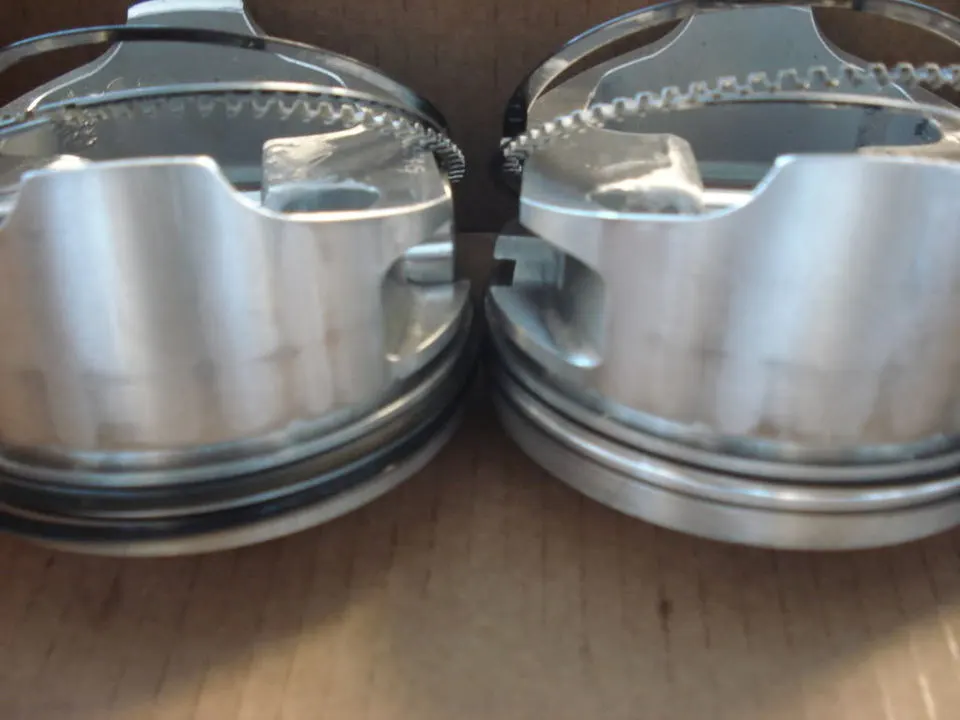

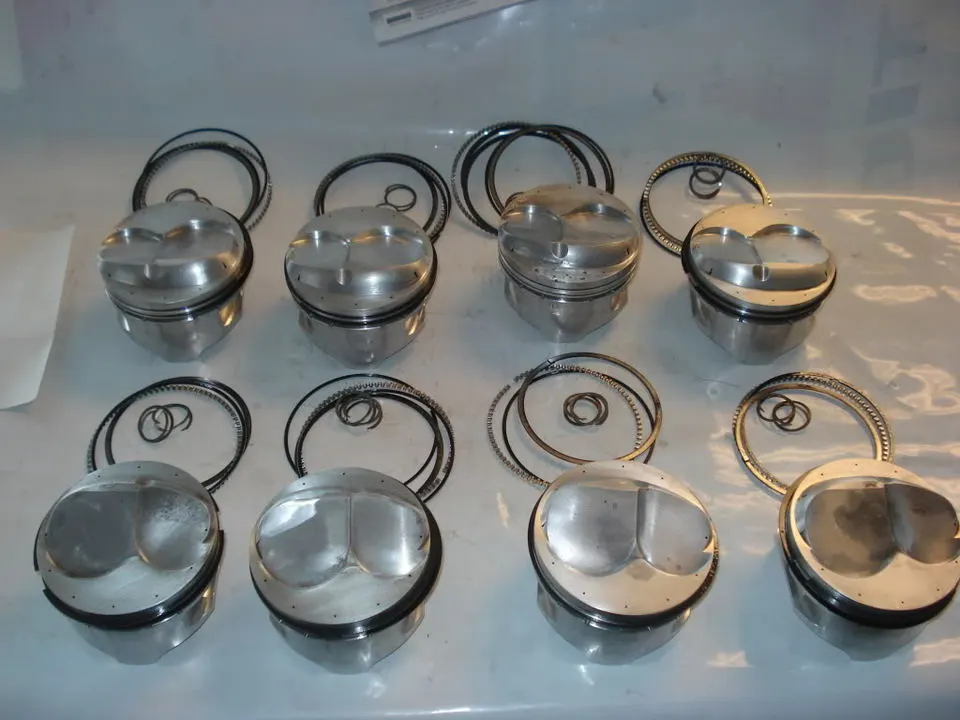

    pistons..


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]


    2 bad pistons.

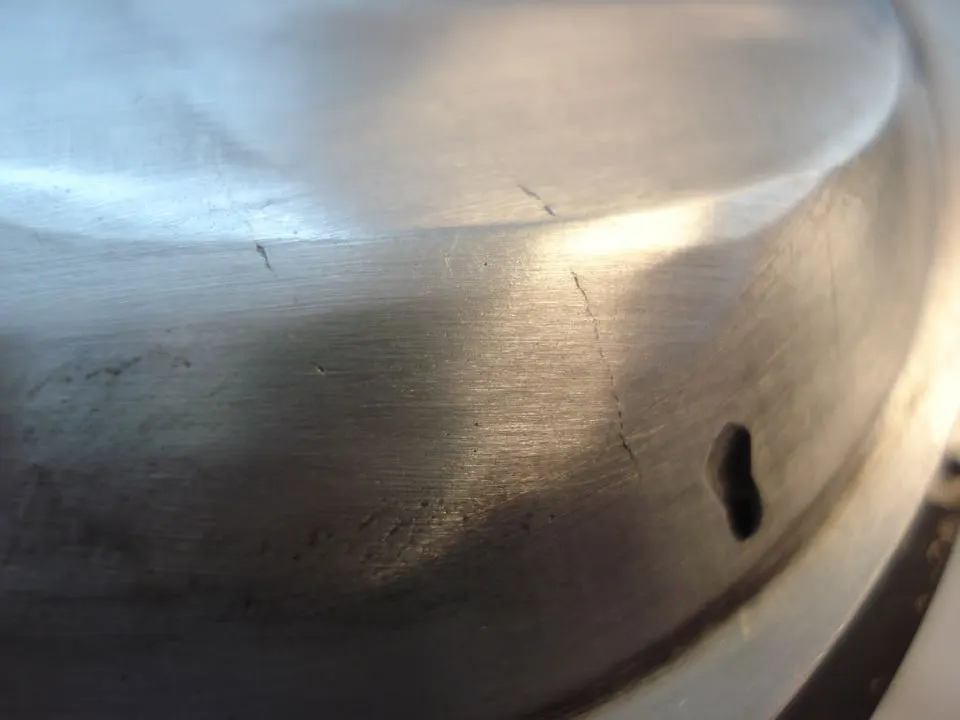

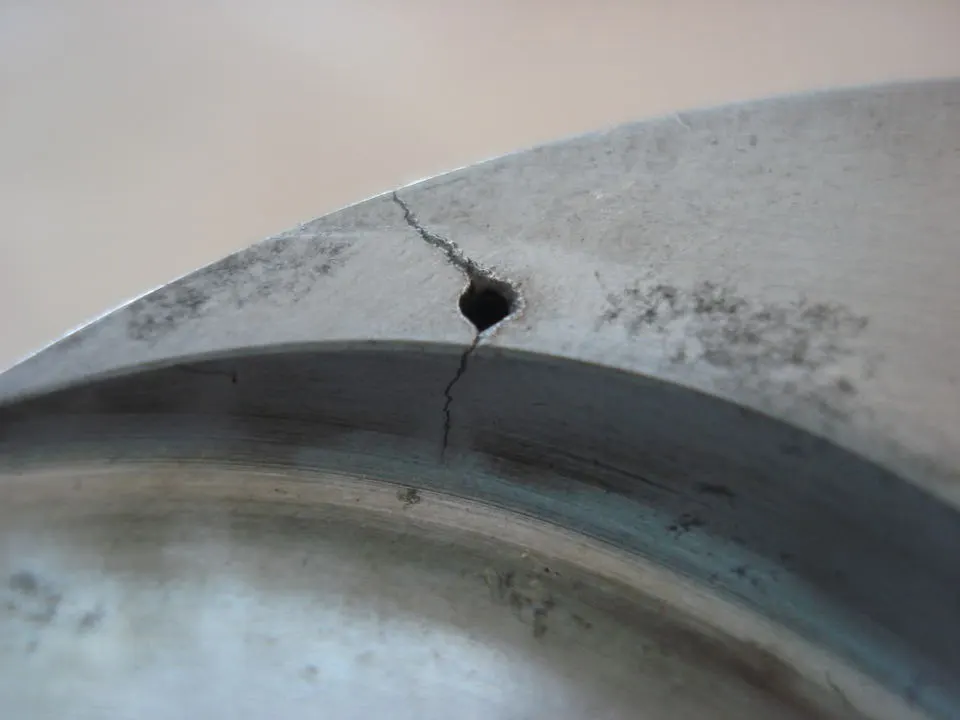

    first has 2 cracks.
    [​IMG]
    [​IMG]

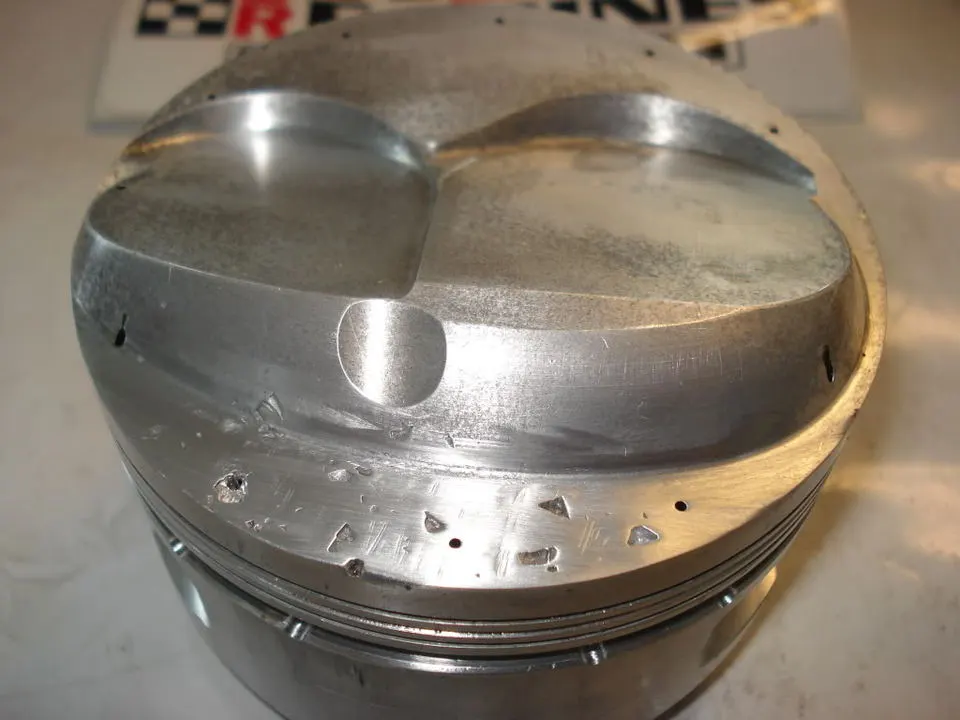

    second has some nicks in the top
    [​IMG]
  2. VicRattlehead

    VicRattlehead Founding Member

    Joined:
    Apr 8, 2000
    Messages:
    521
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    ChiTown Il
    friday bump!!!


    if your interested in the pistons, my work is a dealer for them and we can call them up and get replacements for the bad ones. not sure on the cost but let me know and we can work it out.
  3. VicRattlehead

    VicRattlehead Founding Member

    Joined:
    Apr 8, 2000
    Messages:
    521
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    ChiTown Il
    still have the pistons and crank. let me know if your interested.
  4. VicRattlehead

    VicRattlehead Founding Member

    Joined:
    Apr 8, 2000
    Messages:
    521
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    ChiTown Il
    still have the pistons.
    let me know
  5. VicRattlehead

    VicRattlehead Founding Member

    Joined:
    Apr 8, 2000
    Messages:
    521
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    ChiTown Il
    pistons still here. crank is sold.
  6. VicRattlehead

    VicRattlehead Founding Member

    Joined:
    Apr 8, 2000
    Messages:
    521
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    ChiTown Il
    ttt for pistons. lmk if intersted.
