3G Alternator Install: A How To

Discussion in 'Fox 5.0 Mustang Tech' started by Roland69, Jul 4, 2006.


  1. ShortThrow50

    ShortThrow50 Member

    Joined:
    Oct 22, 2006
    Messages:
    978
    Likes Received:
    0
    Trophy Points:
    16
  2. JH96GT

    JH96GT Founding Member

    Joined:
    Aug 20, 2000
    Messages:
    1,556
    Likes Received:
    21
    Trophy Points:
    49
    Didn't even see this before I posted a question about install. hmmm.


    What is a scotch lock and what big electrical plug are you talking about. I'm still somewhat fuzzy on how you hookup the 3G using the 3G factory harness I have. Can anyone explain a little more or post a few pics?

    Thanks.
    #22
  3. labyas

    labyas New Member

    Joined:
    Apr 27, 2007
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    0
    FWIW the fuse should be as close to the alternator as possible. -less than 18 inches. The fuse is used to protect the wire and electronics behind it and should be placed @ the power source side of the run.

    And once again, ground (make sure it's a good ground) with whatever gauge you ran your alt power with. Solder your connections and shrink your exposed terminals. If you neglect to do these things you and Kirchhoff will be chasing electrical gremins in the future.
    #23
  4. DRock9

    DRock9 New Member

    Joined:
    Aug 22, 2006
    Messages:
    360
    Likes Received:
    0
    Trophy Points:
    0
    My friend told me to attach the cable from the alternator to the positive terminal on the battery so that is how I have been running my car for the past week or so...will this harm anything?

    Also, where is the starter solenoid so I can do it right.

    Thanks!
    #24
  5. glowstang93

    glowstang93 Member

    Joined:
    Feb 9, 2003
    Messages:
    834
    Likes Received:
    2
    Trophy Points:
    19

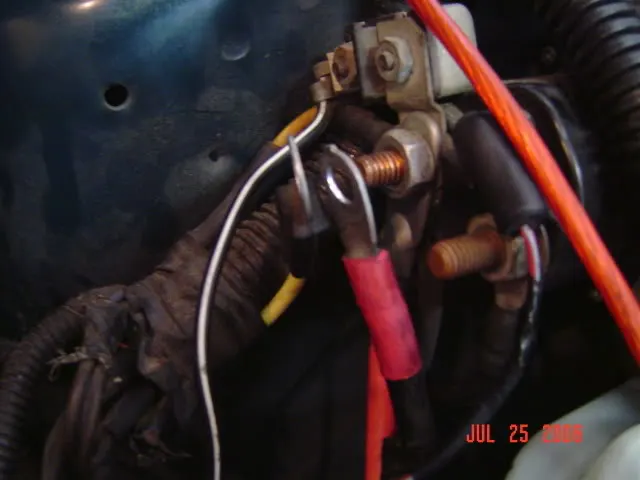

    The starter solenoid is on the drivers side fender, usually under a plastic cover. Here is a pic of it without the cover and the alternator wire where it goes.


    [​IMG]

    It is basically the same as connecting to the battery, but looks cleaner.
    #25
  6. DRock9

    DRock9 New Member

    Joined:
    Aug 22, 2006
    Messages:
    360
    Likes Received:
    0
    Trophy Points:
    0
  7. SilverBullit

    SilverBullit Founding Member

    Joined:
    Jul 9, 2001
    Messages:
    221
    Likes Received:
    0
    Trophy Points:
    17
    I did the 3G install here a few weeks ago, but I used some different instructions. The ones I used said to hook up the orange and black wires to the alternator, whereas these said not to. It started up the first time, but now it won't start at all. Now the fuel pump continually primes and won't shut off, and it doesn't seem to be getting any spark. Any ideas? Did this fry the computer?
    #27
  8. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,461
    Likes Received:
    338
    Trophy Points:
    134
    Not likely.

    This alternator post is not the place to post no start problems. Create another post with the heading No start and the year model of you car and I will be glad to help you. I have a complete Cranks OK but no start checklist for fuel injected Mustangs that will help you find and fix your problem.
    #28
  9. Flavadave4

    Flavadave4 Active Member

    Joined:
    Nov 29, 2003
    Messages:
    1,082
    Showcase:
    1
    Albums:
    1
    Likes Received:
    16
    Trophy Points:
    49
    great write up Roland
    #29
  10. Black Sun 5.0

    Black Sun 5.0 Founding Member

    Joined:
    Mar 23, 2002
    Messages:
    1,331
    Likes Received:
    0
    Trophy Points:
    36
    Anyone have an actual picture of the 3G wiring with the 4ga wire? It's just a curiosity thing on my part, but the installer who put my alt in did not go the 4ga route. Ran it like this for a long time, but I want to wire it up the right way before I have a failure and/or fire. I just need to see the alternator istelf with the wiring. No diagrams, please. Thanks.
    #30
  11. cenok is family

    cenok is family Active Member

    Joined:
    Jun 26, 2003
    Messages:
    1,401
    Likes Received:
    17
    Trophy Points:
    39
    i'd like to see this too. i did the 3g upgrade last year but didn't use any 4g wire. kinda ghetto rigged it too. :( i'm gonna go to the store and get the stuff i need to do it right later today. good info so far though.
    #31
  12. HISSIN50

    HISSIN50 "How long does it take to get help in here? SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,148
    Likes Received:
    13
    Trophy Points:
    79
    Are there pictures here that help?
    #32
  13. cenok is family

    cenok is family Active Member

    Joined:
    Jun 26, 2003
    Messages:
    1,401
    Likes Received:
    17
    Trophy Points:
    39
    yeah i looked at those and they help some. but just for verification, when running the 4g ground wire, i just need to replace the braded ground "strap" that runs from the back of my driver's side head to the firewall with the 4g wire, correct?
    #33
  14. HISSIN50

    HISSIN50 "How long does it take to get help in here? SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,148
    Likes Received:
    13
    Trophy Points:
    79
    Cenok, I leave the OEM ground and run an additional 4 AWG ground cable. You cannot have too many engine grounds.
    #34
  15. cenok is family

    cenok is family Active Member

    Joined:
    Jun 26, 2003
    Messages:
    1,401
    Likes Received:
    17
    Trophy Points:
    39
    cool. so just bolt a 4g cable somewhere on the motor and then to the firewall or frame? sorry i'm asking such n00b questions, just wanna get it right this time
    #35
  16. N02-87FOX

    N02-87FOX New Member

    Joined:
    Sep 4, 2007
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    0
    is there any pictures of the alternator wiring on someones car? When it comes to wiring I am more of a visual kind of person. I am waiting for my 3g to come in but want to make sure I understand everything. Like the wire you spice into where do you plug it in on the alt? unless the new alt's wiring is different I dont see where to plug it in. Also am I understanding this right the 4g wire goes from the power side of the alt to the power side of the starter silinoid with a 125amp fuse inline? Sorry about the questions and the long post but I dont like wiring cause 1 mistake and you can fry lots of crap!
    Thanks
    #36
  17. Shakerhood

    Shakerhood Well-Known Member

    Joined:
    Oct 29, 2004
    Messages:
    2,859
    Likes Received:
    48
    Trophy Points:
    59

    I made an Extra Ground Wire for my Car too, I just ran it from the Head over to the Swaybar mount.
    #37
  18. HISSIN50

    HISSIN50 "How long does it take to get help in here? SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,148
    Likes Received:
    13
    Trophy Points:
    79
    It goes to the lonely male spade connector on the alternator housing.

    Yep, when you get the 3G, you will see the spot for the wire (it's not there on a 2G casing).


    Yep, the 4 gauge cable goes from the alternator's charge stud (this is different than on a 2G - you will see where it goes once you get the 3G alt), to a fuse, and then on to the battery lug of your solenoid.
    #38
  19. N02-87FOX

    N02-87FOX New Member

    Joined:
    Sep 4, 2007
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    0
    Cool, Thanks!
    #39
  20. the pony boy

    the pony boy Founding Member

    Joined:
    Apr 20, 2002
    Messages:
    367
    Likes Received:
    0
    Trophy Points:
    16
    do you have a pic of how you mounted the alt to the alt bracket?i have had problems with shreding belts and i narrowed it down to a miss aligned alt.when i bolt it up i through bolt the top bolt and hand tighten it and that leaves the bottom bolt sitting slightly off the rear part of the bracket so what i have done is put 2 washers in there to make up the space.just want to know if this is the way to go. phil
