5.4L DOHC MOD MOTOR in a Fox **PICS**

Discussion in '1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk-' started by SVT32VDOHC, Oct 17, 2008.

  1. SVT32VDOHC

    SVT32VDOHC waiting for the next hack atta
    Founding Member

    Joined:
    Nov 23, 2001
    Messages:
    4,491
    Showcase:
    18
    Albums:
    1
    Likes Received:
    22
    Trophy Points:
    69
    Location:
    Motor City

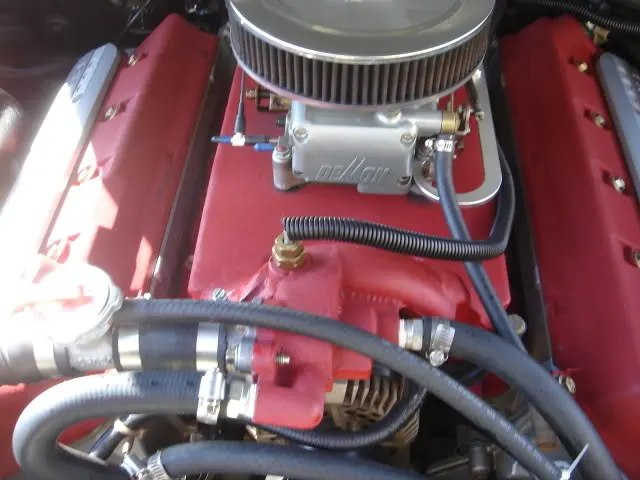

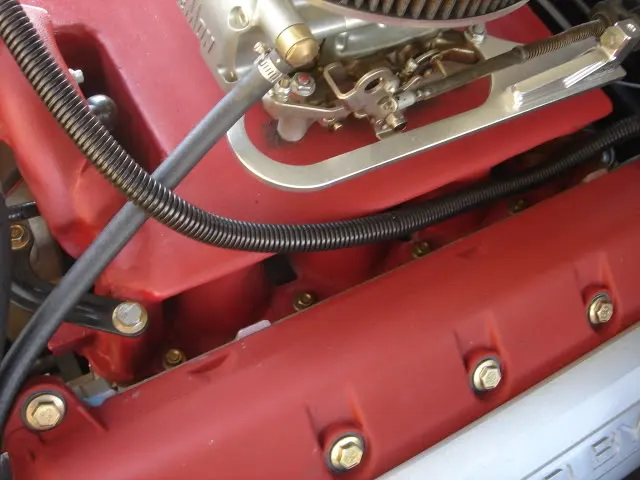

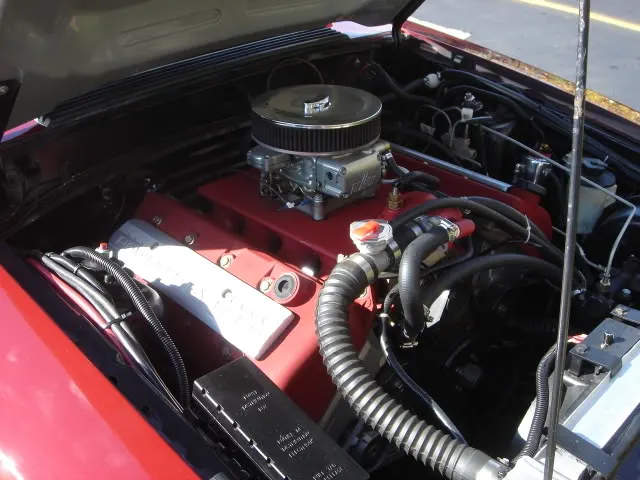

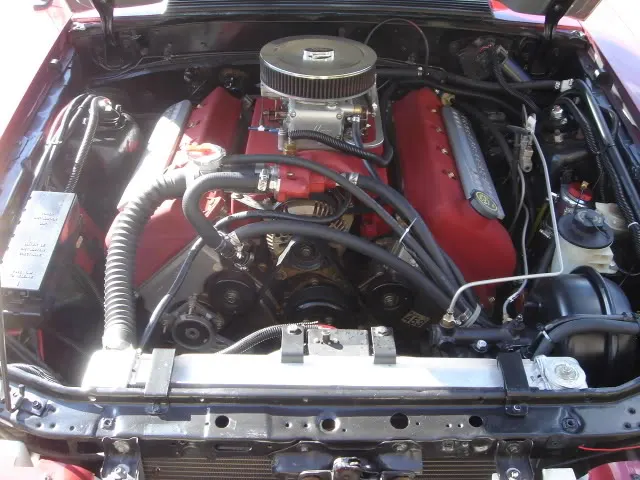

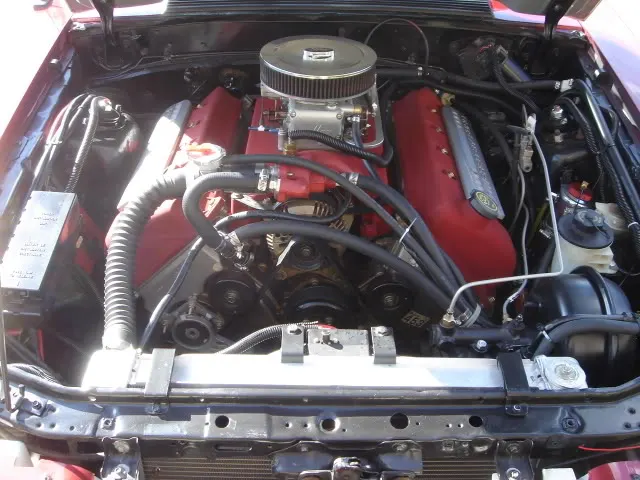

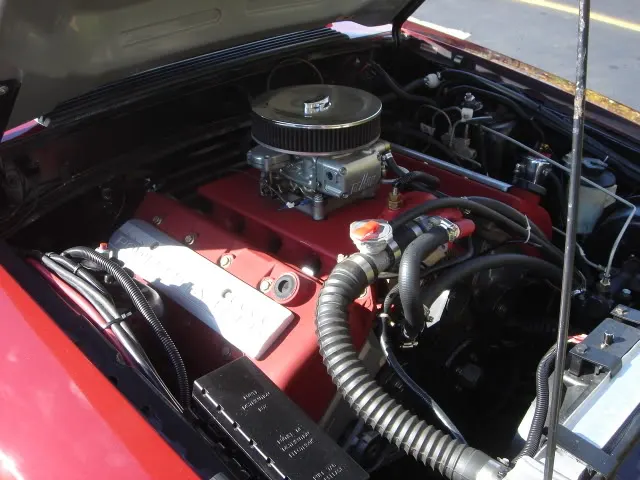

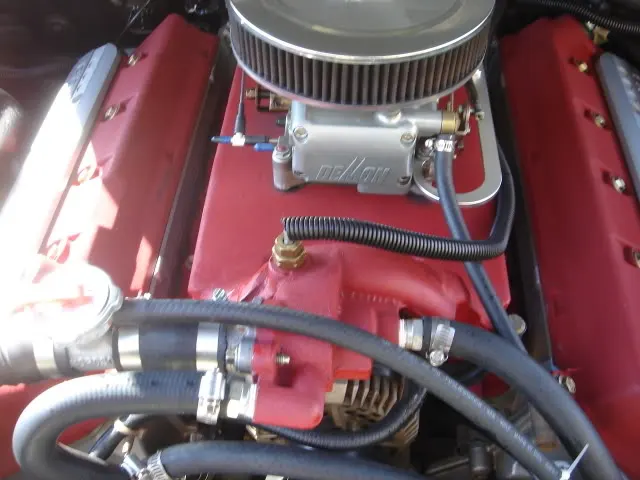

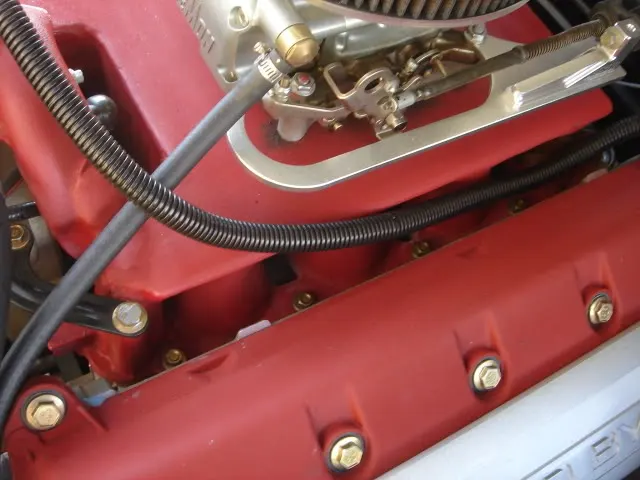

    Months ago, I metioned that my friends Dad put a 5.4L DOHC Navigator engine in a fox convertible. I didn't have pics and I got this: :worthlesb So here they are. He hand made the intake which took him 90 hours. It's carbed. It has a 6 speed. It has stock manifolds...(L/T's...haha yeah right, no way) and an electric exhaust cut out. IT sounds stock til it's opened up. It has a manual brake setup on the firewall...and check out his newest addition...a booster behind the driverside headlight.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    #1
  2. stykthyn

    stykthyn Commander of the snuggie cultists

    Joined:
    Jul 6, 2006
    Messages:
    8,163
    Likes Received:
    602
    Trophy Points:
    163
    Location:
    gainesville
    I demand pics of the rest of the car and a vid of the cutout opening up!!!!!

    #2
  3. LaserSVT

    Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    16,552
    Likes Received:
    2,584
    Trophy Points:
    173
    Location:
    If you dont know, now you know ni....
    SICK!! :drool:
    There is a nice Fox coupe next door my buddy was thinking of getting and putting in a Navi 5.4 DOHC in. Was just gonna PM you and ask if you knew how much harder it would be to install over what you had to do. Still wana keep it fuel injected though :shrug:

    #3
  4. LaserSVT

    Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    16,552
    Likes Received:
    2,584
    Trophy Points:
    173
    Location:
    If you dont know, now you know ni....
    Looking at the brake setup I wonder how hard it woulda been to just do a hydro boost setup?

    #4
  5. NIKwoaC

    NIKwoaC 中國製造

    Joined:
    Nov 1, 2006
    Messages:
    8,454
    Likes Received:
    699
    Trophy Points:
    164
    Location:
    Chengdu Province
    LOL @ the little itty bitty air filter.


    Any ideas on power numbers?

    #5
  6. Gearbanger 101

    Gearbanger 101 Straight Outta Locash
    Super Mod

    Joined:
    Aug 11, 2002
    Messages:
    14,518
    Likes Received:
    963
    Trophy Points:
    164
    Location:
    Ontario, Canada
    Cool....carb kinda looks out of place though, but I'm sure it runs like a raped ape none the less. :nice:

    #6
  7. SVT32VDOHC

    SVT32VDOHC waiting for the next hack atta
    Founding Member

    Joined:
    Nov 23, 2001
    Messages:
    4,491
    Showcase:
    18
    Albums:
    1
    Likes Received:
    22
    Trophy Points:
    69
    Location:
    Motor City
    I sold him new outside door handles. He's coming back Monday. If he comes back with the car and not his work truck, I'll ask him if I can take a vid.

    He used a fox K-frame, BUT...totall custom mounting hardware. He makes everything. He buys as little parts possible. He also welded huge square tubing under the frame rails for extra support. He has a custom ignition box and fuse box too. His son wired it all up. He's very smart. Keeping your friends fuel injected will be hard, but you can get it somehow.

    5.4L DOHC and hydroboost will not fit in a fox. That motor is very wide. The manual brakes barely fit...and they sucked, so he custom fit that barke booster up front and made the lines. He said it's better, but wants to find a larger boost still. The steering shaft was about 2mm away from teh stock manifold...headers...no way in hell.

    Yeah, it's funny. He has a dual cowl Cobra R hood, no scoop or anything. It's a sleep for sure. No idea on power numbers. He said it pulls on the freeway like a rocket. 5.4L DOHC torque and a 6speed would be insane. :eek:

    #7
  8. 1990Coupe

    Founding Member

    Joined:
    Mar 11, 2002
    Messages:
    1,452
    Likes Received:
    160
    Trophy Points:
    74
    Location:
    Toms River NJ
    Dude that is SOOO bad ass.. i love how he painted it red with that crinkle paint. Its made by VTH or something i think

    anyone know? i should have painted mine red with crinkle paint :mad:

    #8
  9. Flavadave4

    Flavadave4 Active Member

    Joined:
    Nov 29, 2003
    Messages:
    1,082
    Showcase:
    1
    Albums:
    1
    Likes Received:
    16
    Trophy Points:
    49
    Location:
    Utica, NY
    Sickness

    #9
  10. LiquidGT

    LiquidGT Member

    Joined:
    Oct 8, 2007
    Messages:
    632
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Near STL hell
    :eek: Man thats crazy looking.

    Is that a Black Magic fan? It would barely cool down my Explorer engine.

    #10
  11. SVT32VDOHC

    SVT32VDOHC waiting for the next hack atta
    Founding Member

    Joined:
    Nov 23, 2001
    Messages:
    4,491
    Showcase:
    18
    Albums:
    1
    Likes Received:
    22
    Trophy Points:
    69
    Location:
    Motor City
    Not sure on the fan, I know it's electric and has one hell of a radiator in it.

    Yeah it's Ferrari red crinkle paint. It looks badass. The car was painted at a local shop that I recommended. It looks decent, it needs to be wet sanded and rubbed and it would be perfect actually. But the owner did it for cash, so I know it was more of a quick job, if you know what I mean. All in all the car is badass. The interior is stock black, no gauges I don't think, I didn't really look because I was glued to under the hood.

    #11
  12. LaserSVT

    Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    16,552
    Likes Received:
    2,584
    Trophy Points:
    173
    Location:
    If you dont know, now you know ni....
    Id be stuck starring under the hood too :rlaugh:
    I think a 5.4 swap might be too ambitious for my friend though. I didnt realize the block was that much larger on the 5.4 :shrug:

    #12
  13. Gearbanger 101

    Gearbanger 101 Straight Outta Locash
    Super Mod

    Joined:
    Aug 11, 2002
    Messages:
    14,518
    Likes Received:
    963
    Trophy Points:
    164
    Location:
    Ontario, Canada
    The block itself isn't that much larger by comparison to the 4.6L, but the 5.4L block combined with 4V heads and intake makes the thing look monstrous. Dimensionally, it's the same size (if not larger) than a 460W.

    #13
  14. 1991notchbackLX

    1991notchbackLX Active Member

    Joined:
    Dec 25, 2007
    Messages:
    1,625
    Likes Received:
    50
    Trophy Points:
    48
    Location:
    New York
    so badass, did he have to beat the living hell out of the shock towers to shoehorn that thing in there?

    in any case that thing must sound awesome and pull scary hard, +1 on the pics and vid :nice:

    #14
  15. 85_SS_302_Coupe

    85_SS_302_Coupe it sucks (I know) to be on the receiving end

    Joined:
    Nov 11, 2003
    Messages:
    428
    Likes Received:
    955
    Trophy Points:
    173
    Location:
    Northern KY
    So how's the ignition done? Belt driven distributor? I saw a setup a while back, some company makes a gear driven disy that works off the cam chain with a custom cam cover...looked pretty sweet but it was like 1K bucks.

    Another thing, that breather is choking the crap out of that motor...it really needs changed out.

    #15
  16. Beasty306GT

    Beasty306GT Active Member

    Joined:
    Dec 19, 2002
    Messages:
    739
    Likes Received:
    2
    Trophy Points:
    28
    Location:
    Oxford,Mass
  17. birdman941

    birdman941 New Member

    Joined:
    Sep 14, 2008
    Messages:
    118
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Gone
    ...................

    #17
  18. Turkey Sammich

    Turkey Sammich I can't fap normal. I cracked a rib, then my ankle

    Joined:
    Jul 13, 2006
    Messages:
    3,698
    Likes Received:
    647
    Trophy Points:
    154
    Must have video :drool:

    #18
  19. NIKwoaC

    NIKwoaC 中國製造

    Joined:
    Nov 1, 2006
    Messages:
    8,454
    Likes Received:
    699
    Trophy Points:
    164
    Location:
    Chengdu Province
    The crazy thing is, its the equivalent displacement of a 331 stroker. All that motor, and it really isn't all that big. From a "neat" factor, it is really cool, but from a performance standpoint, you can do better with a stroked 302... And still have room for brakes!

    OHC motors are neat, but I love my pushrod! :D

    #19
  20. 85_SS_302_Coupe

    85_SS_302_Coupe it sucks (I know) to be on the receiving end

    Joined:
    Nov 11, 2003
    Messages:
    428
    Likes Received:
    955
    Trophy Points:
    173
    Location:
    Northern KY

    Yeah, besides the weight factor, if i'm gonna stuff my engine bay like that, i'm gonna have 500+ci for my efforts, not 331ci.

    #20
