So that's most of the interior for now. I'm doing insulation soon. But I do have wiring pictures.

I like the EZ-wiring kits. They are universal 18 (or 20.. I forget) kits that are perfect for Mustangs in terms of circuits and wire length.

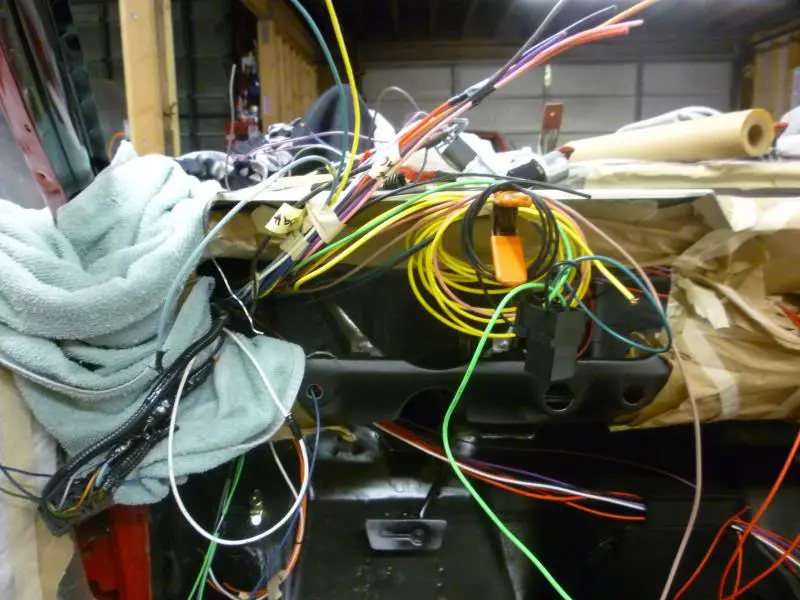

Spaghetti

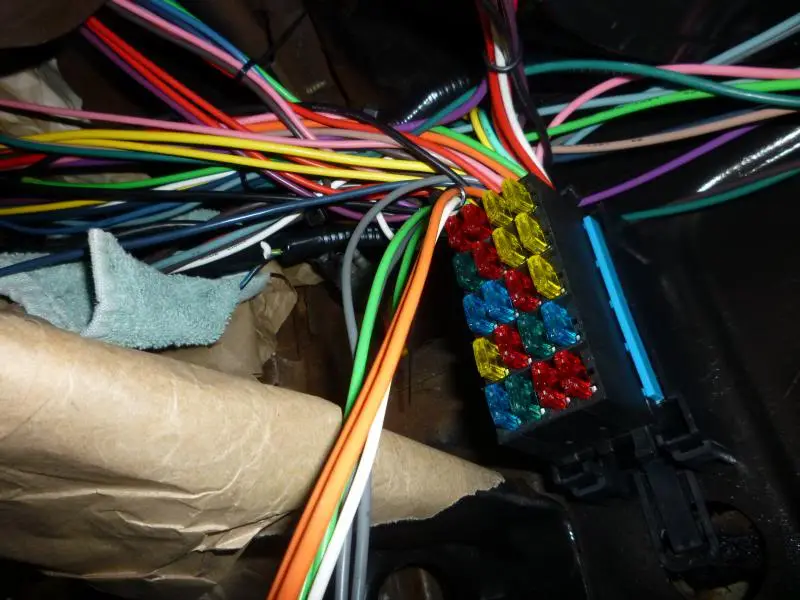

Fuse box is mounted in about the same location as the original. I'm really picky about wires criss-crossing, so I've spent a lot of time taking the harness apart to re-route everything.

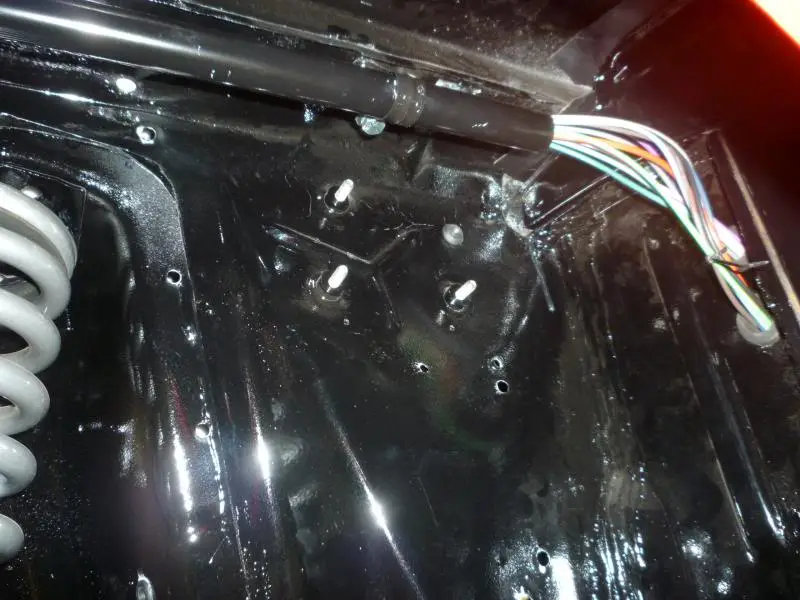

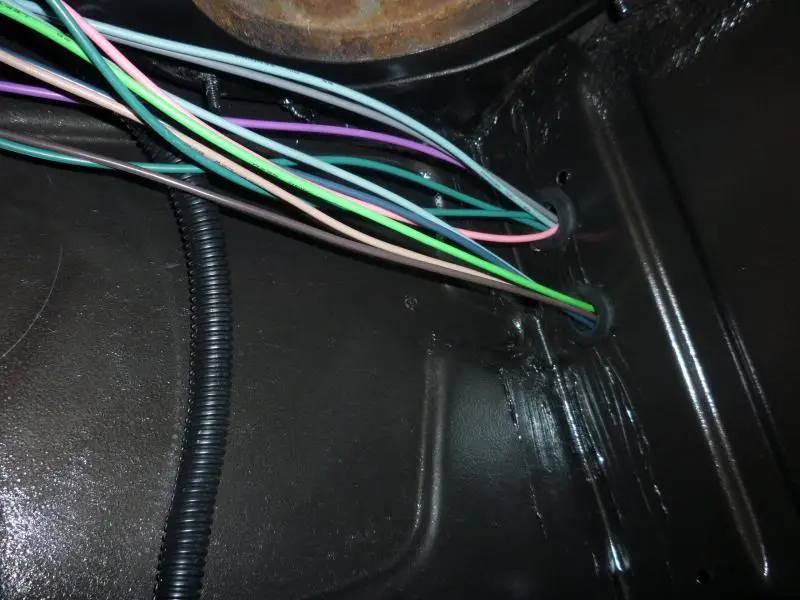

I ran two 3/4" holes with grommets. Upper hole is engine feed, and lower hole is headlight feed. These will be sealed up with 3M strip caulk once the routing is finalized.

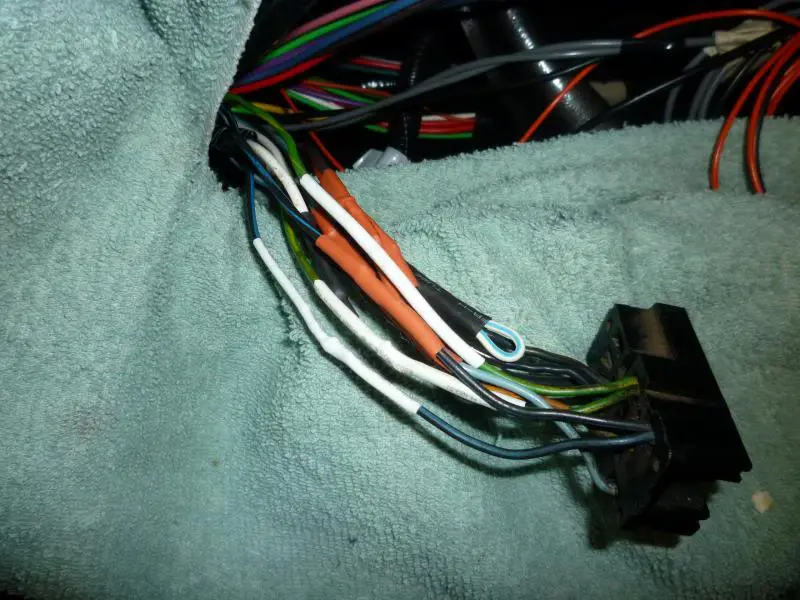

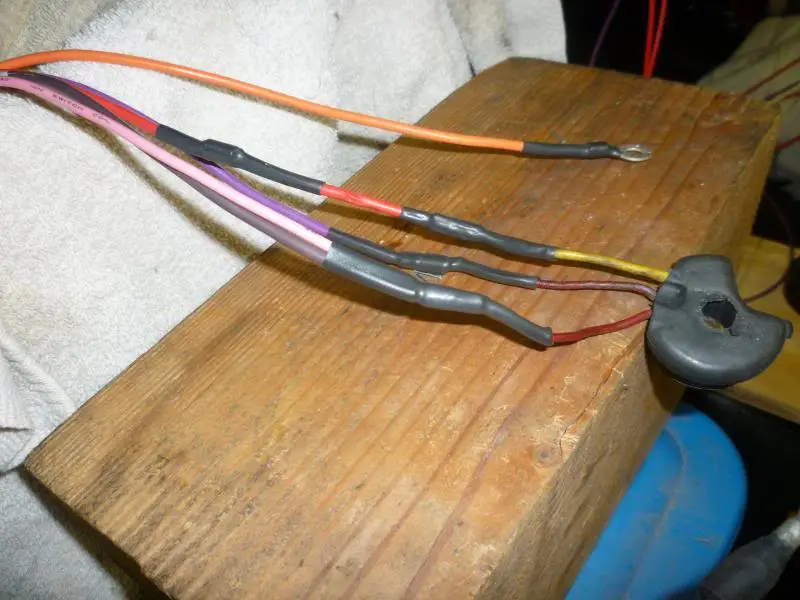

You're going to need a donor harness - this is the only way you'll be able to hook up factory switches. All connections are crimped with terminals, soldered, then seal with heat shrink.

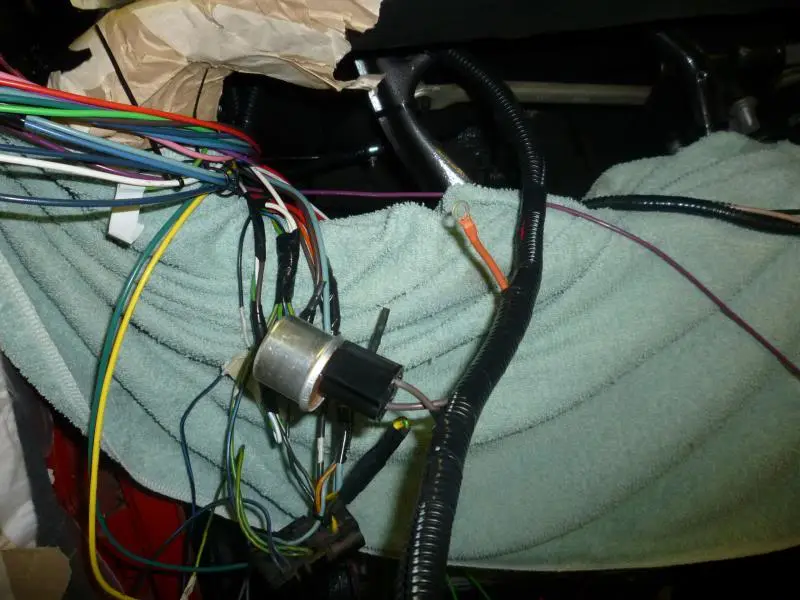

Routing. Hazards. etc.

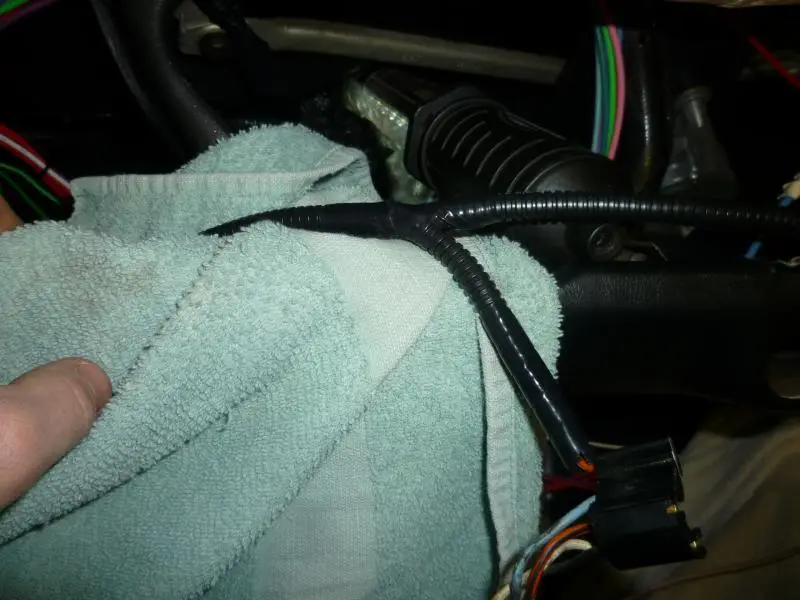

Everything gets wrapped in flex tubing. And I use the 3M electrical tape. About $4 a roll, but high quality!

Headlight switch

Out comes the wiring, and into painted PVC pipes. The exposed wiring will be covered.

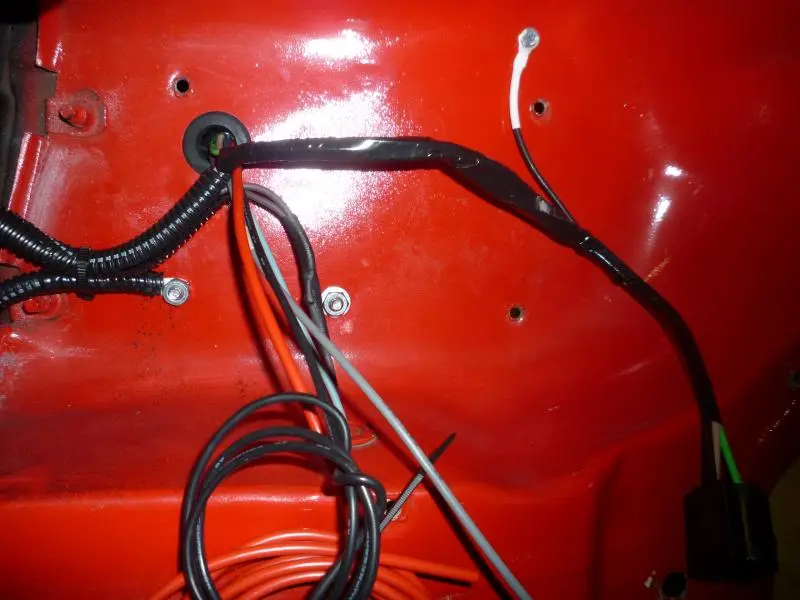

Headlights. And grounds/mounting bolts for horns.
