    It's really not as complex as you would think, I drew it up and it isn't any more complicated that a dual overhead cam engine, and less complicated than most diesel setups.
    #41
  2. D.Hearne

    D.Hearne Banned

    Joined:
    Sep 30, 2000
    Messages:
    12,124
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    south louisiana
    I guess I'd have to see it to figure it out.
    #42
  3. WORTH

    WORTH Active Member

    Joined:
    Nov 18, 2002
    Messages:
    1,902
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Cape Cod, Ma.
    #43
  4. WORTH

    WORTH Active Member

    Joined:
    Nov 18, 2002
    Messages:
    1,902
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Cape Cod, Ma.
  5. bnickel

    bnickel Founding Member

    Joined:
    Aug 21, 2002
    Messages:
    5,642
    Likes Received:
    0
    Trophy Points:
    77
    Location:
    lubbock, texas
    hey worth, do a search for napier nomad on google or yahoo and you'll find all kinds of info on "compound diesel engines" which is what that engine was, it had moving pistons and cylinders and it was a 2-stroke diesel (haha) see i told you were building one of those funky cool 2-stroke diesels, only this thing is turbocharged too, it was making something like 3500 HP :nice:
    #45
  6. HistoricMustang

    HistoricMustang Active Member

    Joined:
    Apr 11, 2003
    Messages:
    2,360
    Likes Received:
    0
    Trophy Points:
    46
    Location:
    Confederate States of America
    #46
  7. D.Hearne

    D.Hearne Banned

    Joined:
    Sep 30, 2000
    Messages:
    12,124
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    south louisiana
    :D Now , THAT'S a big block. :nice:
    #47
  8. WORTH

    WORTH Active Member

    Joined:
    Nov 18, 2002
    Messages:
    1,902
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Cape Cod, Ma.
    Holy CRAP, Batman!!!!!!!!!!!!!!! :nice:
    #48
  9. HistoricMustang

    HistoricMustang Active Member

    Joined:
    Apr 11, 2003
    Messages:
    2,360
    Likes Received:
    0
    Trophy Points:
    46
    Location:
    Confederate States of America
  10. Route666

    Route666 Active Member

    Joined:
    Aug 17, 2003
    Messages:
    1,654
    Likes Received:
    4
    Trophy Points:
    39
    Location:
    Brisbane, Australia
    The 14 cylinder version produces 109,000HP with 300 tons of crank at a blistering 102rpm. lol.

    BSFC is 0.278 though, that's REAL nice. You'd be lucky to get a performance smallblock to 0.5.

    http://www.bath.ac.uk/~ccsshb/12cyl/

    Just goes to show, there's no replacement for displacement.
    #50
  11. mdjay

    mdjay Premium Sponsor

    Joined:
    Dec 9, 2003
    Messages:
    907
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Las Vegas, NV
    That's friggin' unbelievable!!!
    #51
  12. HistoricMustang

    HistoricMustang Active Member

    Joined:
    Apr 11, 2003
    Messages:
    2,360
    Likes Received:
    0
    Trophy Points:
    46
    Location:
    Confederate States of America
    #52
  13. gingerbreadman

    gingerbreadman Only half-baked Founding Member

    Joined:
    Jan 18, 2002
    Messages:
    5,362
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Go ahead, call me cheaky

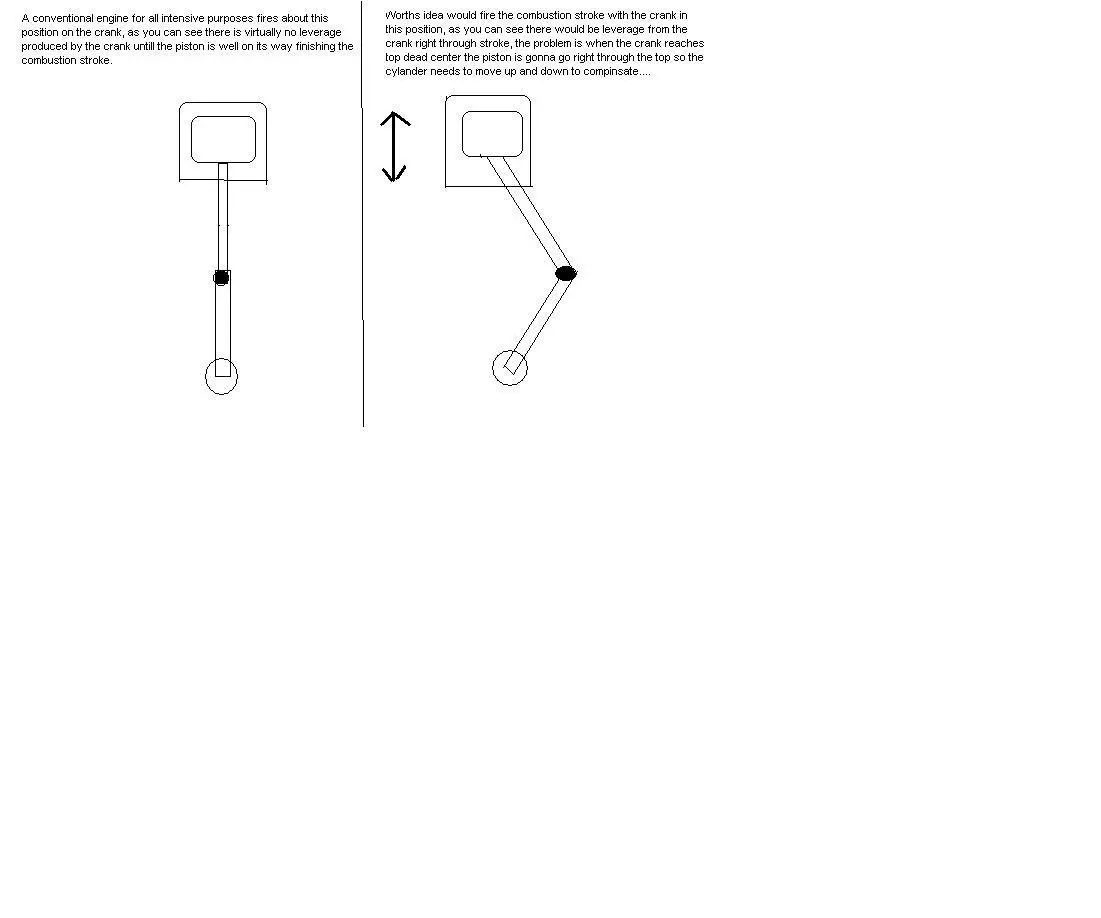

    Do I have the general jist of your idea worth????
