67 Super Snake Project

[Sicarius428]

This thread is useless with pics. We need VIDEO! hehe. Absolutely stunning. Keep up the great work. Let me get this straight. You installed sound deadening for an 800+ hp supercharged FE big block with long tubes... Just wondering... for me, I would love to absorb every sound that motor makes. For that matter everybody around me too.
Kevin



[68FBJJZ109]

Well there is a radio in the car and its not like he doesnt have the HP to take every componet in that car for a wild ride.

Where those hp numbers with the FAST System?



[67FBack]

This thread is useless with pics. We need VIDEO! hehe. Absolutely stunning. Keep up the great work. Let me get this straight. You installed sound deadening for an 800+ hp supercharged FE big block with long tubes... Just wondering... for me, I would love to absorb every sound that motor makes. For that matter everybody around me too.
Kevin

As soon as I get the radiator and flywheel (several weeks) I WILL be doing a video.

Yep on the sound deadener. I can always turn the radio off and roll down the windows. That is probably the way it will be most of the time!



[67FBack]

Where those hp numbers with the FAST System?

The FAST XFI I have installed WAS used when the engine was dyno'd. So, theoretically, my tuning should not reduce the HP. I am guessing that my exhaust system will steal the most. 2 1/2" behind those JBA's, going through Spintech mufflers.



[67FBack]

Wiring almost done!

Almost finished with the interior wiring. All the alarm triggers work, lights, radio, radio dimmer, speakers, backup camera, console lights, etc etc. The only thing that doesn't work is the remote start. I probably have a wire in the wrong place. 12 hours today. Its gonna have to wait till tomorrow.

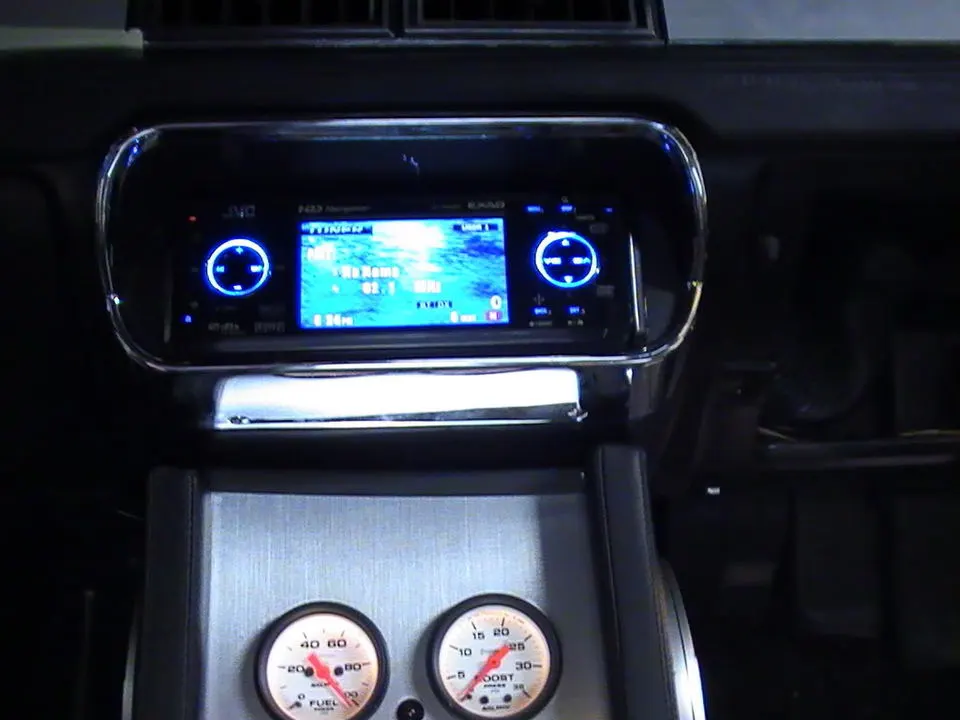

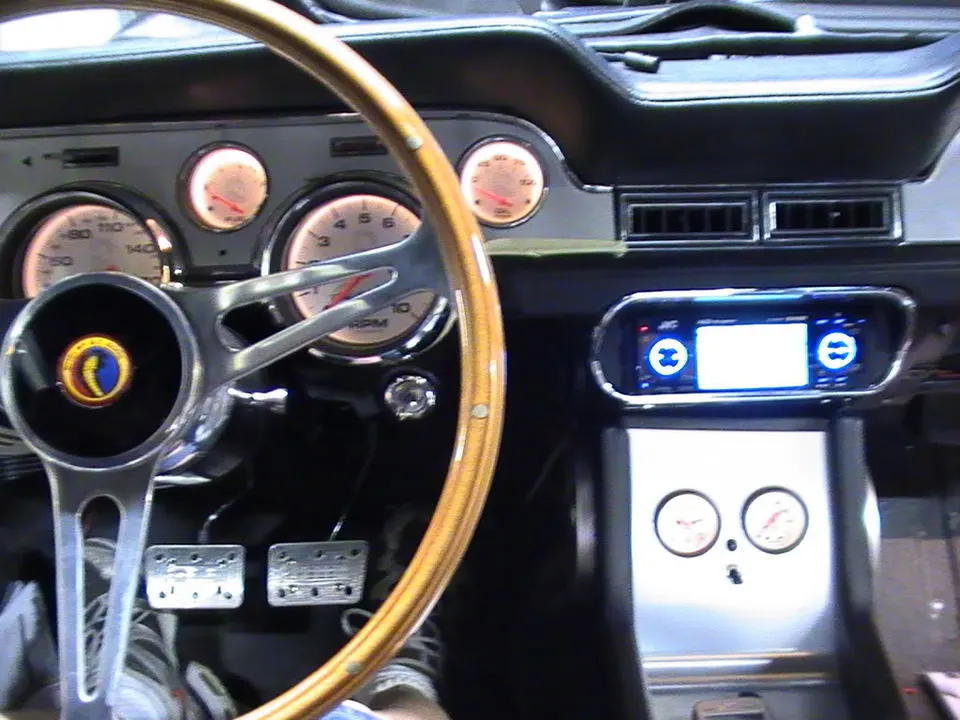

The radio faceplate has 4 tilt positions. It remembers the position when you turn it back on. This is position 3.



[67FBack]

Well, I said I thought I had a wire in the wrong place. Turns out you have to program the Alarm before things will work. Seems that the Bluetooth for the Phone to hook up through the radio has a similar requirement for pairing. ha ha

So I finished all the wiring except for: the radiator fans, alarm wiring to flash the lights, PW & P door lock have yet to be installed (but the wiring is in the doors), wiring up the amp (all wires have been run to where it will be) and that's it. Never been so sore in my life. I'm an old codger.

I rewired some of the front lights because I did not like how I wired them previously. Lights are not on all the time now, only when the switch is pulled.

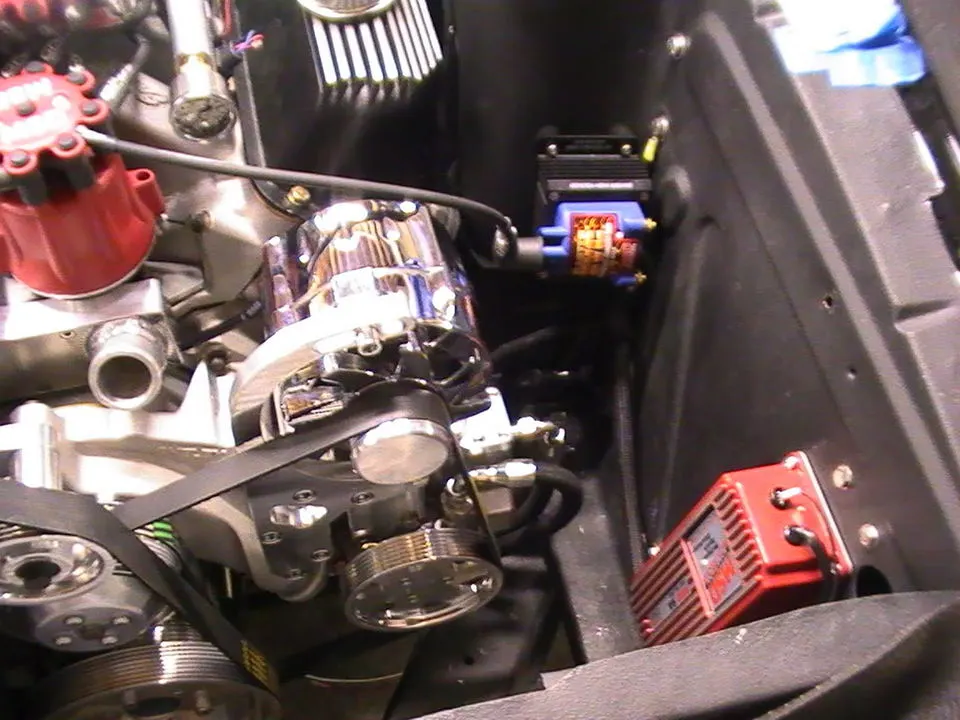

EFI is completely wired. It also controls the electronic Fuel pump (6 sec prime, then waits for start). MSD coil and ignition is installed and wired. And if you think that is a big gap between the coil and ingnition, that is because something goes between them - the air intake from the drivers side fender.

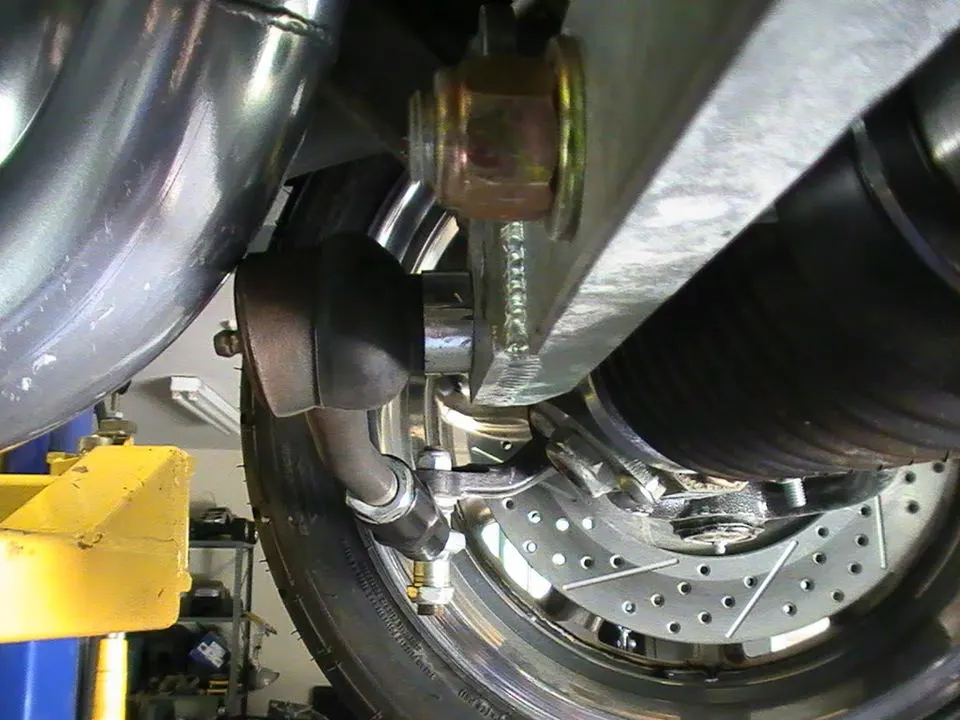

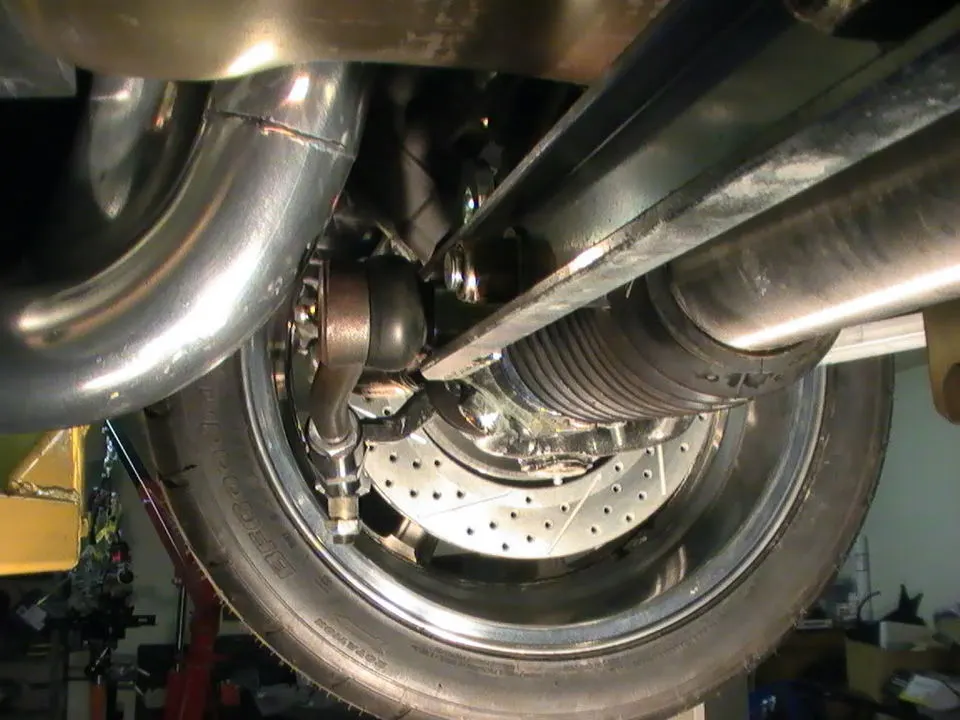

I had to turn the TCP cross-link bar around. It was putting the inner links too close to the headers. That is what TCP suggested that I do.

Before :

After:



[67FBack]

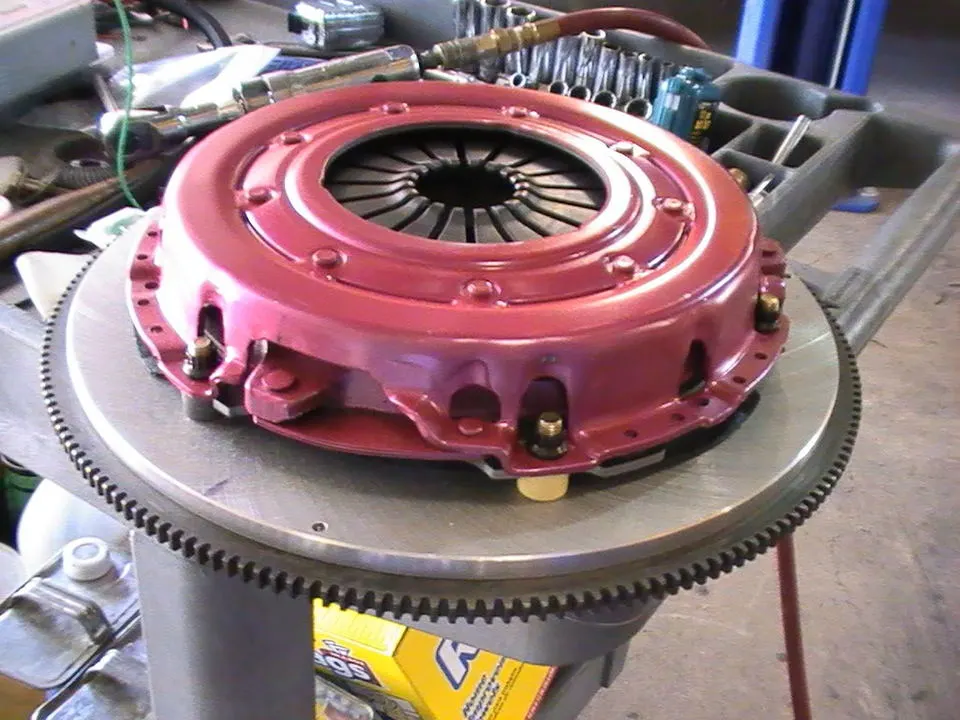

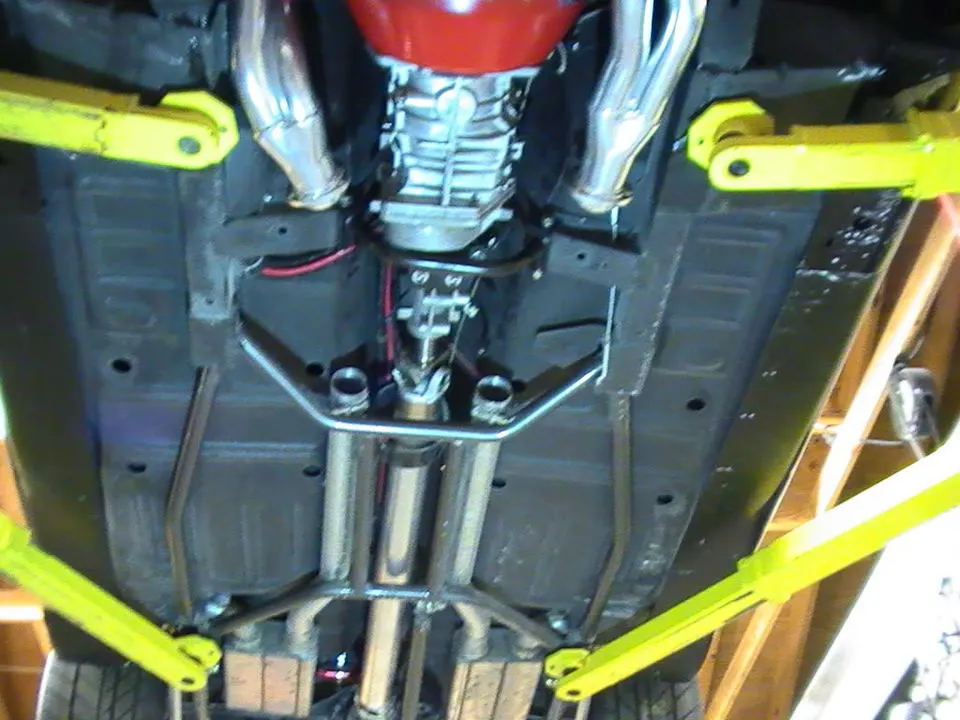

I received the Ram dual clutch and installed it and the transmission today.

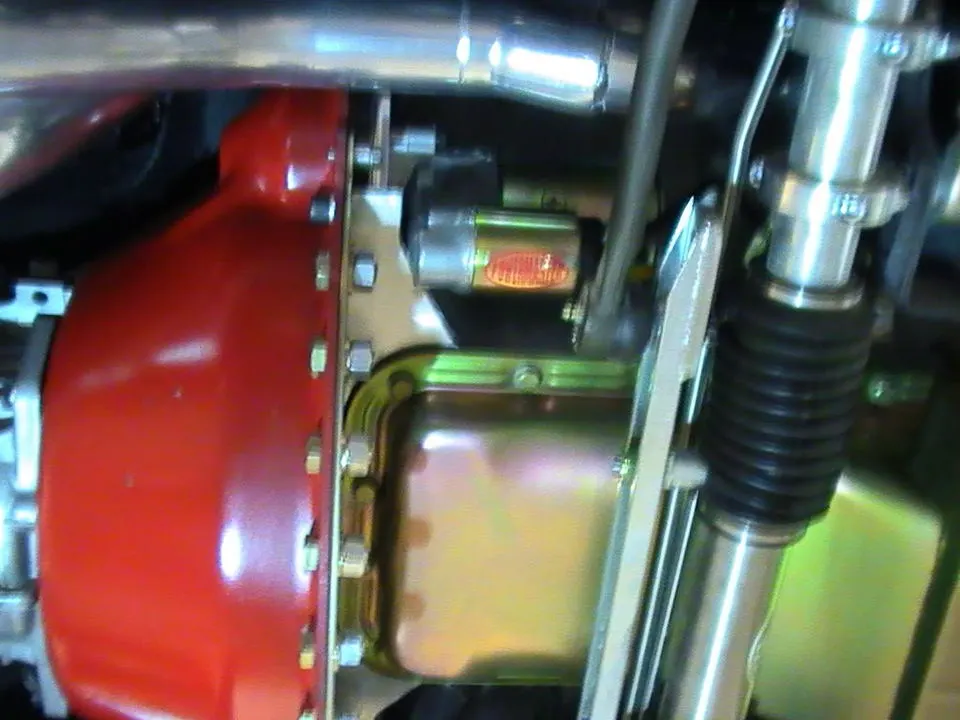

Starter Installed

Lakewood Bell Housing

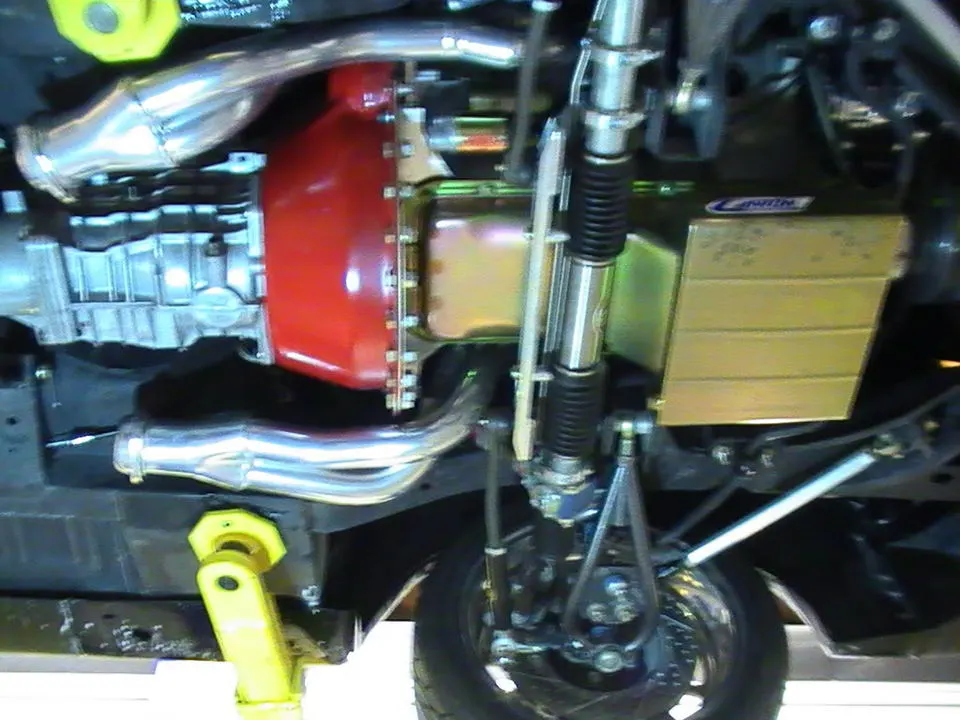

TKO 600



[67FBack]

Re: Door Locks & other Door Parts

I lifted the engine about 1" and moved it back about 1/2". That cleared all but one header bolt. It cleared the R&P problem.

Figured out the problem with the trans. Out it comes and a new smaller piston will be used in the Hydraulic throwout bearing.

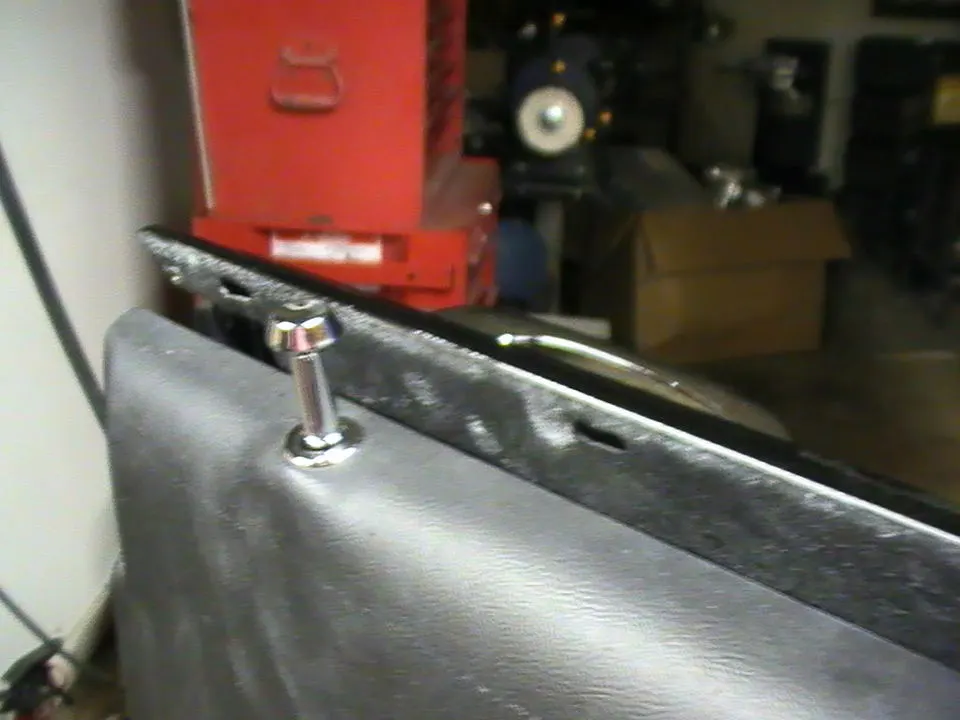

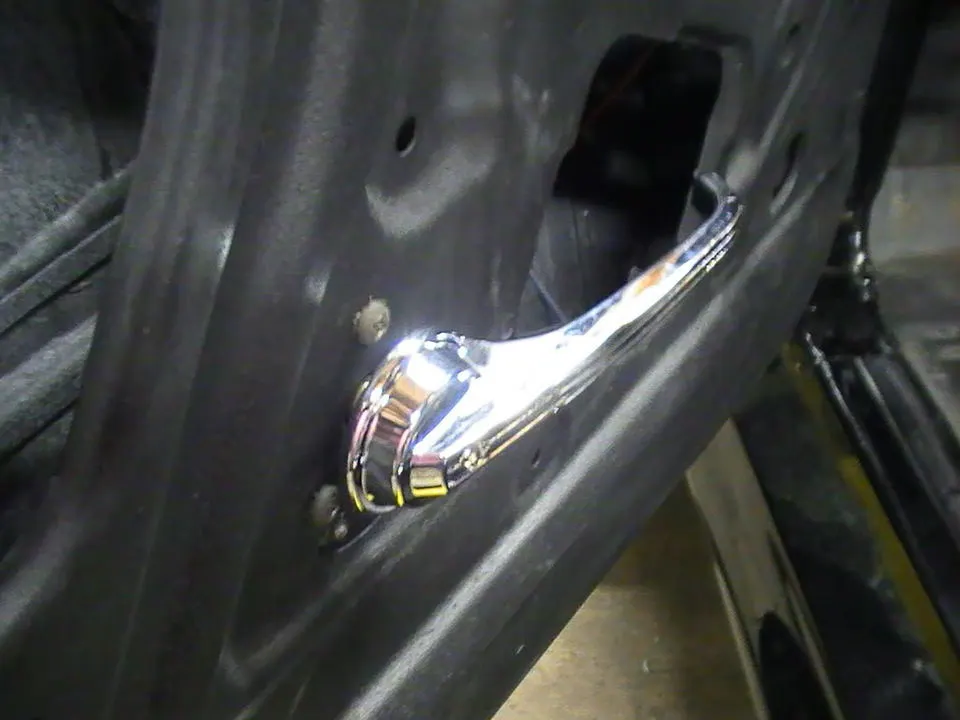

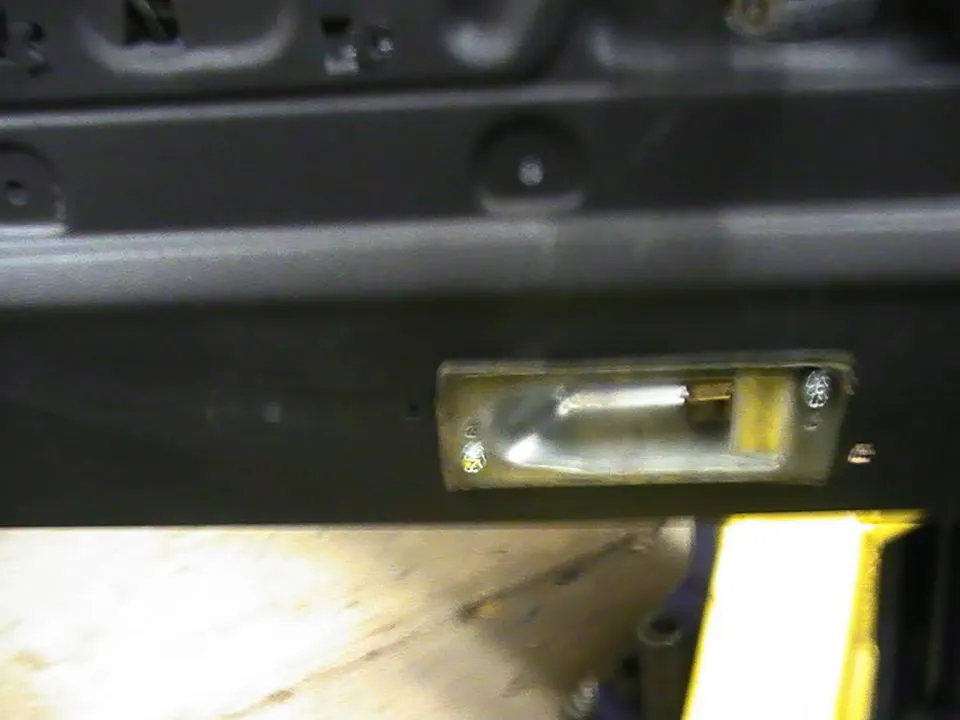

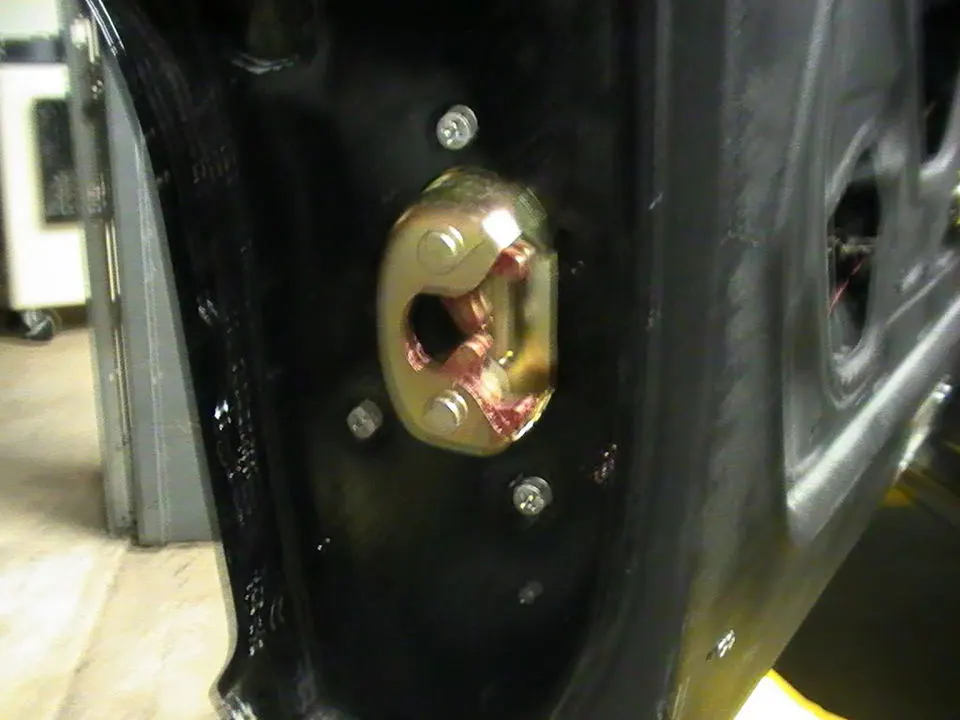

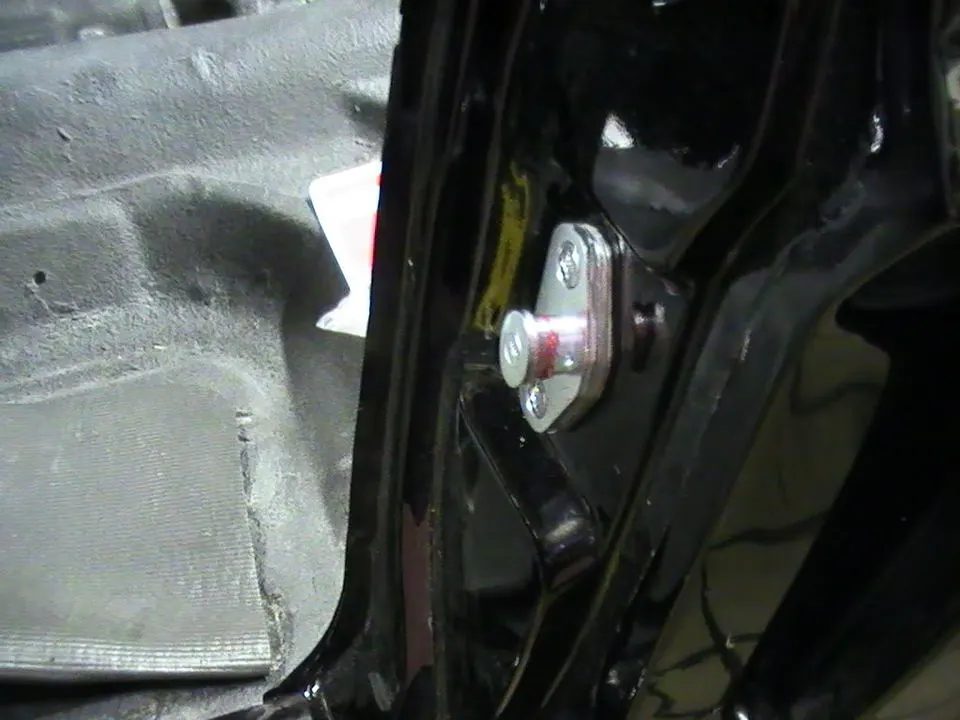

Started working on the doors. I am replacing most everything, so this will be a NEW car when I get finsihed. I installed the power door locks, new door latches, strikers, lock rods, door lock pull ups, and chrome rings, interior door handle shafts, door handles, and door courtesy lights. Missing one door handle, and the anti rattle piece that goes on the driver side door handle to latch rod, that screws to the inside of the door and keeps the rod from rattling. I don't know if they sell that piece.



[67FBack]

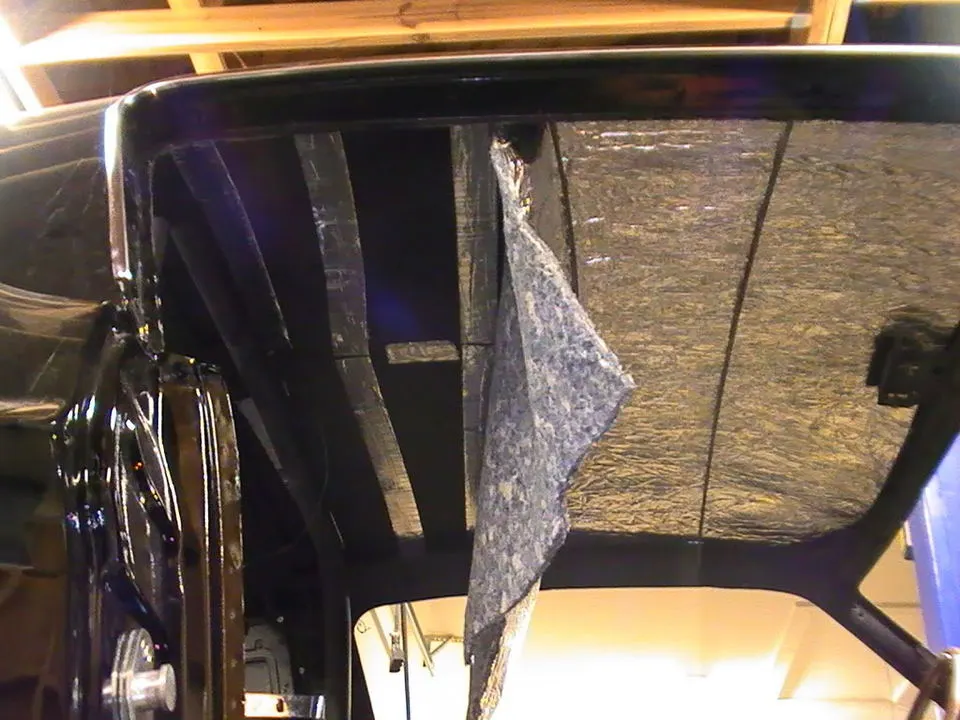

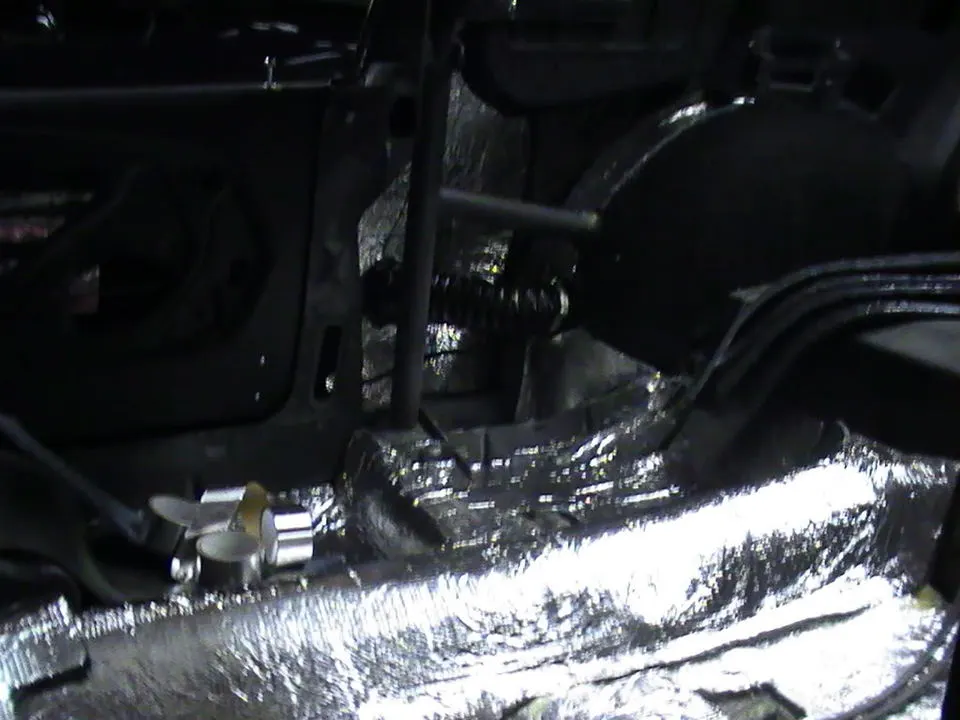

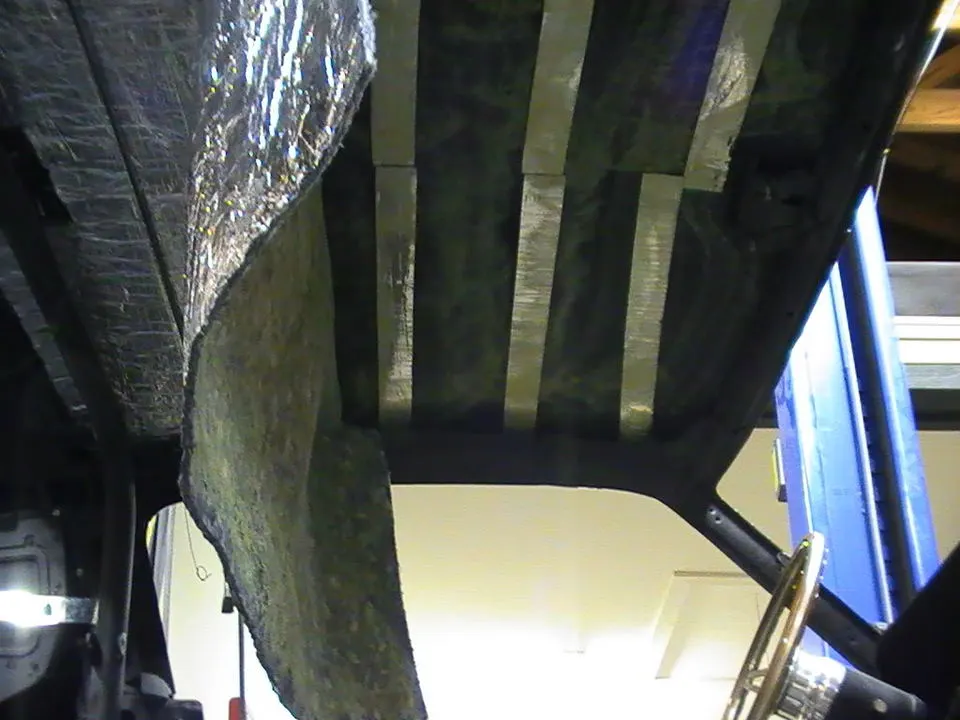

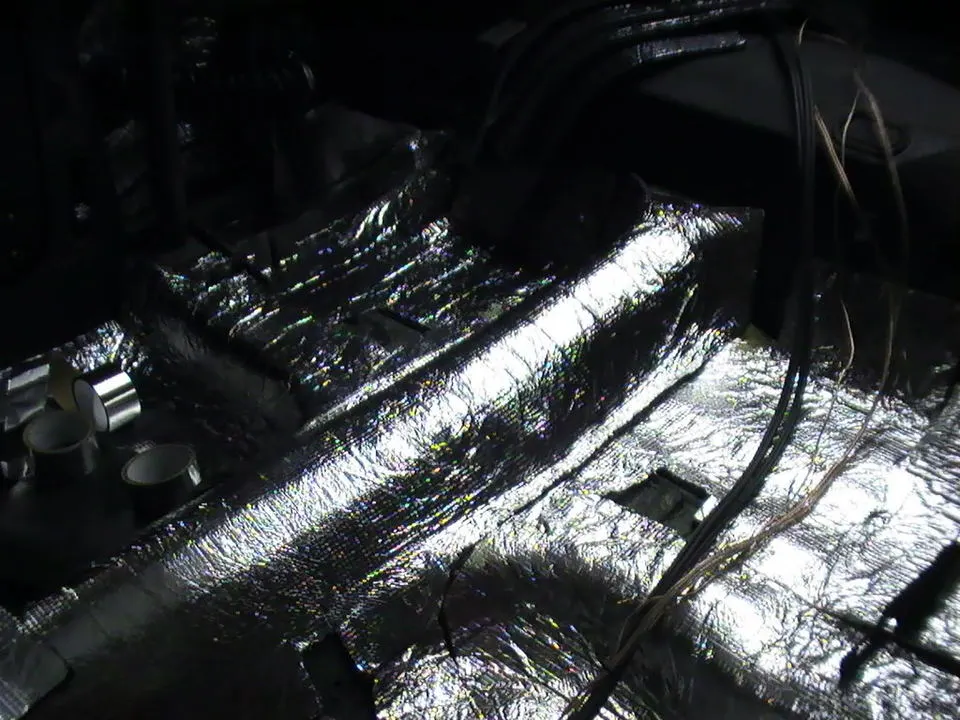

You know you are getting close when this starts happening. Noise, vibration & heat control by Quiet Ride Solutions. It is a 2 stage project. Sound control my Dynamat. And then pre-cut heat control mats.

Many pieces in tight places like above the fender wells inside the rear fenders. It takes a lot of time to do it right. But should be worth the effort.



[xoxbxfx]

are you using a flash on the camera when you take the pics?



[67FBack]

are you using a flash on the camera when you take the pics?

No. No flash. This is actually a digital movie camera taking still pictures.



[jcode68]

I've been quietly following your buildup and must say, I am impressed with the level of detail going into this car! I am interested in doing the sound and heat control update to my 68 fastback. What were the material costs for the products you used on yours?



[67FBack]

Quiet Ride

I've been quietly following your buildup and must say, I am impressed with the level of detail going into this car! I am interested in doing the sound and heat control update to my 68 fastback. What were the material costs for the products you used on yours?

Thanks! I have put way too much money and almost that much time in this project. But it is a great hobby.

The sound control by Quiet Ride complete kit for a 1967 Fastback cost $615 and almost $50 shipping.



[67FBack]

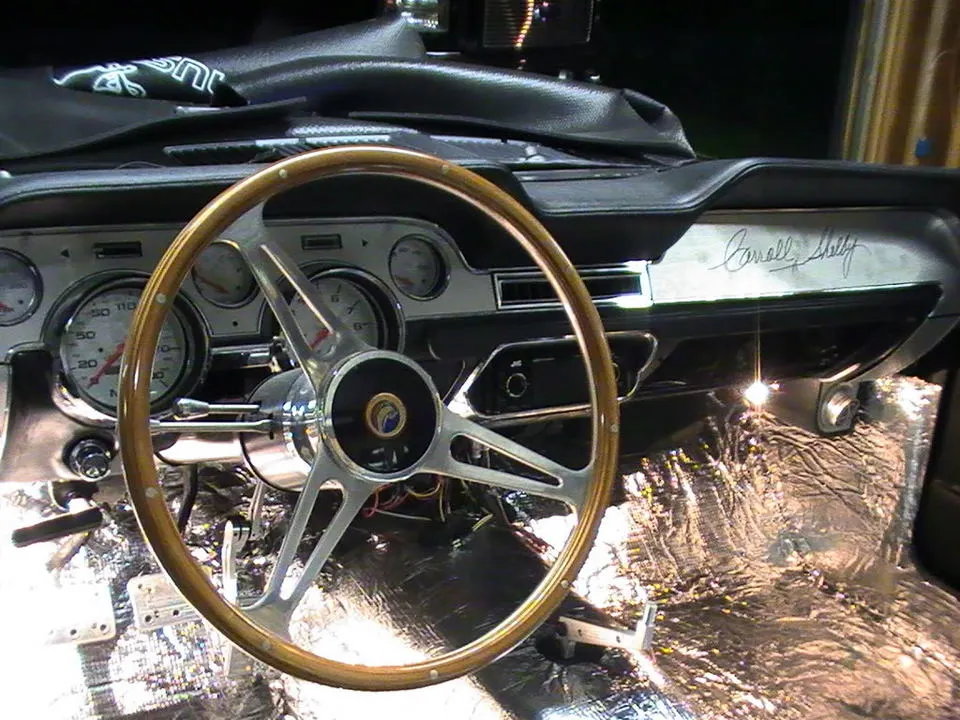

Dash is Done

The dash is all buttoned up except for the glove box. It will stay off until I start the hookup of the FAST EFI. One plug at a time.

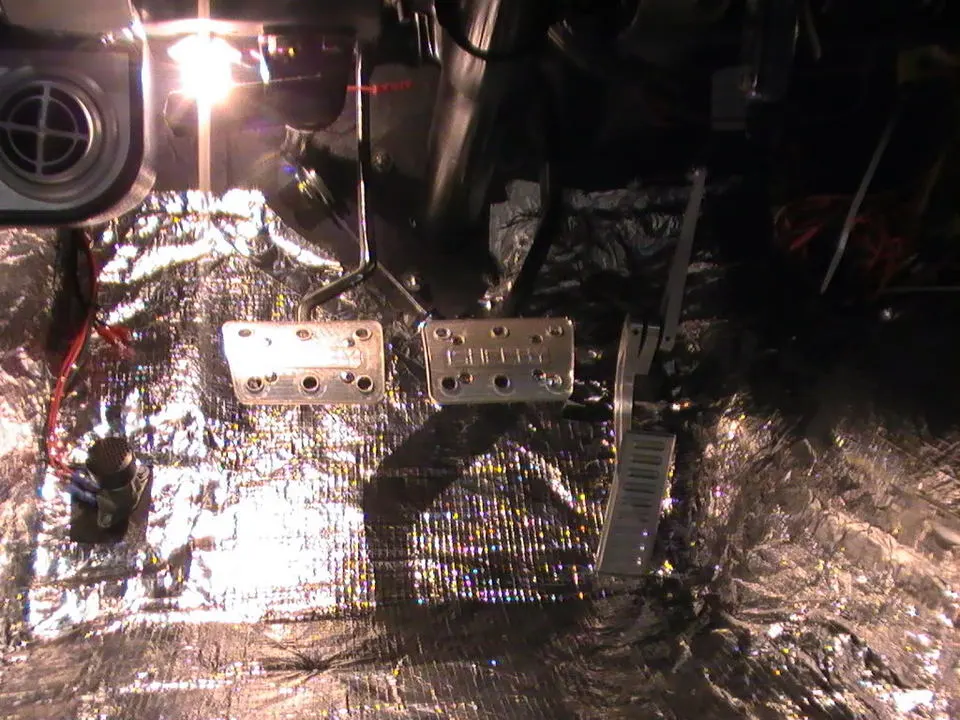

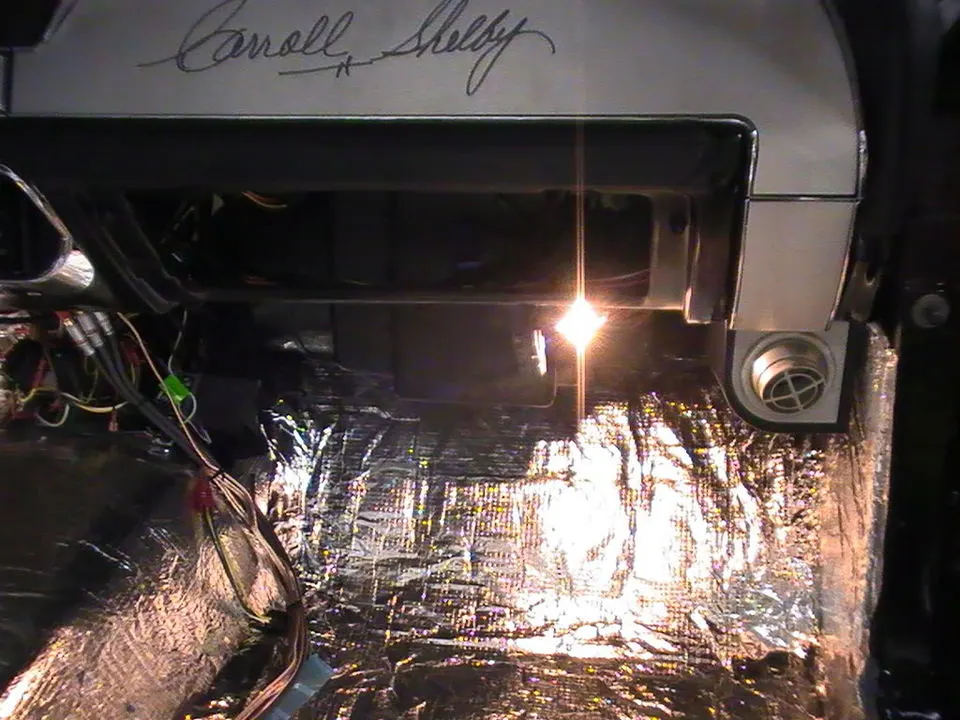

All the sound and heat control is done. Looks like some of NASA's guys have been working on it.

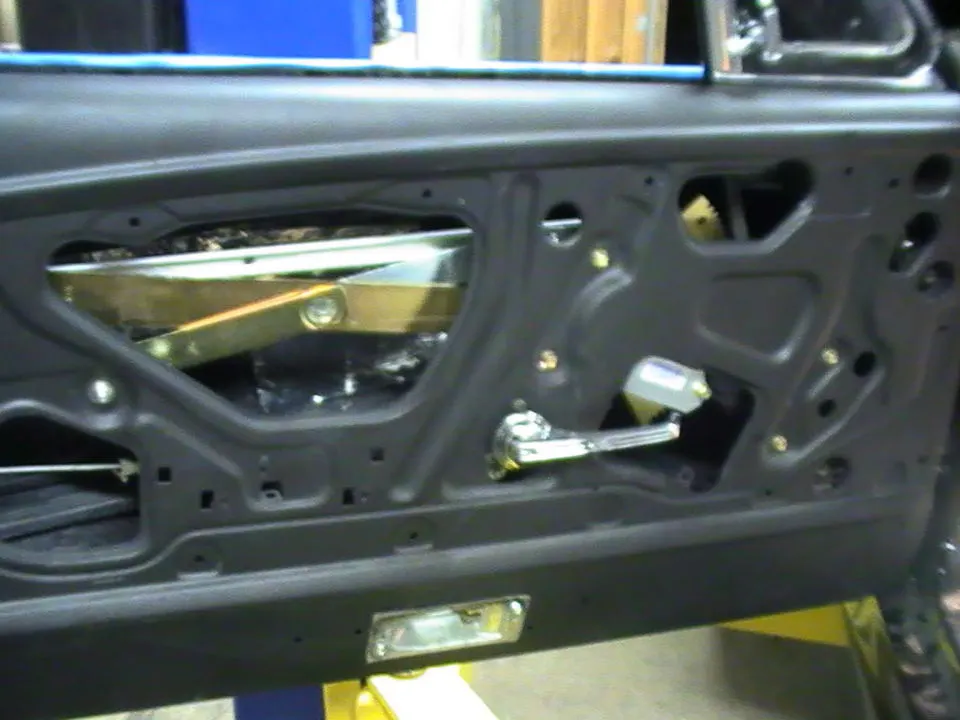

Electric window actuators are installed and both work fine.

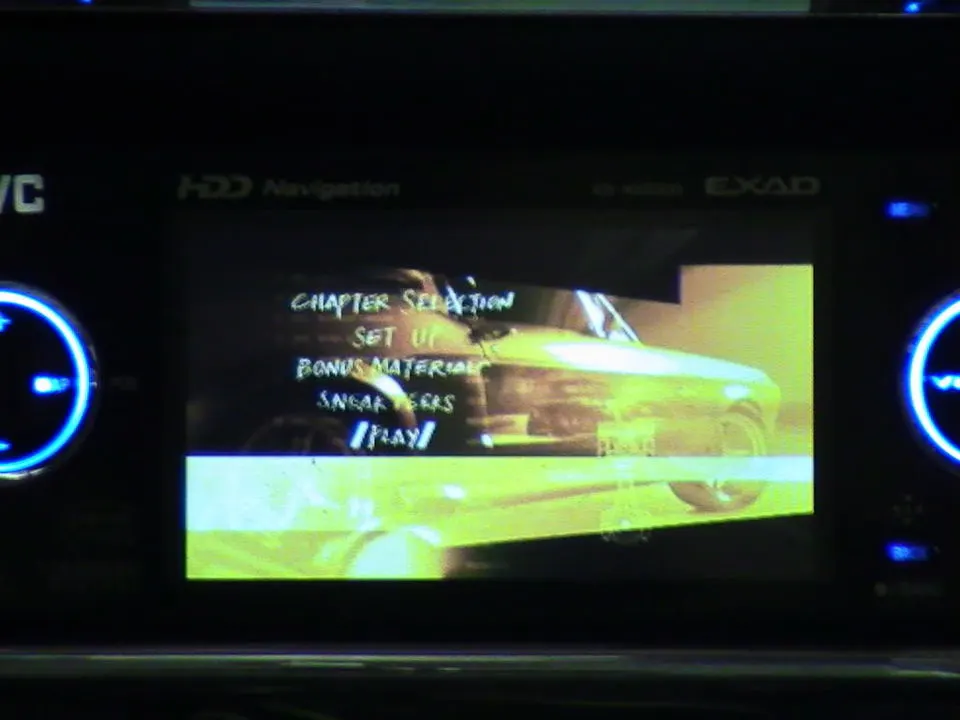

Just for fun, guess what is playing on the DVD?



[daddy oth]

oooooh ooooooh i know i know is it GONE IN 6 Sec.



[67FBack]

Grand Prize

oooooh ooooooh i know i know is it GONE IN 6 Sec.

You win! ha The grand prize is a ride in the car.



[67FBack]

Interior

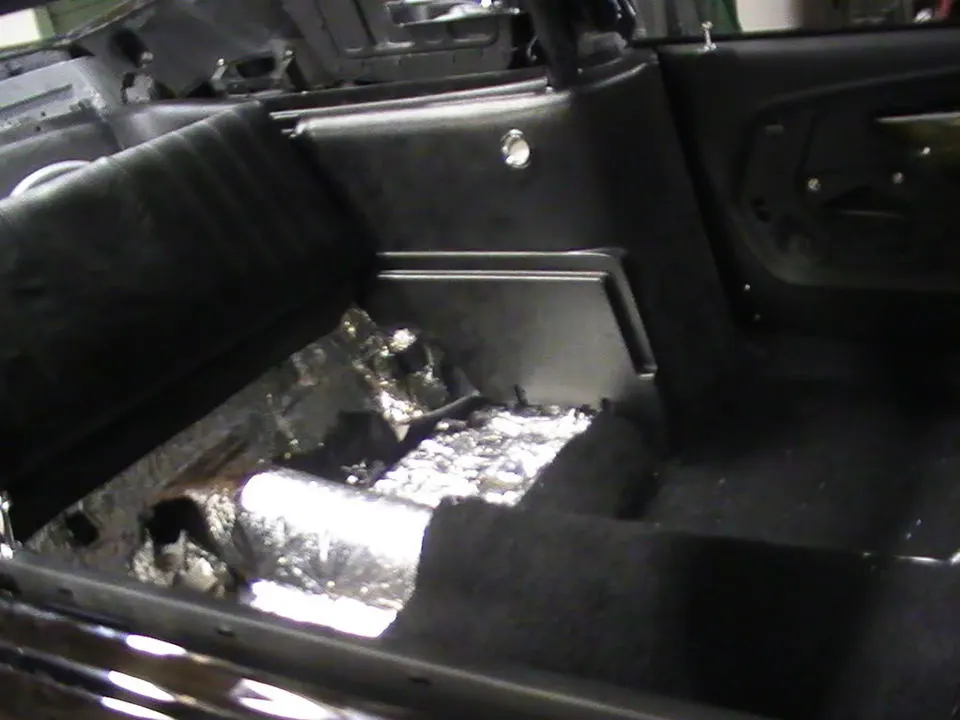

I started working on the carpet, interior panels and back seat.



[Sicarius428]

aww.... no more bling...
Kevin



[67FBack]

aww.... no more bling...
Kevin

How about video bling!

Coming soon to a forum near you!



[Cobra ssc]

oooooh ooooooh i know i know is it GONE IN 6 Sec.

You win! ha The grand prize is a ride in the car.

WHOOOO. isn't it 'Gone in 60 Seconds'? Do I win the prize then?!?!?! I'll be over Friday to collect my prize!!!
