'69 Front Floor Support Install

Discussion in 'Classic Mustang Specific Tech' started by JeremiahJohnson, May 5, 2014.


  1. JeremiahJohnson

    JeremiahJohnson Member

    Joined:
    Feb 28, 2014
    Messages:
    22
    Likes Received:
    1
    Trophy Points:
    14
    Hey Guys,

    I'm working on installing new floor supports on my '69 sportsroof. I installed a complete dynacorn floor pan assembly which came with floor supports already welded on but, I cut them off because I thought they were in the wrong place. At the very least they were not parallel to each other. And so I have a new pair of floor supports held in place with self tapping screws at the moment in what I think is the right location. They are currently 30" apart center to center and centered between the rockers at the front of the support and rear of the supports. The dynacorn floor tends to narrow towards the front for whatever reason.

    I realize that the floor support location side to side is relatively important considering they will dictate your front frame rail location and thus your wheel alignment. Can you guys give me any advice or ideas on how I can ensure I have the floor supports in just the right spot?

    I'll try to post a picture soon of what I'm trying to describe.
    #1
  2. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    3,887
    Showcase:
    164
    Albums:
    5
    Likes Received:
    616
    Trophy Points:
    153
    Location:
    Wile Coyote's stunt double

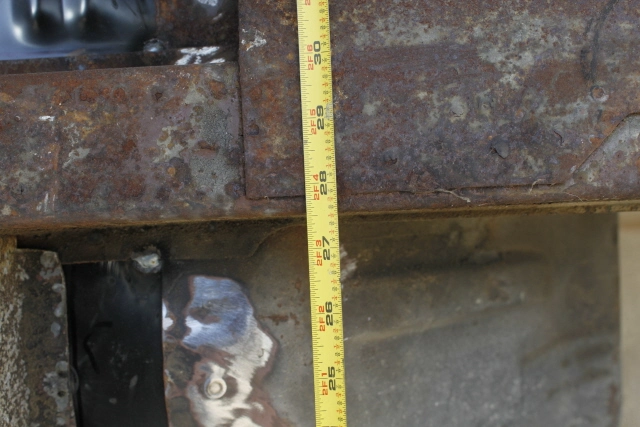

    The width between the floor supports, inside face to inside face is 27 1/2 inches . _MG_4757.JPG

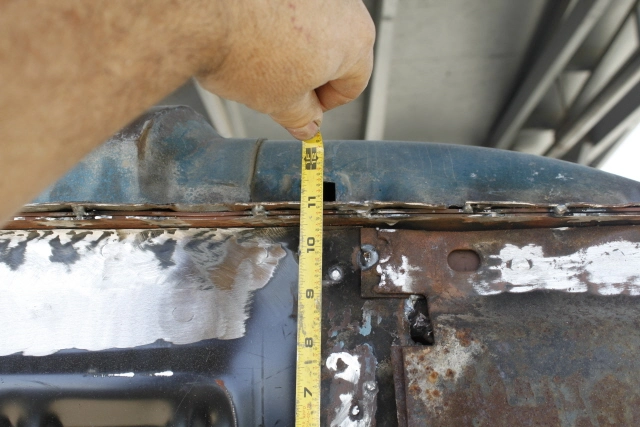

    From the outside edge of the rocker lip is 11 inches to the face of the floor support . _MG_4755.JPG
    both sides measure the same .
    Last edited: May 6, 2014
    #2
  3. JeremiahJohnson

    JeremiahJohnson Member

    Joined:
    Feb 28, 2014
    Messages:
    22
    Likes Received:
    1
    Trophy Points:
    14
    Thank you for checking on that for me. My measurements seem to be about the same as yours, though my rockers seem to be about a half inch wider than yours for whatever reason.

    I feel like I am worrying too much about getting these supports in just the right place. As long as I do the best I can with a tape measure, that should be good enough, huh?
    #3
  4. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    3,887
    Showcase:
    164
    Albums:
    5
    Likes Received:
    616
    Trophy Points:
    153
    Location:
    Wile Coyote's stunt double
    I think as long as you have equal spacing on each side you will be fine .you do not want to be any less than 11 inches at the out side or the torque boxes will not go in
    #4
  5. JeremiahJohnson

    JeremiahJohnson Member

    Joined:
    Feb 28, 2014
    Messages:
    22
    Likes Received:
    1
    Trophy Points:
    14
    Thanks for all your help Jim. I really appreciate it.
