'69 Front Frame Rail Installation

Discussion in 'Classic Mustang Specific Tech' started by JeremiahJohnson, Mar 16, 2014.


  1. JeremiahJohnson

    JeremiahJohnson Member

    Joined:
    Feb 28, 2014
    Messages:
    22
    Likes Received:
    1
    Trophy Points:
    14
    I am cutting/drilling my new motor mount pieces off of my shock towers to change the angle of them (the top of my shock towers are too wide).

    Jim (sorry to keep bothering you)- would you be willing to take a few measurements to help locate these pieces front to back, along the frame rail, when I weld them back on?
  2. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    3,720
    Likes Received:
    573
    Trophy Points:
    153
    I will be busy this morning but maybe around noon i can get the measurements.I will get the in between the towers measurement also
  3. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    3,720
    Likes Received:
    573
    Trophy Points:
    153

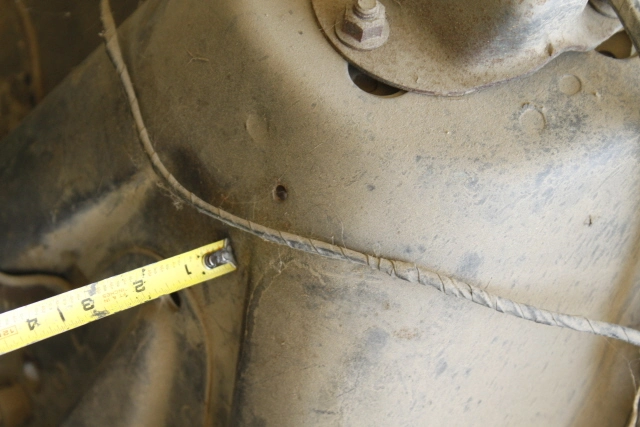

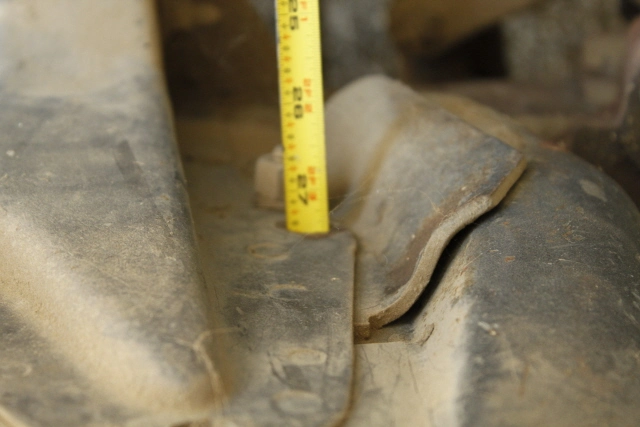

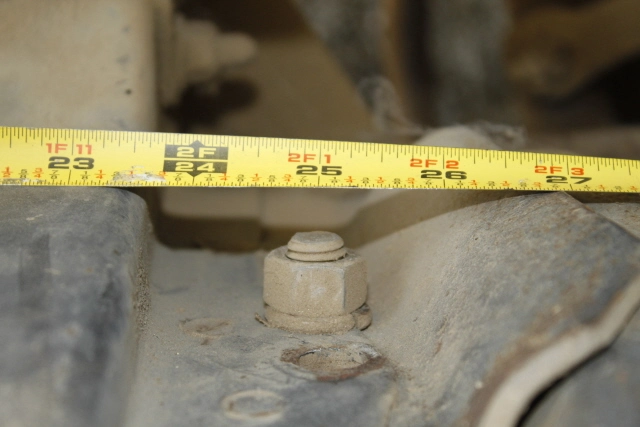

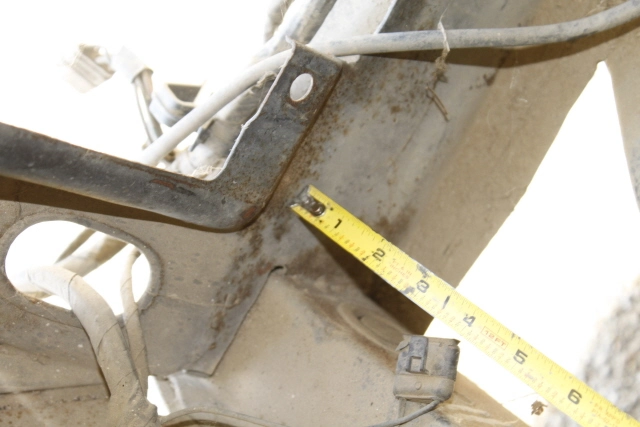

    Got some measurements . From the front cross member inside ,to the back upper A arm bolt hole center is 25 inches exactly . _MG_4668.JPG _MG_4669.JPG from the top of the towers you will see a flat spot, this runs all the way to the bottom of the tower ,it is where the motor mount bracket is spot welded to the tower .It is the same as the distance between the upper A arm rear bolt holes tower to tower 27 1/2 inches .the best way here would be to cut a piece of pipe to fit between the towers at the rear A arm bolt holes and run a long piece of all thread through bolted on the outside of the towers ,or thread the pipe on the ends and bolt it ,this will keep the towers the correct distance apart. _MG_4662.JPG _MG_4666.JPG
    This camera is driving me nuts :nonono: the focus just doesn't want to work. I hope you can make the pics out
    Last edited: Apr 14, 2014
    JeremiahJohnson likes this.
  4. JeremiahJohnson

    JeremiahJohnson Member

    Joined:
    Feb 28, 2014
    Messages:
    22
    Likes Received:
    1
    Trophy Points:
    14
    Hey Jim, thanks, this is great. I really appreciate you taking the time to gather these. The all thread is a good idea.

    For the 25 inch measurement, is the tip of your tape measure even with the top of the frame rail?
  5. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    3,720
    Likes Received:
    573
    Trophy Points:
    153
    Yes it is,the tip is touching the inside of the front cross member, the 25 inch measurement is the center of the back A arm bolt hole. You may need a square to locate the center of the back hole . I figured the measurements need to come from the bolt holes to keep both sides the exact same .
  6. JeremiahJohnson

    JeremiahJohnson Member

    Joined:
    Feb 28, 2014
    Messages:
    22
    Likes Received:
    1
    Trophy Points:
    14
    Cool, thanks Jim.

    have you ever had problems with the fitment of the dynacorn engine mount brackets?
  7. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    3,720
    Likes Received:
    573
    Trophy Points:
    153
    Only on the prewelded towers ,and then it was a 65-66.They welded the lower control arm bracket in the wrong angle and it would not set right on the frame .I had to drill it loose and reweld it.
  8. JeremiahJohnson

    JeremiahJohnson Member

    Joined:
    Feb 28, 2014
    Messages:
    22
    Likes Received:
    1
    Trophy Points:
    14
    For that angle, should I just make sure that the bracket is at a 90 degree angle with the frame rail?
