Progress Thread 69 Sheet Metal Repair

Discussion in 'Classic Mustang Specific Tech' started by candphall, Jul 10, 2013.

  1. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,329
    Showcase:
    166
    Albums:
    5
    Likes Received:
    736
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    yeah if you are talking about the part behind the tire area ,above the toe board ,that is part of the fire wall. i am not sure if that patch is made. it is a real job to replace a fire wall. what you may have to do is buy a fire wall just for patches. toe board patches do not go high enough.

    #21
  2. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    352
    Likes Received:
    23
    Trophy Points:
    19
    Location:
    Orlando Florida

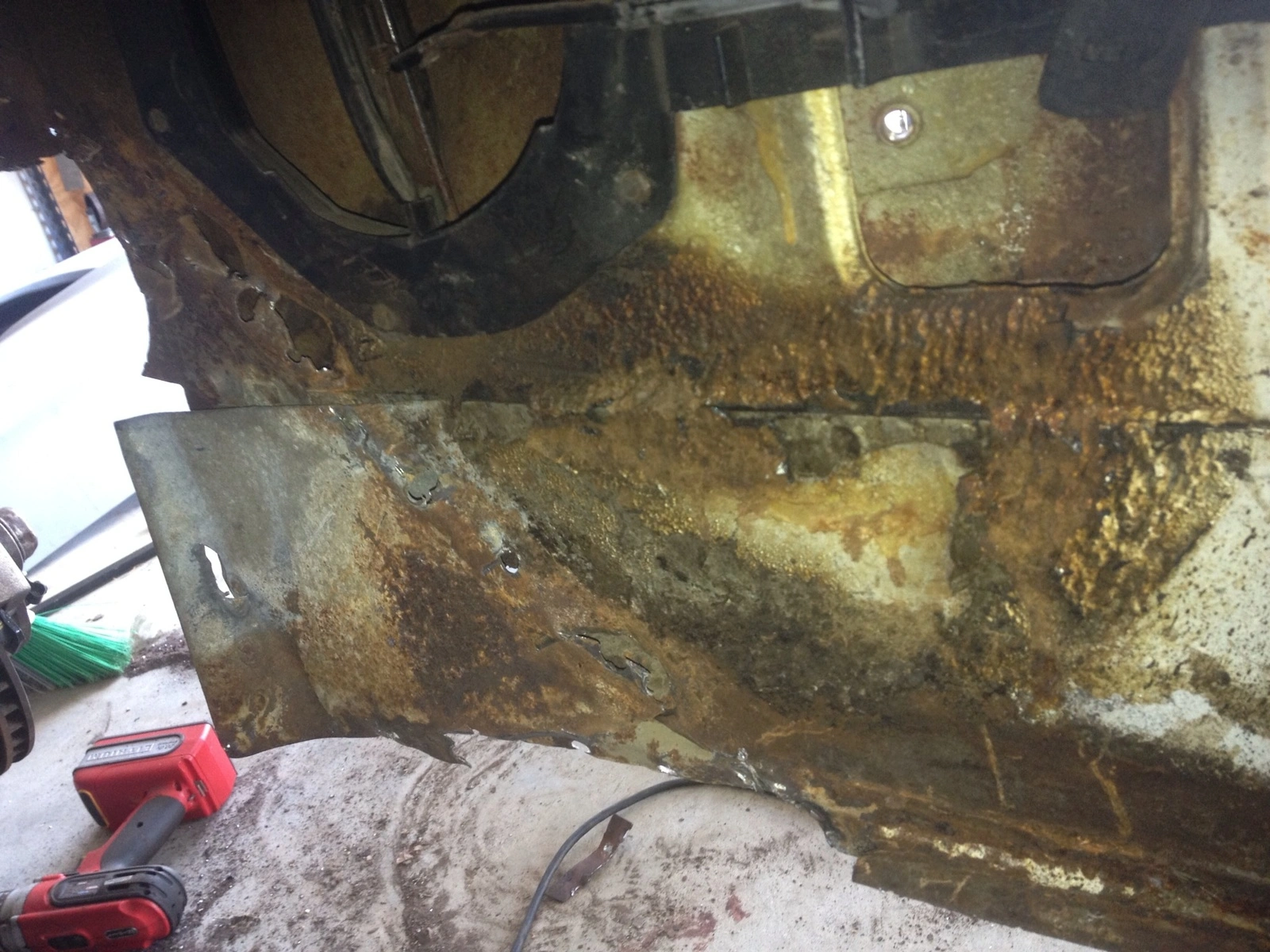

    This is what I need to repair


    Attached Files:

    #22
  3. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    352
    Likes Received:
    23
    Trophy Points:
    19
    Location:
    Orlando Florida
  4. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,329
    Showcase:
    166
    Albums:
    5
    Likes Received:
    736
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    yeah, that looks like the fire wall it runs full width of the front of the body, in the wheel well area? you will probably have to buy a full fire wall to make patches from

    #24
  5. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,329
    Showcase:
    166
    Albums:
    5
    Likes Received:
    736
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    the full fire wall has the toe boards in them so one patch can do the fire wall and the toe board in one piece,a lot less cutting and welding

    #25
  6. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,329
    Showcase:
    166
    Albums:
    5
    Likes Received:
    736
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    this is the fire wall ,they look pretty much the same for 64-70 they are slightly different for each year. it is the full front of the car with the toe boards images.jpg

    #26
  7. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    352
    Likes Received:
    23
    Trophy Points:
    19
    Location:
    Orlando Florida
    I got all of the big pieces of the torque box cut out today. All that's left are the welded edges. I started to use an air chisel but punctured the frame on the first pass. So it's grind, grind, grind from this point on.

    #27
  8. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    352
    Likes Received:
    23
    Trophy Points:
    19
    Location:
    Orlando Florida

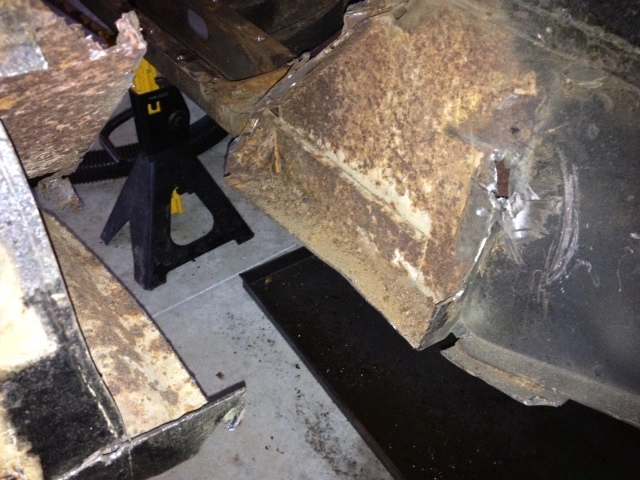

    So in about ten hours I have removed the passenger side floor a toe board and most of the torque box . I was also successful puncturing the frame with an air chisel.

    In those same ten hours Horse Sense was able to complete about 10 fastback conversions. In addition to that at the end of my project , if I live that long, I will probably discover he lives right around the corner.

    #28
    horse sence likes this.
  9. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,329
    Showcase:
    166
    Albums:
    5
    Likes Received:
    736
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    after all those cut fingers,bruises ,burns and cussing,when it is all done.you can look back and say (damn ,i am not going to do that again):lol:

    #29
  10. 66Coupe289POWER

    Joined:
    Jun 4, 2007
    Messages:
    77
    Likes Received:
    2
    Trophy Points:
    9
    Location:
    Raleigh, NC
    I'm not going to say how long I have been working on my car...:zzz:

    #30
  11. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    352
    Likes Received:
    23
    Trophy Points:
    19
    Location:
    Orlando Florida

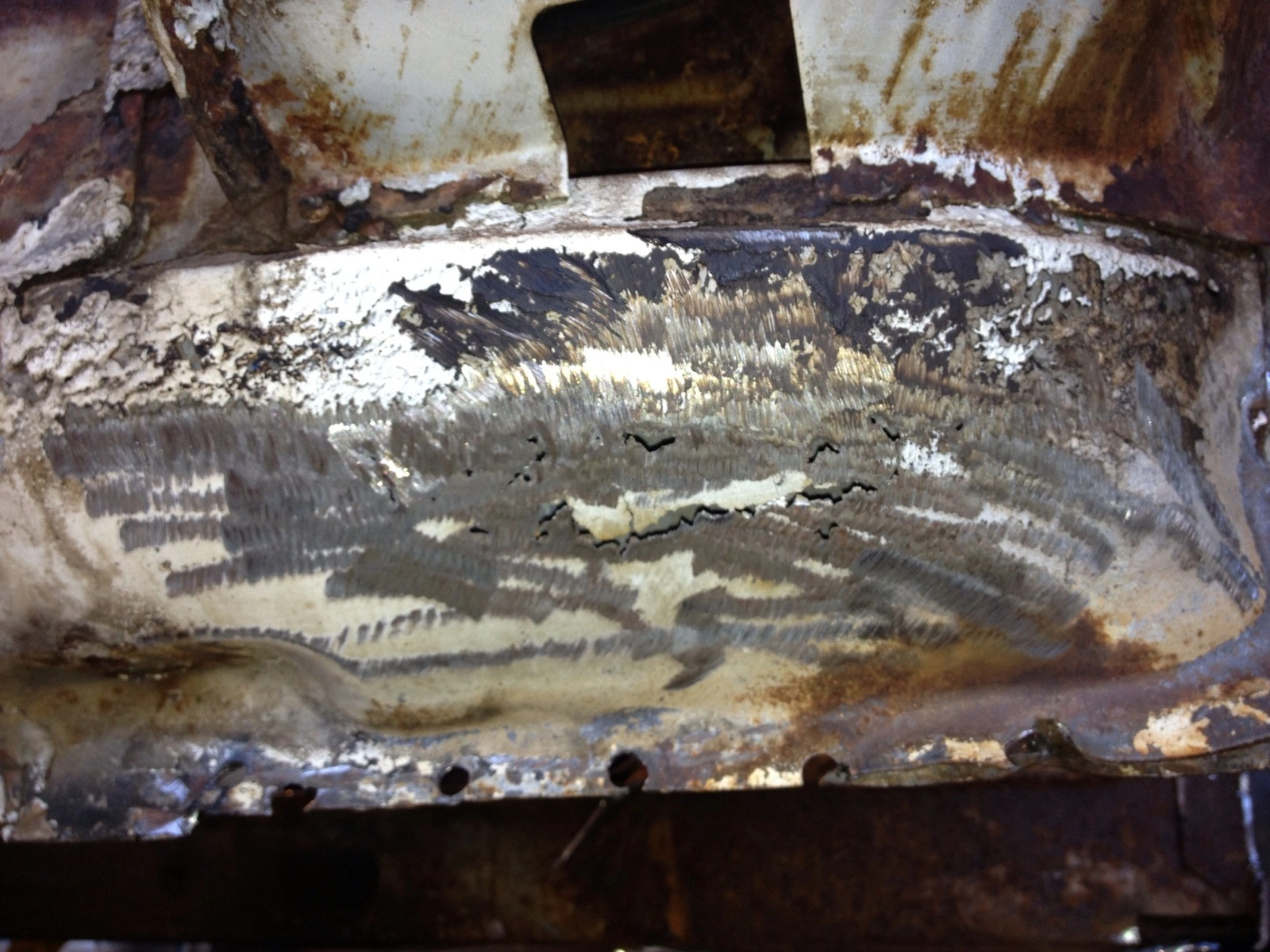

    Does this owner induced gouge require a patch, or just a weld up and grind down? This one portion of the torque box is the most difficult yet. It needs to be ground off completely, there is no better other way I can figure out.


    Attached Files:

    #31
  12. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,329
    Showcase:
    166
    Albums:
    5
    Likes Received:
    736
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    it looks like it will be inside the torque box and covered up.its small nothing to worry about

    #32
  13. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    352
    Likes Received:
    23
    Trophy Points:
    19
    Location:
    Orlando Florida

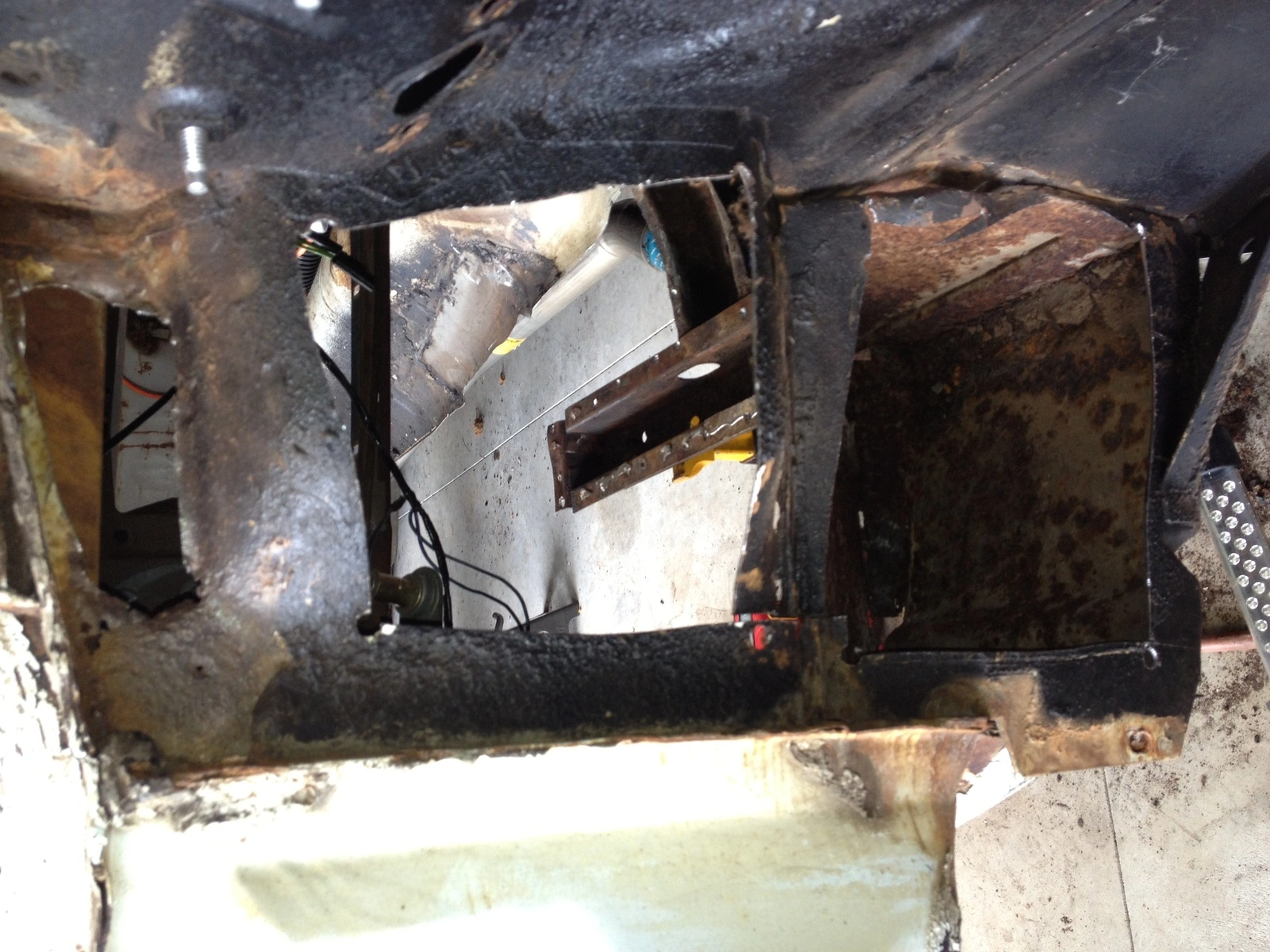

    The torque box is officially out all,thatnremainsmis to trim out the remaining floor and clean and prep for replacement. I created son tears in the side bent panel that will need to be patched. The panel that covers the inner rocker that the floor pan attaches to will need a patch where the torque box was attached. But all in all not to bad.

    I have attached photo of some rust thru I discovered on the outside frame rail forward of the door post. I believe it can be patched, it seem local to that area.

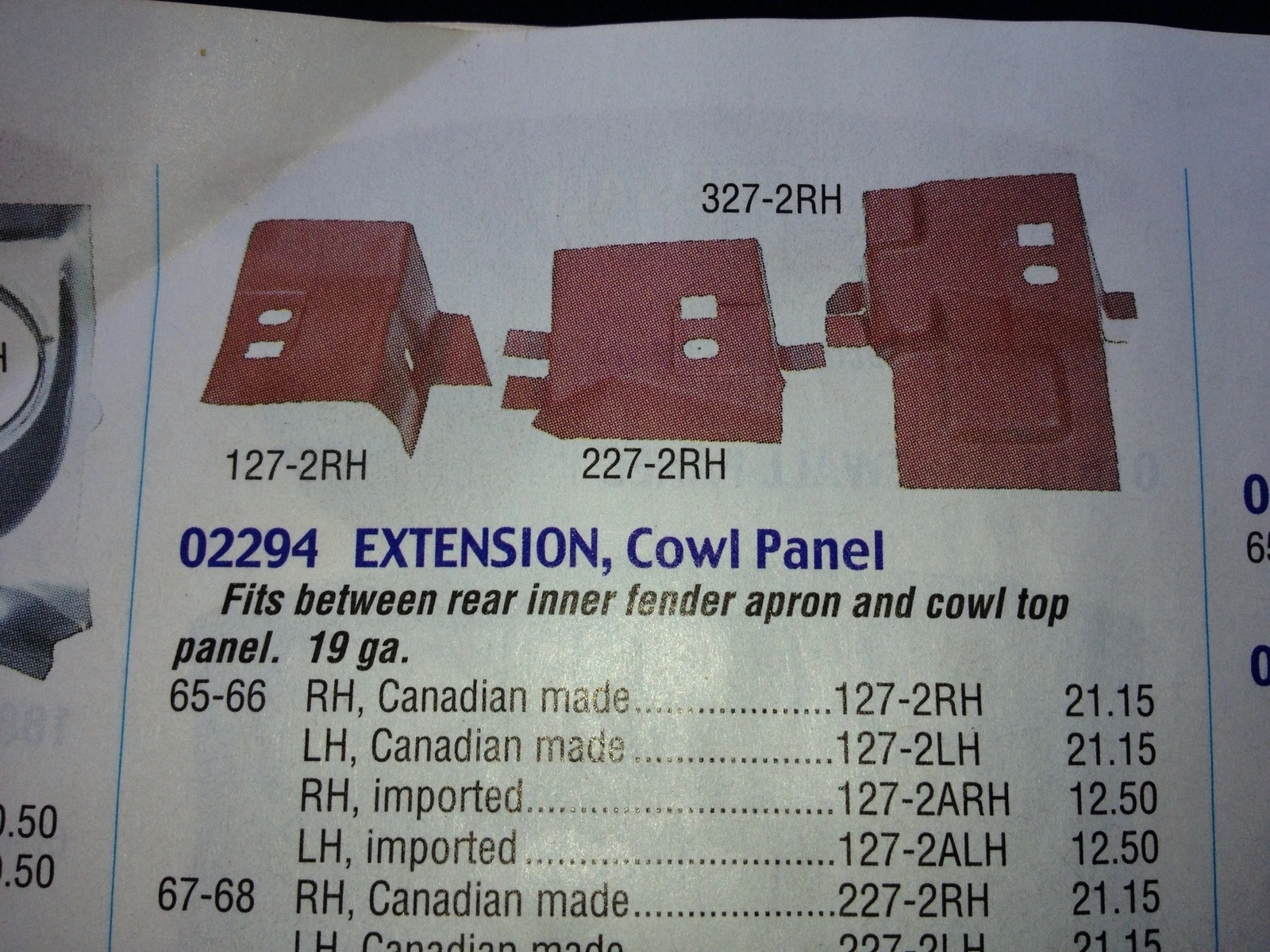

    In addition I have included a photo from NPD of an outer firewall extension I believe that this is the piece I need to replace the panel between the outer cowel and the rear engine compartment sheet metal.
    Take a look and let me know your thoughts .


    Attached Files:

    #33
  14. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    352
    Likes Received:
    23
    Trophy Points:
    19
    Location:
    Orlando Florida
    Frame rail rust. Patch?


    Attached Files:

    #34
  15. 66Coupe289POWER

    Joined:
    Jun 4, 2007
    Messages:
    77
    Likes Received:
    2
    Trophy Points:
    9
    Location:
    Raleigh, NC
    The NPD piece you linked to is not what you need to patch. That part goes at the top of the fender apron and connects it to the cowl behind the hood hinge. Here is a link to the outer rocker patch, it says 65-68 but you should be able to make it work on your car http://www.cjponyparts.com/rocker-panel-extension-front-passenger-side-1965-1968/p/M141R/
    Here is a firewall patch for the right side, it will prob take this and a toe board to patch your firewall http://www.cjponyparts.com/firewall-rt-partial-outer-1964-1968/p/M134R/

    #35
  16. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    352
    Likes Received:
    23
    Trophy Points:
    19
    Location:
    Orlando Florida
    Thanks 66. I also need thisart I believe it is the inner rocker cover


    Attached Files:

    #36
  17. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,329
    Showcase:
    166
    Albums:
    5
    Likes Received:
    736
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    any flat pieces i would just make from sheet metal

    #37
  18. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    352
    Likes Received:
    23
    Trophy Points:
    19
    Location:
    Orlando Florida
    Those were my initial thoughts. Thanks

    #38
  19. 66Coupe289POWER

    Joined:
    Jun 4, 2007
    Messages:
    77
    Likes Received:
    2
    Trophy Points:
    9
    Location:
    Raleigh, NC
    +1 on making it from sheet metal. Just make sure you use the same thickness for the patch. The rockers are pretty thick.

    #39
  20. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    352
    Likes Received:
    23
    Trophy Points:
    19
    Location:
    Orlando Florida
    Discovered today that the blades for the Harbor Freight panel saw will fit the Rigid saw sold at Home Depot. Much cheaper and work just as well. Saw on!

    #40
