    image.jpg image.jpg The right side is complete, firewall, rocker extension, torque box and toe board all installed and welded. Now for the left side, torque box ,floor pan and toe board.

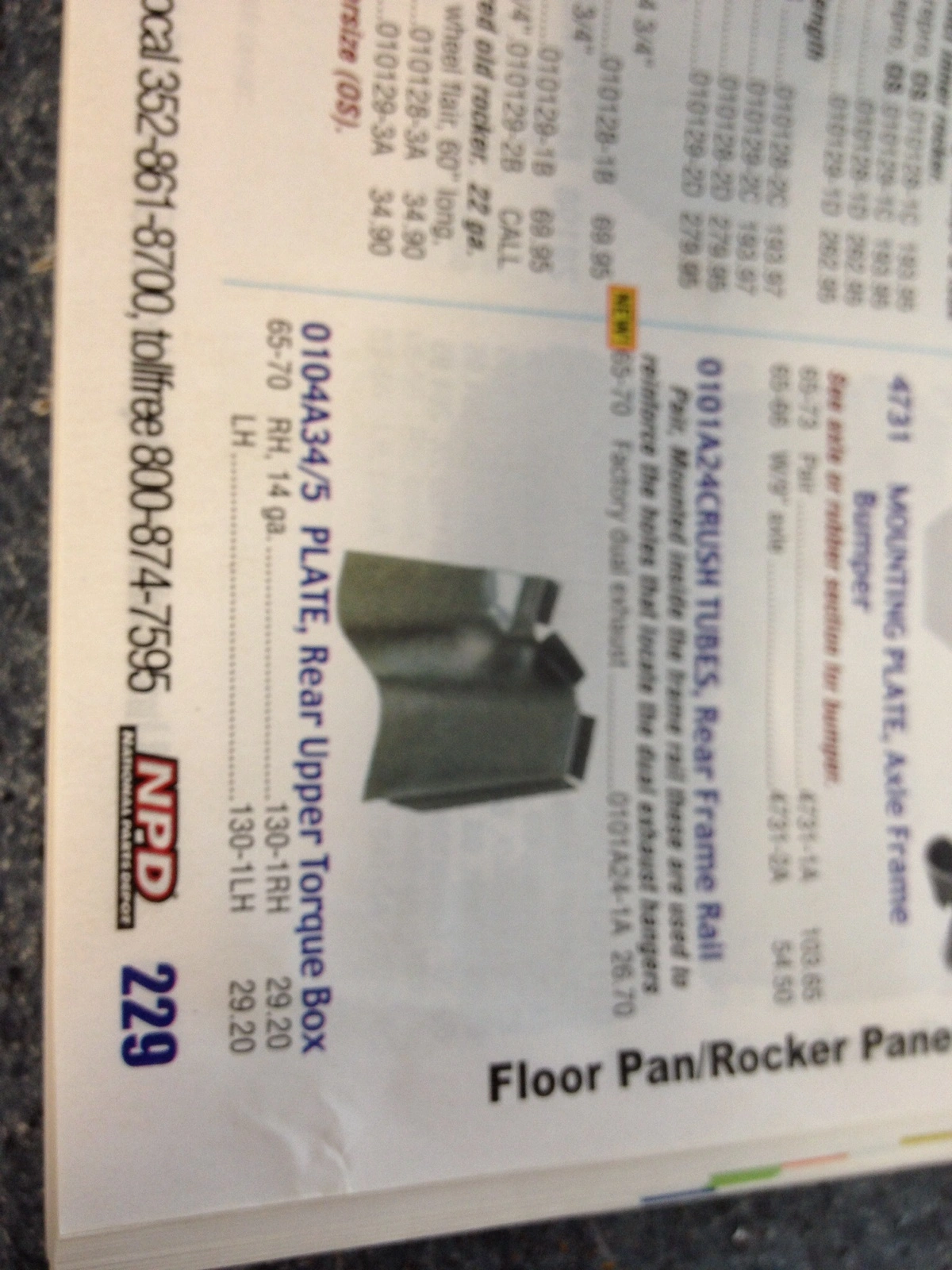

    While cutting out the floor pan I noticed that tha rear torque box, upper, was rusted through. NPD has the part I was wondering how hard this is to replace compared to the front.

    #121
  2. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,132
    Showcase:
    164
    Albums:
    5
    Likes Received:
    688
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    NO NO NO! don't spend $30 dollars on the top plate .I have at least 10 for each side .Every time i do a floor kit it comes with those top plates and i never have to use them. PM me an address and i will send you one, they are simple to replace .

    #122
  3. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    329
    Likes Received:
    22
    Trophy Points:
    19
    Location:
    Orlando Florida
    I PMd I think. And thanks a million.

    #123
  4. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,132
    Showcase:
    164
    Albums:
    5
    Likes Received:
    688
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    You posted it on my profile page .I have the address so you can delete it .
    I will send it today US Postal . The rear top plate is much easier to replace than the front . Jim

    #124
  5. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,132
    Showcase:
    164
    Albums:
    5
    Likes Received:
    688
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    I boxed it up and went to the post office ,closed it's a holiday :doh:.
    i will send it off first thing tomorrow.

    #125
  6. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    329
    Likes Received:
    22
    Trophy Points:
    19
    Location:
    Orlando Florida
    Thanks a lot. I will have to figure out how to PM

    #126
  7. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    329
    Likes Received:
    22
    Trophy Points:
    19
    Location:
    Orlando Florida
    I have seen in several posts by several mustangers that have replaced the forward torque box upper only. My driver side lower is in good shape and I was considering replacing the upper only. Is it possible to get the upper portion below the flange on the frame with the bottom installed? I have seen some installed above the flange but don't believe this is correct. At least not on my 69.

    #127
  8. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,132
    Showcase:
    164
    Albums:
    5
    Likes Received:
    688
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    Yes you can replace just the top if the toe board is cut away. The top rusts between the plate and the floor pan so the bottom is usually good, but not always.

    #128
  9. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    329
    Likes Received:
    22
    Trophy Points:
    19
    Location:
    Orlando Florida
    When replacing the right side torque box the top half was welded below the flange on the inner frame rail. It was rewelded in the same position. When removing the left side torque box the top half appears to,have been welded on top,of the flange both right and left are original to the car. I have seen other posts that seem to be installed as above. Is this correct or does it really make any difference?

    #129
  10. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,132
    Showcase:
    164
    Albums:
    5
    Likes Received:
    688
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    It shouldn't make a difference as long as it doesn't interfere with anything . it seems that they just did it the way they wanted to at Ford when they built them

    #130
  11. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    329
    Likes Received:
    22
    Trophy Points:
    19
    Location:
    Orlando Florida
    Is there any time in anyone's world where it is acceptable to remove a small area of rust and repair with fiberglass. Especially where area has to be contoured and is not structural?

    #131
  12. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,132
    Showcase:
    164
    Albums:
    5
    Likes Received:
    688
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    I would argue against it . It just doesn't work well. What piece is the problem?
    I would try to find something that has the same shape and cut the needed piece out .

    #132
  13. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    329
    Likes Received:
    22
    Trophy Points:
    19
    Location:
    Orlando Florida
    I thought so and agree, it is the inner cowel panel on the drivers side, the cowel is paper thin to start with, through in a little rust and there is not much left to work with. I will cut out the rust and scab weld on a patch. It will not be seen. I will post pictures tomorrow.

    #133
  14. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    329
    Likes Received:
    22
    Trophy Points:
    19
    Location:
    Orlando Florida

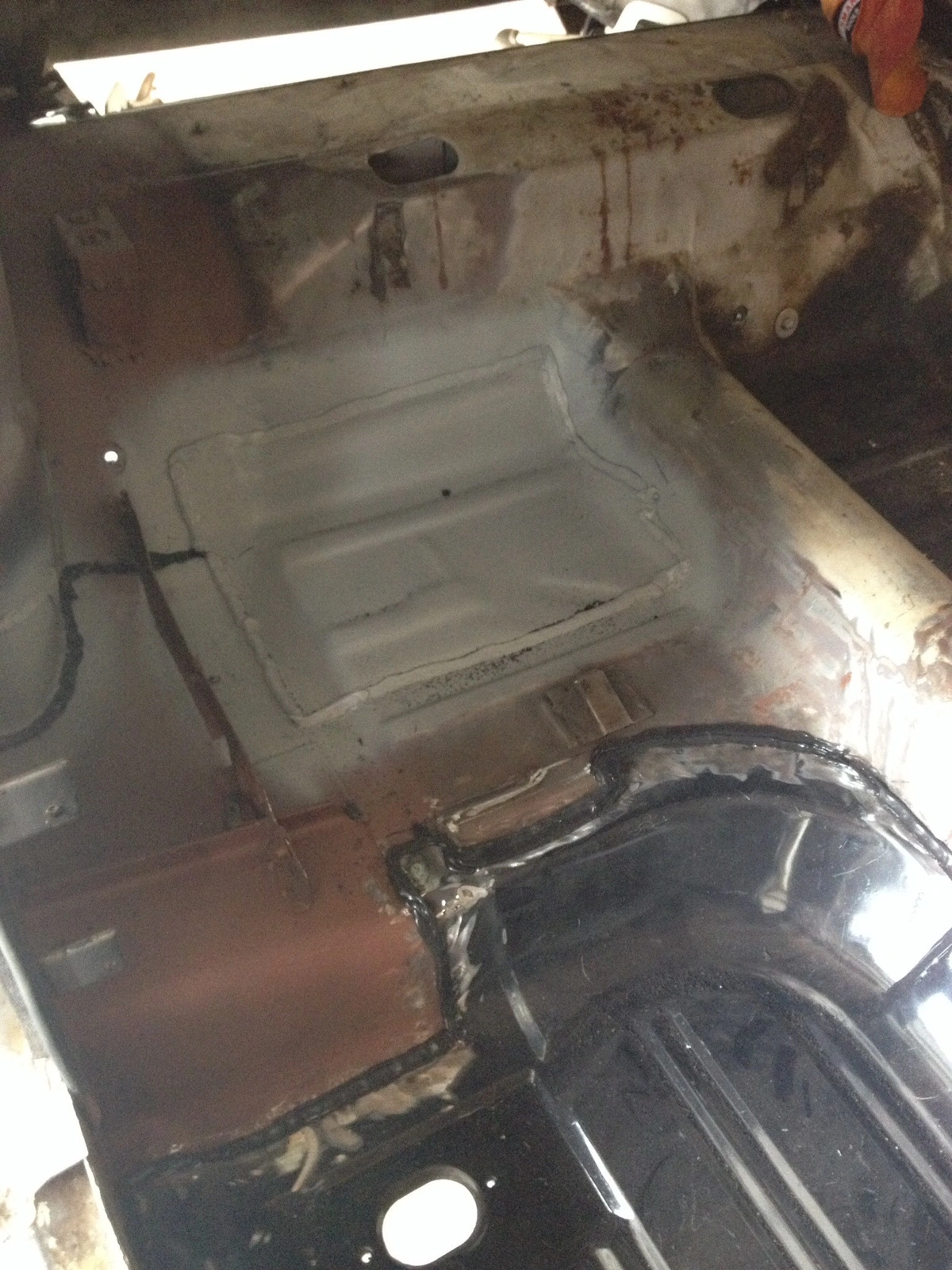

    The right side is complete with the exception of seam sealing the under side. I replaced the torque box, firewall extension, rocker panel extension, floor pan, toe board, and patched the inner cowl.

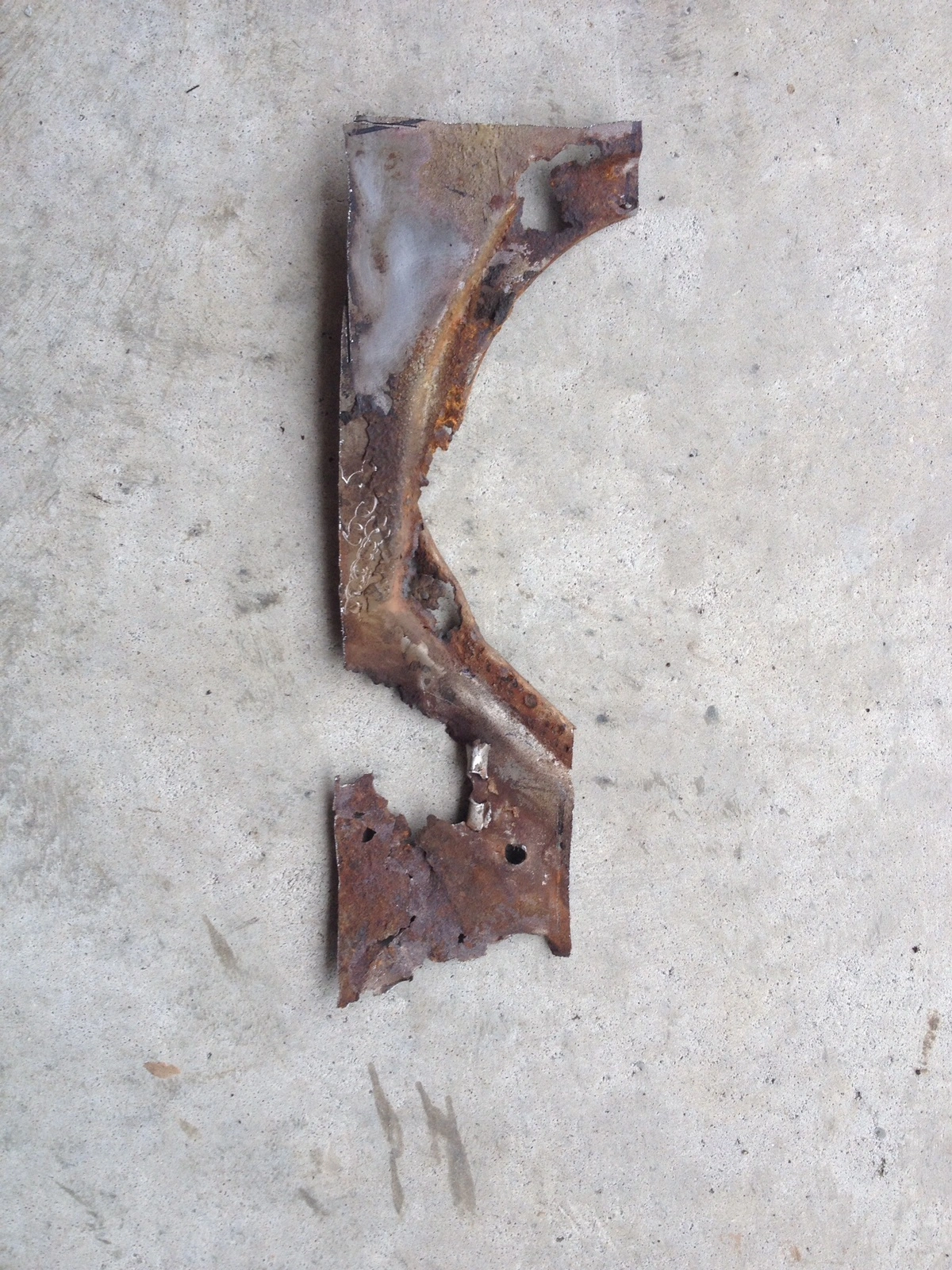

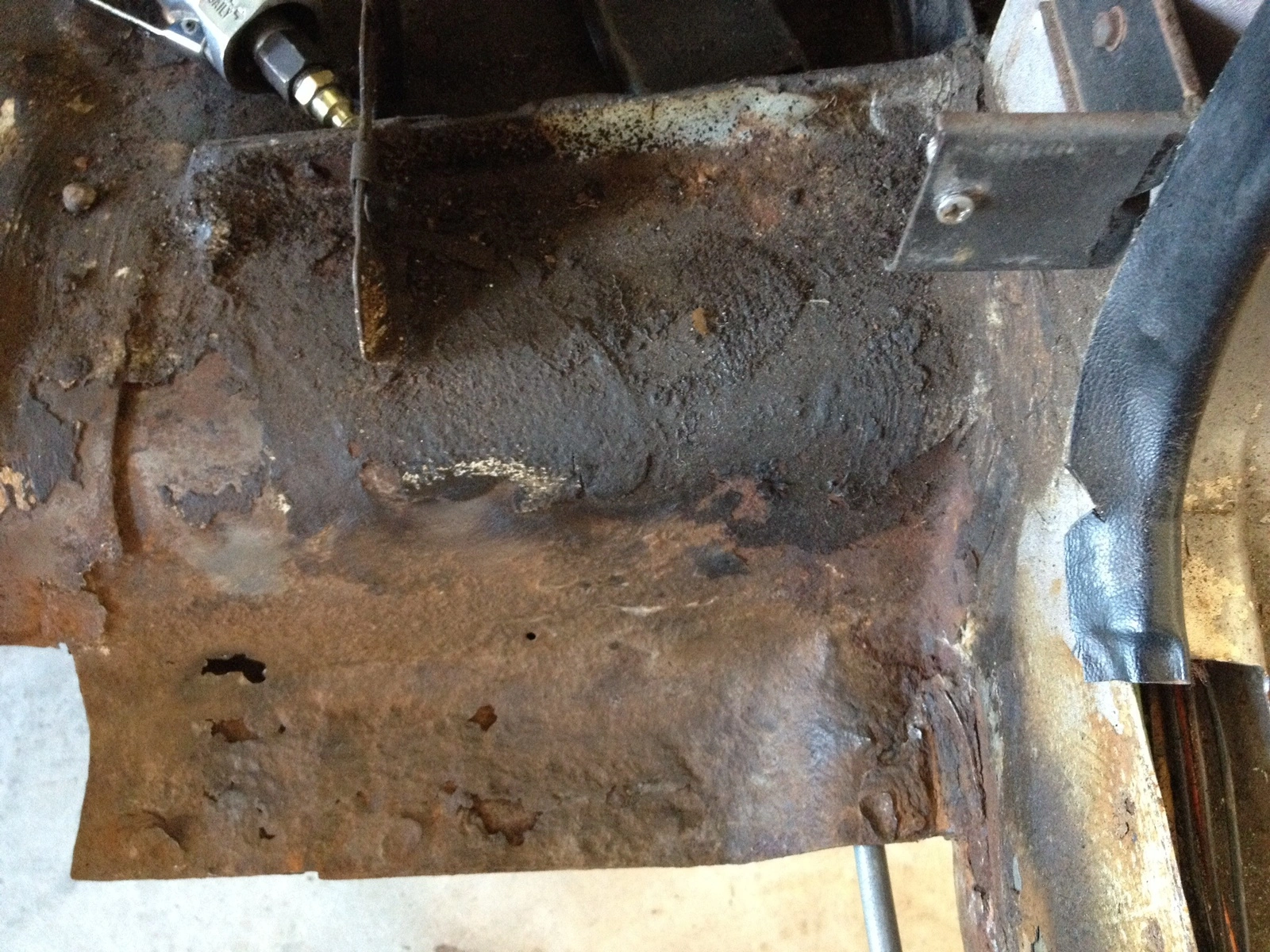

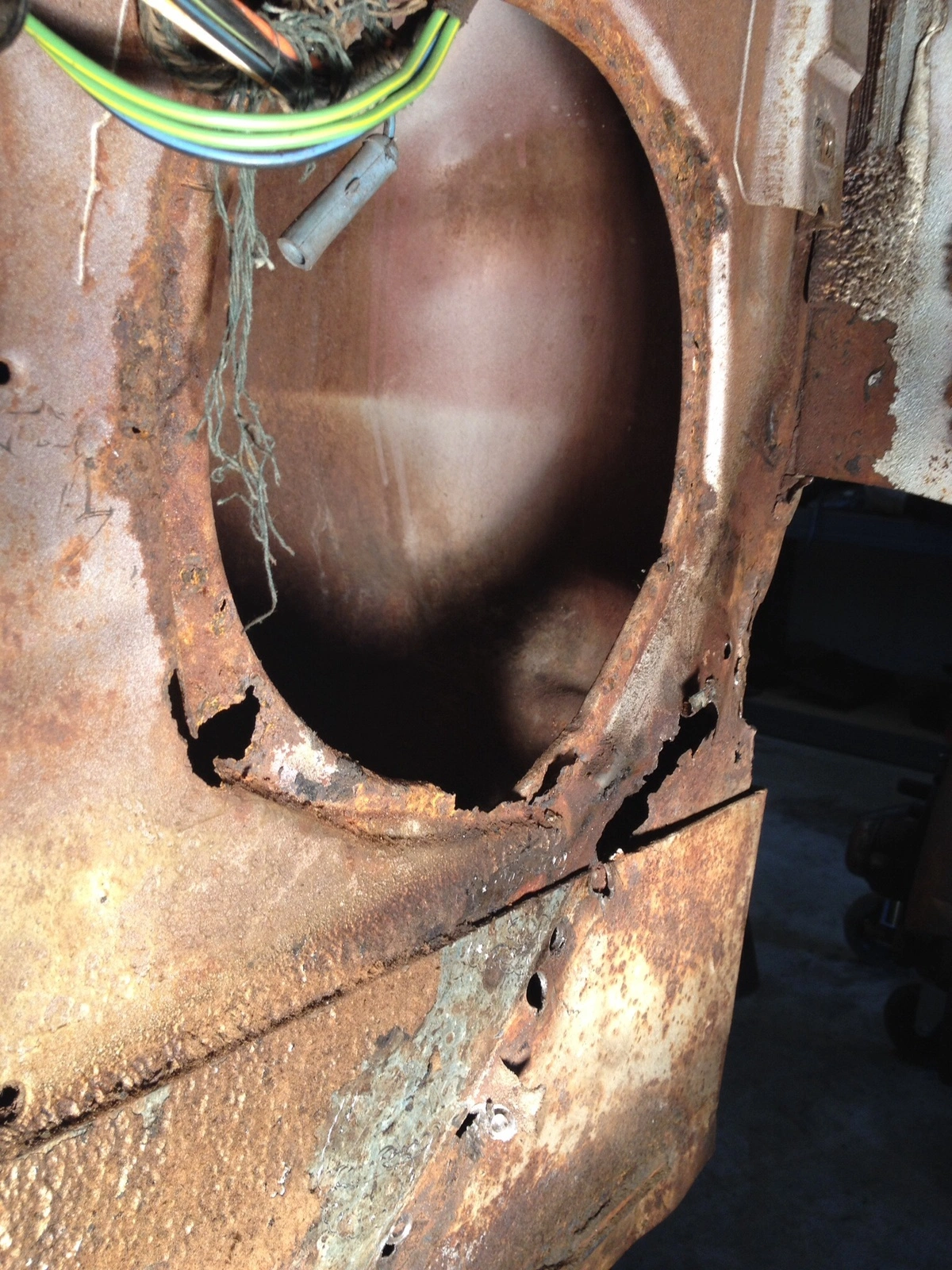

    The left side has all the rusted sheet metal removed and remaining straightened for the new metal install. I was concerned about patching the inner cowl panel but I removed the rusted piece and will use it for a pattern, cut a patch and weld it in. image.jpg image.jpg image.jpg image.jpg image.jpg

    #134
  15. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,132
    Showcase:
    164
    Albums:
    5
    Likes Received:
    688
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    Is that car white or spring time yellow? My most favorite 69 i had was spring time yellow Mach 1. That was one fun car !

    #135
  16. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    329
    Likes Received:
    22
    Trophy Points:
    19
    Location:
    Orlando Florida
    Wimbledon white origanally. Thinking of going to Calapso coral. I like the color on a chip but have never seen it on a car. So I am still undecided.

    #136
  17. horse sence

    horse sence Please don't call me Mom SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    4,132
    Showcase:
    164
    Albums:
    5
    Likes Received:
    688
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    I have seen Calypso coral on a 69 boss 302 ,one of fords prettiest colors.

    #137
  18. BarnStang

    BarnStang Founding Member

    Joined:
    Mar 2, 2001
    Messages:
    1,239
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Hagerstown, MD
    Here is a 70 I helped restore a long time ago. This car was originally Calypso Corral. Incredible color. I hope this helps you decide...!

    #138
  19. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    329
    Likes Received:
    22
    Trophy Points:
    19
    Location:
    Orlando Florida
    That is awesome. I love the color and in addition I haven't seen any of them in my area.

    #139
  20. candphall

    candphall Member

    Joined:
    Jun 9, 2009
    Messages:
    329
    Likes Received:
    22
    Trophy Points:
    19
    Location:
    Orlando Florida

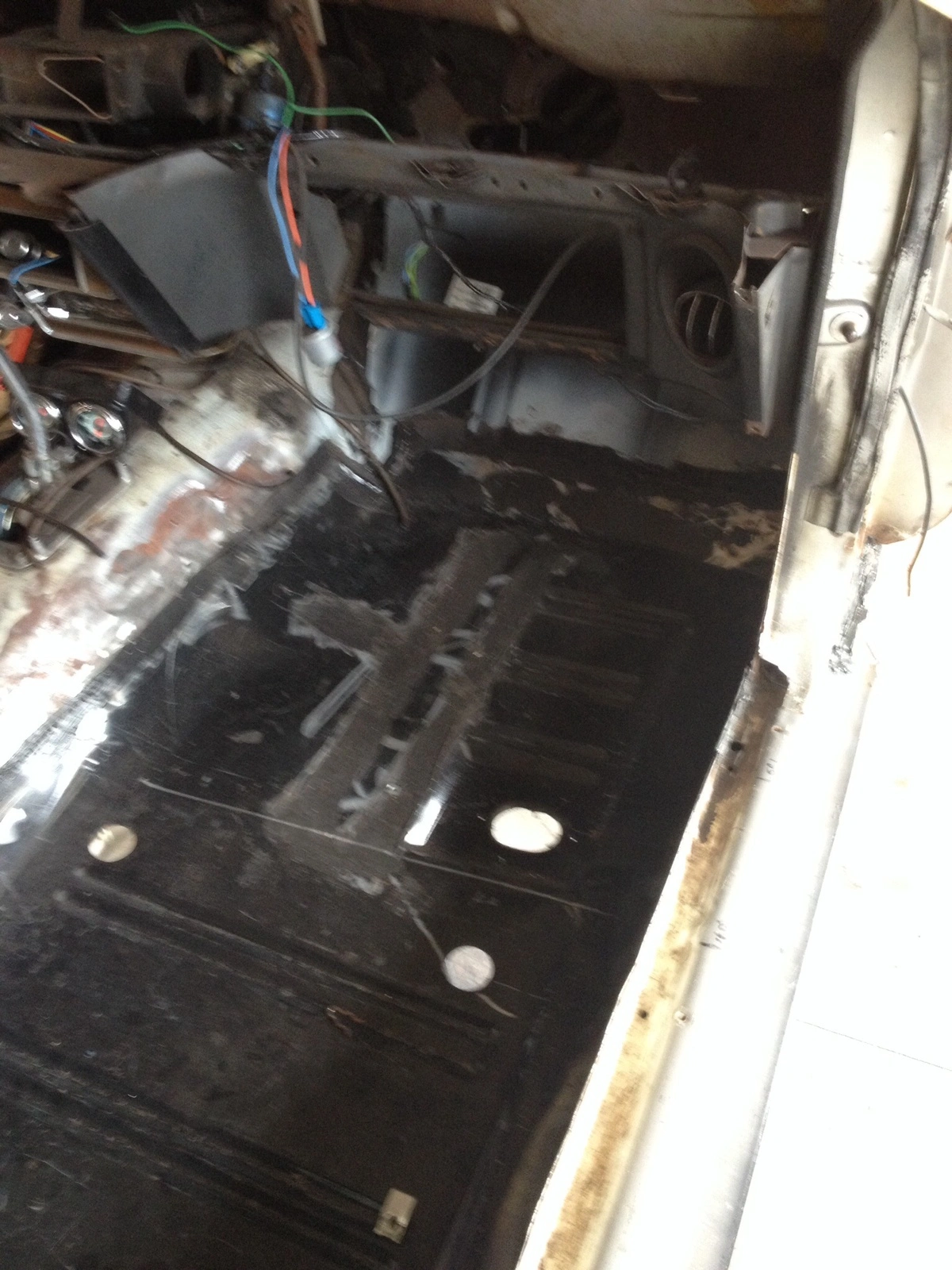

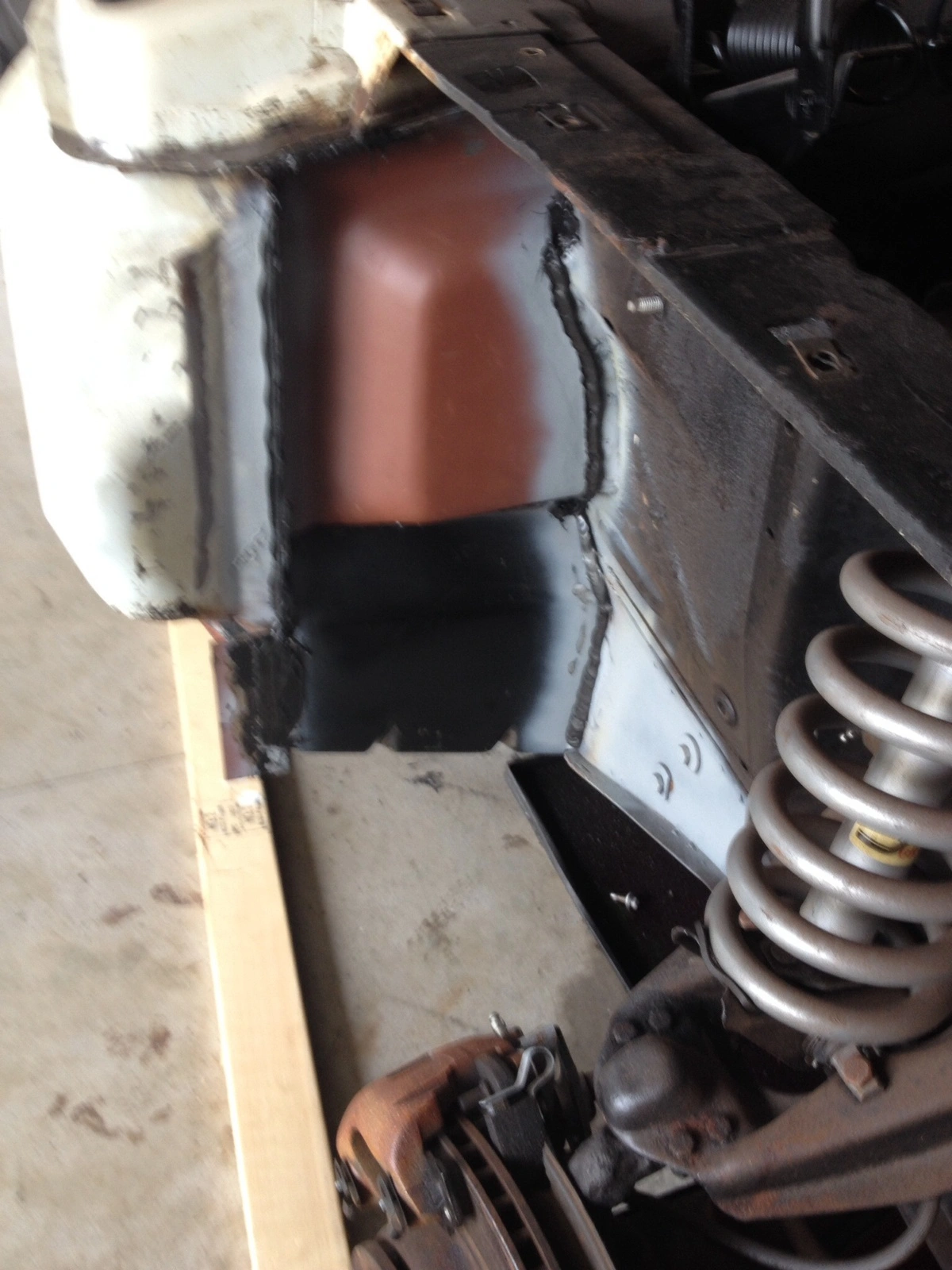

    Left side torque box is in and I am starting on the toe board. It isn't even close to fitting as is.
