88 Mustang LX Highly Modified Street Machine

Discussion in 'Fox Body Mustangs For Sale' started by soontobefastfox, Jul 18, 2011.


  1. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan

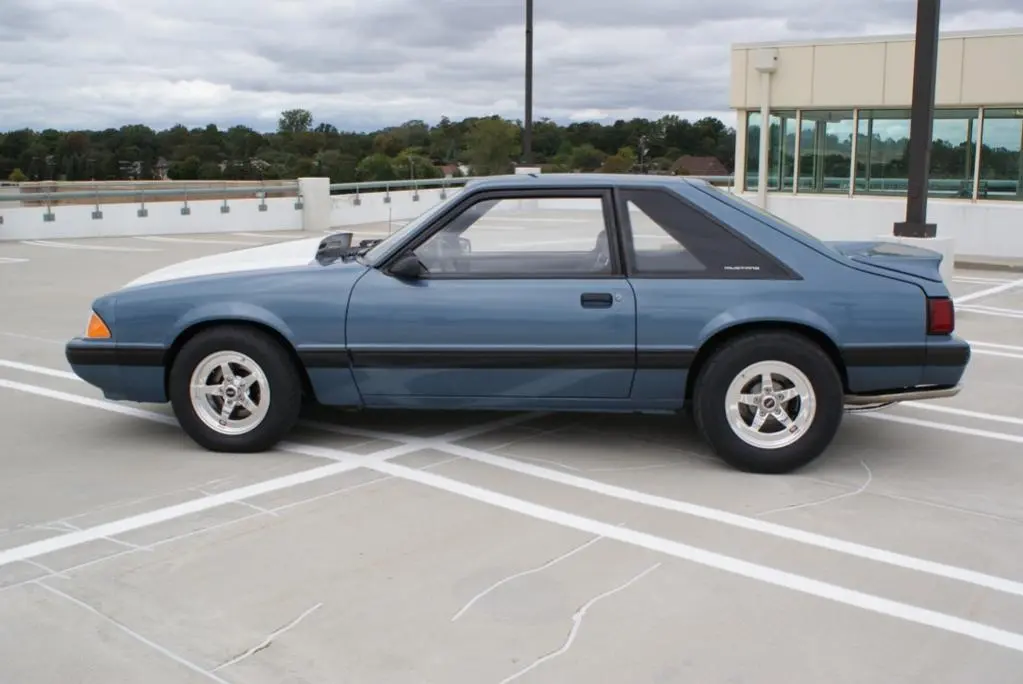

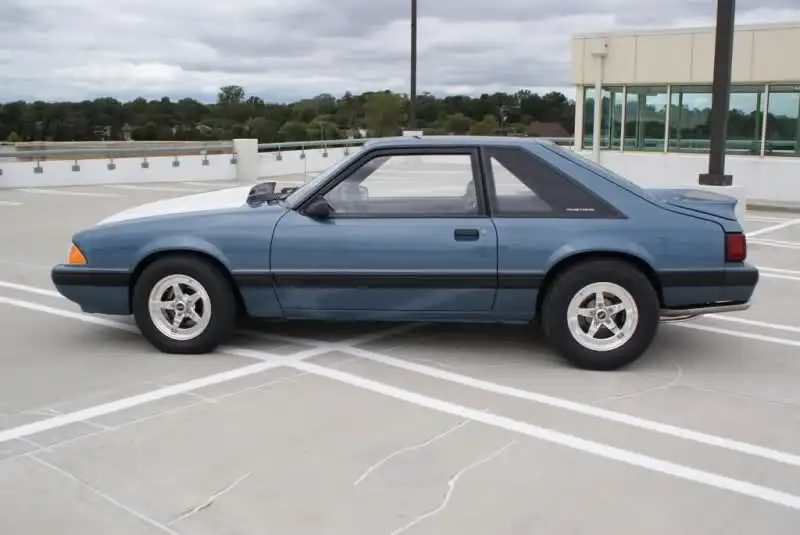

    I am putting my 1988 Mustang up for sale. I have been driving and modifying for the past 7 years. I am the third owner and this Mustang has been garage kept its entire life. The pictures on here do not do it justice. It has never been raced or even taken to the drag strip, but I know that this car is capable of high to mid 11's as it sits. All of the modifications have been done right and nothing on this Fox Mustang hacked. I have about 2000 miles on the motor since I built it. The Mustang has 52XXX miles on the chassis, but still in excellent condition. Very long list of modifications, but very reliable and most of all fun!

    It is a head turner, you do not see Fox Mustangs in this type of condition. Never seen salt or winter weather! NO RUST!

    All of the chassis welding modifications was completed by Al Scruggs and Slim's Hot Rod Shop.

    The motor is setup is N/A but is setup for boost. This car could run mid to low 10's with a mild supercharger setup, but is very quick and a head turner as it sits. Engine was blueprinted, by me, and I have a spreadsheet with the data.
    DON WALSH (WALSH MOTORSPORTS) DYNOTUNED - 362 RWHP and 376 RWTQ

    This is for serious buyers only! Please send me an email and we will get in contact with each other.

    This is an immaculate car! Please come take a look! The car was built by a professional engineer (me) and my father. Over 25K into it!

    See the modification list below:

    Block
    Ford Racing Sportsman 302
    Bored to 4.030", stroker clearance, cleaned, and decked by Lukivoch Performance

    Rotating Assembly
    Eagle Specialty Products Forged 331 Crankshaft
    Eagle Specialty Products Forged H-Beam Connecting Rods with ARP Bolt Upgrade
    JE Forged Dished Pistons 4.030"
    Clevite 77 Bearings

    Oil System
    Canton 7 Quart Oil Pan
    Canton Main Girdle
    Canton Windage Tray
    Melling High Volume Oil Pump
    Ford Racing Oil Pump Shaft
    Felpro Two Piece Gasket

    Valvetrain
    Comp Cams XFI (Xtreme Fuel Injection) Duration 286/300, Duration @.050 236/248, Lift .579
    Comp Cams Magnum Roller Rocker Arms 1.6 Ratio
    Comp Cams Spyder and Dog Ring Lifter Kit
    Ford Racing Hydraulic Roller Lifters
    Trend Push Rods
    Jomar Pro-Model Stud Girdle

    Cylinder Heads
    Edelbrock Victor Jr. Small Block Ford Cylinder Heads
    *Ported bowls, cleaning, and reassembly by Ron Sharp
    Fel-Pro Cylinder Head Gaskets 1011-1

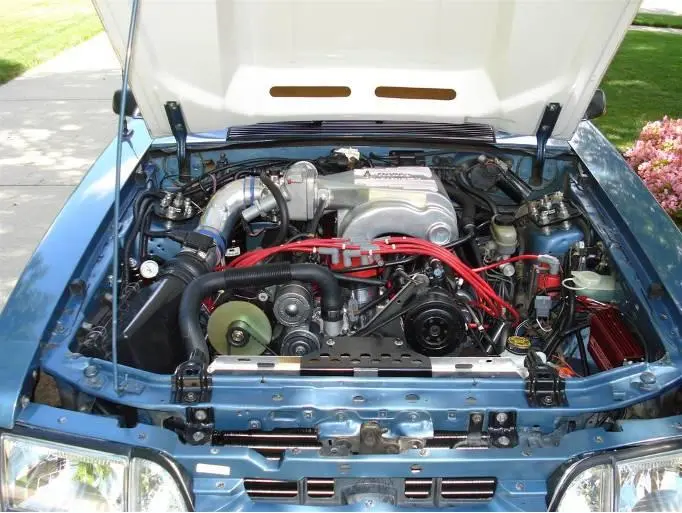

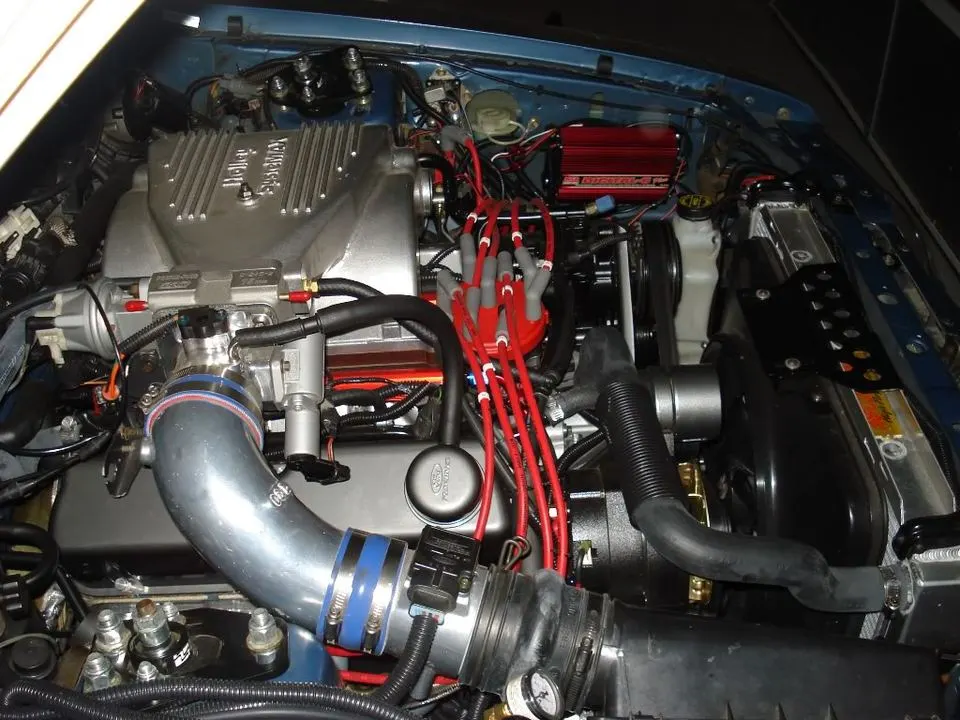

    Induction
    Factory Airbox with K & N Filter
    C & L 76 mm MAF with 42 lb calibration tube
    C & L Trueflo Inlet Pipe
    Accufab 75 mm Throttle Body
    BBK 75 mm Power-Plus EGR Plate (Coolant hoses bypassed)

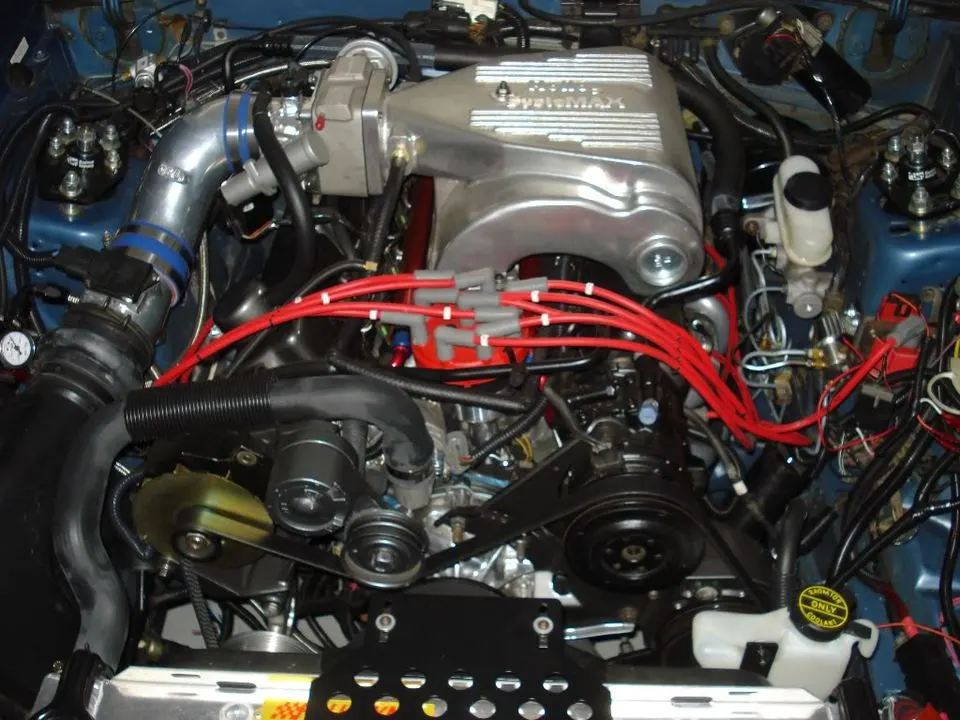

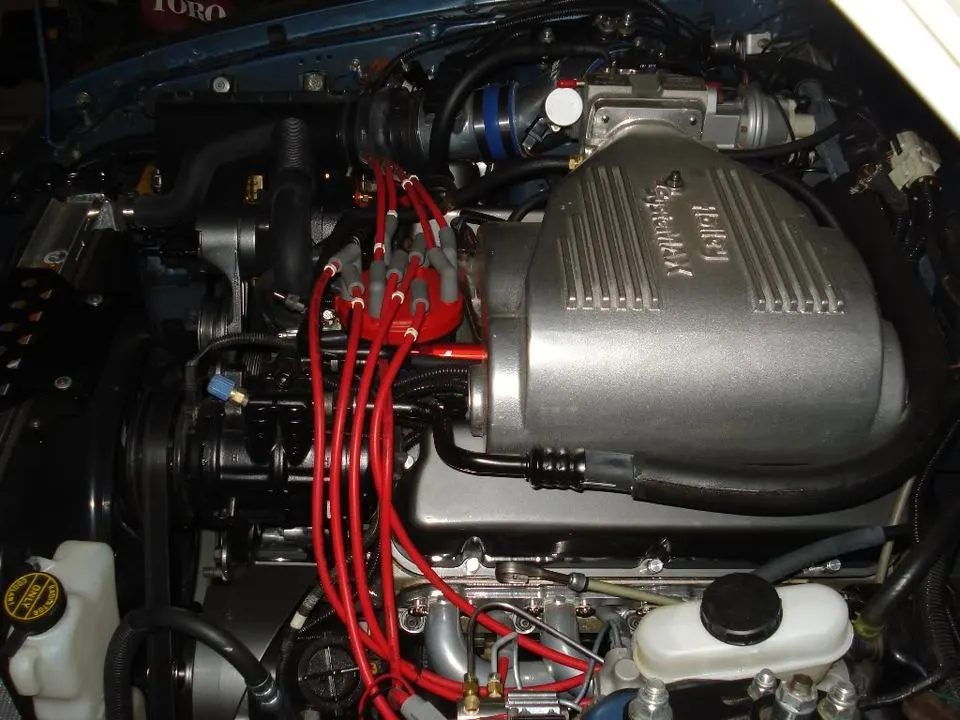

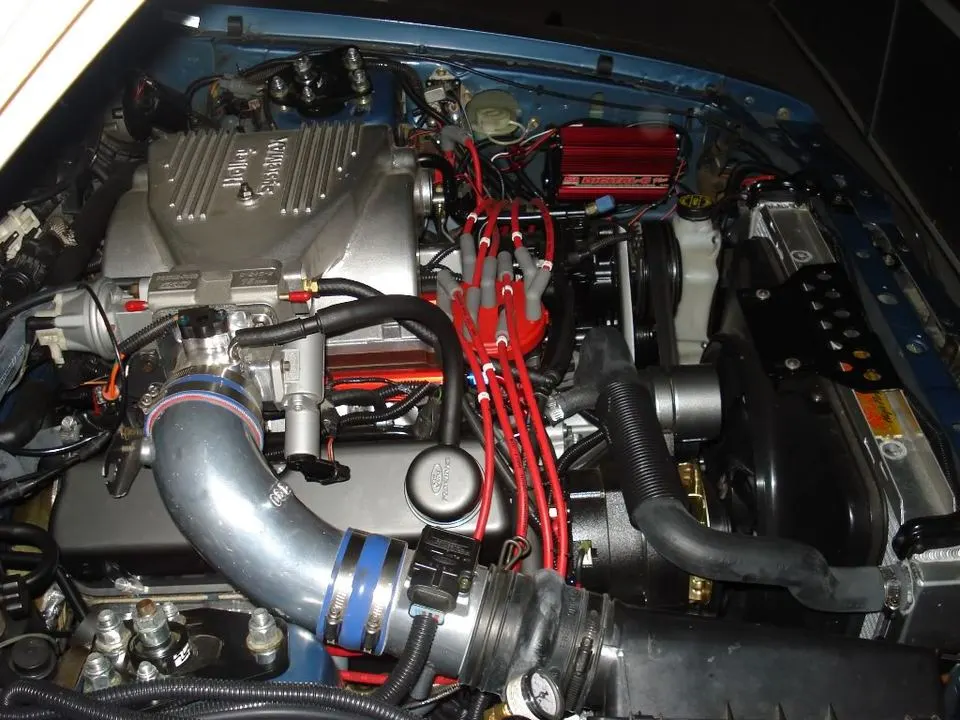

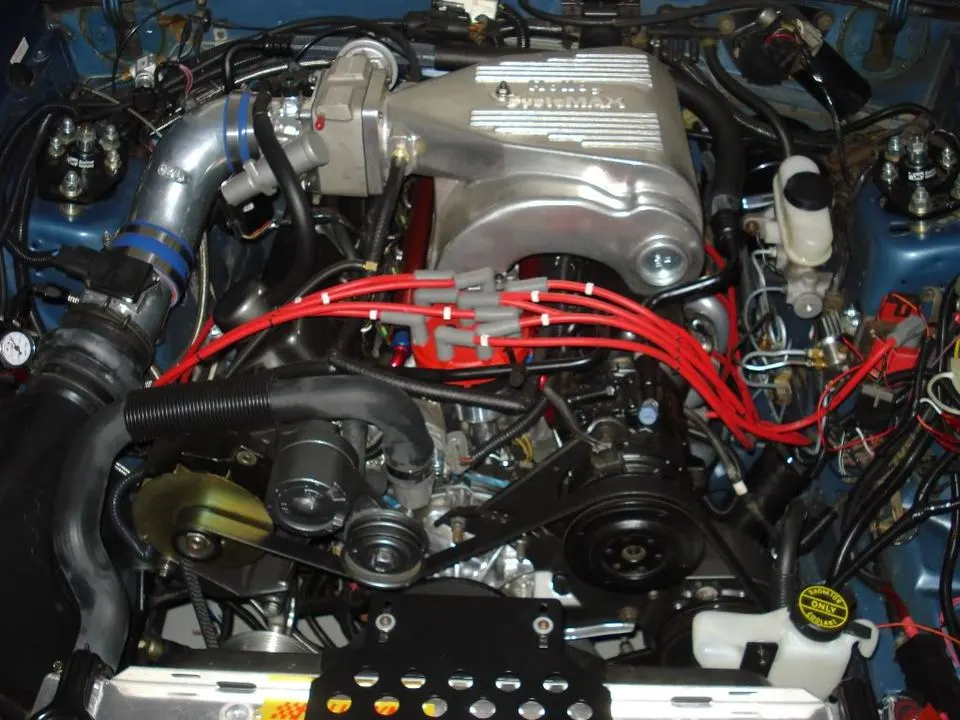

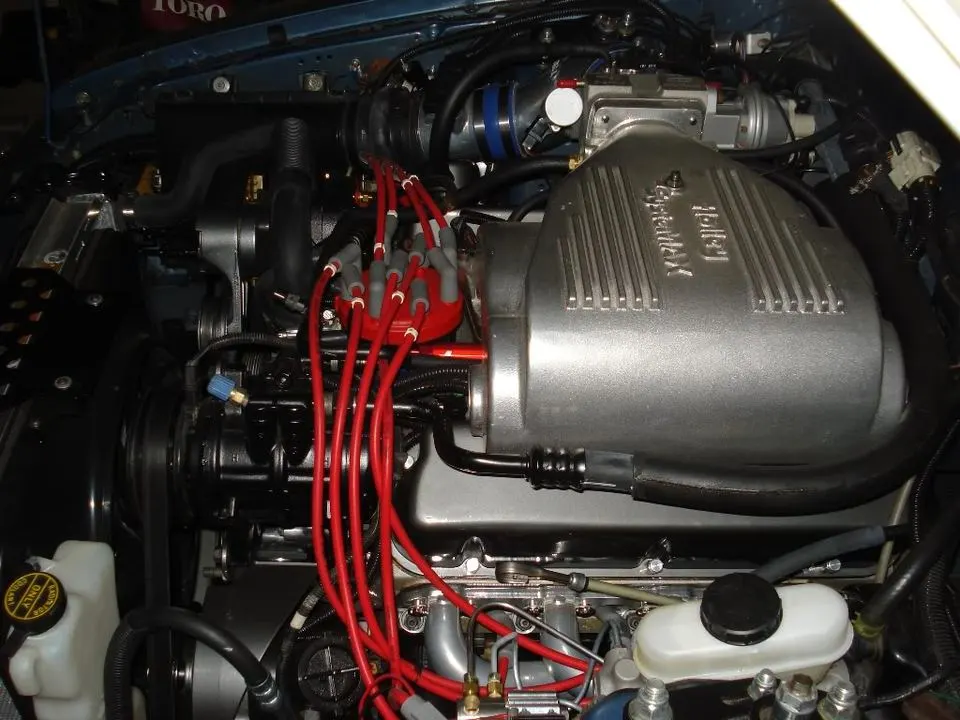

    Holley SysteMax II Upper and Lower Intake Manifold*
    *Lower intake manifold ported matched to cylinder heads using Moroso epoxy
    Custom 2.75" intake spacer (to clear extra valve covers and stud girdle)
    Fel Pro Gaskets

    Fuel System

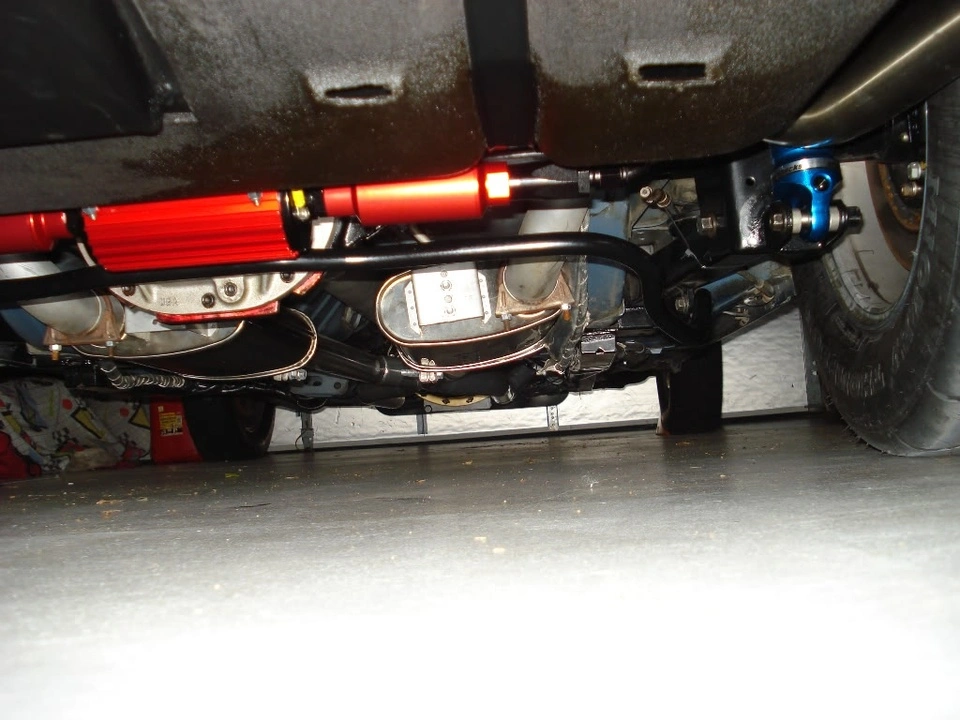

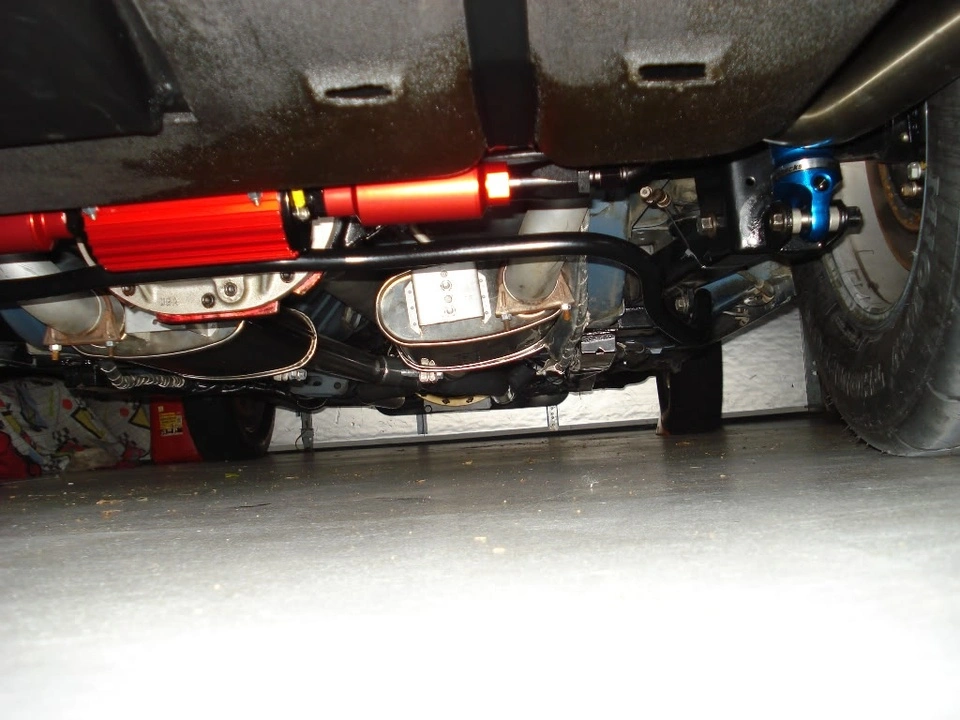

    Aeromotive Ford Mustang 5.0L A1000 Back Half Fuel System Kit
    Custom Sumped Stock Fuel Tank
    Ford Racing 42 lb Fuel Injectors

    Driveline
    Tremec TKO600
    McLeod SFI Approved Safety Bellhousing
    Ford Racing Aluminum Driveshaft
    Pro 5.0 Shifter
    Steeda Tri-ax Shifter Level
    Hurst Pistol Grip Shifter Knob
    Cobra Bob Stang Shifter Gaskets

    Rear End
    Moser Press-in 31 Spline Axles (Ford 9" style"
    Ford Racing 3:73 Rear Gears
    Eaton 600 Street/Strip Traction Loc

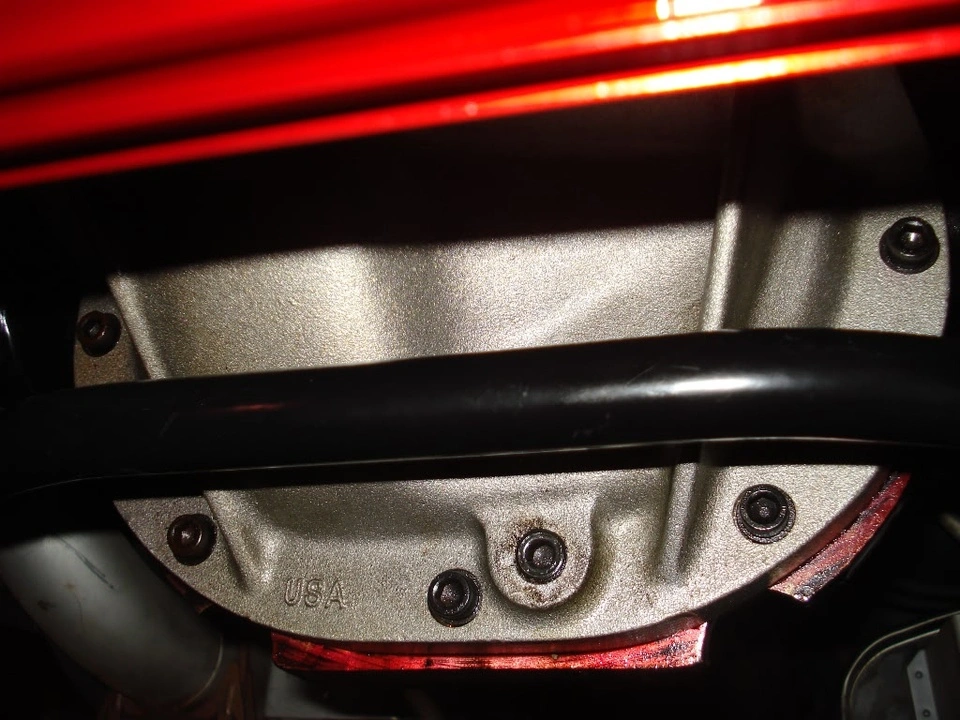

    8.8 Rear End Housing Axle Tubes Welded

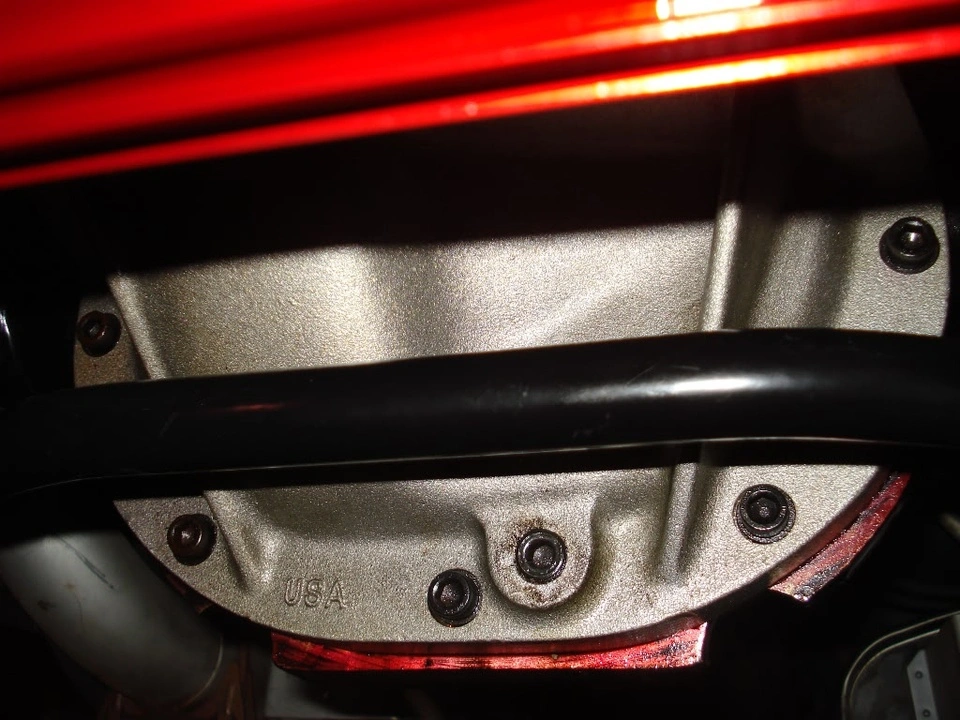

    DTS Girdle

    Exhaust
    BBK Equal Length Shorty Headers Jet Hot Coated
    Custom 2.5" Off-Road X Pipe made by Alan Scruggs -- Ceramic Coated by QC Coatings
    DynoMax Ultra-Flo SS Catback
    Dynatech Stainless Steel Exhaust Clamps

    Cooling
    Edelbrock Victor Jr. High Flow Reverse Rotation 5.0L Mustang Water Pump Polished
    Fluidyne Aluminum Radiator
    Flex-a-lite Black Magic Xtreme Cooling Fan
    Painless Wiring Electric Fan Kit 185 On / 170 Off

    Charging/Electrical
    Power Masters Mini-Starter
    Power Masters 140 Amp 1-Wire Alternator

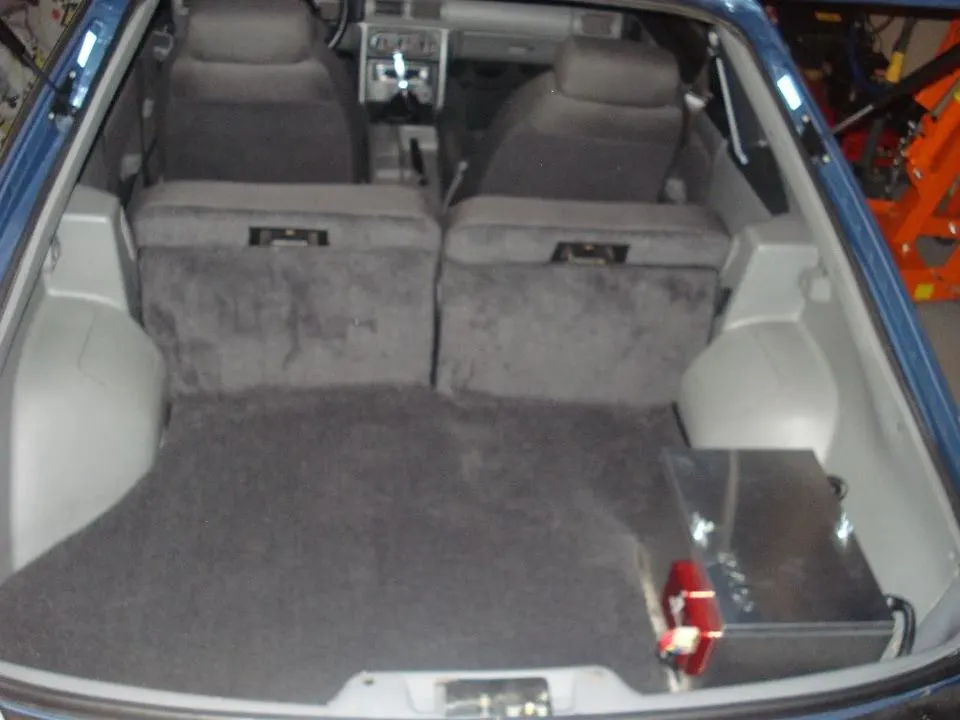

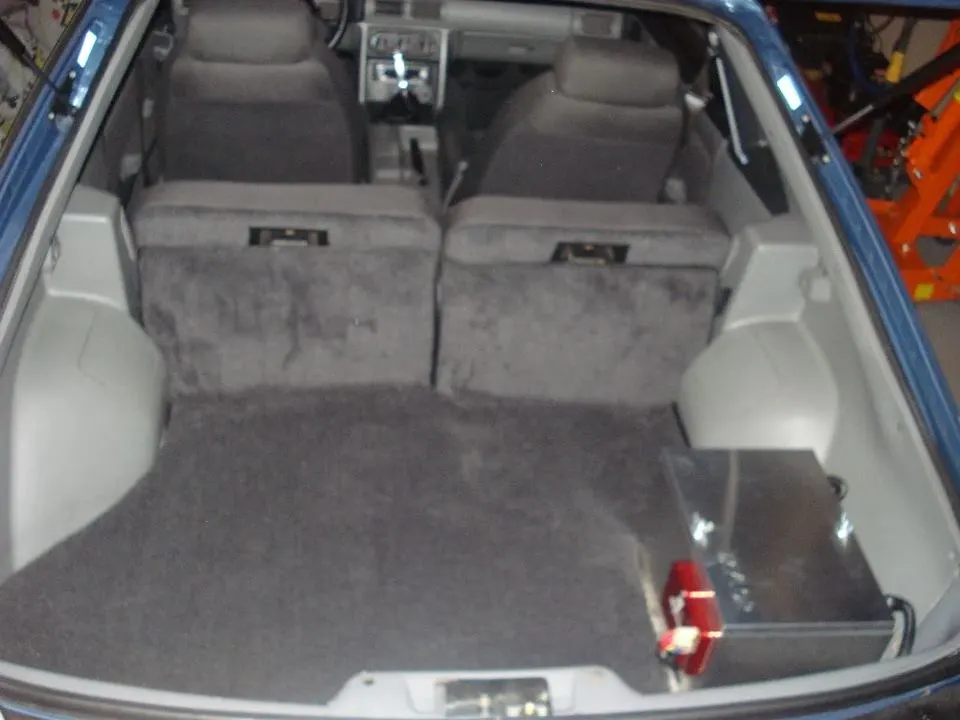

    Taylor Battery Relocation Kit
    Moroso Battery Kill Switch
    Painless Hidden Ashtray Switch Panel

    Accessory
    ASP Underdrive Pulley Kit (25% Crank, 15% Water Pump, 1 7/8" Alternator)
    UPR Smog Pump Delete
    AGR Power Steering Pump
    Factory A/C Compressor

    Suspension

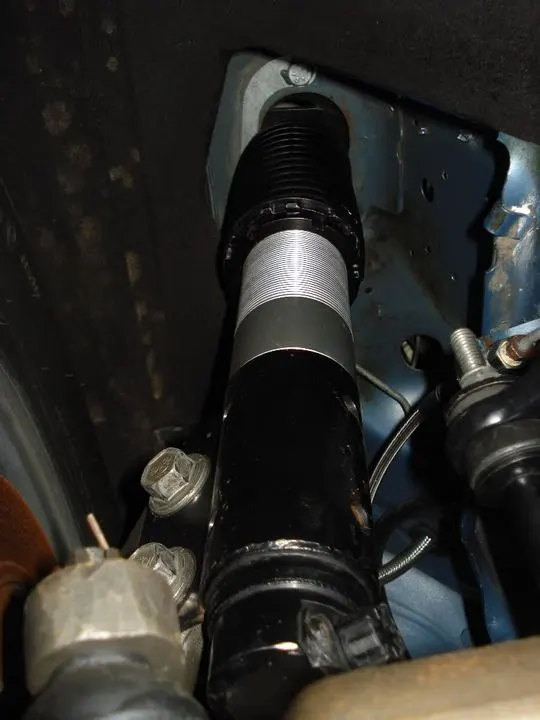

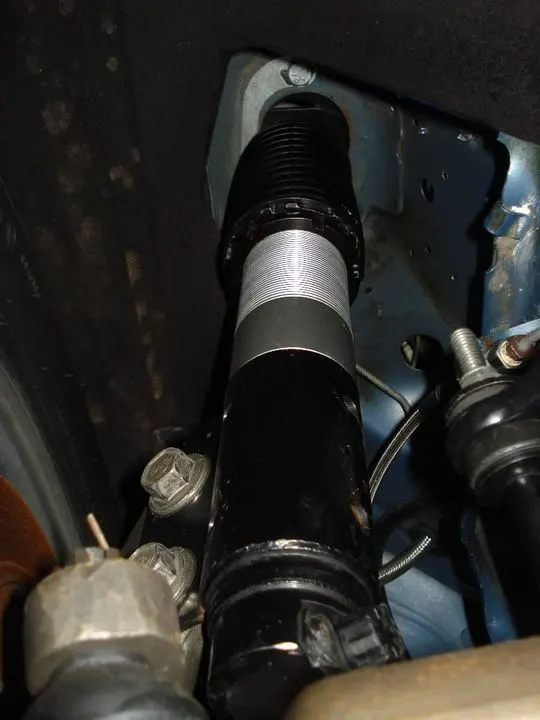

    Strange Engineering 10-Way Adjustable Struts
    Strange Engineering Front Coilover Kit
    Afco Rear Shocks and Coilover Springs
    Ford Racing A-Arms
    Maximum Motorsports Coil Spring Insulators

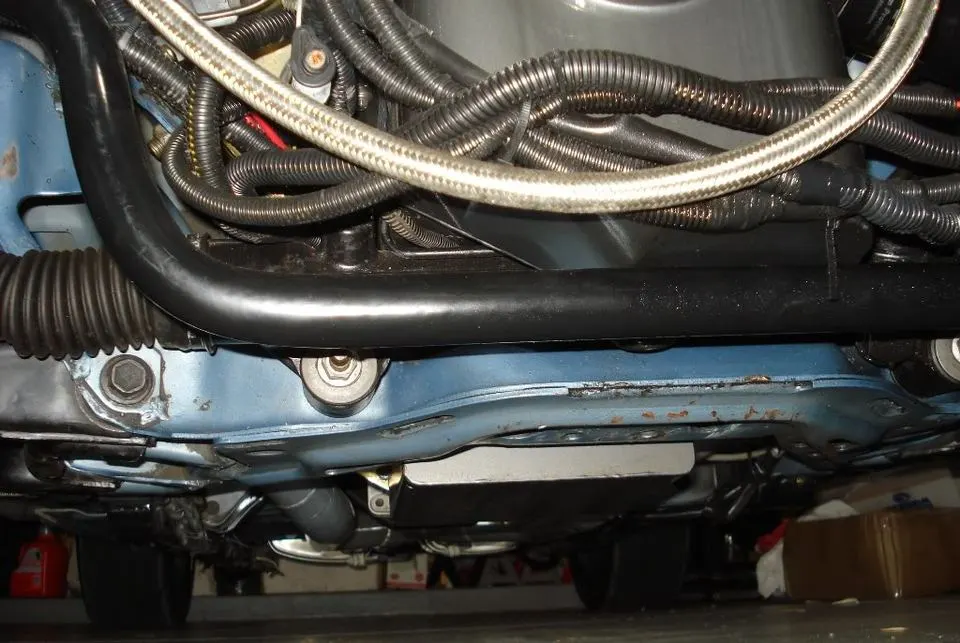

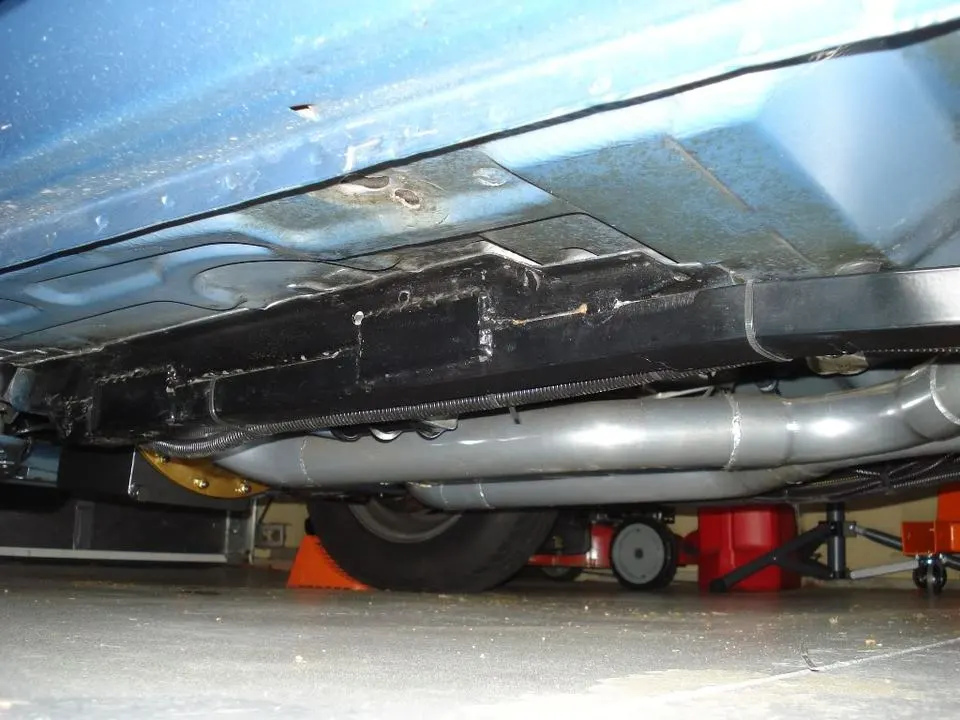

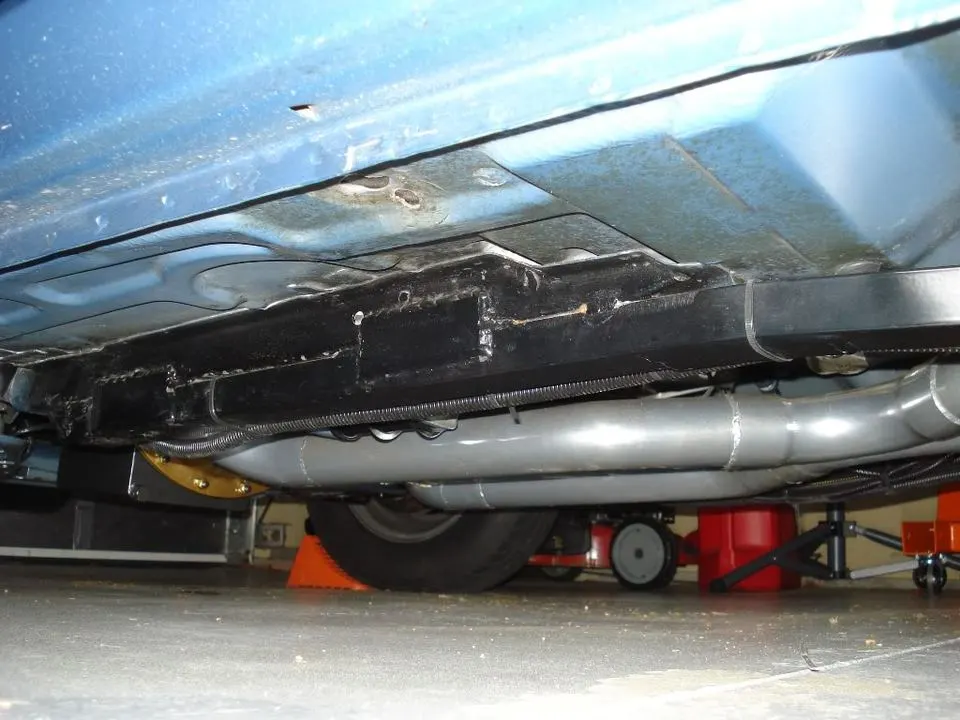

    Steeda Full Length Subframe Connectors
    Steeda Adjustable Rear Upper Control Arms
    Steeda Aluminum Drag Racing Rear Lower Control Arms
    Energy Suspension Bushings and Mounts (all factory bushings and mounts were replaced)

    Brakes
    Aerospace Billet Aluminum Pro Street 2 Piston Floating Front Brake Kit 5 LUG
    Wilwood 8.8 Rear Disc Brake Kit
    Ford Racing Adjustable Proportioning Valve
    Ford Cobra Master Cylinder (15/16" Bore)

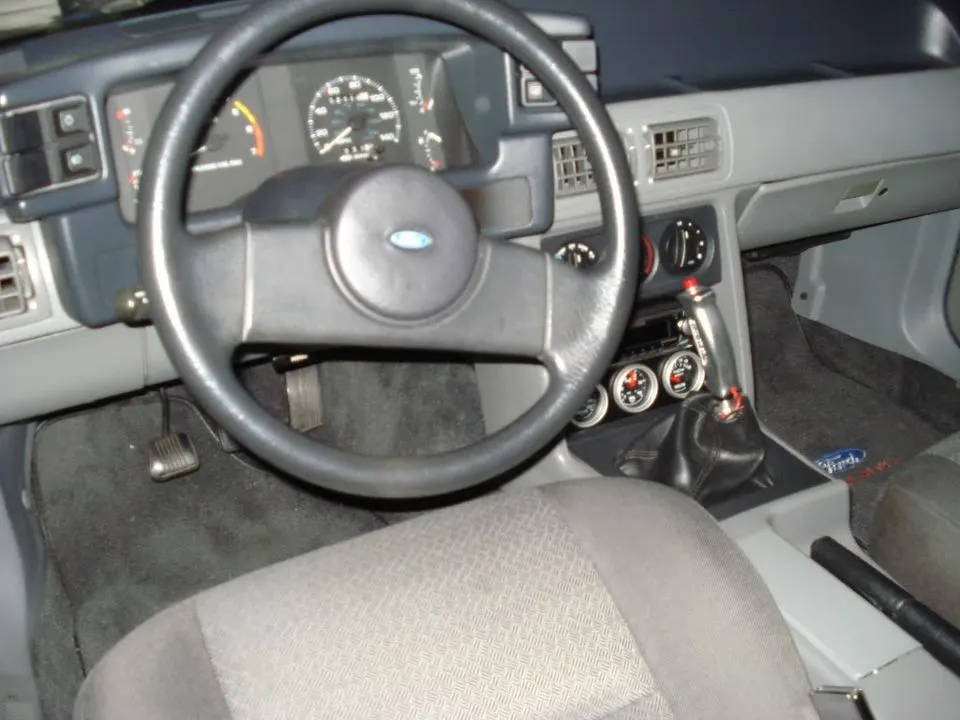

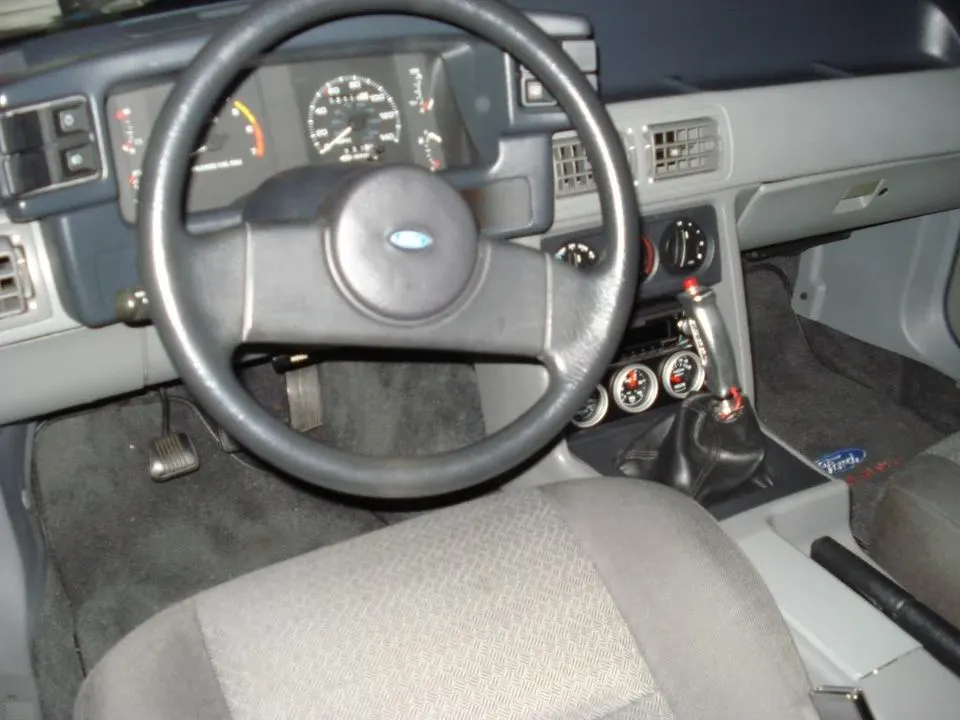

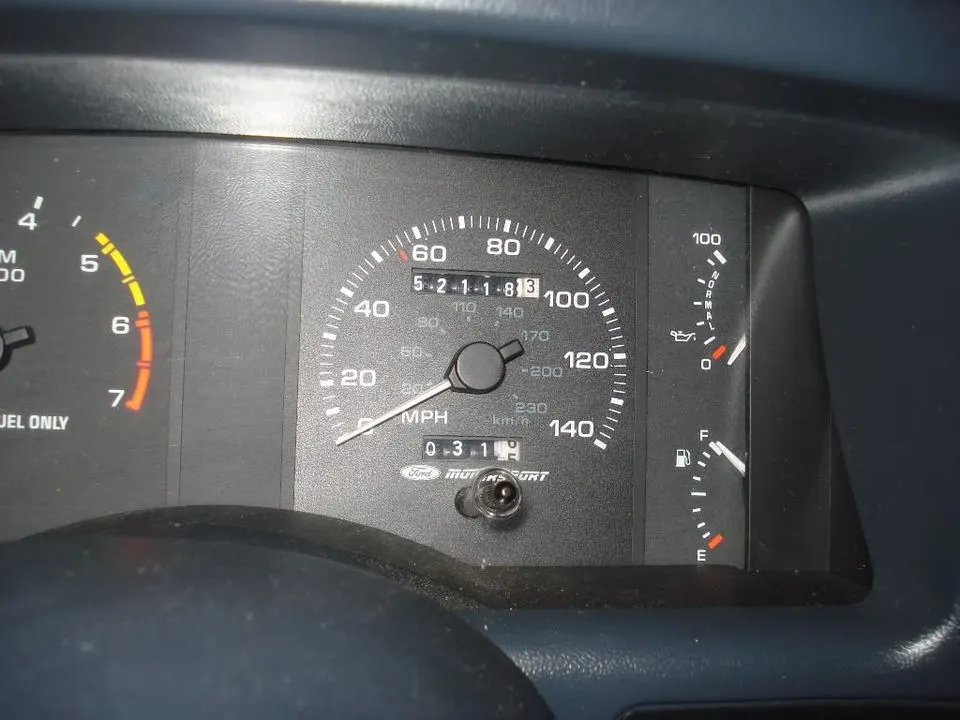

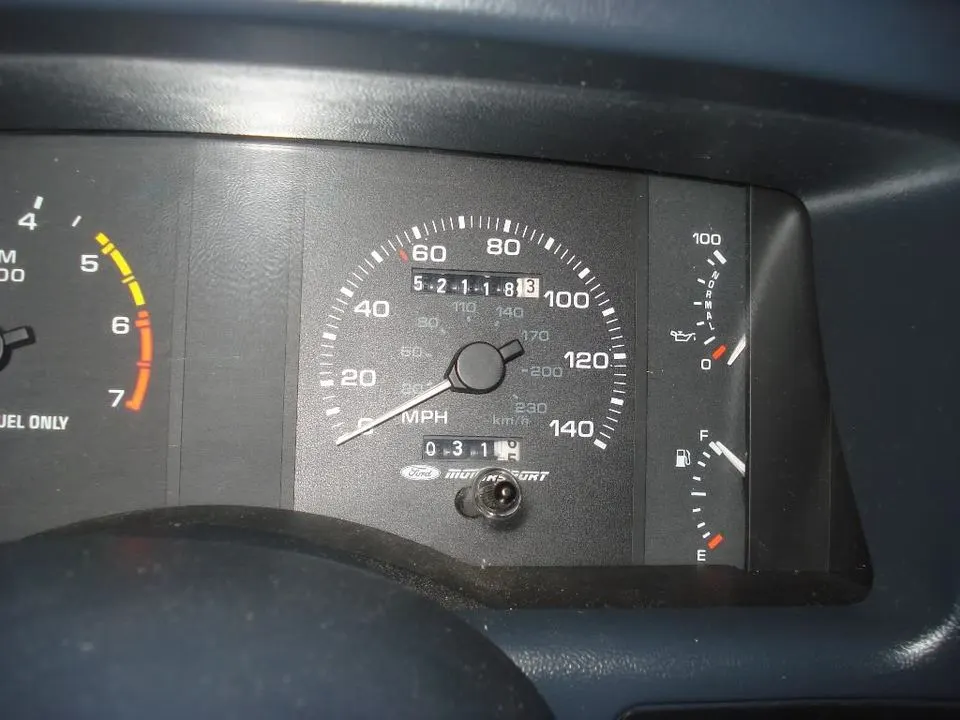

    17. Gauges
    Autometer Sport Comp II Water Temperature Gauge
    Autometer Sport Comp II Oil Pressure Gauge
    Autometer Sport Comp II Voltmeter Gauge
    Autometer Sport Comp Digital Pro Shift Light Gauge

    Wheels and Tires

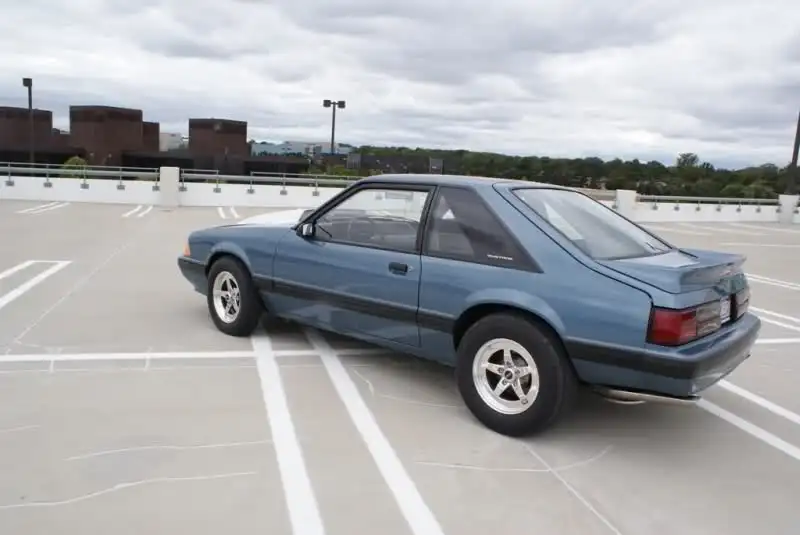

    Weld Racing RT-S Wheels (15X4/15X8)
    Mickey Thompson Sportsman S/R 26X6.0R15LT (Front)
    Mickey Thompson ET Street Drag Radial 255/60R15 (Rear)

    Car comes complete with wiring diagram.

    Only needs a few items:

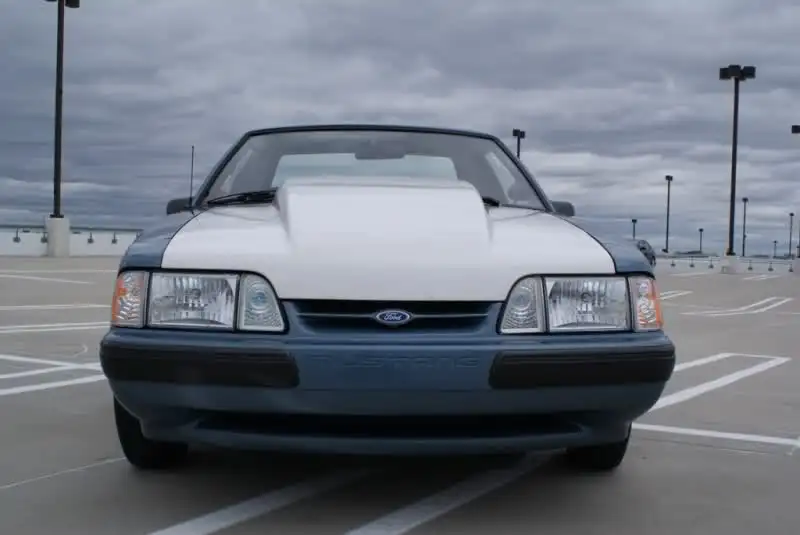

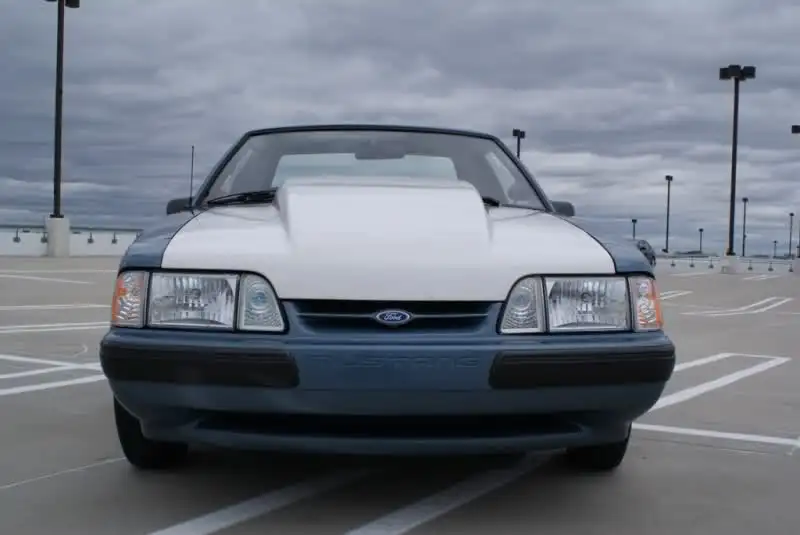

    - Paint Cervinis 4" Hood (add hood pins)
    - Charge the A/C System
    - Cut a Lokar Custom Brake Cable for the Rear Wilwood Brakes
    - Wire up the Line Loc (hardlines leak free and complete)

    Note - has a small rear main seal oil leak. The rear main has been replaced 2 times and continues.

    This is an immaculate car! Please come take a look! The car was built by a professional engineer (me) and my father. Over 25K into it!

    Asking price $11000 OBO

    Please feel free to contact me at 248-990-2457 (Matt). Again serious buyers only please.

    Need to sell for a house and other projects.

    Thanks for looking.

    For more pictures, information, and documentation see this:

    Mustang 1988 LX Portfolio _Matthew Titus_ For Sale.pdf

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Attached Files:

    #1
  2. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
  3. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
  4. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,338
    Showcase:
    59
    Albums:
    8
    Likes Received:
    2,587
    Trophy Points:
    174
    Location:
    Box behind Walmart
    Holy crap she's clean... and it looks like you did all the RIGHT things (where many of us talk about doing the right things then dump more money to go faster). heh

    I need another Stang like I need another hole in the head. Nice car though... here's another bump.

    #4
  5. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
    Thanks, bud. I appreciate the compliments.

    #5
  6. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
  7. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
  8. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
  9. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
  10. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
    Weekend bump!

    #10
  11. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
  12. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
    morning bump

    #12
  13. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
  14. kck351w

    kck351w New Member

    Joined:
    Jun 5, 2011
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    0
    quick question. i have a holley 650 and an aod but the lokar cable and bracket isn't bolting to the carb. what can i do? will the as2o2k work?

    #14
  15. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
  16. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
    Weekend bump

    #16
  17. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
    Monday morning bump :)

    #17
  18. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
  19. soontobefastfox

    soontobefastfox Member

    Joined:
    Nov 15, 2005
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Troy, Michigan
    Woodward Dream cruise BUMP!
