Electrical 93 Mustang Vert Electrical Gremlins...help!

Discussion in 'Fox 5.0 Mustang Tech' started by jpdyno2, Oct 26, 2013.


  1. jpdyno2

    jpdyno2 Member

    Joined:
    May 24, 2013
    Messages:
    5
    Likes Received:
    5
    Trophy Points:
    14
    Location:
    Virginia Beach
    Hey ya'll, I've got some weird stuff going on in my 'vert lately, and I'm kind of at a loss. 3 issues so far.

    Issue #1. I rebuilt the quarter windows, including new motor on drivers side. all was well for weeks then a few days ago it stopped wanting to go up, but after turning all other electrics off, and running the motor a few, it will go up.

    Issue #2 Since I got the car the passenger side window switch won't operate the window. The drivers side master switch will, so the motor is good. I put a new switch on the passenger side, no joy. I did a continuity test from the switch to the motor and all was well. Yet it still doesn't work. wth??? tested the switch too and it works...so now what???

    Issue #3 and just happened today. Convertible top just clicks at the relay to go down...will come up just fine. bad relay? motor dying? :(

    would love some advice on one or all 3 of these issues.
    thanks guys.

    #1
  2. cobra10494

    Founding Member

    Joined:
    May 14, 2000
    Messages:
    149
    Likes Received:
    2
    Trophy Points:
    19
    I too recently rebuilt my 1/4 windows with new gear drives, lubed up the rods and they work great.Not sure about the electrical gremlins with your windows.I too for a while had an issue with my top motor relay clicking intermittently..then sometimes the top would work fine.I replaced the motor and it did the same thing..I rapped on the motor a few times with a wrench n voila' it worked! Think the culprit is a bad relay/wiring as I REPLACED MY RELAY AND THE PROBLEM CEASED.

    #2
  3. jpdyno2

    jpdyno2 Member

    Joined:
    May 24, 2013
    Messages:
    5
    Likes Received:
    5
    Trophy Points:
    14
    Location:
    Virginia Beach
    thanks Cobra...I have the top manual, and it could be a bad relay. I have a 130 amp alternator on order, should be here Monday, so I'm kinda hoping more juice might help all 3 issues. If not, I'll put in new relays and see what happens. Really hate electrical issues. :( Not a clue what to do about the passenger window though...

    #3
  4. jrichker

    jrichker StangNet's favorite TOOL
    SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,902
    Likes Received:
    408
    Trophy Points:
    134
    Location:
    Dublin GA
    Diagram courtesy of Tmoss & Stang&2birds

    Power Windows
    [​IMG]

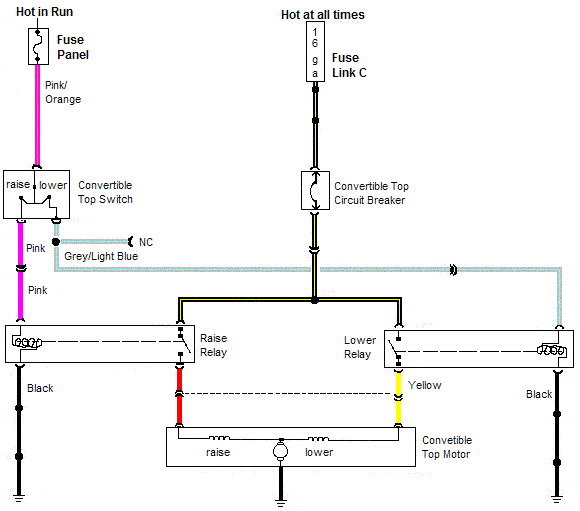

    Power Top

    [​IMG]

    See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

    Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
    http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

    Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
    http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

    Ignition switch wiring
    http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

    Fuel, alternator, A/C and ignition wiring
    http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif


    Vacuum diagram 89-93 Mustangs
    http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

    HVAC vacuum diagram
    http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

    TFI module differences & pin out
    http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

    Fuse box layout
    http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

    87-92 power window wiring
    http://www.veryuseful.com/mustang/tech/engine/images/mustang87-92 PowerWindowWiring.gif

    93 power window wiring
    http://www.veryuseful.com/mustang/tech/engine/images/mustang93PowerWindows.gif

    #4
