Any One Know What These Are And Where They Go

Discussion in '1994 - 1995 Specific Tech' started by silvertrx, May 2, 2014.


  1. silvertrx

    silvertrx New Member

    Joined:
    May 2, 2014
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    South Shields
    Hi,
    I have a 95 3.8 v6 and im a little confused about these two.

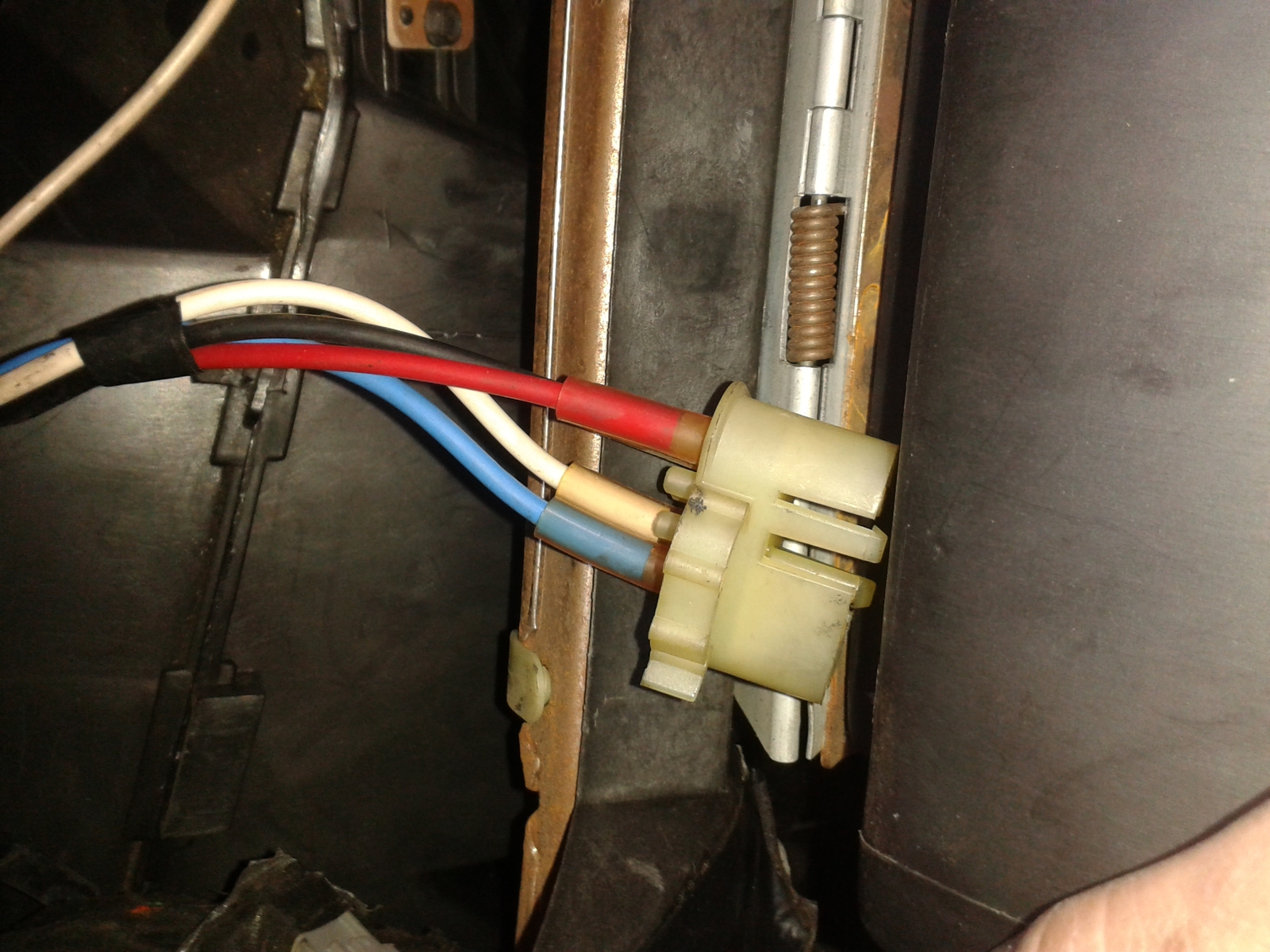

    So this first one is behind the glove box.
    I know that its vacuum lines attached but not sure where it should plug in.
    One end is attached to the ac control dial and the other is just lying behind the glove box.
    The A/c dial is stuck in default mode.

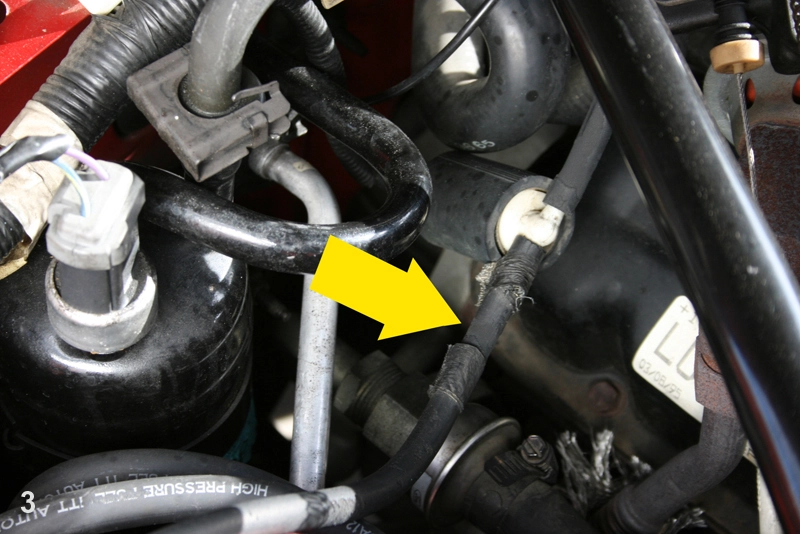

    Second is under the bonnet. I believe its called a purge valve solenoid. Is that Right?
    Now the hose connection to the left is connected but the one coming out the right is missing
    Where does it go?
    I believe the pipe to the right connects to the charcoal canister in the right hand fender well. But the pipe to the right is connected to nothing :(

    Thanks guys


    Attached Files:

    #1
  2. 90lxwhite

    90lxwhite I'm kind of a She-Man

    Joined:
    Aug 25, 2011
    Messages:
    2,450
    Likes Received:
    280
    Trophy Points:
    104
    Location:
    Between the Red and Rio
    Any One Know What These Are And Where They Go- that's what she said.

    #2
    Last edited: May 3, 2014
  3. JJ95GTID

    JJ95GTID Active Member

    Joined:
    Sep 22, 2003
    Messages:
    1,154
    Showcase:
    16
    Albums:
    1
    Likes Received:
    4
    Trophy Points:
    49
    Location:
    Phoenix, AZ
    Yes, the second picture is the purge solenoid. One side goes to charcoal canister in passenger side fender area and the other to the intake manifold. If it is not connected you probably have a vacuum leak and the car is not idling very well due to unmeasured air entering the intake.

    #3
  4. silvertrx

    silvertrx New Member

    Joined:
    May 2, 2014
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    South Shields
    Do u know where on the intake manifold as I can not see any visible missing connections
    Thanks

    #4
  5. toyman

    toyman SN Certified Technician

    Joined:
    Jul 20, 2007
    Messages:
    1,855
    Likes Received:
    45
    Trophy Points:
    49
    Location:
    Vernon BC
    The fittings are on the intake's underside. The line from the purge solenoid my go to a vacuum tree fitting instead of directly to the intake. Where it goes doesn't matter so long as there aren't any fittings that remain uncapped as any open end on a vacuum line will allow un-metered air into the system. This is critical to the operational performance of the engine.

    The connector under the dash should fit into a plug for the HVAC system. There is a single line from the engine side through the firewall. This line usually starts at a fitting close to the brake booster. Vacuum tubing can be purchased by the foot in any number of diameters/sizes and is easy to replace as well as making your own vacuum trees using tee fittings in a row.

    #5
  6. silvertrx

    silvertrx New Member

    Joined:
    May 2, 2014
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    South Shields
    Hmm I don't have vacuum tree :(
    Only thing I have similar is on the drivers side and 4 hoses come off that

    #6
  7. toyman

    toyman SN Certified Technician

    Joined:
    Jul 20, 2007
    Messages:
    1,855
    Likes Received:
    45
    Trophy Points:
    49
    Location:
    Vernon BC
    What you want at the end of the day is for all the vacuum operated devices to be hooked up and no open ends.

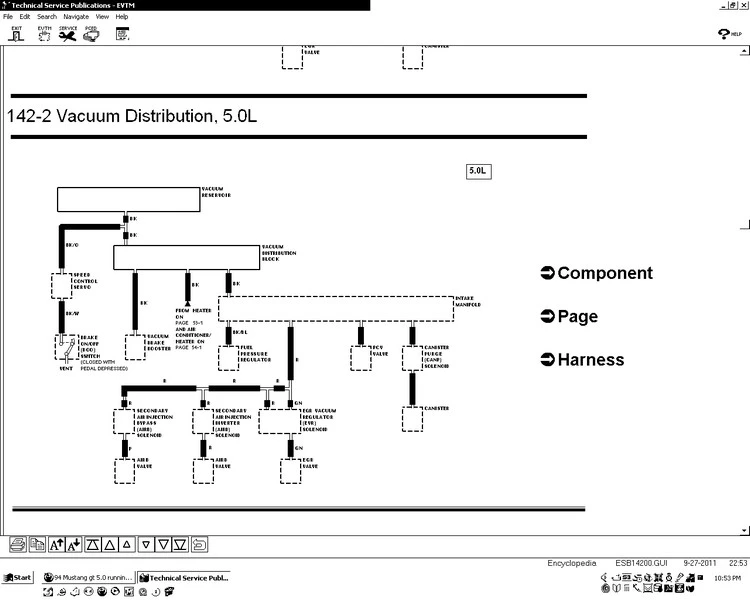

    Here's a diagram of the vacuum system. It's pretty straight forward.

    Vacuum Diagram.jpg

    #7
  8. VibrantRedGT

    VibrantRedGT "STANGNET'S PENGUIN SMACKER" Super Mod

    Joined:
    Nov 30, 1999
    Messages:
    15,569
    Likes Received:
    221
    Trophy Points:
    114
    Location:
    Boca Raton, Florida
    That is the vacuum tree.

    #8
  9. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,379
    Showcase:
    59
    Albums:
    8
    Likes Received:
    2,603
    Trophy Points:
    174
    Location:
    Box behind Walmart
    Holy crap... another country heard from. Welcome back! :)

    #9
