Autometer Gauges to install...HeLp!

Discussion in 'SN95 4.6L Mustang Tech' started by 02camarokiller, May 11, 2005.


  1. 02camarokiller

    02camarokiller New Member

    Joined:
    Jul 28, 2004
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Enid, Oklahoma
    I just got my Autometer gauges today...Water Temp, Oil Pressure, & Air /Fuel Ratio. All are electric. Does anyone know where the best places to screw in the senders on my 02 GT. Pics or links would be very helpful if anyone has them. I want my dummie gauges on my instrument cluster to still work. My A/F gauge I must admit I'm pretty clueless on the install. I did purchase the Oxygen sensor kit for it. Thanks in advance for any help given. :flag:
    #1
  2. Indiana

    Indiana New Member

    Joined:
    May 6, 2004
    Messages:
    289
    Likes Received:
    0
    Trophy Points:
    0
    [​IMG]
    [​IMG]
    [​IMG]

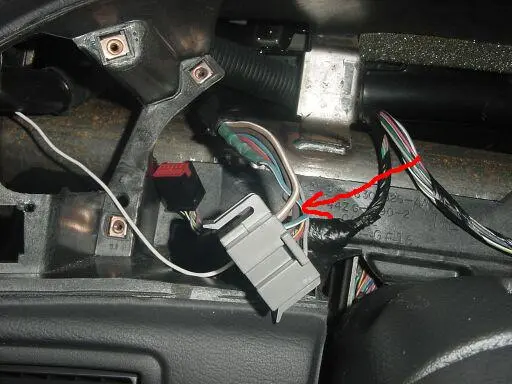

    wire from dimmer to lights:

    [​IMG]
    #2
  3. 02camarokiller

    02camarokiller New Member

    Joined:
    Jul 28, 2004
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Enid, Oklahoma
    I did a search and found some info, but no links or pics.
    #3
  4. stanggt00

    stanggt00 New Member

    Joined:
    Jul 16, 2003
    Messages:
    373
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    baltimore md
    which wire is the signal wire on 4wire o2 sensors
    i know there is black/gray/white/white wires

    i know its not the gray wire
    #4
  5. 02camarokiller

    02camarokiller New Member

    Joined:
    Jul 28, 2004
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Enid, Oklahoma

    Thanks for the pics...what general location is pic #1? Is the pic view from underneath or motor view?
    #5
  6. Indiana

    Indiana New Member

    Joined:
    May 6, 2004
    Messages:
    289
    Likes Received:
    0
    Trophy Points:
    0

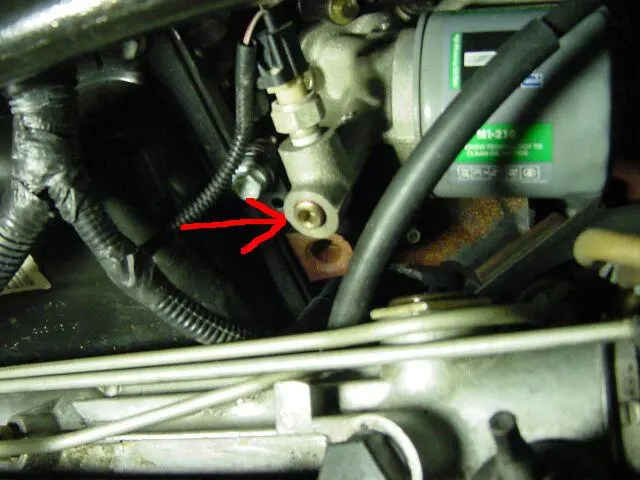

    Pic one is drivers side. Rear of engine by transimission, just above the clutch cable and below the exhaust manifold. You'll see the plug.
    #6
  7. 02camarokiller

    02camarokiller New Member

    Joined:
    Jul 28, 2004
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Enid, Oklahoma
    Anyone know about the A/F gauge?
    #7
  8. MyEarsHurt

    MyEarsHurt New Member

    Joined:
    May 21, 2004
    Messages:
    920
    Likes Received:
    0
    Trophy Points:
    0

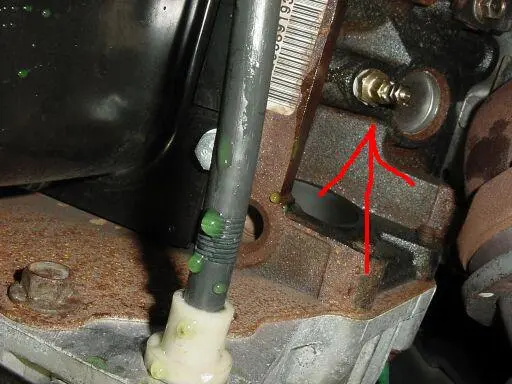

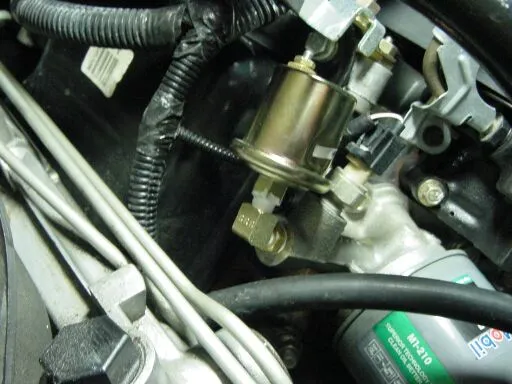

    2nd and 3rd pics are both for oil pressure correct?
    #8
  9. Indiana

    Indiana New Member

    Joined:
    May 6, 2004
    Messages:
    289
    Likes Received:
    0
    Trophy Points:
    0
  10. SRT Handz

    SRT Handz I tripped & fell down and cut myself & got blood

    Joined:
    Oct 10, 2004
    Messages:
    978
    Likes Received:
    21
    Trophy Points:
    19
    Location:
    La Mirada, CA
    is that dimmer switch wire the same for 98 GT's also?
    #10
  11. Indiana

    Indiana New Member

    Joined:
    May 6, 2004
    Messages:
    289
    Likes Received:
    0
    Trophy Points:
    0
    I don't know, but it says dimmer (or something similar) next to the connection inside the switch housing.
    #11
  12. StangPro

    StangPro New Member

    Joined:
    Sep 30, 2004
    Messages:
    441
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Roseville, MI
    #12
  13. MyEarsHurt

    MyEarsHurt New Member

    Joined:
    May 21, 2004
    Messages:
    920
    Likes Received:
    0
    Trophy Points:
    0
    Thanks for the site...that helps.
    #13
  14. sgarlic

    sgarlic Founding Member

    Joined:
    Apr 22, 2001
    Messages:
    3,100
    Likes Received:
    0
    Trophy Points:
    56
    For the oil gauge, get a 1/4" Ell and a 1/4" nipple from home depot. They come in a plastic bag with a purple top by a company called Watts.

    Remove the extra plug on the oil filter housing with an allen wrench, and catch the oil that comes out (1/2 cup maybe.) Teflon tape the threads of the nipple, and thread it in to the Ell as far as you can. Screw that in to the plug hole, and tighten. Use the adapter that comes with the gauge, teflon tape it, and thread it in to the remaining side of the Ell. Teflon tape the sender, thread it in to that, and tighten. The guy who posted the link above did his on a V6, so the sizes are different.

    Can't help ya with the other gauges.
    #14
  15. BaconBits

    BaconBits New Member

    Joined:
    Apr 4, 2005
    Messages:
    84
    Likes Received:
    0
    Trophy Points:
    0
    Thanks for all of the help guys. I am moving the gauges from my old car over to my Stang and this really helped. Cool Beans!
    #15
  16. SRT Handz

    SRT Handz I tripped & fell down and cut myself & got blood

    Joined:
    Oct 10, 2004
    Messages:
    978
    Likes Received:
    21
    Trophy Points:
    19
    Location:
    La Mirada, CA
    what gauge wire are u supposed to use when installing gauges?
    #16
  17. sgarlic

    sgarlic Founding Member

    Joined:
    Apr 22, 2001
    Messages:
    3,100
    Likes Received:
    0
    Trophy Points:
    56
    Doesn't matter really.. I think I used 16 gauge on mine, but you could probably use 18 and be fine. The gauge itself doesn't require much power, so you're probably fine with whatever you have around.
    #17
  18. 02camarokiller

    02camarokiller New Member

    Joined:
    Jul 28, 2004
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Enid, Oklahoma
    Anyone got pics on where to mount the Bung for the oxygen sensor to hook up my Air/Fuel Ratio gauge? Does anyone use 2 sensors....one on each side of the exhaust?
    #18
  19. Give Me TP

    Give Me TP New Member

    Joined:
    Jun 17, 2004
    Messages:
    984
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Republic of Texas

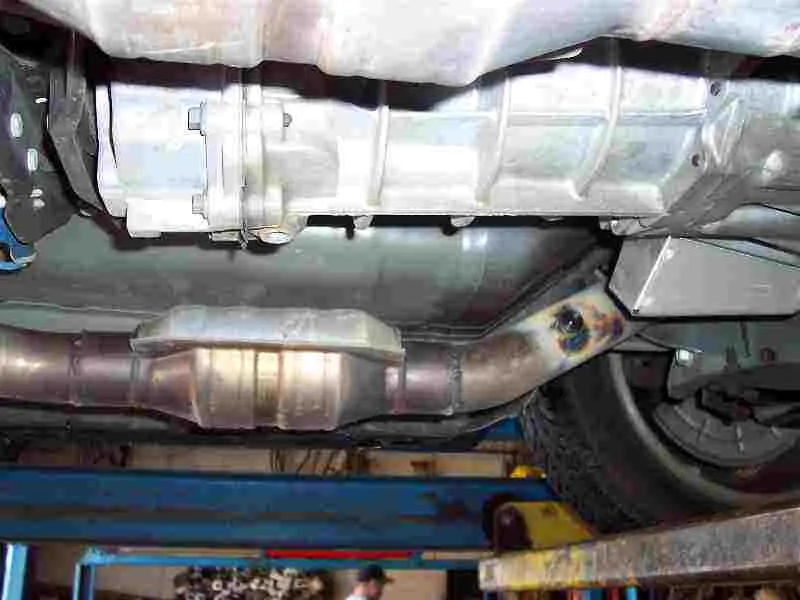

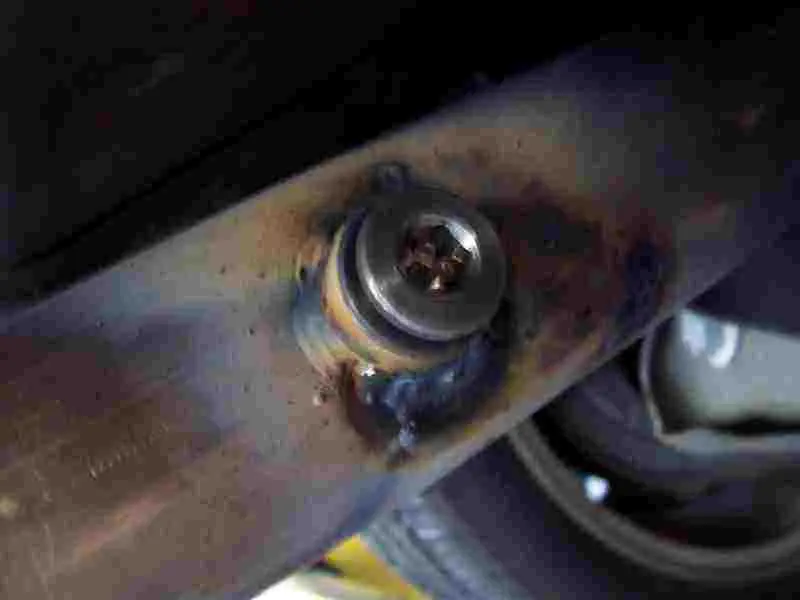

    Ahead of the cats

    Attached Files:

    #19
