AUTOMETER GUAGES IN 65 or 66 bezel...My quick write up!!!!

Discussion in 'Classic Mustang Specific Tech' started by 65racecoupe, Jul 29, 2003.


  1. 65racecoupe

    65racecoupe Founding Member

    Joined:
    Mar 24, 2002
    Messages:
    1,067
    Likes Received:
    0
    Trophy Points:
    0
    This concerns the 65 GT or 66 guage Bezels. (o o O o o)

    4 small and 1 large.

    GUAGES...
    Speedometer - 3 3/8 inch face (120 or 160 MPH-I like 160)
    Oil, Volt, Water temp, Fuel Level - 2 1/16

    You don't need to do anything to the large speedo hole. The speedometer drops right IN and looks great. I have the 160 MPH.

    As far as the 4 other openings, you have to do a lot of grinding to get the guage to fit..
    The plastic cups in about an inch. You basically have to cut out all the plastic cup up to the chrome rings. You have to trim the inner part of the chrome rings.

    Don't worry if it is a little jagged. As long as you keep the trimming on the inside and don't grind all the way through the wall of the chrome ring you will be fine. The guages will end up sitting on top of the rings, covering any imperfections. The rings are about 1/4 in above the black surface face as you probably know.

    You have to get the wall of the chrome ring pretty thin. If there were 2 inch guages, it would be a lot easier, but it really is no big deal.

    I recommend a plug in Dremmel. I have a rechargeable cordless, and my power runs out before I finish ONE of the holes. In fact, as I write this I still have 2 to finish.

    PRICES...

    65 GT BEZEL $52 66 BEZEL $26
    Speedometer $75 - $80
    Oil $$50 - $54
    Water $50 - $54
    Volts $30 - $35
    Fuel $35 - $30
    Dremel - $40 cordless $50 with cord

    I think that the black guages from Auto Meter look great, but the white ones would look cool, especially with a green or red light behind.

    Skill Level - 5 (Hell, I can do it, so it can't be too difficult)
    #1
  2. floggerjay

    floggerjay New Member

    Joined:
    Sep 9, 2002
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    0
    I was thinking about doing the same thing with my 67. do you know what size guages I might need? Is it easy to wire them up?
    #2
  3. 65racecoupe

    65racecoupe Founding Member

    Joined:
    Mar 24, 2002
    Messages:
    1,067
    Likes Received:
    0
    Trophy Points:
    0
    I don't know.

    What you do is...

    1. Have the bezel measured with an instrument at an autoparts store. (not sure of the name, but it can be measured to the .xxx of an inch)

    2. Figure out how much space you have in the guage bezel to fit the guage in. For instance, I had a 1.95 inch opening on the small holes and a 3.514 inch opening on the large speedo hole.
    The total material on the small guage was more than enough for me to fit 2 1/16 inch guages. For the speedo, I ordered the 3 3/8 inch. The ring on the guage will hold it in.

    3. Order the guages. They are measured by the guage itself, not the outer chrome ring. Summit has the dimensions of the guage rings.

    That should help.
    #3
  4. RaSMG

    RaSMG Founding Member

    Joined:
    Oct 6, 2002
    Messages:
    272
    Likes Received:
    0
    Trophy Points:
    0
    That's cool and all fitting aftermarket gauges in the stock cluster. But I think with the 'aftermarket' gauge clusters that are out now by JME or Haneline or Dakota Digital you just can't go wrong. I mean you spent over $300 in parts and lots of labor and you've still got a 'half stock half mod' look if you know what I mean. Maybe that's what you were going for. But for a little bit more usually around $499 these aftermarket clusters come with the gauges and wiring all pre fit and installed, they have fancy bezel options like billet or engine turned aluminum, multiple gauge options, plus you get the 6th gauge and the most important the tachometer reading. I just can't stand when I see a car with a nice interior and a nice paint job and then some ugly ass tach on the dash or steering wheel.
    #4
  5. 65racecoupe

    65racecoupe Founding Member

    Joined:
    Mar 24, 2002
    Messages:
    1,067
    Likes Received:
    0
    Trophy Points:
    0
    It is not quite that cheap.

    JME guage bezel is $399 WITHOUT GUAGES

    Dakota Digital Guages are, well, digital. That doesn't jive with my interior.

    The only other reasonable guage cluster I have seen was about what I paid, but I didn't like the way it looked.

    The autometer guages I used are black faced, like the stock ones and look great. The tach I have is a small 3 3/8 tach without a shift light. It will look clean on the steering shaft.


    I guess you could go either way. I didn't ask how much the JME with guages was, but I doubt it was under $550.
    #5
  6. Maxamil

    Maxamil Founding Member

    Joined:
    Feb 14, 2001
    Messages:
    481
    Likes Received:
    0
    Trophy Points:
    16
    preach on it brutha RasMG. I currently have the ugly dash tach. Im working on getting the JME bezel but its close to 1G with all the gauges and wires you need to hook it up. I would rather spend it on other things. Like a motor and trans. Thats probly what hes going for.
    #6
  7. 65racecoupe

    65racecoupe Founding Member

    Joined:
    Mar 24, 2002
    Messages:
    1,067
    Likes Received:
    0
    Trophy Points:
    0
    Yeah, I thought the JME bezel would be about the much. I would rather waste my money on a Fuel Safe Fuel Cell (which I did).

    I didn't try to get out the cheap way, though. I could have put the stock guages in for free. I just like the way this looks.

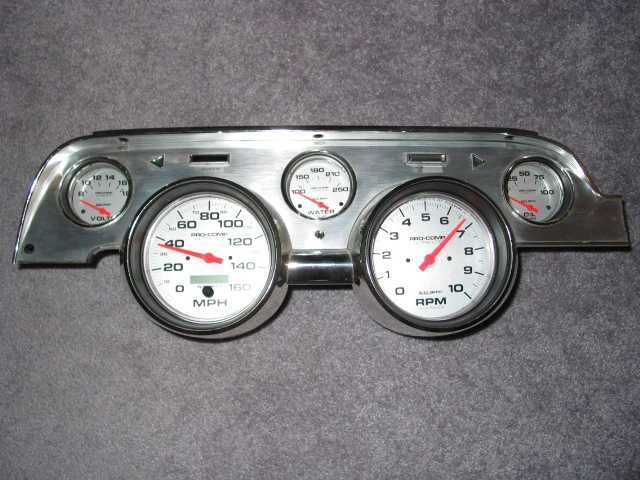

    Here is a picture, not my car though. My dash is black.

    Http://forums.stangnet.com/attachment.php?attachmentid=1382
    #7
  8. 66P51GT

    66P51GT New Member

    Joined:
    Nov 7, 2003
    Messages:
    721
    Likes Received:
    1
    Trophy Points:
    0
    I know I'm reviving an old post but I'm glad to see that 65racecoupe took the time to do the writeup. I've been thinking about this for a while and this was exactly what I was looking for. It all came together with the picture above. I've been trying to visualize what it would look like and now I know.

    One question... where does the light source come from for night time driving?
    #8
  9. 302 coupe

    302 coupe Founding Member

    Joined:
    Mar 2, 2000
    Messages:
    1,996
    Likes Received:
    0
    Trophy Points:
    36
    all the gauges have their own lights, they can be wired into the headlight switch so that they dim and come on with the headlights just like the factory gauges.
    #9
  10. 66P51GT

    66P51GT New Member

    Joined:
    Nov 7, 2003
    Messages:
    721
    Likes Received:
    1
    Trophy Points:
    0
    302 coupe
    Where did you get your dash pod? I found one at NPD, Mustang Corral, and Maier Racing. They run between $60 and $80. Except for Maier, they say they have to be trimmed for the '66. Is this a fact?
    #10
  11. 302 coupe

    302 coupe Founding Member

    Joined:
    Mar 2, 2000
    Messages:
    1,996
    Likes Received:
    0
    Trophy Points:
    36
    I'm still running factory guages right now. In the next month or so, I'm gonna be putting in the GT350R dash panel. I know Tony Branda sells them, the panel is $50. Has holes for tach and speedo, along with the 4 smaller guages. It will be fitted with autometer traditional chrome guages, all the guages add up to about $320. Just so there is no confusion, I am not talking about the 'pod' that goes in the center of the dash.
    #11
  12. 66P51GT

    66P51GT New Member

    Joined:
    Nov 7, 2003
    Messages:
    721
    Likes Received:
    1
    Trophy Points:
    0
    OK - Thanks for the clarification. Yeah, I priced Auto Meter Phantom gauges on Summit last night and it came to around $380 with 2 1/6" Fuel, Volt, Oil, Water & 3 3/4 Tach and Speedo.

    I did find a lower cost alternative to the billet aluminum units. They are availabe from Cobra Automotive and Delta Bay Mustangs. The 6 pod dash runs $50 - $80. So, you could all the custom gauges installed in the dash for less than $450.

    -Chuck
    #12
  13. brittanyh21

    brittanyh21 New Member

    Joined:
    Dec 20, 2003
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    0
    Thanks for bringing this old post back. Very useful info.
    #13
  14. hotrodman

    hotrodman New Member

    Joined:
    Dec 28, 2003
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    0
    hey brittany i miss you? :shrug:
    #14
  15. golf4283

    golf4283 Active Member

    Joined:
    May 31, 2003
    Messages:
    1,256
    Likes Received:
    1
    Trophy Points:
    39
    can you post a pic of the job done?? I am going to do an autometer swap in my 66 and wanna see what it looks like.
    #15
  16. brittanyh21

    brittanyh21 New Member

    Joined:
    Dec 20, 2003
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    0
    I'm here ! I just wish this forum had a general discussion area.. but thats okay! :nice:
    #16
  17. charlies

    charlies New Member

    Joined:
    May 1, 2002
    Messages:
    402
    Likes Received:
    0
    Trophy Points:
    0
    yea, there's no discussion area, what's up with that? it's totally lame.
    #17
  18. cardude

    cardude Founding Member

    Joined:
    Apr 20, 2000
    Messages:
    221
    Showcase:
    2
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    0
    Quick question on this. I currently have stock guages and running the under the dash mounted oil, water, volt, and tach on the column. I am curious to hear how you handled the wireing aspect of it. did you simply bypass the wires that are there for the original gauges and blank them out / leave them loose?
    #18
  19. Edbert

    Edbert Founding Member

    Joined:
    Jul 14, 2002
    Messages:
    3,445
    Likes Received:
    1
    Trophy Points:
    59

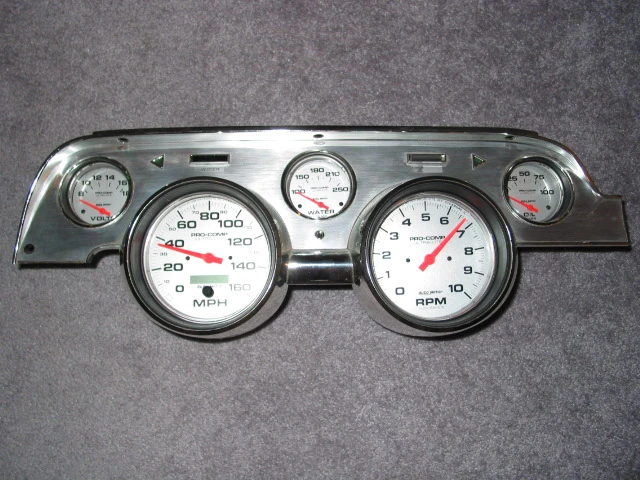

    [​IMG]
