Avant Garde Wheels! 20" RTR Style!

Discussion in '2010 - 2014 Specific Tech' started by clm5150, Sep 11, 2011.


  1. Braden

    Braden Member

    Joined:
    Feb 26, 2012
    Messages:
    10
    Showcase:
    3
    Albums:
    1
    Likes Received:
    5
    Trophy Points:
    13
    Location:
    So Cal
    CLM 5150,

    I just found this thread after I emailed Avant Garde yesterday regarding offset, etc.
    I'm really tempted with these. Originally I wanted to run a 305/35 or 315/35 Nitto NT05 like with the 20x11 Steeda Spyders, but I really like this style wheel. I have the stock SVTPP rims on my GT500, so these are a lot closer to that look.
    With the 40 offset, I'm thinking maybe the Nitto Invo 295/35 would be the best overall fit on the rear, and a 275/35 on the front. If I ever wanted to run a drag radial, possible the Nitto 555R in the 305/35.

    Anyway, wondering if you could answer a few questions?

    You mentioned that these are hub-centric, correct? Do you think the stock center caps will fit, or do you know what the center cap inner diameter is?

    I know a lot of these wheels are made overseas, heck I think the stock SVT wheels are from China, but I'm curious about the quality of Avant Garde. My SVT's are Forged, so I feel like I will be trading down a bit with these, but as long as they can handle 550hp, I'd be ok with a low pressure cast or gravity cast wheel. :)

    Also, would love to see your car in person, if your in So-Cal, I'm in the Fullerton area

    Thanks!

    Braden

    #61
  2. Braden

    Braden Member

    Joined:
    Feb 26, 2012
    Messages:
    10
    Showcase:
    3
    Albums:
    1
    Likes Received:
    5
    Trophy Points:
    13
    Location:
    So Cal

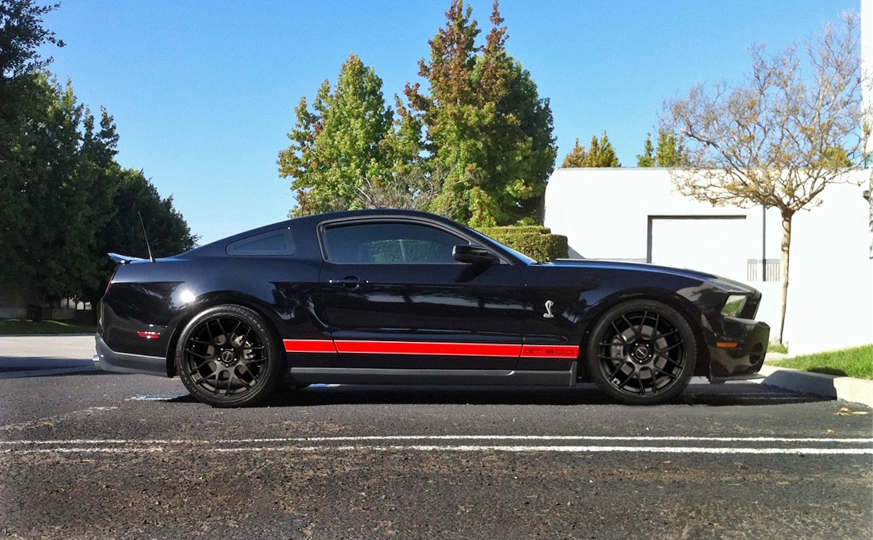

    Did a quick Photoshop with my GT500 and the AG 310 Wheels. What do you think?

    #62
    MoshpitMad likes this.
  3. Braden

    Braden Member

    Joined:
    Feb 26, 2012
    Messages:
    10
    Showcase:
    3
    Albums:
    1
    Likes Received:
    5
    Trophy Points:
    13
    Location:
    So Cal
    CLM5150,

    sorry for all the questions, but were you able to use your stock TPMS with these wheels?

    #63
  4. clm5150

    clm5150 Member

    Joined:
    Sep 9, 2011
    Messages:
    32
    Likes Received:
    2
    Trophy Points:
    8
    Location:
    Gardena

    275/35/20 rears and 255/35/20 fronts is the best fit in my opinion. Seems like alot of tire for that setup but I may be wrong. Yes they are hub centric and I think the stock center caps will work. The quality is awesome! They machine the face before painting to give it nice sharp edges that other similar styles dont have. TPMS sensors work. Man, those look nasty on your ride!

    #64
  5. Braden

    Braden Member

    Joined:
    Feb 26, 2012
    Messages:
    10
    Showcase:
    3
    Albums:
    1
    Likes Received:
    5
    Trophy Points:
    13
    Location:
    So Cal

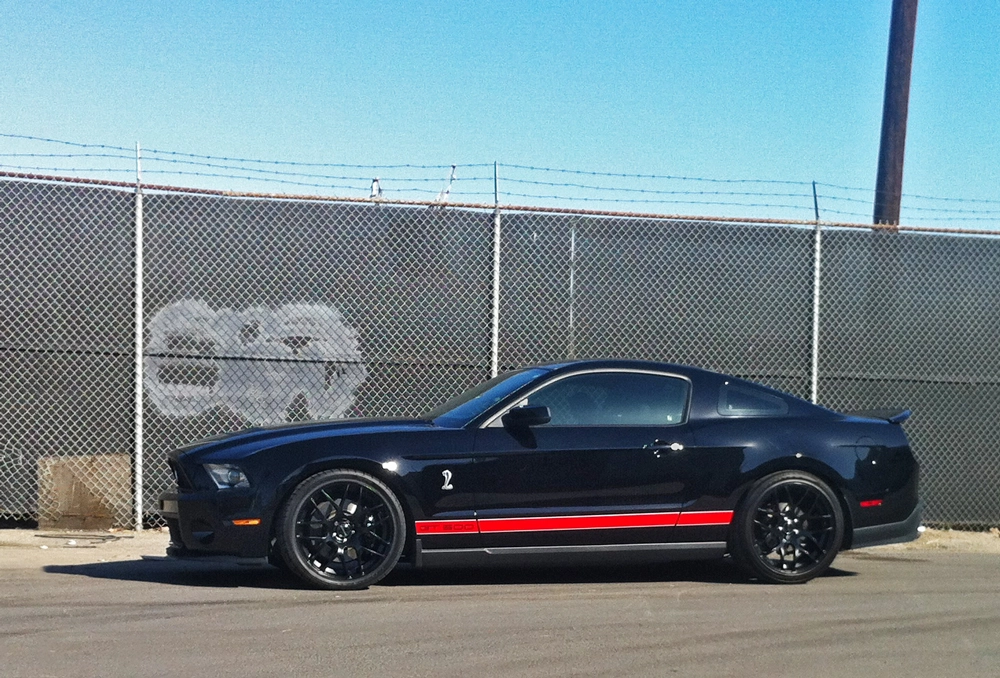

    Avant-Gard-M310.jpg Ok, they are on!!! Got the M31o installed yesterday, love the way they look. The fitment is aggressive, but not extreme.
    The front wheels are 20x9+30 (stick out about 8mm more then stock) 275/35/20 Nitto 555. Rear are 20x10+40(stick out about 16mm more then stock) Eagle F1 285/35/20

    Car, is lowered on Eibach Pro-Kit springs.

    The rear offset is just about perfect for the 285 tire, they sit flush with the fenderwell, but don't stick out. These are actually less aggressive then then the Shelby Alcoa wheels (20x10 ET37) Now I will say if you are planning on running a wider tire like a 305 or 315, this is probably not the rim for you. They fit perfect with the 285, absolutely no rubbing. I did some measuring and looks like it will clear a 295 as well. My goal after the Eagle F1 wears out it to run the Nitto Invo 295/35/20.

    I didn't get a chance to weigh the rims by themselves, but I did pull off the front wheels when I got home.
    Stock - SVT 19x9.5(265/40/19) = 59.1 lbs. Avant Gard 20x9(265/35/20) = 59.0 lbs. pretty much exactly the same. :)

    Call me crazy but the car does feel like it handles better, turn in is great, and traction seams improved a bit.
    Possible do to the slightly wider track, and .50 wider rim in the back gives a better footprint. IDK.

    Overall, I'm happy for now, more pics to come!!! Scott did a photoshoot when I was at Avant Garde, so he will be sending some hi-res ones soon. One thing that I will mention, if you install these, you should remove the little star retaining washers that hold the rotors on when removing wheels. The AG M310's do not have a relief cut out on the back like the stock wheels, so they will not sit exactly flush because of these washer. They are a factory piece for convenience when removing your wheels, but are not necessary.

    #65
  6. Matt's 03 GT

    Matt's 03 GT Member

    Joined:
    Aug 28, 2006
    Messages:
    198
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Orange County
    Braden
    Do you work over in la Mirada? If so I have seen your car and it sounds sick!

    #66
  7. clm5150

    clm5150 Member

    Joined:
    Sep 9, 2011
    Messages:
    32
    Likes Received:
    2
    Trophy Points:
    8
    Location:
    Gardena
    LOOKS KILLER!!!

    #67
  8. Braden

    Braden Member

    Joined:
    Feb 26, 2012
    Messages:
    10
    Showcase:
    3
    Albums:
    1
    Likes Received:
    5
    Trophy Points:
    13
    Location:
    So Cal
    Yeah, I'm in Fullerton area, thanks :)

    #68
  9. Braden

    Braden Member

    Joined:
    Feb 26, 2012
    Messages:
    10
    Showcase:
    3
    Albums:
    1
    Likes Received:
    5
    Trophy Points:
    13
    Location:
    So Cal
    A couple more pics with the iphone, nothing spectacular, some different views. Waiting on hi-res from Scott Chu.

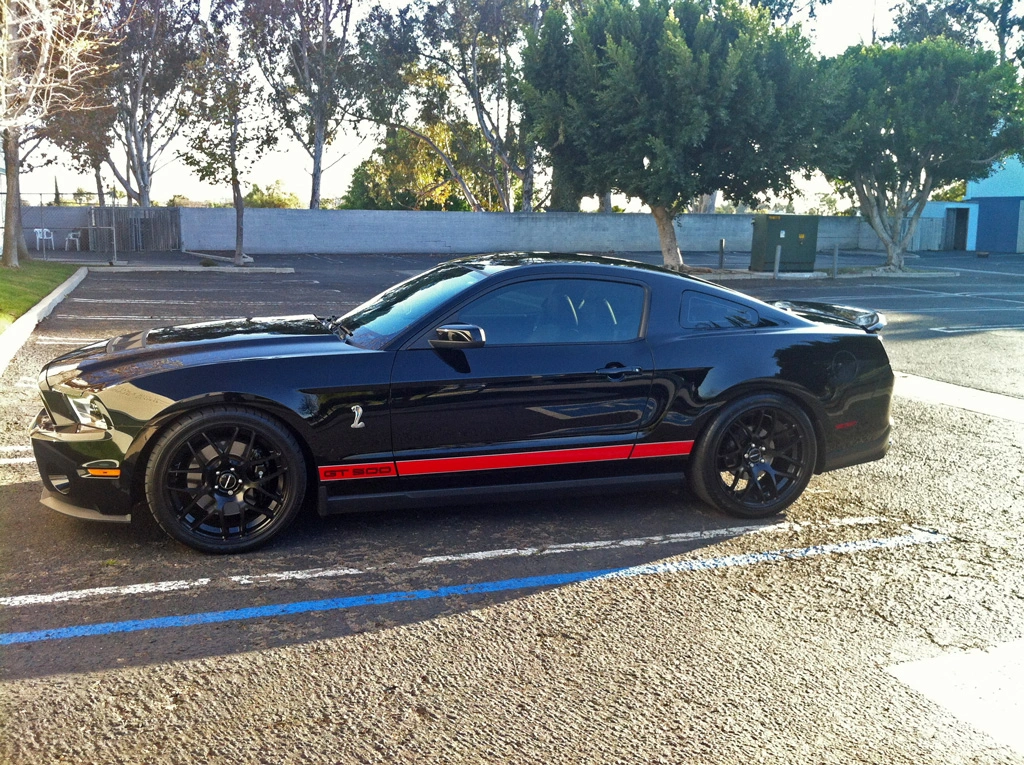

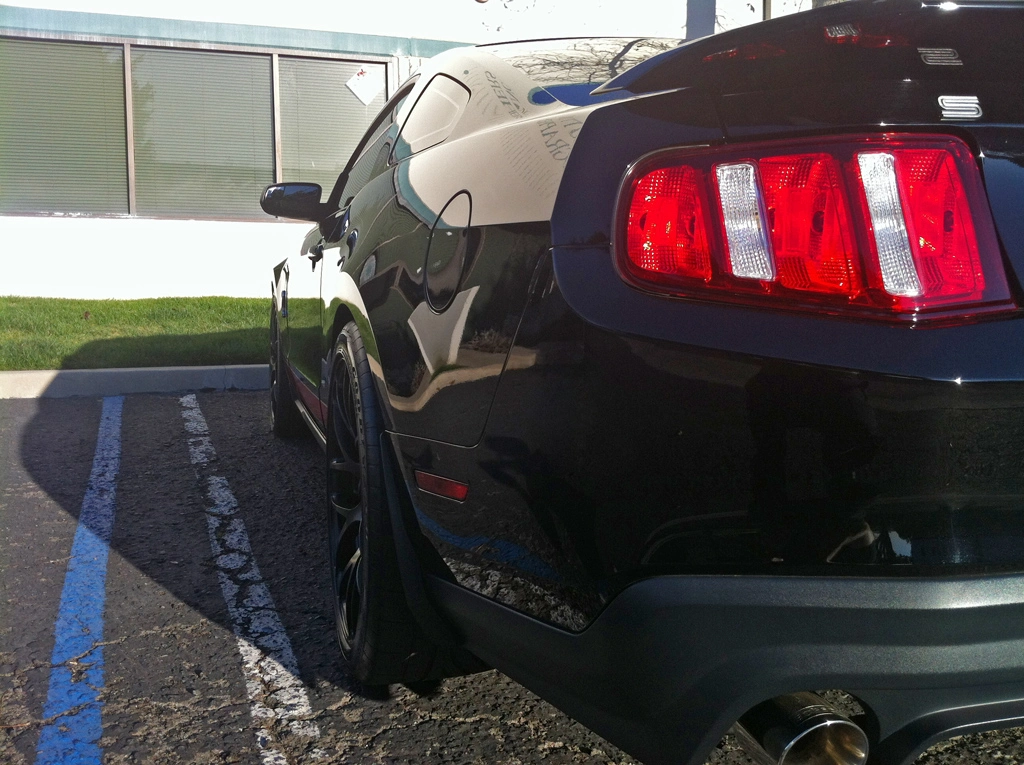

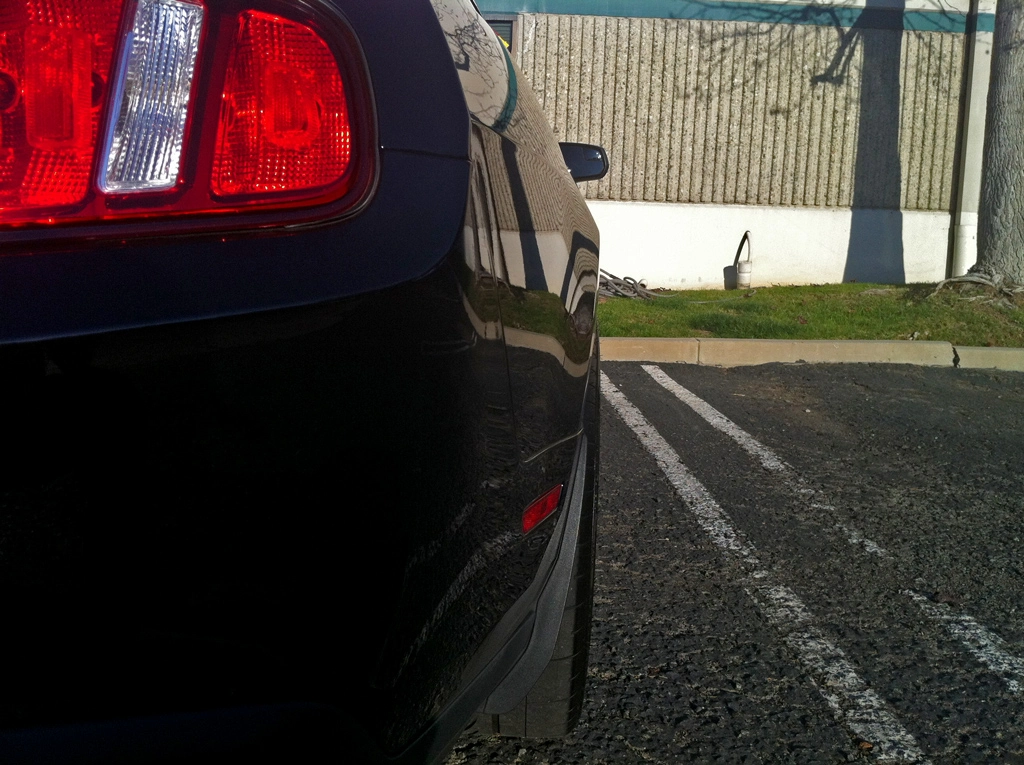

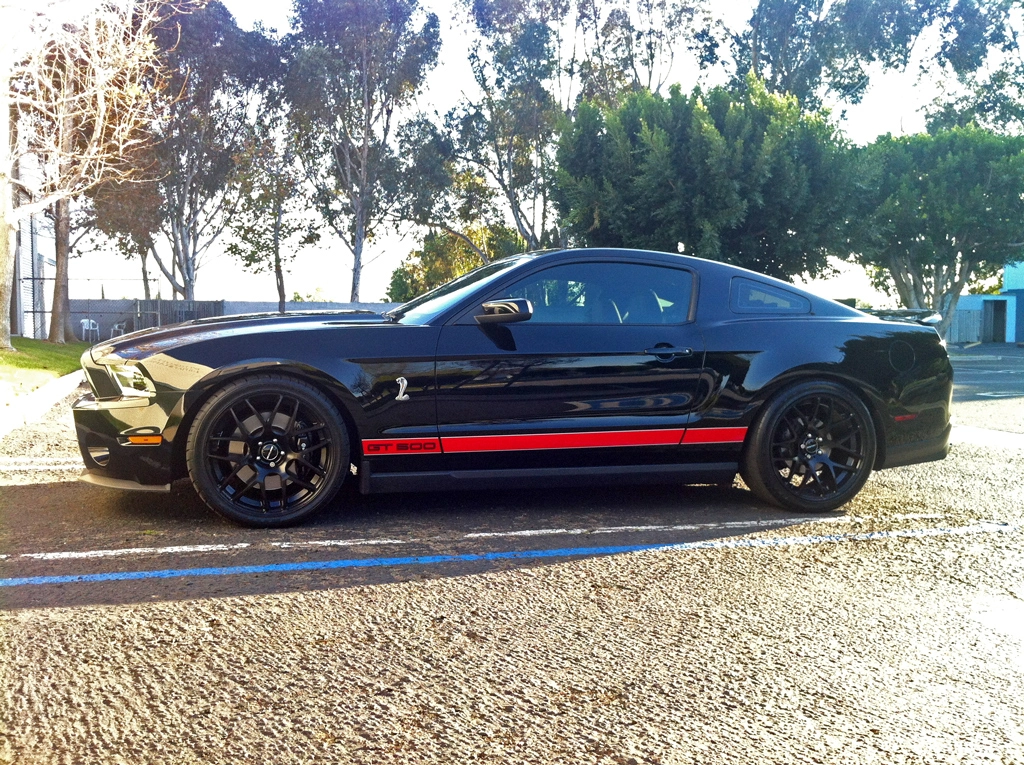

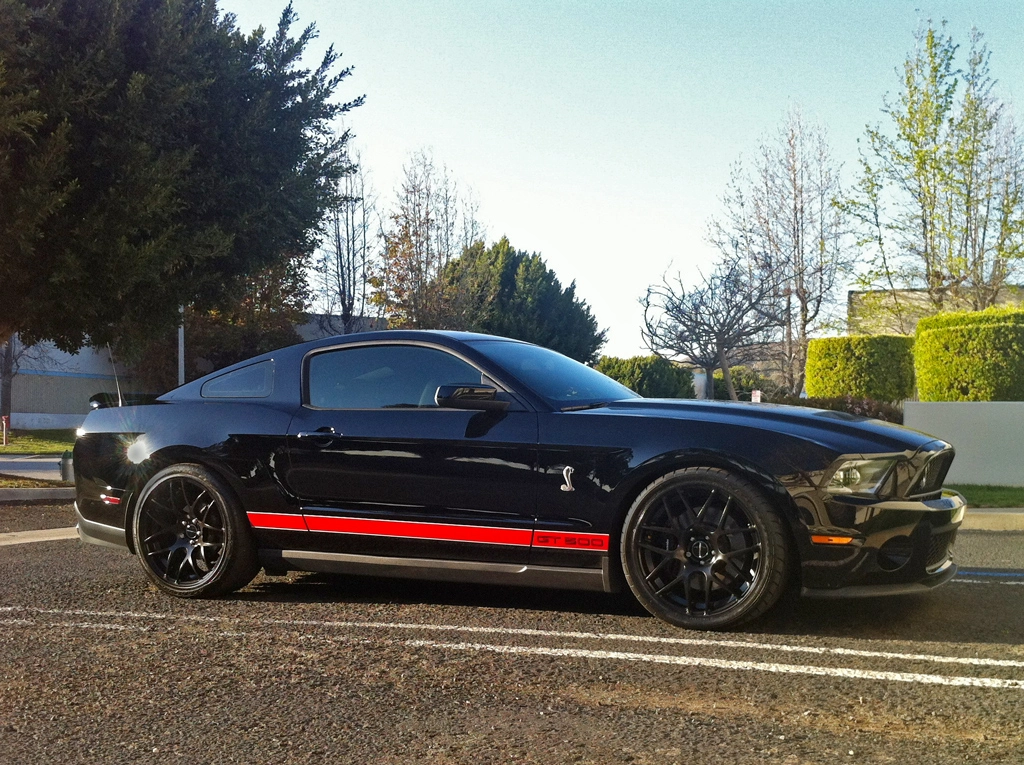

    M310-Shelby-Side3.jpg M310-Shelby-Side2.jpg M310-Shelby-rear2.jpg M310-Shelby-rear.jpg M310-Shelby-Side.jpg

    #69
    ROBW9999 likes this.
  10. big c johnson

    big c johnson Member

    Joined:
    Aug 4, 2010
    Messages:
    54
    Likes Received:
    1
    Trophy Points:
    8
    is that on stock suspension or lowered?

    #70
  11. Braden

    Braden Member

    Joined:
    Feb 26, 2012
    Messages:
    10
    Showcase:
    3
    Albums:
    1
    Likes Received:
    5
    Trophy Points:
    13
    Location:
    So Cal
    Lowered, Eibach Pro-Kit springs.

    #71
  12. big c johnson

    big c johnson Member

    Joined:
    Aug 4, 2010
    Messages:
    54
    Likes Received:
    1
    Trophy Points:
    8
    im using frpp k springs you think that those sizes you are using will work for me? I want it to have a nice stance without much gap between tires and fender butI dont want the fronts to rub

    #72
  13. Braden

    Braden Member

    Joined:
    Feb 26, 2012
    Messages:
    10
    Showcase:
    3
    Albums:
    1
    Likes Received:
    5
    Trophy Points:
    13
    Location:
    So Cal

    #73
  14. big c johnson

    big c johnson Member

    Joined:
    Aug 4, 2010
    Messages:
    54
    Likes Received:
    1
    Trophy Points:
    8
    do you have pictures of that size on your car?

    #74
  15. sscobra

    sscobra New Member

    Joined:
    Oct 19, 2004
    Messages:
    29
    Likes Received:
    0
    Trophy Points:
    1
    So I talked to Eric at getyourwheels.com. The silver 20x9s were never made. He said we would need 10 pre-orders for them to get the silvers made. I really want a set of these. So I am going to try and get 10 pre-orders. You just need a 20% deposit to place the order. The wheels will be made within 3-4 weeks, per Eric(once the 10 deposits are placed). Please contact me if you are interested in getting a set in Hyper Silver. Thank you.

    #75
  16. Bad Boss 302

    Bad Boss 302 Member

    Joined:
    Dec 6, 2011
    Messages:
    170
    Likes Received:
    5
    Trophy Points:
    19
    So nobody can tell us where these wheels are made?
    Are they gravity cast? Low pressure cast? Hi pressure cast?
    Forged? (which I totally doubt)
    That's what I need to know before I put anything on my car.

    #76
  17. Braden

    Braden Member

    Joined:
    Feb 26, 2012
    Messages:
    10
    Showcase:
    3
    Albums:
    1
    Likes Received:
    5
    Trophy Points:
    13
    Location:
    So Cal
    From what I understand, even the Forged SVTPP is a Chinese made wheel.

    The Avant Garde's are Taiwan made. Taiwan has been making really good stuff for several decades now. I was in the cycling industry for almost 20 years, the majority of the parts, stems, seatpost, rims, frames, etc. came from Taiwan. They have been using Japanese machinery and manufacturing process for quite some time. The quality is very good. Recently the Chinese have started to adopt some of that technology and are getting better.
    My wife actually has worked for a Japanese machinery company for 18 years, travels to Asia quite a bit. Chinese have been purchasing a lot of this equipment the last few years, they are definitely improving their quality, but based on my experience, I'm more confident with the Taiwan made parts.

    According to the specs over at Modbargains.com the AG's are a low pressure casting, increased strength over a gravity cast wheel. They have been selling these for several years to the BMW, Audi and MB crowd with no reports of any problems or defects.

    #77
  18. Bad Boss 302

    Bad Boss 302 Member

    Joined:
    Dec 6, 2011
    Messages:
    170
    Likes Received:
    5
    Trophy Points:
    19
    Won't go Taiwan either. I've been looking at some nice forged wheels made here in the USA.

    #78
    lancealot829 likes this.
  19. sscobra

    sscobra New Member

    Joined:
    Oct 19, 2004
    Messages:
    29
    Likes Received:
    0
    Trophy Points:
    1
    I have some good, new information on these wheels. If you are interested please pm me.

    #79
  20. big c johnson

    big c johnson Member

    Joined:
    Aug 4, 2010
    Messages:
    54
    Likes Received:
    1
    Trophy Points:
    8

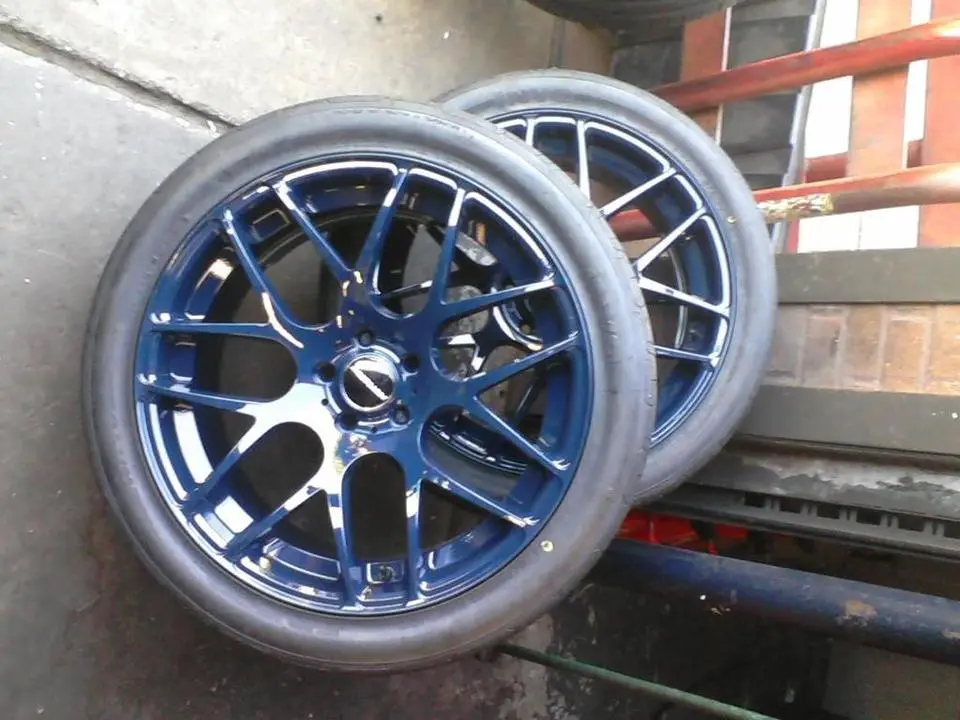

    [​IMG]
    Can't wait to get these on :)
