Bad Relay in CCRM

Discussion in '1994 - 1995 Specific Tech' started by Hansolos, Jul 30, 2006.


  1. Hansolos

    Hansolos New Member

    Joined:
    Jan 31, 2001
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    0
    Has anyone replaced a relay inside the CCRM? I got a 94 GT Conv, the AC won’t work and it looks like it's the HVAC relay. They're just solider on there, and I don’t want to drop a few hundred dollars for a $5 relay.
    Thanks

    #1
  2. 1TallMF

    1TallMF New Member

    Joined:
    Apr 18, 2006
    Messages:
    971
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Montreal
    I don't think its possible to simply replace a single relay in those things, but perhapse its possible to wire in a relay in parallel to piggyback the old one :shrug:
    Are they 4-prong or 5-prong?

    #2
  3. HISSIN50

    HISSIN50 "How long does it take to get help in here?
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,157
    Likes Received:
    14
    Trophy Points:
    79
    I agree with 1TMF all the way - the WOT relay is one of the less critical relays out there, so running a stand-alone relay is an idea.

    Joe (Synned) had a HUGE thread about the WOT some time back, as I recall (in case you want to check it out - you sound pretty determined already that the WOT is at fault though).

    This is what the CCRM looks like inside, in case you're one of them techie types that likes to open things up and solder away.

    Good luck.

    #3
  4. Blackened302

    Blackened302 New Member

    Joined:
    Jul 21, 2005
    Messages:
    1,477
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    McAllen, South TX
    no pics ^^^

    #4
  5. HISSIN50

    HISSIN50 "How long does it take to get help in here?
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,157
    Likes Received:
    14
    Trophy Points:
    79
    Paul, for real? It's a hyperlink and the pic appears in the hyperlinked post (for me).

    #5
  6. Blackened302

    Blackened302 New Member

    Joined:
    Jul 21, 2005
    Messages:
    1,477
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    McAllen, South TX
    ah, i see it. thanks--missed the hyperlink.

    #6
  7. Hansolos

    Hansolos New Member

    Joined:
    Jan 31, 2001
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    0
    Bad relay

    On that image it would be the lowest cut open relay. It's just a Bosch 4 post relay, I don't know why it couldn't be unsolidered and replaced. I've been looking for that thread that talked about it, but I don't think I've found the specific one.
    Thanks

    #7
  8. mo_dingo

    mo_dingo Well-Known Member

    Joined:
    Aug 27, 2003
    Messages:
    3,036
    Likes Received:
    0
    Trophy Points:
    56
    Location:
    Tucson, AZ
    Yeah you can replace the relay if you so choose. The board isn't sealed or anything. But honestly, why knows why the 1st relay busted, and what will happen to any of the others. So I would just run an external relay and be done with it. If another fails, you wire another external, etc.
    Scott

    #8
  9. Hansolos

    Hansolos New Member

    Joined:
    Jan 31, 2001
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    0
    After messing with it a little while I found that all the relays would switch after appling 12v except for what would be the top relay from that image. It shorts, so I unsolidered it and tested that relay and it works fine. It looks like there is a short on the board somewhere. All of the relays tested good, I just had to remove that top relay to test it. Now I have to try and figure out why it's shorting. Does any one now exactly what that top relay is switching? It looks like it is being feed by the relay next to it.

    #9
  10. 1TallMF

    1TallMF New Member

    Joined:
    Apr 18, 2006
    Messages:
    971
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Montreal
    Looking at the wiring diagram, there is a diode that separates the AC clutch signal from what could be a ground terminal. If this diode takes a dump, it creates a circuit loop which bypasses the AC clutch output signal, from what I can tell. This could be the problem. There is one connection that joins to the next 3 relays, it looks like a +12V for the coil side of the relays but I'm not sure.

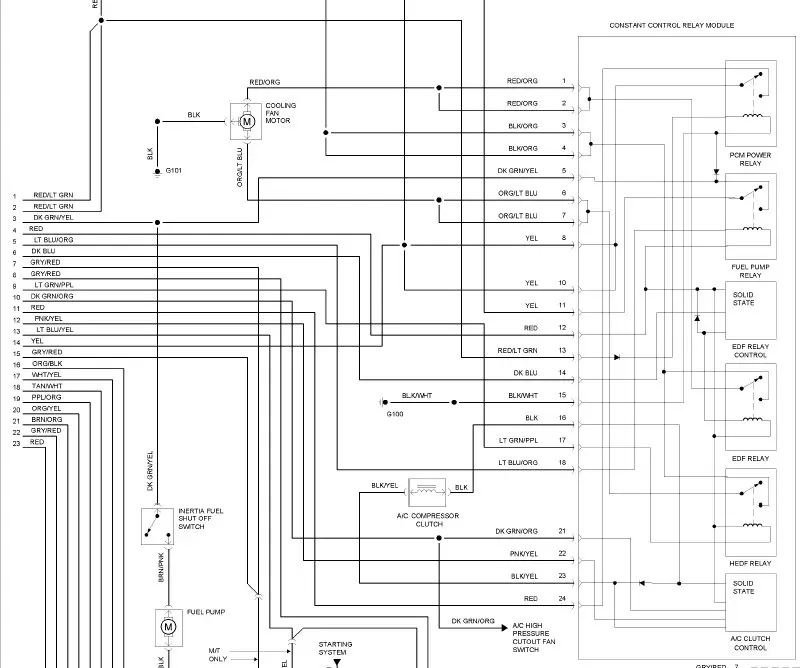

    Here is the diagram I am looking at (its the bottom relay):

    [​IMG]

    Might be able to swap that diode (10 cent part at radio shack?) and see if it solves anything.

    #10
  11. Hansolos

    Hansolos New Member

    Joined:
    Jan 31, 2001
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    0
    1TallMF, thanks for the diagram! As I tested the rest of the board the (diodes, resisters ...), the diodes seemed suspicous.

    #11
  12. 1TallMF

    1TallMF New Member

    Joined:
    Apr 18, 2006
    Messages:
    971
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Montreal
    No problem!
    Let us know how it turns out

    #12
