Electrical Battery Discharging, 92 Lx 5.0

Discussion in 'Fox 5.0 Mustang Tech' started by KW_Pilot, Oct 9, 2013.


  1. KW_Pilot

    KW_Pilot New Member

    Joined:
    Oct 7, 2012
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    2
    Location:
    Savannah, GA
    My battery is discharging to the point where I need to start the car every few days. I just bought the quick disconnect from Late Model Resto and disconnected the negative for 6 days while on vacation. The car started but the battery light remained on for about 20 minutes after starting, showing it's still having a good amount of drain even disconnected. The battery is brand new and is a AutoCraft Gold series from Advance.

    Anyone have any ideas?

    #1
  2. jrichker

    jrichker StangNet's favorite TOOL
    SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,838
    Likes Received:
    405
    Trophy Points:
    134
    Location:
    Dublin GA
    Typically it is something draining the battery. Small things like glove box or courtesy lights are often the culprits. If you have an aftermarket stereo or alarm system, it is also suspect.

    The ideal method is to disconnect the negative terminal, and connect a Digital Multimeter (DVM) between the negative terminal on the battery and the negative cable. Set the DVM on a low current scale of 2-5 amps if it doesn't auto range. Watch the current draw, and then start pulling out fuses. When you see a sudden drop in the current, that circuit is the likely culprit. Note that the computer, radio & clock will draw less than 1/10 amp to keep the settings alive.

    Using the negative side prevents nasty accidents like shorting the wrench to ground while disconnecting the battery cable. Electrically, the test will work with either positive or negative battery cable.

    #2
  3. KW_Pilot

    KW_Pilot New Member

    Joined:
    Oct 7, 2012
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    2
    Location:
    Savannah, GA
    Thanks man, I'll give it a try this weekend.

    #3
  4. fox bodies rule

    fox bodies rule New Member

    Joined:
    Mar 12, 2008
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    2
    Just to add one item to jrichker's list of common culprits that can drive you nuts is the under hood light, the switch fails in the "on" position.

    #4
  5. MFE92

    MFE92 Active Member

    Joined:
    Aug 26, 2010
    Messages:
    854
    Likes Received:
    177
    Trophy Points:
    54
    Location:
    Phoenix
    And if you have ANY aftermarket lighting or stereo equipment, you need to check the wiring and relays for those, because they may not be running through the factory fuse block, and doing amp-drop testing pulling fuses won't find the culprit.

    #5
  6. AUBURN1111

    Founding Member

    Joined:
    Oct 17, 2000
    Messages:
    469
    Likes Received:
    2
    Trophy Points:
    19
    Location:
    Mobile, AL
    Just wondering if you ever found the culprit I'm dealing with a similar problem on my 92

    #6
  7. Spaz

    Spaz Member

    Joined:
    Jan 5, 2013
    Messages:
    76
    Likes Received:
    11
    Trophy Points:
    19
    Location:
    Pennsylvania
    Earlier this year I had that and it turned out my hatch was just slightly ajar and my "trunk" light was on. I rarely open my hatch, and after about one week of my battery dying "for no reason" I asked myself what was different than before. I then remembered I got something out of my trunk the week before and voila! problem solved. Hopefully yours is this easy.

    #7
  8. KW_Pilot

    KW_Pilot New Member

    Joined:
    Oct 7, 2012
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    2
    Location:
    Savannah, GA

    I'm still on the search for my electrical issue. For now, I just ensure I start the car every few days.

    #8
  9. Blown88GT

    Founding Member

    Joined:
    Nov 13, 1999
    Messages:
    634
    Likes Received:
    6
    Trophy Points:
    19
    Location:
    Palm Beach Gardens, FL
    A new battery drained with the negative cable removed from the battery terminal? Only possibilities: battery is bad, alternator is not charging it fully.

    #9
    Grabbin' Asphalt likes this.
  10. viper_dude_06

    viper_dude_06 Member

    Joined:
    Jun 1, 2012
    Messages:
    33
    Likes Received:
    1
    Trophy Points:
    9
    Location:
    South West, Texas
    I would take the car over to a Super Wal-Mart that has a Tire Lube Express or Autozone and let them hook a tester up to the battery. It will test your Battery, Alternator, and Starter. If the battery is bad it will say bad cell. If the alternator is bad, it will more than likely be an open diode inside the alternator. If your disconnecting the NEG battery cable and its still draining then it has to be the battery. Just cause things are new doesnt always mean they are good. If your leaving it connected then jrichker gave some really good advice.

    #10
  11. AUBURN1111

    Founding Member

    Joined:
    Oct 17, 2000
    Messages:
    469
    Likes Received:
    2
    Trophy Points:
    19
    Location:
    Mobile, AL

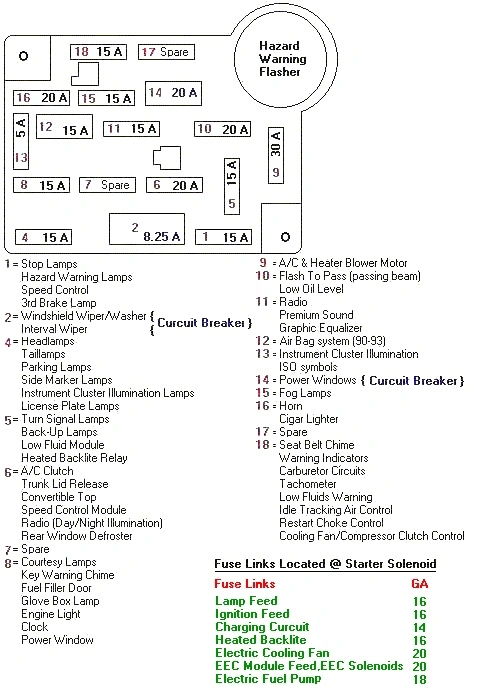

    Just wanted to update since I found my parasitic battery drain, only took a few days after dealing with it for several years. I used a test light between the positive lead and the positive terminal on the battery and began pulling fuses until the light went out. The culprit was a 15 amp fuse that was stuck in "spot 7 spare" once I pulled it out the light went out problem solved. I couldn't have done it without suggestions from this site.

    #11
  12. madspeed

    madspeed Colonel Mustard
    Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,518
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,246
    Trophy Points:
    174
    Location:
    a van down by the river
    the dreaded spare fuse ;)

    #12
  13. oldskolbus

    Founding Member

    Joined:
    Apr 30, 2002
    Messages:
    244
    Likes Received:
    14
    Trophy Points:
    19
    Location:
    WV
    I have a similar problem. My car some times sits for a week or longer before I get time to take it out. I know I dident fix the problem but I found a way that the battery wouldent drain. When ever I park my car for longer than a day I pull my inline fuse under the hood that powers my amps. Whenever I have time I try to track it down using a voltmeter. I hate tracking down electrical problems

    #13
  14. jrichker

    jrichker StangNet's favorite TOOL
    SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,838
    Likes Received:
    405
    Trophy Points:
    134
    Location:
    Dublin GA
    You have already found the source of your problem. The amplifiers are wired into circuit that does not turn power off when you turn the ignition switch off. They may have tied the amplifier internal on/off circuit to the same continuous DC power circuit that supplies power to the amplifier when it is being used. Not all amplifiers have this internal power control feature. Some amplifiers may require that the main amp power run through a high current relay that turns on when the ignition switch is in the Accessory or Run position.

    #14
