Engine Belt Routing

Discussion in 'Fox 5.0 Mustang Tech' started by bertman, Sep 8, 2013.

  1. bertman

    bertman Member

    Joined:
    Oct 30, 2004
    Messages:
    55
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Portsmouth Va
    Can anybody tell me what belt i need. I have A/C eliminater kit and it moved the PS pump up to where the A/C was. Summit told me what belt to use, but its not right. I have no smog pump either. The belt is 84.5 inches and its to long

    #1
  2. f8tlfiveo

    f8tlfiveo My wife likes my spool and blow-off valve.

    Joined:
    Aug 9, 2007
    Messages:
    1,445
    Likes Received:
    76
    Trophy Points:
    49
    Location:
    Lancaster, PA
    Measure with a string..best way to figure it out

    #2
  3. 95PGTTech

    95PGTTech Member

    Joined:
    Jan 28, 2008
    Messages:
    330
    Likes Received:
    18
    Trophy Points:
    19
    The best method I've ever used -

    go to the parts store and get a cheap 1" or so wide ratcheting tie down. Use it to route in the belt config you would like and measure length. Reinstall, but ratchet it completely down (max the tensioner). choose a belt length that is as close to the median of those two numbers.

    #3
  4. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    4,179
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,210
    Trophy Points:
    154
    Location:
    In the garage
    stock or U/D pulleys. This normally works with stock pulleys however due to the poor tolerances and variances in pulleys and brackets, you could need as much as an inch shorter or longer belt.

    [​IMG]

    #4
  5. bertman

    bertman Member

    Joined:
    Oct 30, 2004
    Messages:
    55
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Portsmouth Va
    75 fit but not tight. Got a 74.5 going to try it tonight. Stock pulleys. Love those pics mikestang63

    #5
  6. madspeed

    madspeed Colonel Mustard
    Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,619
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,260
    Trophy Points:
    174
    Location:
    a van down by the river
    those pics have helped countless times. There can still be variances due to aftermarket pulley configurations, hence the difference as you noticed. Still best to run a string on it

    #6
  7. 95PGTTech

    95PGTTech Member

    Joined:
    Jan 28, 2008
    Messages:
    330
    Likes Received:
    18
    Trophy Points:
    19
    If the 74.5 is too tight, try a larger aftermarket pulley on the idler and tensioner. Often times the aftermarket stock replacement ones from the parts store are a little bit bigger or smaller and can mess up what belt sizes should be.

    #7
  8. Bullitt95

    Bullitt95 Active Member

    Joined:
    Jun 13, 2007
    Messages:
    1,304
    Showcase:
    4
    Albums:
    1
    Likes Received:
    25
    Trophy Points:
    49
    Location:
    Al Ain, United Arab Emirates

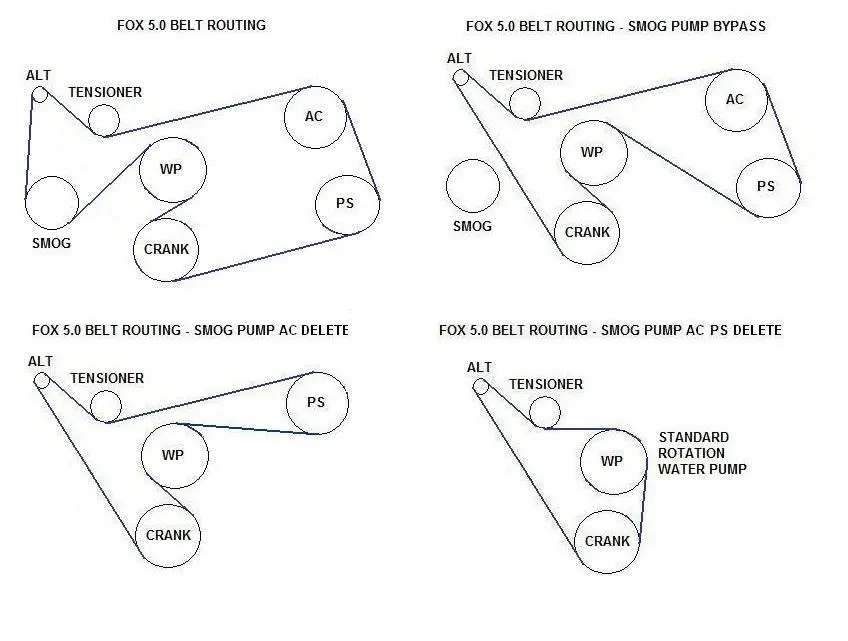

    Check the appoximate length required using a piece of string along one of the routings shown in the diagram below:

    [​IMG]

    #8
  9. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor
    Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,634
    Showcase:
    59
    Albums:
    8
    Likes Received:
    2,680
    Trophy Points:
    174
    Location:
    Box behind Walmart
    If you use the string method, then remember to "by-pass" the tensioner pulley to get your length.

    #9
  10. Bullitt95

    Bullitt95 Active Member

    Joined:
    Jun 13, 2007
    Messages:
    1,304
    Showcase:
    4
    Albums:
    1
    Likes Received:
    25
    Trophy Points:
    49
    Location:
    Al Ain, United Arab Emirates
    That's a good point. We often forget to take into account the initial effect of the tensioner and the later effect of belt stretch when selecting the belt size.

    #10
  11. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    4,179
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,210
    Trophy Points:
    154
    Location:
    In the garage
    example> On my car with a smog pump delete and U/D pulleys with the smalller overdrive alt pulley, it takes a 90" vs. stock 91" belt for sufficient tension.

    #11
  12. bertman

    bertman Member

    Joined:
    Oct 30, 2004
    Messages:
    55
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Portsmouth Va
    The 74.5 fit great. Started my car for the first time in 6.5 years. Been slowly putting it together. Runs great. Have a few things to finish up still before it road ready. I was pretty happy when it fired up

    #12
  13. Gearhead92

    Gearhead92 Member

    Joined:
    May 23, 2012
    Messages:
    153
    Likes Received:
    5
    Trophy Points:
    19
    Location:
    Baltimore area, Maryland
    So I've been having a belt issue. My setup stretches my belt, and I need a new one every ~3 months. Mine is set up like the smog pump bypass, but the AC is deleted, the powersteering was not relocated, and there is a tensioner bar, no belt tensioner.

    So it is alternator to PS, to crank and water pump....It was this way when I bought the car, I just replaced the brackets it had, since they were old and broken. It has the MARCH A/C delete and MARCH alternator bracket with tensioner bar.

    #13
  14. madspeed

    madspeed Colonel Mustard
    Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,619
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,260
    Trophy Points:
    174
    Location:
    a van down by the river
    pics are worth a thousand words here

    #14
  15. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    4,179
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,210
    Trophy Points:
    154
    Location:
    In the garage
    How tight are you cranking down on the tensioner? You want some deflection of the belt.

    #15
  16. Gearhead92

    Gearhead92 Member

    Joined:
    May 23, 2012
    Messages:
    153
    Likes Received:
    5
    Trophy Points:
    19
    Location:
    Baltimore area, Maryland
    I tighten it until it doesn't squeal on startup.

    I know, I will take a picture soon.

    I put a new belt on at the end of August, and it already needs tightening...

    #16
  17. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    4,179
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,210
    Trophy Points:
    154
    Location:
    In the garage
    You want about 1/4 to 1/2" deflection on the belt normally.

    #17
  18. Mustang5L5

    Mustang5L5 Car used in adult film "Highway Gangbang-InDaButt"
    SN Certified Technician Founding Member

    Joined:
    Feb 19, 2001
    Messages:
    21,786
    Likes Received:
    343
    Trophy Points:
    124
    Location:
    Massachusetts
    The automatic tensioner does compensate for belt stretch. It's why I'm very hesitant to convert to a system like what March uses that locks in a specific tension and requires some adjustment.

    One of my daily drivers has such a setup and I've had to readjust tension a few times to compensate for stretch..which does happen.

    On my Mustang, i've marked on the tensioner using the indicator arrow where a belt "sat" when i put it on fresh. A year or two later you can see it's moved quite a bit from that spot.

    #18
  19. Gearhead92

    Gearhead92 Member

    Joined:
    May 23, 2012
    Messages:
    153
    Likes Received:
    5
    Trophy Points:
    19
    Location:
    Baltimore area, Maryland
    I'll post a picture hopefully tonight. I might be able to just add a tensioner, if I'm lucky.

    #19
  20. Gearhead92

    Gearhead92 Member

    Joined:
    May 23, 2012
    Messages:
    153
    Likes Received:
    5
    Trophy Points:
    19
    Location:
    Baltimore area, Maryland

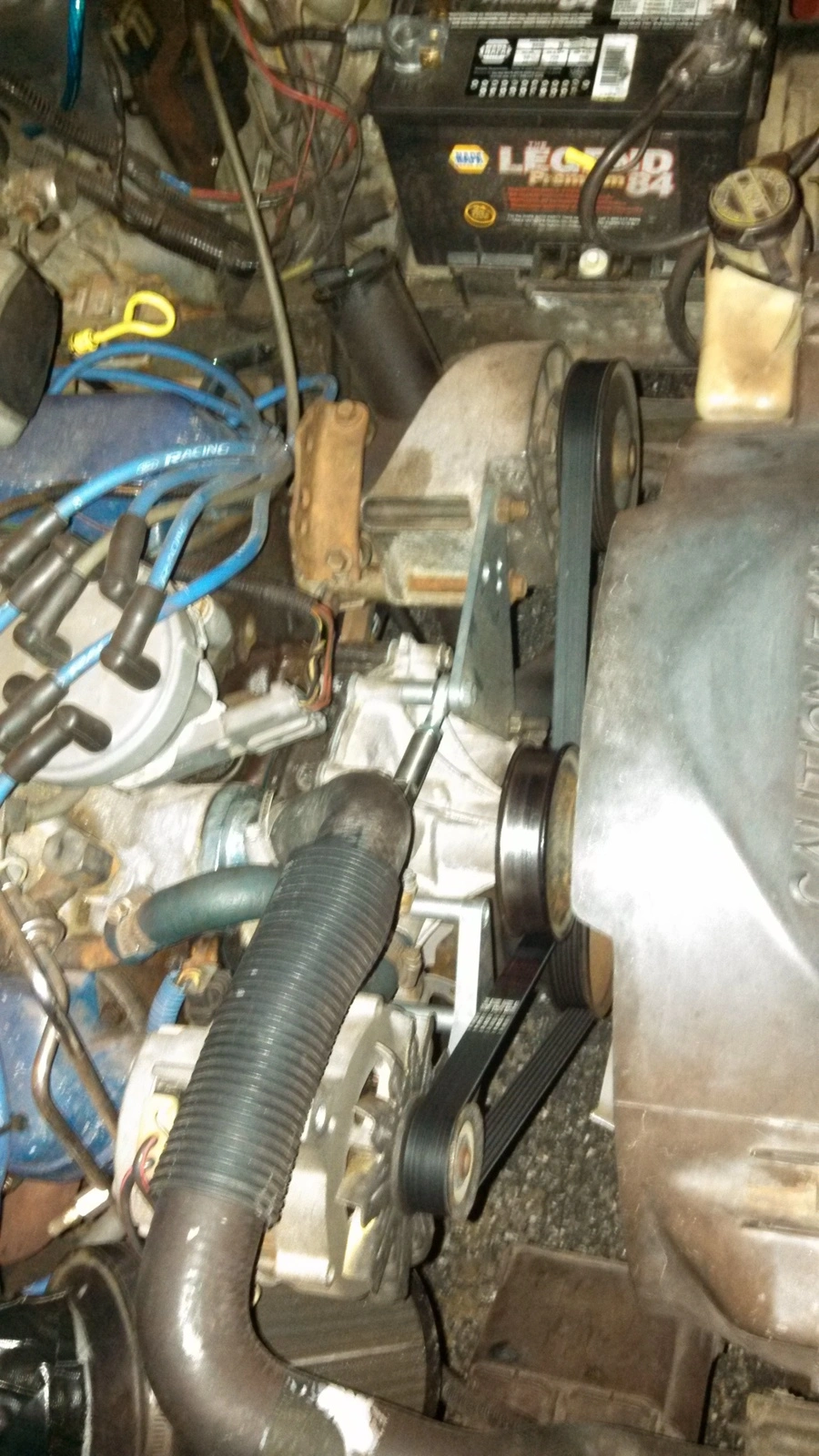

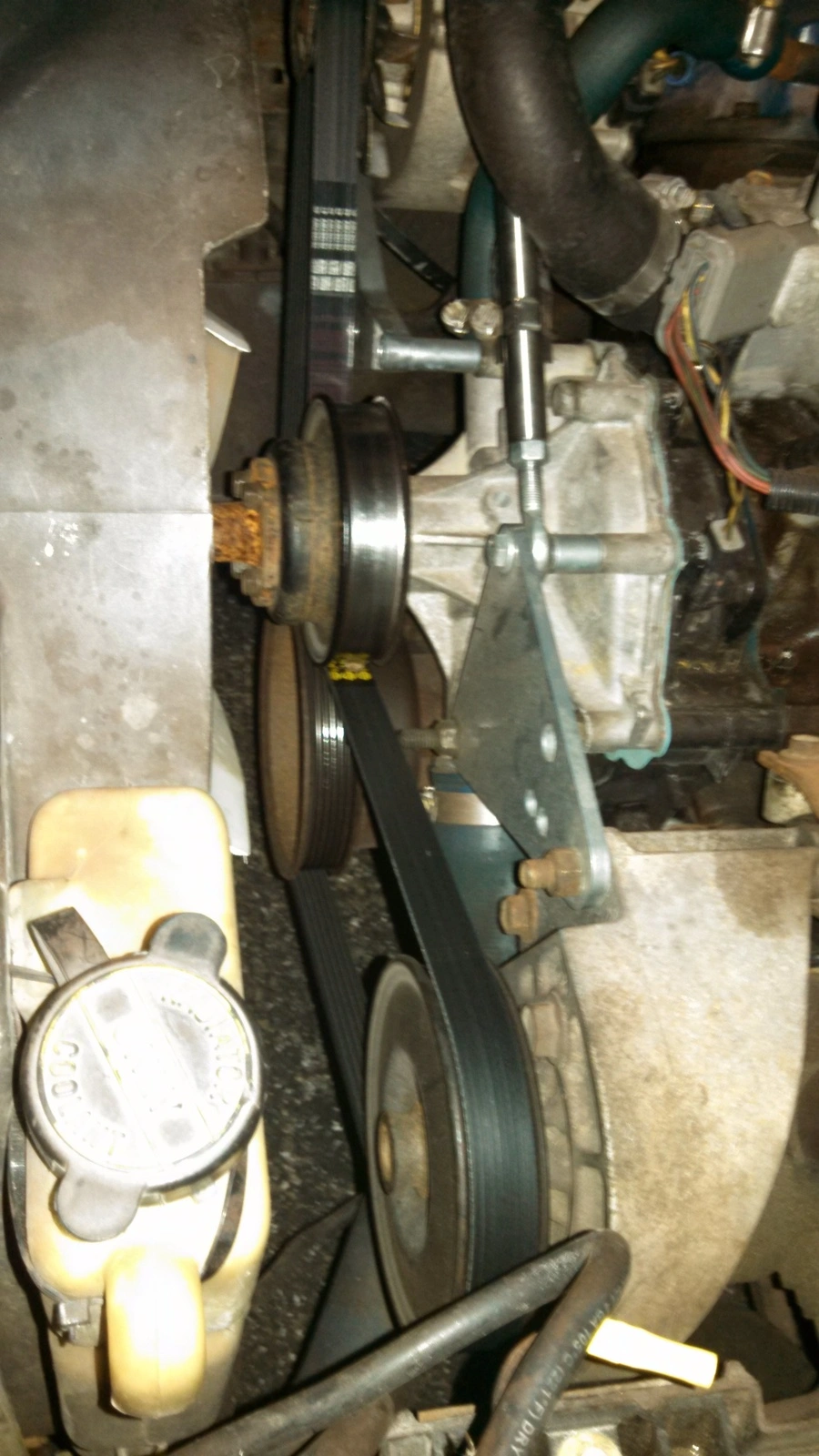

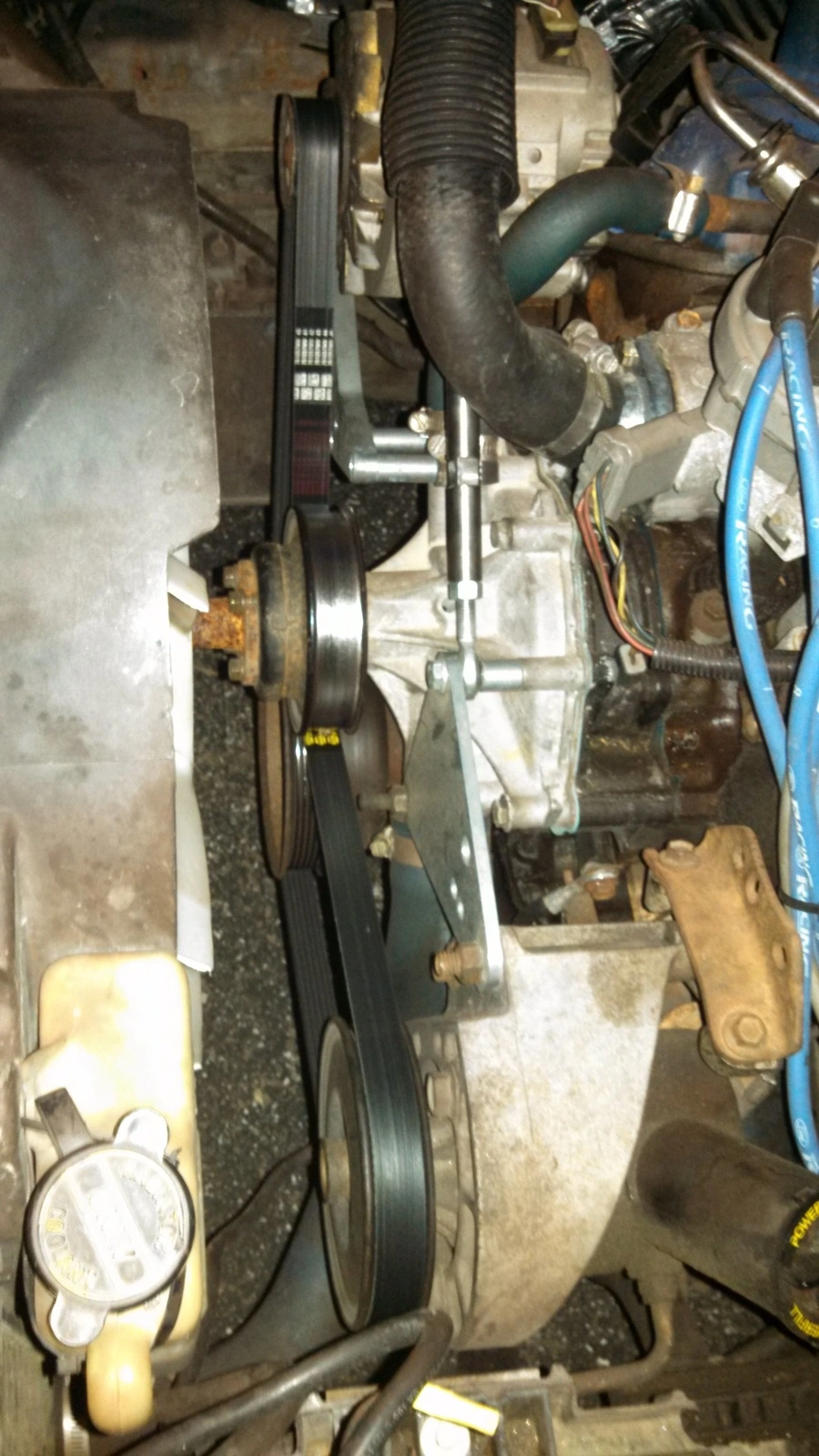

    Here are the pictures of my belt setup...

    The tensioner bar is underneath the coolant line going to the thermostat.

    As to refresh, my belt is stretching every couple weeks and needs to be tightened. I just tightened it yesterday to get rid of a start up squeal. The tensioner bar doesn't have much left in term of length, so after another adjustment or two I'll have to replace a perfectly good 25 dollar belt....


    Attached Files:

    #20
