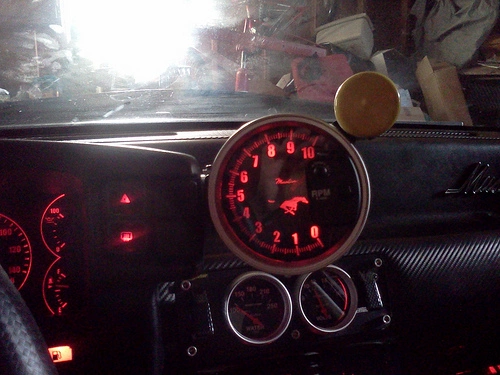

    how much do you have into the custom gauge cluster?

  2. j0Hn10

    j0Hn10 Member

    Joined:
    Mar 25, 2003
    Messages:
    110
    Likes Received:
    1
    Trophy Points:
    18
    Location:
    Western NewYork
    Into the idea, ~$700. Into this specific iteration, ~$200

  3. j0Hn10

    j0Hn10 Member

    Joined:
    Mar 25, 2003
    Messages:
    110
    Likes Received:
    1
    Trophy Points:
    18
    Location:
    Western NewYork

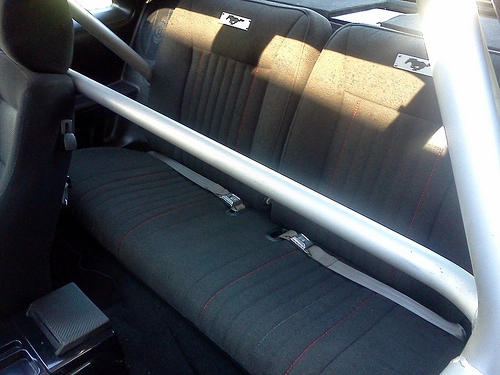

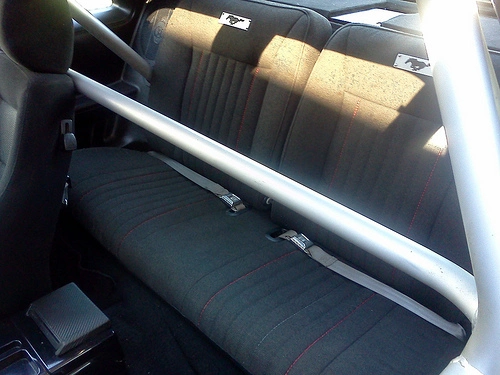

    Well from this point onwards is the product of my younger brothers’ design with some insight from me. To start the back seats have been slightly modified with the mustang logo rivet to the tops and some minor red stitch. As you can see in the picture below the back seats remain and are fully functional. So if you plan on transporting midgets (as they are the only people who could possibly fit under the cage cross bar) you are all set.

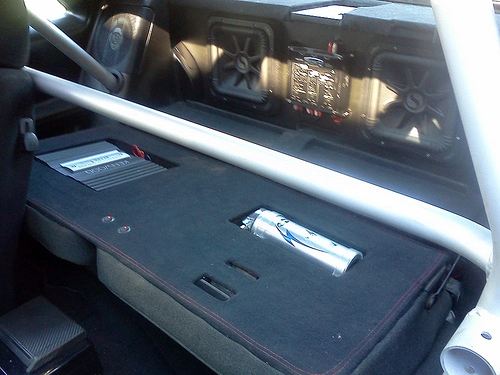

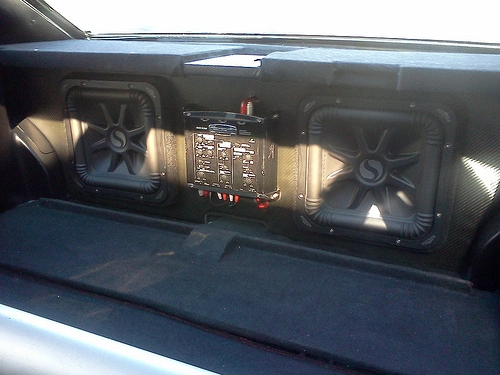

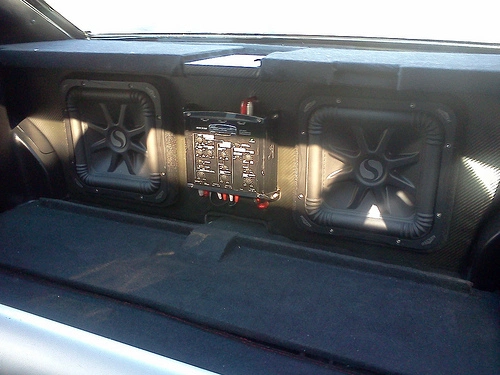

    Now what’s concealed behind the back seats is in my opinion a cool idea. As you can see in the picture below the back seats or should I say seat folds down as one complete assembly to reveal the speaker boxes and crossover. This sub box is completely integrated into the frame of the car. Integrated into the back of the seats is the front four speaker amp and central capacitor. The two front switches are for enabling the front speakers and to enable the sub box lighting which I will show in my next post. Now I’m not too much of a stereo person, so if you have any specific questions about this setup I will try and relay them onto my brother.

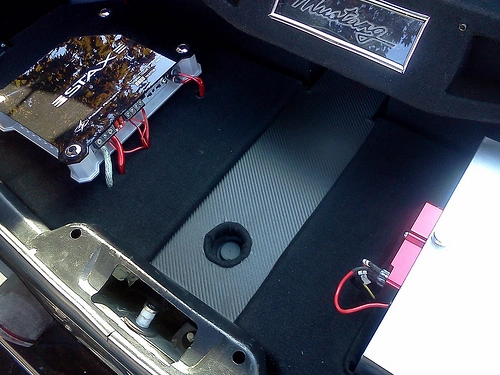

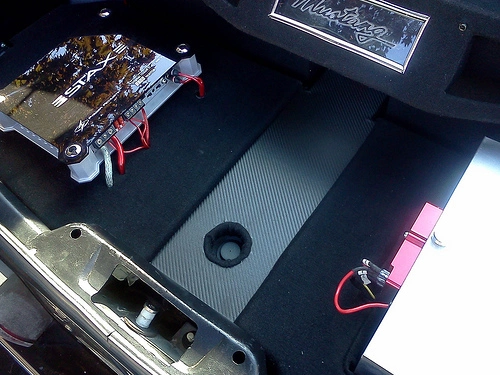

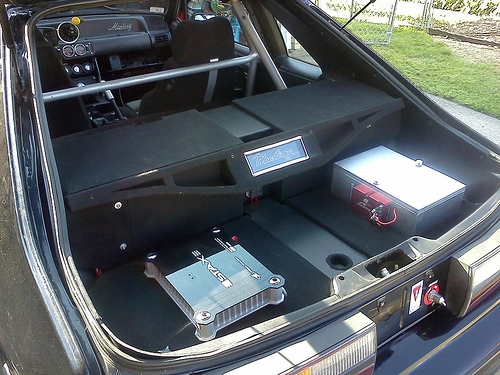

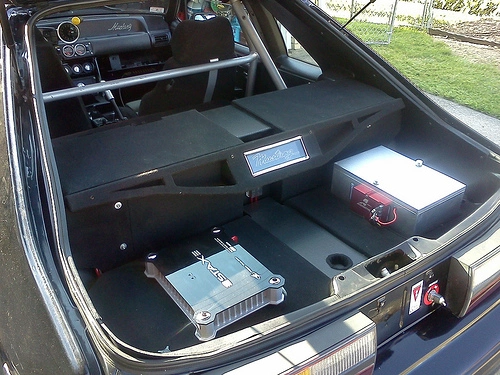

    Now on to the trunk. This I think my far is going a little overboard and I had to interject to keep my brother from going completely out of control. As you can see in the pic below my brother carried on the carbon fiber theme as a recessed stripe down the center and onto the raised floor. On the left side of the floor is the sub amp and to the right is the battery box with the fuel pump speed controller. In the center is an acrylic plate which was reverse etched with an led strip directed along the edges. If you know much about this process the results are light floating affect at night (next post). In addition to this the perimeter of the raised floor has integrated light which provides a floating affect at night when the hatch is open. For those of you who are wondering what the circle on the raised floor is for: that’s the methanol reservoir fill point.

    Note: Since the box is completely integrated into the frame of the car I worked out in advanced removable side plates so that the shocks can be accessed.


    Well I believe that covers the major points of the interior. The next update post I will try and provide all the night pictures of all the stuff in action.


    Attached Files:

  4. j0Hn10

    j0Hn10 Member

    Joined:
    Mar 25, 2003
    Messages:
    110
    Likes Received:
    1
    Trophy Points:
    18
    Location:
    Western NewYork

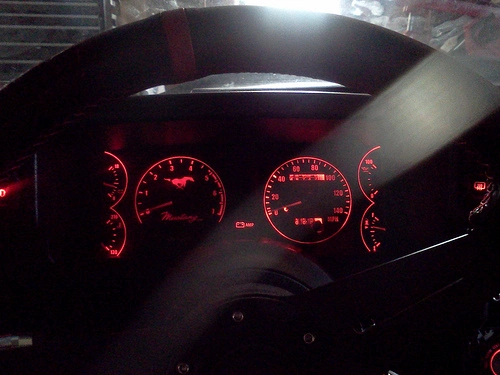

    As promised the night pictures (pictures taken in the garage). Again picture quality isnt the greatest. I think something was on the lens in some.

    Note: Notice the hazard and defrost lights are red as well. This was an extreme pain to do.

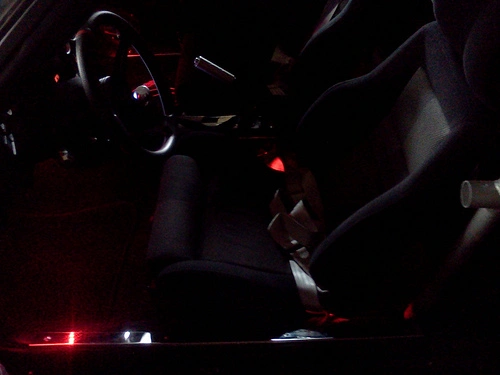

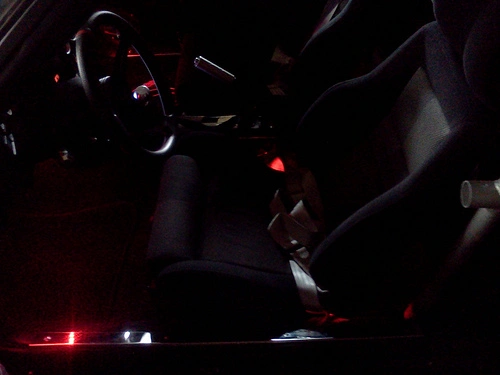

    As you can see in the picture above the foot wells both front and back have flood lighting. This lighting is activated once a door is opened.

    This is a picture of the front passenger foot well.

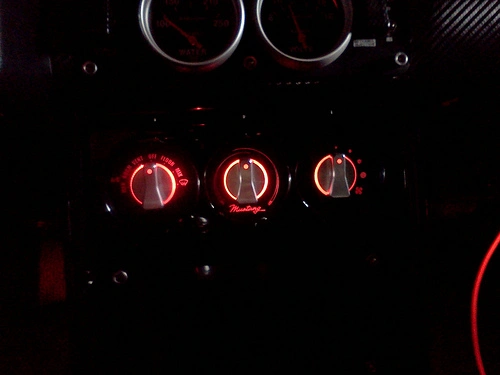

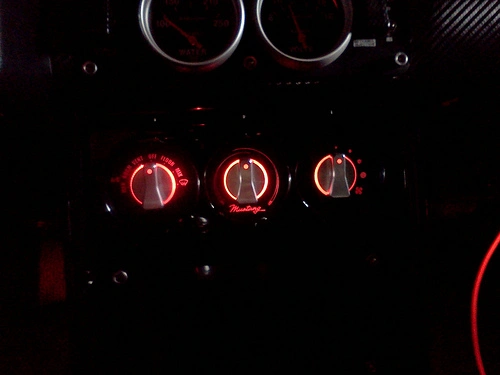

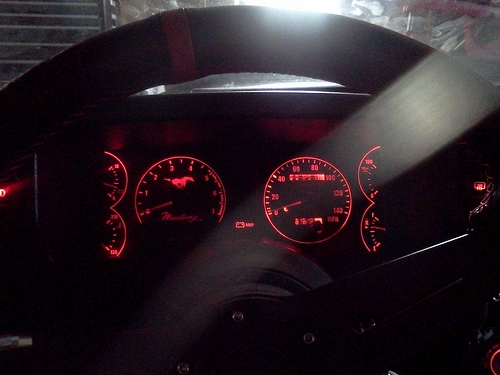

    AC Cluster

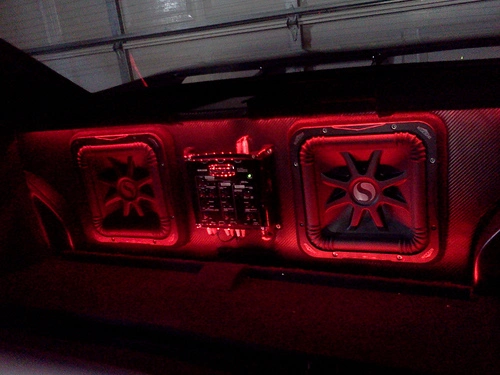

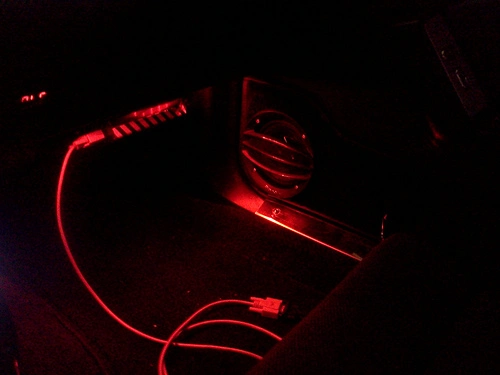

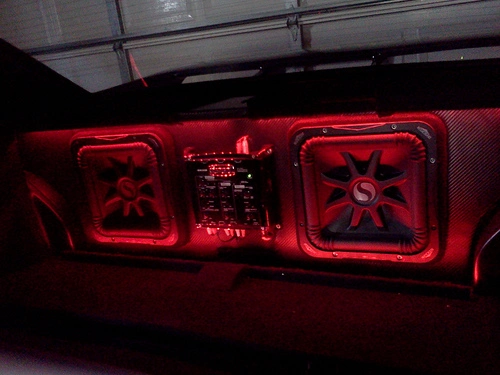

    The pics above are of the top and bottom lighting of the sub box. This is activated by the back seat switch mentioned in my previous post.

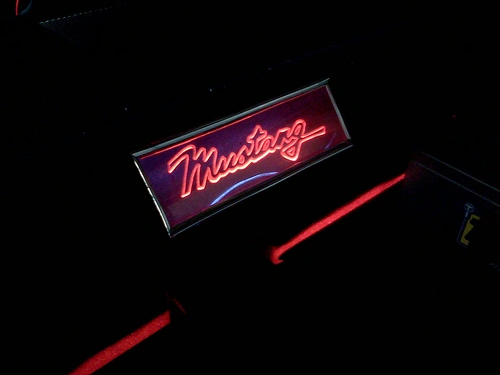

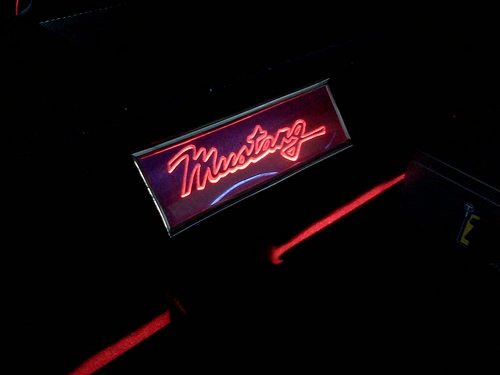

    The mustang logo shown above is a two pane side lit acrylic glass which was reverse etched.

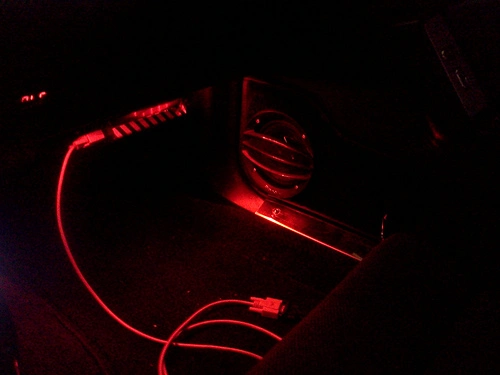

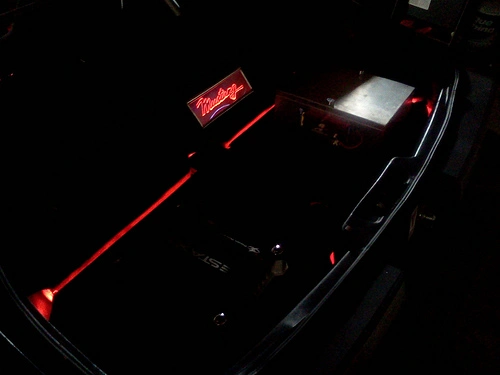

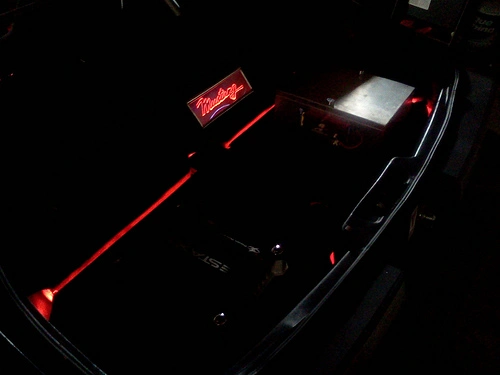

    The raised floor edge is flood lit with a red LED strip. This strip and the mustang logo are controlled by a door opening.

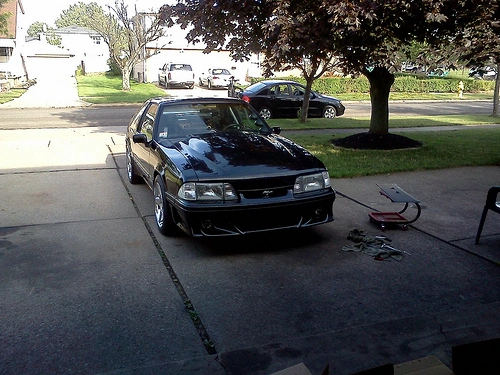

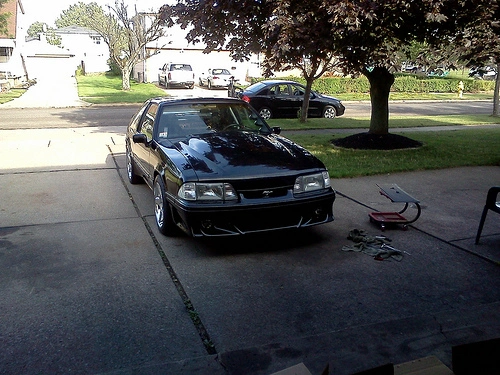

    Below are some outside pictures of the car as it is now. More to come.



    Attached Files:

  5. bcam347

    bcam347 Member

    Joined:
    Feb 27, 2011
    Messages:
    76
    Likes Received:
    6
    Trophy Points:
    8
    you and your brother are lunatics, amazing work!

  6. Boss 351

    Boss 351 Here sthhhhhhhheeeve take a picthh of my man flowe

    Joined:
    Jul 13, 2003
    Messages:
    2,446
    Likes Received:
    21
    Trophy Points:
    48
    Location:
    Toronto
    This is in my top 3 best fox interiors, I've ever seen in my life! :nice:

    :eek::jaw:

  7. ViperPunk

    ViperPunk Member

    Joined:
    Jul 30, 2010
    Messages:
    196
    Likes Received:
    1
    Trophy Points:
    18
    Location:
    idaho
    amazing!

  8. 93project

    93project Active Member

    Joined:
    Apr 21, 2009
    Messages:
    555
    Likes Received:
    44
    Trophy Points:
    38
    Location:
    El Paso, tx
    Wow,... I joined the party late but my god,... what an amazing job! I may have missed it but what kind of material is that carbon fiber on the dash?

  9. 93project

    93project Active Member

    Joined:
    Apr 21, 2009
    Messages:
    555
    Likes Received:
    44
    Trophy Points:
    38
    Location:
    El Paso, tx
    Also, what kind of alternator are you using? I'm sure an SN but is it stock 130 amp? What about your pullies? stock or underdrive?

  10. Adams91LX

    Adams91LX Active Member

    Joined:
    Dec 9, 2003
    Messages:
    696
    Likes Received:
    12
    Trophy Points:
    29
    Location:
    Plano, TX
    omg bud... that interior is insane.

  11. j0Hn10

    j0Hn10 Member

    Joined:
    Mar 25, 2003
    Messages:
    110
    Likes Received:
    1
    Trophy Points:
    18
    Location:
    Western NewYork
    93project - The material is a carbon fiber looking fabric which carries the same surface texturing but is very workable. The alternator i believe is a 200A high output 3g. Pullies are stock type.

  12. j0Hn10

    j0Hn10 Member

    Joined:
    Mar 25, 2003
    Messages:
    110
    Likes Received:
    1
    Trophy Points:
    18
    Location:
    Western NewYork

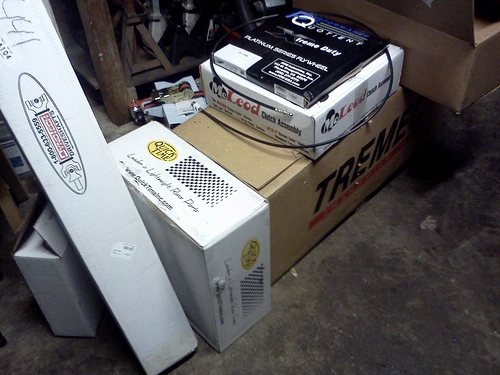

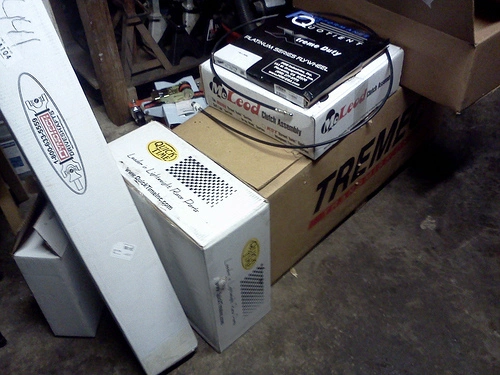

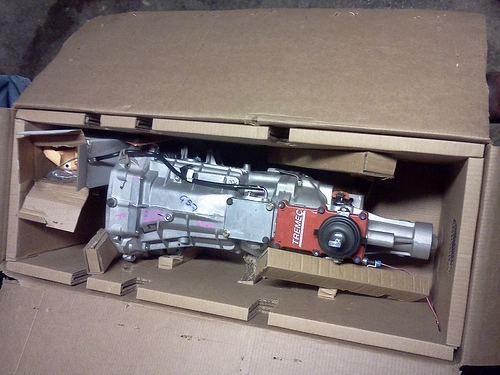

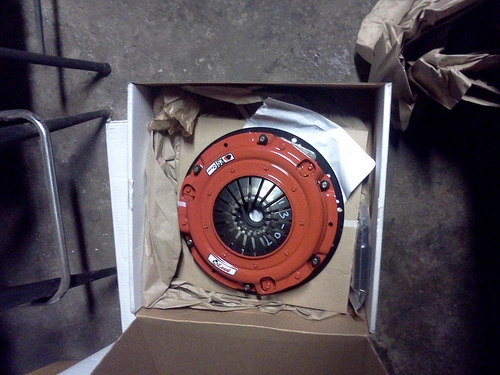

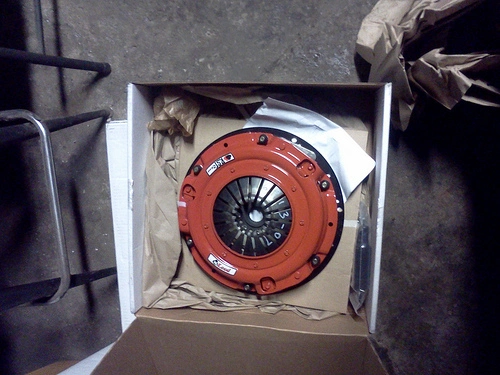

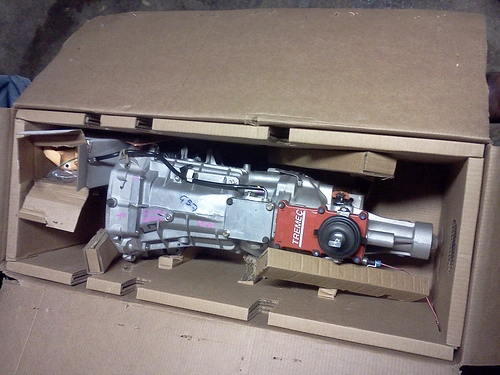

    Its been a while since my last update so I figured I should provide a little update. The below items just arrived from D&D to replace the current T-5 drive drain.





    - T-56 Magnum kit for the foxbody
    - Mcleod RST
    - Billet flywheel

    In addition me and my brother are redoing the center console.

    Alot more to come in the next few months.


    Attached Files:

  13. Dmarstroker

    Dmarstroker Member

    Joined:
    Aug 8, 2006
    Messages:
    117
    Likes Received:
    1
    Trophy Points:
    19
    Location:
    Vancouver, WA
    awesome, lookin REALLY good ! :nice:

  14. j0Hn10

    j0Hn10 Member

    Joined:
    Mar 25, 2003
    Messages:
    110
    Likes Received:
    1
    Trophy Points:
    18
    Location:
    Western NewYork

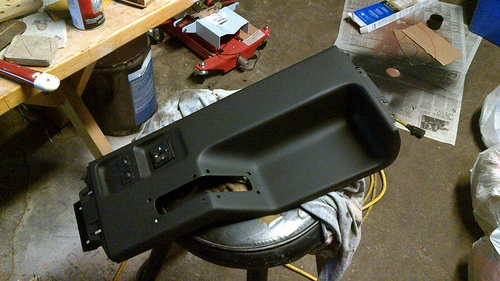

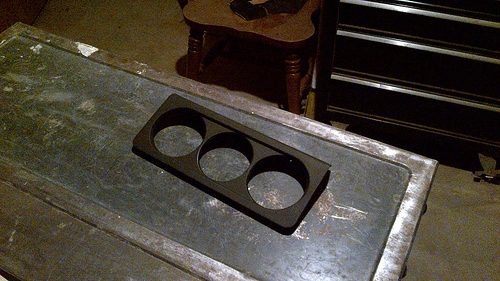

    While im waiting for the weather to get a bit warmer to put in the tranny ive decided to redo the center console to clean it up a bit.
