Brake lights not working??

Discussion in '1994 - 1995 Specific Tech' started by epurdy2005, Apr 27, 2008.


  1. epurdy2005

    epurdy2005 New Member

    Joined:
    Apr 3, 2004
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    1
    Found a second problem with my new stang...The brake lights don't work!..its a 1995 5.0 5 speed......Everything else works,turn signals,parking lights, but the bulb that does the brakes light doesn't work. I haven't done any testing yet accept checked the bulbs...Is there any common problem with these? I've looked at all the fuses and they all seem good.
    #1
  2. BlownFiveLiter

    BlownFiveLiter have car, will race....wait, it doesn't run

    Joined:
    Nov 30, 1999
    Messages:
    5,504
    Likes Received:
    25
    Trophy Points:
    88
    Location:
    Chicagoland
    Moved to 94-95 Tech.
    #2
  3. HISSIN50

    HISSIN50 "How long does it take to get help in here? SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,148
    Likes Received:
    13
    Trophy Points:
    79
    Check the BOO. Since the TS's work, we can assume the fuse is good (it controls the BOO and TS's as I recall).

    Does the 3rd brake light work? If it does, the BOO (and fuse) are ok. Power for the outer brake lights run through the MF switch, whereas power for the 3rd brake light does not. That's why knowing if the 3rd one works is important.

    If you have no brake lights at all, check in/out voltage at the BOO (be sure the switch is closed when you test output voltage).

    Good luck.
    #3
  4. toyman

    toyman SN Certified Technician

    Joined:
    Jul 20, 2007
    Messages:
    1,835
    Likes Received:
    41
    Trophy Points:
    49
    Location:
    Vernon BC
    Okay, what's a BOO and where is it located? If the OP knows I don't. TS I assume is the "Turn Signal" based on the context.

    Richard
    #4
  5. HISSIN50

    HISSIN50 "How long does it take to get help in here? SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,148
    Likes Received:
    13
    Trophy Points:
    79
    Sorry guys.

    BOO = Brake On/Off switch. It's standard nomenclature for our brake light switches (because it's monitored by the EEC, it's no longer simply called a brake switch).

    The switch is obviously on the brake pedal assembly.

    You got it with TS (my made up shorthand).

    MF = Multi-function switch, which is the turn signal switch. Because our tails and brakes share bulbs, the brake light wiring for the body brake lights [not the 3rd one] go through the MF switch.
    #5
  6. epurdy2005

    epurdy2005 New Member

    Joined:
    Apr 3, 2004
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    1
    Thanks for clarification of the boo.......On my brake pedal there is the switch that comes out when the brake is pushed which looks okay and then theres something else on there with electrical wires going to it closer to the floor on the brake pedal. What is it? It had some electrical tape on it so maybe somebody has messed with it....I also found a purple neon while I was down tehre which I took out. And no the third brake light isn't working either...Thanks!
    #6
  7. bigplansnomoney

    bigplansnomoney New Member

    Joined:
    Dec 11, 2007
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Richmond, Virginia
    I would assume maybe the wires went to some TRICK ASS neon racing pedals the previous owner may have had to accent his homo purple neons. Where does the other end of that wire run.

    Try replacing that brake on/off switch first. If the third brake light functions, your Multifunction should be functioning correctly.
    #7
  8. HISSIN50

    HISSIN50 "How long does it take to get help in here? SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,148
    Likes Received:
    13
    Trophy Points:
    79
    Again, check in/out voltages at the BOO.
    #8
  9. davis3

    davis3 Active Member

    Joined:
    May 7, 2006
    Messages:
    1,328
    Likes Received:
    48
    Trophy Points:
    49
    Location:
    CA

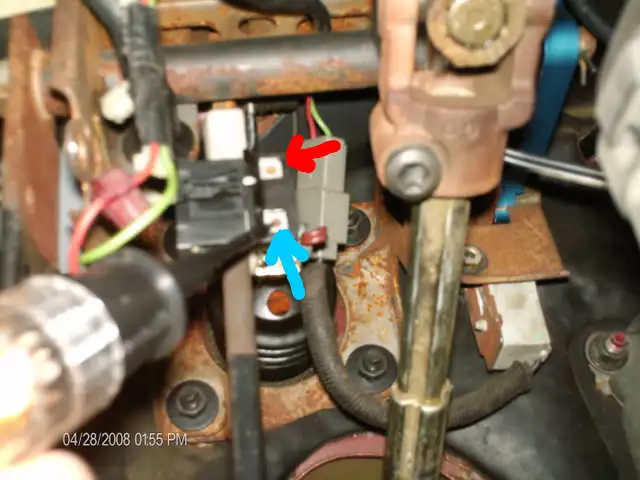

    to check BOO

    #1.using test light,touch terminal at BLUE arrow with pedal in normal position.if test lights illuminate.switch is receivlng power.if no power here,check wiring to the BOO switch,also check fuse #9 under dash,should be 15 amp fuse.

    #2.press brake pedal down,touch test light to RED arrow.if light illuminates,switch is working.

    #3.if switch works,problem is most likely in the wiring.your going to need a wiring diagram,but im sorry i dont have one.
    [​IMG]

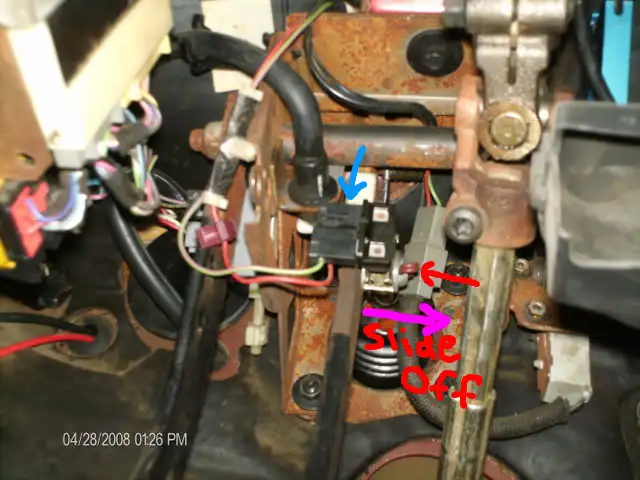

    If switch needs to be replaced.

    #1.disconnect wiring,BLUE arrow

    #2.pull out brown pin,RED arrow.

    #3.slide out in direction of PURPLE arrow.make note of the position of the plastic washer and bushing.

    #4.install is reverse of removal.
    [​IMG]
    #9
  10. StadEMS3

    StadEMS3 Member

    Joined:
    Jun 19, 2003
    Messages:
    170
    Showcase:
    14
    Albums:
    1
    Likes Received:
    1
    Trophy Points:
    19
    Location:
    Mechanicsville, MD
    I had a similar issue, I kept blowing the brake light fuse when I pressed the clutch pedal. It turned out that my Steeda aluminum quadtrant wore a small hole in the brake wire. It wouldn't blow the fuse if it was just quickly pushed in for shifting, just when held to the floor grounded it out long enough to blow. What a troubleshooting nightmare that was.
    #10
  11. toyman

    toyman SN Certified Technician

    Joined:
    Jul 20, 2007
    Messages:
    1,835
    Likes Received:
    41
    Trophy Points:
    49
    Location:
    Vernon BC
    I'm curious. How did all that rust get there when you live in Fresno?

    My car spent the first 8 years on the West Coast and it's totally rust free on the underdash metal pieces.
    #11
  12. davis3

    davis3 Active Member

    Joined:
    May 7, 2006
    Messages:
    1,328
    Likes Received:
    48
    Trophy Points:
    49
    Location:
    CA
    the clutch pedal assembly is from a wrecked 94 GT i bought for the aode to T5 swap.it was sitting in the mountains in for almost 2 years in a very moist,grassy field before i bought it
    #12
