Build pics, TFS headed 2v turbo car

Discussion in '1996 - 2004 SN95 Mustang -General/Talk-' started by jtcstrat1, May 10, 2010.

  1. jtcstrat1

    jtcstrat1 Member

    Joined:
    Apr 1, 2009
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Waterford MI
    Car is an 02 gt, it put down 512 on race gas on a mustang dyno, built motor, stock heads, maxed out vortech v1 s trim

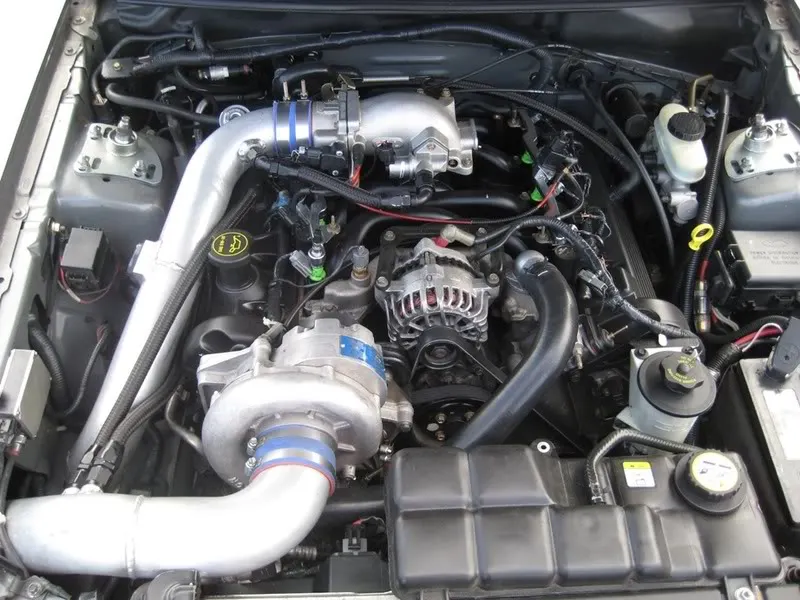

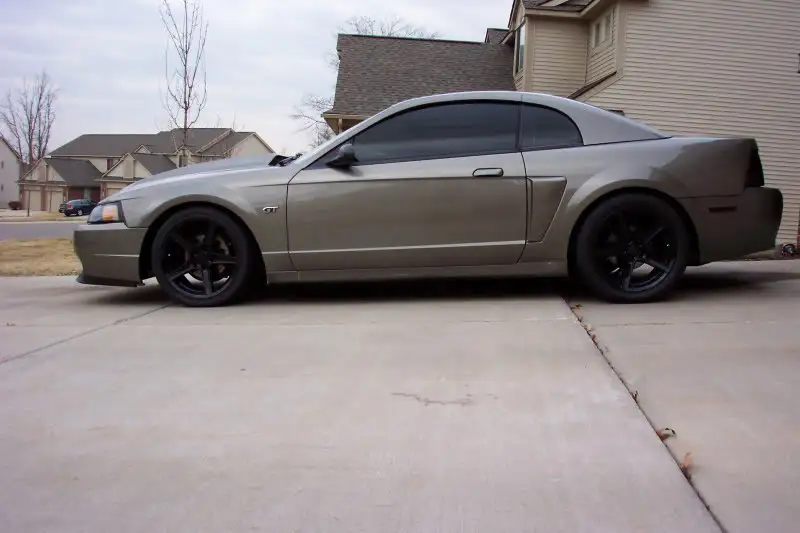

    old set up:

    [​IMG]

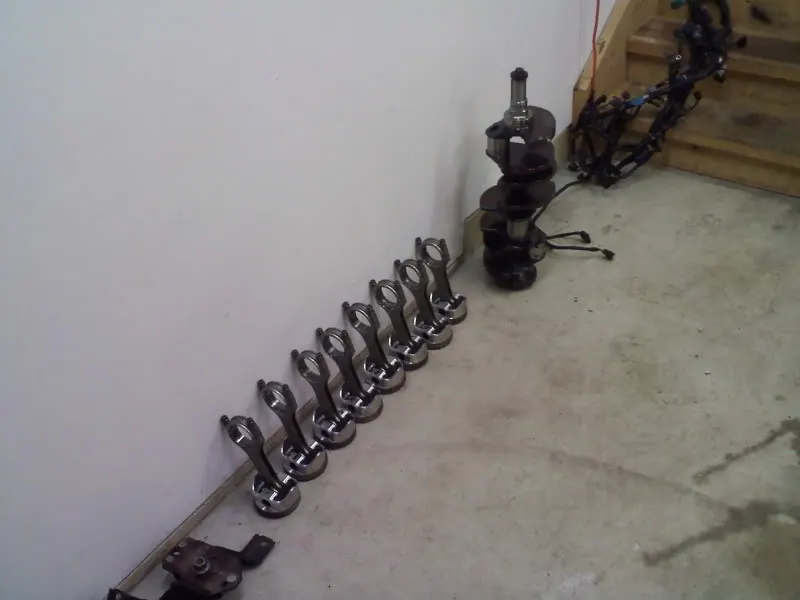

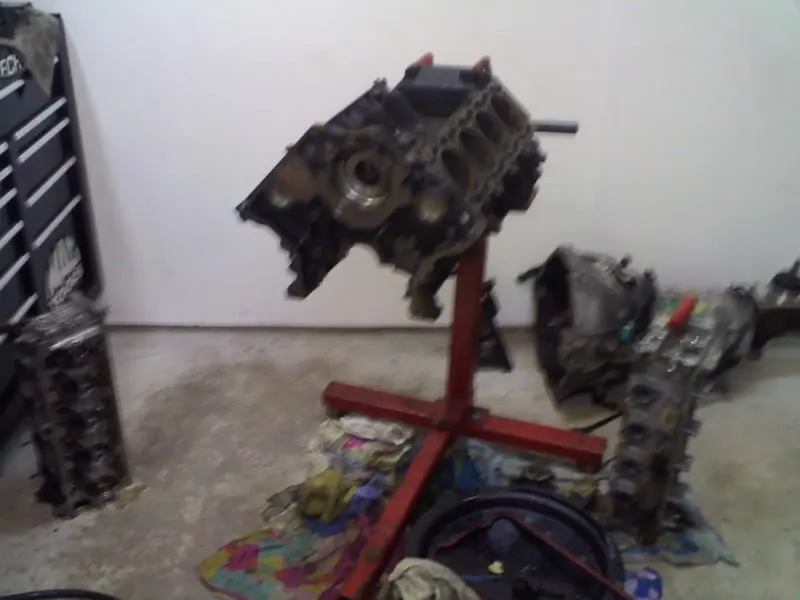

    the car shattered the oil pump so i yanked the motor and decided to go a diff route. car is now a built 302 tekid stroker, tfs 2v heads, cams, return system, single turbo, built t56, yada yada car

    here are some pics from day one, enjoy.

    [​IMG]

    [​IMG]

    [​IMG]

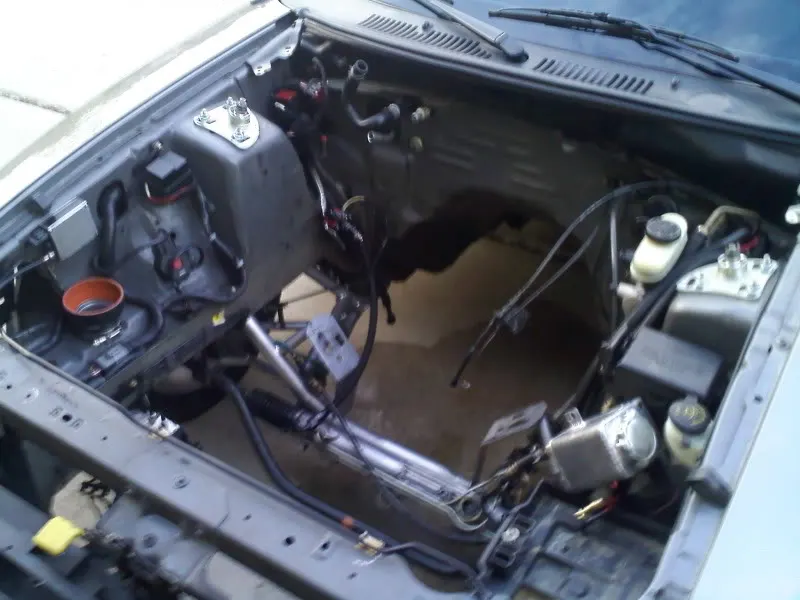

    bye bye rustang..

    [​IMG]

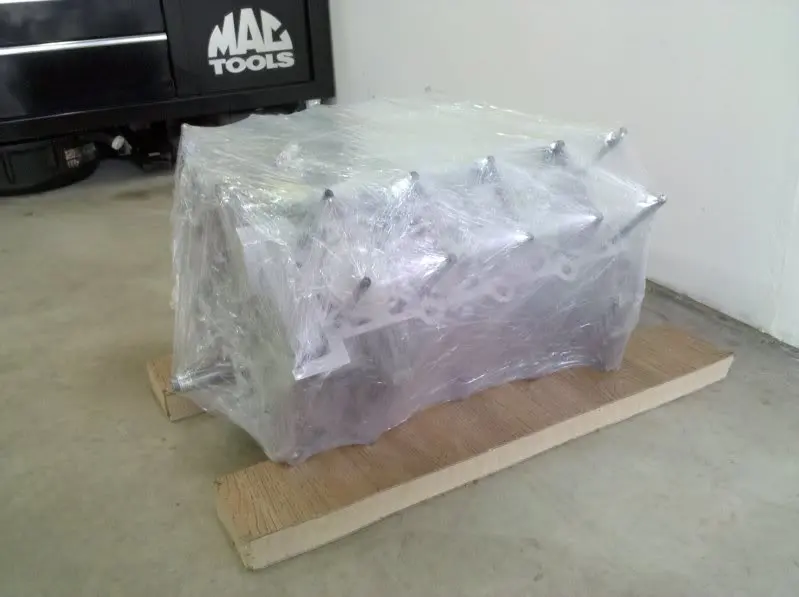

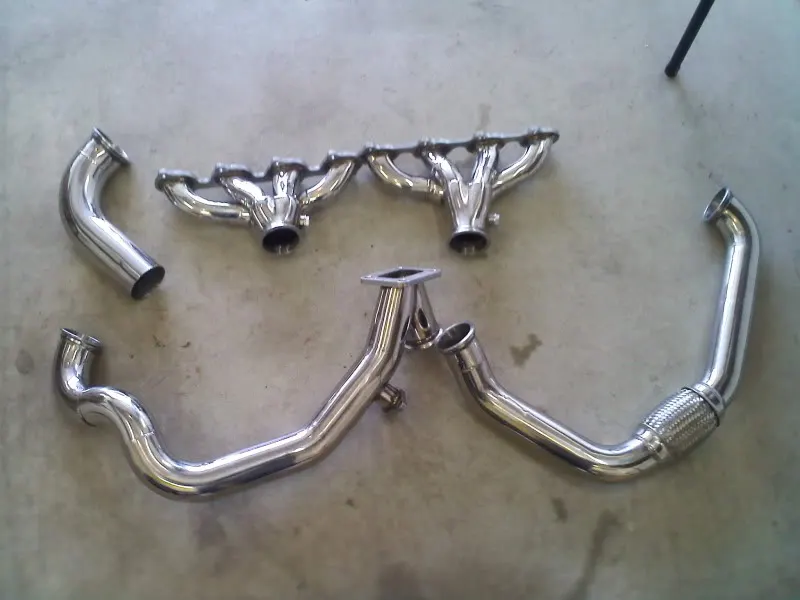

    new stuff :)


    [​IMG]

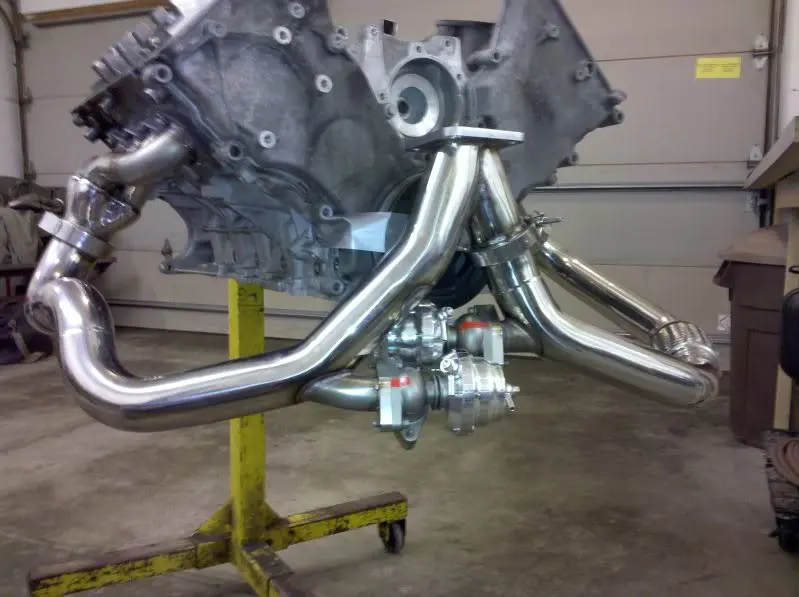

    modifying turbo 4v headers to 2v

    [​IMG]

    [​IMG]


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

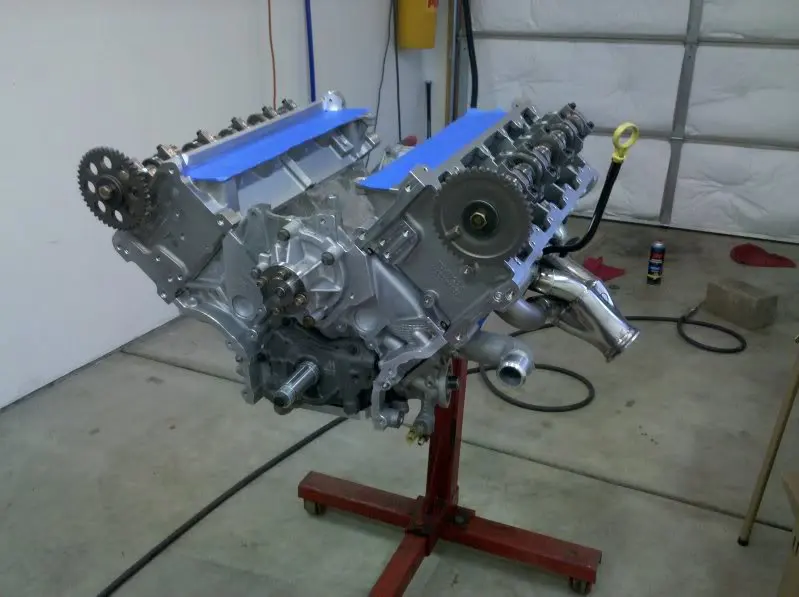

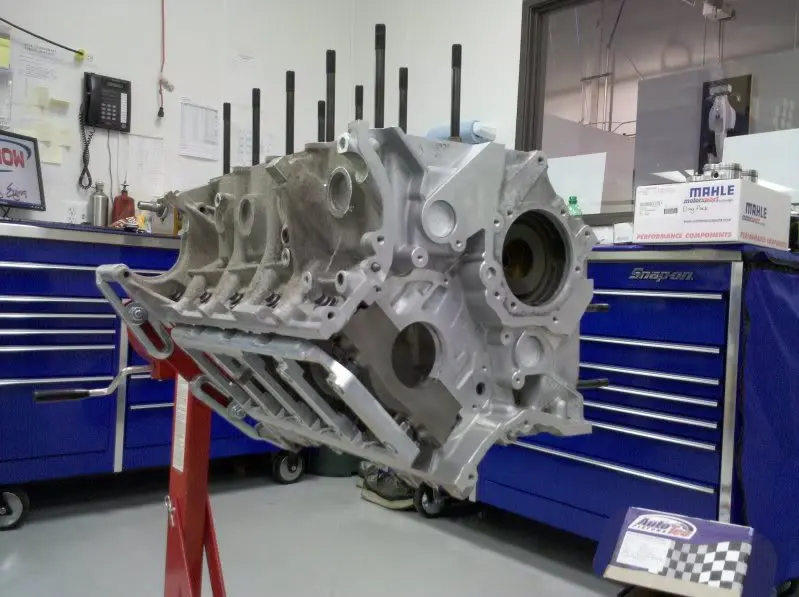

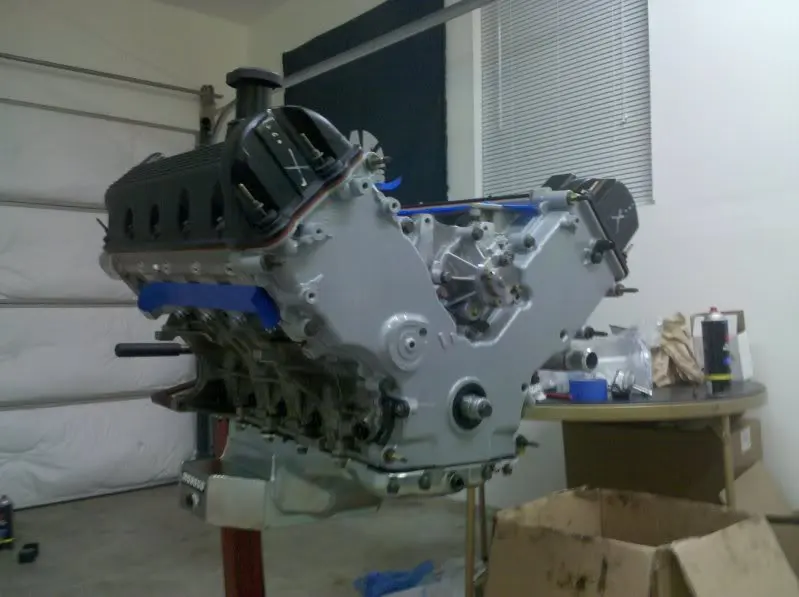

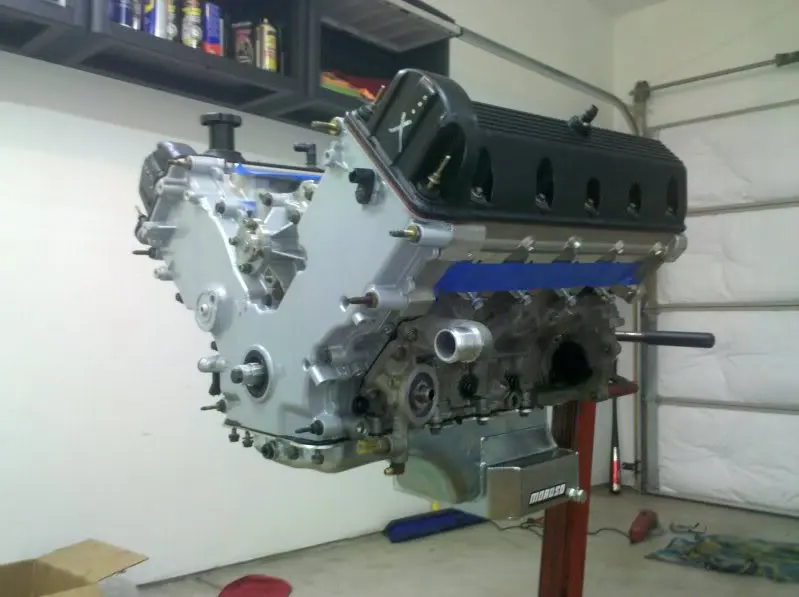

    new motor

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

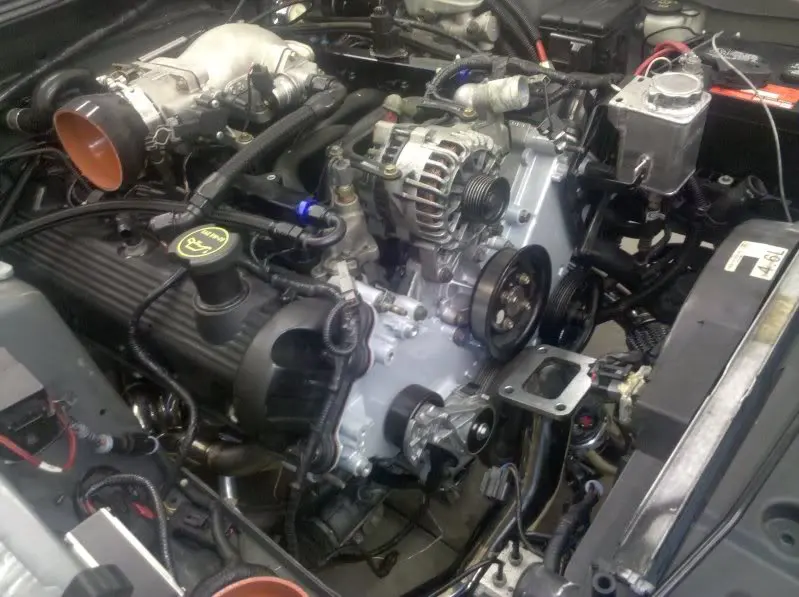

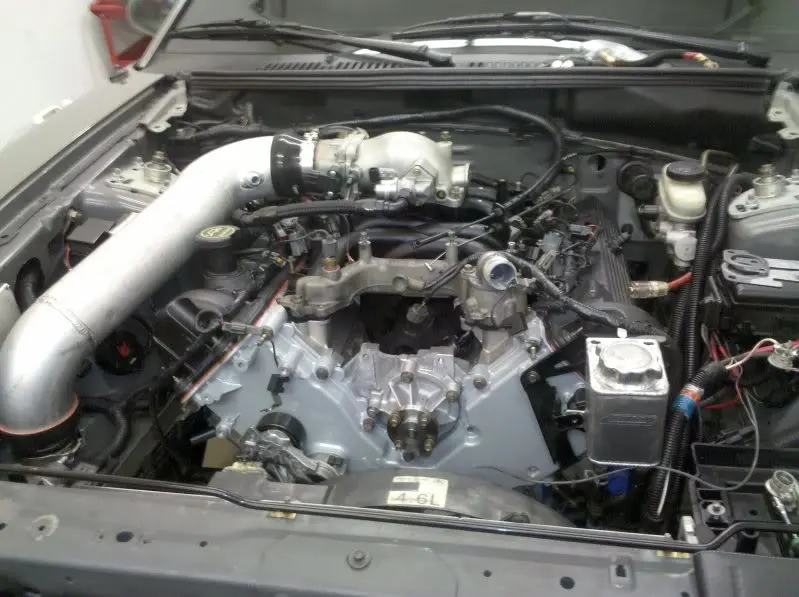

    back in the car

    [​IMG]


    [​IMG]

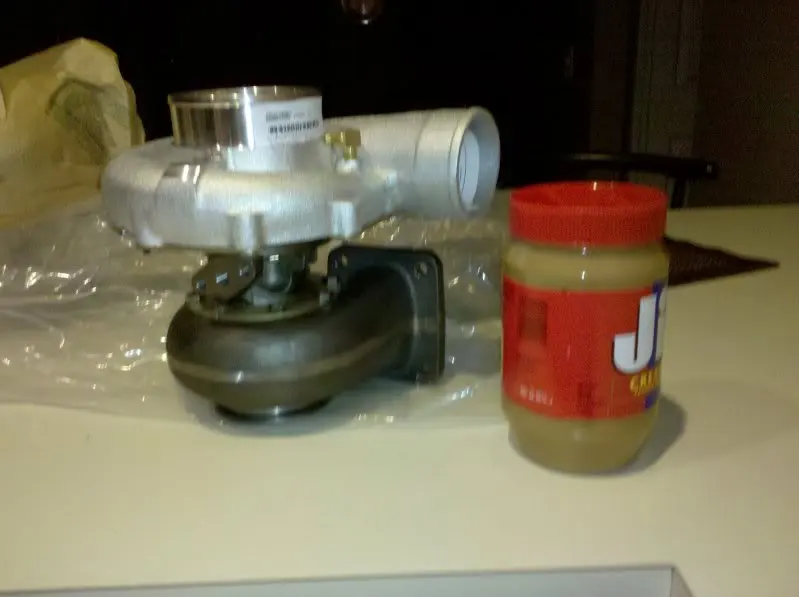

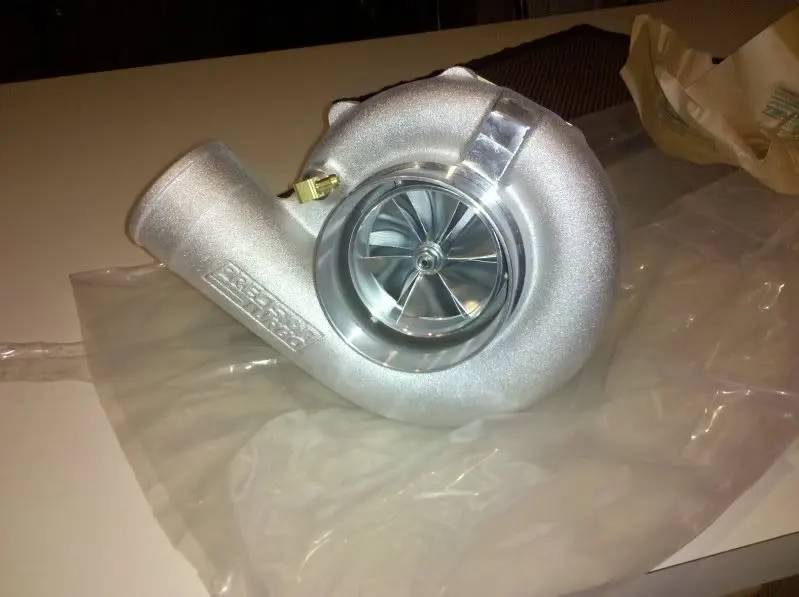

    new billet wheel turbo

    [​IMG]


    [​IMG]

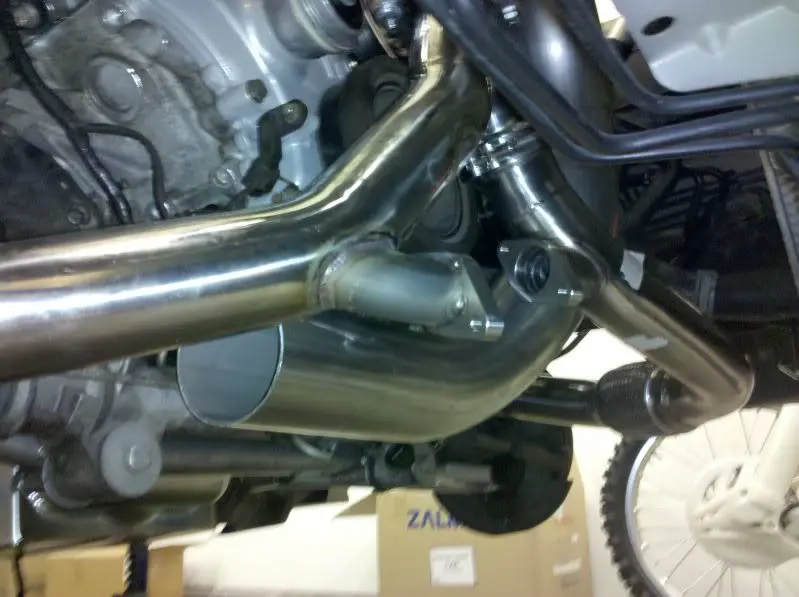

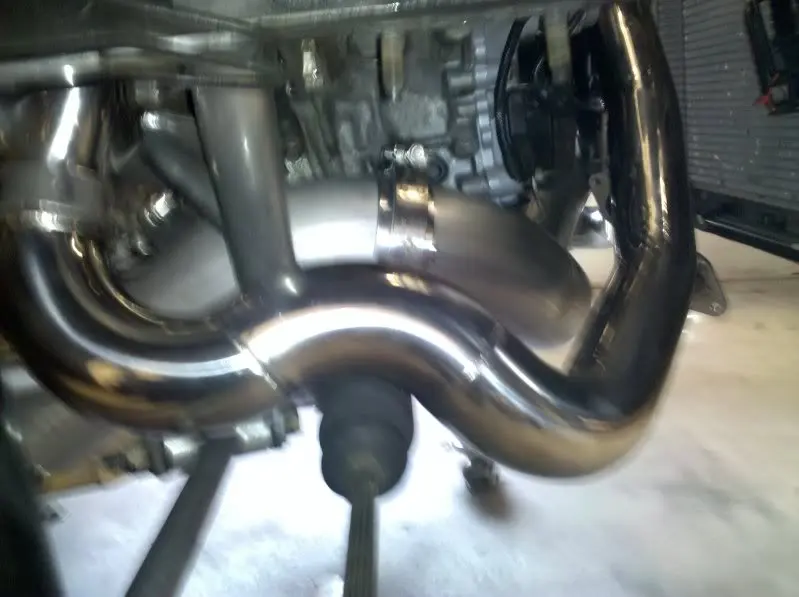

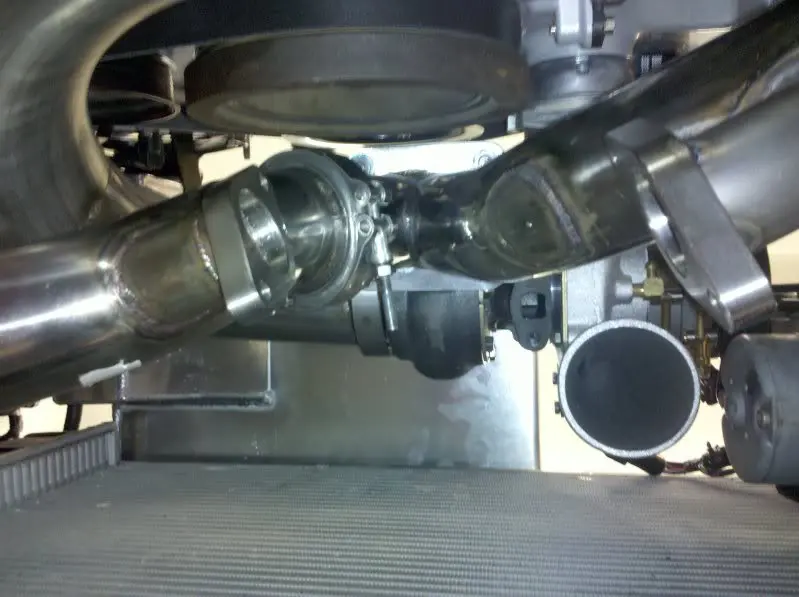

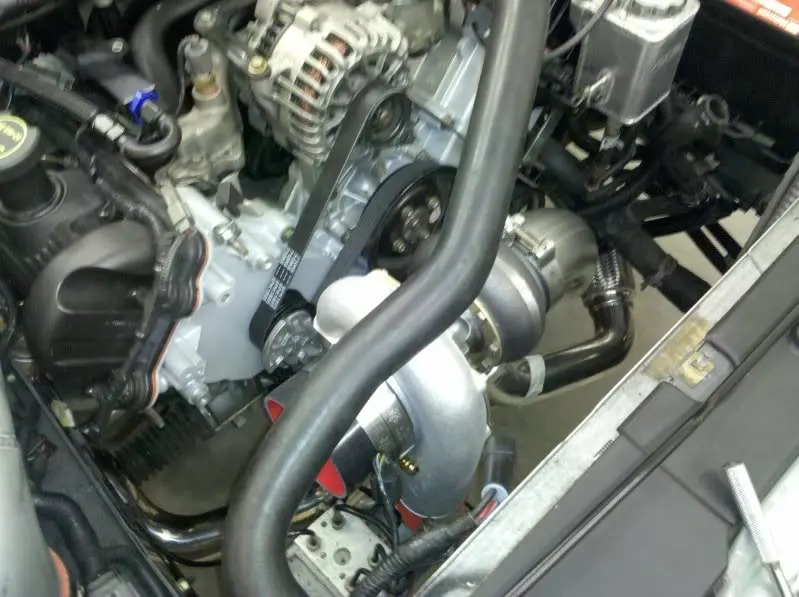

    finishing the hot/cold side, down pipe, exhaust, ect

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Everything will be stuffed in this car:

    [​IMG]

    [​IMG]

    [​IMG]

    #1
  2. eliteJAE

    eliteJAE Member

    Joined:
    May 29, 2007
    Messages:
    531
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Stanford University
    Absolutely SICK :drool:

    that stance is sick, what springs/shocks are you using?

    #2
  3. d98gt

    Founding Member

    Joined:
    Mar 14, 2002
    Messages:
    4,795
    Likes Received:
    125
    Trophy Points:
    104
    Location:
    SE Texas
    Awesome looking vehicle :nice:

    #3
  4. Niterydr85

    Niterydr85 Member

    Joined:
    Apr 25, 2005
    Messages:
    175
    Likes Received:
    1
    Trophy Points:
    18
    Location:
    Pasadena, Maryland
    wow holy crap thats awesome.

    #4
  5. jtcstrat1

    jtcstrat1 Member

    Joined:
    Apr 1, 2009
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Waterford MI
    front is upr k member, upr a arms, upr coil overs with eibach springs, upr caster camber plates. rear is granatelli double adjustable lowers, upr uppers, eibach springs with strange 5 way adjustables.

    thanks guys

    #5
  6. 1991notchbackLX

    1991notchbackLX Active Member

    Joined:
    Dec 25, 2007
    Messages:
    1,625
    Likes Received:
    50
    Trophy Points:
    48
    Location:
    New York
    HOLY GOD that's awesome. Sick car!

    Are you selling the old S-Trim setup? PM me if you are. :nice:

    #6
  7. Tanus

    Tanus New Member

    Joined:
    Dec 11, 2009
    Messages:
    924
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    A to the Z
    nice, great color, no spoiler ftw

    I think I just saw those hot parts on ebay for cheap, how's the fitment?

    #7
  8. SjStang00

    SjStang00 Member

    Joined:
    Feb 20, 2008
    Messages:
    160
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Florida
    car is f***ing raw, both power-wise and look-wise. you goin to wreck everyone in your path!

    #8
  9. EvilTurkey

    EvilTurkey New Member

    Joined:
    Sep 13, 2009
    Messages:
    111
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Philadelphia, PA
    I want that old setup too lol. PM me as well =P

    #9
  10. SteedaGT9150

    SteedaGT9150 Advanced Member

    Joined:
    Nov 10, 2004
    Messages:
    2,314
    Likes Received:
    98
    Trophy Points:
    68
    Location:
    Maryland
    fawking saweet!

    #10
  11. Red35th

    Red35th Member

    Joined:
    Apr 18, 2003
    Messages:
    622
    Likes Received:
    2
    Trophy Points:
    19
    Location:
    Houston, TX
    That is going to be amazing when it's finished. Post details on the turbo kit (how much did you have to modify the flanges).

    #11
  12. CatmanJJ

    CatmanJJ Captain Tangnet

    Joined:
    Feb 5, 2002
    Messages:
    4,567
    Likes Received:
    0
    Trophy Points:
    66
    Location:
    Maryland
    Geebuz, that's pretty sweet.

    #12
  13. tank_567

    tank_567 Active Member

    Joined:
    Mar 20, 2007
    Messages:
    741
    Likes Received:
    26
    Trophy Points:
    29
    Location:
    Raleigh, Nc
    sweet setup, what size turbo is that? Im running a 62mm precision turbo... well at the end of this week anyway:D

    also whats with the two wastegates? I know my precision 38mm can hold up to around 25lb of boost, how much boost are you going to run?

    #13
  14. jtcstrat1

    jtcstrat1 Member

    Joined:
    Apr 1, 2009
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Waterford MI
    Sry guys the old s trim was already sold.

    Thanks for all the kind words

    The turbo is a precision 76hps billet wheel .81a/r, the kit actually fit really good for what it was. Nothing against hellion or hp ect but I feel its crazy to pay 4k for their piping, I spend 200 on this kit. And it came with headers. It is thinner metal so their hotside might crack, but I can rebuild it and use it as a template. So for 200 I got headers and a decent template to work from, well worth imo if u have good fab skills. The headers were converted to 2v flanges, that's was a bit hard but I knew it would be. I will explain more later on that

    As for the wastegates, I didn't like the location the kit came with, and its a lot better to run one for each side, holds boost better, better for the kit/turbo. I'm only gonna run a low pump gas tune and proly 18 to 20 lbs on race gas, its mainly a street car

    #14
  15. 32ValveRom

    32ValveRom Member

    Joined:
    Feb 15, 2009
    Messages:
    528
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Fl
    Damn, bro. This has to be one of the sickest series of pics I've seen in awhile

    #15
  16. Tanus

    Tanus New Member

    Joined:
    Dec 11, 2009
    Messages:
    924
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    A to the Z
    I totally agree, the ebay/china stuff has a bad rap , but like you said its a good starting point, can replace/upgrade parts as they break or funds allow. Hopefully have mine boosted this summer, only looking to run like 6-8 psi

    #16
  17. jtcstrat1

    jtcstrat1 Member

    Joined:
    Apr 1, 2009
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Waterford MI
    yes, their kits are really nice, but i just didnt feel like spending that kind of money, these headers are a copy of HP or HPPs old shorty turbo headers. Hellion uses stock manifolds, yes you can make good power with stock manifolds but if im building a car, to this extent, its gonna get headers lol. Only worried about the kit cracking due to flexing, i am in the process of designing a brace to help this issue. I am going to cut the flex coupler out of the kit and that should help with this issue, plus mounting a tab to bolt to the bottom of the timing cover, off of the down pipe to help with support, a mixture of these things should help with cracking. No guarantees, but we will see.

    I also see kits out there using mile steel or aluminized steel, both will rust and cause just and many problems as cracking and look like ****. The best option is building it from scratch with good materials. The entire coldside and hot side is built from scratch with good materials except the 2 merging pipes. so as i stated above, worst comes to worst i rebuild those 2 sections. it was worth the $200 imo.

    I was very pleased with the fitment to be honest. I am running a UPR tubular k member and no ac. the kit is designed to run the down pipe on the drivers side, it says you cant have ac and can keep your power steering, which i did. but i dont see any possible way to run the down pipe on the drivers side, thats why it wraps back around to the passenger side.

    They only complaints i have is my kit did not come with vbands like it was suppose to, and its been a PITA to try and deal with the company i got the kit from, very poor customer service, Time reaction out of California. IF any of you have worked with vbands/flanges you know they are all designed together, you cant really put a vband from one kit on a different flange. so i think i found ones that will work for now, and hoping it will not leak. but again, worst comes to worst i will rebuild it with new bands/flanges.

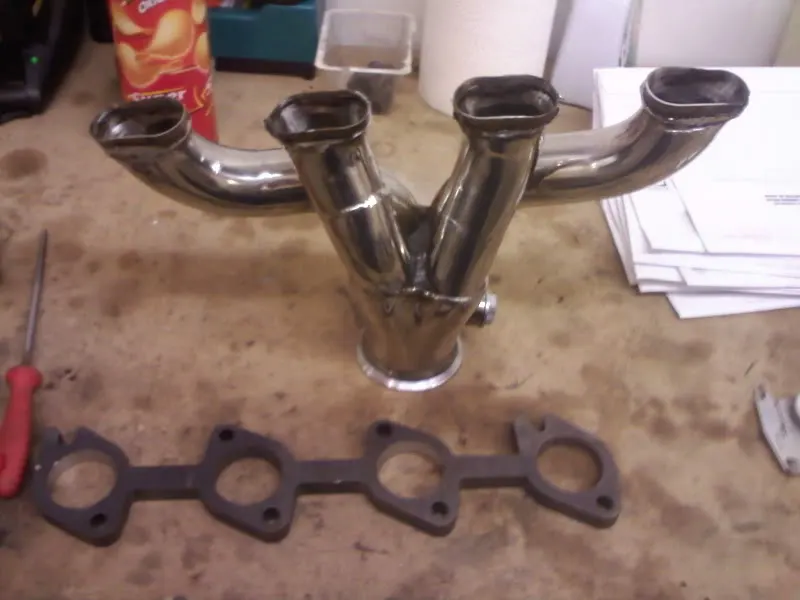

    here is a pic of how i modified the headers from 4v to 2v, while keeping the entire kit in the same location.

    We made a brace to hold the entire kit in the same location relative to the motor, while being able to unbolt the headers. (if this makes sense) Once the brace was bolted on the flange we could remove the headers and modify them without loosing the location of the kit to the motor. 4v flanges are oval, 2v is circle, so we cut each primary back where the tube returned back to circle, then added in new circle tubing back up to the new flanges. it was a PITA, have to be very careful that doing this doesnt throw off the way the kit sits in the engine bay, as it only had a 1/2" clearance from the flange to the water pump pulley. and be careful to double check after every weld thats put down because it starts to pull the metal.

    sry, i tried to explain it the best i could, here are some pics to help.

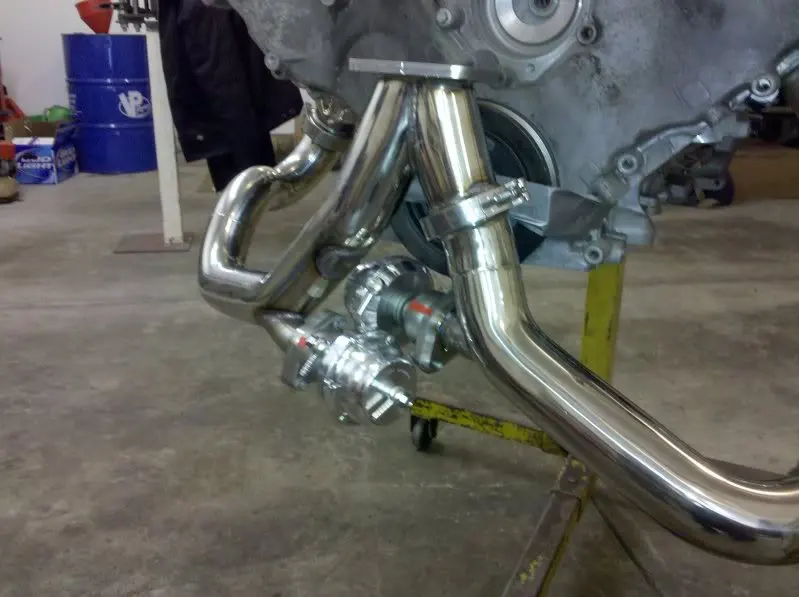

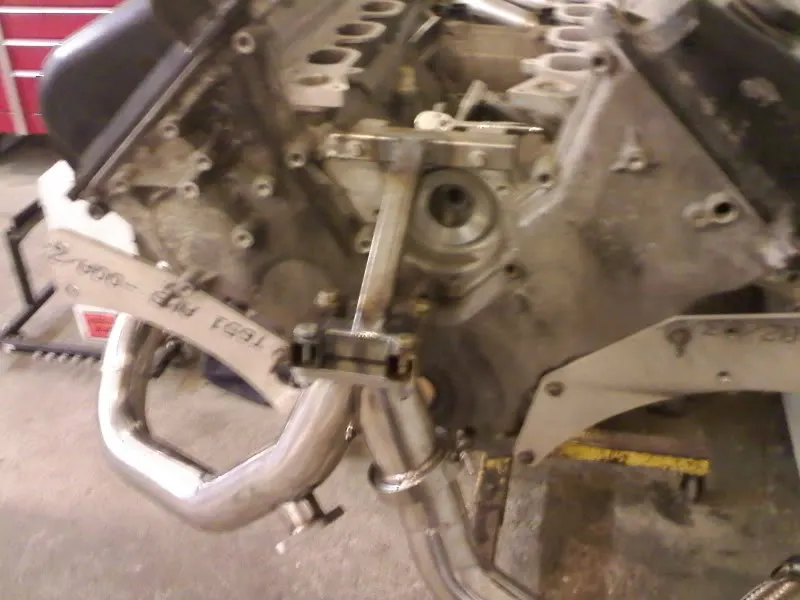

    Pic of the mount we made to keep the kit stationary as we took the headers off

    [​IMG]

    here is a pic of the new 2v flanges

    [​IMG]

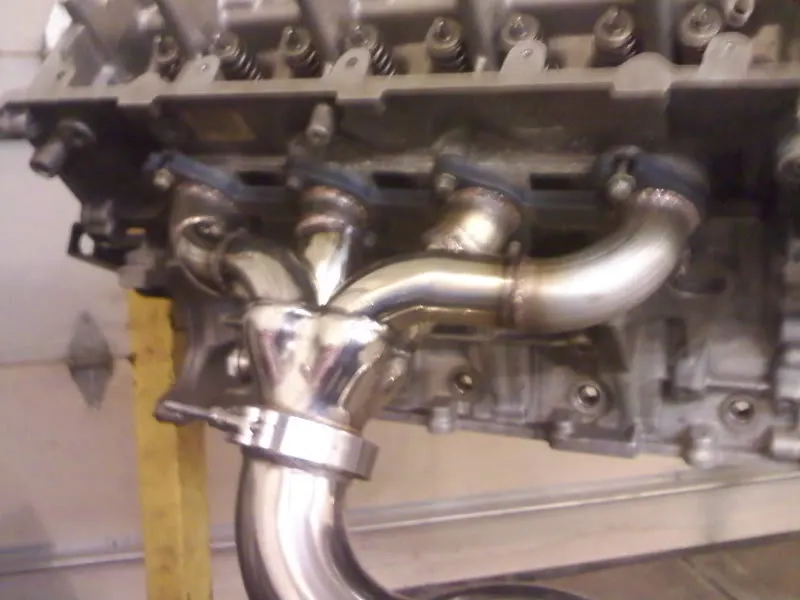

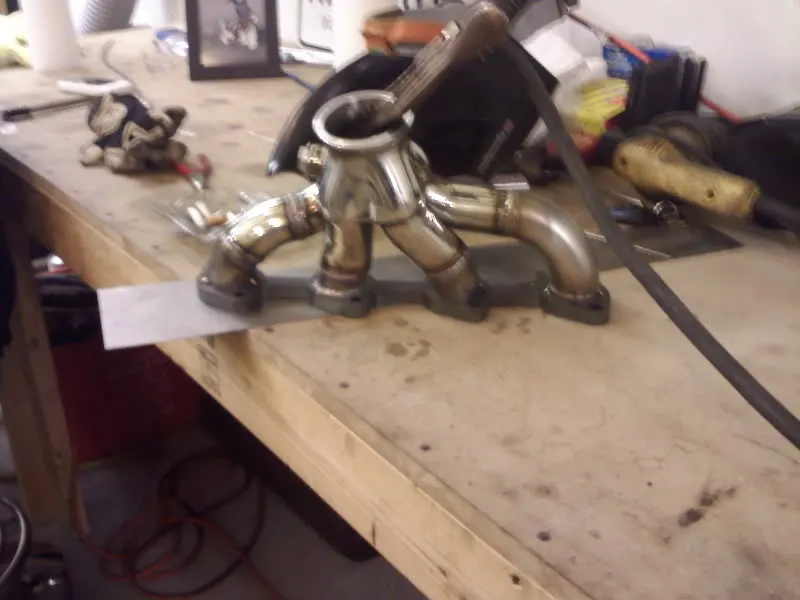

    here is a pic of the compleated header, as you can see, the shiny metal is the kit, the dull metal is the new tubing we welded in, where shiny meets dull metal is where each primary returned back to circle from oval, where we spliced each new piece in.

    [​IMG]

    #17
  18. jtcstrat1

    jtcstrat1 Member

    Joined:
    Apr 1, 2009
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Waterford MI

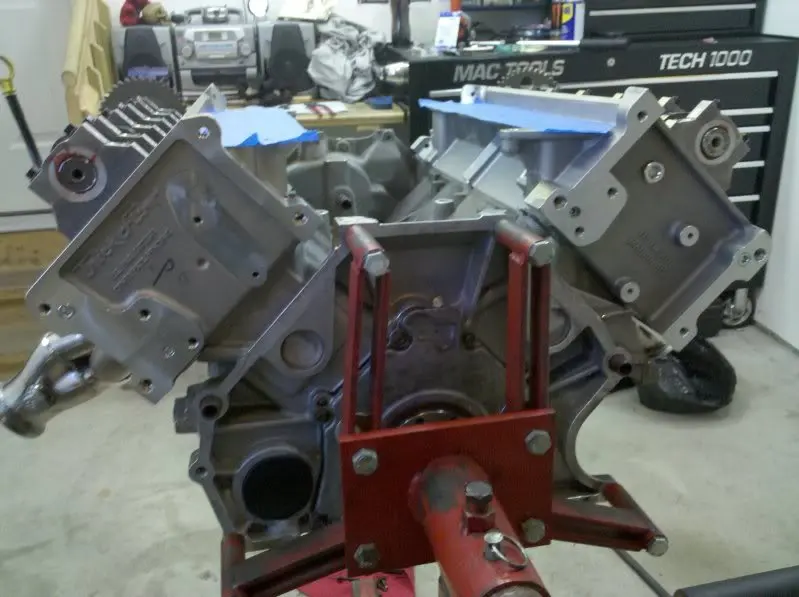

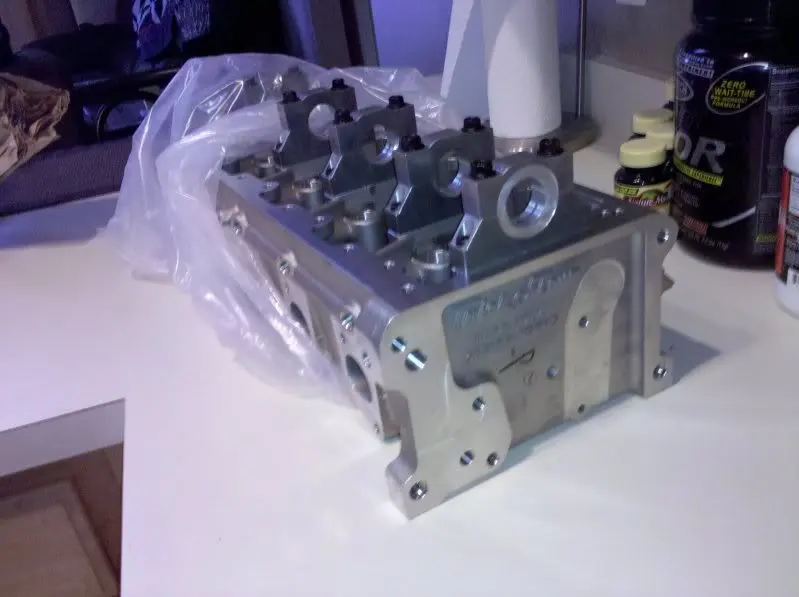

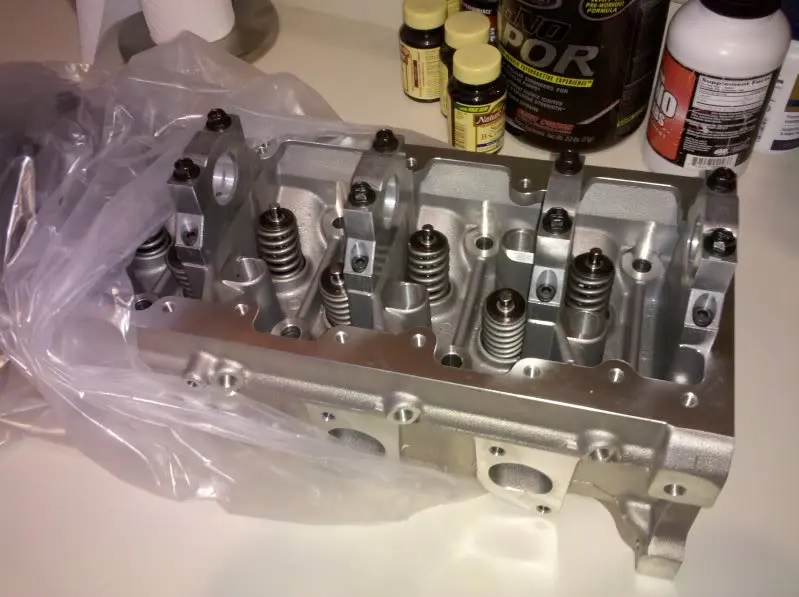

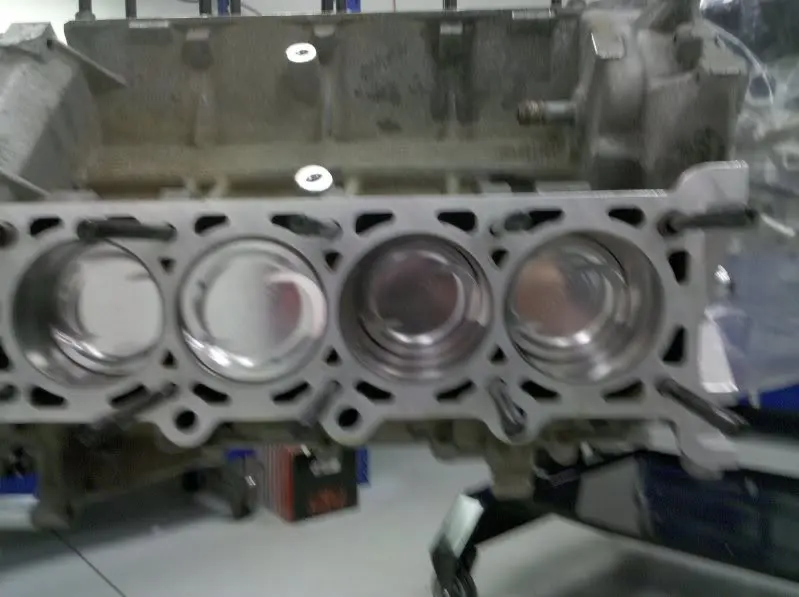

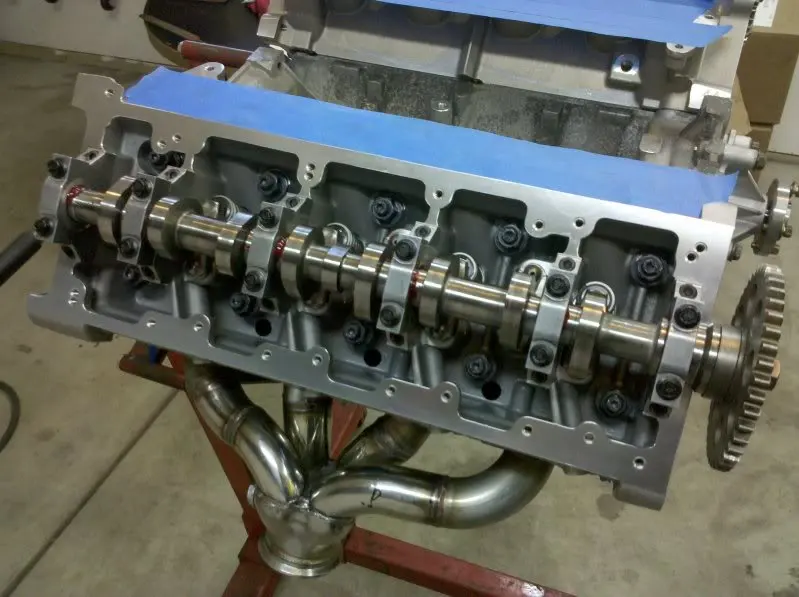

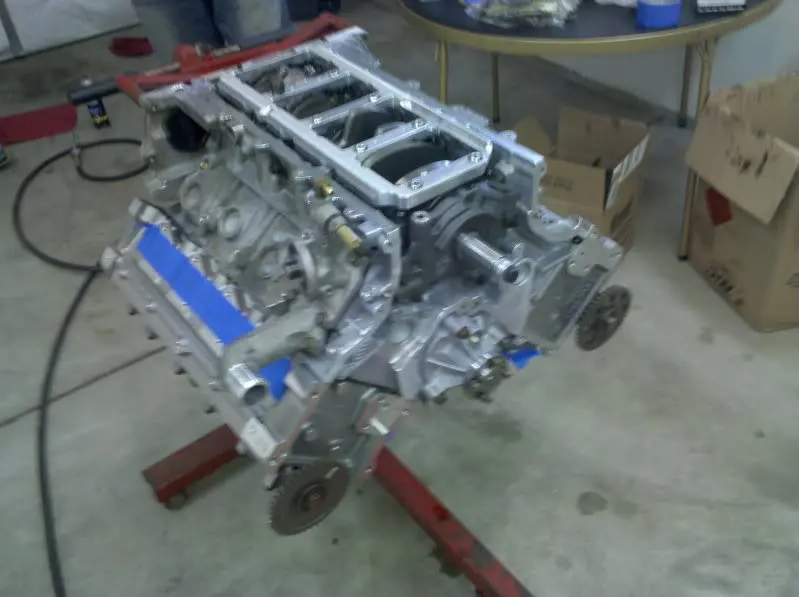

    A few more pics of the engine build, new tfs heads ect

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    #18
  19. jtcstrat1

    jtcstrat1 Member

    Joined:
    Apr 1, 2009
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Waterford MI

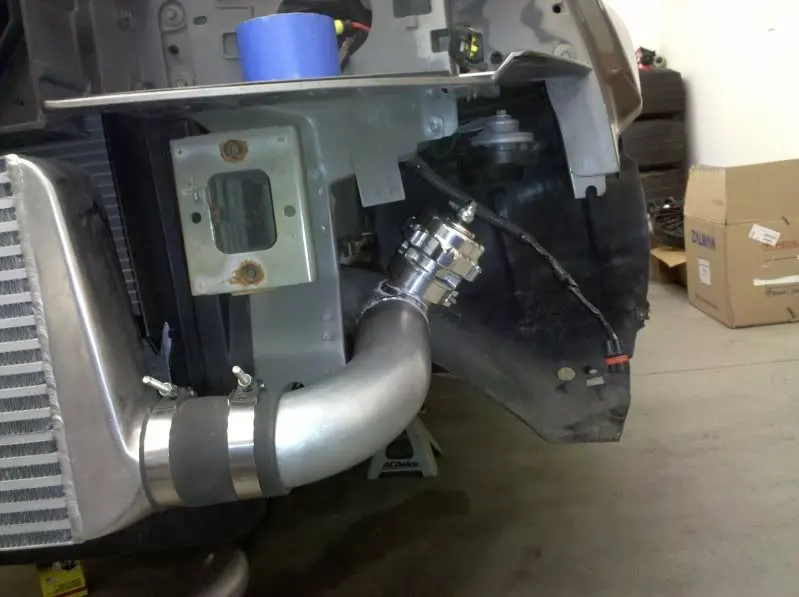

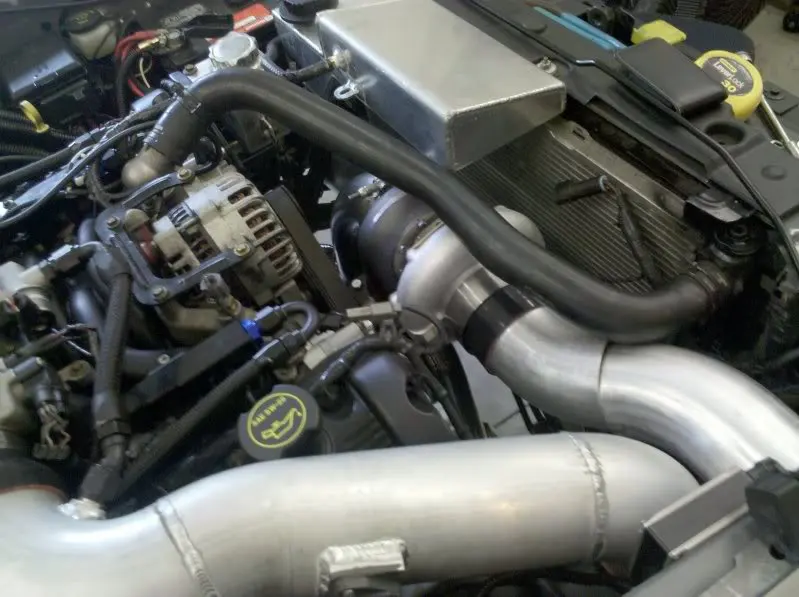

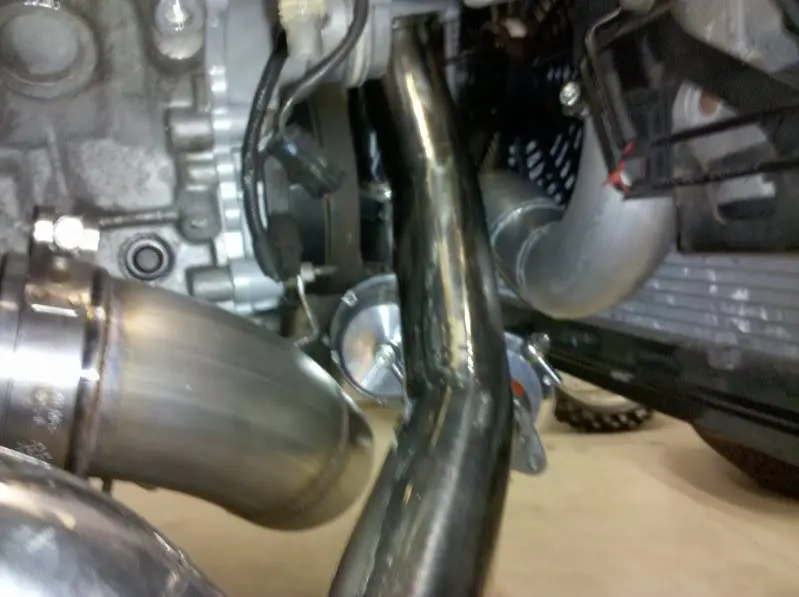

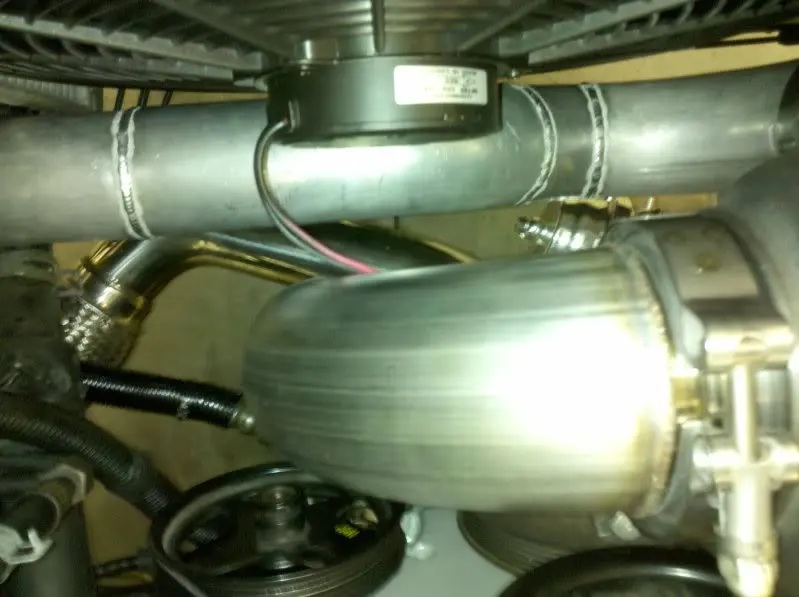

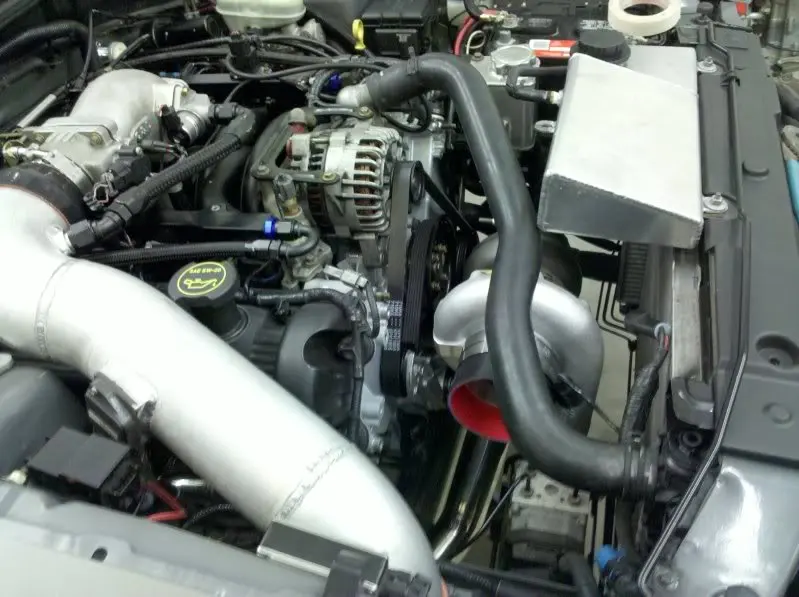

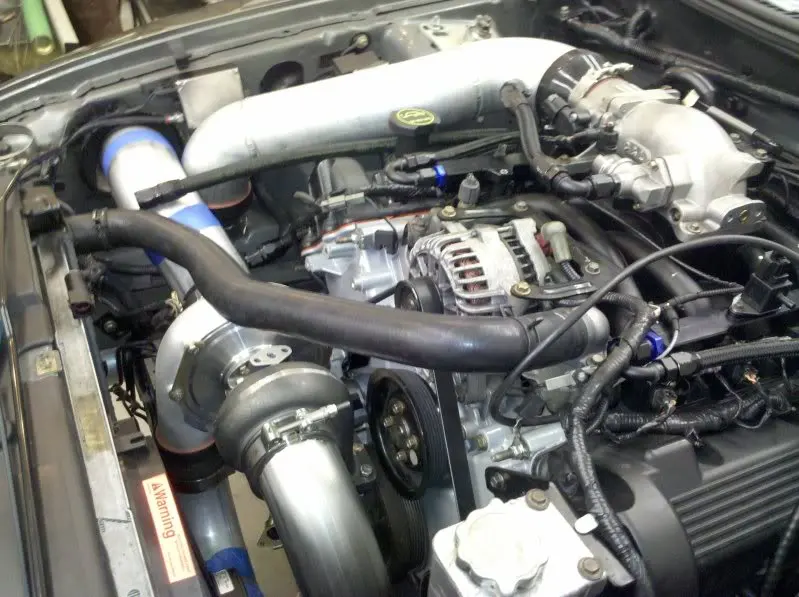

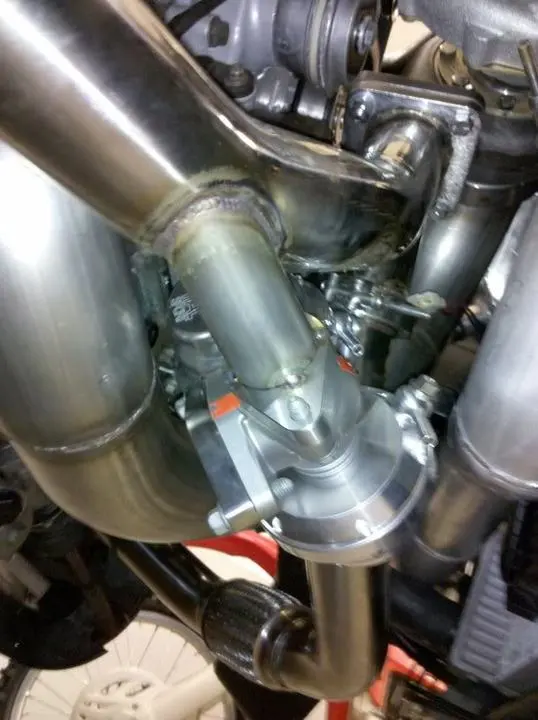

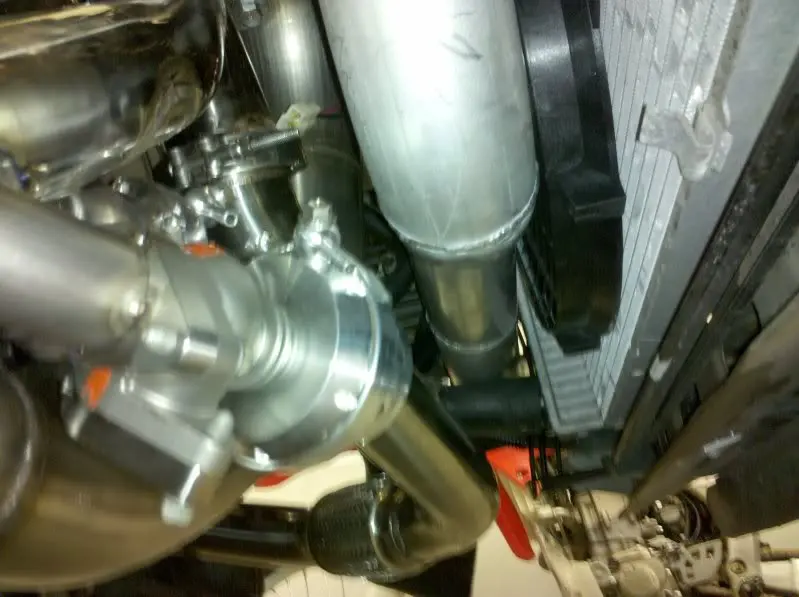

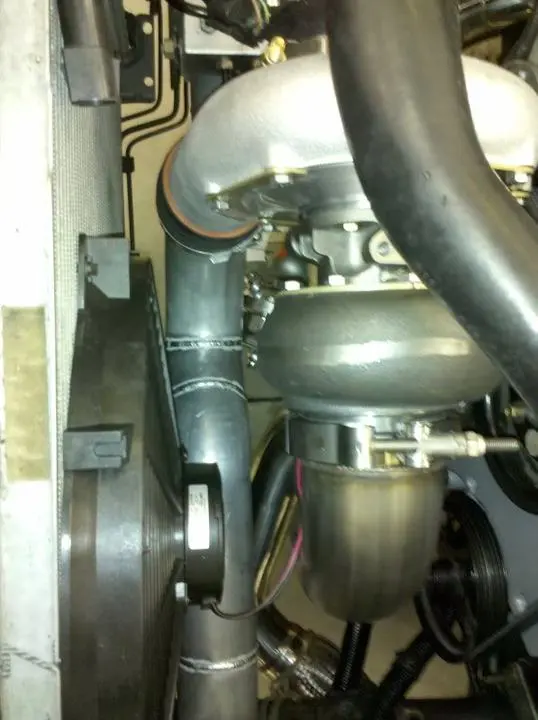

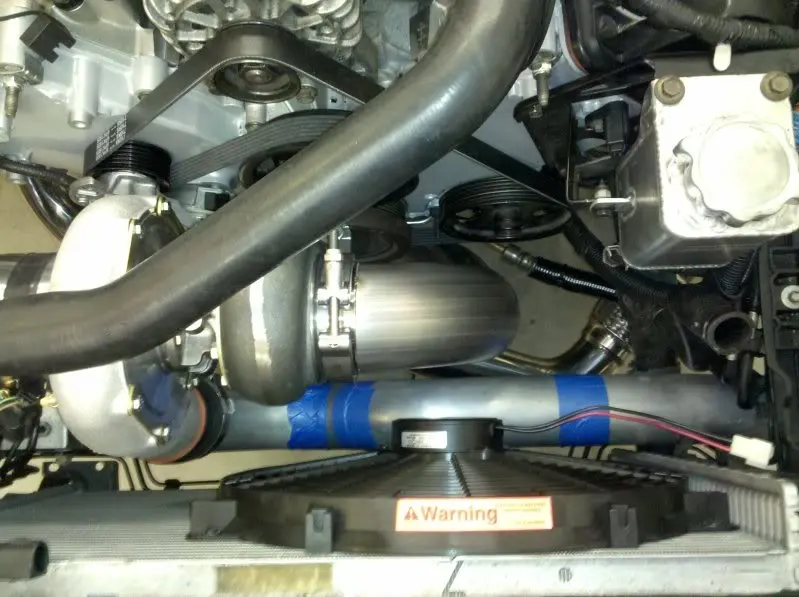

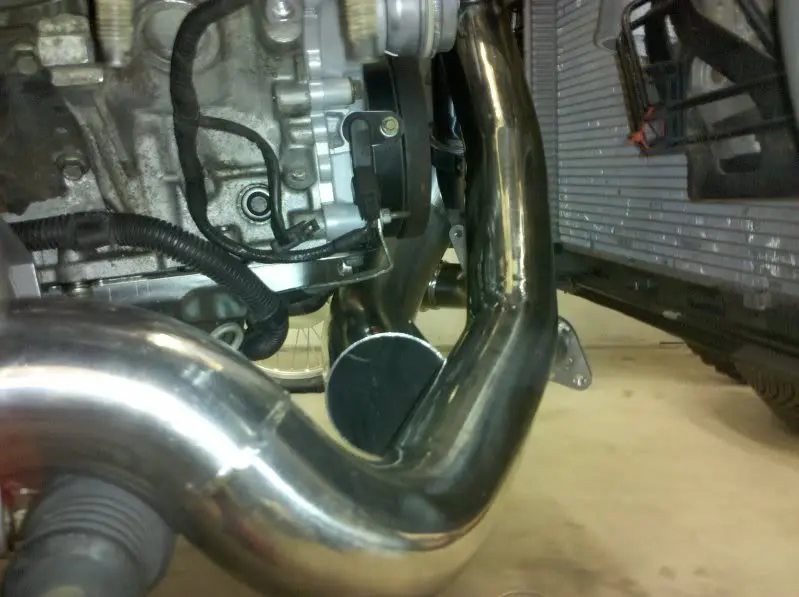

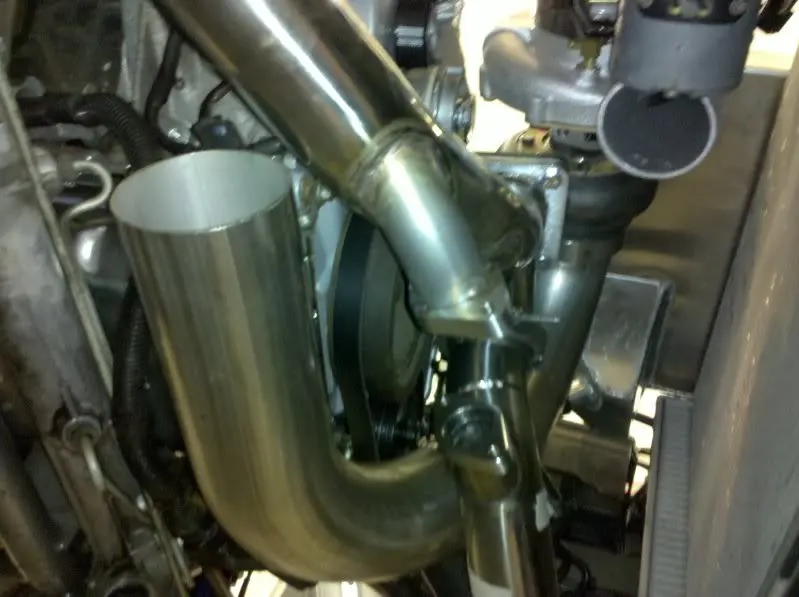

    Just a few more, finishing up the tubing, cold side is done, down pipe is done, need to route the wastegate piping back into the down pipe, modify the merge a bit and finish up the exhaust all the wat back in aluminum

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    #19
  20. bakos24

    bakos24 I find there is nothing better than a tasty wiener

    Joined:
    Nov 30, 1999
    Messages:
    4,623
    Showcase:
    4
    Albums:
    1
    Likes Received:
    477
    Trophy Points:
    134
    Location:
    Austintown, OH
    :drool::drool:


    Oh man, that is nice! Keep us updated......:nice:
