my battery light came on couple days ago and i replaced my alternator with a rebuilt one ..it was running good for a couple more days and all of a sudden my volt meter dropped and battery light came back on... So screw it i bought a new alternator now my battery light is off but its only charging 11.67 volts i checked the two plugs that go to the alternator and there are fine.... anyone has any ideas?? thanks

  • Sponsors (?)


Alternator troubleshooting for 86-93 5.0 Mustangs:

Never, never disconnect an alternator from the battery with the engine running. The resulting voltage spike can damage the car's electronics including the alternator.



Revised 15 April 2012 to add simple check for regulator failure in Engine off ignition on, battery fully charged section, item 2.

Red color text applies to cars with a 3G alternator.

Do all of these tests in sequence. Do not skip around. The results of each test depend on the results of the previous tests for correct interpretation.

Simple first step: Remove the alternator and take it to your local auto parts store. They can bench test it for free.


Engine off, ignition off, battery fully charged.
1.) Look for 12 volts at the alternator output. No 12 volts and the dark green fuse link between the orange/black wires and the battery side of the starter solenoid has open circuited.
3G alternator: Look for 12 volts at the stud on the back of the alternator where the 4 gauge power feed wire is bolted.
No voltage and the fuse for the 4 gauge power feed wire is open or there are some loose connections.

2.) Look for 12 volts on the yellow/white wire that is the power feed to the regulator. No 12 volts, and the fuse link for the yellow/white wire has open circuited.

Engine off, ignition on, battery fully charged:
1.) Alternator warning light should glow. No glow, bulb has burned out or there is a break in the wiring between the regulator plug and the dash. The warning light supplies an exciter voltage that tells the regulator to turn on. There is a 500 ohm resistor in parallel with the warning light so that if the bulb burns out, the regulator still gets the exciter voltage.
Disconnect the D connector with the 3 wires (yellow/white, white/black and green/red) from the voltage regulator.
Measure the voltage on the Lt green/red wire. It should be 12 volts. No 12 volts and the wire is broken, or the 500 ohm resistor and dash indicator lamp are bad. If the 12 volts is missing, replace the warning lamp. If after replacing the warning lamp, the test fails again, the wiring between the warning lamp and the alternator is faulty. The warning lamp circuit is part of the instrument panel and contains some connectors that may cause problems.

2.) Reconnect the D plug to the alternator
Probe the green/red wire from the rear of the connector and use the battery negative post as a ground. You should see 2.4-2.6 volts. No voltage and the previous tests passed, you have a failed voltage regulator. This is an actual measurement taken from a car with a working electrical system. If you see full or almost full12 volts, the regulator has failed.

Engine on, Ignition on, battery fully charged:
Probe the green/red wire from the rear of the connector and use the battery negative post as a ground. You should see battery voltage minus .25 to 1.0 volt. If the battery measured across the battery is 15.25 volts, you should see 14.50 volts

Familiarize yourself with the following application note from Fluke: See http://assets.fluke.com/appnotes/automotive/beatbook.pdf for help for help troubleshooting voltage drops across connections and components. .

attachment.php

You will need to do some voltage drop testing of several of the wires.

Start looking for these things:
1.) Bad diode(s) in the alternator - one or more diodes have open circuited and are causing the voltage to drop off as load increases. Remove the alternator and bench test it to confirm or deny this as being the problem.

2.) The secondary power ground is between the back of the intake manifold and the driver's side firewall. It is often missing or loose. It supplies ground for the alternator, A/C compressor clutch and other electrical accessories such as the gauges. Do the voltage drop test as shown in the Fluke tech note link. Measure the voltage drop between the alternator frame and the battery negative post. Watch for an increase in drop as the load increases. Use the Fluke voltage drop figures as guidelines for your decisions.

3.) Bad regulator that does not increase field current as load increases. Remove the alternator and bench test it to confirm or deny this as being the problem.

4.) Bad sense wire - open circuit in sense wiring or high resistance. The yellow/white wire is the voltage sense and power for the field. There is a fuse link embedded in the wiring where it connects to the black/orange wiring that can open up and cause problems. Disconnect the battery negative cable from the battery: this will keep you from making sparks when you do the next step. Then disconnect the yellow/white wire at the alternator and the green fuse link at the starter solenoid/starter relay. Measure the resistance between the alternator end of the yellow/white wire and the green fuse link: you should see less than 1 ohm. Reconnect all the wires when you have completed this step.

5.) Bad power feed wiring from the alternator. Use caution in the next step, since you will need to do it with everything powered up and the engine running. You are going to do the Fluke voltage drop tests on the power feed wiring, fuse links and associated parts. Connect one DMM lead to the battery side of the starter solenoid/starter relay. Carefully probe the backside of the black/orange wire connector where it plugs into the alternator. With the engine off, you should see very little voltage. Start the engine and increase the load on the electrical system. Watch for an increase in drop as the load increases. Use the Fluke voltage drop figures as guidelines for your decisions.


attachment.php



Alternator wiring circuit
Notice the green wire connects to a switched power source. The circuit contains a 500 ohm resistor in series between the switched power and the alternator. Connecting it to switched power keeps the regulator from drawing current when the engine is not running. The resistor limits the current flowing through the wire so that a fuse isn't needed if the wire shorts to ground.

Also notice the sense wire connects to the starter solenoid and it is fused. It connects to the starter solenoid so that it can "sense" the voltage drop across the output wiring from the alternator.

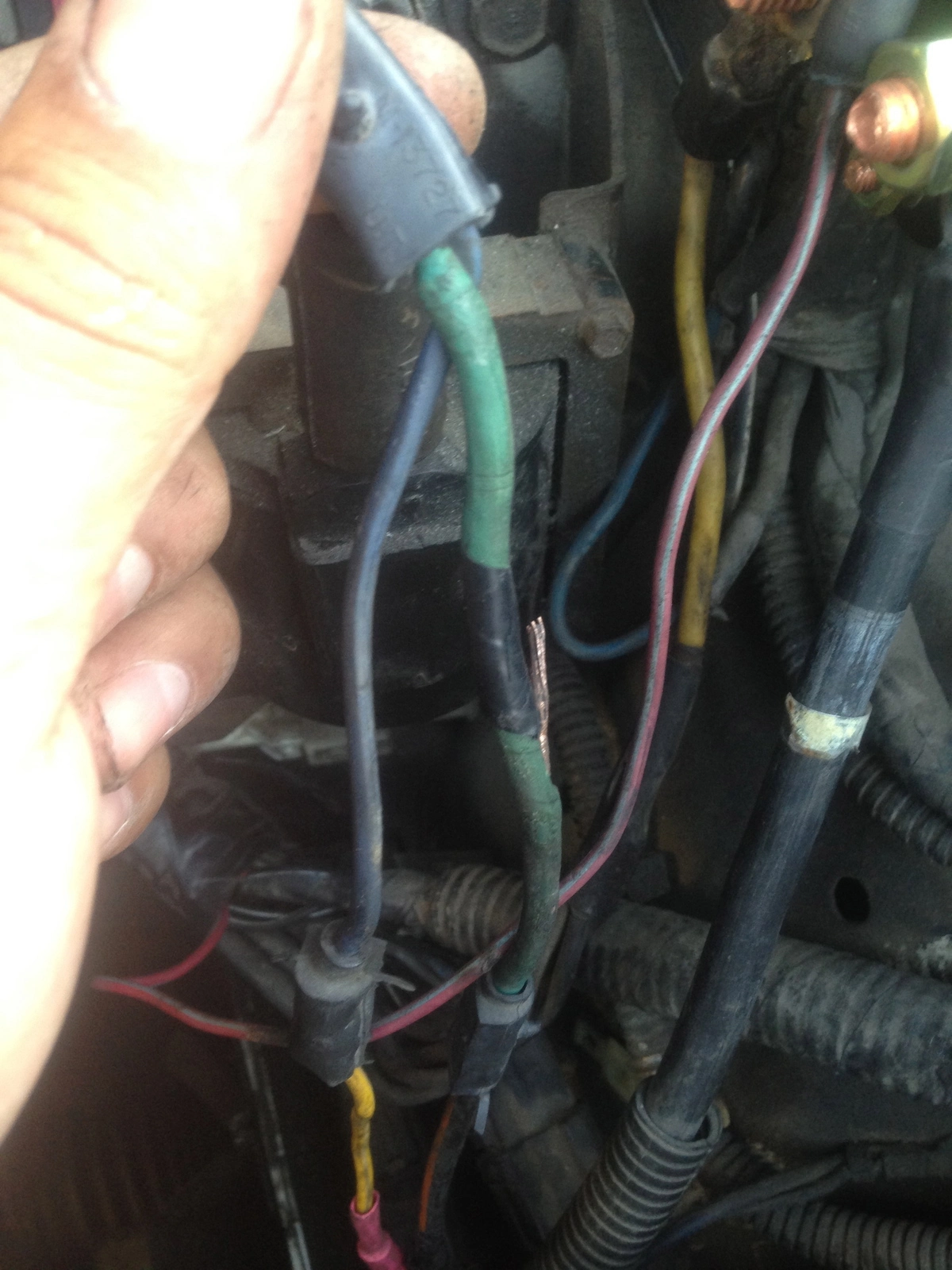

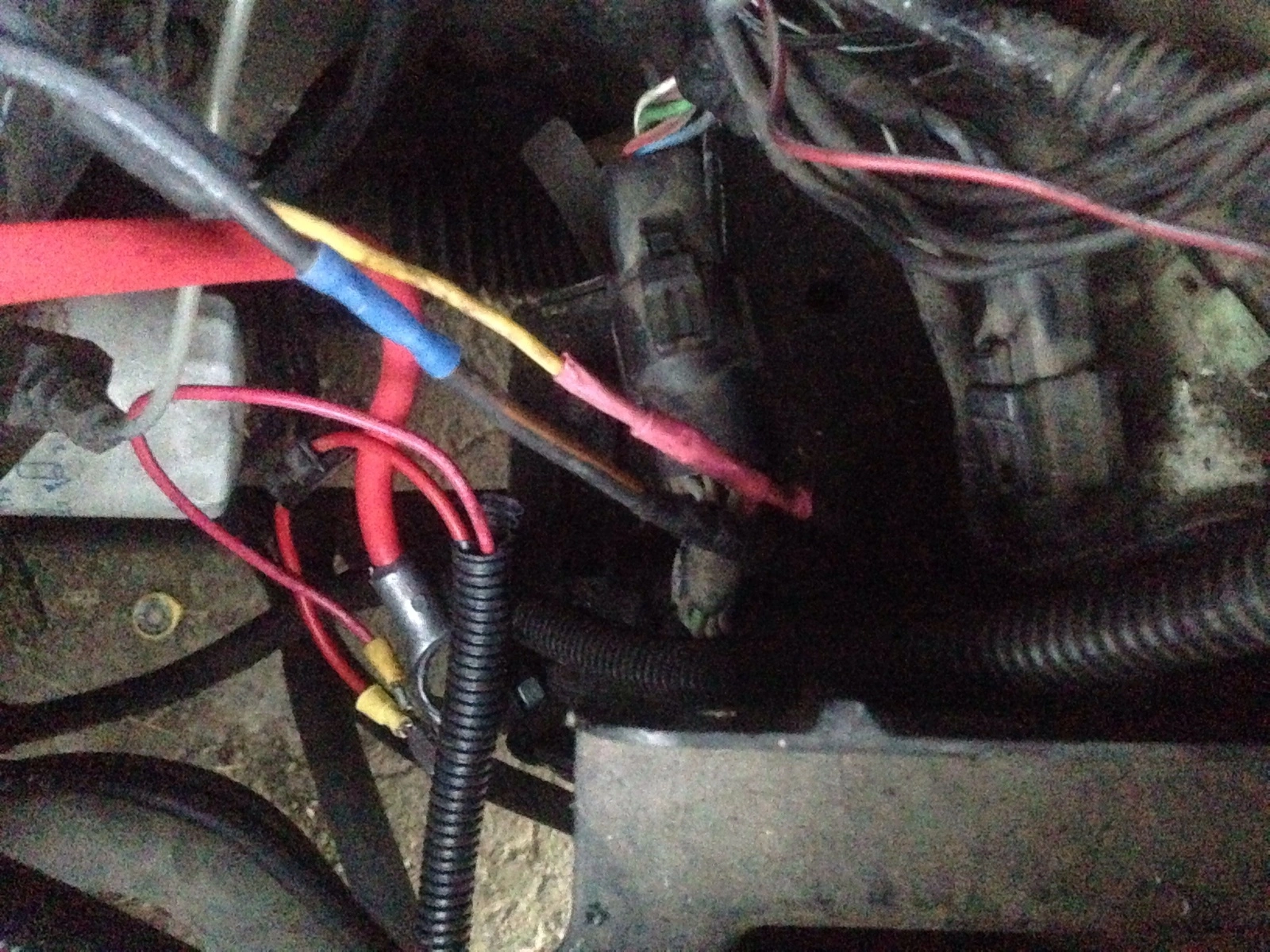

alright so i checked the cables going to the starter solenoid and found this why does this happen
...... so for replacement anyone has anything ?
That is the fuse link that protects the wiring from short circuits. You can buy fuse link wire at the auto parts stores. Buy the same color (green) and solder the splice and cover the solder joint with heat shrink tubing. Crimp a new lug on the end if needed.

So what happened to that link? Did it get damaged while you were working under the hood?
The only thing I can add to jrichker's instructions is while you are reading and digesting them, have the parts store bench test the alternator. I have my alternators and starters tested before I leave the store with them new. No matter how good of job the rebuilder or manufacturer does, they are heavy, and rough handling can mess up a perfect one and waste a lot of your time.

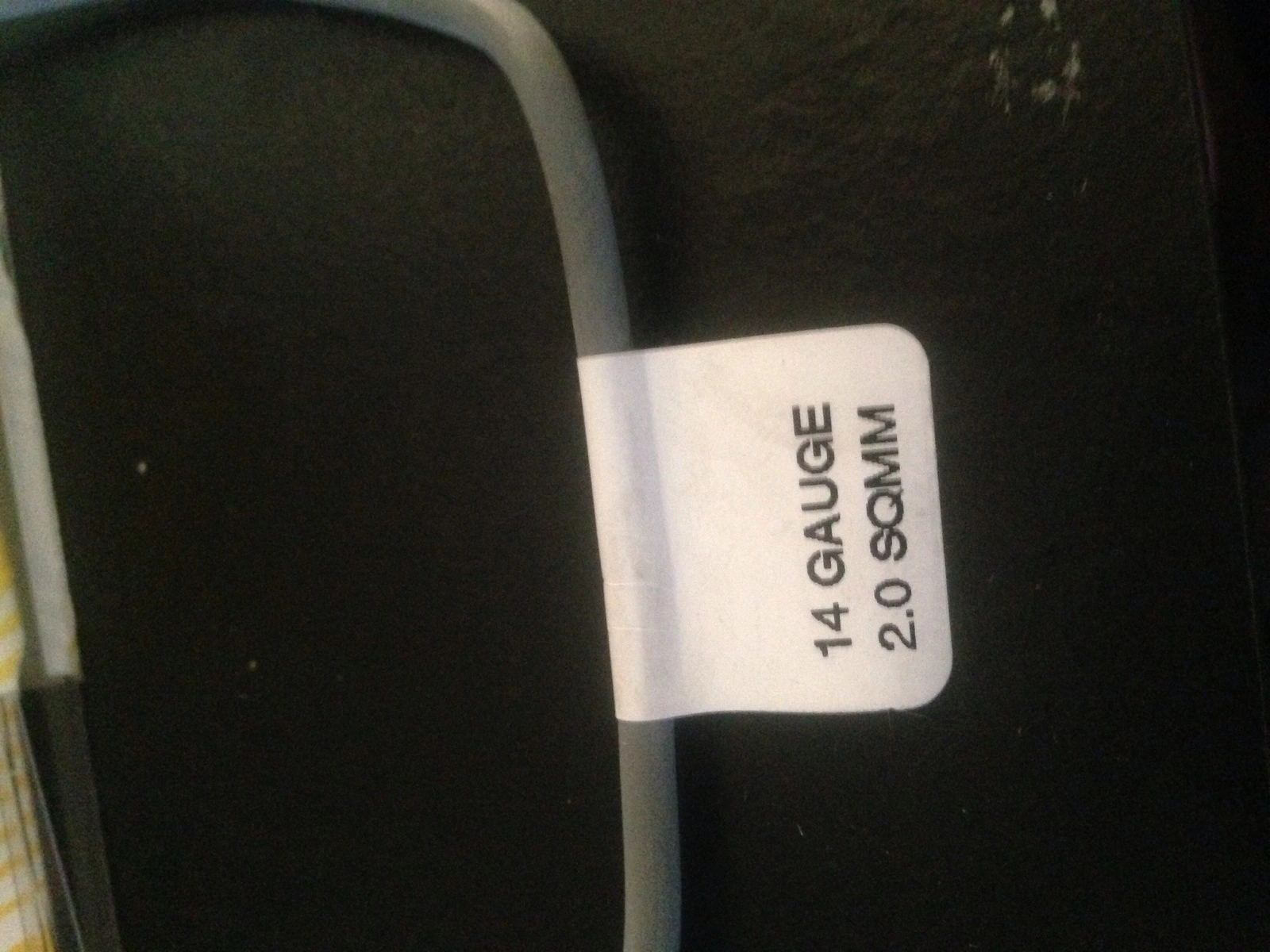

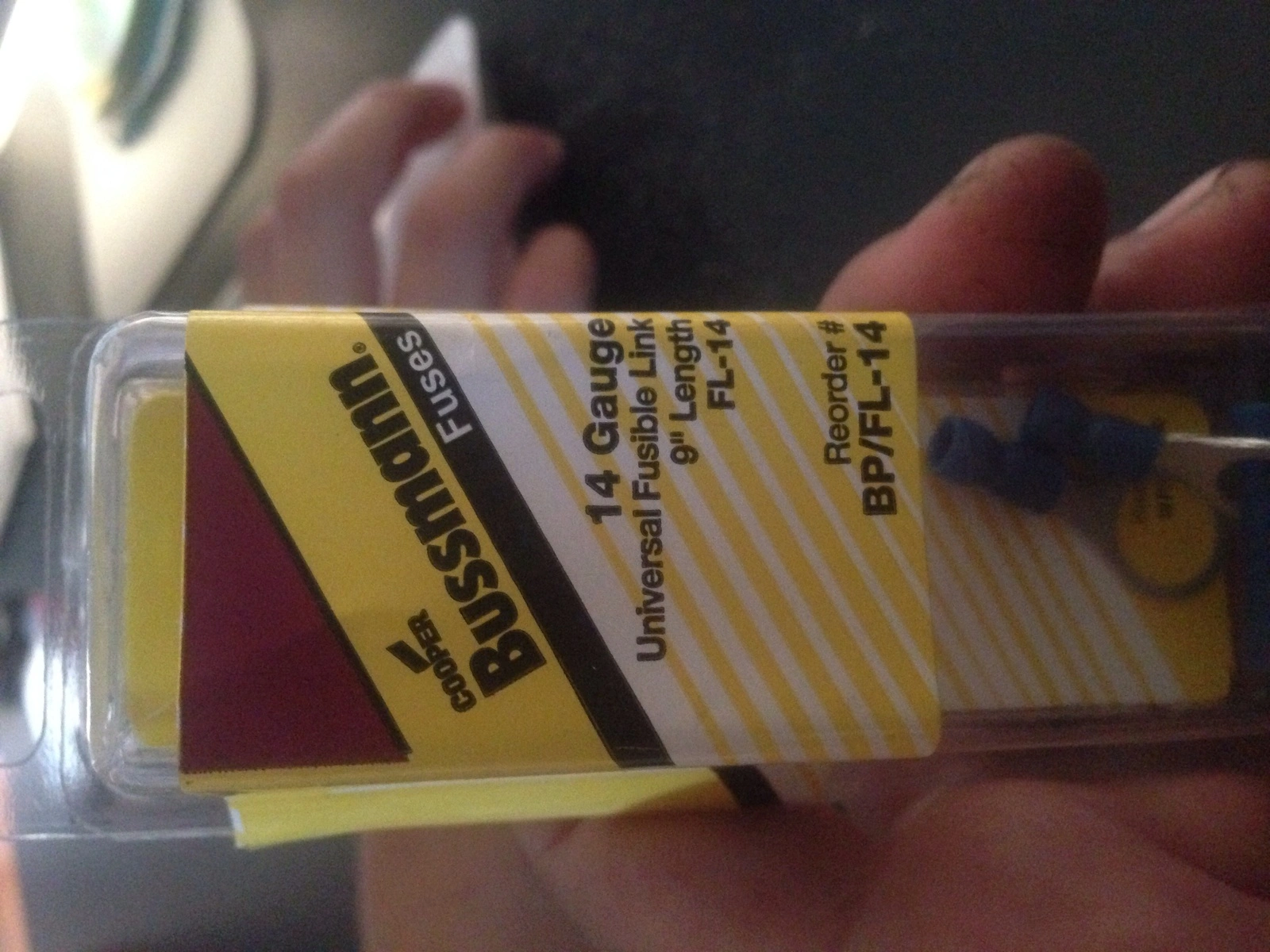

That's the only thing the parts store had
That's not going to get the job done. The draw in the alternator is 65-72 amps, so you need the correct color fuse link to avoid damage to the wiring and the alternator. what you brought home will blow open just about the time you start the car and turn the headlights and fan or wipers on.
Figure this:
Ignition system & computer = 12 amps
Fuel pump = 12 amps
Exterior lights = 15 amps
Fan (heater or A/C) = 15 amps (can run between 5-25 amps depending on setting)
Radio & instruments = 10 amps
Wipers = 10 amps

That's grand total of 74 amps from a 65 amp alternator. Talk about overdrawn at the bank!

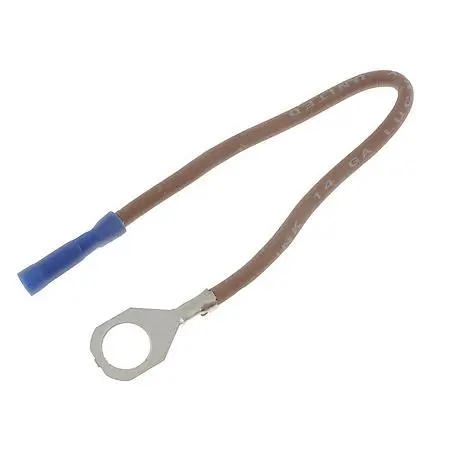

Replacement parts: See Dorman - Conduct-Tite 14 Gauge Fusible Link Wire Part No. 85620
Advance auto parts #85620
Pep Boys - SKU #8637594

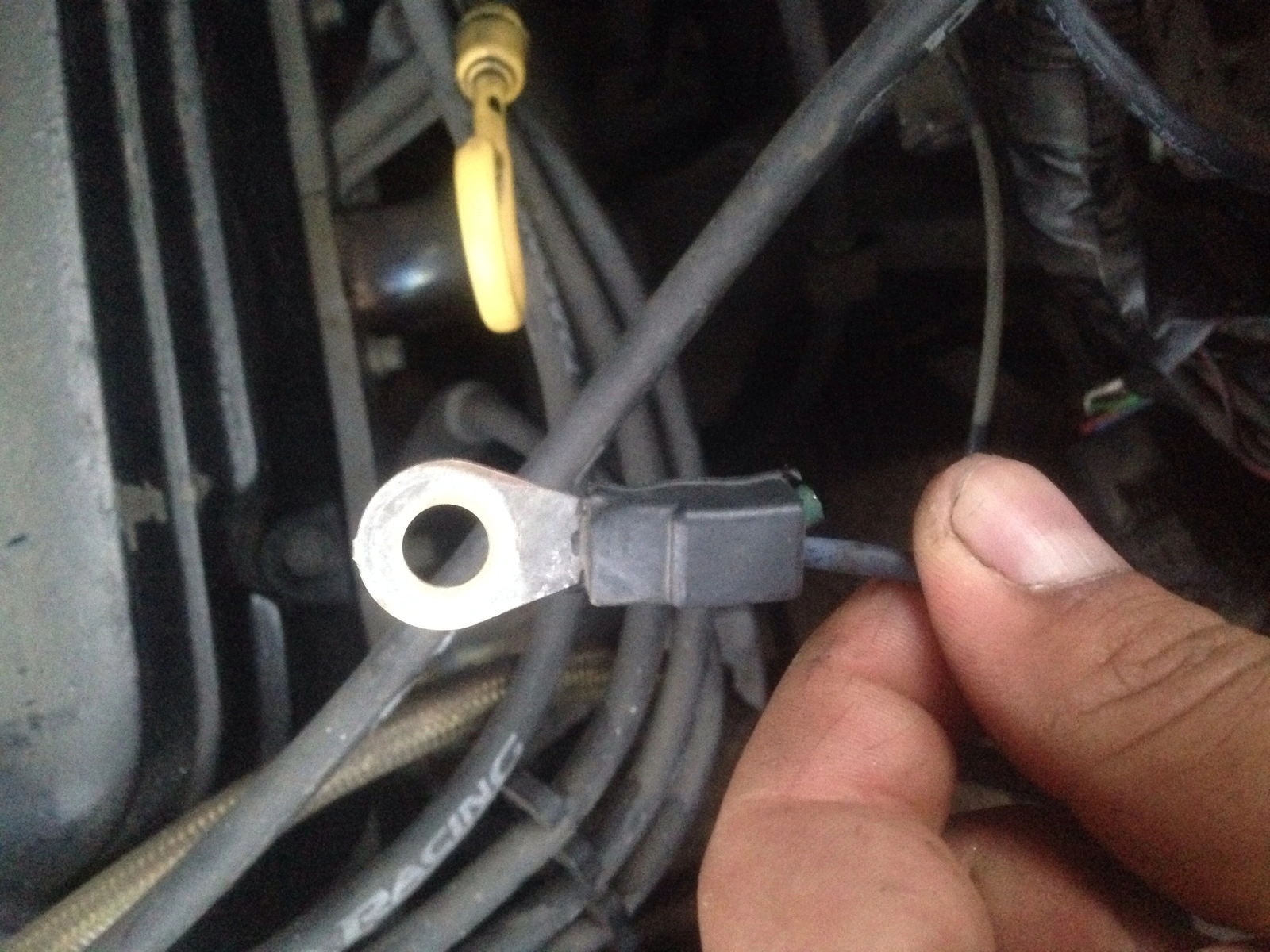

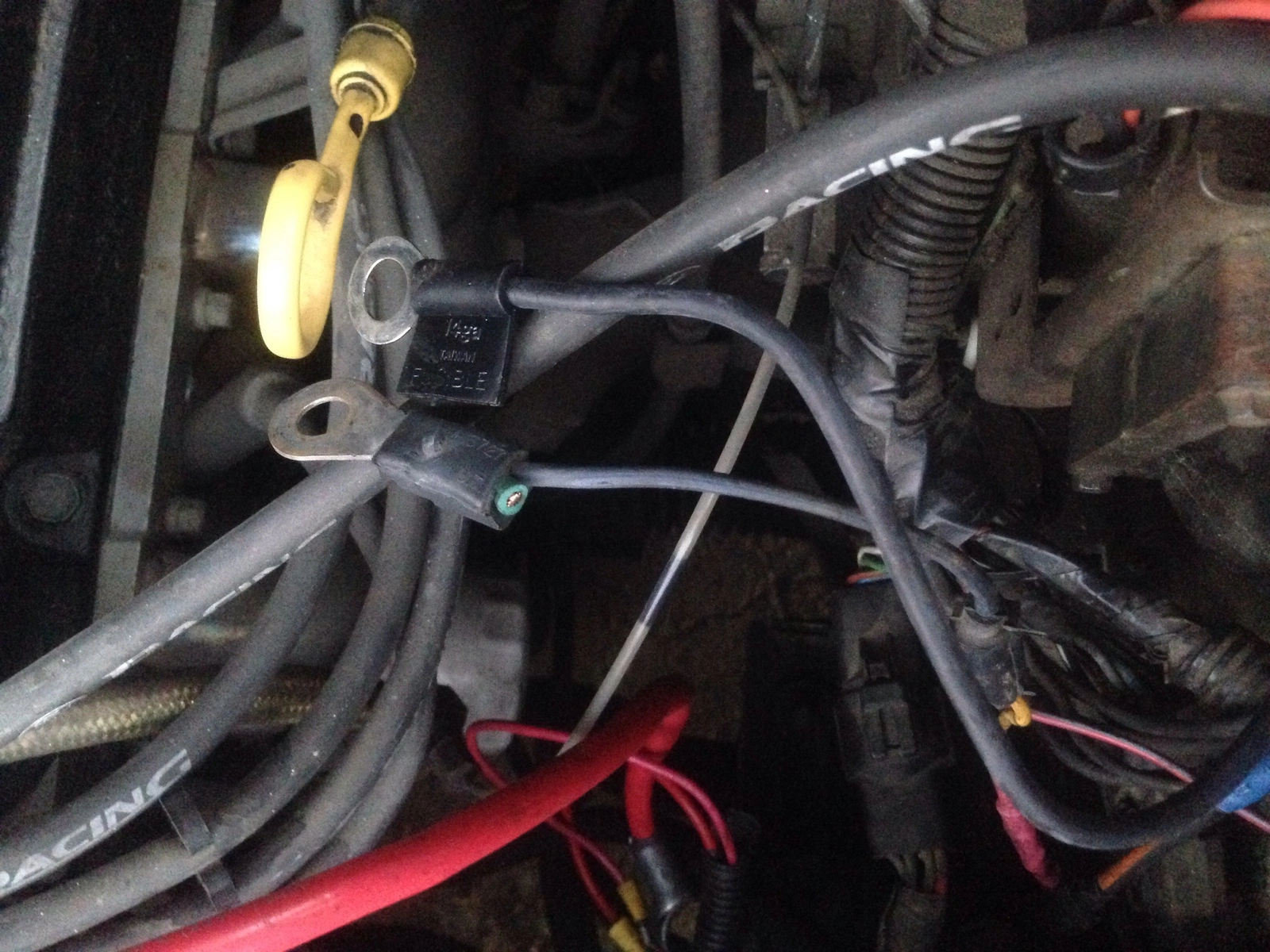

Alright i replaced the link that was broken but that link has another wire that are connected to one connection and has another fuse link so what I did I just cut the green wire and put the replacement but now I put it all back together 2 different links and it's charging 12.3volts anything u can think of ?

Go back and work your way though the Alternator troubleshooting for 86-93 5.0 Mustangs: I posted. Make sure that the yellow/white wire has continuity from the D shaped plug at the alternator to the same post on the starter solenoid that the other fuse link connects to.

Starter solenoid wiring for 86-91 Mustang
attachment.php

Go back and do the alternator troubleshooter I posted. Start at the top and work your way to the bottom of the checklist. Since I am not there to do the work, it is up to you to do it.

Write down the results of any test that you did not understand or got way different readings from what I posted. When you get those way out of spec readings, post the results. Use a safety pin to pierce and probe the insulated connectors from the rear when doing tests with the connector plugged into its' mating connector.

quick question what if i just upgrade to the 3g setup would i still be having that problem ?​
If the alternator passes the bench test at the auto parts store, you will still have this problem.

If the alternator passes the bench test, you have a wiring problem somewhere in the charging system. Use the troubleshooter I posted and go through it step by step.

i did as much as i could of the trouble shooter u posted i didnt know which was the alternator output so with ignition off and engine off battery as a ground i checked voltage on the D connector at green/red and there was 12 volts i also checked voltage on yellow/white and theirs also 12 volts there then i plugged D connector and with ignition on engine off i probed the back of the green/red and nothing and thats about how far i got did i miss something ? on sunday hopefully take the alternator off and check at the local parts store..
