Classic Dash Wiring Harness

[Dane Brahler]

Are there any others out there that have used the 87-93 wiring harness by Classic Dash?
I eventually want to make a custom gauge cluster for my 86 GT... I'm sure there arent many differences in the wiring but is there a diagram out there that lables all the wires on the stock loom so that someone could splice into them for aftermarket guages? I'm searching as I type up this thread as well!
Thanks!



[General karthief]

Lets summon up one of the guru's around here, @jrichker may be able to help, also I've seen tmoss mentioned here for wiring diagrams.



[TOOLOW91]

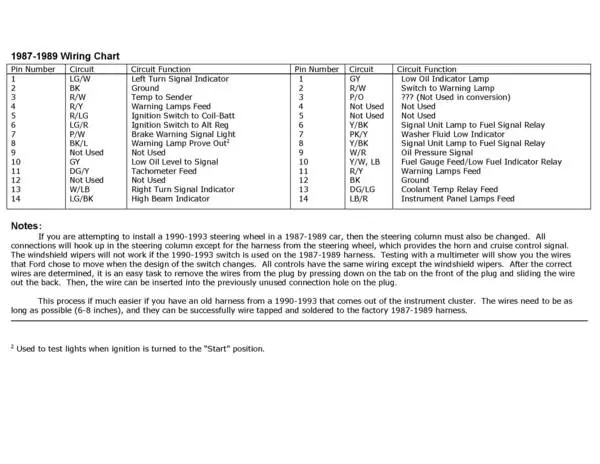

Heres the pin out for both an 87-89 and 90-93 . Ive used this to install a florida 50 cluster in a friends car. I dont remember how much different the 86 wiring at the dash is..



[General karthief]

I think there is alot of difference between them, I think it was a different harness design



[TOOLOW91]

If the OP wants to send me an email address i have a 86 electrical and vaccum diagram zip file..
