Codes 512, 998, 157

Discussion in '1994 - 1995 Specific Tech' started by 1slow5.0h, Dec 2, 2013.

  1. 1slow5.0h

    1slow5.0h New Member

    Joined:
    Nov 16, 2013
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    2
    Koeo code 512 keep alive memory test fail, what does this mean??

    Koer codes 998 hard fail, 157 maf below minimum voltage. What could cause the hard fault code??? Could code 157 be caused by a bad wire or sumtin? Because I replaced the maf already.

    95 gt

    #1
  2. jrichker

    jrichker StangNet's favorite TOOL
    SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,915
    Likes Received:
    411
    Trophy Points:
    134
    Location:
    Dublin GA
    Did you disconnect the battery for 5 minutes after replacing the sensor? If not, you still have the code present in memory.

    Code 15 or 512 - No Keep Alive Memory power to PCM pin 1 or bad PCM (Memory Test
    Failure). The voltage to the Keep Alive Memory (KAM) is missing (wiring problem)
    or the KAM is bad. The KAM holds all of the settings that the computer "learns" as
    it operates and all the stored error codes that are generated as a result of
    something malfunctioning while the engine is running. Use a voltmeter to check
    the voltage to the pin 1 on the computer - you should always have 12 volts. No
    constant 12 volts = bad wiring. If you do always have the 12 volts, then the KAM is
    bad and the computer is faulty.

    If the computer has to "relearn" all the optimum settings every time it powers up,
    the initial 5-30 minutes of operation may exhibit surges, poor low speed performance,
    and rough idle.

    Note that some aftermarket chips will cause code 15 to set. Remove the chip,
    clear the codes and retest.


    Before replacing the computer, remove the battery ground cable for about 20
    minutes. This will clear all the codes. Retest after several days of running. If the 15
    code is gone, then don't worry about it. If it is still there, then you get to do some
    troubleshooting.

    See the following website for some help from Tmoss (diagram designer) & Stang&2
    Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/

    Diagrams courtesy of Tmoss & Stang&2birds

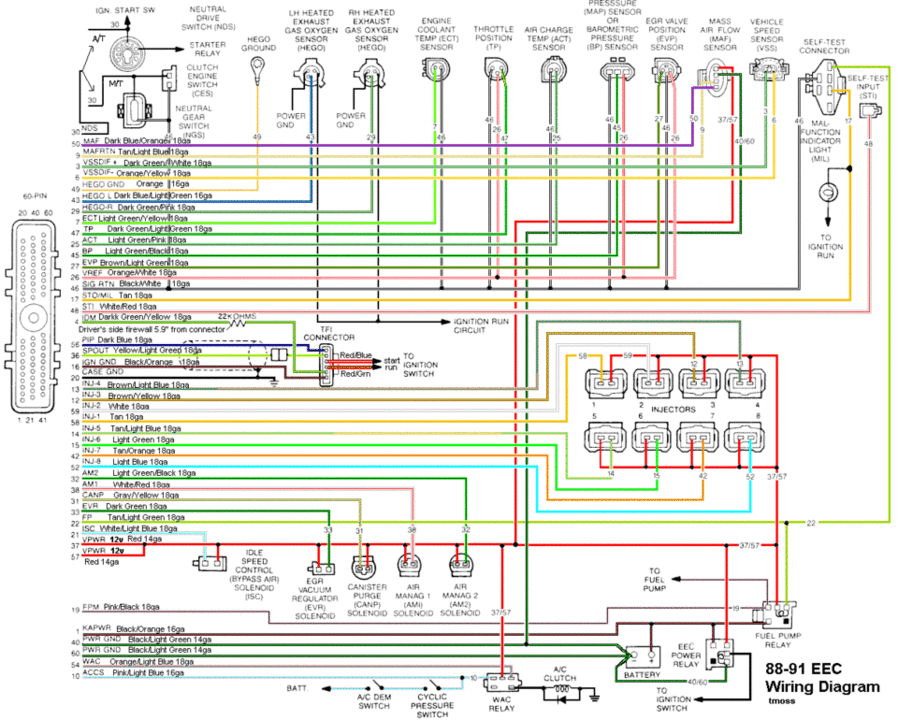

    88-91 5.0 Mustang
    [​IMG]

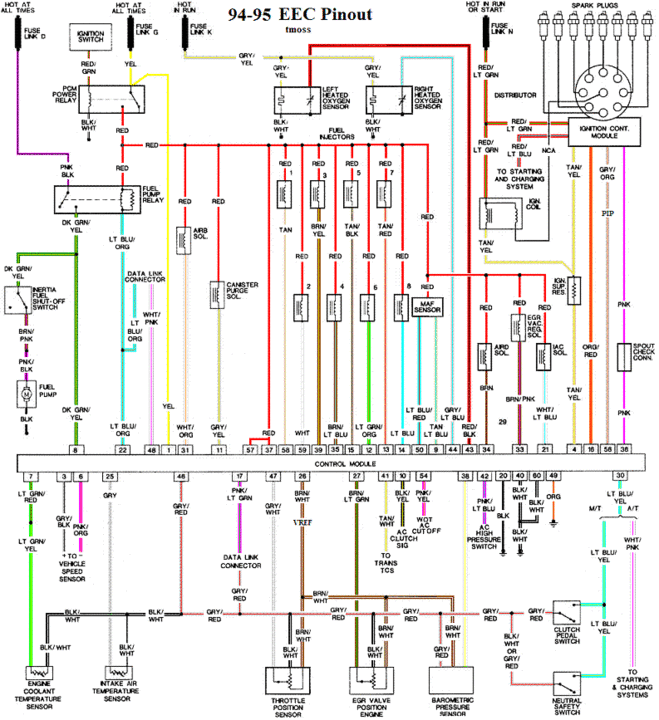

    94-95 5.0 Mustang
    [​IMG]

    http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

    http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

    http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

    #2
