CPRstreetmachines 1969 Turbo'd Pro-Touring GT2 build

Discussion in 'Classic Mustang Specific Tech' started by 10secgoal, May 29, 2008.

  1. DK832

    DK832 New Member

    Joined:
    Apr 11, 2006
    Messages:
    291
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Copenhagen, DK
  2. DK832

    DK832 New Member

    Joined:
    Apr 11, 2006
    Messages:
    291
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Copenhagen, DK
    Hmmm, cant delete a reply post? Or am I missing something?

  3. 10secgoal

    10secgoal Active Member

    Joined:
    Dec 1, 2003
    Messages:
    2,806
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    San Diego
    Got the engine done finally. Some stout pieces of metal right there.
    [​IMG]
    [​IMG]


    Attached Files:

  4. 10secgoal

    10secgoal Active Member

    Joined:
    Dec 1, 2003
    Messages:
    2,806
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    San Diego
    Driveside subframe connector thru the floor. The only way to FLY !


    Attached Files:

  5. mrmustangman357

    Joined:
    Feb 11, 2007
    Messages:
    763
    Likes Received:
    2
    Trophy Points:
    18
    10sec, can you explain your choice on the motor so far? What's the cam being used for the turbo choice?

  6. 10secgoal

    10secgoal Active Member

    Joined:
    Dec 1, 2003
    Messages:
    2,806
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    San Diego
    For wieght (road racing) wanted to keep it small. Thought about a big 351. Power would be easier. But with "only" wanting somewhere over 800, a 363 will definitely do the job. A stock hood is also much easier. And it's just a tiny engine bay with or without towers, so that played a role also.
    Cam, went hyd from Cammotion. Have to check to see exactly, but a pretty small cam considering what's asked of it. Was 542 I think, 224 @.050. It's a split pattern with the exh side being a little less in lift and duration.
    The end result should be fairly stupid. Intercooler should be the only sign of boost. The exhaust will be dead quite until the turbo starts cuttin some air.

  7. DK832

    DK832 New Member

    Joined:
    Apr 11, 2006
    Messages:
    291
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Copenhagen, DK

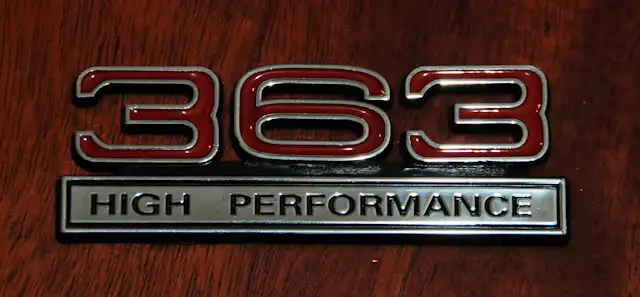

    Too much idle time with a hobby knife and some black epoxy glue. Takes two 302 and one 460 emblem... :leaving:



    Attached Files:

  8. 10secgoal

    10secgoal Active Member

    Joined:
    Dec 1, 2003
    Messages:
    2,806
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    San Diego
    Got the turbo the other day. Got the rims back from widening. The big turbo is next to a 61mm


    Attached Files:

  9. mrmustangman357

    Joined:
    Feb 11, 2007
    Messages:
    763
    Likes Received:
    2
    Trophy Points:
    18
    who did your rim widening? are those a forged or cast alum rim?

  10. 10secgoal

    10secgoal Active Member

    Joined:
    Dec 1, 2003
    Messages:
    2,806
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    San Diego
    Vaugh Machine did it in LA. Kinda pricey. Weldcraft was 20 a rim, this was 300. But This company doesn't do a band like weldcraft. Never heard of a band failing, but aluminum is so weak when it's welded, we figured with the HP safer to have only one bead. Not sure on the material, but if I had to guess, it's cast or billet. But I would lean towards billet. Where he machined, it doesn't look cast. I also looked at the weights, and one of the them ONLY has two small weights. Very little needed. Never seen anything only need that amount.

  11. DK832

    DK832 New Member

    Joined:
    Apr 11, 2006
    Messages:
    291
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Copenhagen, DK
    Nice clean work and not a lot of weights on the inside for that big a rim/tire:

    Looks nice on there! Ride height not set yet though.


    Attached Files:

  12. 10secgoal

    10secgoal Active Member

    Joined:
    Dec 1, 2003
    Messages:
    2,806
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    San Diego
    Some shots of the fender rolling.

    Our attempt at a steam roller.


    Attached Files:

  13. 10secgoal

    10secgoal Active Member

    Joined:
    Dec 1, 2003
    Messages:
    2,806
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    San Diego
    Some shots of the engine placement. Got her down and a good bit back. Got the two first legs made and tacked to the K-member.


    Attached Files:

  14. mrmustangman357

    Joined:
    Feb 11, 2007
    Messages:
    763
    Likes Received:
    2
    Trophy Points:
    18
    wats with the censoring?

  15. 10secgoal

    10secgoal Active Member

    Joined:
    Dec 1, 2003
    Messages:
    2,806
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    San Diego
    What censoring ? :shrug:

  16. mrmustangman357

    Joined:
    Feb 11, 2007
    Messages:
    763
    Likes Received:
    2
    Trophy Points:
    18
    mmk never mind one of the flash advertisements at the bottom was blacking out over one of the pics. goofy lol

  17. 10secgoal

    10secgoal Active Member

    Joined:
    Dec 1, 2003
    Messages:
    2,806
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    San Diego
    Yeah, they're getting pretty damn annoying. You can't even close them

  18. DK832

    DK832 New Member

    Joined:
    Apr 11, 2006
    Messages:
    291
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Copenhagen, DK
  19. 10secgoal

    10secgoal Active Member

    Joined:
    Dec 1, 2003
    Messages:
    2,806
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    San Diego
    Intake needed a little work before it went on.


    Attached Files:

  20. 10secgoal

    10secgoal Active Member

    Joined:
    Dec 1, 2003
    Messages:
    2,806
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    San Diego
    Wheel housing patch

    Yes, the turbo is hanging from the cherry picker. :)

    Nicea nd low. No problems with the stock hood.



    Sewer pipe is mocked up. Just trimming moving the rad a little more to get the warm and fuzzy on the distance to the fan.


    Attached Files:
