** Crane Cam 5.0 HO ** 1/2 PRICE **$150**

Crane Hydraulic Roller Camshaft 449601

----------------------------------------------

Selling this for a friend in a financial bind; liquidating some of his project parts.

This is a BRAND NEW in ORIGINAL PACKAGING Crane Cam.

These go for $400.00 on Summit and take a few weeks to obtain. Click here to see this cam on SummitRacing.com


$150 free shipping





Thanks!


Brand: Crane Cams
Manufacturer's Part Number: 449601
Part Type: Camshafts
Product Line: Crane Hydraulic Roller Camshafts
Summit Racing Part Number: CRN-449601

UPC: 02117404587
Cam Style: Hydraulic roller tappet
Basic Operating RPM Range: 2,500-6,000
Intake Duration at 050 inch Lift: 224
Exhaust Duration at 050 inch Lift: 232
Duration at 050 inch Lift: 224 int./232 exh.
Advertised Intake Duration: 286
Advertised Exhaust Duration: 294
Advertised Duration: 286 int./294 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.542 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.563 in.
Valve Lift with Factory Rocker Arm Ratio: 0.542 int./0.563 exh.
Lobe Separation (degrees): 112
Computer-Controlled Compatible: No
Grind Number: HR-224/339-2S-12
Valve Springs Required: Yes
Quantity: Sold individually.

Crane hydraulic roller camshafts are a good reason why virtually all pushrod-style engines manufactured for over two decades are equipped with hydraulic roller cams. Simply stated, the best way to get a wider torque band is to step up to a hydraulic roller cam in your small or big block Chevy, Ford or Mopar, AMC, Olds, or Pontiac. The roller cams' ability to quickly open and close the valves allows for more sophisticated camshaft profiles, while the hydraulic lifter body eliminates the need to constantly set valve lash. Crane Cams has the industry's largest database of camshaft profiles. This enables Crane to provide you with the camshaft that's ideally suited for your application. These Crane hydraulic roller camshafts also have an exceptional "flat" power curve and are a popular retrofit into older engines. Crane hydraulic roller camshafts are the starting and ending points for your camshaft needs.


Attachments

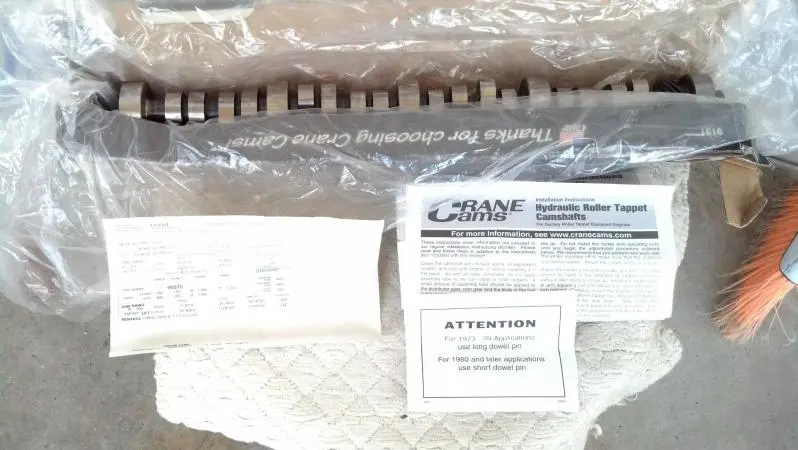

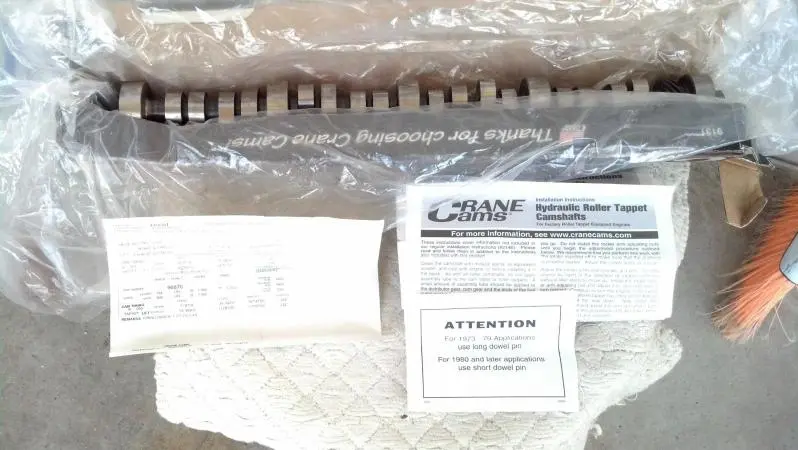

  • CAM1.jpg
    55.9 KB · Views: 217

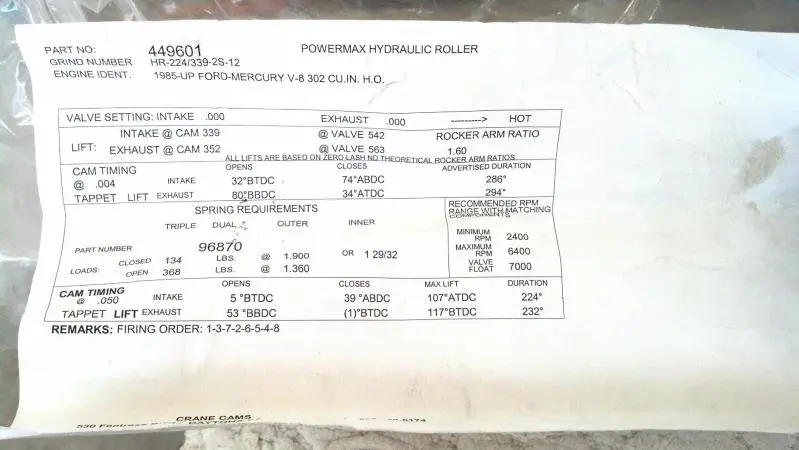

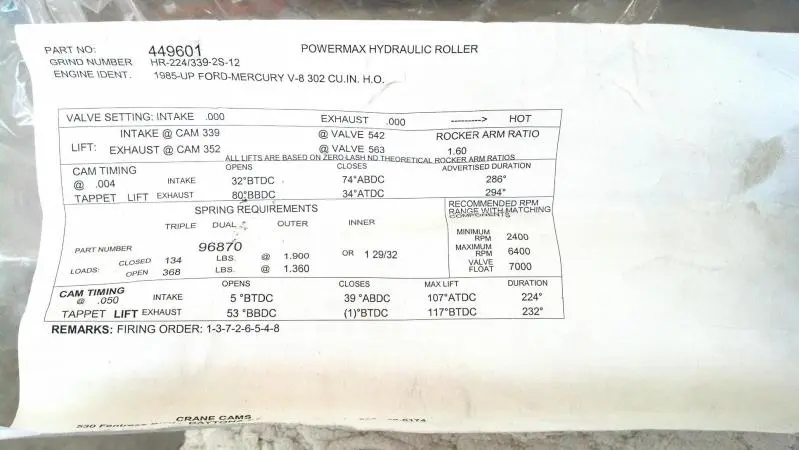

  • CAMSPECS.jpg
    48.5 KB · Views: 190
