Drum brake smoking

Discussion in 'Fox 5.0 Mustang Tech' started by 50foxbody, Oct 4, 2009.


  1. 50foxbody

    50foxbody Member

    Joined:
    Jan 5, 2009
    Messages:
    220
    Likes Received:
    0
    Trophy Points:
    16
    i just moved and i had to move my car to the new house i drove the car less than i mile and i get out and notice the drivers side drum was smoking does any one know what could cause this i didnt have time to check but i would like to know what im looking for before i take a look thanks guys!

    #1
  2. Mustang5L5

    Mustang5L5 Car used in adult film "Highway Gangbang-InDaButt"
    SN Certified Technician Founding Member

    Joined:
    Feb 19, 2001
    Messages:
    21,779
    Likes Received:
    341
    Trophy Points:
    124
    Location:
    Massachusetts
    Seized drum shoes???

    #2
  3. HISSIN50

    HISSIN50 "How long does it take to get help in here?
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,157
    Likes Received:
    14
    Trophy Points:
    79
    A stuck wheel cylinder is a real possibility. Other possibilities, as Mike noted, are a shoe that's frozen due to corrosion, a broken spring, etc.


    It should be real obvious once you pop the drum off (that will probably be the hardest part).

    #3
  4. 50foxbody

    50foxbody Member

    Joined:
    Jan 5, 2009
    Messages:
    220
    Likes Received:
    0
    Trophy Points:
    16
    awesome i hope its something simple i have been in the middle of getting it ready for paint and this happends im gonna look at it tomorrow thanks

    #4
  5. 50foxbody

    50foxbody Member

    Joined:
    Jan 5, 2009
    Messages:
    220
    Likes Received:
    0
    Trophy Points:
    16
    ok this was the first time i ever messed with drum brakes i finally got it all back together but o noticed the one of the shoes is out at the top i tried adjusting the star but its not helping out at all if any one knows what could be causing it please let me know thanks

    [​IMG]

    #5
  6. HISSIN50

    HISSIN50 "How long does it take to get help in here?
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,157
    Likes Received:
    14
    Trophy Points:
    79
    I'd consider simply replacing the wheel cylinder, shoes and springs (do both sides).

    If you do this, be careful with the springs - people do get hurt using the incorrect tools for drums. I think parts stores loan out drum-brake tool-kits. Having a buddy who's done drums before can help.

    #6
  7. 50sleeper

    Founding Member

    Joined:
    Mar 4, 2001
    Messages:
    110
    Likes Received:
    0
    Trophy Points:
    16
    Springs

    *Edit, just realized you are already done* :rolleyes:

    I also recommend picking up a new bag of springs. When I did mine (also my first time doing drums) I found 1 of my old springs wasn't doing its job and the little ratcheting gear thing was not engaging because the spring was too weak.

    A new bag of springs (color coded) is only a few bucks and may save you some headache.

    It's not super difficult, just be careful and take your time. Those springs carry a lot of energy.

    #7
  8. bmo37

    Founding Member

    Joined:
    Jun 28, 2001
    Messages:
    2,369
    Likes Received:
    0
    Trophy Points:
    46
    Location:
    New Jersey
    I just struggled through a drum brake rebuild on my mustang and it's not fun at all. Get a set of proper drum brake tools as it makes the job easier (spring tool, adjuster, and retainer tool). One of the biggest tricks I found was on my 93 the parking/e-brake doesn't have a provision for a clip to retain itself to the brake shoe. What I did was left the cable connected and used a twisty tie (like ones off a loaf of bread from the store) to hold the shoe and e-brake mechacnism together while assembly because it has a tendency to fall out while your trying to assemble it. Once I had it altogether I untwisted it and pulled it out. And like already stated you can buy a drum brake rebuild kit that has new springs, and retainer pins in it.

    #8
  9. bmo37

    Founding Member

    Joined:
    Jun 28, 2001
    Messages:
    2,369
    Likes Received:
    0
    Trophy Points:
    46
    Location:
    New Jersey
    make sure u have the auto adjuster on the bottom of the brake assembly totally in the closed position, check that the metal bar below the piston assembly has the spring in it and is seated correctly (on the brake shoe and e-brake slot), lastly you may beed to bleed you brakes to allow the brake assembly to retract and close more before your shoes and fully close all the way.

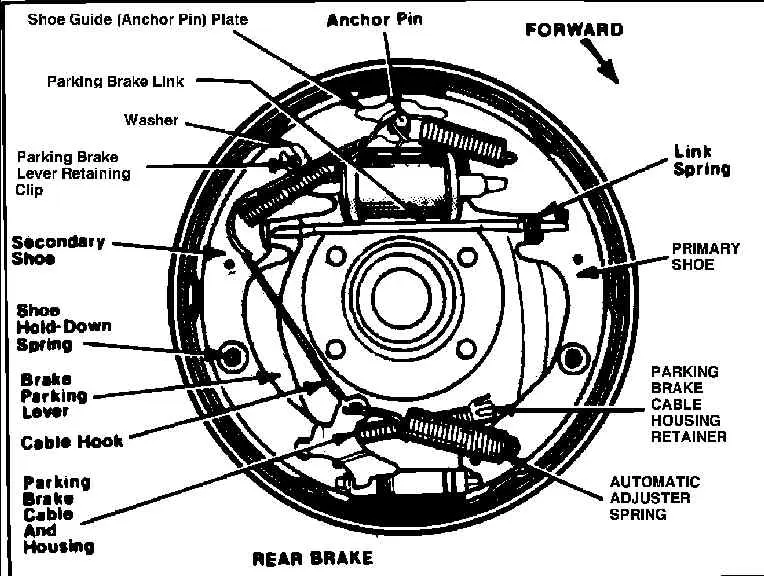

    Also it looks like your missing the stabilizer piece that goes on before the springs do. Looks like a washer with two wings sticking out that keep the shoes aligned.

    http://Please do not link to external forums/forums/attachments/5-0l-tech/2469d1057932642-anyone-have-exploded-view-rear-brakes-help-please-ford-drum-brake.jpg

    #9
  10. 50foxbody

    50foxbody Member

    Joined:
    Jan 5, 2009
    Messages:
    220
    Likes Received:
    0
    Trophy Points:
    16
    rebuilt both drums finally got it all figured out thanks everyone for the help.. i test drove it and NO SMOKING!!!!
