Explorer install update and pics...

Discussion in '1994 - 1995 Specific Tech' started by RIO5.0, Nov 7, 2003.


  1. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
    i replaced the lifter with new FMS stock one, i got some longer PRs and i'm running the Scorpion 1.6s now....i bought some 6.300 prs and shimmed em some to get it...6.290 is kinda like the optimum number...

    Dan...actually its running damn good....EEC is a non issue, no probs at all...i redid the lifters last week again and found one loose vac line, and i replaced em all...anyway my gas milage has beem twice what it was 2 weeks ago...noticed that right away...it pulls alot harder for sure and blows the tires away bigtime in 2nd...i love that stuff....it added something no doubt...
    went to see another dyno today, as guy i go to is down til April....this one is different from the one i go to, so the numbers won't be the same...the guy even told me it would be lower...that blows....got an appt for Tuesday, but i may just blow 75.00 for nothing??? still debating on going....really wanna see the what it was worth...

    #81
  2. tmoss

    tmoss Gettin Wired
    Founding Member

    Joined:
    Jun 28, 2001
    Messages:
    7,121
    Likes Received:
    2
    Trophy Points:
    78
    Location:
    Saint Louis, MO
    Looks very good - I'm surprised you didn't do it in red with balck stripes seeing as how your car is red.

    #82
  3. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
    Tom...Haven't tried that combo yet....ill have to do it up, see how it looks.....this is just good ole Rustoleum with a brush, just to get and idea...the intake is freakin huge, the Black seems to hide the size...

    #83
  4. SaltWaterFish

    Founding Member

    Joined:
    Jan 7, 2002
    Messages:
    210
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Cedar Rapids, IA
    Thanks for the complements on the plate Andy and others. It looks good on there.

    I going to be working on another one just about like it here soon.

    #84
  5. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
    Roy...wanna paint my intake??? :D You do such nice work... :D I'll have it all prepped and primed, ready to paint...

    I'm gonna start collecting them plauges you do....send me some pics of different ones if you want... :nice:

    #85
  6. SaltWaterFish

    Founding Member

    Joined:
    Jan 7, 2002
    Messages:
    210
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Cedar Rapids, IA
    I can give it a shot. If you want to put red between the fins it would be hard from what I can tell from your pics.

    Let me know either way. I'm on vacation all this coming week so I would have some time.

    #86
  7. OutLawSE

    Founding Member

    Joined:
    Nov 6, 2001
    Messages:
    1,370
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    NJ
    Did you have to port the Mac elbow allot to make it match?

    #87
  8. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
    Not really..it has to be tuned for sure....but i used it on an Explorer, its for an SN95 tho...i have the grinding tools so i wasnt all that bad....the cast finish in the flowpath is WOW tho.... :nonono:

    #88
  9. OutLawSE

    Founding Member

    Joined:
    Nov 6, 2001
    Messages:
    1,370
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    NJ
    I am using one with my TEA Setup and I am wondering if I should just buy the TFS one. I didnt look into the port before I installed it. Did the Mac fit the 65mm TB alright or did u have to open up that side too?

    #89
  10. Imyourzero

    Imyourzero Learned that lesson as a horny teenager with lots
    Founding Member

    Joined:
    Mar 10, 2002
    Messages:
    2,301
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Hoonose, U.S.A. Posts: 39,051
    Looks great, Andy. Glad you got a nice gain from it. As for the dyno, I'd be tempted to wait until you can go back to the same one. At least the numbers would be consistent and make for a better "before and after" comparo...right?

    Jordan

    #90
  11. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
    Phase 2...Adding a Fox TB set-up..

    Not to raise this from the dead, but more to put all the info in one post....

    I finally have all my parts to put a Fox TB set-up on....Actually the unit i have is a 96 Explorer intake. The TB im using, is a 65mm from the same year Explorer...This unit and the one on the 86 Fox looked identical..

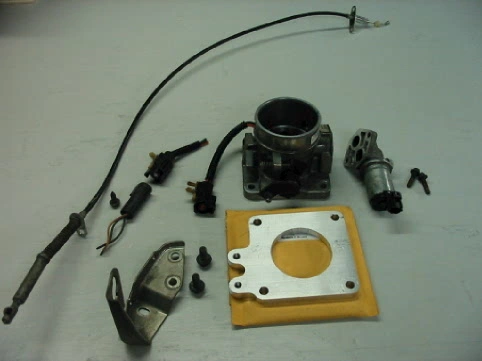

    The parts needed are in the pic..I lucked out and found an 86 Fox with the entire motor intact...

    Fox throttle cable....way different from the SN95 set-up...Its a ball/socket affair. How the cruise control will hook-up is beyond me...the Fox TB has no provisions for cruise hook-up... :shrug:

    TPS plug...i had to take both ends...the Ex TPS plug is a different configuration than the Fox...Go figure.. :nonono:

    Throttle cable bracket...this was the hardest pc for me to find..

    UPR 65mm EGR delete spacer...cant get the throttle cable on without this, its what it bolts to..


    Attached Files:

    #91
  12. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.

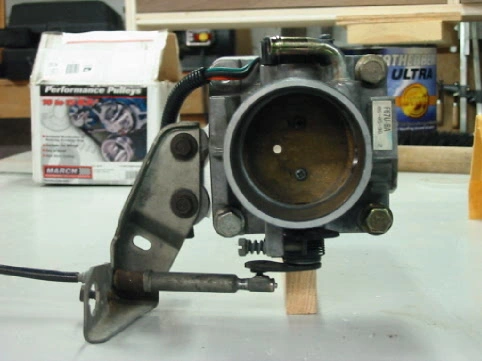

    Hardware mounted up and as it will sit on the motor....

    The throttle connection is what threw me off...Only having the TB and not the bracket/cable was confusing...Never owning a Fox didn't help either..Its a wacky set-up compared to the SN95...The mother operates from the bottom..

    Looking for a way to connect the cruise control cable??? It doesn't look pretty for that...


    Attached Files:

    #92
  13. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
    I wondered if i could bolt the TB directly to the Upper????
    No dice there...You need the EGR delete spacer to mount the throttle cable bracket...

    Now that I have the parts I'm gonna pull the car outta its Winter nap and dub around with the hook-up....Only problem i can possibly see, is my tall VCs hitting the bracket....


    Attached Files:

    #93
  14. VIPERn94Five-0

    Founding Member

    Joined:
    Apr 29, 2002
    Messages:
    3,352
    Likes Received:
    0
    Trophy Points:
    56
    Location:
    Poughkeepsie, NY
    RIO you gotta let me know how things go with the FOX TB conversion and remaking your CAI....





    Anthony

    #94
  15. tmoss

    tmoss Gettin Wired
    Founding Member

    Joined:
    Jun 28, 2001
    Messages:
    7,121
    Likes Received:
    2
    Trophy Points:
    78
    Location:
    Saint Louis, MO
    Nice work! Sure these guys will appreciate the info.

    #95
  16. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
    Seems kinda anal posting the stuff, but it'll come in handy for anyone looking for the goodies or info....
    I hunted for a month online with no luck on the bracket, wait, some dude in Georgia wanted 57.00 shipped....I paid 3 bucks for the bracket and TPS plug....

    I'll get it mounted up this week....Gotta get the Winter beater ready for a inspection sticker first.... :bang: It runs out tommorrow... :banana:

    #96
  17. mytight95

    mytight95 Active Member

    Joined:
    Apr 11, 2003
    Messages:
    2,609
    Likes Received:
    0
    Trophy Points:
    46
    Location:
    Dothan,Al
    Looking good so far Rio. When you see just how effective this is and if you've had any problems with idle whether they straighten out or not there will probably be some others trying this out. I had a cable bracket, but didn't realize that you were doing this swap, anyway if you need anything else, let me know i may have some stuff laying around the shed.


    Jason

    #97
  18. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
    couple final pics to add....

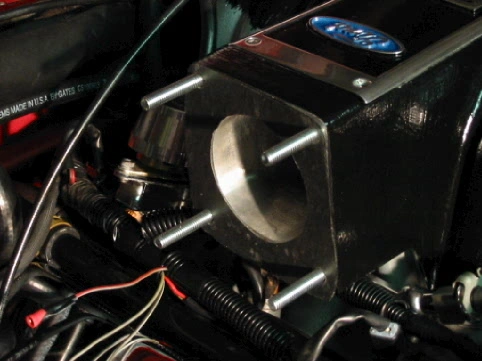

    4 studs for intake...1/4x18 thdx 3" long...I bought 4 carriage bolts, cut the heads off...done deal...I wanted to use nuts versus bolts....


    Attached Files:

    #98
  19. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.

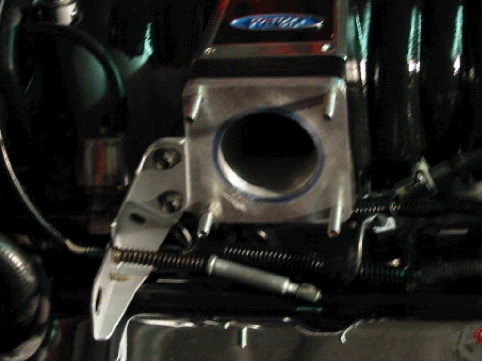

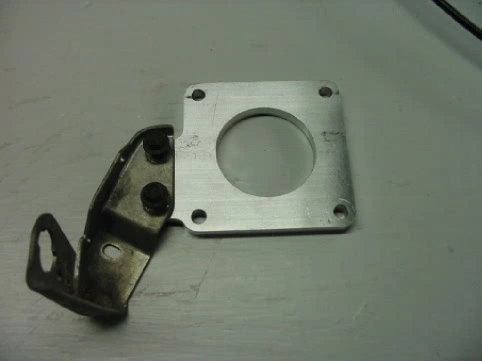

    Add EGR delete spacer..connect throttle bracket to it...bolt in throttle cable...


    Attached Files:

    #99
  20. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.

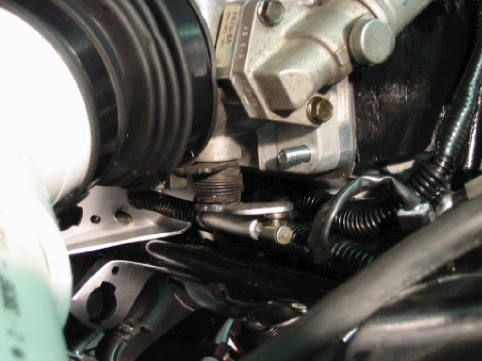

    Throttle connection...


    Attached Files:

    #100

Share This Page
