Fox Fan Mounting - Alternate Ideas - Black Magic Xtreme

Discussion in '1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk-' started by cdurbin, Feb 19, 2014.

  1. cdurbin

    cdurbin Active Member

    Joined:
    Jul 28, 2012
    Messages:
    558
    Likes Received:
    103
    Trophy Points:
    54
    Location:
    North Charleston, SC

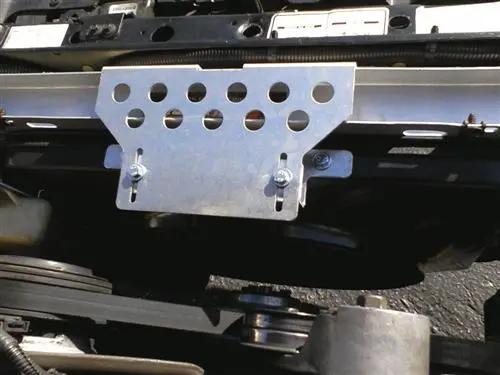

    I bought a Black Magic Xtreme fan kit from LatemodelResto about 6 months or so ago. I have had no issues at all with it and it's performing great so far. My only complaint is the huge, cheesy looking upper mounting plate. I'm finally getting around to dressing up my engine bay and would really like to come up with an alternative mounting method. It doesn't look like it would be too difficult to do. Just looking to get some input/ideas from the experts. Photos would be great if possible. I've attached a photo I found online of the bracket I'm talking about. I have the same one on my car.
    Thanks


    #1
  2. elarm1

    elarm1 Active Member

    Joined:
    Dec 17, 2010
    Messages:
    879
    Likes Received:
    213
    Trophy Points:
    54
    Location:
    N.Va
    I like it... If you don't want it, I'll take it! In my brief searches, for that fan, you are kind of limited on how to mount it. I think you should stick with it.

    #2
  3. cdurbin

    cdurbin Active Member

    Joined:
    Jul 28, 2012
    Messages:
    558
    Likes Received:
    103
    Trophy Points:
    54
    Location:
    North Charleston, SC
    o_O
    Yeah. I think I can come up with something a little cleaner looking though.
    My radiator is about twice as thick as the stock one too. It is tight! It just barely clears the water pump pulley. I had to modify the overflow tank mounts to clear my power steering pulley.

    #3
  4. revhead347

    revhead347 I have face herpes.

    Joined:
    Jun 14, 2004
    Messages:
    6,645
    Likes Received:
    295
    Trophy Points:
    124
    Location:
    Acworth, GA
    They sell a type of zip tie that mounts it right through the radiator. They are like $5 at the part store for a set of 4. It is a straight zip with a square end on each end. You drill a very small hole in each corner of the fan shroud. Then run the zip directly through the hole, and directly through the core of the radiator.

    Kurt

    #4
  5. RangerJoe

    RangerJoe Advanced Member

    Joined:
    Apr 27, 2010
    Messages:
    1,294
    Showcase:
    3
    Albums:
    1
    Likes Received:
    226
    Trophy Points:
    74
    Location:
    Georgia
    Yep, my twin oem fans are mounted this way. Very clean.

    Joe

    #5
  6. 84Ttop

    84Ttop They make new pistons every day, so why worry?
    SN Certified Technician Mod Dude

    Joined:
    Jul 3, 2009
    Messages:
    3,434
    Showcase:
    37
    Albums:
    1
    Likes Received:
    1,502
    Trophy Points:
    144
    Location:
    South Jersey
    X3 mounted plenty of fans that way with no trouble

    #6
  7. cdurbin

    cdurbin Active Member

    Joined:
    Jul 28, 2012
    Messages:
    558
    Likes Received:
    103
    Trophy Points:
    54
    Location:
    North Charleston, SC
    Good deal. I'll have to check it out. Orielly's, AutoZone?

    #7
  8. 84Ttop

    84Ttop They make new pistons every day, so why worry?
    SN Certified Technician Mod Dude

    Joined:
    Jul 3, 2009
    Messages:
    3,434
    Showcase:
    37
    Albums:
    1
    Likes Received:
    1,502
    Trophy Points:
    144
    Location:
    South Jersey
    Any auto parts store will have them

    #8
  9. cdurbin

    cdurbin Active Member

    Joined:
    Jul 28, 2012
    Messages:
    558
    Likes Received:
    103
    Trophy Points:
    54
    Location:
    North Charleston, SC
    I found some online at Advance Auto for $6.50. Definitely worth looking into for that price. Thanks for the advice.

    #9
  10. rbohm

    Founding Member

    Joined:
    Apr 13, 2002
    Messages:
    6,411
    Likes Received:
    273
    Trophy Points:
    124
    Location:
    tucson,az
    keep the brackets you have and paint them black. that way the disappear somewhat.

    #10
  11. Onefine88

    Onefine88 Previously 89SSC18

    Joined:
    Aug 3, 2006
    Messages:
    1,065
    Likes Received:
    326
    Trophy Points:
    94
    Its SOOOO Simple! Your not gonna believe it. I have the same fan on my vert. I too hate the huge ugly bracket.
    Mount the entire assembly upside down. The ugly bracket is now on the bottom and the fan doesn't know that its upside down. LOL
    Looks much better. I polished the little brackets to bling it up a bit.

    #11
    cdurbin likes this.
  12. Grabbin' Asphalt

    Grabbin' Asphalt Mustang Master

    Joined:
    Jun 11, 2013
    Messages:
    1,940
    Showcase:
    25
    Albums:
    1
    Likes Received:
    277
    Trophy Points:
    94
    Location:
    Atlanta, Ga
    Mine came with the 2 small tabs on top and bottom....


    #12
  13. Grabbin' Asphalt

    Grabbin' Asphalt Mustang Master

    Joined:
    Jun 11, 2013
    Messages:
    1,940
    Showcase:
    25
    Albums:
    1
    Likes Received:
    277
    Trophy Points:
    94
    Location:
    Atlanta, Ga
    I'd be too scared to flip the electrical side on bottom with water puddles, rain, debri etc...

    #13
  14. Onefine88

    Onefine88 Previously 89SSC18

    Joined:
    Aug 3, 2006
    Messages:
    1,065
    Likes Received:
    326
    Trophy Points:
    94
    No wiring down low. The wiring harness is mid way up on the passenger side. Perfect place to mount the fan temp control unit.
    See?

    #14
  15. Grabbin' Asphalt

    Grabbin' Asphalt Mustang Master

    Joined:
    Jun 11, 2013
    Messages:
    1,940
    Showcase:
    25
    Albums:
    1
    Likes Received:
    277
    Trophy Points:
    94
    Location:
    Atlanta, Ga
    Cool, when you said flip i was thinking 180* but that works great too :nice: nice man.

    #15
  16. Grabbin' Asphalt

    Grabbin' Asphalt Mustang Master

    Joined:
    Jun 11, 2013
    Messages:
    1,940
    Showcase:
    25
    Albums:
    1
    Likes Received:
    277
    Trophy Points:
    94
    Location:
    Atlanta, Ga
    Cool, when you said flip i was thinking 180* but that works great too :nice: nice man.

    #16
  17. revhead347

    revhead347 I have face herpes.

    Joined:
    Jun 14, 2004
    Messages:
    6,645
    Likes Received:
    295
    Trophy Points:
    124
    Location:
    Acworth, GA
    I heard that the fan from the 95 Taurus 3.8 is better anyway. Just what I have heard, it's been awhile since I did any Fox stuff.

    Kurt

    #17
  18. cdurbin

    cdurbin Active Member

    Joined:
    Jul 28, 2012
    Messages:
    558
    Likes Received:
    103
    Trophy Points:
    54
    Location:
    North Charleston, SC
    Yeah man, That's what I'm talking about. Nice!
    Great idea. Thanks!

    #18
  19. larrym1961

    larrym1961 Active Member

    Joined:
    Dec 18, 2010
    Messages:
    497
    Showcase:
    1
    Albums:
    1
    Likes Received:
    27
    Trophy Points:
    29
    Location:
    Idaho Falls Id

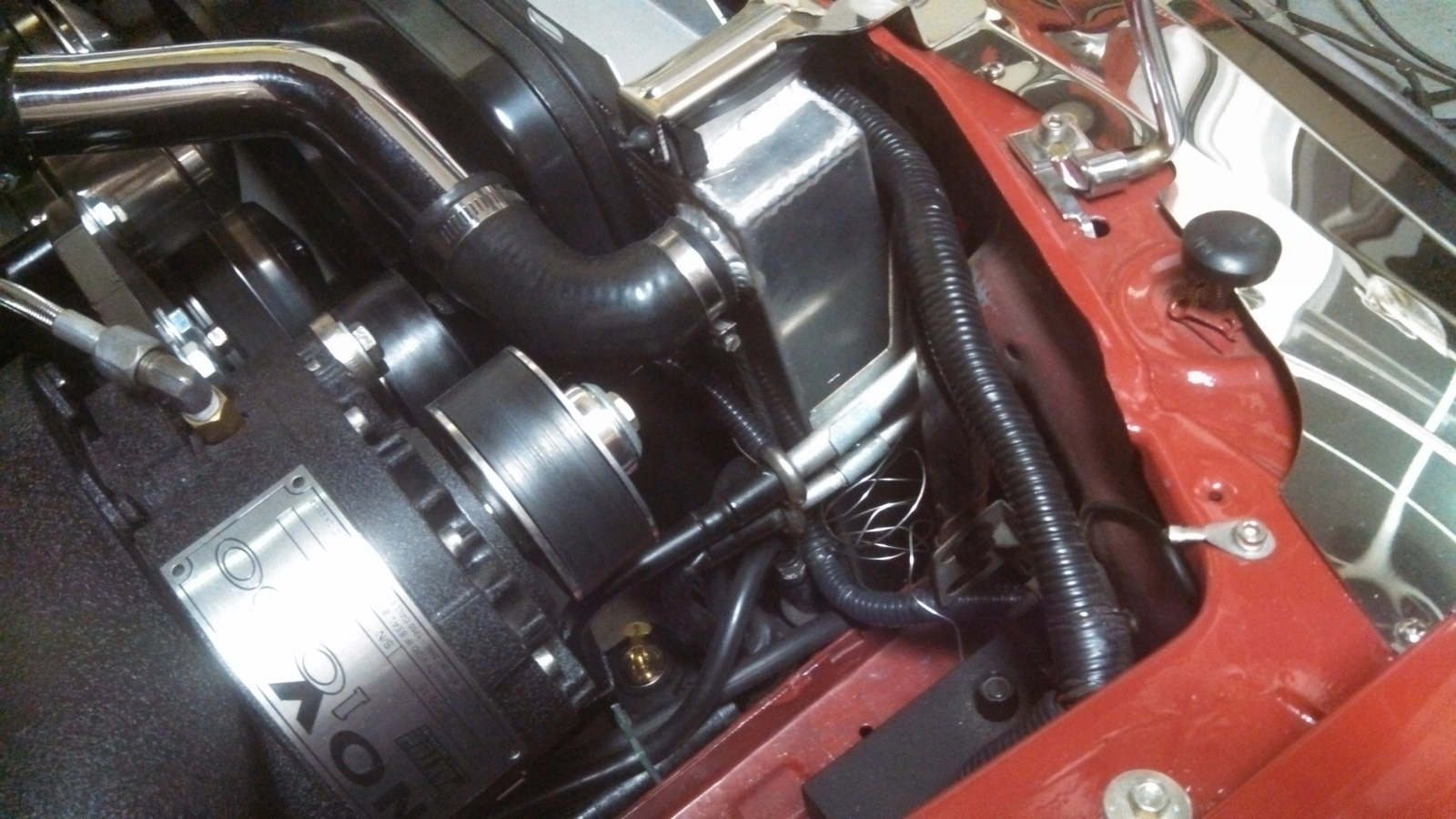

    Swapped my Black Magic Extreme Cooler fan for a Contour/Mystique/Cougar dual fan set up. I also used the parts house $7 zip tie method to mount them. It looks like it came from the factory like that and out cools the Black Magic single fan.

    #19
  20. cdurbin

    cdurbin Active Member

    Joined:
    Jul 28, 2012
    Messages:
    558
    Likes Received:
    103
    Trophy Points:
    54
    Location:
    North Charleston, SC

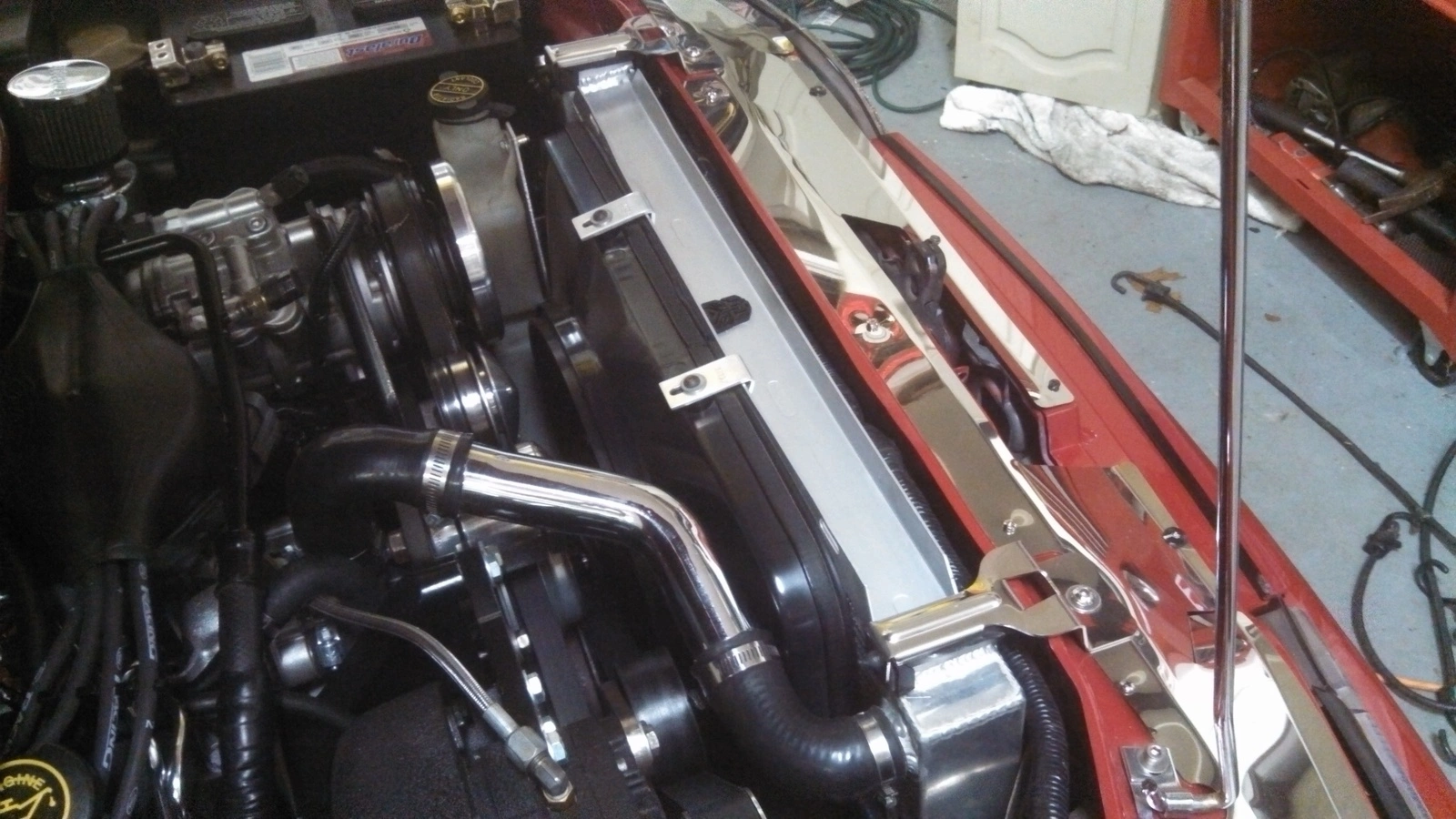

    Did the bracket flip trick today. Much better. Now on to other areas under the hood that need my attention.
    Thanks again for the slick idea. IMG_0373.JPG
