Fox Fan Wiring To Switch?

Discussion in '1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk-' started by 5point0stang88, Jun 20, 2014.

  1. 5point0stang88

    5point0stang88 Active Member

    Joined:
    Sep 10, 2011
    Messages:
    181
    Likes Received:
    13
    Trophy Points:
    29
    Currently fan hooked to ignition on. Hate it, takes power away and can't run ac.
    What if I wire my fan off the battery.
    Hot side to the heavy duty 75 amp continuous duty relay. Ground from that to battery, but I'll run a switch making or breaking the ground.
    Will this work well?

    #1
  2. jrichker

    jrichker StangNet's favorite TOOL
    SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,979
    Likes Received:
    425
    Trophy Points:
    134
    Location:
    Dublin GA
    If you don't have a high current alternator, you can forget about using an electric fan. The stock 65 amp alternator on 86-93 Mustangs isn't big enough to run the fan and the rest of the car. If you have a 94 or later Mustang, the stock 3g alternator should be fine if it is working correctly.

    Switching a fan on and off manually is a bad idea. Too many guys have been distracted (hot girl kissing on their neck, too much to drink, dog tired and not thinking clearly) and cooked things because they forgot to flip the switch. An equal number have forgotten to turn the switch off for the same reasons and run down their battery.

    The best fan controller available today is a DC Control unit. www.dccontrol.com. Cost is about $???. Be prepared to wait 4 weeks or more to receive your controller once you have sent in your payment. The controllers are custom made in small lots and lead times can stretch out.

    Next best is a SPAL controller - $70-$120 See http://www.spalusa.com/store/Main.aspx?html=pwmv3. eBay will have the controllers for a bargain price: do a Google search and see what you find.

    At the bottom are the Hayden or Imperial controllers available through Advance Discount Auto Parts and AutoZone. The non adjustable one is about $30 ( Hayden 226206) and the adjustable one is about $60 (Hayden 226204). I recommend you do a Google search on Hayden and the part number for more info.

    Do not use a simple on/off switch without using a relay. The current load can burn up the typical cheap automotive switch very quickly. The fan draws 30+amps and you need to use #10 wire on the fan power and ground wiring.

    If you are good with electrical stuff (90% of the people here aren't), build your own controller. The numbers on the diagram (#86, #87, etc) refer to the numbers on the bottom of a typical automotive relay.

    [​IMG]

    Note that the temp sensor in the diagram needs to match the thermostat in your engine. The preferred arrangement is to have it open about 5 degrees above the thermostat.

    To allow the ignition switch to control the fan so that it does not run when the ignition is off, connect the relay contact #86 to the red/green wire on the ignition coil or to the red/yellow wire on the coolant level sensor.

    If you are an experienced electronics tech or electrical engineer, email me and I will send you the prototype drawings of a fan controller that is similar in function to the DC Control unit. It is a build it, troubleshoot it yourself item. I will not build or troubleshoot units, so it is not suitable for anyone who isn't really good with electronics.
    See my post at http://www.stangnet.com/mustang-for...-sooo-much-amperage-help.859590/#post-8645840 to get the drawings and full details.

    Alternate placement for a temp gauge sender or temp switch/temp sensor for an electric fan. Use the heater feed that comes off the intake manifold. Cut the rubber hose that connects the manifold water feed to the heater and splice in a tee adapter for the temp gauge sender. Be sure to use the same water feed line as the ECT sensor. That way you will get the most accurate temp readings.

    Tee adapter info:
    Make a pilgrimage to your local hardware or home supply center and get some copper pipe and a tee that fits the temp gauge sender. Solder two pieces of copper pipe onto a copper pipe tee with threads in the tee part. Find the correct brass fitting to match the temp sender threads to the tee fitting.

    [​IMG]

    #2
    Audiophile likes this.
  3. 5point0stang88

    5point0stang88 Active Member

    Joined:
    Sep 10, 2011
    Messages:
    181
    Likes Received:
    13
    Trophy Points:
    29
    I have 3g alternator

    #3
  4. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 12, 2011
    Messages:
    2,017
    Likes Received:
    377
    Trophy Points:
    104
    Location:
    Waldorf, MD
    Get a Ron Francis electric fan kit they sell them in both single and dual fan setups

    #4
  5. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 12, 2011
    Messages:
    2,017
    Likes Received:
    377
    Trophy Points:
    104
    Location:
    Waldorf, MD
    Like any of these. I have the one with the ignition controlling one and a sensor controlling the second ( if you have a 190 stat get the 200 sensor if you have a 180 get the 176 sensor) I made the mistake of getting a 200 with my 180 stat and was wondering why my second fan never came on

    #5
  6. 5point0stang88

    5point0stang88 Active Member

    Joined:
    Sep 10, 2011
    Messages:
    181
    Likes Received:
    13
    Trophy Points:
    29
    Damn lol I have 160 stat, flowkooler water pump, electric fan. Radiator ices down at idle/traffic

    #6
  7. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 12, 2011
    Messages:
    2,017
    Likes Received:
    377
    Trophy Points:
    104
    Location:
    Waldorf, MD
    #7
    5point0stang88 likes this.
  8. 5point0stang88

    5point0stang88 Active Member

    Joined:
    Sep 10, 2011
    Messages:
    181
    Likes Received:
    13
    Trophy Points:
    29
    Great link just what I need, reduce load on ignition switch

    #8
  9. 5point0stang88

    5point0stang88 Active Member

    Joined:
    Sep 10, 2011
    Messages:
    181
    Likes Received:
    13
    Trophy Points:
    29

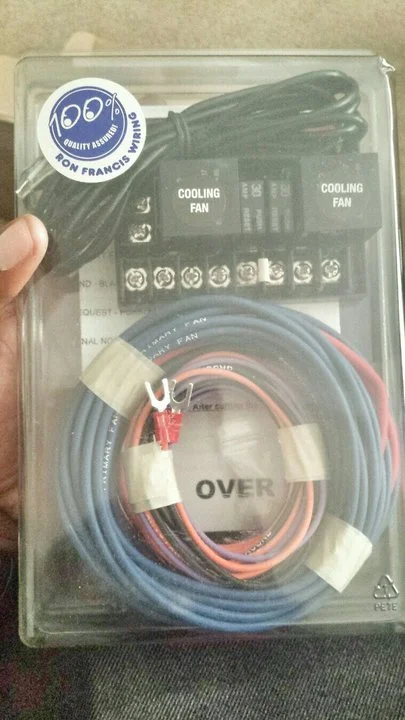

    Got it in, 150$ worth of controller. It was suggested to get fan controller and it made sense. Thanks.
    Installing tomorrow.
    [​IMG]

    #9
    85rkyboby likes this.
