    come on Pete, we all KNOW that the original moon walks were done on a set in a warehouse in the Nevada desert. in fact James Bond stole the moon rover and drove it through the wall of the warehouse and escaped from the ultra top secret compound in a What? that's right a RED MUSTANG. do you see where thi is going? :D LOL
    #81
  2. SN65

    SN65 New Member

    Joined:
    Oct 27, 2004
    Messages:
    539
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chicago, IL

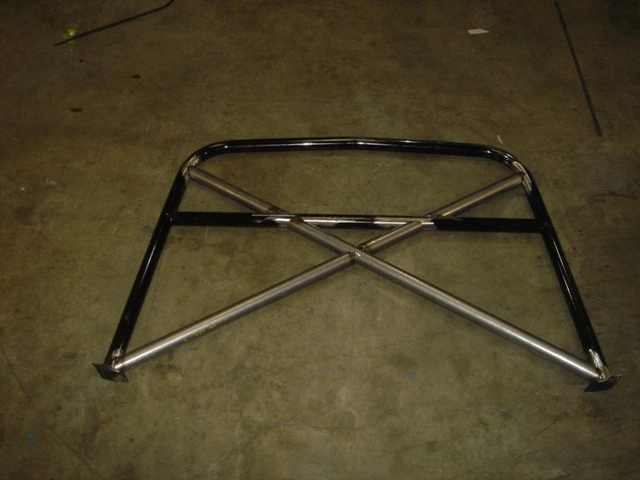

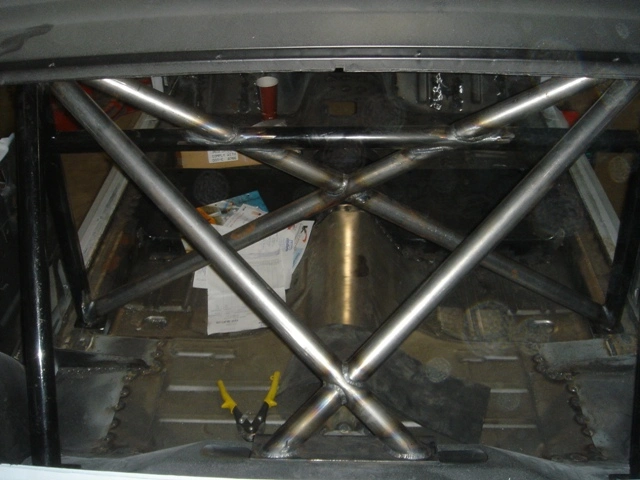

    Here are some photos of the roll bar setup. More photos are available on our website.

    [​IMG]

    [​IMG]
    #82
  3. 1320stang

    1320stang Founding Member

    Joined:
    Nov 13, 1998
    Messages:
    4,244
    Likes Received:
    0
    Trophy Points:
    67
    Location:
    Edmond, Oklahoma
    Hey Reen, I saw the other day that the rovers have already outlived their expected lifetime 10 times over. Just a couple months away from 3 years in operation on Mars.
    #83
  4. Blue Oval Man

    Blue Oval Man Member

    Joined:
    Aug 8, 2004
    Messages:
    124
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Shaunavon, Saskatchewan
    Any idea when the 3 link/ watts might be available? Any pictures?
    #84
  5. Eyeless_Seven

    Eyeless_Seven New Member

    Joined:
    Sep 30, 2006
    Messages:
    58
    Likes Received:
    0
    Trophy Points:
    0
    I agree with ReenMachine someone will alway's find fault with anything you do.
    Someone will alway's complain about a classic being butchered or a Shelby being copied.
    Your car do as you like! If it was so easy there would be a few thousand clone's of the Sn65's running around and I would be driving one of them.
    Compared to some of the other builder's car your's was a breath of fresh air.
    By the way I didnt like the fender vent's ethier. :rlaugh:
    #85
  6. Eyeless_Seven

    Eyeless_Seven New Member

    Joined:
    Sep 30, 2006
    Messages:
    58
    Likes Received:
    0
    Trophy Points:
    0
    Whats up with the drip rails? Are you adding metal or bending them back? More detail please.
    Reen , Michael Jackson I know for sure has done a moon walk, The jury is still out about anyone connected to NASA having done one.
    #86
  7. SN65

    SN65 New Member

    Joined:
    Oct 27, 2004
    Messages:
    539
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chicago, IL
    We are adding a 1/2 x 1/8 thk piece of bar stock. We trim the driprail back (leaving about 1/8" as a guide) form up the piece of barstock and weld it in place. The entire lower edge is continiously welded. This fuses the loose edges of the roof and the bar stock together into one solid piece.
    #87
  8. Applejack

    Applejack New Member

    Joined:
    Dec 11, 2005
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    White Lake, MI
    How is the upper joint of the roof panel to bar stock sealed? It would seem welding it would be difficult to maintain a consistant bevel/chamfer of the weld bead.
    #88
  9. Eyeless_Seven

    Eyeless_Seven New Member

    Joined:
    Sep 30, 2006
    Messages:
    58
    Likes Received:
    0
    Trophy Points:
    0
    Interesting approach to the drip rail's, any close up pic's?
    #89
  10. Blue Oval Man

    Blue Oval Man Member

    Joined:
    Aug 8, 2004
    Messages:
    124
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Shaunavon, Saskatchewan
    Any updates on the chassis reinforcing package and the 3 link setup?
    #90
  11. SN65

    SN65 New Member

    Joined:
    Oct 27, 2004
    Messages:
    539
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chicago, IL
    We are just finishing up the welds on the roll bar. It would have been faster to Mig weld it, but we decided to Tig weld all the joints. It should look killer after we have it media blasted and powder coated.

    The three link is in the works. All designed on AutoCadd and ready for fab. Just going over struct calcs, etc... It should be ready in about a week or two.

    We have started trimming out the inside of the shock towers to get us a bit more clearance for the 427. We have been doing a lot of mundain bodywork. Wayne finished up replacing the lower quarters (drivers and passengers side). Wayne rolled the lip up on the bottom of the quarters to eliminate the pinch weld at the bottom of the quarter panels. They look pretty trick.

    I will be posting photos of the roll bar (and other misc items) when the welding is complete.
    #91
  12. SN65

    SN65 New Member

    Joined:
    Oct 27, 2004
    Messages:
    539
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chicago, IL

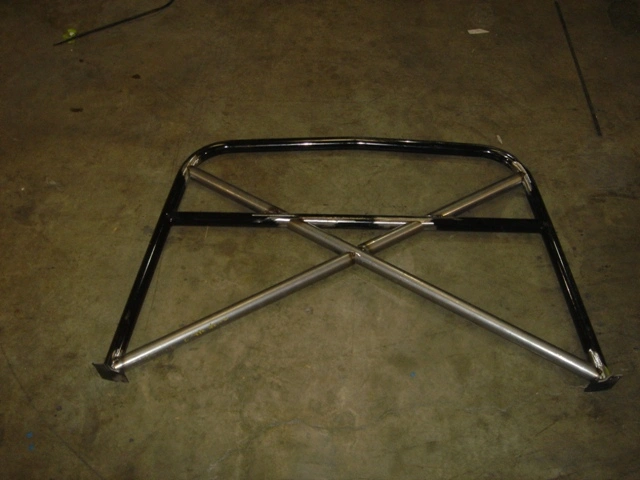

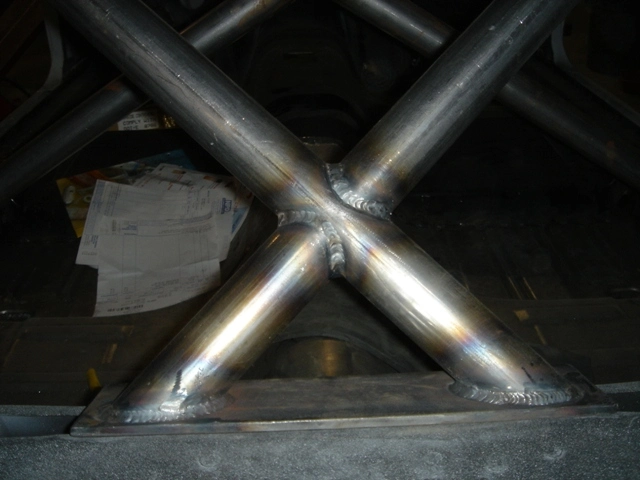

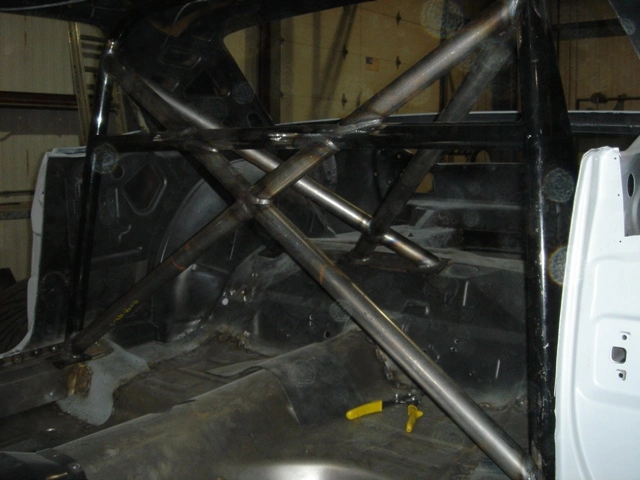

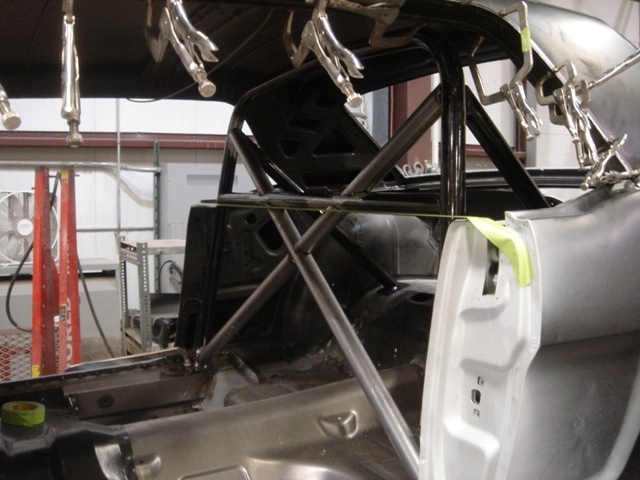

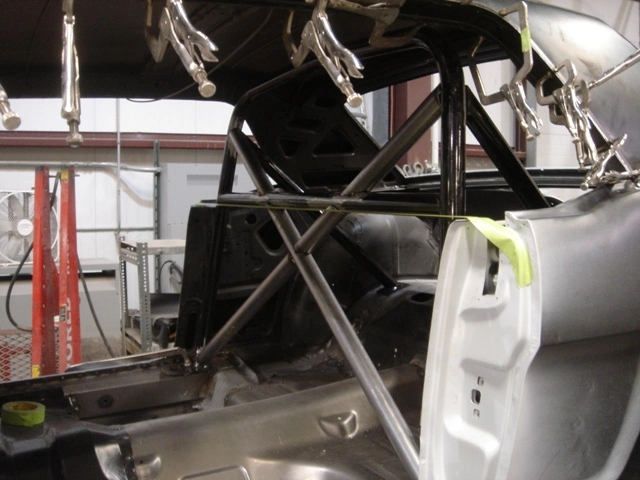

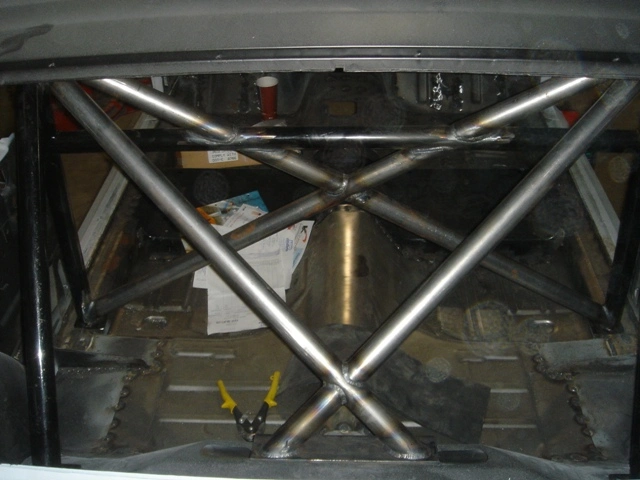

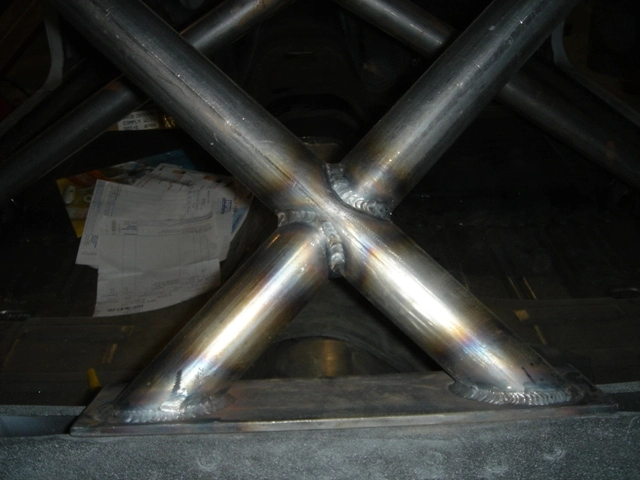

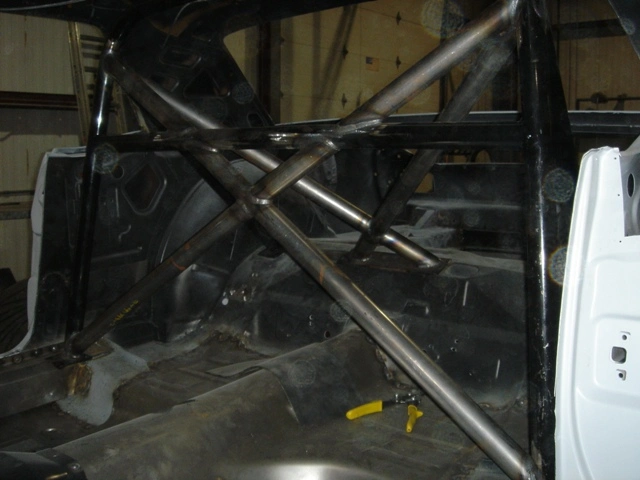

    Just finished the roll bar. Here are some photos. The last on is trying to show the quality of the welds. I think they came out great.

    [​IMG]

    [​IMG]

    [​IMG]
    #92
  13. bigcat

    bigcat start with the upper hole, and if more traction is

    Joined:
    May 2, 2005
    Messages:
    4,248
    Likes Received:
    2
    Trophy Points:
    79
    Location:
    7200 feet
    hi bob, how do you plan to powder coat the cage? is there anough room to remove it and then weld in after its coated, or do you have a different plan? :shrug:
    #93
  14. SN65

    SN65 New Member

    Joined:
    Oct 27, 2004
    Messages:
    539
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chicago, IL
    We are currently going to powder coat the cage. I have given some thought to having the cage covered with leather like a stearing wheel, but, for right now, we are looking at just powder coating.
    #94
  15. crgraham32

    crgraham32 New Member

    Joined:
    Oct 2, 2006
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Georgetown, KY
    Bob, I think what he was trying to ask, is how are you going to powder coat the cage after it is welded up and in the car?

    Beautiful work on SN65 and on Fire & Ice so far by-the-way! :nice: This is my first post here, but I have been following SN65 for a while. I started a good ways behind and read my way through the whole thread. Just not in one sitting. :)
    #95
  16. SN65

    SN65 New Member

    Joined:
    Oct 27, 2004
    Messages:
    539
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chicago, IL
    We have mounting pads on the base of the rollbar which allow us to weld the bar in place without messing up the coating.
    #96
  17. reenmachine

    reenmachine Active Member

    Joined:
    Jun 28, 2004
    Messages:
    1,254
    Likes Received:
    1
    Trophy Points:
    38
    Location:
    Ventura, CA
    I think the question was whether you can get the cage out of the car to get it powdercoated, and the answer must be yes.
    #97
  18. 3-0-II

    3-0-II Member

    Joined:
    Oct 24, 2006
    Messages:
    195
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Redwood City, CA
    This looks like its gonna be fun to watch as well :D

    And I'm drooling over the idear of a Ford I6, especially from Down Under. I'm a BIG fan of those Aussie Falcons. If only Ford would sell them here....... *sigh*
    #98
  19. SN65

    SN65 New Member

    Joined:
    Oct 27, 2004
    Messages:
    539
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chicago, IL
    New update at the site

    http://sn65.com/Fire & Ice unibody reinforcement.htm

    Check out the fuel door we are currently evaluating.

    With that said, it is time for the suspension gurus to chime in and help with the front end geometry.

    Here are our issues....

    We are going with a strut front suspension. We intend to use the early Mustang lower control arm and the front strut.

    When we set the suspension at ride height, we have about 1" of suspension travel before the lower control arm buries itself into the frame rail.

    Is this enough? I don't think so.

    To gain more suspension travel we can modify the lower control arm and front strut or we can go with a 2" drop fox body spindle and strut.

    If we alter the lower control arm assemblies by sectioning and "bending" we will end up with about a 1" rise from the control arm mounting position to the ball joint pivot point. If we go with the 2" drop spindle we will end up with about a 1" drop from the control arm pivot point to the ball joint pivot.

    I am thinking that it will be better to go with the 2" drop. I can always relocate the control arm mounting point down a bit if the goal is to end up with a true horizontal plane from the inner pivot point to the center line of the ball joint.

    Any input would be greatly appreciated.
    #99
  20. bnickel

    bnickel Founding Member

    Joined:
    Aug 21, 2002
    Messages:
    5,642
    Likes Received:
    0
    Trophy Points:
    77
    Location:
    lubbock, texas
    i'd say the 2" drop spindle would be better, especially when you get to trying to correct any bumpsteer issues.

Share This Page
