Electrical Gauge Wiring Schematic Needed

Discussion in '1994 - 1995 Specific Tech' started by ram360, Jul 8, 2012.

  1. ram360

    Founding Member

    Joined:
    Oct 20, 2002
    Messages:
    2,174
    Likes Received:
    0
    Trophy Points:
    57
    Location:
    Pennsylvania

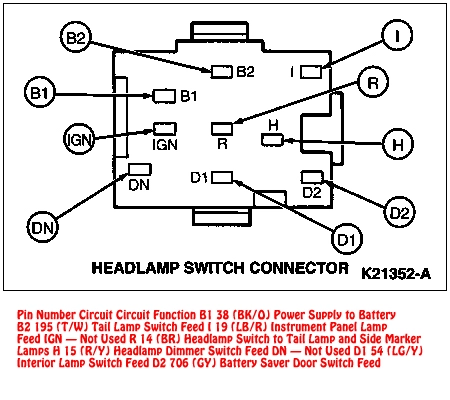

    I alright guys I'm wiring up some gauges in my 94 GT. I need to find the dimmer wire to tap into. Anyone have some wiring schematics for a 94GT headlight switch. I can find every other one but the schematic for that. I'm having a hard time finding what I need tap into for the dimmer wire. Anyone got a schematic? I think it's the blue/red wire but want to verify.

    #1
  2. HISSIN50

    HISSIN50 "How long does it take to get help in here?
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,157
    Likes Received:
    14
    Trophy Points:
    79
    I thought it was Red/yellow but my brain is foggy. If you're testing at the hdlight switch, turn on the parking lights and find the wires that have 12V to them in the parking light position (omit the constant power feed to the switch). Now run the dimmer up and down with your test light connected to each of those hot wires and see which one dims.

    Depending upon what you're tapping into that circuit, you could grab it at the fog light switch or any place else that has a dimmed light.

    Good luck.

    #2
  3. JonezySN95

    JonezySN95 Member

    Joined:
    May 19, 2011
    Messages:
    200
    Showcase:
    2
    Albums:
    1
    Likes Received:
    2
    Trophy Points:
    19
    Location:
    J-ville NC
    #3
  4. revhead347

    revhead347 I have face herpes.

    Joined:
    Jun 14, 2004
    Messages:
    6,645
    Likes Received:
    295
    Trophy Points:
    124
    Location:
    Acworth, GA
    Blue wire with the red stripe, and I'm absolutely positive on that one. The easiest place to access it is on the radio harness.

    Kurt

    #4
  5. toyman

    SN Certified Technician

    Joined:
    Jul 20, 2007
    Messages:
    1,865
    Likes Received:
    47
    Trophy Points:
    49
    Location:
    Vernon BC
    Light blue w/red stripe is common to all dash illumination bulbs. What is the application, gauges?

    #5
