Engine Head Gasket Swap... Questions Within

Discussion in 'Fox 5.0 Mustang Tech' started by madspeed, Apr 22, 2014.


  1. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,258
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,173
    Trophy Points:
    174
    Location:
    a van down by the river
    Finally got my parts to swap in some 9333 pt1 head gaskets. First time at it believe it or not. Going to have some questions I'm sure. Got a little bit of time tonight so I started tearing into it.
    #1
  2. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,258
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,173
    Trophy Points:
    174
    Location:
    a van down by the river
    Last edited: Apr 22, 2014
    #2
  3. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    3,769
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,021
    Trophy Points:
    144

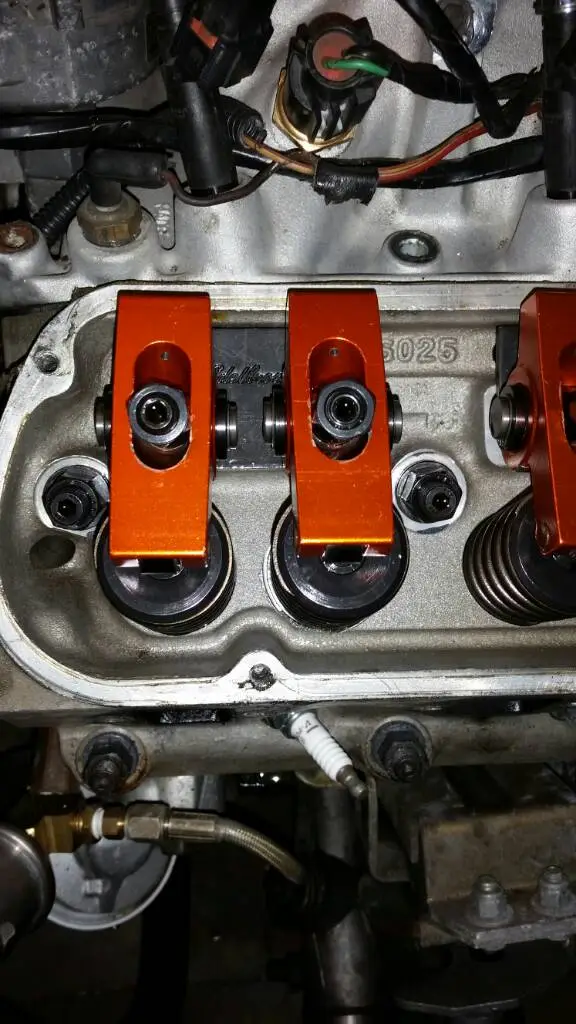

    Yep, they are stud mount adjustable. Loosen up the poly locks - center allen nut- while holding the outer nut, and then back off the outer nut a turn or so. Then you can remove the pushrods. You can remove the heads with the rockers still on.

    Take a cardboard box and punch 16 holes in it- 8 one one row, 8 in another row. number them 1 intake, 1 exhaust, 2 intake, etc.... When you remove the pushrods hold them up to the light and make sure they are not clogged- you can blow it out with some compressed air. Take it and roll it on a flat surface to make sure it's not bent. There is a top and bottom of the pushrod so keep track. Stick the pushrod in the corresponding hole in the box. That way you keep track of them.
    #3
  4. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,258
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,173
    Trophy Points:
    174
    Location:
    a van down by the river
    Got the box ready, just wasnt sure if i needed to measure or mark anything other than keeping them in the order they are.

    Thx
    #4
  5. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    19,871
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,465
    Trophy Points:
    174
    Location:
    Box behind Walmart
    What he said.

    You might want to take this opportunity to check methods for resetting all of those. I keep mine on the loose/slightly noisier side.
    #5
  6. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 12, 2011
    Messages:
    1,942
    Likes Received:
    356
    Trophy Points:
    94
    Location:
    Waldorf, MD
    All I have to offer with this is tacos haha but yes those are stud mounted rockers and just like mike said on how to remove them ... @mikestang63 I like the cardboard idea I will have to do that on my next head swap
    #6
  7. 84Ttop

    84Ttop They make new pistons every day, so why worry? SN Certified Technician Mod Dude

    Joined:
    Jul 3, 2009
    Messages:
    3,199
    Likes Received:
    1,279
    Trophy Points:
    144
    Location:
    South Jersey
    Like the others have said. Loosen the rockers and remove the pushrods. Get that intake away and pop those heads off. Do you plan on having them resurfaced or at least checked?
    #7
  8. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,258
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,173
    Trophy Points:
    174
    Location:
    a van down by the river
    Yep, although they are fairly new, I've got a guy down the street that builds engines for dirt track racers and has even done some high end arca engines. Phil Miller Race Engines. I'll drop them off tomorrow and have em gone over. May need him to stop by afterwards to help with the install to make sure im squared away
    #8
  9. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    3,769
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,021
    Trophy Points:
    144
    Have him take the least amount off the heads as possible, as that can change the pushrod length needed. As Noobz said, there are different opinions on preload settings. Generally for street, you want to be around 1/2 turn past 0 lash on the retaining nut, and then snug down the poly lock and the retaining nut. You will want to check for the witness mark or swipe on the valve tip to make sure your pushrod length is correct.

    Mad, here is one of the better video's I've seen over the years that explains how to adjust them very simply.

    #9
    Grabbin' Asphalt likes this.
  10. Grabbin' Asphalt

    Grabbin' Asphalt Mustang Master

    Joined:
    Jun 11, 2013
    Messages:
    1,940
    Showcase:
    25
    Albums:
    1
    Likes Received:
    277
    Trophy Points:
    94
    Location:
    Atlanta, Ga
    Those types of center allen locks are also on riding lawn mowers, if it wont start and the carbs clean, the valves probably need adjusting. I snugged up the two valves on a troybilt 17.5 and it starts up quick and runs strong, .....it's getting summer so go cut that grass too :p
    #10
  11. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,258
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,173
    Trophy Points:
    174
    Location:
    a van down by the river

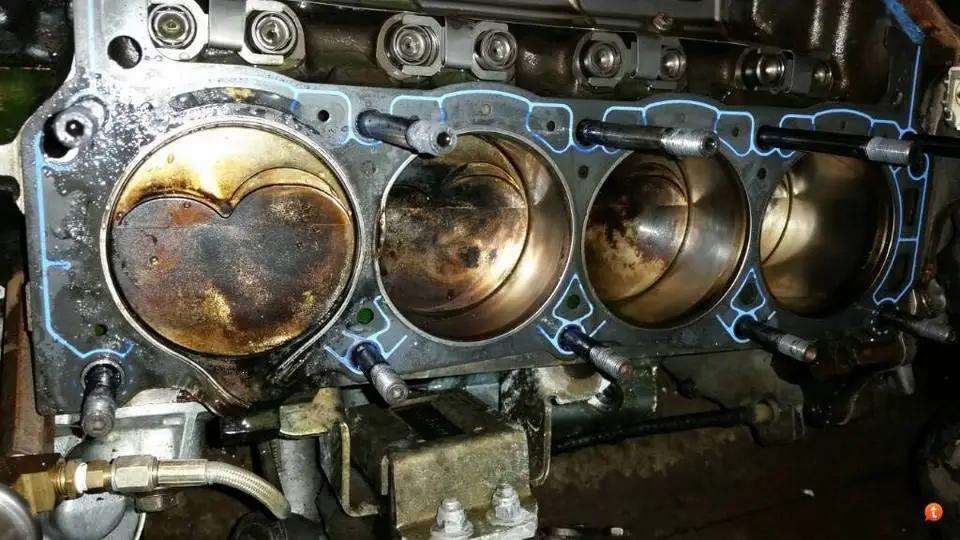

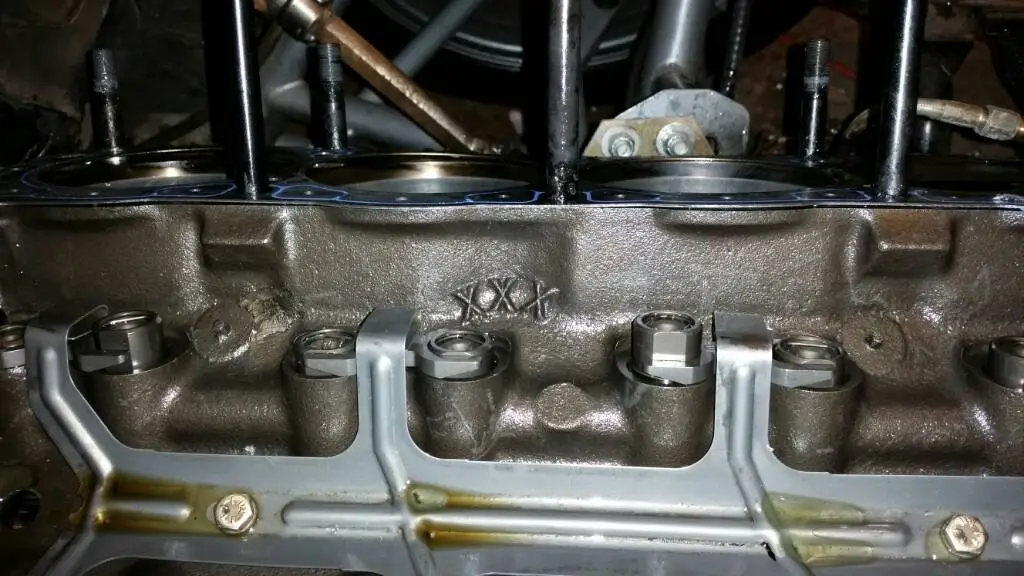

    Thanks so far fellas. Heads off, here's the culprit


    [​IMG]
    Last edited: Apr 22, 2014
    #11
  12. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,258
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,173
    Trophy Points:
    174
    Location:
    a van down by the river

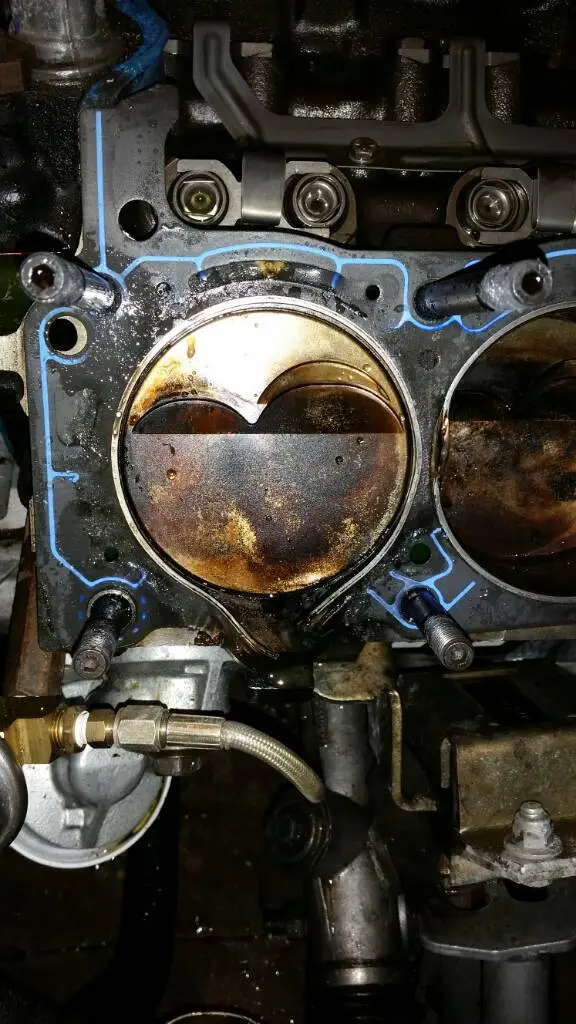

    I noticed that for the last year or two theres been some oil lying on the lower head stud for that cylinder. Guess we see what resulted...


    Next question.

    Many have said there should be some step washers in there, and I dont see any. I threw a micrometer on both the head stud and the opening in the head. Do these require step washers???

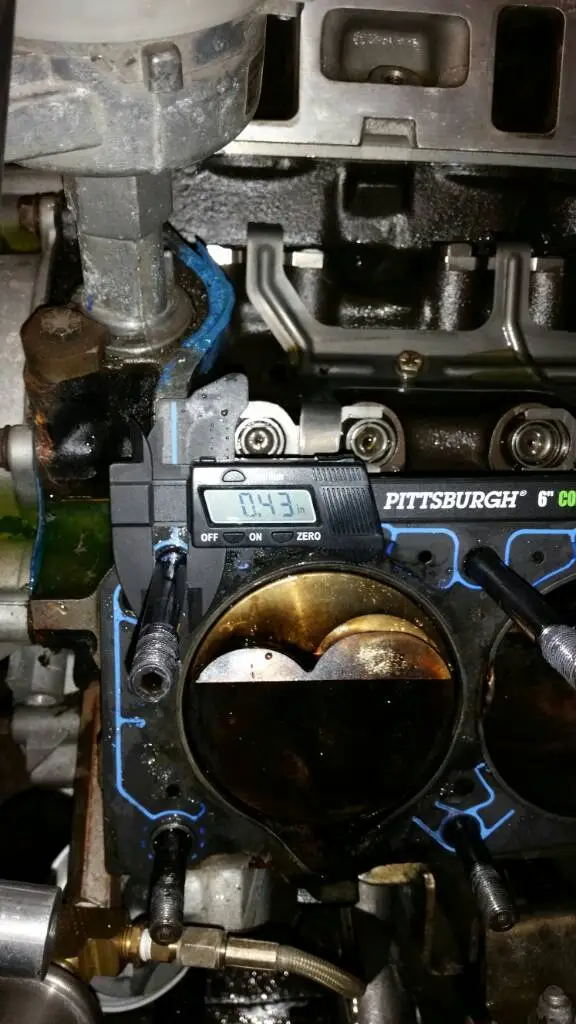

    Head stud

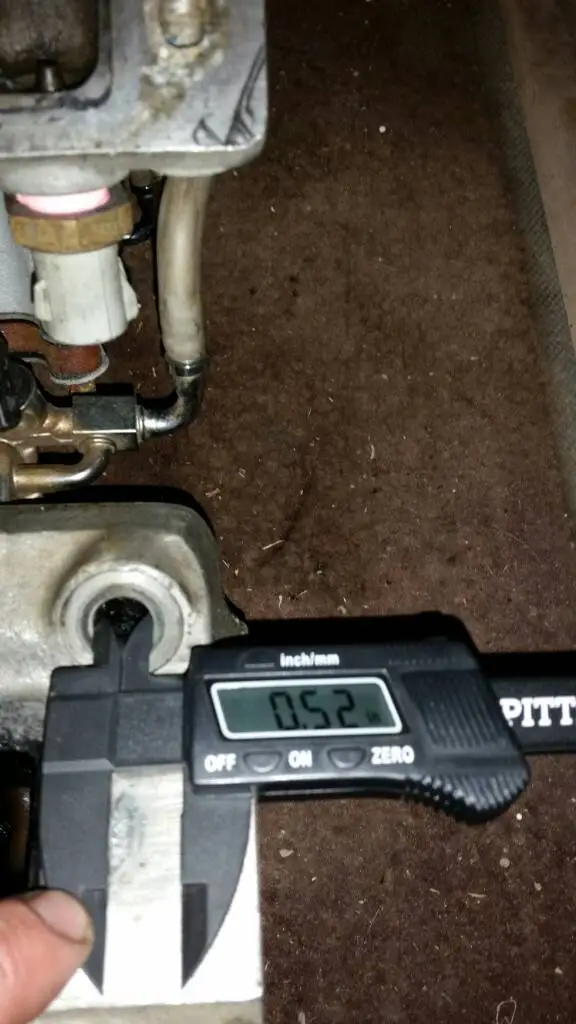

    Head openings
    #12
  13. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,258
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,173
    Trophy Points:
    174
    Location:
    a van down by the river
    .

    Attached Files:

    Last edited: Apr 22, 2014
    #13
  14. Gearbanger 101

    Gearbanger 101 Straight Outta Locash Super Mod

    Joined:
    Aug 11, 2002
    Messages:
    14,228
    Likes Received:
    842
    Trophy Points:
    164
    Location:
    Ontario, Canada
    The stepped washers are a good idea to ensure proper torque on the head bolts (they stop the bolt for distorting under torque load), but I have seen people run without them.

    You've got about a 50/50 shot of head gasket failure without them, so it's up to you if the price of the top end gasket kit and the hours of work involved are a worthy gamble to save $50?

    If it were me, I'd use them....and I did.

    BTW, I don't recall....what took the head gasket out in the first place?
    #14
  15. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    3,769
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,021
    Trophy Points:
    144
    X2 what Brian said. Use the washers. My guess is because there weren't any, that allowed the head to walk a little on the gasket.
    #15
  16. flstang65

    flstang65 Well-Known Member

    Joined:
    Dec 6, 2007
    Messages:
    1,926
    Likes Received:
    177
    Trophy Points:
    64
    Location:
    Clermont, FL
    Sorry, I am late to the party but, everyone pretty much said everything I was going to say. One thing was left out though...no mention of the beerz anywhere?
    #16
  17. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,258
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,173
    Trophy Points:
    174
    Location:
    a van down by the river
    Forgot to snap a pic of the empty Coronas....

    Plan on getting the step washers. I'll see if the machine shop has any before I order online.


    @Gearbanger101 After installing the turbo and doing some datalogging to dial in the tune, I finally discovered I had a bad maf. Installed a new slot maf and everything was great. I guess i attribute the blowout to the bad maf.
    Also noticed oil buildup on the lower head bolt at that cylinder. Been like that since I got it. I did notice that when removing the nuts, that one didnt seem much tighter than hand tight, and even the rest didnt feel as tight as I thought they should. They either werent torqued down properly, or loosened up?

    So I would think that the combination of no step washers on loose head bolts on a car with a bad maf with boost added will lead to this!

    Heads going to the shop today to check them over.
    Last edited: Apr 22, 2014
    #17
  18. 84Ttop

    84Ttop They make new pistons every day, so why worry? SN Certified Technician Mod Dude

    Joined:
    Jul 3, 2009
    Messages:
    3,199
    Likes Received:
    1,279
    Trophy Points:
    144
    Location:
    South Jersey
    Head gaskets blown, check..tear engine down, check...drink beer, check...where are the tacos ???

    X3 on using step washers!
    #18
  19. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,258
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,173
    Trophy Points:
    174
    Location:
    a van down by the river
    Heads taken to shop. Shop closed, owner on vacation. Go home, drink beer with heads by my side
    #19
  20. Grabbin' Asphalt

    Grabbin' Asphalt Mustang Master

    Joined:
    Jun 11, 2013
    Messages:
    1,940
    Showcase:
    25
    Albums:
    1
    Likes Received:
    277
    Trophy Points:
    94
    Location:
    Atlanta, Ga
    :lol: Time to clean every vaccum hose.
