Help...wiring For Drivers Side Coil

Discussion in 'SN95 4.6L Mustang Tech' started by JMG97GT, Jun 30, 2013.


  1. JMG97GT

    JMG97GT New Member

    Joined:
    Jun 30, 2013
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    1

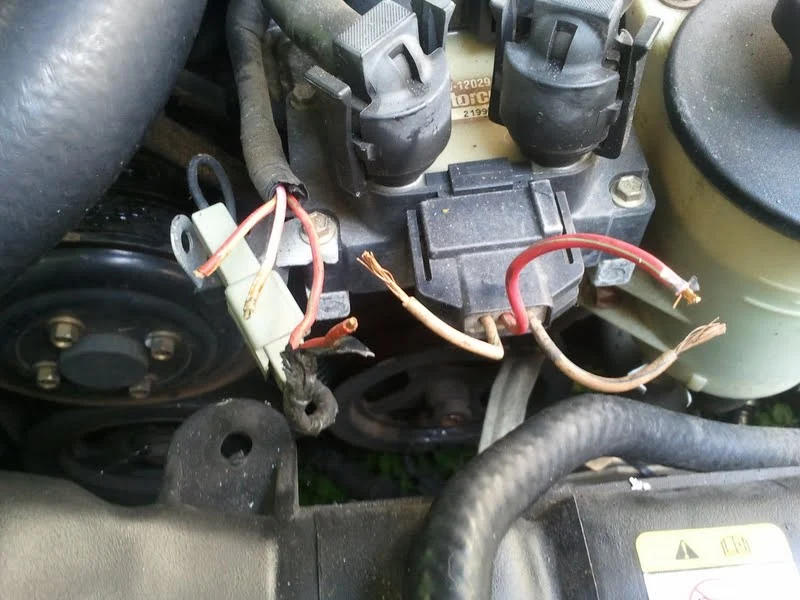

    I just bought a 97 GT and the guy tried to install a MSD 6AL on it. It was unhooked most the way with the bypass plug in and Im trying to go back to factory but having troubles on the drivers side. The colors on the factory harness dont match up with the wires at the plug. Am I missing something? It doesnt seem right that color would change mid stream.
    [​IMG]
  2. wmburns

    wmburns SN Certified Technician

    Joined:
    Aug 14, 2009
    Messages:
    3,112
    Likes Received:
    57
    Trophy Points:
    69
    The pictures are not good enough for me to see the colors. Per the Ford wiring diagrams, the wire colors on one side are R/LG, DB/LB, R/LB. The wire colors on the other coil are R/LG, PK/W, and R/Y.

    The R/LG wire is the ignition power. This is were the radio interference capacitor go to.

    Try cleaning the wires and post the wire colors.
  3. JMG97GT

    JMG97GT New Member

    Joined:
    Jun 30, 2013
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    1
    The wires at the plug are brown\blue, brown\green and red\yelow I believe. I took a guess and hookd them up. Can't remember the order but I know red id the middle. It starts and idles fine so I guess I got it right.
