HID Projector Swap... UPDATES!!! LOTS LOTS LOTS of Pics... 56k warning...

Discussion in '1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk-' started by Adams91LX, Nov 11, 2006.


  1. Adams91LX

    Adams91LX Active Member

    Joined:
    Dec 9, 2003
    Messages:
    702
    Likes Received:
    9
    Trophy Points:
    29
    Location:
    Spring, TX
    So I finally got everything in today...
    My wiring harness finally came from suvlights.com today...
    Wednesday I got my projectors and ballasts...

    The ballasts and projectors are E46 BMW bi xenon projectors... they are ridiculously bright.. yep.

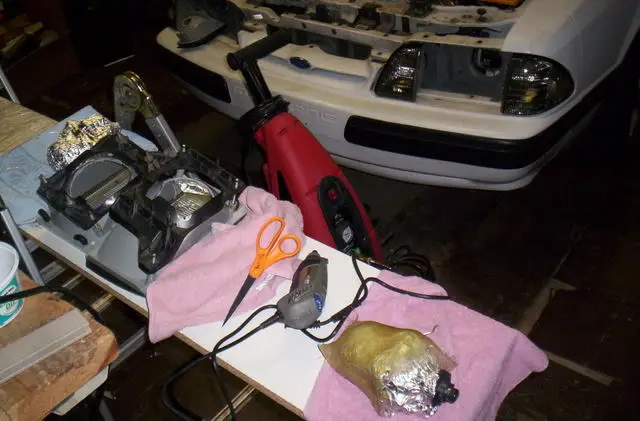

    I started creating the fiberglass shrouds yesterday... and then cut the back of the headlights out, and also cut the back of the mounting panel out...

    So far all it going well... except I killed my dad's dremel... he was ****ed... we got it in July... and it has a 5 year warranty... so I think we'll be alright :D

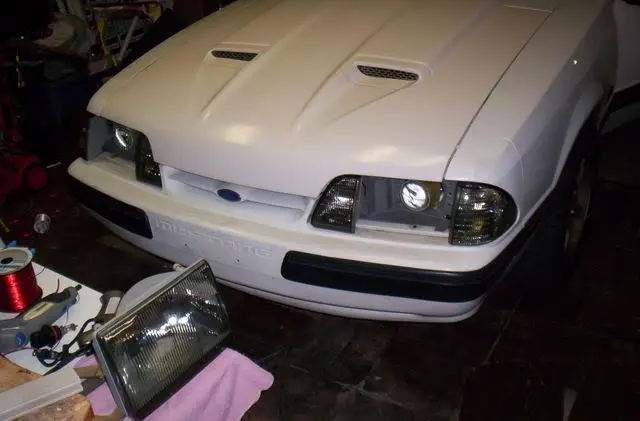

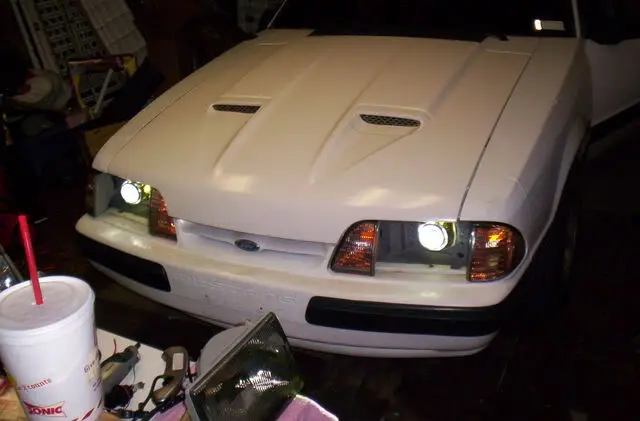

    Anyway... a few teaser pics... it's been a bunch of work... and umm... fiberglass isn't as bad as I thought it would be (first time to use it)...
    But I'm way excited... the lights are great...

    Still way more work to do... but I wanted you kids to see it...
    I still have to bondo and sand the shrouds a bunch more...
    And also make the wholes in the back of the headlights bigger...
    Then it'll be fitting them and and sealing the lights... then aiming... lots of aiming :/

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

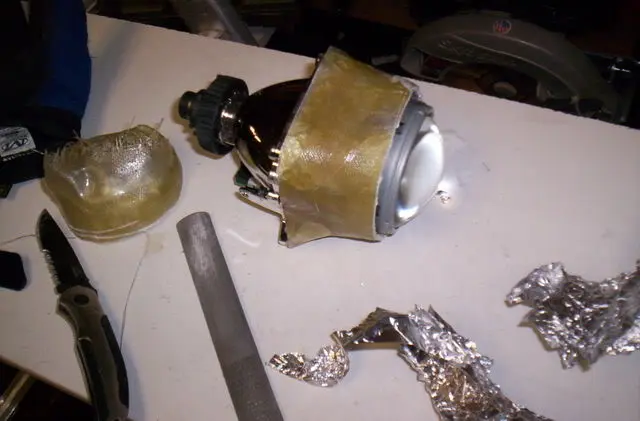

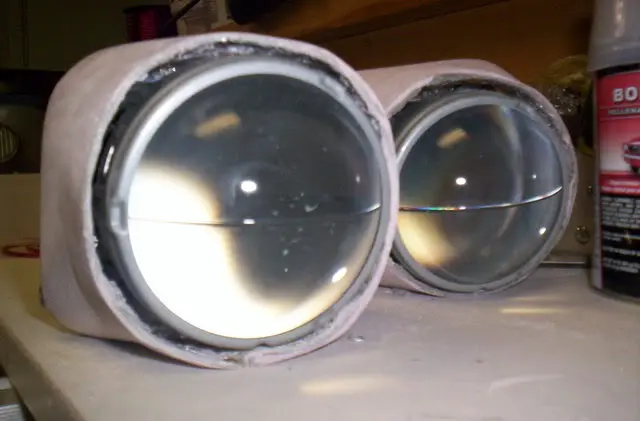

    The next few are just the fiberglass, before bondo work... so you can still see through the shrouds.... looks better now tho.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    You can still see the foil on the inside of the shroud...
    The lenses are really dirty in this one... promise, they are not scratched.
    [​IMG]
    #1
  2. dbdragracing

    dbdragracing Member

    Joined:
    Dec 2, 2004
    Messages:
    395
    Likes Received:
    1
    Trophy Points:
    18
    Sweet.........did the harness just plug in? Keep us updated!
    #2
  3. grey5.0beast

    grey5.0beast Cookies should never be DUNKED!!!

    Joined:
    Aug 3, 2004
    Messages:
    446
    Likes Received:
    39
    Trophy Points:
    0
    Location:
    atl ga
    Are you gonna have brights? Looks badass!
    #3
  4. iwashmycar

    iwashmycar Active Member

    Joined:
    Apr 8, 2004
    Messages:
    1,366
    Likes Received:
    9
    Trophy Points:
    39
    Location:
    Columbus, Ohio
  5. GSXRMIXXER

    GSXRMIXXER New Member

    Joined:
    Feb 13, 2006
    Messages:
    107
    Likes Received:
    0
    Trophy Points:
    0
    well since BMW's were mentioned. Congrats on the projector decision. I have the same setup in my 03 Bmw...I love them! you said they were "Bi" have you got the shutter to work yet. Just a little FYI the shutters don't operate on 12V so use caution. they will work on 12V but will burn out easily so check into that.do you have any pics of the Ballasts and
    volt. reg box? GL:nice:
    [​IMG]
    #5
  6. woodyy24

    woodyy24 New Member

    Joined:
    Mar 31, 2005
    Messages:
    324
    Showcase:
    6
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    illinois
    i dig projects.

    nice work! cant wait to see the end result.
    #6
  7. caseywan

    caseywan Member

    Joined:
    Apr 7, 2006
    Messages:
    162
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Chicago, IL
    If don't mind sharing, post up the links to the auctions you got your stuff from off eBay. I'm just curious how much all the stuff cost you.
    #7
  8. Adams91LX

    Adams91LX Active Member

    Joined:
    Dec 9, 2003
    Messages:
    702
    Likes Received:
    9
    Trophy Points:
    29
    Location:
    Spring, TX
    I haven't got the brights to work yet... what do the shutter's operate on?
    :scratch:

    yeah... it was cake to plug in...

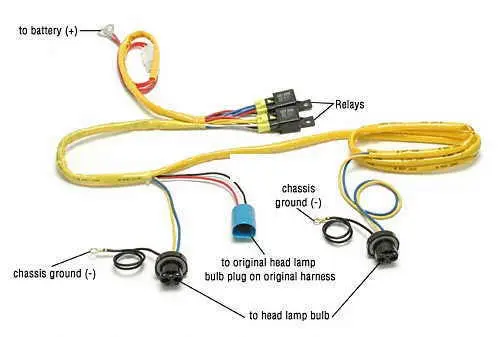

    here's a diagram... it's just plug and play... easy...
    [​IMG]

    yes... and thanks.

    haha...
    yeah.....
    projectors, ballasts, bulbs, and ignitors... $359 shipped
    http://cgi.ebay.com/ebaymotors/ws/e...MEWN:IT&viewitem=&item=120047864034&rd=1&rd=1
    and if that link doesn't work the item number was 120047864034...

    The wiring harness came from suvlights.com
    $63+$12 shipping...

    Then like $15 for this fiberglass auto repair kit... from autozone
    $6 for bondo...
    $5 can of black matte spray paint...

    So far I'm up to like $460 plus I'd say 10 hours so far...

    Thanks everyone.
    #8
  9. MAC'n89Blckstng

    MAC'n89Blckstng Active Member

    Joined:
    Jun 11, 2003
    Messages:
    1,043
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    NJ
    Happen to get the idea from Raceoholic? lol Looks awesome. I just put HID's in my car but went the easy way an put them in my G2 headlights. They are bulbs an ballasts from a Infiniti G35.
    #9
  10. 808Gt

    808Gt Founding Member

    Joined:
    Apr 21, 2002
    Messages:
    111
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Hawaii
    Cool, keep it up man, looks good.... I too have HID's in my fox, its been about a year now since I finished my project...
    The aiming was a pain in the a** but all in all I love my HID's.....
    #10
  11. Adams91LX

    Adams91LX Active Member

    Joined:
    Dec 9, 2003
    Messages:
    702
    Likes Received:
    9
    Trophy Points:
    29
    Location:
    Spring, TX
    hehe... yeah RacEoHolic330 and Mustang5L5 both helped me out a bunch... THANKS GUYS btw!!!

    So far actually all is great... just need to pull them back out and paint them... they are marked and aimed...

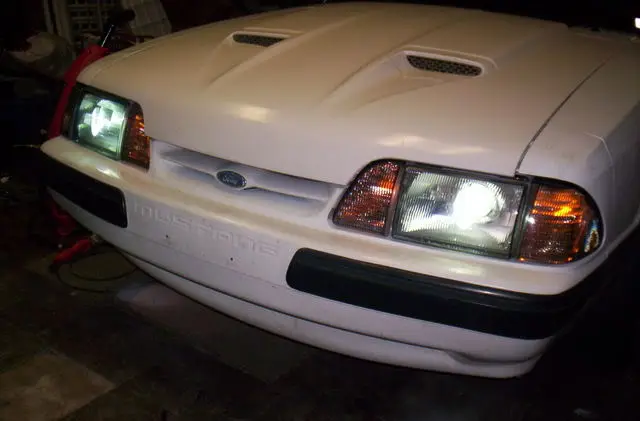

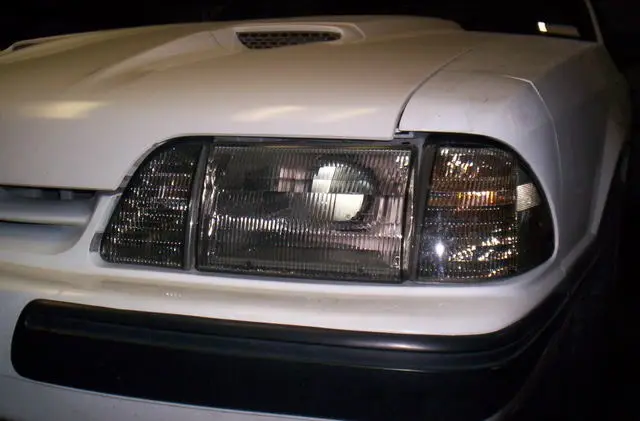

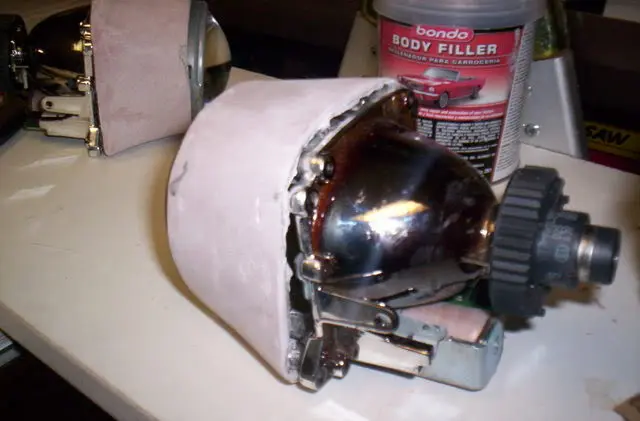

    so anyway... below are a few more pics for you all... as of five minutes ago...

    the lights are back out now... ready to be primed and painted then put back in and sealed... :D

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    #11
  12. 808Gt

    808Gt Founding Member

    Joined:
    Apr 21, 2002
    Messages:
    111
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Hawaii
    nice, good job........
    #12
  13. woodyy24

    woodyy24 New Member

    Joined:
    Mar 31, 2005
    Messages:
    324
    Showcase:
    6
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    illinois
    that looks good! nice work :nice:
    #13
  14. Mustang5L5

    Mustang5L5 Car used in adult film "Highway Gangbang-InDaButt" SN Certified Technician Founding Member

    Joined:
    Feb 19, 2001
    Messages:
    21,625
    Likes Received:
    307
    Trophy Points:
    124
    Location:
    Massachusetts
    That looks great! Your cut-off line is a little fuzzy because you are shining the lights through diffuser-style headlight lenses.

    You should really look into pickup up clear aftermarket headlights...at leasy just the headlight portions alone. That will give you a more crisp cutoff line.

    I don't know what voltage the high-beam shutters operate off. I always thought it was 12V but maybe not. Avoid using them until you can find a definitive answer. I'll see what i can find
    #14
  15. Mustang5L5

    Mustang5L5 Car used in adult film "Highway Gangbang-InDaButt" SN Certified Technician Founding Member

    Joined:
    Feb 19, 2001
    Messages:
    21,625
    Likes Received:
    307
    Trophy Points:
    124
    Location:
    Massachusetts
  16. Adams91LX

    Adams91LX Active Member

    Joined:
    Dec 9, 2003
    Messages:
    702
    Likes Received:
    9
    Trophy Points:
    29
    Location:
    Spring, TX
    so right now no high beams...
    a little sad... but i'd be even sadder if i fried anything...
    Mustang5L5 to rescue... again.
    -a

    PS-Christmas isn't too far away...
    Some Ultra Clears will be coming :)
    #16
  17. Roland69

    Roland69 Sergeant Tangnet

    Joined:
    Sep 17, 2005
    Messages:
    3,102
    Likes Received:
    3
    Trophy Points:
    58
    Location:
    Port Elgin, Ontario
    looks unique
    #17
  18. GSXRMIXXER

    GSXRMIXXER New Member

    Joined:
    Feb 13, 2006
    Messages:
    107
    Likes Received:
    0
    Trophy Points:
    0
    #18
  19. RacEoHolic330

    RacEoHolic330 I like to dress like a pretty girl SN Certified Technician

    Joined:
    Mar 5, 2003
    Messages:
    3,461
    Likes Received:
    679
    Trophy Points:
    153
    Location:
    Allentown, PA
    Looking good man. It's a bit of a pain in the ass to make that little high beam circuit, but it's worth it.

    I also second getting a set of ultra clear headlights. Makes a HUGE difference in the way the cutoff looks.
    #19
