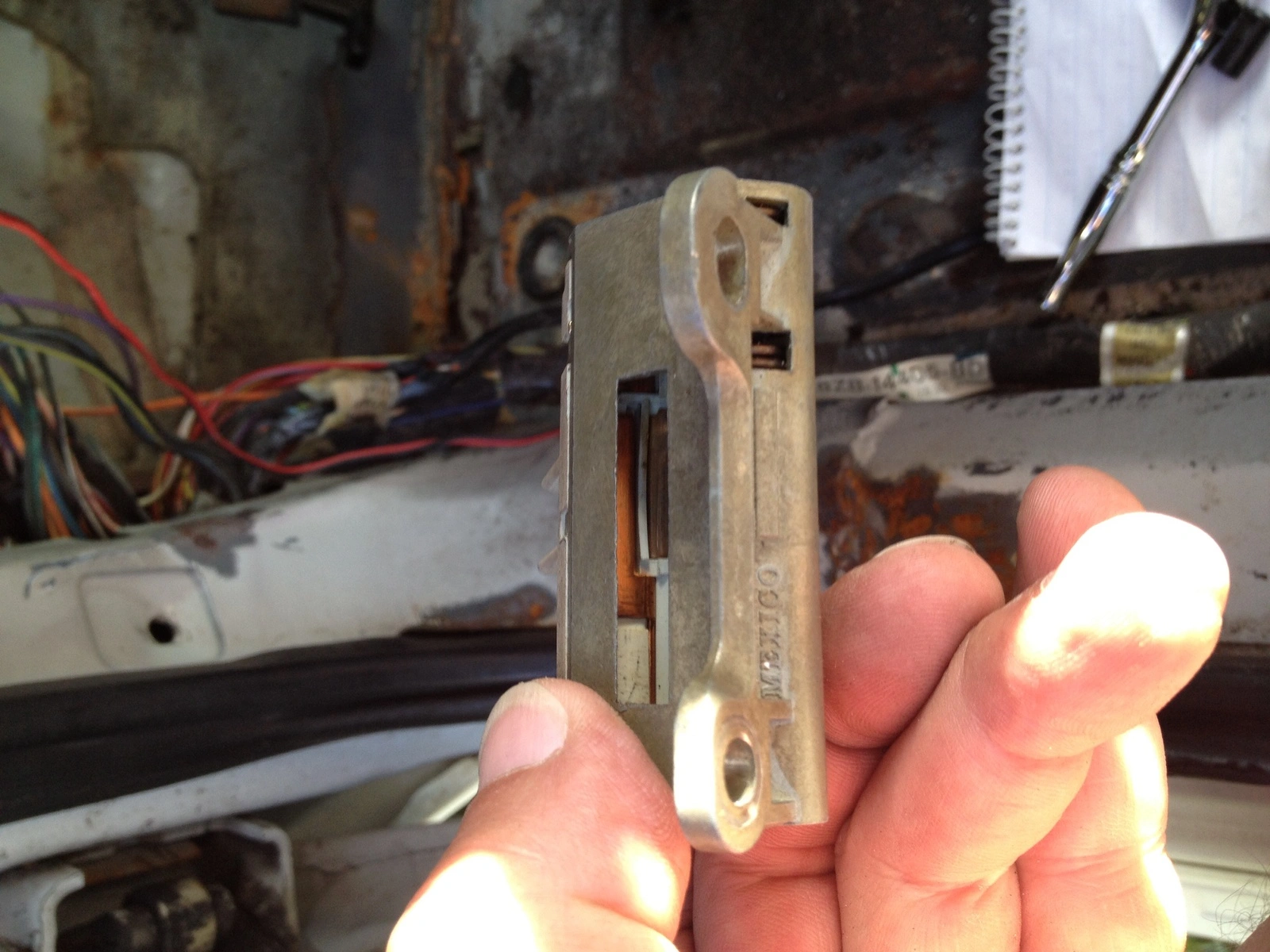

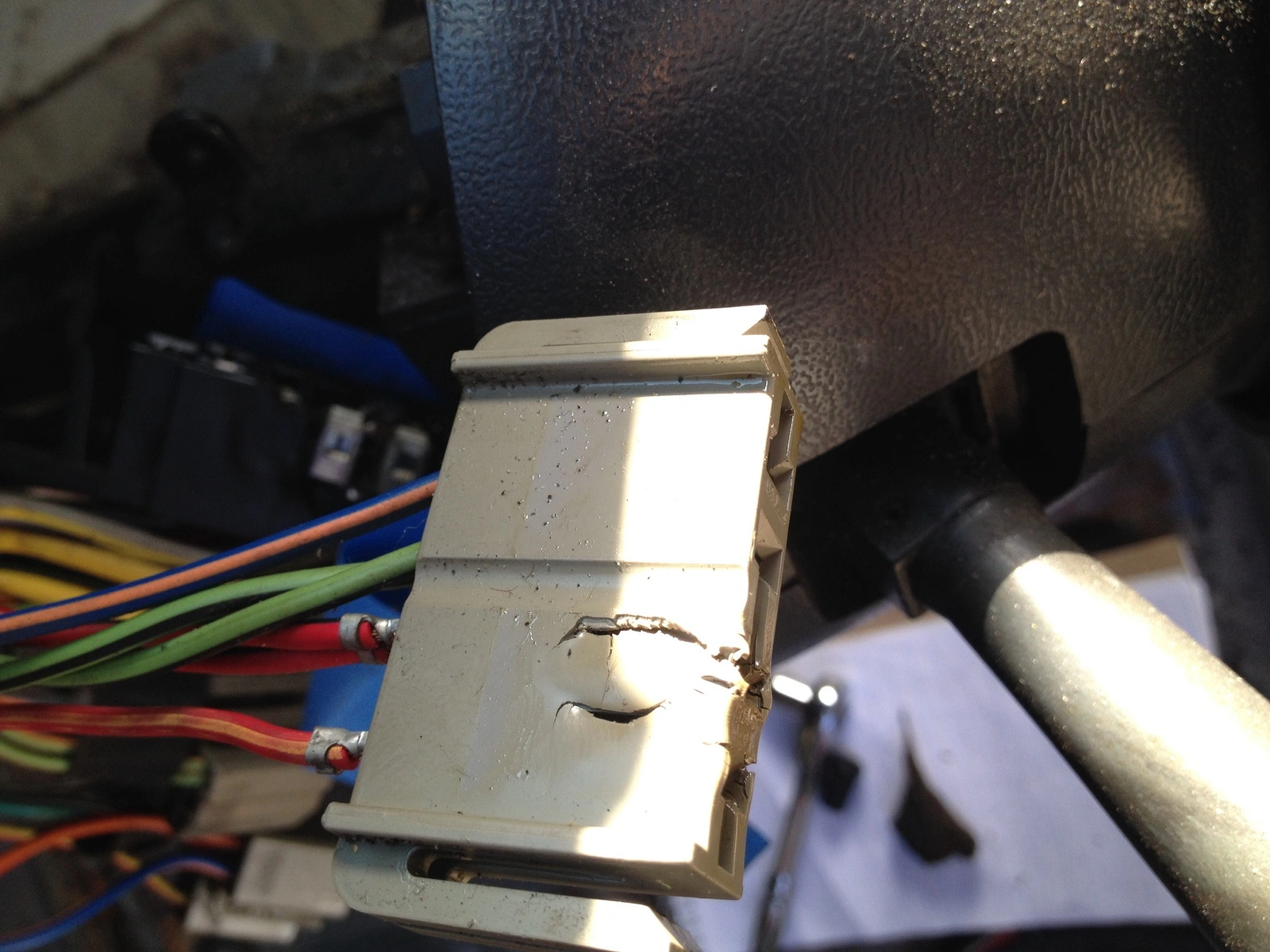

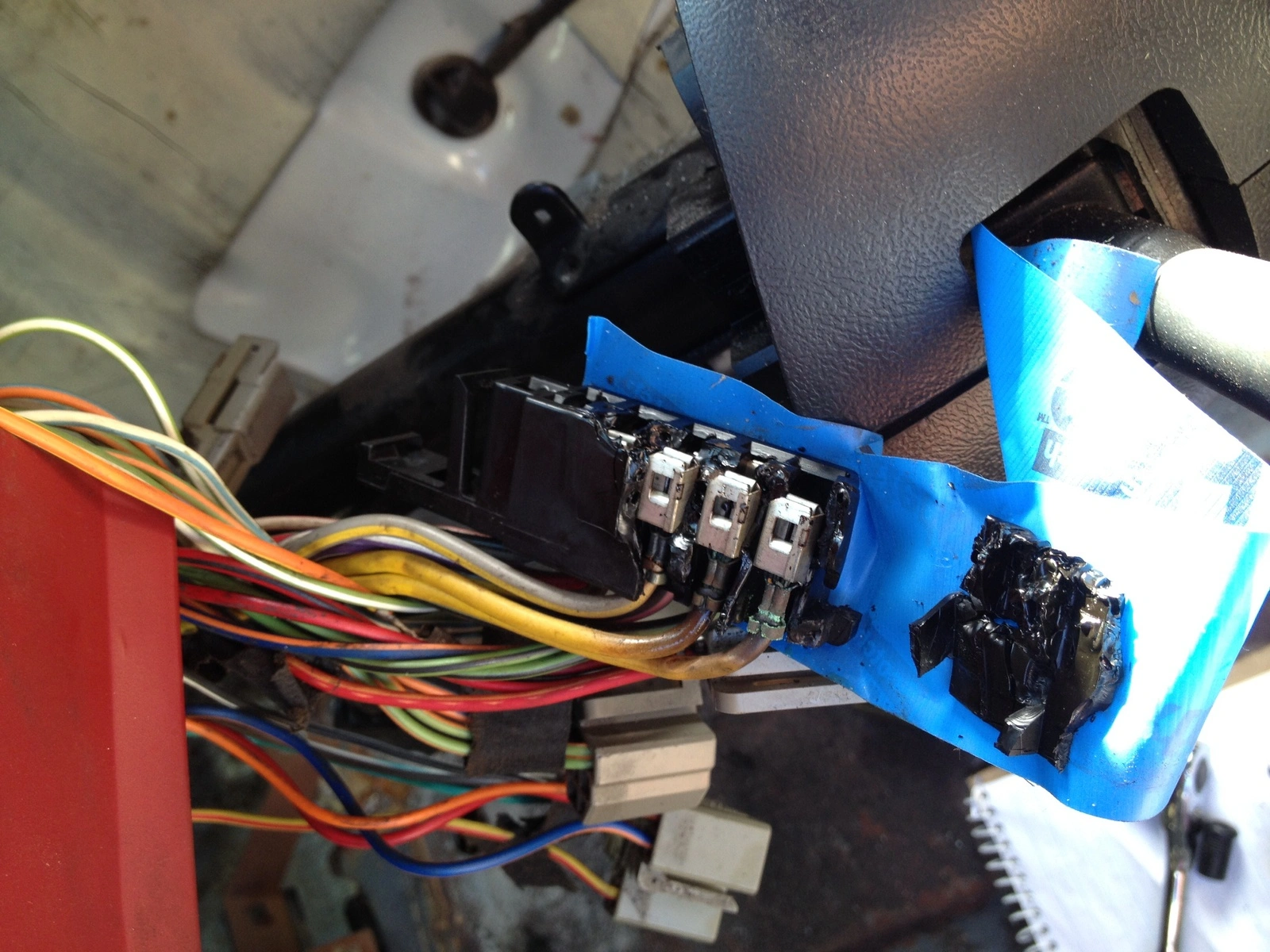

    During the removal of the dash I was disconnecting the plugs from the steering column and found major problems. I have no idea what to do now. Help please.

    Attached Files:

    #1
  2. smkshw

    smkshw Active Member

    Joined:
    Feb 12, 2010
    Messages:
    437
    Likes Received:
    58
    Trophy Points:
    39
    little more info would probably help....why were you talking the dash apart?....was there an issue
    Last edited: Apr 29, 2014
    #2
  3. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    3,457
    Likes Received:
    898
    Trophy Points:
    144

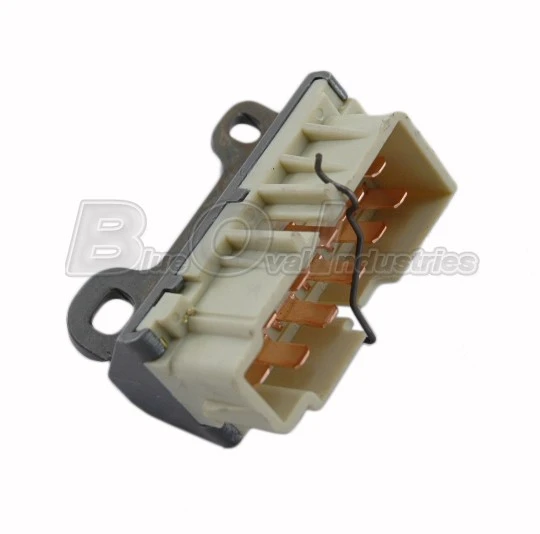

    That appears to be what's left of your ignition switch, located on the bottom of the steering column. @jrichker for the install writeup

    [​IMG]
    #3
  4. 88GT954

    88GT954 New Member

    Joined:
    Mar 29, 2014
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    2
    #4
  5. 88GT954

    88GT954 New Member

    Joined:
    Mar 29, 2014
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    2
    It exploded when I took the column down. It's the electical connections in worried about friggin fords.
    #5
  6. 88GT954

    88GT954 New Member

    Joined:
    Mar 29, 2014
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    2
    Bad heater core.
    #6
  7. 88GT954

    88GT954 New Member

    Joined:
    Mar 29, 2014
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    2
    Why would it melt?
    #7
  8. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    3,457
    Likes Received:
    898
    Trophy Points:
    144
    Ford has a TSB back in the day. They are known to melt and fail. I'm surprised your car started and the gauges, lights etc worked. Better yet, I'm amazed the car didnt burn to the wheels.
    #8
  9. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,444
    Likes Received:
    334
    Trophy Points:
    134
    Recall on Ford Ignition switches:
    Some of the symptoms of ignition switch problems are things that don’t work or are intermittent like radio, turn signals, wipers or heater.

    There was a FREE recall on Ford ignition switches. They overheat and sometimes catch fire. That burns up the steering column and sometimes the car interior. Since this is very old information, you may not be able to get the switch replaced for free anymore. The auto parts stores sell the switches for $13-$15.

    [​IMG]

    [​IMG]

    [​IMG]

    Saleen0679 was nice enough to dig this up for us awhile back: Replace a 1979-1993 Ignition Switch Assembly


    Diagram courtesy of Tmoss & Stang&2birds

    Ignition switch wiring

    [​IMG]

    See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

    Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
    http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

    Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
    http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

    Ignition switch wiring
    http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

    Fuel, alternator, A/C and ignition wiring
    http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif


    Vacuum diagram 89-93 Mustangs
    http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

    HVAC vacuum diagram
    http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

    TFI module differences & pin out
    http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

    Fuse box layout
    http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

    87-92 power window wiring
    http://www.veryuseful.com/mustang/tech/engine/images/mustang87-92 PowerWindowWiring.gif

    93 power window wiring
    http://www.veryuseful.com/mustang/tech/engine/images/mustang93PowerWindows.gif
    #9
  10. smkshw

    smkshw Active Member

    Joined:
    Feb 12, 2010
    Messages:
    437
    Likes Received:
    58
    Trophy Points:
    39
    didnt know about the recall?!...i will have to check mine out!....but thats why i asked why you were taking it apart,if you have no issues,consider yourself lucky and just change the connector....
    #10
  11. Spaz

    Spaz Member

    Joined:
    Jan 5, 2013
    Messages:
    70
    Likes Received:
    11
    Trophy Points:
    19
    Latemodelresto.com has all the parts to fix that stuff, inexpensive and free shipping no matter how small your order is. Don't do what some tutorials say and try to drill out the torx bits that hold the ignition switch to the steering column. Just spend a couple dollars at Advance or Auto Zone or anywhere else and get the proper bit. I believe it is a T-27 security bit, but double check that.
    #11
  12. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,444
    Likes Received:
    334
    Trophy Points:
    134

    He's right.

    For less than $10 you can get a full set of bits and a 1/4" hex to 1/4" square drive. It's a great addition to your Mustang tool kit..
