how to connect a diode

Discussion in 'Classic Mustang Specific Tech' started by 351w fastback, Jun 16, 2005.


  1. 351w fastback

    351w fastback New Member

    Joined:
    Jul 25, 2004
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    0
    i just got my tauras electric fan and i am going to hook-up a diode between the two wires that connect to the fan. i am following the instructions found on the ford muscle website http://www.fordmuscle.com/archives/2003/02/electricfan/index.shtml

    i just got the diode and i have never hooked one of these up before so how do u do it?
    thanks

    #1
  2. meanroy

    meanroy Member

    Joined:
    Jul 8, 2004
    Messages:
    103
    Likes Received:
    0
    Trophy Points:
    16
    Diodes

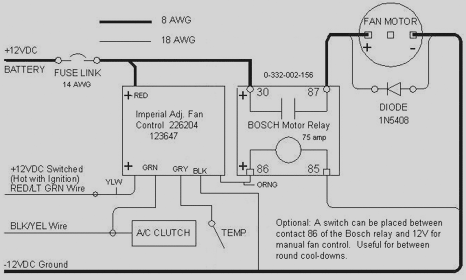

    Ok, I see the diagram.
    I presume you don't know one end of a diode from the other.

    [​IMG]

    One end of the diode has (usually) the cathode end marked with a stripe. The cathode is represented by the straight line in the above diag.

    [​IMG]

    When you solder the diode in place be careful NOT to overheat it!

    Roy.

    PS, Lots of common diodes could handle this job. If you can't find the one they call out, re-post and I can give you some substitutes.

    #2
  3. 67coupe351w

    67coupe351w New Member

    Joined:
    Jan 31, 2004
    Messages:
    428
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Portland, OR
    Yes, they become more of a wire than a diode if you overheat them and it makes you scratch your head for a long time as to why your circuit isnt working correctly :rolleyes:

    #3
  4. jes72mustang

    jes72mustang New Member

    Joined:
    Mar 31, 2005
    Messages:
    227
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    S. Central PA
    One more tip

    This goes back to my high school electronics class. To help prevent over heating the diode while you are soldering it in, put a small alligator clip, or even a surgical clamp between the diode and where you are soldering. THis acts as a heat sink so the heat from the solder doesn't make it back to the diode.

    Hope this helps.

    #4
  5. 351w fastback

    351w fastback New Member

    Joined:
    Jul 25, 2004
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    0
    i just got done soldering it on. i dont think i overheated it but if i did, how can i tell? the diode used in the diagram was discontinued at radio shack so i used a 1n5404 instead. thanks for the help

    #5
  6. meanroy

    meanroy Member

    Joined:
    Jul 8, 2004
    Messages:
    103
    Likes Received:
    0
    Trophy Points:
    16
    It's probably just fine. It's a Silicon diode and they are fairly forgiving.

    I checked the specs on the one you substituted, It's fine.
    The original is the 1000 volt model, the one you substituted is only good for 400V. LOL!

    You can tell whether it is good by checking the resistance with either a cheap voltmeter, or a real expensive one. It needs to be a cheap because the cheap ones supply a significant amount of current to measure the resistance. The real expensive ones ($150.) have a special position for measuring diodes.
    If the diode is good it will read "open" (nearly infinite ohms, at least megohms) in one direction, and very low in the other.
    But you would have to disconnect one end of the diode before measuring it. (otherwise you would just be measuring the motor winding resistance)
    Unless there is something obviously wrong, it's not necessary.

    The effect on your circuit if the diode is shorted will be that the motor circuit will draw current but won't run, or possibly, will blow a fuse. If the diode is "open", the danger is that the relay may stick closed or simply wear out quickly. (relay points arc when opening and closing because there is no place for the back EMF to go when the relay contact are open..) In either case you will know somethings wrong.

    Roy.

    #6
