How To Convert To a Fox Style Throttle Body

Discussion in '1994 - 1995 Specific Tech' started by GTJake, Jul 13, 2004.

  1. Yellow302

    Yellow302 Member

    Joined:
    Mar 3, 2003
    Messages:
    789
    Likes Received:
    2
    Trophy Points:
    19
    Location:
    NJ
    one advantage would be for what I had to do today.

    I had a leaking injector and had to replace the O-ring.

    a 30min job was an hour job because I had to take that stupid elbo piece off along with the trotle place and vaccume tree.

    Just alot cleaner and easier to to things.

    And a little wieght reduction without the elbo there and a smaller TB.

    #21
  2. Rootus

    Rootus Officially Addicted

    Joined:
    Feb 8, 2003
    Messages:
    6,747
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Portland, Oregon
    Using the EGR from 87-93 should be as easy as putting in the EGR spacer. But I believe it is supposed to be cooled with engine coolant, so there would be some plumbing for that.

    Dave

    #22
  3. Dan95-5.0

    Dan95-5.0 Active Member

    Joined:
    Jun 14, 2003
    Messages:
    1,112
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Manitoba, Canada
    good write-up. maybe now i can find a 94-95 cobra intake in my price range. lol

    #23
  4. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
    Jake...I see those pics came in handy... :D

    Here's mine with the 93 Cobra intake....I posted, as a ???? on the EGR was asked...You can see the 93 needs no EGR delete plate...Its an electric unit, it came with mine but I didn't put it on, it bolts to a passage in the back, which i made a delete plate for...the plug even looks like it would connect to our EGR plug??? Whether or not the computer accepts the signal and works it needs to be verified...this set-up also uses no tube from the header....i also believe the 93 didnt have the water cooled EGR spacer, like in an Explorer. I found this out when I installed this upper. my old CAI was 2" longer??? Thats the thickness of the EGR spacer...Hence I had to use a CL tube to get around the shock tower...That 2" hurt me CAI wise....Jakes is much straighter shot for sure....But I always had a soft spot for the 93 upper... :banana:

    [​IMG]

    [​IMG]

    #24
  5. Yellow302

    Yellow302 Member

    Joined:
    Mar 3, 2003
    Messages:
    789
    Likes Received:
    2
    Trophy Points:
    19
    Location:
    NJ
    what about the vacume tree!?!?!?!

    I wanna know!

    how does my FPR hook up know and the red and green Vac lines

    #25
  6. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
    FPR just feeds from a port under the upper, theres a tube/tree that feeds 3 lines...

    My smog stuffs gone and so are those Red/Green lines...

    #26
  7. jruppert

    Founding Member

    Joined:
    Oct 20, 2001
    Messages:
    275
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Michigan
    GTJake, where did you go about getting the new harness plug?

    #27
  8. GTJake

    Founding Member

    Joined:
    Oct 29, 2002
    Messages:
    3,055
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Ann Arbor, MI
    Harness plug for what?

    Jake

    #28
  9. jruppert

    Founding Member

    Joined:
    Oct 20, 2001
    Messages:
    275
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Michigan
    You mentioned replacing the TPS harness plug with one from the fox setup. At least that is what I thought you meant since the TPS is different.

    #29
  10. GTJake

    Founding Member

    Joined:
    Oct 29, 2002
    Messages:
    3,055
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Ann Arbor, MI
    Yea...you need a fox TPS and then just splice the wires together like I said. Go to a junk yard and you might be able to find both sides of the TPS plug so you can have a factory looking setup.

    Jake

    #30
  11. DaveB

    Founding Member

    Joined:
    Jul 13, 2002
    Messages:
    637
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Middlesex and Pomona, NJ
    Great information there Jake, I plan on doing the Fox TB setup when I get an Edelbrock Performer in a few months. This should be a Sticky.

    #31
  12. Rootus

    Rootus Officially Addicted

    Joined:
    Feb 8, 2003
    Messages:
    6,747
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Portland, Oregon
    I am curious as to what the Ford part M-9989-A is -- "Adapter Harness T.P.S. 1994-95 Mustang Engines". That's about all I can find out about it, and I have not seen any pictures.

    #32
  13. rockin_rick

    rockin_rick Member

    Joined:
    Oct 10, 2003
    Messages:
    970
    Likes Received:
    0
    Trophy Points:
    17

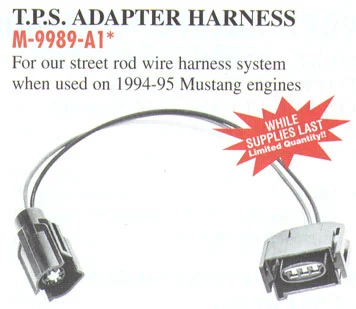

    Here's a pic that I scanned for ya and the description that goes along with it.

    Rick


    Attached Files:

    #33
  14. Nagash01WS6

    Nagash01WS6 New Member

    Joined:
    Apr 15, 2003
    Messages:
    404
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Deland, FL
    So.... if you do this conversion... could you also use a Fox Vortech kit?

    #34
  15. FordStang

    Founding Member

    Joined:
    Sep 20, 2002
    Messages:
    862
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Orange Park, FL
    hey rockin rick where did u find that harness? and where can i buy it? i need to hook up my foxbody TPS to my 94-95

    #35
  16. Rootus

    Rootus Officially Addicted

    Joined:
    Feb 8, 2003
    Messages:
    6,747
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Portland, Oregon
    Damn, you the man! :hail2:

    I see it only has two wires, but otherwise the connector on it looks suspiciously like the one on the Fox body TPS. Now someone needs to grab one and try it out. Maybe the third wire is extra... :shrug:. This would also save having to splice any wires at all.

    Dave

    #36
  17. FordStang

    Founding Member

    Joined:
    Sep 20, 2002
    Messages:
    862
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Orange Park, FL
    where can i find that?

    #37
  18. FordStang

    Founding Member

    Joined:
    Sep 20, 2002
    Messages:
    862
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Orange Park, FL
    thanks im going to pick that up from Summit Retail store here in Summit county in ohio

    #38
  19. rockin_rick

    rockin_rick Member

    Joined:
    Oct 10, 2003
    Messages:
    970
    Likes Received:
    0
    Trophy Points:
    17
    The pic is from the 2004 Ford Racing catalog (p.31). Looking closer at the pic in the catalog, it appears to show a third wire. Maybe?? You can just BARELY see it in the pic I posted right in the middle of the top loop under the other 2. It's very faint. Plus the pic below of part M-12071-J302 (speed sensor connector) looks like the identical pic with the TPS plug just cropped out. So perhaps it would be a good idea to call the Ford Racing tech hotline (586-468-1356) first and ask them.

    Summit has them in stock (as of 9/3/04) for $13.88 -

    http://store.summitracing.com/default.asp?target=esearch.asp&N=100&Ntk=PartSearch&Ntt=fms-m-9989-a1

    Rick

    #39
  20. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
    Hey Jake...Remember that stank looking IAC you sent.... :D

    Check it out...I detailed it up some with the custom Ford logo in Red. Iwas bored one nite...Working just fine....

    [​IMG]

    [​IMG]
