How To Convert To a Fox Style Throttle Body

Discussion in '1994 - 1995 Specific Tech' started by GTJake, Jul 13, 2004.


  1. GTfoxbod89

    GTfoxbod89 Founding Member

    Joined:
    May 14, 2002
    Messages:
    51
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    Little Chute, WI
    so i got everything connected........ everything looks great and now the cable doesnt travel enough to open the throttle to wot.?!?!? wtf it seems the original fox cable has a travel limiter on it? is this true?
  2. 1995greenstang

    1995greenstang New Member

    Joined:
    Mar 28, 2008
    Messages:
    89
    Likes Received:
    0
    Trophy Points:
    0
    what are the advantages of doing this swap?
  3. final5-0

    final5-0 Mustang Master

    Joined:
    Apr 7, 2003
    Messages:
    6,817
    Likes Received:
    3
    Trophy Points:
    79
    Location:
    DFW Texas
    For a NA application ... and speaking of power gains only .......
    The verdict is still out there and the discussion still goes on and on

    Get yourself something cool to drink and start your own research :nice:

    Here is just one thread you can take a look at :)

    http://forums.stangnet.com/showthread.php?t=753489

    Grady
  4. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,873
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.

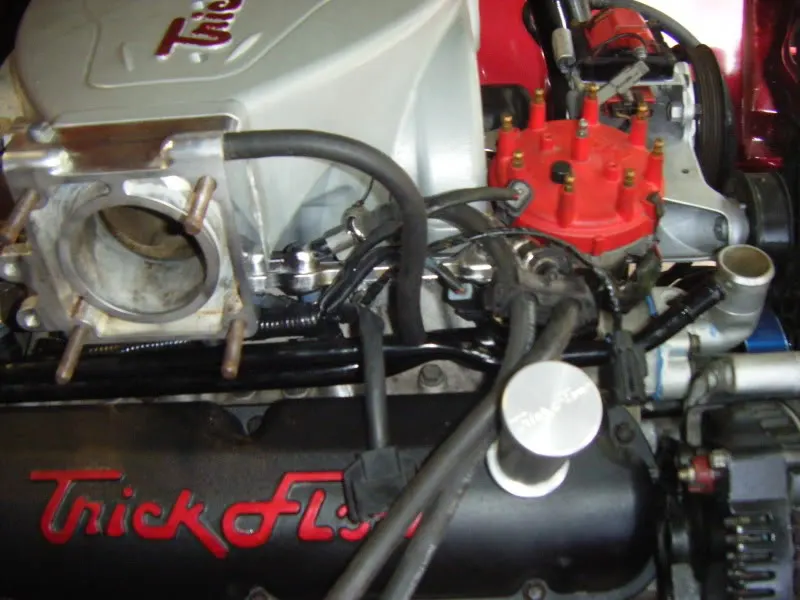

    Check to make sure your coming in straight and not cocking or pinching the cable...I had to shim my bracket almost 3/8" out to get a good sweep and get full travel. Its not a direct swap and my require some fiddling...

    something like this....

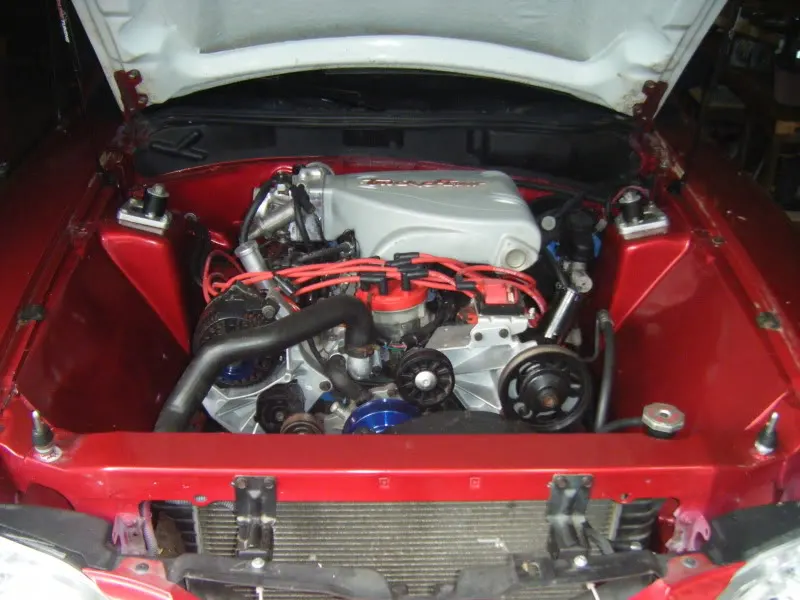

    [​IMG]
  5. 94GTLaserRC

    94GTLaserRC Squint as you approach, lest you be blinded by my

    Joined:
    May 7, 2002
    Messages:
    11,187
    Likes Received:
    8
    Trophy Points:
    79
    Location:
    Ernan Says "here it comes... dushbag"
    I have the Right Pig tail...Getting ready to do the connections...HOWEVER, the pigtail connector I have does not have colored wires...it has all three gray wires . I will need someone to help me cross-reference by position.

    Let's say you are looking at the front where it connects. You see the connector has part where the plastic comes to a triangular point...There is a wire DIRECTLY in line with that. We will call that 12 O'Clock. So which color would that be?

    Still looking at the copper prongs with the wires going back There will be a 4 and 8 o'clock position, so need to know those colors. I can wait a couple days 2 make the physical connections, for now I will solder some connectors on the six wires and wait till I know what to plug into what.

    Thanks
    RC
  6. 94GTLaserRC

    94GTLaserRC Squint as you approach, lest you be blinded by my

    Joined:
    May 7, 2002
    Messages:
    11,187
    Likes Received:
    8
    Trophy Points:
    79
    Location:
    Ernan Says "here it comes... dushbag"
    Well I think you can scrap the last question (above). The part that the pigtail connects to that goes to the TB (actual TPS wire) has the colors on it. When you mate the 2 parts, you can then match up the colors by how the mated parts line up. That piece DOES have the orange, green and black wires. I assume you just follow the color line.

    If you read this and this is WRONG, PPPPPllllleeeeaassse tell me :lol:
    RC
  7. Timm10221

    Timm10221 New Member

    Joined:
    Aug 29, 2006
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    0
    I have a 95 auto. do I get the Fox 5 speed cable LRS-9758A or fox auto cable LRS-9758B.
  8. 94GTLaserRC

    94GTLaserRC Squint as you approach, lest you be blinded by my

    Joined:
    May 7, 2002
    Messages:
    11,187
    Likes Received:
    8
    Trophy Points:
    79
    Location:
    Ernan Says "here it comes... dushbag"
    Youre getting the Throttle cable...not a clutch cable...Just go to Ebay and put in "mustang Throttle cable" Should find one there.
    RC
  9. 94GTLaserRC

    94GTLaserRC Squint as you approach, lest you be blinded by my

    Joined:
    May 7, 2002
    Messages:
    11,187
    Likes Received:
    8
    Trophy Points:
    79
    Location:
    Ernan Says "here it comes... dushbag"
  10. Timm10221

    Timm10221 New Member

    Joined:
    Aug 29, 2006
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    0
  11. 94GTLaserRC

    94GTLaserRC Squint as you approach, lest you be blinded by my

    Joined:
    May 7, 2002
    Messages:
    11,187
    Likes Received:
    8
    Trophy Points:
    79
    Location:
    Ernan Says "here it comes... dushbag"
  12. Timm10221

    Timm10221 New Member

    Joined:
    Aug 29, 2006
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    0
    That would be great. then all i need is the fox TPS right, then splice the bottom connector and it'll be done right?
  13. 94GTLaserRC

    94GTLaserRC Squint as you approach, lest you be blinded by my

    Joined:
    May 7, 2002
    Messages:
    11,187
    Likes Received:
    8
    Trophy Points:
    79
    Location:
    Ernan Says "here it comes... dushbag"
    You need the EGR spacer to bolt the cable bracket too, the cable the bracket, the pigtail, the TPS, which plugs INTO the pigtail. Then you will cut the wires on the 94/95 TPS harness, and solder the three on the pigtail according to the instructions in the first few posts.

    RC
  14. Timm10221

    Timm10221 New Member

    Joined:
    Aug 29, 2006
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    0
    I have a 93 cobra Intake manifold, so i beleave i dont need the EGR delete plate cause on those the egr bolted right onto the manifold inlet tube. And do i have to solder or can i use gator clips??
  15. riored94cobra

    riored94cobra New Member

    Joined:
    Oct 23, 2008
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Indy, IN
    does anybody have pics of the install? this thread is so old, the link for the pics do not work.

    Thanks
  16. kck6894

    kck6894 Advanced Member

    Joined:
    Mar 18, 2004
    Messages:
    4,272
    Likes Received:
    0
    Trophy Points:
    66
    Location:
    Paradise
    I might. Let me look around and see for you.
  17. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,873
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
    Most of the pics were mine.... I had them loaded, like most of us at mustangmods...then they took a dump and we all lost our stuff....:mad:

    I lost the hard drive on my laptop that all those pics were on...nothing could be retrieved as I was gonna reload them to this post... Lost like 6 yrs of pics on the machine.:jaw:
  18. kck6894

    kck6894 Advanced Member

    Joined:
    Mar 18, 2004
    Messages:
    4,272
    Likes Received:
    0
    Trophy Points:
    66
    Location:
    Paradise

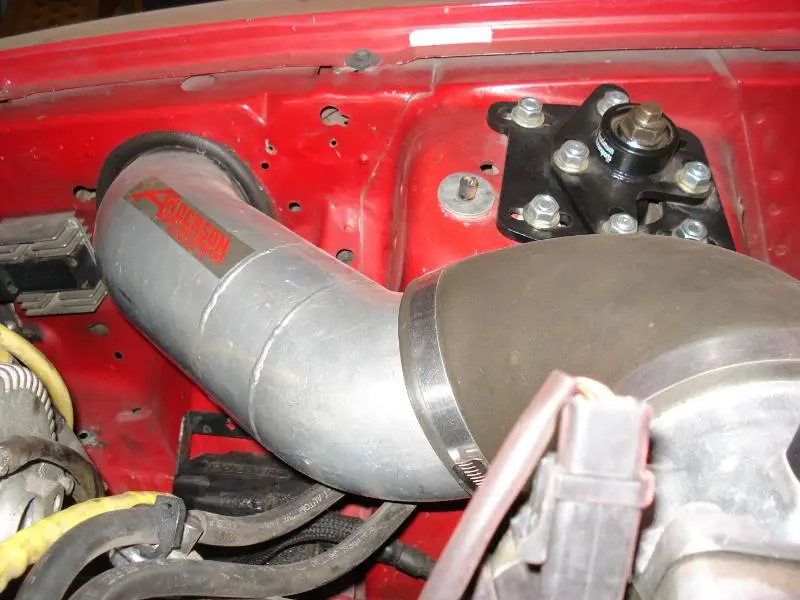

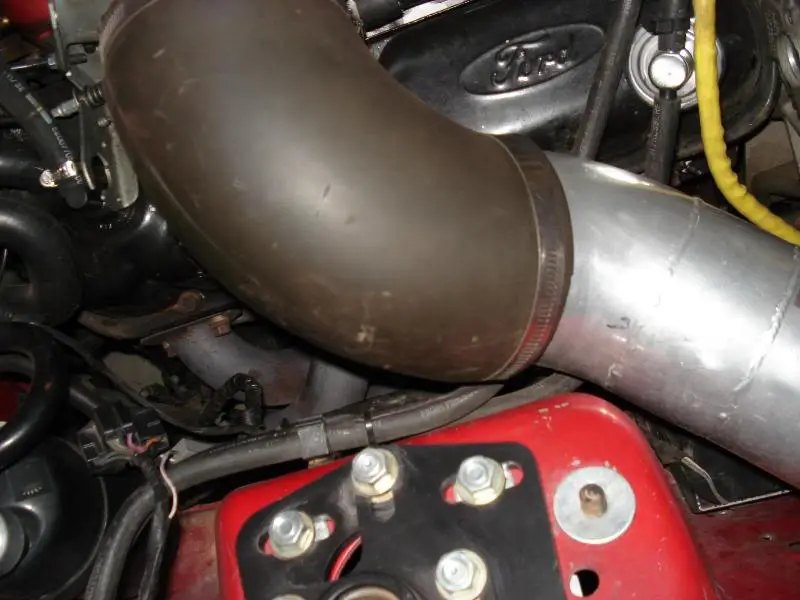

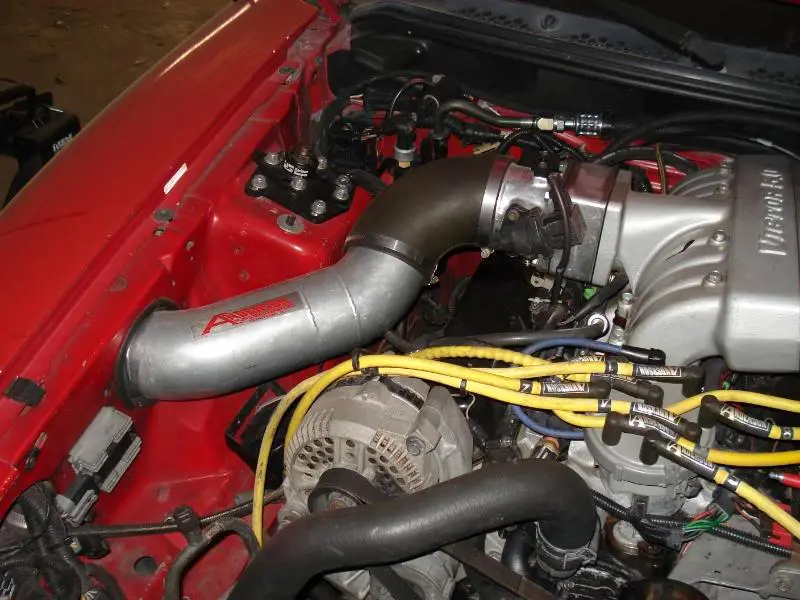

  19. Adam95GT

    Adam95GT New Member

    Joined:
    Aug 14, 2006
    Messages:
    2,600
    Likes Received:
    2
    Trophy Points:
    0
    Location:
    Burlington, NJ
  20. Adam95GT

    Adam95GT New Member

    Joined:
    Aug 14, 2006
    Messages:
    2,600
    Likes Received:
    2
    Trophy Points:
    0
    Location:
    Burlington, NJ
