I think I goofed (Pictures)

Discussion in '2005 - 2014 S-197 Mustang -General/Talk-' started by KooK, Jan 7, 2013.


  1. KooK

    KooK Member

    Joined:
    Mar 5, 2003
    Messages:
    88
    Likes Received:
    1
    Trophy Points:
    8
    Location:
    Des Moines, IA

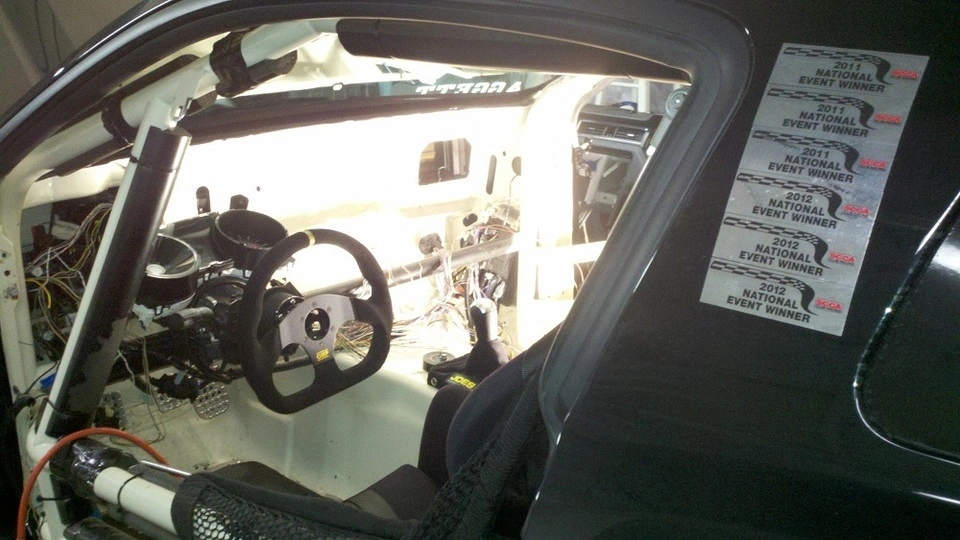

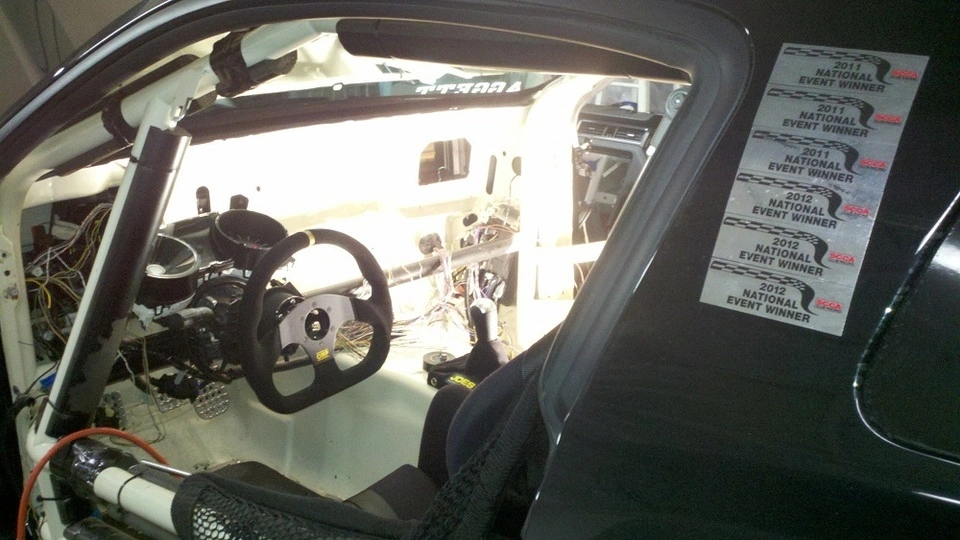

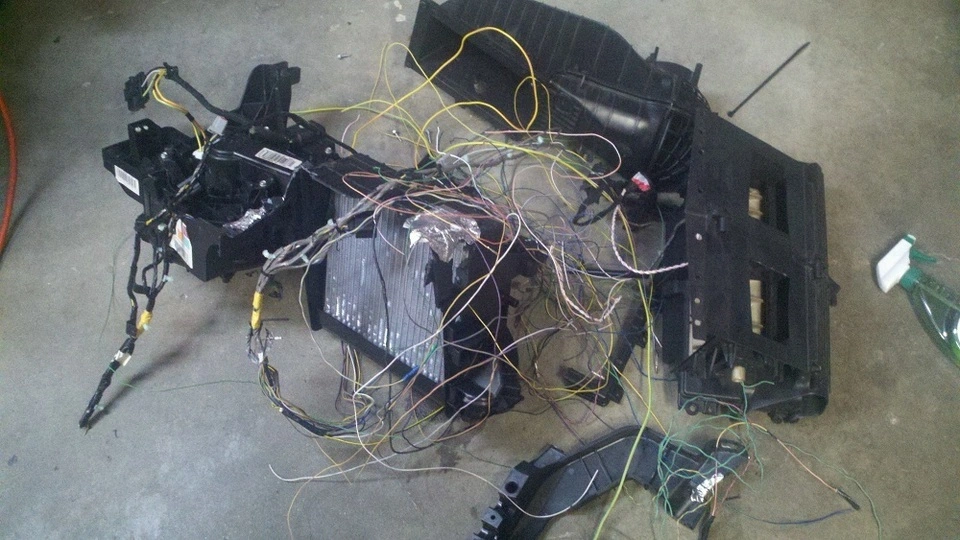

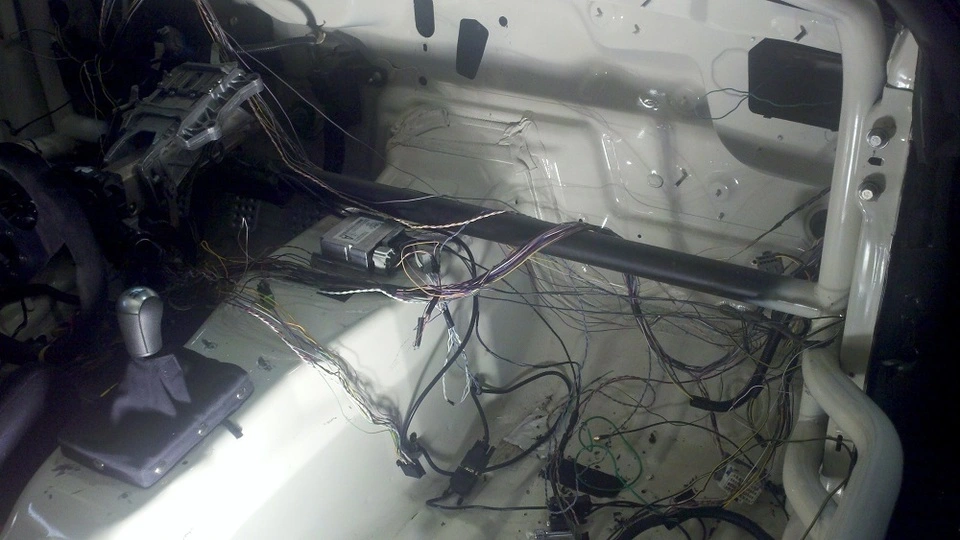

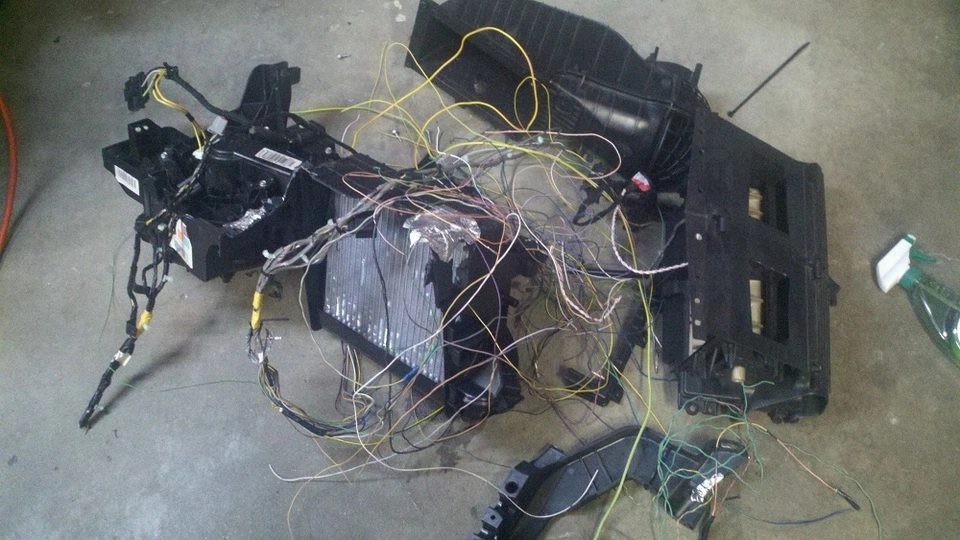

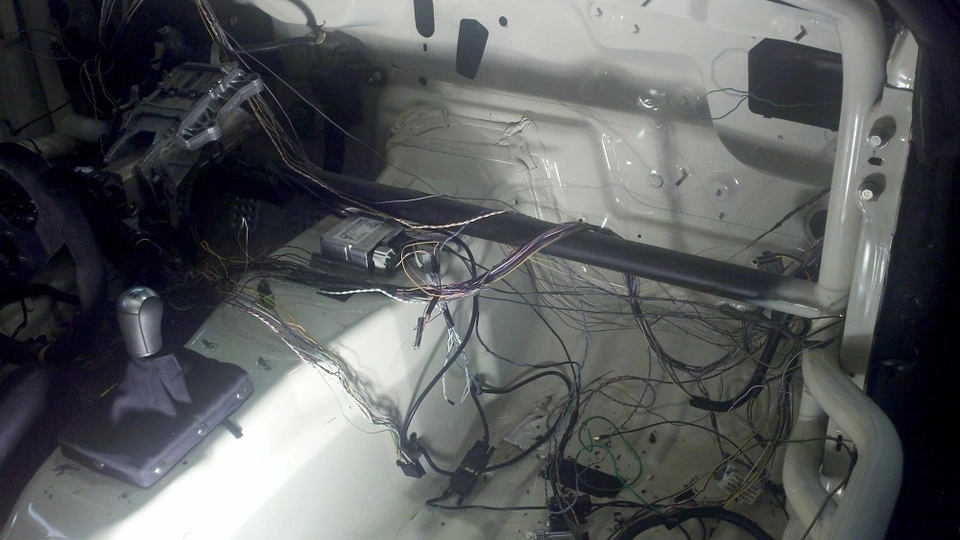

    So, I've got a 2011 Mustang and I wanted it to be more like a race car. One of the things I was doing was trying to make the dash so it can pop in and out in like, 5 minutes. In the process I messed up the heater blower thingy system in the back a little (there's a radiator or something back there, I didn't realize it and just started tugging on it because I couldn't figure out why it wouldn't come out). Also I've never done wiring before but I tried combining all the wiring under the dash. Well, I made of mess of things. Is there a book or wiring diagram that's like Legos that you guys can post or help me with?


    Thanks!

    [​IMG]

    [​IMG]

    #1
  2. KooK

    KooK Member

    Joined:
    Mar 5, 2003
    Messages:
    88
    Likes Received:
    1
    Trophy Points:
    8
    Location:
    Des Moines, IA

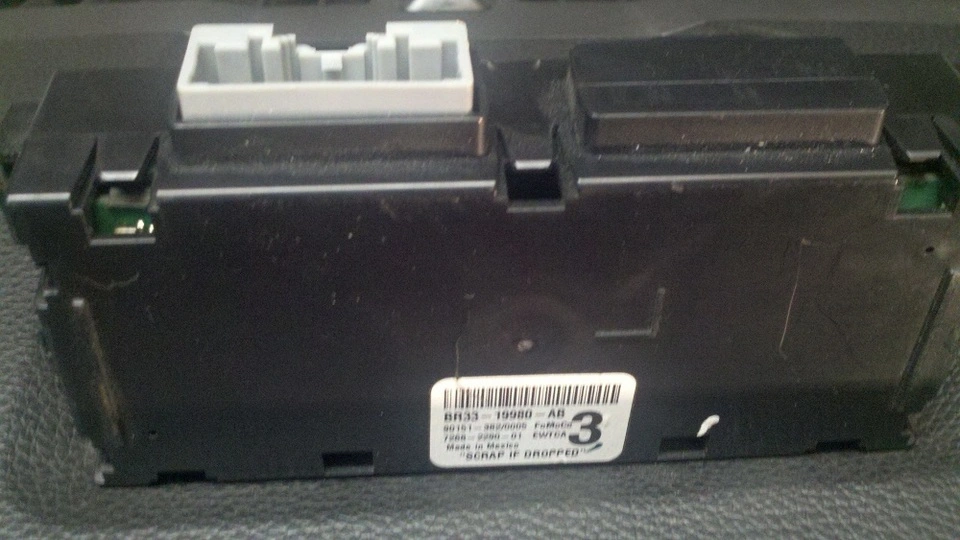

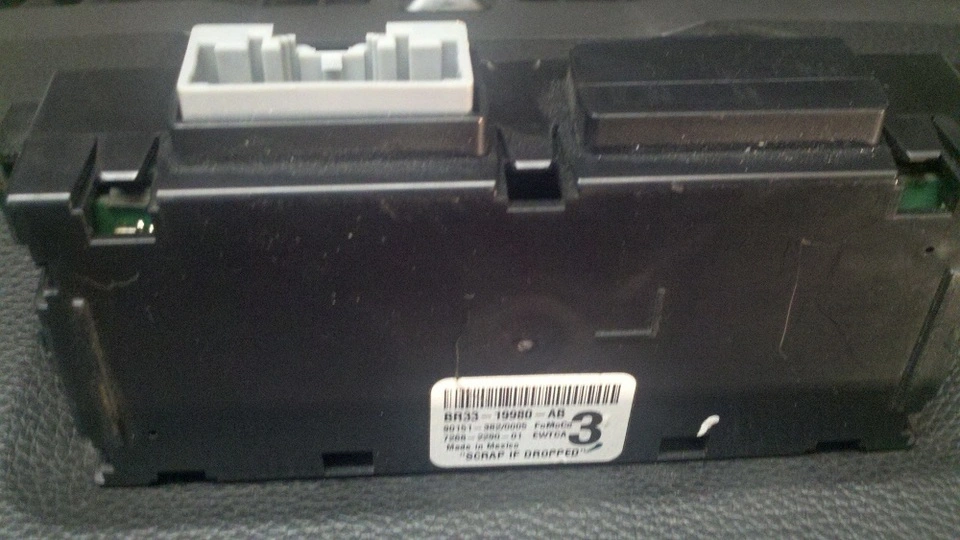

    On a semi-related note, does anybody know what this box is? It says "Scrap if dropped" and I donno if I broke it or how to test it...

    [​IMG]

    #2
  3. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,157
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,553
    Trophy Points:
    174
    Location:
    Box behind Walmart
    You did all of this to a car that is still under warranty????

    #3
  4. KooK

    KooK Member

    Joined:
    Mar 5, 2003
    Messages:
    88
    Likes Received:
    1
    Trophy Points:
    8
    Location:
    Des Moines, IA
    Yes, why? Do you think they'll fix it?

    #4
  5. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,157
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,553
    Trophy Points:
    174
    Location:
    Box behind Walmart
    Nope. :rlaugh:

    #5
  6. SpartaPerformance

    SpartaPerformance Site Sponsor

    Joined:
    Nov 5, 2006
    Messages:
    2,159
    Likes Received:
    24
    Trophy Points:
    49
    Location:
    Long Island NY
    This has to be a joke thread!! Right?

    #6
  7. KooK

    KooK Member

    Joined:
    Mar 5, 2003
    Messages:
    88
    Likes Received:
    1
    Trophy Points:
    8
    Location:
    Des Moines, IA
    So then how do I fix it?

    #7
  8. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,157
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,553
    Trophy Points:
    174
    Location:
    Box behind Walmart
    That's what I'm going with... if not... :nonono:

    So... if this is for real, I gotta ask. Why on earth would you pull your car apart like that when you have no clue what you're doing? If this is for real... you do realize that you've completely voided your vehicle warranty, right?

    #8
  9. KooK

    KooK Member

    Joined:
    Mar 5, 2003
    Messages:
    88
    Likes Received:
    1
    Trophy Points:
    8
    Location:
    Des Moines, IA
    Isn't that just the warranty on the electronics? Everything else should still be under warranty.

    #9
  10. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,157
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,553
    Trophy Points:
    174
    Location:
    Box behind Walmart
    That's a touchy topic there. You've cut into lord knows what portions of the vehicle wiring harness there. HVAC, obviously... Engine PCM harness, air bags, chassis electrical, the list can go on and on.

    No service center in their right mind would warrant that mess. So yeah... I'd say it's a goof.

    Taking into consideration the image in your first post, I'll go out on a limb and say that wiring diagram might leave you sitting on the garage floor scratching your head.

    Your best bet... Take to a qualified shop and pay them to put it all back together for you.

    #10
  11. KooK

    KooK Member

    Joined:
    Mar 5, 2003
    Messages:
    88
    Likes Received:
    1
    Trophy Points:
    8
    Location:
    Des Moines, IA
    Well, I can probably live without heat, this is a sunny day car anyway. I'm pretty sure this wont devalue it much as long as I can get it running again.

    #11
  12. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,157
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,553
    Trophy Points:
    174
    Location:
    Box behind Walmart
    You would be wrong.

    Would you purchase a car knowing that someone had done some hack job like this to it? :shrug:

    #12
  13. KooK

    KooK Member

    Joined:
    Mar 5, 2003
    Messages:
    88
    Likes Received:
    1
    Trophy Points:
    8
    Location:
    Des Moines, IA
    Well, you could always tell them you think it's a blown fuse (why the blower doesn't work).

    #13
  14. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,157
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,553
    Trophy Points:
    174
    Location:
    Box behind Walmart
    Tell them that you had to make room for the flux capacitor.

    #14
    TheShabz and seethesvt like this.
  15. KooK

    KooK Member

    Joined:
    Mar 5, 2003
    Messages:
    88
    Likes Received:
    1
    Trophy Points:
    8
    Location:
    Des Moines, IA
    A what?

    #15
  16. HotP51D

    HotP51D New Member

    Joined:
    Oct 18, 2010
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    2
    Wow--this just can't be a real post. Nobody would be that ...............................................................

    #16
  17. KooK

    KooK Member

    Joined:
    Mar 5, 2003
    Messages:
    88
    Likes Received:
    1
    Trophy Points:
    8
    Location:
    Des Moines, IA
    I'm having a hard time understanding how this "can't be a real post..."

    #17
  18. JKidd

    JKidd Member

    Joined:
    Aug 21, 2007
    Messages:
    157
    Likes Received:
    3
    Trophy Points:
    19
    Location:
    Suffield, CT
    C'mon?!?! Nobody is picking up on the roll cage???

    Real post (sure enough) but I believe you are gutting it for a race car or something along those lines - though that is quite a mess if you need to tuck it back in ;)

    #18
  19. KooK

    KooK Member

    Joined:
    Mar 5, 2003
    Messages:
    88
    Likes Received:
    1
    Trophy Points:
    8
    Location:
    Des Moines, IA
    I was wondering when somebody was going to pick up on the cage :p

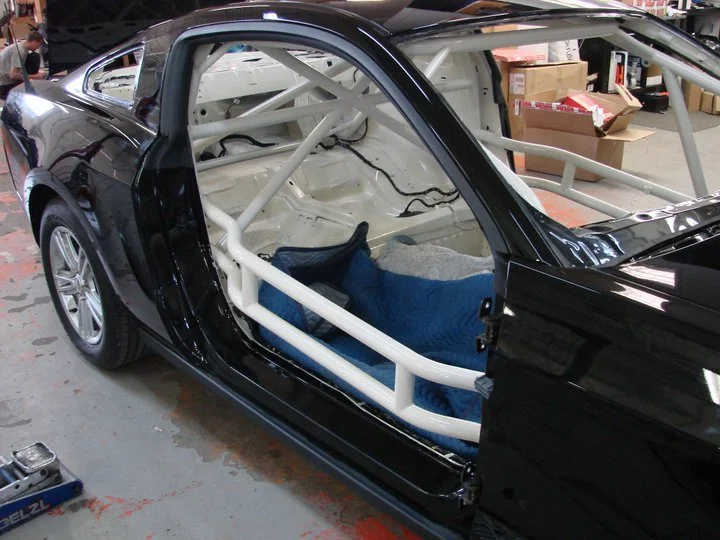

    Wiring will always look like a mess when you're in the middle of it, no two ways around it. We're switching classes and swapping the 3.7 for a 5.0 and I'm gutting what I legally can.

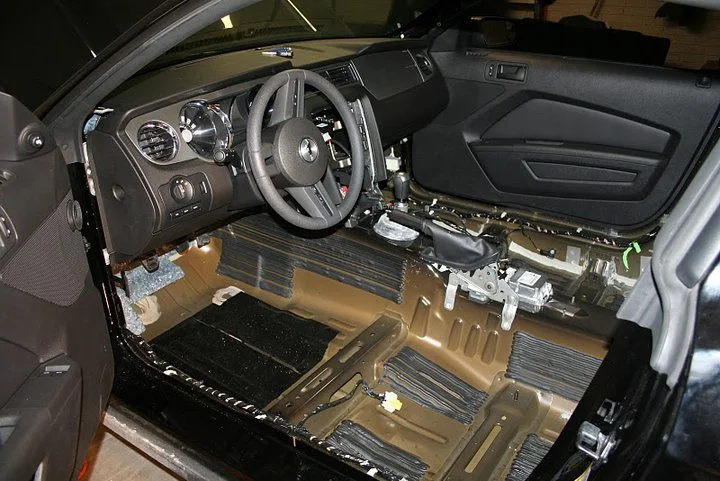

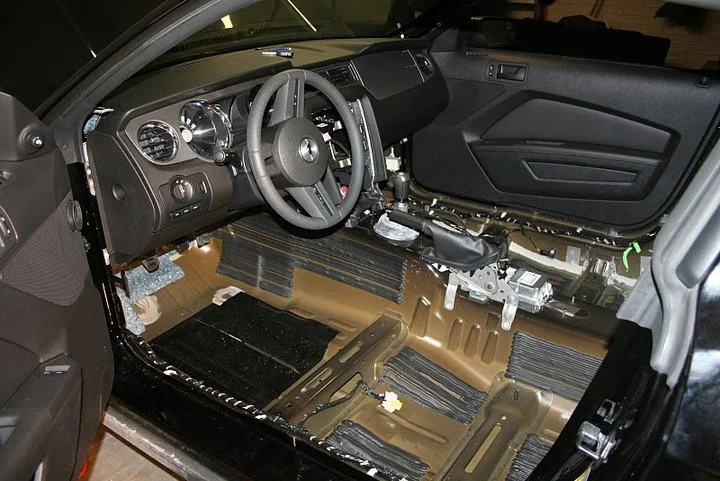

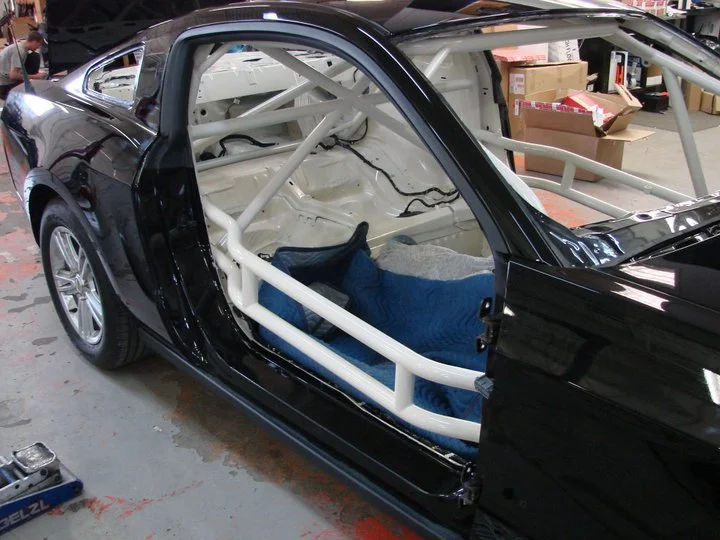

    [​IMG]

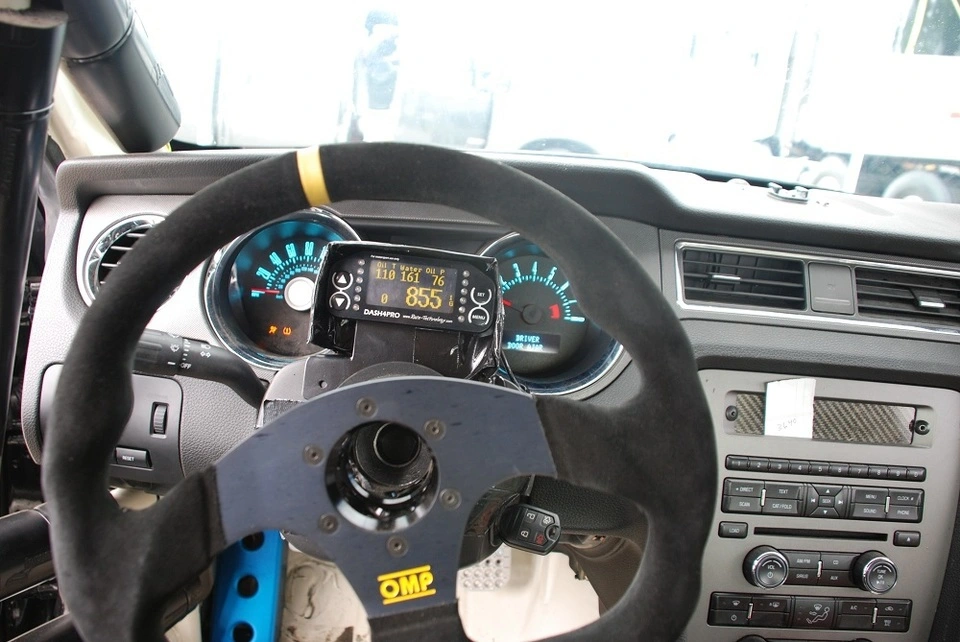

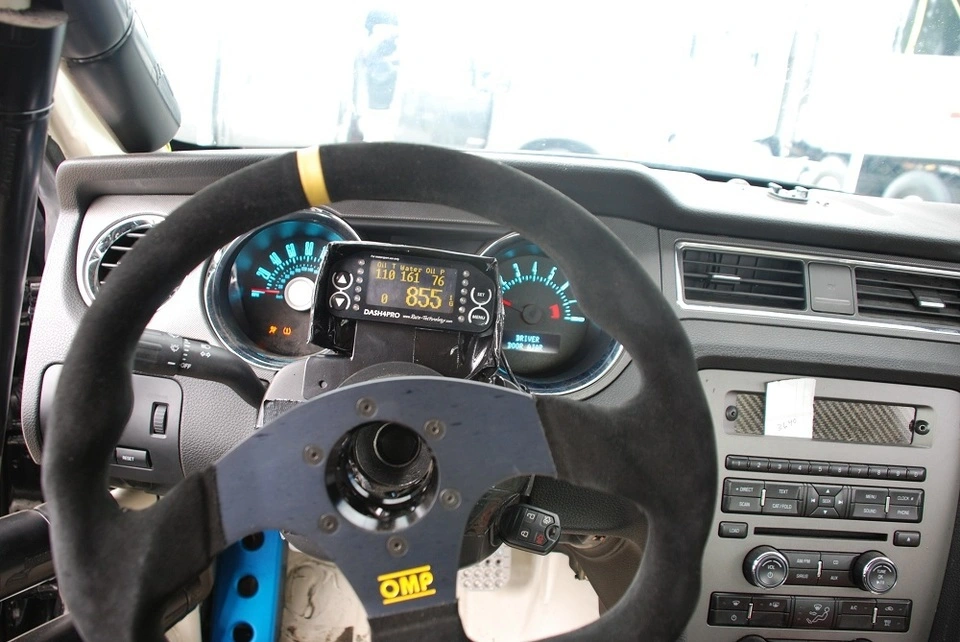

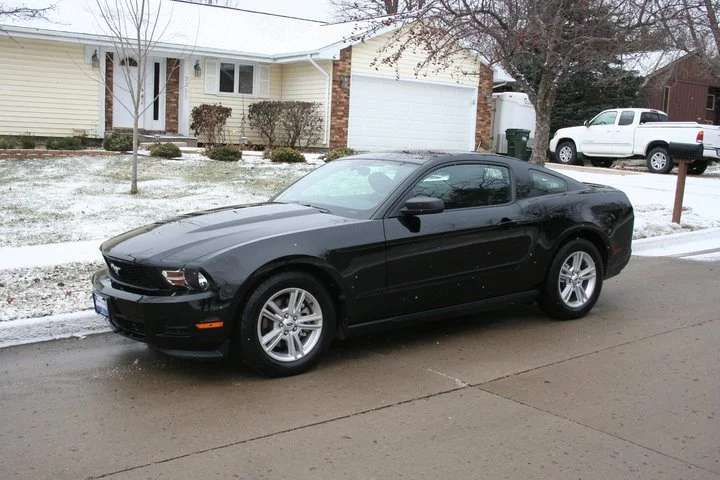

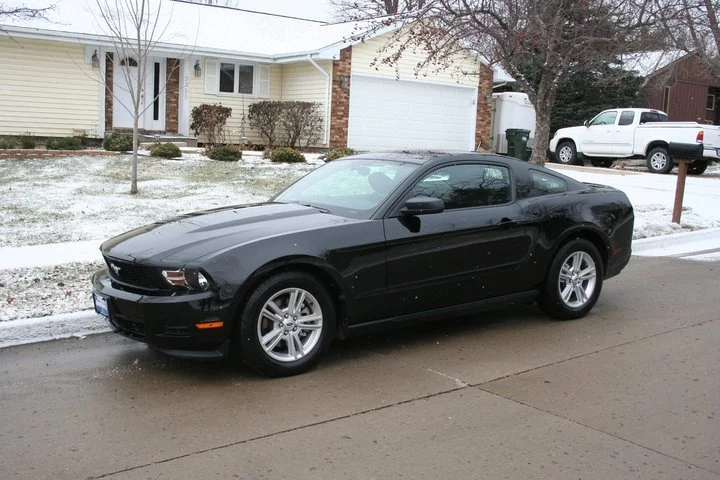

    It was on the road for about 100 miles, new from the dealership before it was doomed.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    #19
  20. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,157
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,553
    Trophy Points:
    174
    Location:
    Box behind Walmart
    I don't know how you expect to run a decent quarter mile without zoned climate control. :nonono:

    #20
    StreetsideStig likes this.
