Installing A Fuel Pressure Gauge

Discussion in 'Fox 5.0 Mustang Tech' started by golf4283, May 22, 2014.


  1. golf4283

    golf4283 Active Member

    Joined:
    May 31, 2003
    Messages:
    1,256
    Likes Received:
    1
    Trophy Points:
    39
    what's a decent adjustable one? I see holley has one at Summitt for $75.
    #21
  2. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,038
    Showcase:
    10
    Albums:
    1
    Likes Received:
    1,125
    Trophy Points:
    174
    Kirban, but if the Holley has a port for a gauge...
    #22
  3. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,038
    Showcase:
    10
    Albums:
    1
    Likes Received:
    1,125
    Trophy Points:
    174
    Hold the press, does Holley even make one for EFI?
    #23
  4. golf4283

    golf4283 Active Member

    Joined:
    May 31, 2003
    Messages:
    1,256
    Likes Received:
    1
    Trophy Points:
    39
    the holley doesn't I'm gonna get that adapter for the AN fittings and then get the holley adjustible. Anything that has a port for the gauge is like $150 or more.
    #24
  5. golf4283

    golf4283 Active Member

    Joined:
    May 31, 2003
    Messages:
    1,256
    Likes Received:
    1
    Trophy Points:
    39
  6. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,038
    Showcase:
    10
    Albums:
    1
    Likes Received:
    1,125
    Trophy Points:
    174
    Make sure whatever you get, it mates up to your rails. Some rails require a 2 bolt regulator, some a 3 bolt
    #26
  7. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,038
    Showcase:
    10
    Albums:
    1
    Likes Received:
    1,125
    Trophy Points:
    174
    Kirban over that one for sure
    #27
  8. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,038
    Showcase:
    10
    Albums:
    1
    Likes Received:
    1,125
    Trophy Points:
    174
  9. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,038
    Showcase:
    10
    Albums:
    1
    Likes Received:
    1,125
    Trophy Points:
    174
    #29
  10. Jarrod@latemodel

    Jarrod@latemodel Late Model Restoration Platinum Sponsor Premium Sponsor

    Joined:
    Nov 30, 1999
    Messages:
    637
    Showcase:
    48
    Likes Received:
    62
    Trophy Points:
    39
  11. golf4283

    golf4283 Active Member

    Joined:
    May 31, 2003
    Messages:
    1,256
    Likes Received:
    1
    Trophy Points:
    39
    Cool thanks guys. I'll take a look and see what route I want to go.
    #31
  12. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    3,468
    Likes Received:
    901
    Trophy Points:
    144
    fwiw, I would highly recommend against a fuel pressure gauge that mounts on the schrader valve. That is a fire waiting to happen. On most cars you set it and forget it. I have a Kirban FPR and when I need to check the pressure, I hook up a gauge to the schrader valve with a test gauge and then put the schrader valve back in.
    #32
  13. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,459
    Likes Received:
    338
    Trophy Points:
    134
    Fuel pressure gauge adapter fittings:
    http://www.holley.com/products.asp?product=17945NOS AN 4 to 1/16” pipe
    http://www.holley.com/products.asp?product=16785NOS 1/16” male pipe to 1/8” female pipe

    Or
    See http://www.autometer.com/cat_accessorieslist.aspx?pid=10

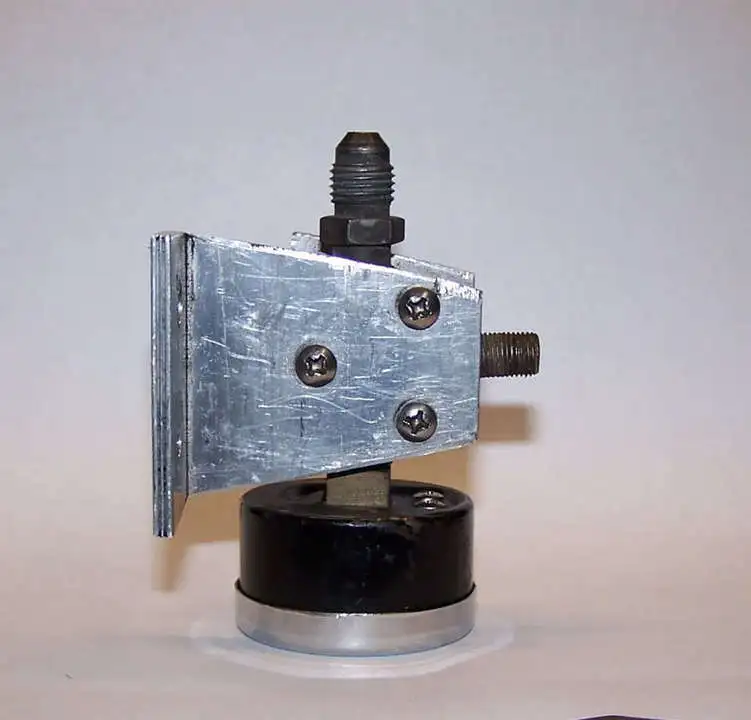

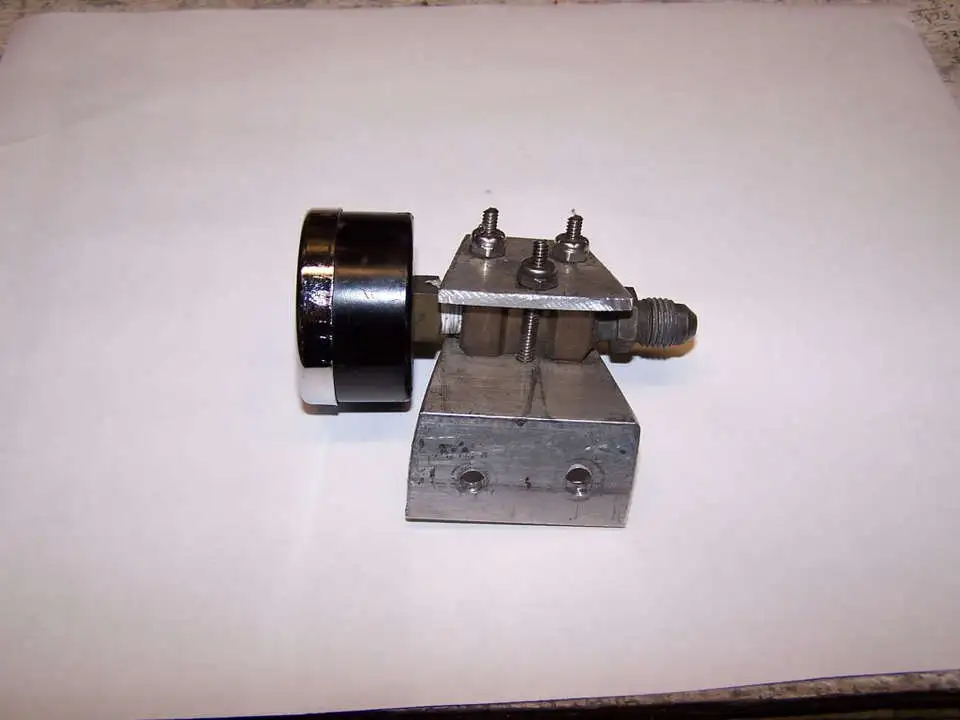

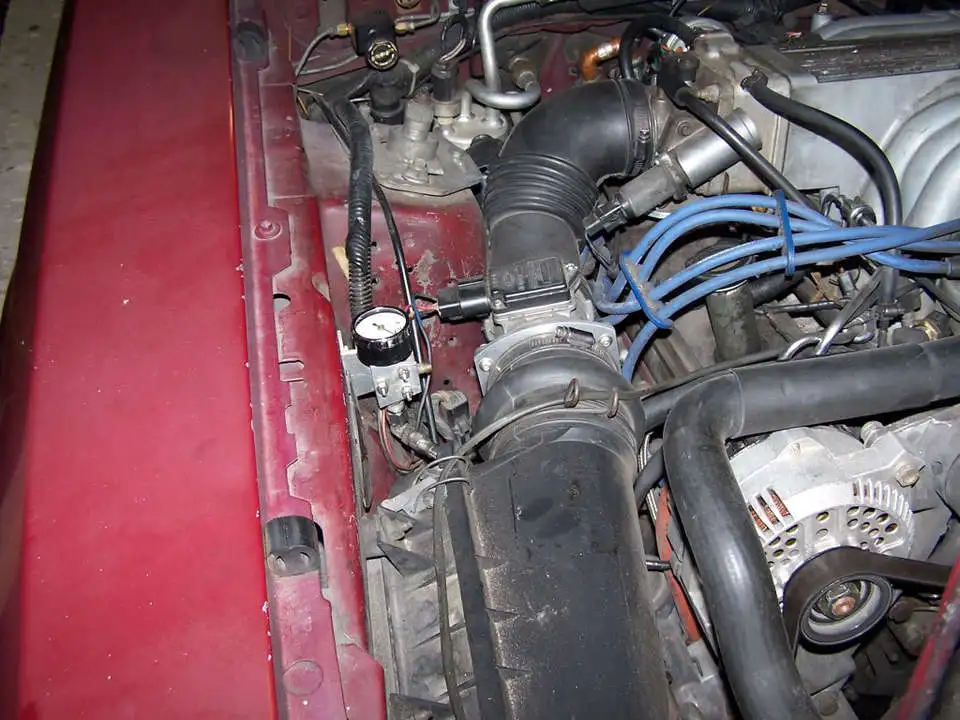

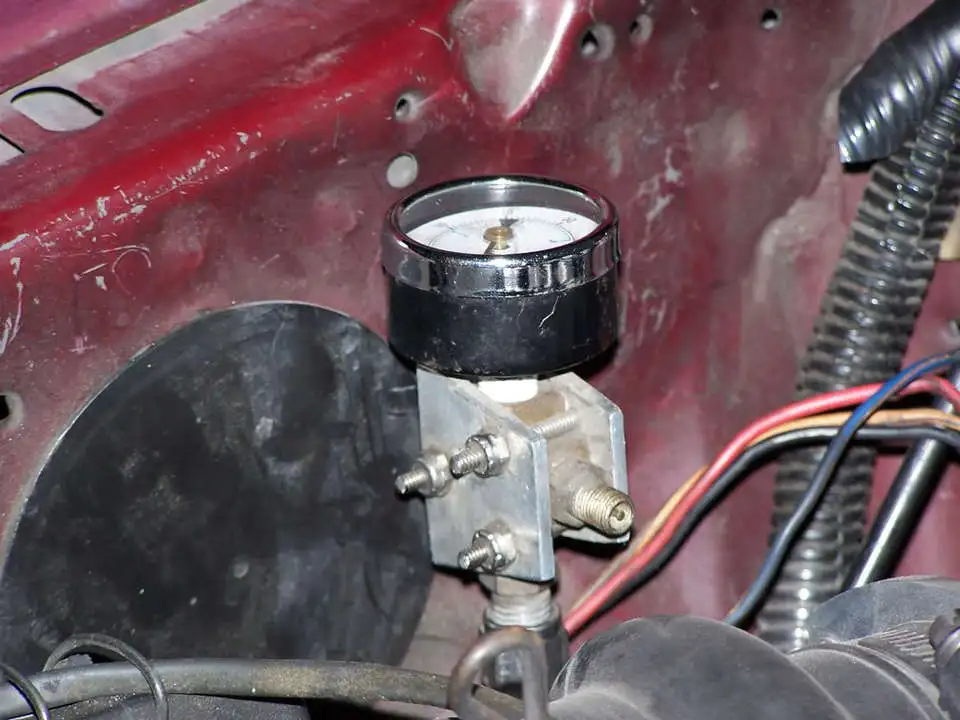

    I made my own pressure gauge and holder. I bought the NOS or Autometer adapter that you screw into the place on the fuel line where the schrader valve goes. You have to remove the Schrader valve, but save it, since you will reuse it. I ran a piece of SS (stainless steel) braided hose to a 1/8” pipe brass tee fitting that I mounted on the fender well by the MAF. I made a mount bracket out of aluminum angle I got from Home depot and bolted it to the fender well. Then I mounted the brass tee to it with some machine screws and a plate. I sandwiched the brass tee between the aluminum angle and a flat piece of aluminum that I trimmed off the extra aluminum angle. Three screws laid out in a triangle pattern go through both pieces of aluminum to clamp the tee in place. Put the Schrader valve in the spare port of the brass tee. I used a cheap industrial gauge from MSC Direct (http://www1.mscdirect.com/ P/N 56468499 ). Be aware that the gauge shown in the picture has a different scale from 0-60 PSI. It works great and was cheaper than (less than $9) anything Summit had.

    If you look through the MSC Direct catalog, you can find any type of gauge you want, including liquid filled. You only need a liquid filled gauge if you mount it directly on the engine. The liquid filling dampens out the vibrations.

    You can buy the Autometer Stainless Steel braided hose for like $60. Or a local shop that makes hydraulic hose assemblies can make it for you at a cheaper price. Ordinary low pressure hydraulic hose can be used in place of the Stainless Steel braided hose, the Stainless Steel braided hose just looks nice. I got mine for $4 at a place that sells industrial and military surplus parts of all kinds. The Stainless Steel braided hose goes for about $4+ a foot and the fittings are probably about $6-$10 each. You can make your own and save some $$$, the shops may have a setup or labor charge to fabricate the hose assembly.

    [​IMG]
    [[​IMG] [​IMG]
    [​IMG]

    Safety device to prevent major fuel loss in the event of a failure of the hose, fittings or gauge...
    [​IMG]
    Last edited: May 22, 2014
    #33
  14. jAEded

    jAEded Active Member

    Joined:
    Aug 12, 2013
    Messages:
    324
    Likes Received:
    13
    Trophy Points:
    29
    I put a fuel pressure gauge on the hard feed line behind the alternator. Actually the previous owner did. I put on a nice glycerin filled one after the chitty one broke... Its where the schrader valve used to go, but looks like the previous owner took it out and put in a 1/8 npt elbow which the gauge threads into.
    #34
  15. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,038
    Showcase:
    10
    Albums:
    1
    Likes Received:
    1,125
    Trophy Points:
    174
    Careful with them fuel gauges, see my recent mishap
    #35
  16. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    19,555
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,385
    Trophy Points:
    174
    I saw a lot of Madspeed posts in this thread.... Careful what he tells you about this topic. :runaway:
    #36
  17. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    19,555
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,385
    Trophy Points:
    174
    Too soon? :shrug:
    #37
    madspeed likes this.
  18. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,038
    Showcase:
    10
    Albums:
    1
    Likes Received:
    1,125
    Trophy Points:
    174
    Mother effer
    #38
  19. jAEded

    jAEded Active Member

    Joined:
    Aug 12, 2013
    Messages:
    324
    Likes Received:
    13
    Trophy Points:
    29
    Hahaha... What happened though. I missed it.
    #39
  20. 7991LXnSHO

    7991LXnSHO Active Member

    Joined:
    Sep 1, 2010
    Messages:
    1,042
    Showcase:
    5
    Albums:
    1
    Likes Received:
    84
    Trophy Points:
    49
    So I am fairly sure I have a gauge just installed where the Schrader valve was. What is the issue and can I fix it with hard fittings right in the area rather than with the remote line? @jrichker
    @madspeed How is it a fire problem more than a bike tube stem is already?
