Installing caster camber plates...

Discussion in 'Fox 5.0 Mustang Tech' started by BYRDPE, Mar 9, 2008.


  1. BYRDPE

    BYRDPE Founding Member

    Joined:
    Nov 4, 1998
    Messages:
    1,559
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Memphis,Tn.
    I'm about to install a set of caster camber plates and I am wondering how do I install them so they are aligned as close as possible from the get go.
    Also, does anyone have alignment procedures that I can do to set the caster/camber?
    I don't know any shops locally that will touch aligning my car with these?
    What have you done to get yours aligned?

    Thanks
    #1
  2. BK_CAULEY

    BK_CAULEY it's built for speed not longevity, woman

    Joined:
    Dec 26, 2006
    Messages:
    1,764
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Thomasville, ga
    the tie rods wont let it toe in and toe out on you so thats a plus and as far as seting the pitch for the camber use tape measure. measure the top of the strut nut in relivence to the other one (or any set point) then when you install your plates make sure the nut is back in the same measured position and you should be good to go. and jsut repeat process for the other side.
    #2
  3. BYRDPE

    BYRDPE Founding Member

    Joined:
    Nov 4, 1998
    Messages:
    1,559
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Memphis,Tn.
    Do you mean measure the thread length that's protruding past the strut nut?

    Thanks
    #3
  4. rockytoohot

    rockytoohot New Member

    Joined:
    Jan 22, 2007
    Messages:
    48
    Likes Received:
    0
    Trophy Points:
    0
    Unless you get the top of the strut in the exact spot it was, your caster, camber and toe will likely all be out. Even though you didn't move you tie-rods, any time camber changes, toe changes. Any good alignment shop should do your alignment since adding the plates makes the alignment easier to complete and more accurate adjustments can be made.
    #4
  5. BK_CAULEY

    BK_CAULEY it's built for speed not longevity, woman

    Joined:
    Dec 26, 2006
    Messages:
    1,764
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Thomasville, ga
    no measuring the position of the nut itself. measure it form any givin position on the car. a reference point. if need be i will MSpaint you something to show what im talking about
    #5
  6. ALMOST STOCK

    ALMOST STOCK Founding Member

    Joined:
    Sep 23, 2000
    Messages:
    1,249
    Likes Received:
    4
    Trophy Points:
    38
    Location:
    CA.
    I believe what BK_CAULEY is talking about Triangulation.
    In my case when I replace my C?C plates I use the center of the shaft of Strut sticking past the nut that hold the strut into place.
    Measure say from the center of the hole in the pinch weld to the center of the strut, and then take another measurement say from the center of the radiator cap to the center of the strut,and the take one more measurement say from the center of one strut to the center of the other strut.

    Measure from points that you know won't move when taking your measurements and make suture you write them down.
    #6
  7. BYRDPE

    BYRDPE Founding Member

    Joined:
    Nov 4, 1998
    Messages:
    1,559
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Memphis,Tn.
    Please do...
    Thanks
    #7
  8. BK_CAULEY

    BK_CAULEY it's built for speed not longevity, woman

    Joined:
    Dec 26, 2006
    Messages:
    1,764
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Thomasville, ga

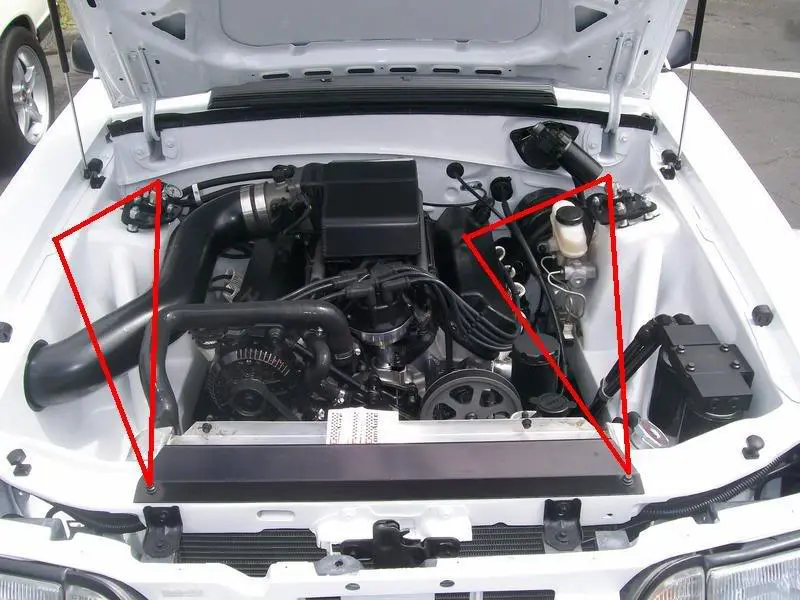

    something like this. you can also use strings just tape them to set points and cut them to fit the point on top of the shock tower.

    [​IMG]
    #8
  9. BYRDPE

    BYRDPE Founding Member

    Joined:
    Nov 4, 1998
    Messages:
    1,559
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Memphis,Tn.
    Ok...got it now.
    Thanks man...much appreciated.
    BTW...that's a sweet engine bay. :nice:
    #9
  10. Roland69

    Roland69 Sergeant Tangnet

    Joined:
    Sep 17, 2005
    Messages:
    3,102
    Likes Received:
    3
    Trophy Points:
    58
    Location:
    Port Elgin, Ontario
    caster and camber will effect your tow.. and your car will pull to the side with more positive caster. just take lots of measurments before you take stuff apart and you should be ok. I do reccomend having an alignment done afterwards. Maby see if you can be there if you want it done a certain way.
    #10
